Pentair Nautilus FNS D.E. Parts

Replacement Parts for Pentair Purex Triton Nautilus FNS FIBERGLASS D.E. FILTER MODELS FNS 24, FNS 36, FNS 48, FNS 60

Click to zoom in

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)

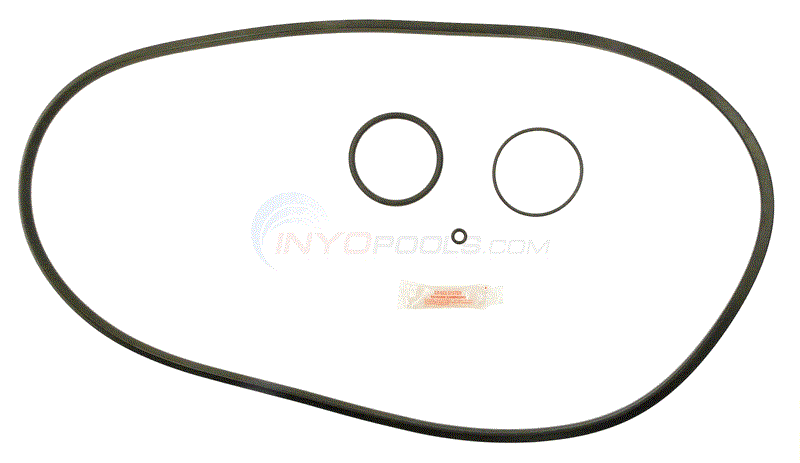

**	Pentair FNS Filter O-ring Kit
*	2" Slide Valve for Pentair DE and Sand Filter - Black - 263064
1A	AIR RELIEF ASSEMBLY
2	O-RING, BULKHEAD 2IN (334)
3	SPACER, TOP-BLACK
4	SPACER
5	LOCKNUT, INTERNAL 2IN
7	GRID, MANIFOLD WITH EXTENSION

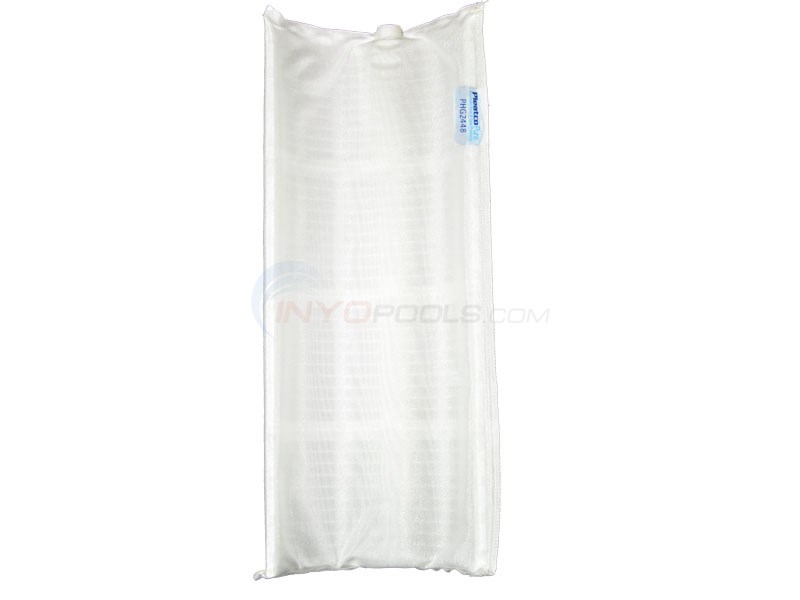

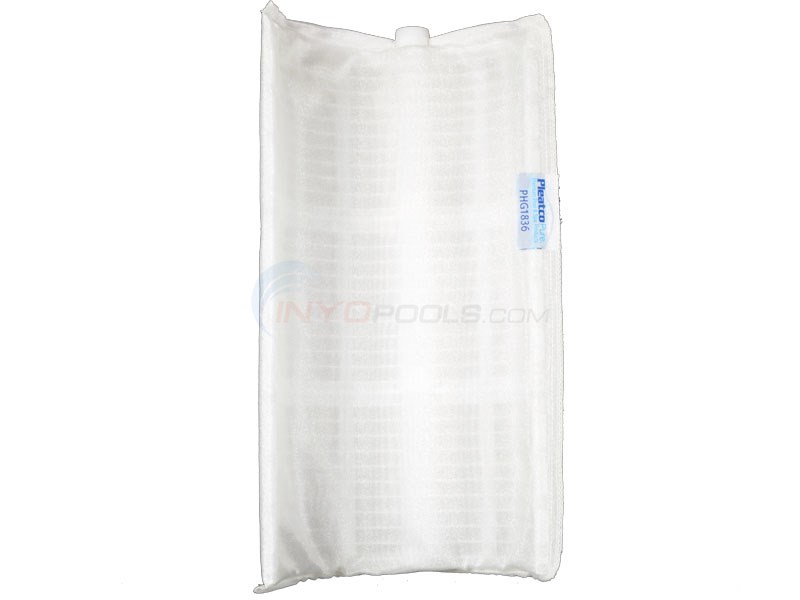

8	FILTER, GRID 12" (24 SQ.FT.)
9	FILTER, GRID 12" (24 SQ.FT.)
10	O-RING

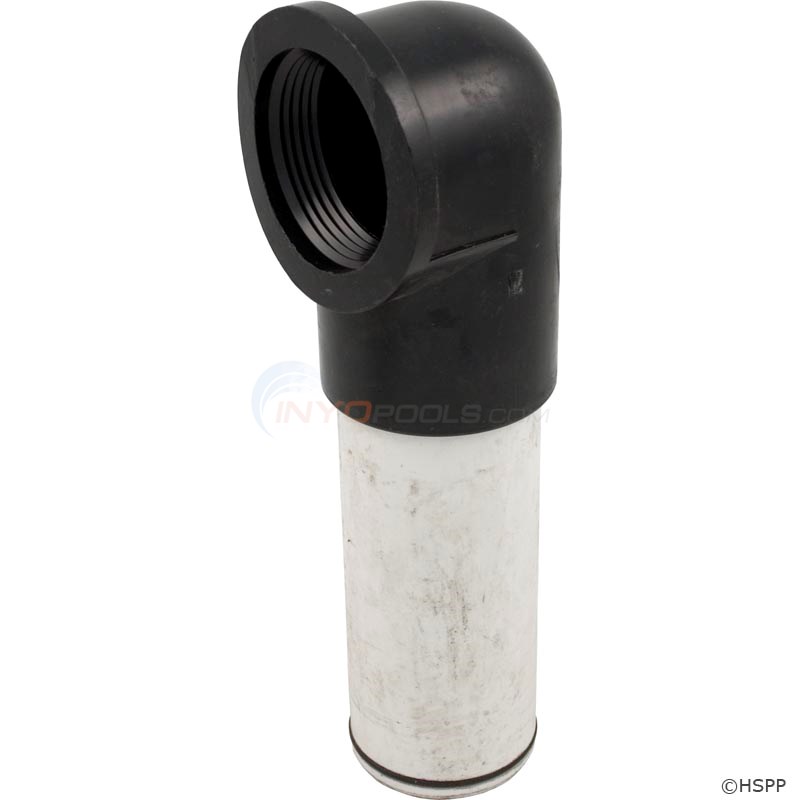

11	PIPING ASEMBLY, UPPER FNS24
12	BAND ASSEMBLY AFTER 3/93
13	O-RING, TANK
14	RETAINER, TANK SEAL 15/16"HI S.S.

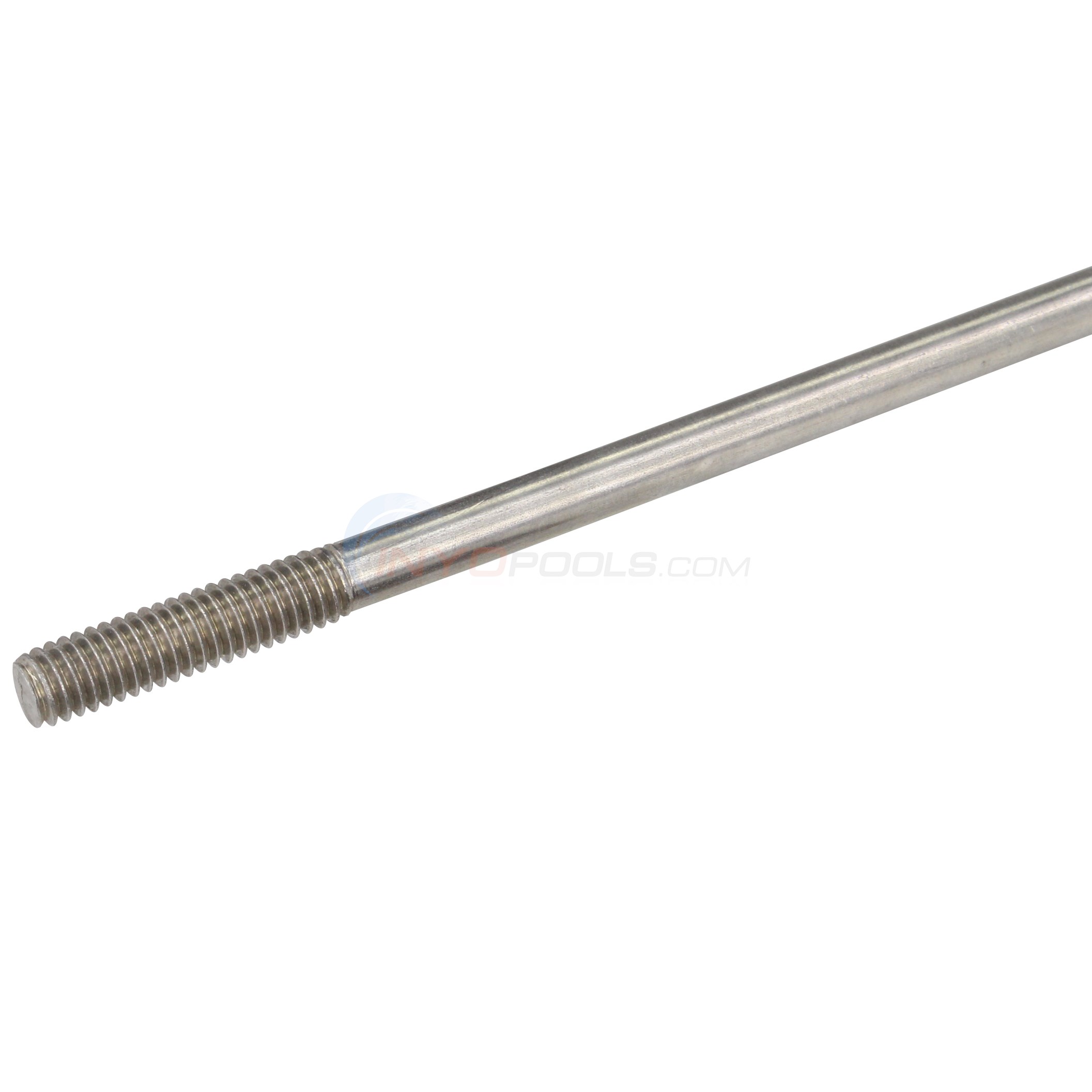

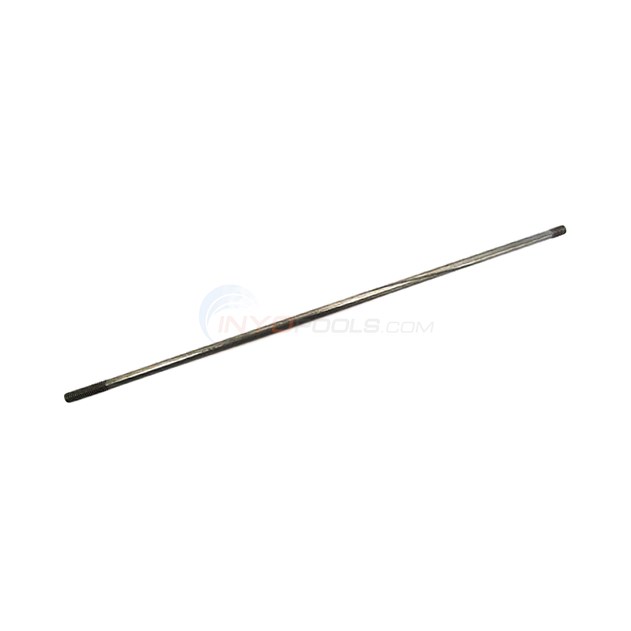

16	ROD, 5/16"X13" LONG FNS24
20	SPACER, EXTERNAL 2IN
21	O-RING, BULKHEAD (145 before 10/04)
22	BULKHEAD, 2" WITH GROOVE
23	O-RING, VALVE ADAPTER (4620-529)
24	FOOT
25	PLUG, 2" NPSM
26	PIPING ASSY., LOWER
27	ADAPTOR, 6" BUTTRESS - BLACK
28	O-RING
29	WASHER, POLYETHYLENE
30	LOCKNUT, INTERNAL 2IN
31	NUT, 5/16"

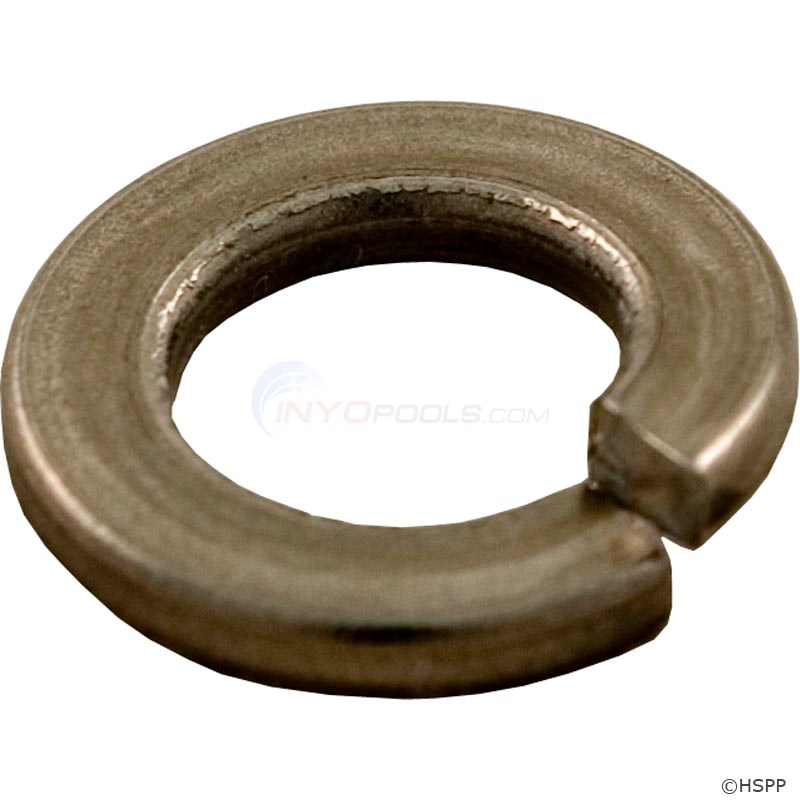

32	WASHER, 5/16" SS LOCK

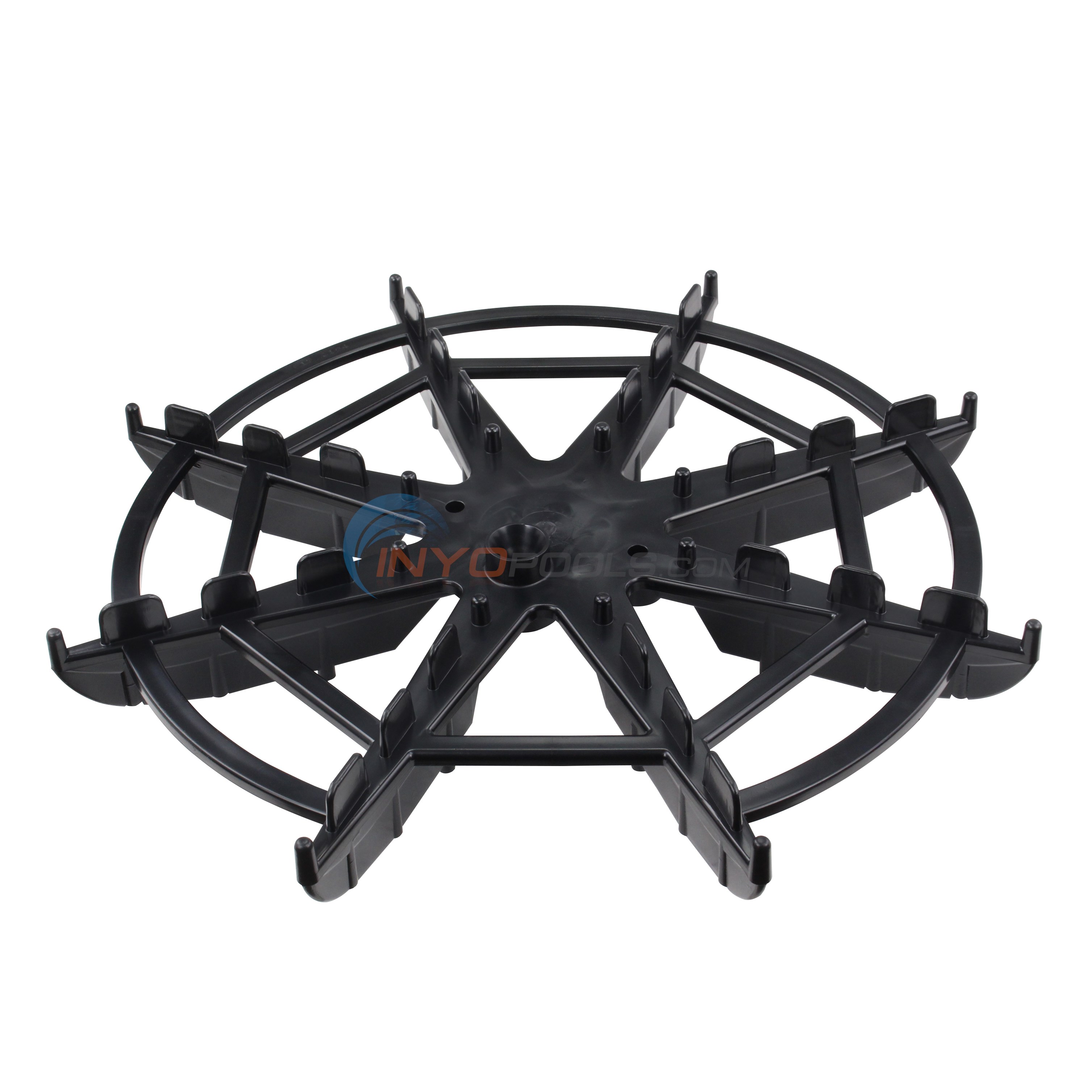

33	RETAINER, GRID
34	WASHER, 1" OD, 5/16" ID, 1/8" THICK
35	SPRING FOR FNS/INS FILTERS
36	WASHER, 1-3/16" OD, 9/16" ID, 1/8" THICK
37	NUT, MACHINED (194997)

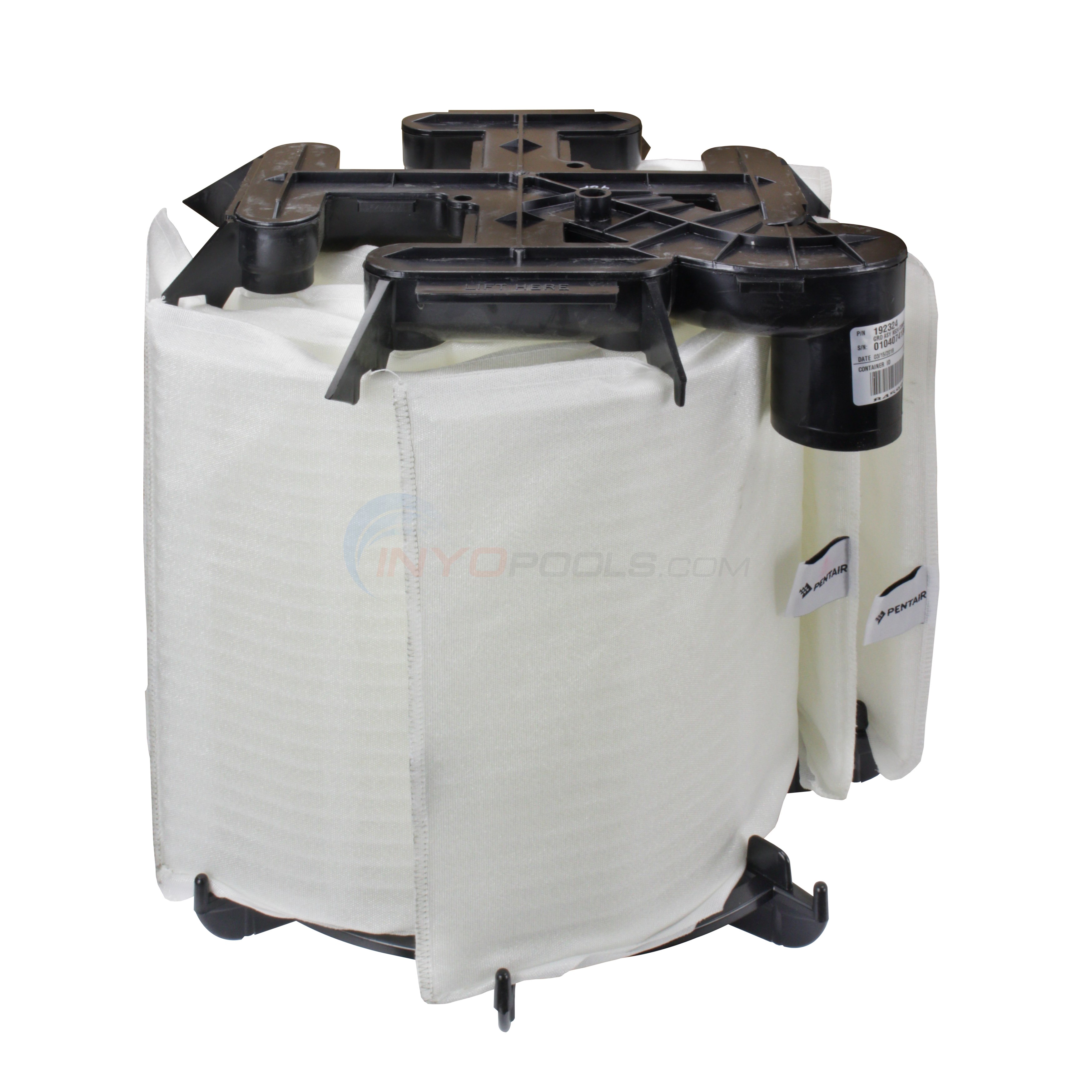

38	Grid Assembly FNS24
39	STRAINER, AIR RELIEF 3/4IN
40	OBSOLETE BRACKET SUPPORT
42	AIR BLEEDER With O-RING
43	O-RING, BLEEDER
44	CAP
45	GAUGE PRESS With INDICATOR REAR MOUNT
46	O-RING, BULKHEAD 2IN (334)

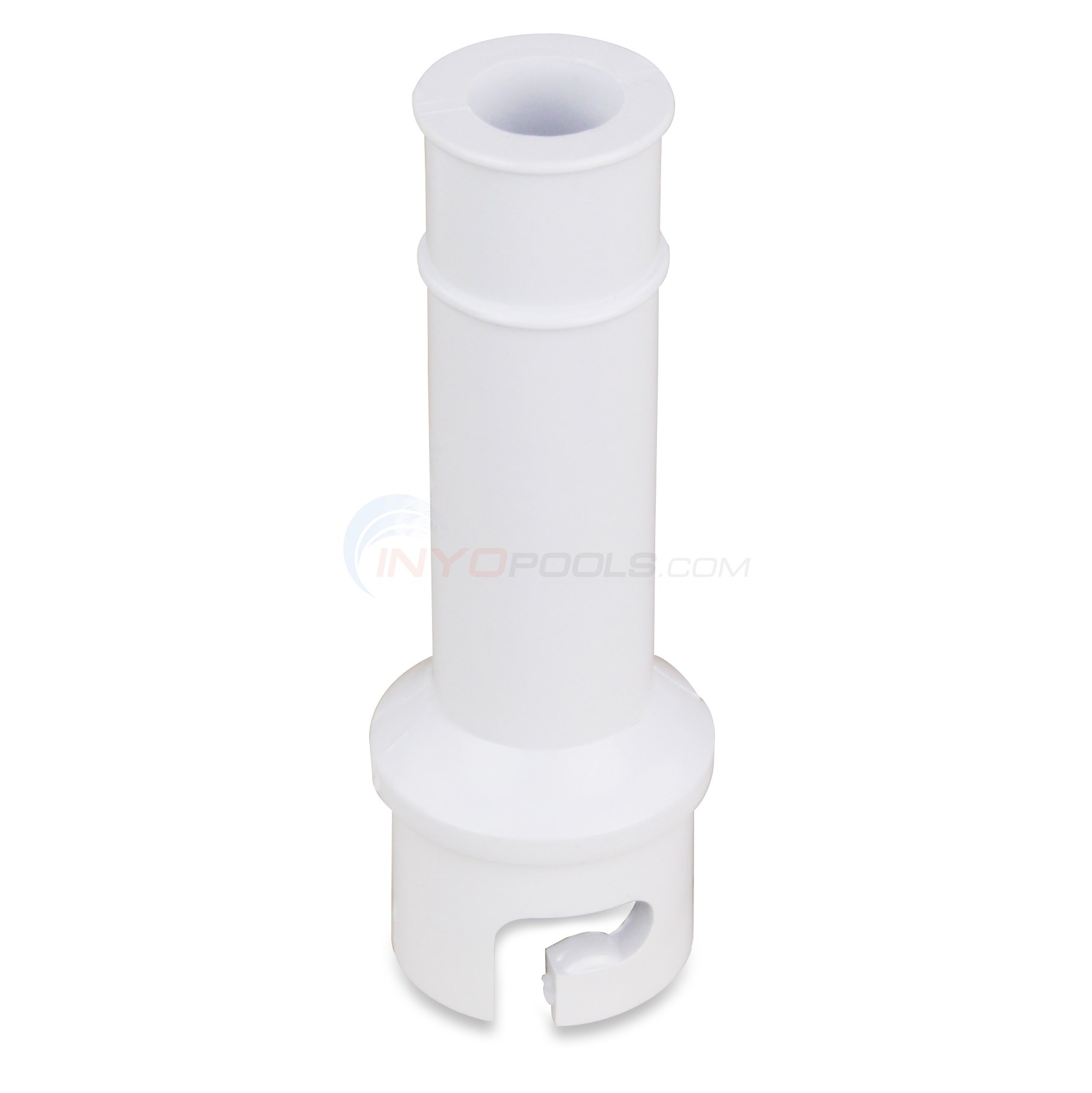

47	EXTENSION F/4600-2173 (192173) MANIFOLD
*	OBSOLETE WRENCH, 2" BULKHEAD
*	VALVE,SM With PLUMBING 1 1/2" P.F. D.E.
