Waterway 2" Top Mount, Smart Clean Sand, WVS004 Parts

USED ON THE SMART CLEAN SAND FILTER

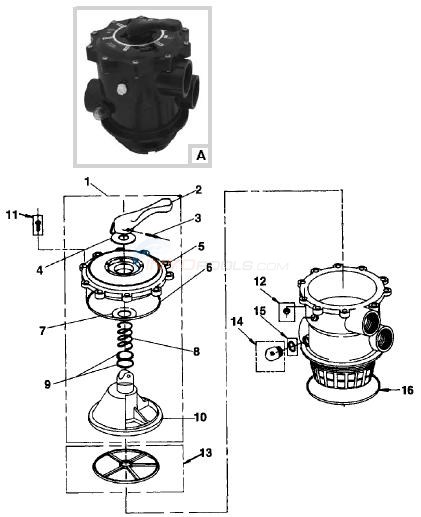

Waterway 2" Top Mount, Smart Clean Sand, WVS004 Diagram

Click to zoom in

Diagram #	Part Title
A	MULTIPORT VALVE, TOP MOUNT SAND, 1-1/2" FPT, CLAMP STYLE
1	TOP ASSY., VALVE 2" BLACK
2	HANDLE (E-1-S1 1 1/2")
3	PIN FOR HANDLE
4	WASHER, HANDLE
5	COVER 2" - BLACK
6	O-RING, LID
*	COVER LABEL ONLY
7	WASHER, VALVE SPRING
8	SPRING
9	O-RING, VALVE STEM
10	DIFFUSER, 2" VALVE
11	SCREW TOP VALVE (SAMPLE S-20)
12	NUT
13	GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)
14	SIGHT GLASS
15	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
17	VALVE TO FILTER O-RING
*	1/4" PLUG WITH O-RING
*	1/4" PLUG WITH O-RING

View Parts List

Diagram #	Part Title
A	MULTIPORT VALVE, TOP MOUNT SAND, 1-1/2" FPT, CLAMP STYLE
1	TOP ASSY., VALVE 2" BLACK
2	HANDLE (E-1-S1 1 1/2")
3	PIN FOR HANDLE
4	WASHER, HANDLE
5	COVER 2" - BLACK
6	O-RING, LID
*	COVER LABEL ONLY
7	WASHER, VALVE SPRING
8	SPRING
9	O-RING, VALVE STEM
10	DIFFUSER, 2" VALVE
11	SCREW TOP VALVE (SAMPLE S-20)
12	NUT
13	GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)
14	SIGHT GLASS
15	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
17	VALVE TO FILTER O-RING
*	1/4" PLUG WITH O-RING
*	1/4" PLUG WITH O-RING

Available Parts:

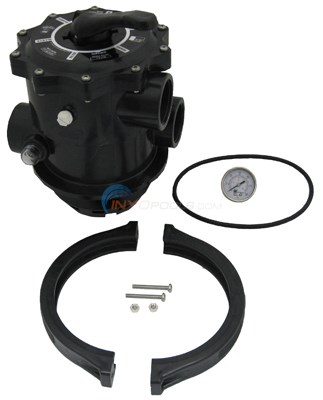

MULTIPORT VALVE, TOP MOUNT SAND, 1-1/2" FPT, CLAMP STYLE

Part # 4742-016 Mfg # WVS004

MULTIPORT VALVE, TOP MOUNT SAND, 1-1/2" FPT, CLAMP STYLE

$171.11

VALVE, TOP MT. FLANGED T-300BP

Part # 4684-10A Mfg # TM-22-L

VALVE, TOP MT. FLANGED T-300BP

$213.23

TOP ASSY., VALVE 2" BLACK

Part # 4602-1152 Mfg # E-50-S2B

TOP ASSY., VALVE 2" BLACK

$94.99 IN STOCK

Qty:

HANDLE (E-1-S1 1 1/2")

Part # 4600-1156 Mfg # E-1-S1

HANDLE (E-1-S1 1 1/2")

$16.89 IN STOCK

Qty:

PIN FOR HANDLE

Part # 4700-02X Mfg # E-2-S1

PIN FOR HANDLE

$4.25 IN STOCK

Qty:

WASHER, HANDLE

Part # 4600-1157 Mfg # E-3-S1

WASHER, HANDLE

$12.82 IN STOCK

Qty:

COVER 2" - BLACK

Part # 4600-1169 Mfg # 271169

COVER 2" - BLACK

$122.88

O-RING, LID

Part # 4742-27 Mfg # 805-0254

O-RING, LID

$20.82

COVER LABEL ONLY

Part # 4602-03 Mfg # E5-T2

COVER LABEL ONLY

$21.31

WASHER, VALVE SPRING

Part # 4600-1160 Mfg # E-8-S1

WASHER, VALVE SPRING

$11.84 IN STOCK

Qty:

SPRING

Part # 4600-1161 Mfg # E-9-S1

SPRING

$12.97 IN STOCK

Qty:

O-RING, VALVE STEM

Part # 4700-08A Mfg # 212

O-RING, VALVE STEM

$3.25 IN STOCK

Qty:

DIFFUSER, 2" VALVE

Part # 4600-1168 Mfg # E-11-S2

DIFFUSER, 2" VALVE

$25.18 IN STOCK

Qty:

SCREW TOP VALVE (SAMPLE S-20)

Part # 4600-1138 Mfg # E-4-S1

SCREW TOP VALVE (SAMPLE S-20)

$11.43

NUT

Part # 4600-1139 Mfg # E-14-S1

NUT

$7.32 IN STOCK

Qty:

GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)

Part # 4600-1148 Mfg # E-12-S-2

GASKET, DIVERTER 2IN 5-SPOKE (E-12-S 2") (271148)

$15.43 IN STOCK

Qty:

SIGHT GLASS

Part # 4600-1107 Mfg # E-17-S1

SIGHT GLASS

$17.88 IN STOCK

Qty:

GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

Part # 4600-1106 Mfg # E-16-S1

GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

$5.43 IN STOCK

Qty:

VALVE TO FILTER O-RING

Part # 4742-156 Mfg # 805-0442

VALVE TO FILTER O-RING

$11.71 IN STOCK

Qty:

1/4" PLUG WITH O-RING

Part # 4600-1137 Mfg # E-15-S1

1/4" PLUG WITH O-RING

$9.63 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

1/4" PLUG WITH O-RING

Part # 4600-1137 Mfg # E-15-S1

1/4" PLUG WITH O-RING

$9.63 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

* NOT SHOWN
