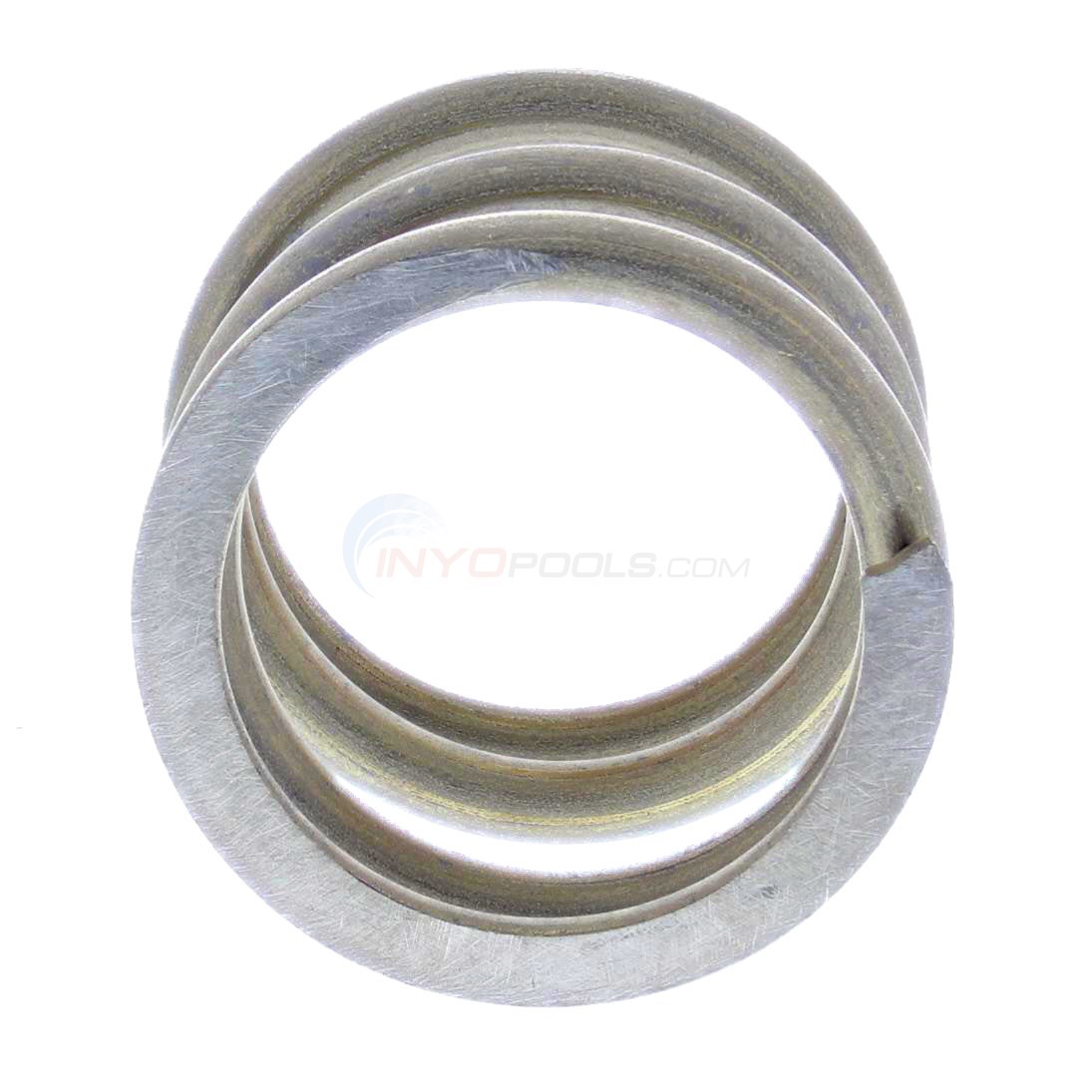

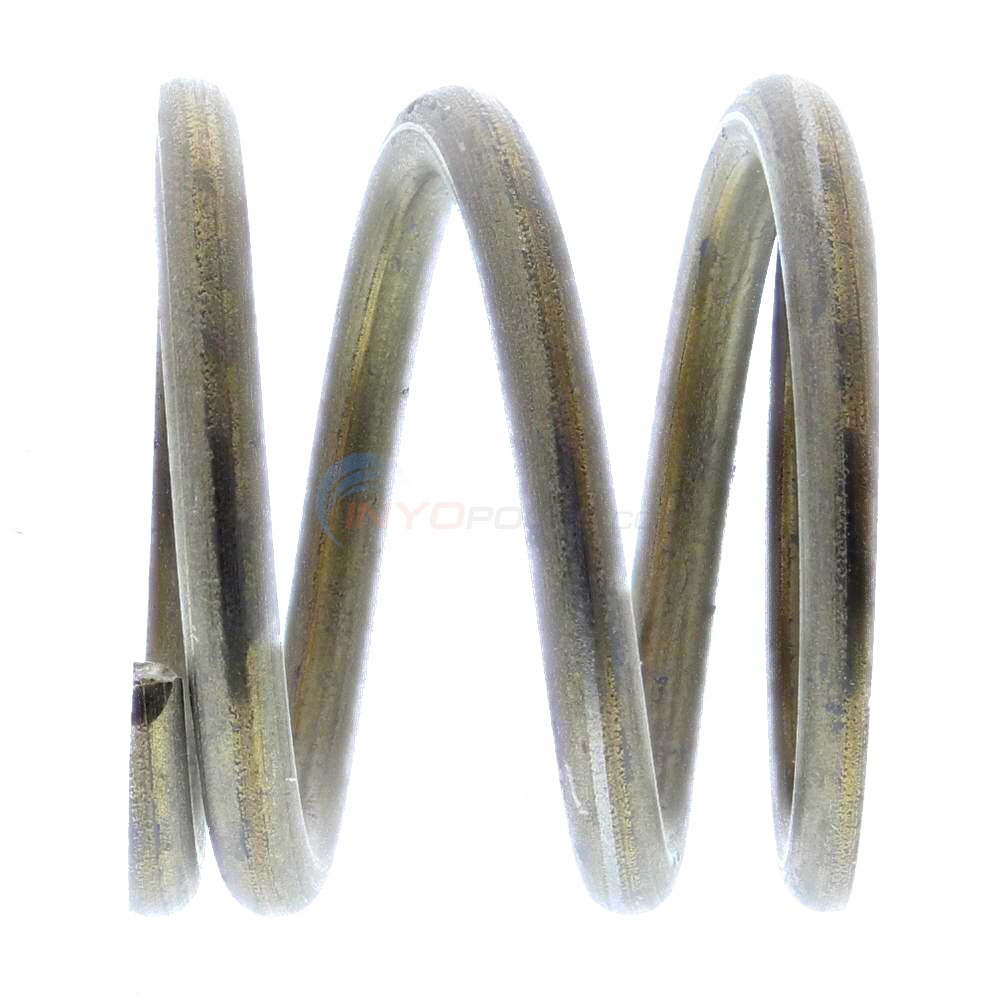

Spring (e-9-s1)

$12.23

IN STOCK

Part # 4600-1161

By Praher

  4.67 Average

Details

Top

Part # 4600-1161

Manufacturer Code E-9-S1

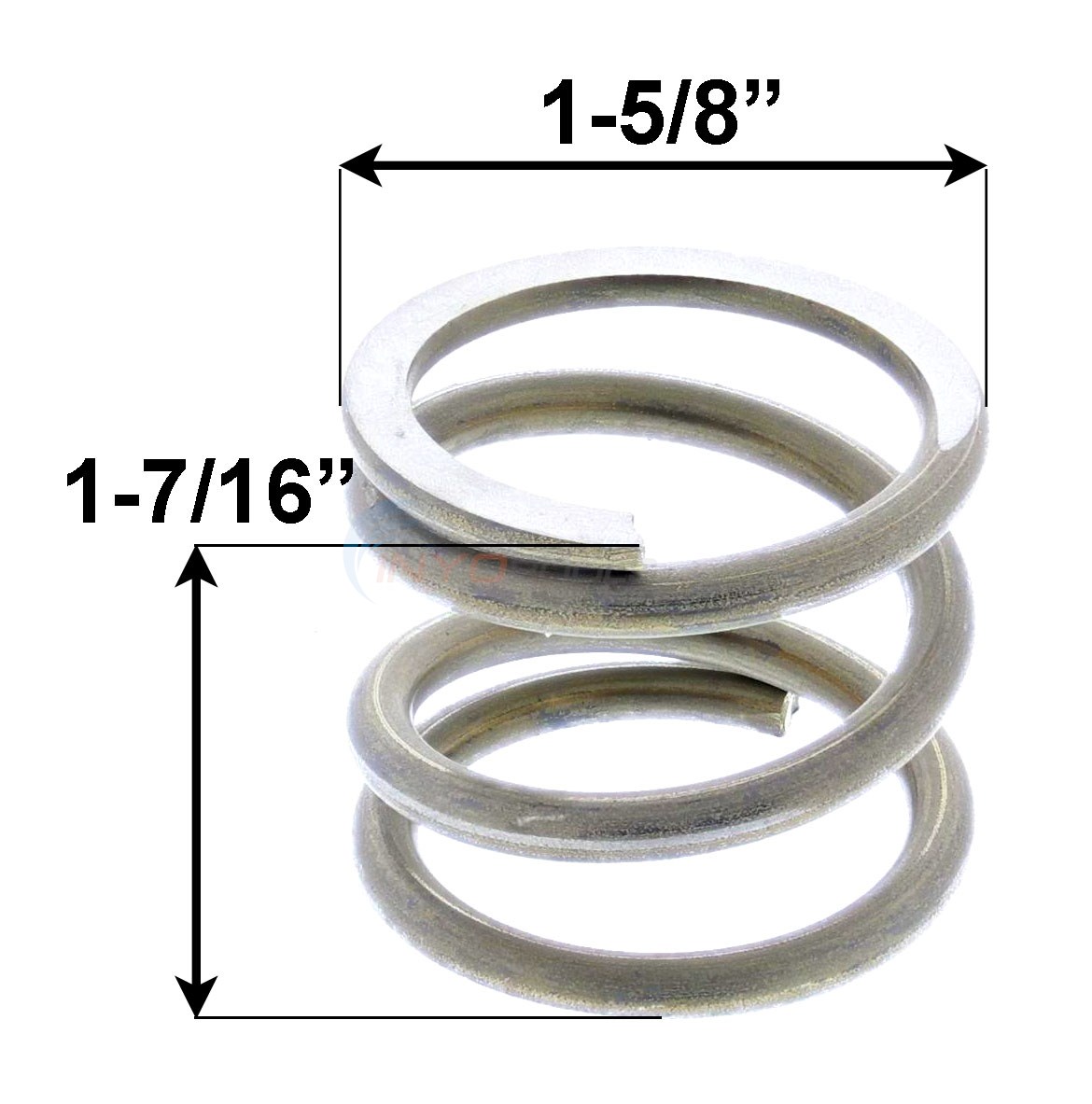

Dimensions 1-5/8" x 1-7/16"

Alternate Part #'s 1126, 14971SM10E9, 16109209R, 27-253-1042, 271161, 730000E9T1, E9S1, PCPE-9-S1, PRE9S1

Product Description

Spring

Top

?     Asked on 1/11/2021by John

Hello, Is this spring compatible with Pentair SM 20-3? Thanks, John
 Reply

A  Answered on 1/13/2021 by InyoPools Product Specialist Joe S.

Hello John, yes this will work for PARTS on JACUZZI VALVE MODEL#39-2586-03,AND MILLENIUMMODELS SHOWN ARETM22 (261185 PAC FAB) TOPMOUNTSM20 (261055 PAC FAB) SIDEMOUNT SANDSM20 (261152 PAC FAB) SIDEMOUNT DE
 Reply


?     Asked on 9/3/2020by Liberty Riggs

Is this the same spring as the Pentair SM20-2?
 Reply

A  Answered on 12/18/2020 by InyoPools Product Specialist Hector F.

Hi Liberty, yes this spring is compatible with the Pentair/Praher SM20 series multiport valve.
 Reply


?     Asked on 7/27/2020by Ron Wilhelm

Does this spring replace the one in SM10-2D.E multi-port valve?
 Reply

A  Answered on 10/27/2020 by InyoPools Product Specialist Hector F.

Hi Ron, yes this spring is compatible with the Pentair/Praher multiport valve model SM10-2.
 Reply


?     Asked on 6/22/2018by Inyo Visitor

Will Spring #4600-1161 fit Purex Triton filter Model SM-20-3
 Reply

A  Answered on 6/23/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Spring - 4600-1161 will fit the SM-20-3 valve.
 Reply


?     Asked on 3/31/2018by mloz

My handle is loose, there is barely any resistance when trying to change setting. Is this a spring issue?
 Reply

A  Answered on 4/3/2018 by InyoPools Product Specialist Hector F.

What you are describing is most commonly due to a spring failure in a multiport valve.
 Reply


?     Asked on 5/25/2016by TAMMY

will this spring fit SM-20-2 SERIAL # 293? we have water leaking from blue hose when in filter position. Do you think we need a new handle as well?
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Hi Tammy, Yes this is the correct spring for the SM-20-2 valve. If you have water leaking out the backwash hose then it is typically the Spider Gasket and this Spring which will need to be replaced.
 Reply


?     Asked on 6/22/2015by Don pucci

I have a TM-22. Replaced spider gasket but i still get some weepage out backflow pipe when in filter mode. In addition, the handle which used to snap down vigorously into slot on filter head doesnt... Suspect weak spring... It is rusted ... L you agree.
 Reply

A  Answered on 6/22/2015 by InyoPools Product Specialist Dennis R.

Hi Don, Sounds right. A weak handle and weepage are good indicators of a damaged spring. Here is a link to our guide on " How To Replace a Pool Multiport Valve Spring"
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, C-clamp or vise

Filter was not filtering very well. Water was cloudy..

Written on 8/17/2022 by Guest

There is a spring under the handle that keeps tension against the diverter gasket. Over time this spring looses its strength and does not hold properly against the diverter gasket. Simply remove the screws on the diverter valve cover. After removing the cover you need to remove the pin that holds the handle to the cover …The handle is under tension so you have to compress the top in order to remove the pin. I placed the cover in a vise that I have to compress it and then the pin came out easily with a small tap from a screw driver that a placed against the pin..After removing the pin the handle removes easily and you can get to the spring. Simply replace the spring with the new one and be sure to replace the two spacers that are on the shaft. You then need to compress the top cover again in order to replace the handle
. This is where I used my vise but you could use a c- clamp or another means that you figure out to compress the spring. Once compressed replace the handle then the pin. Now, replace the cover on the valve , replace the screws and you are done. Do not over tighten the screws. The Inyopools spring fit perfectly on my Pentair TM-12A 6 way valve. After installation my filter worked perfectly and my water cleared up nicely…

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Hammer, nail punch

Valve handle difficult to turn

Written on 8/2/2022 by Guest

Removed cover and used a punch and hammer to hammer pin holding in handle. Cleaned all parts and reassembled with new spring. Like new!

Were these instructions helpful?


Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Adjustable Wrench

Replace torn multi-valve spyder gasket and worn spring

Written on 6/9/2022 by Guest

1) Remove top of diverter valve.
2) Remove spyder gasket. This proved to be very tedious and time consuming since factory had glued entire gasket seat onto the valve head.
3) After making sure all of prior gasket and adhesive was removed, strategically glue and reinsert new gasket. Apply silicone lubricant to gasket.
4) Replace all additional parts to be replaced. Handle washer, spring, spring washer, 2 O-rings.
5) Reattach valve head.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers, Wrench Set

Valve hard to turn

Written on 8/10/2020 by Guest

Pushed out the pin. Lowered the shaft and replaced this washer along with a new gaskets for the shaft.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver

3     0

The multiport valve spring was corroded to the point that it no longer was able to seat the valve.

Written on 4/6/2017 by Guest

1. Remove the screws holding the valve mechanism onto the valve body. Remove the mechanism from the body
2. Inspect the 'o' ring between the two valve parts, the spider gasket, and other parts for wear. (I had to purchase a new spider gasket at a local store. I should have purchased a repair kit from Inyo instead of just a spring.)
3. (After replacing the spider gasket, which was a separate and more involved job), reassemble the valve with the new spring. Get a friend to insert the pin in the handle while you compress the spring in the partly assembled mechanism. This requires three hands or, if you plan ahead like I didn't, a rig to hold the mechanism in a compressed position while you insert the pin yourself. The instructions that came with the valve include a suggested design for such a rig.
4. Reassemble the valve, making sure that the 'o' ring is properly set in place. Tighten the screw in an alternating pattern.

In my case, I had to clean out the remnants of the old spider gasket and glue the new one in place with silicone cement. I put the valve in the 'filter' position to hold the gasket in place, and did not put water through the valve for 24 hours.

5. Restart the pump per manufacturer's recommended procedure.

Were these instructions helpful?
