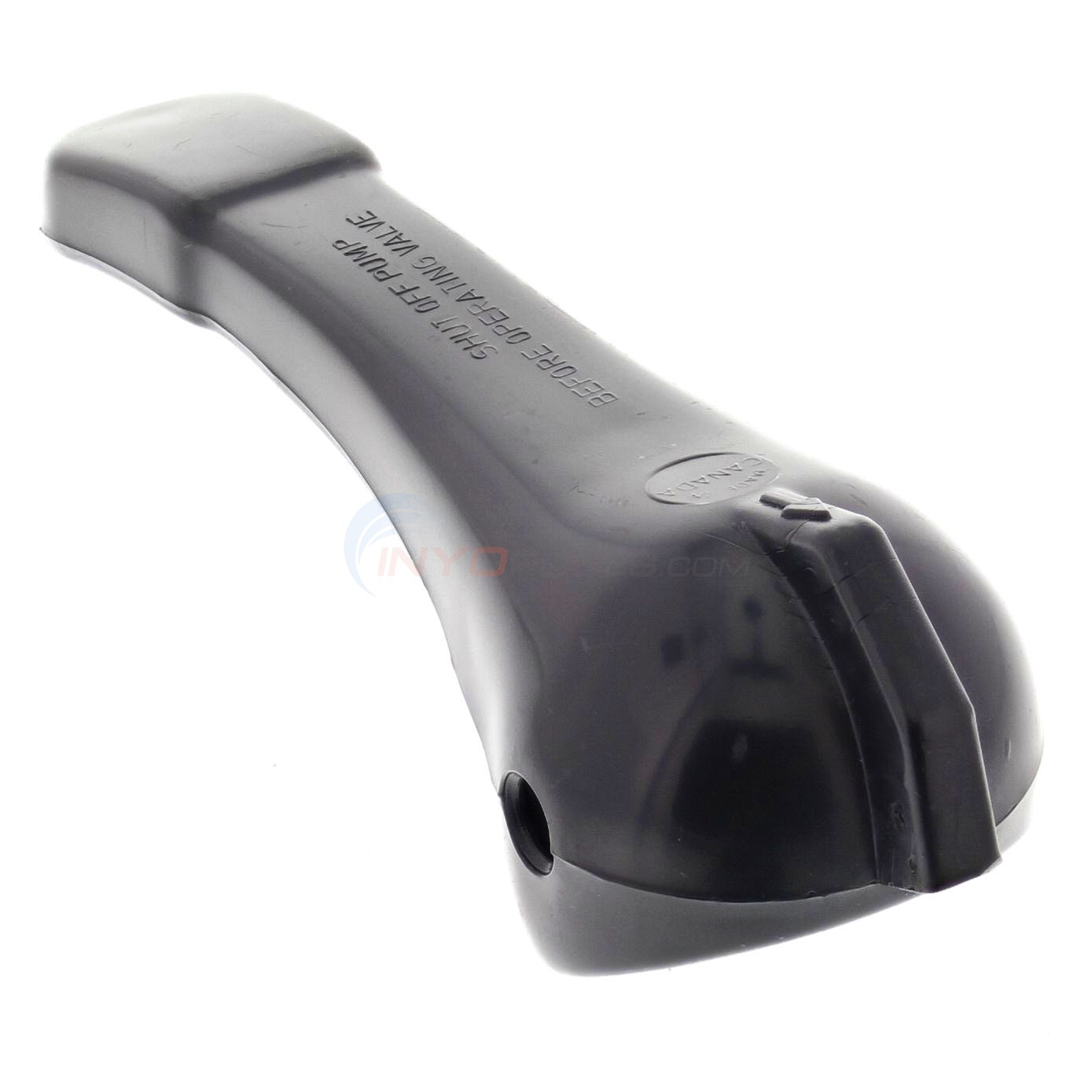

Baker Hydro Valve Handle E-1-S1

$11.21

IN STOCK

Part # 4600-1156

By Praher

  5 Average

Details

Top

Part # 4600-1156

Manufacturer Code E-1-S1

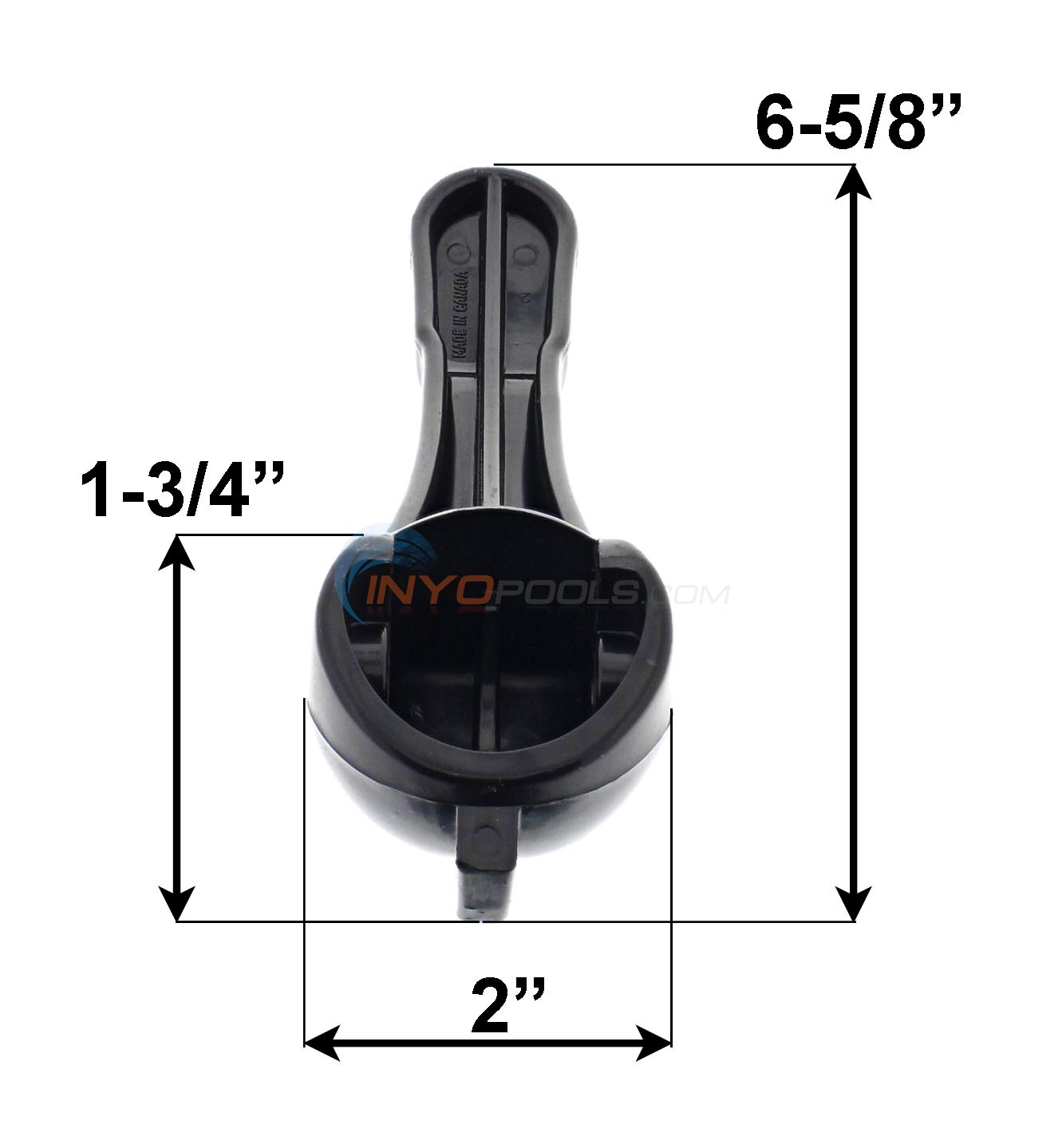

Dimensions 6-5/8" x 2"

Alternate Part #'s 1115, 14971SM10E1, 2603102010, 271156, 39261102R, E1S1, PRE1S1, 27-253-1000

Product Description

Baker Hydro Valve Handle E-1-S1

Top

?     Asked on 8/6/2019by Herman Johnson

Ive always noticed when we lift or push down on the handle to change sand filter functionality, we don't really feel that it does anything. What part is responsible for raising and lowering the diffuser ? The picture of the handle shown looks exactly like ours.
 Reply

A  Answered on 8/7/2019 by InyoPools Product Specialist Steve M.

Herman, when you push the handle down it will lift up the diverter and push against the spring inside the valve.
 Reply


?     Asked on 7/5/2019by Jackie Mattingly

Will this handle fit the Pentair VN # 272526

 Reply

A  Answered on 7/6/2019 by InyoPools Product Specialist Lennox H.

Hi, Jackie. This Valve Handle - E-1-S1 will not work, you will need the Valve Handle - 272520.
 Reply


?     Asked on 6/17/2019by Jennifer Graham

Will this handle fit most all Hayward, salt water, sand filter system. Mine simply broke off while pressuring down on it.
 Reply

A  Answered on 6/19/2019 by InyoPools Product Specialist Matt S.

Hello, this handle is made for Praher manufactured valves. If you need a handle for a Hayward Valve, you will need to find the parts diagram for that specific valve model number.
 Reply


?     Asked on 5/19/2019by peter

how can I get the nylon washer that is beneath the valve handle, mine has broken into pieces. thank you
 Reply

A  Answered on 5/20/2019 by Industry Professional

Please provide the model number of the valve and we can tell you exactly what washer is needed. Of if you can send a few photos of the valve and/or the label information from the side of the filter tank. To send photos simply click on the reply link below and upload your photos.
 Reply


A  Answered on 5/20/2019 by Industry Professional

Part number E-3-S1 for the washer
 Reply


?     Asked on 1/17/2019by Inyo Visitor

Will this handle work on the valve on my Splash Pak 15VK?
 Reply

A  Answered on 1/17/2019 by InyoPools Product Specialist Patrick P.

Yes this is the proper replacement handle for the Splash Pak 15VK.
 Reply


?     Asked on 3/9/2018by Bob

Can I replace the handle without removing the valve assembly? Just push out the pin, replace and push the pin back? Lastly, should I replace the pin? Thanks
 Reply

A  Answered on 3/12/2018 by InyoPools Product Specialist Lennox H.

Hi, Bob. You will have to remove the top assembly form the valve body in order to replace the handle. You can reuse the pin if it is in good condition.
 Reply


?     Asked on 8/24/2017by Mario Castillo

The American Product Multiport Handle broke, the AP # of the Handle is 510027. Can you cross-reference this number with the Pentair number since Pentair bought American Products. The multiport valve is working before the handle broke and now I cannot turn the valve because of the broken handle. If you have the right replacement part, do I also buy the Screw to the Handle, size is 10.24 x 1 1/4", Part @982019. Please let me know so I can order both correct parts.
 Reply

A  Answered on 9/6/2017 by InyoPools Product Specialist Lennox H.

Hi, Mario. The replacement Handle is Part # 51002700 and 98201900 for the Screw.
 Reply


?     Asked on 6/8/2017by Jackie Pitre

The handle broke when I was changing the position of the handle to filter. Should I just order the handle or do I have to order whole assembly?
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Hector F.

If the valve was working fine before it broke then I would say that replacing the handle would be good. You can also replace the seals and washers while you are replacing parts. You would need to know the specific valve model that you have to locate that kit or the complete multi-port.
 Reply


?     Asked on 5/16/2017by Inyo Visitor

I have a praher side mount valve that is about 25 yrs old. Can the parts listed on your website be used to rebuild the inside of it.
 Reply

A  Answered on 5/16/2017 by InyoPools Product Specialist Scott W.

Is your Praher valve the TM12 or TM22?
 Reply


?     Asked on 5/25/2016by tammy

will this fit PENTAIR SM-20-2 SERIAL #293
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Hi Tammy, Yes this handle will fit the SM-20-2 valve.
 Reply


?     Asked on 3/8/2016by Inyo Visitor

Will this handle fit a speck multivalve with a model number AQ180R? That valve is discontinued. I just need a handle.
 Reply

A  Answered on 3/9/2016 by InyoPools Product Specialist Lennox H.

Hi, I reached out to Speck, they're saying that the valve on that filter is unique and parts are not available. So I don't think this handle would work.
 Reply


?     Asked on 6/29/2015by Inyo Visitor

Will this handle fit on the pentair sand filter as part of the top valve assy? My handle is the only thing I need. It has the numbers 145148 on it. I also need a pot for the dynamo pump. An o ring also if it requires one. The prices please. iF THE POT HOUSING has a universal part number it is #35-4530.
 Reply

A  Answered on 7/1/2015 by InyoPools Product Specialist Lennox H.

Hi, The Handle (E-1-S1) will work on the Pentair - Praher 2" TM22 & SM20 and Pentair - Praher 1 1/2" TM12 & SM10 Multiport valve. I was not able to loacte or cross reference p/n 145148 to his handle or a Pentair Valve. The Strainer Housing (354530) will work on all of the Pentair Dynamo pumps.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Wrench Set, Punch and hammer

The spider gasket was torn, caused by cams on the handle (not allowing valve to retract fully)

Written on 5/10/2021 by Guest

Removed the valve by removing its 6 retaining screws and nuts
Place the valve on a rubber mat or carpet
Stand on the valve, compressing the spring
With a punch and hammer, remove the handle's retaining pin; discard the worn handle
Replace the teflon washer the beneath the handle (it's probably worn). Lube the washer with a silicone lube like dielectric grease.
Lube the bottom cams of the new handle and install by standing on the valve and driving in the retaining pin with the punch and hammer
Lube the bottom of the valve; it contacts the spider gasket

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench

0     1

Multiport valve was leaking to drain when in run position

Written on 9/15/2020 by Guest

The handle was the last part of the install after changing all the gaskets inside the valve. Simply insert the handle after removing the old one and insert pin to hold the valve handle in place.
