Waterway Hi-Flo AG Side Discharge Spa Pump Parts

* NOT SHOWN
Note - Current & old style volute & faceplate are not interchangeable, all other parts are interchangeable. Current style wet end will replace old style

Waterway Hi-Flo AG Side Discharge Spa Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Quarter Slot 3/8" Drain Plug
2	Drain Plug O-ring
3	Screw 8-32 x 5/8"
4	Faceplate 2"
5	Faceplate O-ring
6	Wear Ring
7	Impeller 3/4 HP
8	Pump Shaft Seal 5/8" - Standard
9	Volute w/ Insert
10	Slinger
11	Motor 3/4 HP Thru-Bolt
11	Motor 3/4 HP Thru-Bolt 2-SPD
*	Protective Pool Motor Cover
*	Half Union Set 2"

View Parts List

Diagram #	Part Title
1	Quarter Slot 3/8" Drain Plug
2	Drain Plug O-ring
3	Screw 8-32 x 5/8"
4	Faceplate 2"
5	Faceplate O-ring
6	Wear Ring
7	Impeller 3/4 HP
8	Pump Shaft Seal 5/8" - Standard
9	Volute w/ Insert
10	Slinger
11	Motor 3/4 HP Thru-Bolt
11	Motor 3/4 HP Thru-Bolt 2-SPD
*	Protective Pool Motor Cover
*	Half Union Set 2"

Available Parts:

Quarter Slot 3/8" Drain Plug

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Drain Plug

$17.15 IN STOCK

Qty:

Drain Plug O-ring

Part # 3262-08 Mfg # 112

Drain Plug O-ring

$3.66 IN STOCK

Qty:

Screw 8-32 x 5/8"

Part # 5120-10 Mfg # 99730050

Screw 8-32 x 5/8"

$11.71 IN STOCK

Qty:

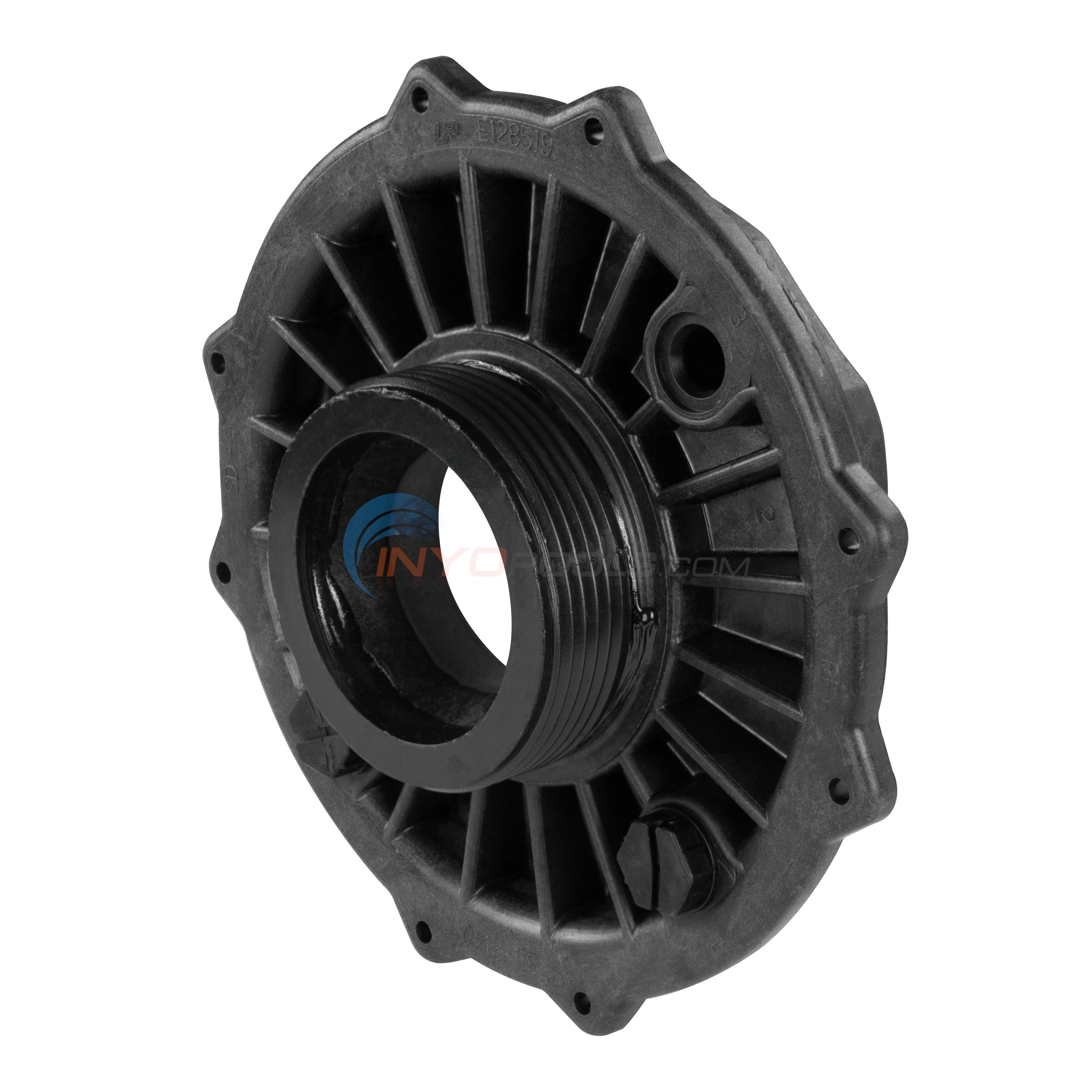

Faceplate 2"

Part # 5032-051 Mfg # 311-2140

Faceplate 2"

$44.77 IN STOCK

Qty:

Faceplate O-ring

Part # 4600-4493 Mfg # 071422

Faceplate O-ring

$6.55 IN STOCK

Qty:

Wear Ring

Part # 5032-10 Mfg # 319-1390

Wear Ring

$23.49

Impeller 3/4 HP

Part # 5032-09E Mfg # 310-3990

Impeller 3/4 HP

$49.26 IN STOCK

Qty:

Impeller 1.0 HP

Part # 5032-09 Mfg # 310-4000

Impeller 1.0 HP

$44.77 IN STOCK

Qty:

Impeller 1.5 HP

Part # 5032-09A Mfg # 310-4010

Impeller 1.5 HP

$44.77 IN STOCK

Qty:

Impeller 2.0 HP

Part # 5032-09B Mfg # 310-4030

Impeller 2.0 HP

$46.56 IN STOCK

Qty:

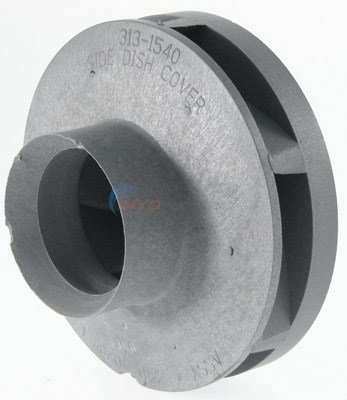

Impeller 3.0 HP

Part # 5032-09C Mfg # 310-4020

Impeller 3.0 HP

$46.91 IN STOCK

Qty:

Impeller 4.0 HP

Part # 5032-09D Mfg # 310-4050

Impeller 4.0 HP

$42.64 IN STOCK

Qty:

Pump Shaft Seal 5/8" - Standard

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal 5/8" - Standard

$8.39 IN STOCK

Qty:

Pump Shaft Seal 5/8" - Viton

Part # 5250-225 Mfg # PS-3865

Pump Shaft Seal 5/8" - Viton

$17.65 IN STOCK

Qty:

Volute w/ Insert

Part # 5032-131 Mfg # 315-2500

Volute w/ Insert

$76.27 IN STOCK

Qty:

Slinger

Part # 5030-12 Mfg # 313-1400

Slinger

$10.90 IN STOCK

Qty:

Motor 3/4 HP Thru-Bolt

Part # BN24 Mfg # BN24V1

Motor 3/4 HP Thru-Bolt

$193.33 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

Motor 1.0 HP Thru-Bolt

Part # BN25 Mfg # BN25V1

Motor 1.0 HP Thru-Bolt

$192.71 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

Motor 1.5 HP Thru-Bolt

Part # BN35V1 Mfg # BN35V1

Motor 1.5 HP Thru-Bolt

$249.76 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Qty:

Motor 2.0 HP Thru-Bolt

Part # BN40SS Mfg # BN40SS

Motor 2.0 HP Thru-Bolt

$250.11 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Qty:

Motor 3/4 HP Thru-Bolt 2-SPD

Part # BN36 Mfg # BN36

Motor 3/4 HP Thru-Bolt 2-SPD

$218.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

Motor 1.0 HP Thru-Bolt 2-SPD

Part # BN37 Mfg # BN37V1

Motor 1.0 HP Thru-Bolt 2-SPD

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

Motor 1.5 HP Thru-Bolt 2-SPD

Part # BN50V1 Mfg # BN50V1

Motor 1.5 HP Thru-Bolt 2-SPD

$319.24 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 13.5/4.7 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 13.5/4.7 Frame 48Y

Qty:

Motor 1.5 HP Thru-Bolt 2-SPD

Part # BN34V1 Mfg # BN34V1

Motor 1.5 HP Thru-Bolt 2-SPD

$305.00 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Qty:

Motor 2.0 HP Thru-Bolt 2-SPD

Part # BN51 Mfg # BN51

Motor 2.0 HP Thru-Bolt 2-SPD

$343.25 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Qty:

Motor 3.0 HP Thru-Bolt 2-SPD

Part # BN62 Mfg # BN62

Motor 3.0 HP Thru-Bolt 2-SPD

$361.79 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Qty:

Motor 4.0 HP Thru-Bolt 2-SPD

Part # BN63 Mfg # BN63

Motor 4.0 HP Thru-Bolt 2-SPD

$392.94

Service Factor 1.0 Voltage 208-230 Max Amps 12.0/3.5 Frame

Service Factor 1.0 Voltage 208-230 Max Amps 12.0/3.5 Frame

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

Half Union Set 2"

Part # 9175-03 Mfg # 400-5570B

Half Union Set 2"

$8.52 IN STOCK

Qty:

* NOT SHOWN
Note - Current & old style volute & faceplate are not interchangeable, all other parts are interchangeable. Current style wet end will replace old style
