Waterway Econo-Flo 2-Speed Pump Parts

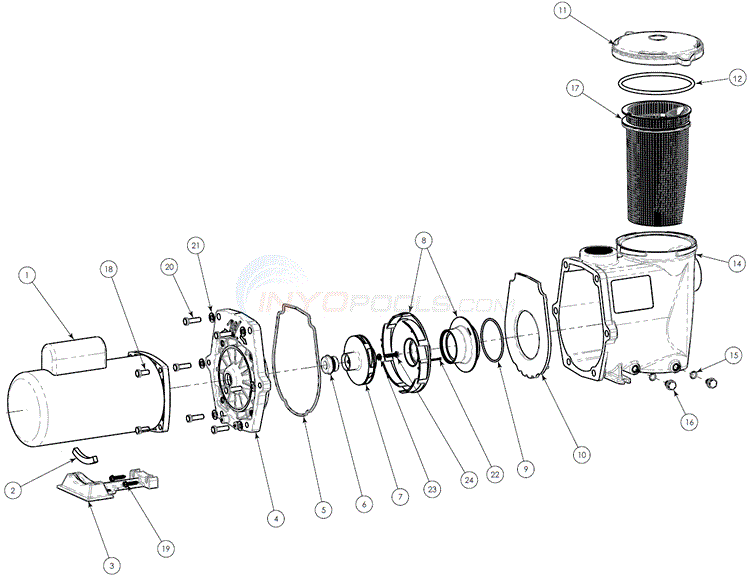

Waterway Econo-Flo 2-Speed Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982
2	Neoprene Motor Support Strip
3	Motor Support Base
4	Face Plate
5	Face Plate Gasket
6	Pump Shaft Seal Set
7	Impeller, 3/4 HP Full Rate
8	Diffuser Assembly
9	Diffuser O-ring
10	Diffuser Plate
11	Trap Lid
12	Trap Lid 6" O-Ring
14	Pump Housing
15	Plug O-ring
16	Quarter Slot Drain Plug 3/8"
17	Basket w/ Basket Extension
18	Hex Cap Screw 3/8" - 16 x 7/8"
19	Hex Screw Slotted - 1/4" x 1-1/4"
20	Hex Cap Screw 3/8" - 16 x 1-1/4"
21	Flat Plate Washer 3/8"
22	Bolt #4-40
23	Gasket - Left Hand Impeller Screw
24	Screw - 20 x 1" Left Hand Thread

View Parts List

Diagram #	Part Title
1	Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982
2	Neoprene Motor Support Strip
3	Motor Support Base
4	Face Plate
5	Face Plate Gasket
6	Pump Shaft Seal Set
7	Impeller, 3/4 HP Full Rate
8	Diffuser Assembly
9	Diffuser O-ring
10	Diffuser Plate
11	Trap Lid
12	Trap Lid 6" O-Ring
14	Pump Housing
15	Plug O-ring
16	Quarter Slot Drain Plug 3/8"
17	Basket w/ Basket Extension
18	Hex Cap Screw 3/8" - 16 x 7/8"
19	Hex Screw Slotted - 1/4" x 1-1/4"
20	Hex Cap Screw 3/8" - 16 x 1-1/4"
21	Flat Plate Washer 3/8"
22	Bolt #4-40
23	Gasket - Left Hand Impeller Screw
24	Screw - 20 x 1" Left Hand Thread

Available Parts:

1

Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N <a class="productlink" href="http://www.inyopools.com/Products/00200017039442.htm">B2982 </a>

Part # B980 Mfg # B2980

Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982

NOT AVAILABLE

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Motor 1.0 HP Full Rate Dual Speed

Part # B982 Mfg # B2982

Motor 1.0 HP Full Rate Dual Speed

$379.99 IN STOCK

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Qty:

Motor 1.5 HP Full Rate Dual Speed

Part # B983 Mfg # B2983

Motor 1.5 HP Full Rate Dual Speed

$439.99 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Qty:

Motor 2.0 HP Full Rate Dual Speed

Part # B984 Mfg # B2984

Motor 2.0 HP Full Rate Dual Speed

$584.00 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11/1.8 Frame 56Y

Service Factor 1.3 Voltage 230 Max Amps 11/1.8 Frame 56Y

Qty:

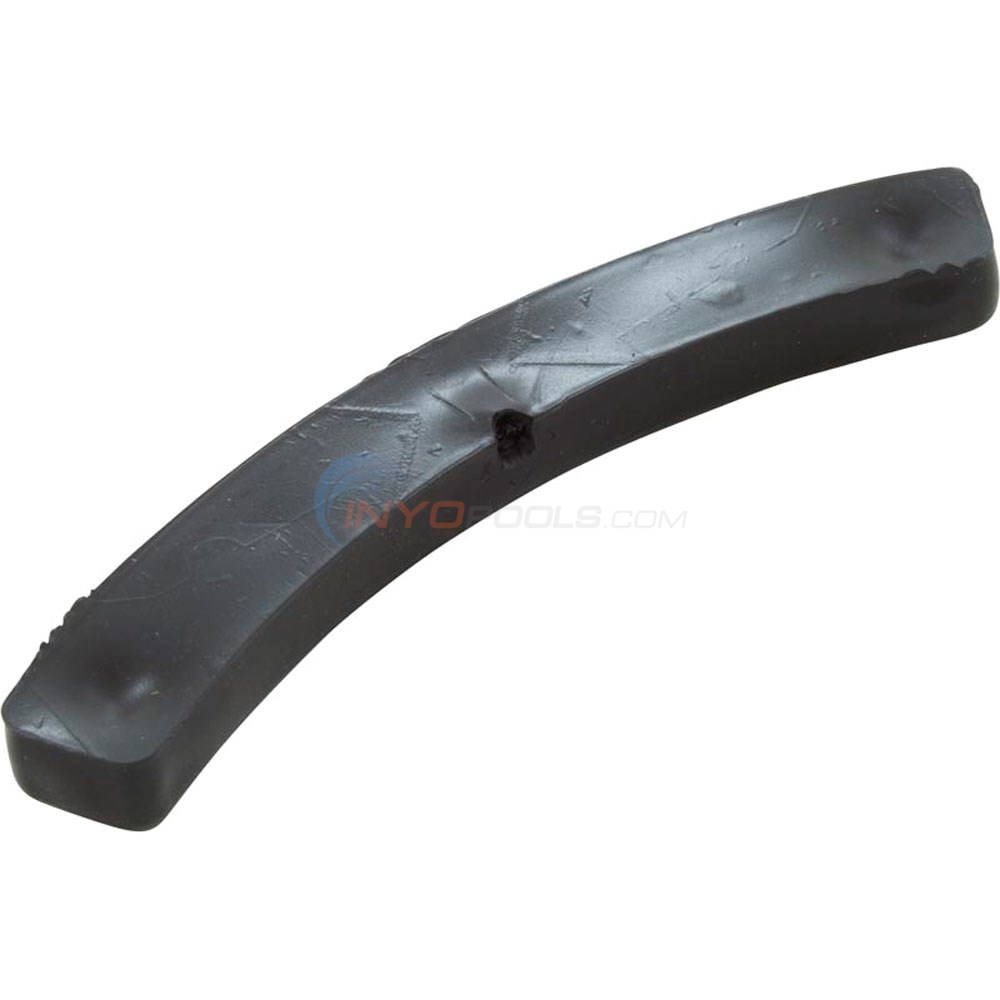

Neoprene Motor Support Strip

Part # 5032-45 Mfg # 672-1310

Neoprene Motor Support Strip

$26.99 IN STOCK

Qty:

Motor Support Base

Part # 5033-008 Mfg # 319-1500B

Motor Support Base

$77.99 IN STOCK

Qty:

Face Plate

Part # 5033-006 Mfg # 311-1450

$112.55 IN STOCK

Qty:

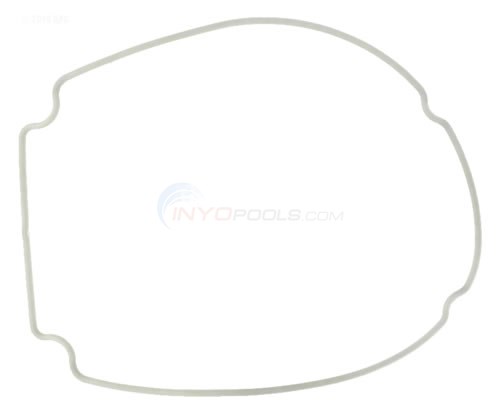

Face Plate Gasket

Part # 5033-007 Mfg # 711-1400

Face Plate Gasket

$20.89 IN STOCK

Qty:

Pump Shaft Seal Set

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal Set

$7.49 IN STOCK

Qty:

Impeller, 3/4 HP Full Rate

Part # 5033-79 Mfg # 310-7410

Impeller, 3/4 HP Full Rate

$77.47 IN STOCK

Qty:

Impeller, 1.0 HP Full Rate

Part # 5033-80 Mfg # 310-7420

Impeller, 1.0 HP Full Rate

$82.24 IN STOCK

Qty:

Impeller, 1.5 HP Full Rate

Part # 5033-81 Mfg # 310-7430

Impeller, 1.5 HP Full Rate

$42.16 IN STOCK

Qty:

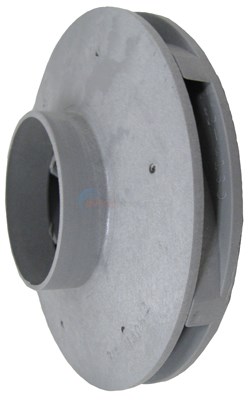

Impeller, 2.0 HP Full Rate

Part # 5033-82 Mfg # 310-7440

Impeller, 2.0 HP Full Rate

$78.47 IN STOCK

Qty:

Diffuser Assembly

Part # 5033-004 Mfg # 310-7470

Diffuser Assembly

$99.89 IN STOCK

Qty:

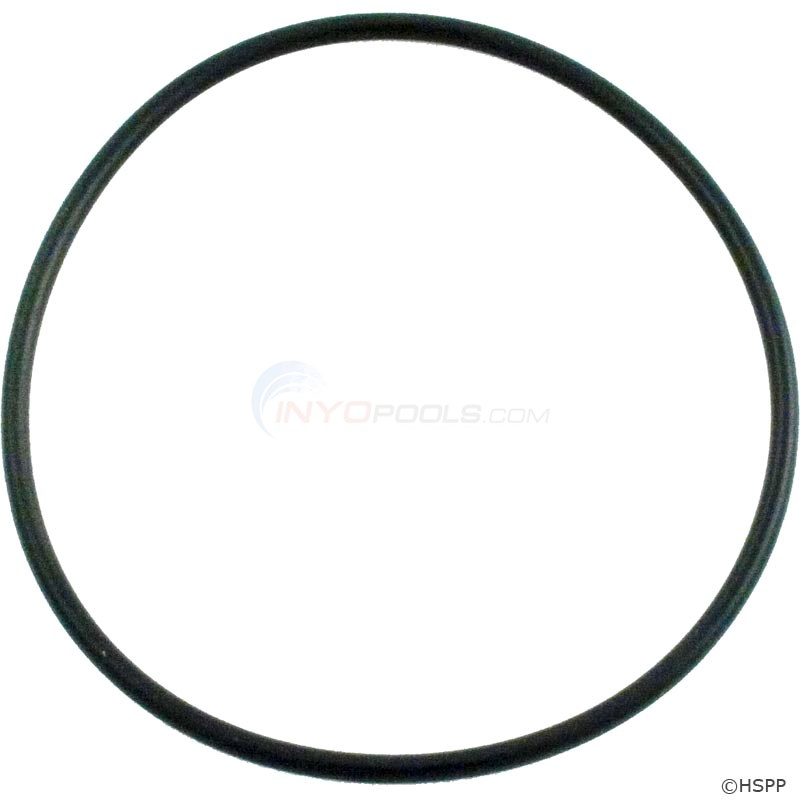

Diffuser O-ring

Part # 5032-51 Mfg # 805-0238

Diffuser O-ring

$12.49 IN STOCK

Qty:

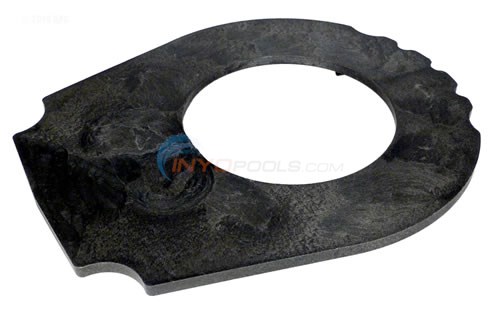

Diffuser Plate

Part # 5033-003 Mfg # 319-1420

$63.99 IN STOCK

Qty:

Trap Lid

Part # 5019-22 Mfg # 319-4100B

$34.99 IN STOCK

Qty:

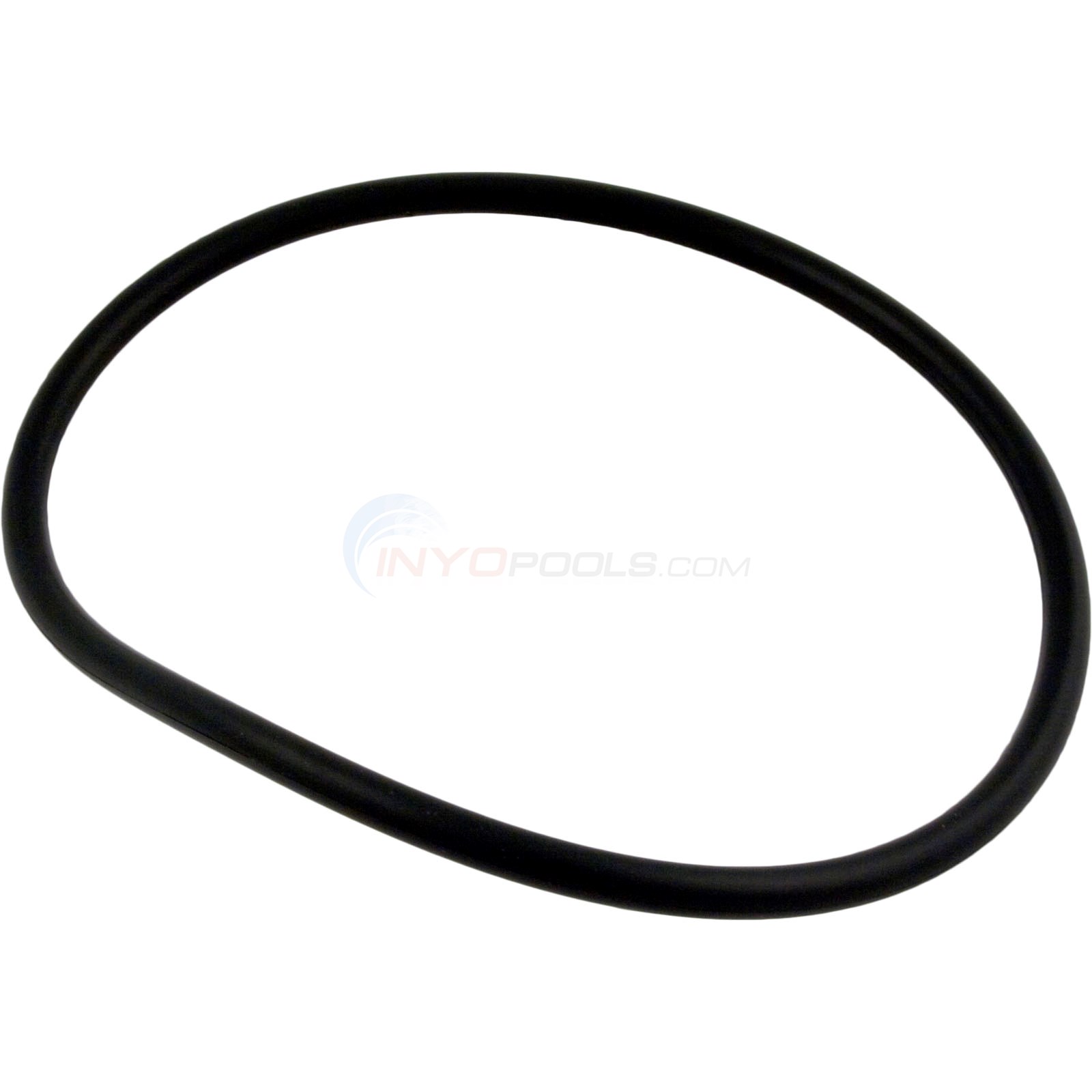

Trap Lid 6" O-Ring

Part # 35-270-1312 Mfg # 805-0436B

Trap Lid 6" O-Ring

$11.71 IN STOCK

Qty:

Pump Housing

Part # 5033-001 Mfg # 315-1400B

$199.99 IN STOCK

Qty:

Plug O-ring

Part # 805-0014 Mfg # 805-0014

$8.99 IN STOCK

Qty:

Quarter Slot Drain Plug 3/8"

Part # 5039-001 Mfg # 715-1201B

Quarter Slot Drain Plug 3/8"

$13.99 IN STOCK

Qty:

Basket w/ Basket Extension

Part # 5033-014 Mfg # 319-1430B

Basket w/ Basket Extension

$31.49 IN STOCK

Qty:

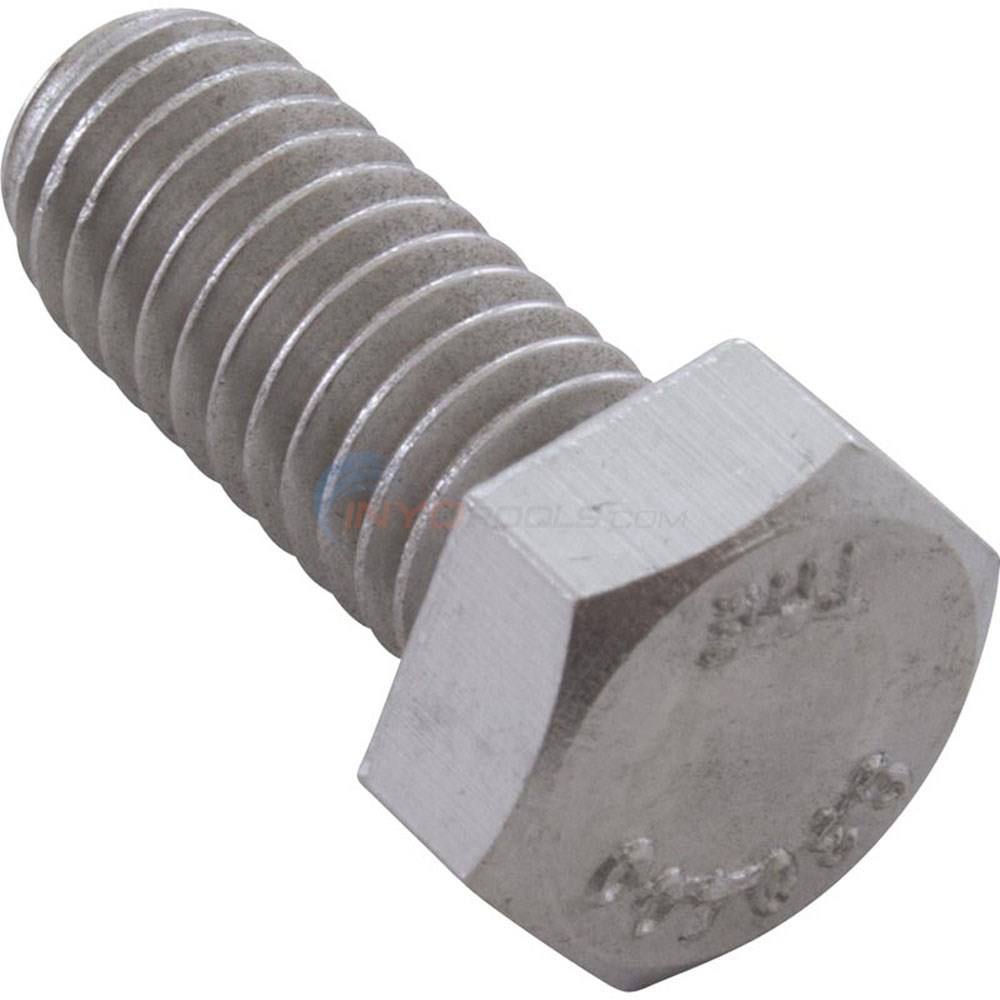

Hex Cap Screw 3/8" - 16 x 7/8"

Part # 35-270-2144 Mfg # 819-0035B

Hex Cap Screw 3/8" - 16 x 7/8"

$12.99

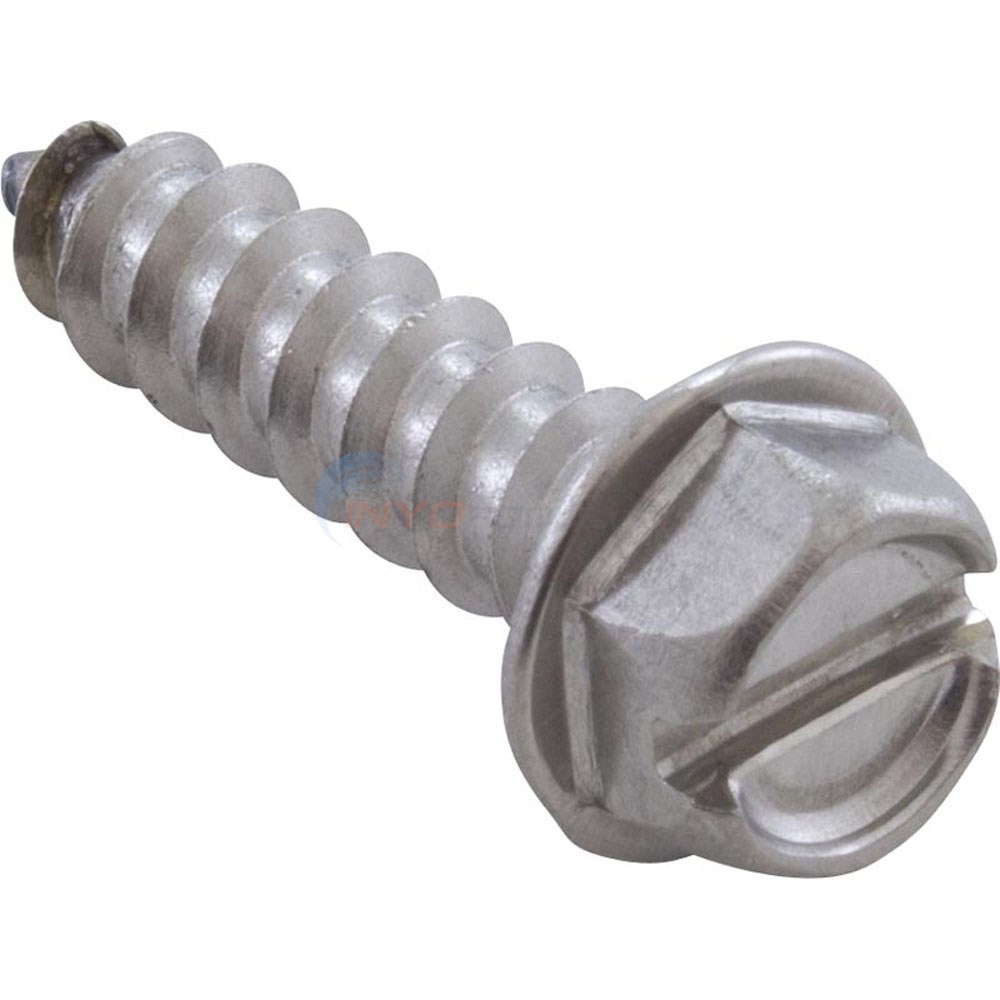

Hex Screw Slotted - 1/4" x 1-1/4"

Part # 5033-009 Mfg # 819-0013B

Hex Screw Slotted - 1/4" x 1-1/4"

$10.99 IN STOCK

Qty:

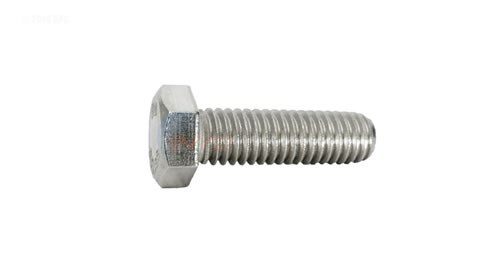

Hex Cap Screw 3/8" - 16 x 1-1/4"

Part # 4742-37 Mfg # 819-0020

Hex Cap Screw 3/8" - 16 x 1-1/4"

$11.99 IN STOCK

Qty:

Flat Plate Washer 3/8"

Part # 5033-012 Mfg # 820-0017

Flat Plate Washer 3/8"

$10.22 IN STOCK

Qty:

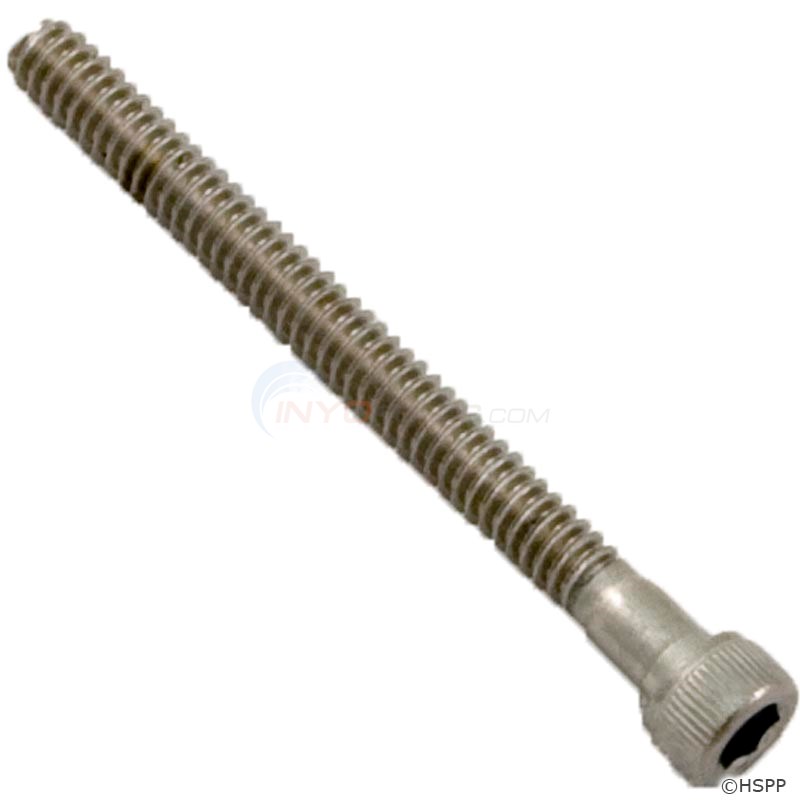

Bolt #4-40

Part # 5032-52 Mfg # 819-0018B

$12.22 IN STOCK

Qty:

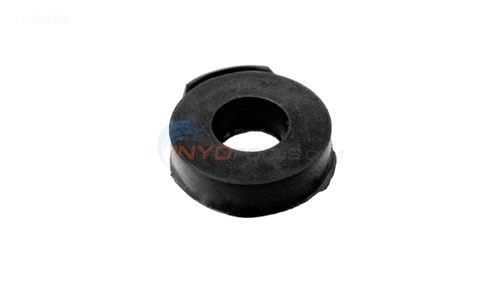

Gasket - Left Hand Impeller Screw

Part # 5033-011 Mfg # 711-4300B

Gasket - Left Hand Impeller Screw

$13.77 IN STOCK

Qty:

Screw - 20 x 1" Left Hand Thread

Part # 5032-61 Mfg # 819-4360

Screw - 20 x 1" Left Hand Thread

$15.74 IN STOCK

Qty:
