How to Identify and Find Above Ground Pool Parts


  3 out of 5 stars on 2 ratings
(Click on a star to add your rating)

If you have had your above ground pool for awhile, you may see some of the parts of the pool frame beginning to rust or deform from misuse. This guide will help you identify and find replaceable above ground pool parts.

If you need to identify a specific pool model, check out our article titled "Identify My Above Ground Pool".


Step by Step


Step 1

VIEW ASSEMBLED PARTS - Here's an overview of the available parts for a typical above ground pool. Each of these parts is explained in more detail below. These parts can be made in steel, aluminum, rubber or resin depending on cost and function.

Step 2

TOP CAPS - The purpose of the Top Caps or Top Covers is to cover up the intersections of the Top Rails, Top Plates, and Uprights. Some of these Top Caps are sold in two pieces.

Step 3

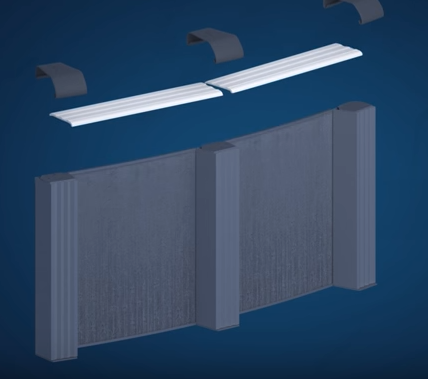

TOP RAILS - The Top Rail is sold in from 5" to 9" widths depending on the design of the pool. The purpose of the Top Rail is to maintain the spacing of the Uprights and to keep the Uprights vertical.

Step 4

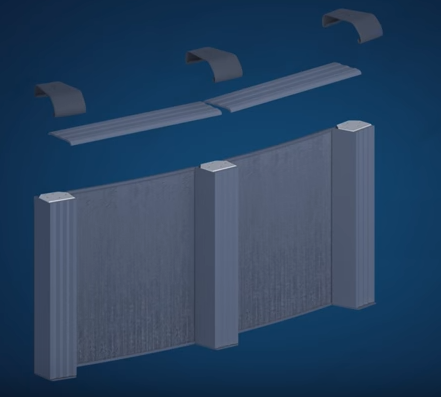

TOP PLATES - The Top Plates sit on top of the Uprights and are used to secure each set of Top Rails, Uprights, and Stabilizers

Step 5

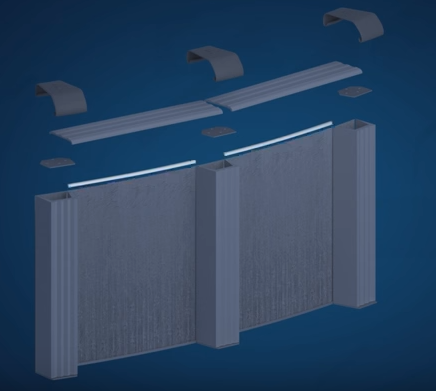

STABILIZERS - The Stabilizers are located under the Top Rails and are mounted on the top edge of the Pool Wall. They support the Pool Wall and help provide vertical stability.

Step 6

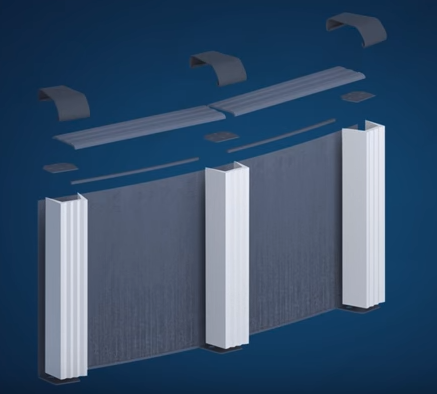

UPRIGHTS - The Uprights support the Pool Wall and provide vertical stability between the top rim and bottom rim of the Pool Wall.

Step 7

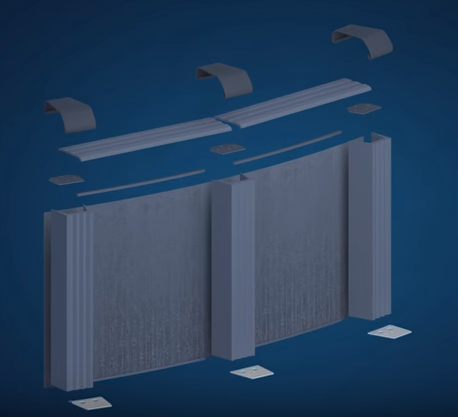

BOTTOM PLATES - The Bottom Plates serve as the base for the Uprights and secure the Bottom Rails to the Uprights. If these are metal, they are generally the first parts to rust and need replacement.

Step 8

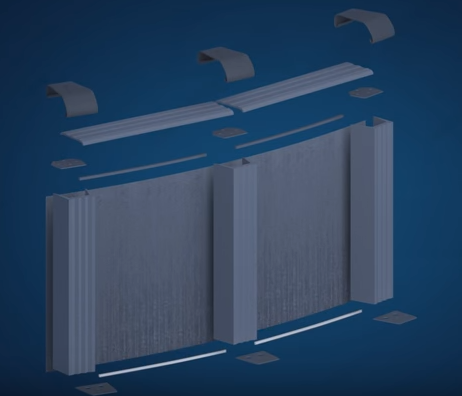

BOTTOM RAILS - The Bottom Rails or Bottom Tracks provide the track for the bottom edge of the Pool Wall to set in. Like the Bottom Plates. these parts, if made of metal, are the first to rust and need replacement.

Step 9

IDENTIFYING PART NUMBER - The previous section identified the common pool parts and discussed their functions. Now we will show you how to find the part numbers of these pieces so you can order them. There are four methods.

Step 10

1 - FIND PART NUMBER ON PART - The first and easiest method is to locate the part number on the piece you need. This part number is often printed on or stamped into the underside of the part.

Step 11

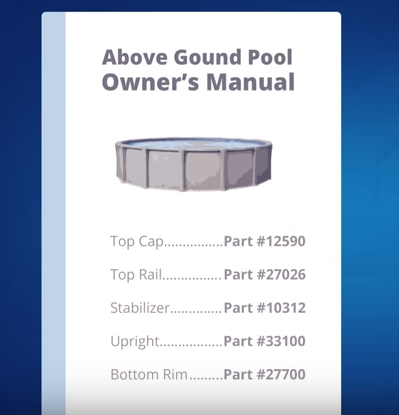

2 - LOCATE PART IN OWNER'S MANUAL - The second method is to locate your owners manual and search for the list of part numbers for your pool.

Step 12

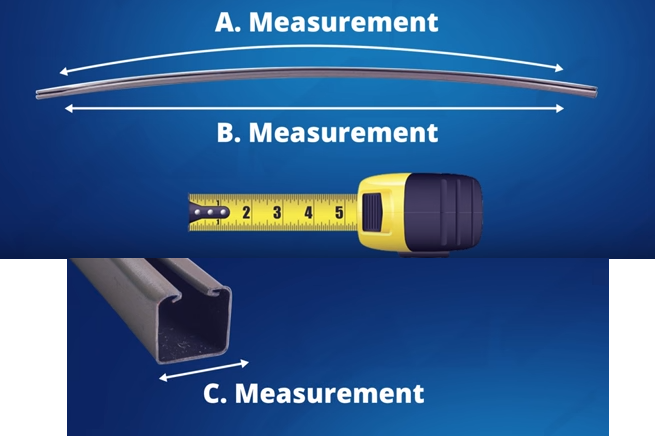

3 - MEASURE PART - The third method is to find the part through measurements. This is most effective for the Stabilizers, the Top Rails, and the Bottom Rails. For the Stabilizers and Bottom Rails, measure the outside curved length, the inside straight length and the width of the end. Then reference our page for the Above Ground Pool Bottom Rails and Stabilizers. The list of parts is sorted from shortest to longest.

Step 13

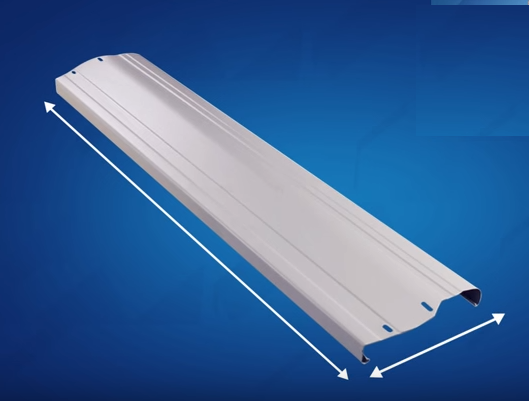

3 - MEASURE PART (cont'd) - For the Top Rails, measure their length and width. Then reference our page for the Above Ground Pool Top Rails. The list of parts is sorted from shortest to longest.

Step 14

4 - CONTACT INYOPOOLS - If all else fails, give us a call at Inyo Pool Products, 877-372-6038. One of our service reps will be glad to help you find your part.
