$586.79

Qty:

By Century Motors


Recommended Alternatives

Details

Top

Part # EVC165

Warranty 18 Months

Alternate Part #'s AOSEVC165, CRMEVC165, EVC165

Product Description

V-Green EVO™ Variable Speed Motor with Century Connect™ – Round Flange
Premium Energy-Saving Motor for Hayward Super Pump, Super II, and Max-Flo Pumps

The V-Green EVO™ by A.O. Smith is the ultimate upgrade for pool owners seeking performance, energy savings, and automation compatibility. With Century Connect™ Automation Mode, this variable speed motor communicates with many popular pool automation systems—without sacrificing control or efficiency.

Designed as a direct replacement for Hayward Super Pump, Super II, and Max-Flo models, this motor delivers up to 80% energy savings compared to single-speed motors while meeting strict Title 20 energy regulations in California and New York.

Compatible Pump Models

  • Hayward Super Pump

  • Hayward Super II

  • Hayward Max-Flo

  • Jacuzzi Magnum (with Tune-Up Kit)

Features

  • Variable speed control: 600–3450 RPM with three programmable speeds

  • Dual voltage: 115/230V with automatic voltage detection

  • Century Connect™ Mode: Communicates with many leading automation systems

  • TEFC (Totally Enclosed Fan Cooled) design for quiet, long-lasting performance

  • Freeze protection to help prevent cold weather damage

  • Easy-to-use digital interface with intuitive navigation and selector dial

  • Sealed ball bearings and 303 stainless steel shaft

  • UV-resistant components and IPX5 moisture intrusion rating

  • Round flange (C-Face) mounting

  • Single phase, 50/60 Hz

  • Rotation: CCWPE

  • Ambient temperature rating: 50°C

  • Class F insulation

✓ California Title 20 Compliant
Meets energy efficiency requirements for residential pool motors over 1 total horsepower. Requires a timer or automation system to ensure default-to-low-speed operation.

✓ Recommended Tune-Up Kits (Sold Separately)

  • Hayward Super Pump Tune-Up Kit – Salt-Friendly

  • Hayward Super II Tune-Up Kit – Salt-Friendly

  • Hayward Max-Flo Tune-Up Kit

  • Jacuzzi Magnum Tune-Up Kit

✓ Benefits

  • Maintains communication with most automation systems

  • Simplified programming with user-friendly interface

  • Lightweight, compact design for easy installation

  • Available in square flange and C-Face configurations for broad compatibility

Don't Forget Your Tune Up Kit

** California's Title 20 legislation states that pumps > 1HP (total) must be 2-speed or variable speed, and must have control to default to low speed (i.e. timer)



THP RPM VOLTS AMPS SERVICE FACTORS FLANGE VGREEN EVO™ MOTOR STOCK NUMBER
1.30 600-3450 230/115 8.6/15.6 1.0 Square EVQ130
1.65* 600-3450 230/115 10.5/17.7 1.0 Square EVQ165
2.25* 600-3450 230/115 13.5/17.4 1.0 Square EVQ225
1.30 600-3450 230/115 8.6/15.6 1.0 C-Face EVC130
1.65* 600-3450 230/115 10.5/17.7 1.0 C-Face EVC165
2.25* 600-3450 230/115 13.5/17.4 1.0 C-Face EVC225
*When motor is running at 115VAC the total horsepower is 1.65 THP.

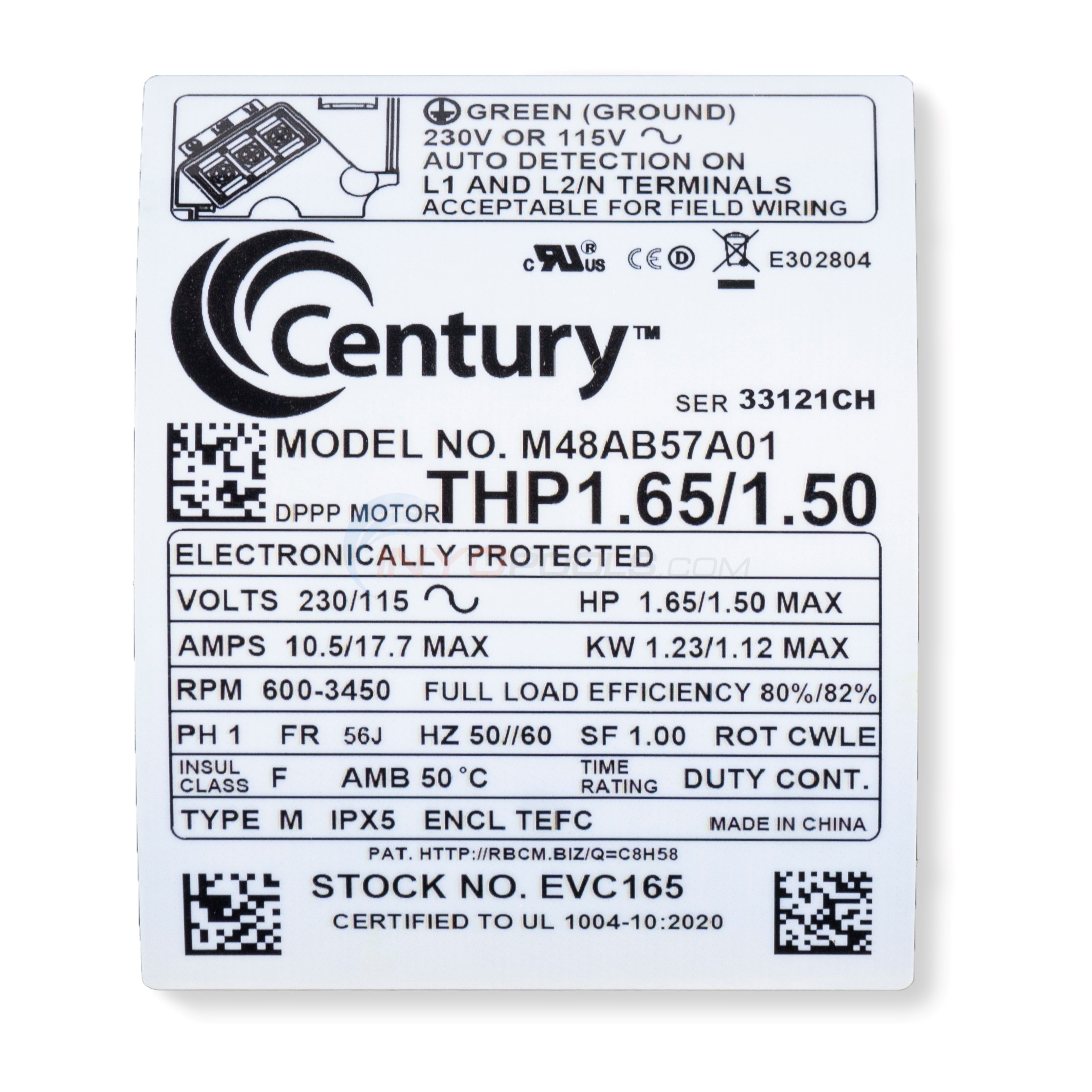

Product Specifications

HP:
1.65 HP
Frame:
56J
Volts:
115/230 V
Speed:
Variable
Amps:
17.7/10.5 amp
Service Factor:
1.0
Total HP:
1.65/1.50 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Round
RPM:
600-3450 RPM
Phase:
Single
Height:
8 in.
Length:
12.04 in.
Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

0     1

Motor needed to be replaced

Written on 4/24/2025 by Guest

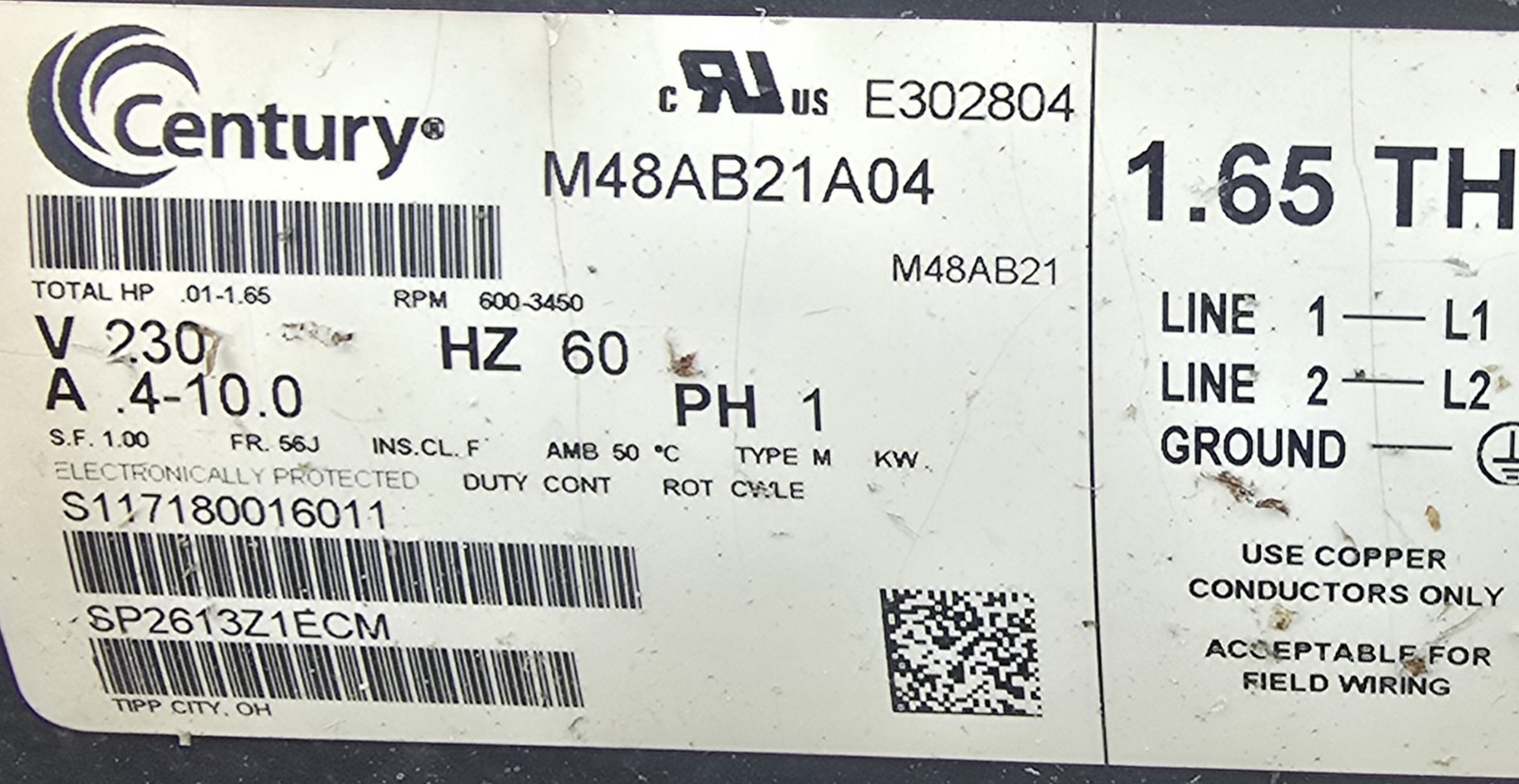

My motor did not have specs, but I knew the type it had started, it was a Hayward replacement. So I found the right flange setup.
I turned off the power and removed the cabling from the motor
I removed the old motor by first taking off the pump head
Next, I removed the pump by holding the shaft and spinning it off.
I had to remove the frame.
I worked backwards and attached the new motor to the frame and then the pump.
I had to use a screw driver from the back to hold the motor from spinning while I spun the pump impeller back on.
Buttoned all up and rewired.
