Super Pump 3/4 HP Single Speed - W3SP2605X7



Part # W3SP2605X7

By Hayward Pool Products

  4.87 Average



Part # W3SP2605X7

Warranty 10 Year Warranty On Strainer Housing, 1 Year Warranty on Motor

Alternate Part #'s SP2605X7, HAYW3SP2605X7

Product Description

High Performance Hayward Super Pump Series

Commonly Replaced Parts (Click on Link to view/purchase):



  • Voltage = 115/230
  • Pipe Size = 1.5"

Hayward Super Pump Application:

  • In-ground pools of all types and sizes
  • In-ground spas

Add On Options:

Hayward Super Pump Features:

  • Self-priming (suction lift up to 8' above water level)

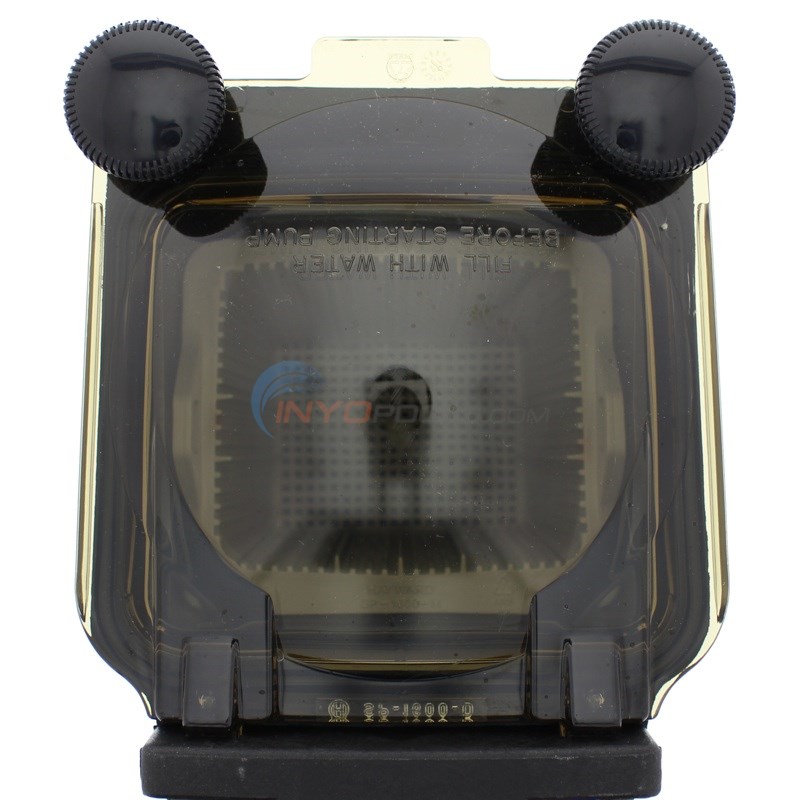

  • Exclusive swing-aside hand knobs make strainer cover removal easy
  • Lexan see-thru strainer cover lets you see when basket needs cleaning
  • Super-size 110 cubic inch basket has extra leaf-holding capacity. Load-extender ribbing ensures free flowing operation
  • All components molded of corrosion-proof PermaGlass XL for extra durability and long life
  • Heavy-duty, high performance motor for quieter, cooler operation
  • Service-ease design gives simple access to all internal parts

Performance Data



Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head)

Model No. Max Rated

20 ft

30 ft

40 ft

50 ft

60 ft

70 ft











































Product Specifications

3/4 HP
115/230 V
Port Size:
1.5 in.
Service Factor:
California Title 20 Compliant

?     Asked on 6/7/2021 by Arthur Hurlburt

What is the amps on 220

A  Answered on 6/7/2021 by InyoPools Product Specialist Patrick P.

This pump draws 5.5 amps on 220V

?     Asked on 1/16/2021 by Jeff Barger

Which Hayward pump do I need to replace my old Hayward pump model number 600D20?

A  Answered on 1/21/2021 by InyoPools Product Specialist Joe S.

Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.

?     Asked on 5/14/2020 by

I tried to turn on my pump and it doesn't go on. All the barkers are on. is there a switch ion the pump?

A  Answered on 1/5/2021 by InyoPools Product Specialist Hector F.

Hello, this pump does not have a switch on it. Here is a guide that we put together called "How To Determine Why a Motor Won't Start or Shuts Off" that may offer some tips to pinpoint why it is not turning on.

?     Asked on 4/30/2020 by Keith

Our Hayward Super pump has rusted out after 12 yrs. Super pump .75 HP. I paid around 250 back then. Is there another model to replace this one? I see you have model around 250 but they do not ship to CA. Or is this model W3SP2605X7, suggested by online chat, still the best option? Pool size is around 15,000 gallons. Thanks

A  Answered on 11/4/2020 by InyoPools Product Specialist Hector F.

Hi Keith, could you send us a few photos of the motor label and pump? The W3SP2605X7 is California Title Compliant. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.

?     Asked on 4/20/2020 by Brian

Can you guys tell me what pump I need. Just moved into the house and half the tag is missing. Thanks.


A  Answered on 4/20/2020 by InyoPools Product Specialist Patrick P.

Hi Brian, Could you let us know the full part # of the part # ending in Z1M in your photo? Once we get that we can make a recommendation. Simply click the reply link below to supply.

  • Commented on 4/20/2020 by Product Owner

    I do see an 805-Z1-M. But the rest is cut off in front of the 805.

    • Commented on 4/20/2020 by InyoPools Product Specialist Patrick P.

      Hi Brian, Based on the information from the label it looks like you do indeed need the W3SP2605X7 Hayward 3/4 HP Super Pump which is listed on this page.

      • Commented on 4/20/2020 by Product Owner

        Hey Pat, are you sure it is a 3/4 HP pump? I just want to be sure. How come you think it is 3/4? I see it can't be a 1/2 HP because it has a 230 volt option. Thanks.

        • Commented on 4/20/2020 by InyoPools Product Specialist Patrick P.

          Hi Brian, There are two reasons I believe this is a 3/4 HP first is I believe that is actually a 605Z1M as there is a part # of SPX1605Z1M which refers to the 3/4 HP Model. Also the Hayward owners manual states that the .55 kw which is shown on your label is the kw for the 3/4 HP model. See attached image.


  • Commented on 4/20/2020 by Product Owner

    All I have to go by is the picture I you are looking at. Is it stamped somewhere else i can look? The tag as you can see has fallen off.

?     Asked on 4/20/2020 by Brian

I just moved into this house and want to replace the pool pump and motor. The tag is mostly missing. Anyway to tell what size I need?

A  Answered on 11/6/2020 by InyoPools Product Specialist Hector F.

Hi Brian, so there are a few variables to consider when sizing a pool pump for an inground swimming pool. Here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that should help with that.

?     Asked on 4/10/2020 by Erin

I currently have this pump and it broke last summer. Can’t seem to find the exact model. Is this Hayward superpump compatible?


A  Answered on 4/10/2020 by InyoPools Product Specialist Lennox H.

Hi, Erin. This Super Pump 3/4 HP Single Speed - W3SP2605X7 is the direct replacement.

?     Asked on 7/13/2019 by Sandra Welch-Richard

I currently have this 3/4 super pump. It is about 6 yrs old. I have a vinyl kidney 23,000 approx pool. Every since installed we run the pump 24/7 during the season (May-Sept). StaRite cartridge system. Over last 2 wks pump has been shutting down, then mysteriously starting back up. I thought that maybe when my electrician was working on the dock lift wiring he crossed something, but I think the pool equip is on a separate circuit. Is this a sign that the pump is going out?

A  Answered on 7/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Sandra. That is correct, the motor is overheating engaging the thermal overload protection. A bad impeller can also cause this issue. The pump and or motor will have to be inspected. Check out the Hayward Super Pump SP1600 & SP2600 Series Parts Diagram.

  • Commented on 7/14/2019 by Product Owner

    Thanks! I'm debating whether or not to just replace with NEW super pump, or deal with swapping out parts, etc. By the time I pay labor and buy parts, I could almost have paid for a new one.

?     Asked on 5/20/2019 by larry

I have a haywood superpump 3/4 horsepower for a 23k gallon pool with a 48 sqft haywood de filter max gpm 96 1.5 inch pvc plumbing. What is a good variable speed replacement pump thanks

A  Answered on 5/20/2019 by InyoPools Product Specialist Patrick P.

Hi Larry, For your set up we would suggest the PL2605 PureLine Prime 1.65 HP Variable Speed Pump this would be a great pump for you.

?     Asked on 4/10/2019 by

will this replace my old pump (pic attached)? specs seem similar...the sf is different...not sure if that matters...?? same size as my old pump? thanks.


A  Answered on 4/10/2019 by InyoPools Product Specialist Michelle B.

Hello, The Hayward pump will have a little bit of a smaller basket but the same motor. You will also have to replumb.

?     Asked on 3/31/2019 by 3/4 or 1HP?

Hello, I just paced an order for the Hayward SP2605X7W 3/4 pump and was wondering whether I should cancel the order and get the 1HP model instead? My in ground pool is 10500 gallons 12x24, total head is ~60ft and the pump is located on a hill 9ft above the pool. The sand filter has a maximum capacity of 75GPM. Currently I have a 1/2HP Pentair WhisperFlo, which started to fail last summer and it worked fine for 3 years since I bought the house.


A  Answered on 4/1/2019 by InyoPools Product Specialist Lennox H.

Hi. Using the Super Pump's performance curve, you will need the SP2615X20 2 HP model in order to meet your pools needs. Not all pump are design the same, I recommend that you keep your 1/2 HP Whisperflo Pump.

?     Asked on 3/27/2019 by Mick

Hi is the Hayward 3/4 Superpump compatible with salt systems or is there another hayward that's designed for salt? I currently use chlorine but may switch to salt so I'd like to get a pump that will handle either, thanks

A  Answered on 3/27/2019 by InyoPools Product Specialist Lennox H.

Hi, Mick. The Hayward Super Pump is compatible with salt water pools.

?     Asked on 5/13/2018 by Brian

Does the Hayward SP2605X7 3/4 HP come with the motor?

A  Answered on 5/13/2018 by InyoPools Product Specialist Hector F.

Yes, it absolutely does. Just plumb and wire and off you go.

?     Asked on 4/5/2017 by Pam

I am looking at the Pump#SP2605X7. Is this new or reconditioned ?

A  Answered on 4/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Pam. These are new Hayward Super Pump's.

?     Asked on 12/28/2016 by Alejandro Cebedo, MD

I've an in ground concrete swimming pool about 15,000 gal size. How many HP pump do I need? Thanks

A  Answered on 12/29/2016 by InyoPools Product Specialist Adam Y.

Good morning Alejandro Cebedo, MD, I would recommend a 1hp to a 1.5hp based on the flow rating of your pump and filter. You would have to make sure your impeller corresponds with this. What size motor do you currently have?

?     Asked on 6/8/2016 by sue shew

is there next day delivery on pumps

A  Answered on 6/8/2016 by InyoPools Product Specialist Scott W.

Yes, there's an option for next day air on pumps. Just be aware of when you order. If it's after 12 noon the order won't be shipped until the next day.

?     Asked on 8/16/2015 by

How many amps is a Hayward 3/4 hp super pump compared to a 1 hp?

A  Answered on 8/16/2015 by InyoPools Product Specialist Hector F.

The 3/4 hp model will use between 11.0/5.5 amps and the 1 hp model will use between 15.0/7.5 amps.

?     Asked on 5/26/2015 by blaine

can I wire for 110 i20

A  Answered on 5/26/2015 by InyoPools Product Specialist Lennox H.

Blaine, This Hayward 3/4 HP Single Speed Super Pump can be wired for 115 volt. You can watch this video on How To Wire A Pool Pump.

?     Asked on 5/22/2015 by JD

Can I use this pump to pump water up to my solar panels? Can I retrofit this pump to plumb to 2"pvc?

A  Answered on 5/22/2015 by InyoPools Product Specialist Patrick P.

Hi JD, For pumping water up to solar panels I would suggest our High Head Hayward Super II 1 HP Pump. The high head pumps to a better job pumping water up the roof. And you could put reducer bushings to reduce from 2" to 1-1/2" plumbing.

?     Asked on 10/8/2013 by Guest

How many hours per day should I run my pump?

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

There are many factors to consider; bather load, gallons of water, pump horsepower, type and size of filter just to name a few. A good guideline is 8-10 hours a day. On the cooler days and early and late season, you can cut the run time down to 4-6 hours because there is usually less swimmers and cooler water requires less chemicals. In peak season, when it is the hottest, raising the run time to 10-12 hours per day will help to keep the pool clean and circulating during it’s time of heaviest use.


Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

2     0

Motor failed after several years of continuous operation. Didn't want to change plumbing.

Written on 6/7/2017 by Guest

1. Turn off circuit breaker and disconnect wiring from failed pump. (Note position of wiring connections)
2. Remove 4 bolts connecting old pump and motor to old Strainer Housing and remove pump and motor.
3. Remove 4 bolts connecting new pump and motor to new Strainer Housing and remove Housing.
4. Connect new pump and motor to old Strainer Housing with 4 original bolts.
5. Connect wiring to new pump.
6. Fill Strainer Housing with water and turn on circuit breaker.
7. Stand back and watch it go to work.
Anyone need a new Strainer basket? Strainer Basket Housing?
