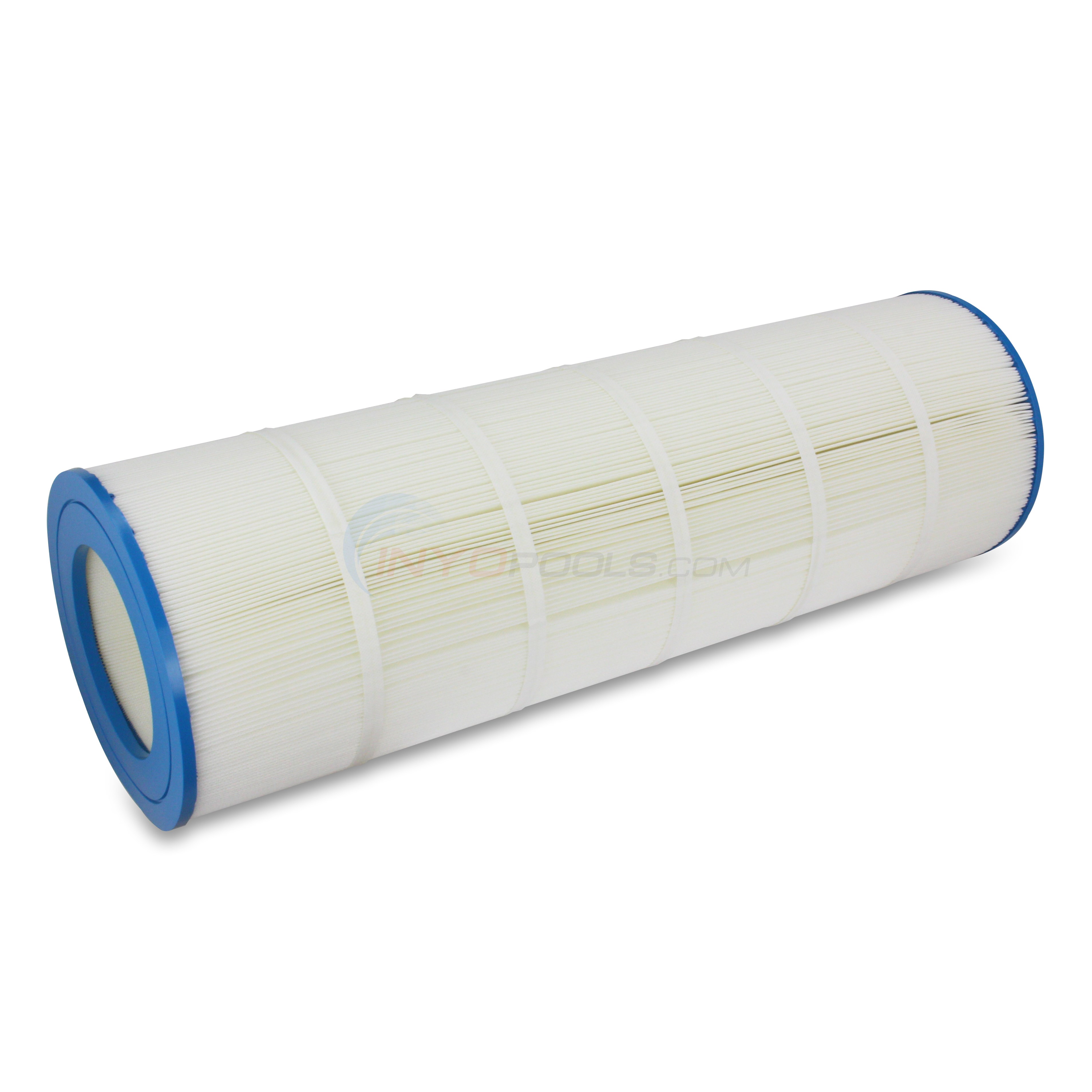

Pureline 200 Sq. Ft. Replacement Cartridge Compatible with Pentair® Clean and Clear® 200 (C-9419) - PL0138



Part # PL0138

By PureLine

  4.59 Average



Part # PL0138

Dimensions 31.25" L x 10" W x 10" D

Alternate Part #'s 59054400, C-9419, C9419, FC-0688, FC0688, PAP200-4, R173217, XLS-904, APCC7327

Product Description

PureLine After-Market Replacement Cartridge for Pentair® Clean & Clear® CC200 200 Sq. Ft. Filter

Is your pool water starting to look a little dull? Is your pressure gauge reading a higher PSI than normal? Are your pool jets a little less powerful? These are all signs that it is time to replace your pool filter cartridge. Replace your pool filter cartridge today and regain that crystal clear pool water and extend the life of your pool pump.

Typically for single cartridge pool filters we suggest replacing your cartridge every 6-12 months and for filters which take multiple cartridges we suggest replacing your cartridges every 3 years.

This Cartridge is Commonly Used In

PureLine Cartridge Benefits

  • Less expensive than the original manufacturer with the same quality standards
  • Designed for maximum water flow to extend cartridge life
  • Designed for even dirt distribution resulting in increased water flow
  • Increased flow rates results in less wear on pump & reduced energy usage
  • Banded Pleats reduce frequency of cartridge cleaning

Not Your Cartridge?

Is this not your Cartridge? Don't worry, we carry thousands of Pool Filter Replacement Cartridges to replace all of the most popular OEM brands such as Sta-Rite®, Pentair® / Pac Fab®, Hayward®, Purex®, American Products®, Jacuzzi®, Hot Springs®, Coleman®, and more. Click here for more Pool Filter Replacement Cartridges


All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

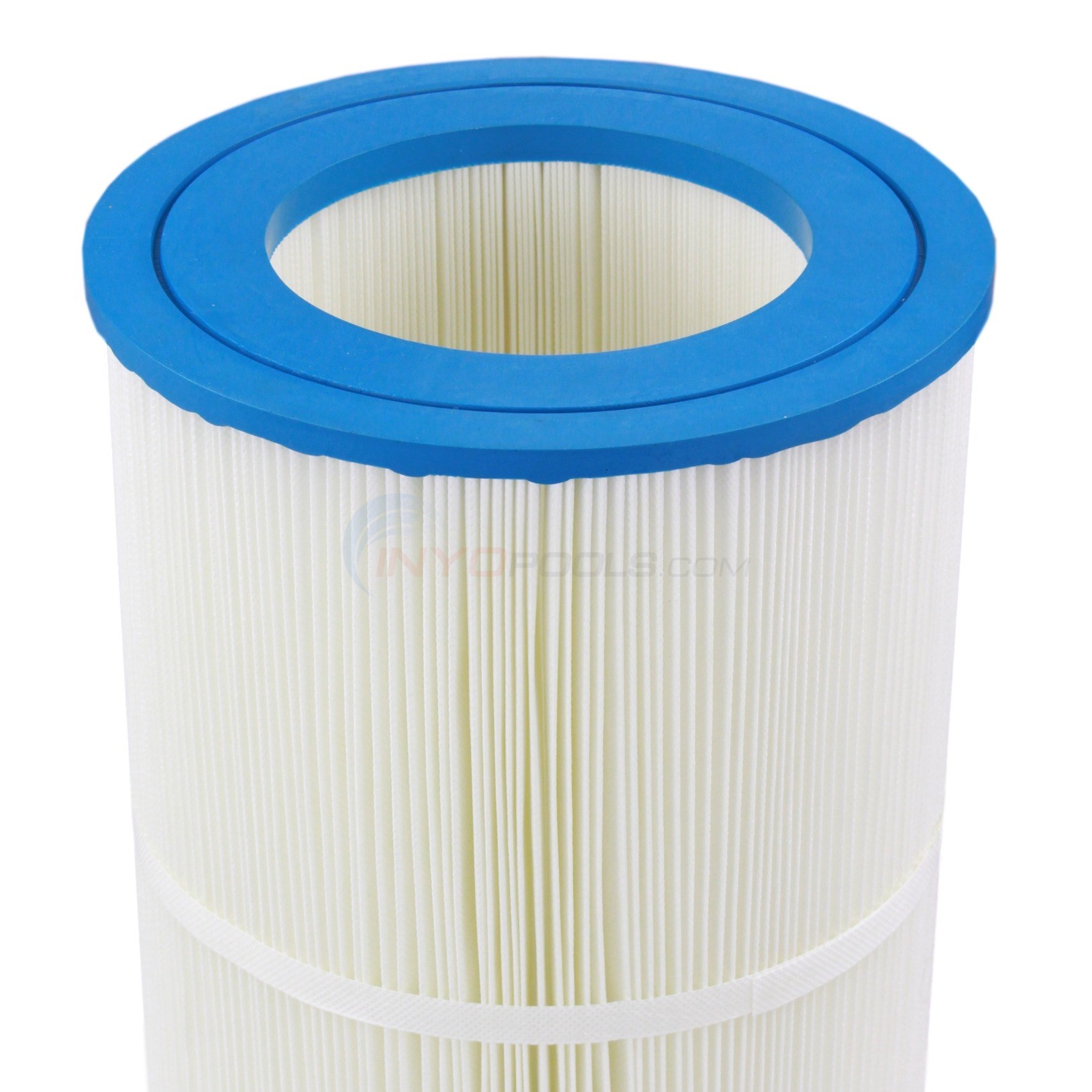

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

Product Specifications

Filter Model:
Pentair® Clean & Clear® 200, Predator 200
Filtration Area:
200 sq. ft.
10 - 1/16 in.
31 - 1/8 in.
Top Style:
Top Inside Diameter:
Bottom Style:
Bottom Inside Diameter:
Media Weight:
4 oz.
OEM #:
Unicel #:
Filbur #:
Pleatco #:

?     Asked on 8/16/2021by Art

I have either a Pentair CCRP150 or CCRP 200, but the housing is old and worn and I cannot tell which. I know this because the filter is 31 1/8" long, 10" diameter and 6" central core. Since I cannot tell which filter housing it is, which filter cartridge should I choose???

A  Answered on 8/17/2021 by InyoPools Product Specialist Craig C.

Hello Art.  The Pentair Clean & Clear RP Cartridge Filter models CCRP 150 and CCRP 200 have the same housing dimensions which means that either one of the filter cartridges will fit your filter.  The filter cartridges themselves have the same dimensions, the greater pleat density on the 200 sq ft element being the difference.  The 200 sq ft filter cartridge will require a less frequency of cleaning cycle than the 150 sq ft.  Pentair Clean and Clear 150 Replacement Cartridge - PL0137

?     Asked on 5/18/2021by Jim

I have a Pentair 150 sq ft clean and clear filter. The 200 sq ft replacement filter is the same dimensions as the 150 sq ft filter. Can I use the 200 sq ft filter instead of the 150? One could assume more sq ft is more cleaning area? Thanks

A  Answered on 5/18/2021 by InyoPools Product Specialist Danny R.

It is not recommended to use a different size cartridge for your size pool filter.  Use the correct size based on the model number of your filter.

?     Asked on 5/12/2021by Mike

I have a Pentair Clean and Clear filter. Replacement cartridge part number in their manual is R173217 for 200 sq ft. My filter measures 31" tall, 9.5" diameter, and a center hole that's 5-5/8" diameter. Will cartridge work in my filter?

A  Answered on 5/13/2021 by InyoPools Product Specialist Craig C.

Hello Mike.  Yes, the PLO138 filter element is compatible with your Pentair Clean & Clear 200 sq ft filter.  The filter element dimensions are exactly the same.  Your filter may measure differently due to wear.  Attached are the original filter specifications for comparison.   Pentair Clean & Clear O.E.M 200 sqft Cartridge - R173217

?     Asked on 4/17/2020by Walter

I have a pentair clean and clear 200 however the cartridge I removed is 30 in tall your replacement is 31 will it fit

A  Answered on 4/17/2020 by InyoPools Product Specialist Patrick P.

Hi Walter, The 1" variance should not cause a problem and this PL0138 is the correct replacement cartridge for the Pentair clean and clear 200. There should be more than enough room in the lid to accommodate the extra 1".

?     Asked on 8/26/2019by Charles Butler

Hello. I have a clean clear . I need a replacement filter. I measured 31 1/8 × 10 x 2. This filter seems like the one I need. There are so many numbers on the filter , how do I know which number is the filter number. Thank you

A  Answered on 9/12/2019 by InyoPools Product Specialist Hector F.

You may be able to locate the specific model number on the outside label of the filter itself or you can view all of the possible cartridges listed here and confirm the dimensions listed in the size option or details.

?     Asked on 8/20/2019by Toni Thornton

Is the Pentair Clean and Clear 200 Replacement Cartridge (C-9419) - PL0138 your company has the same as Pentair Clean and Clear 200, R173217, 59054400, Unicel C-9419, Pleatco PAP200, Aladdin 29902, Filbur FC-0688 ALL AMERICAN 9004 Replacement Swimming Po that my pool guy sent me a link to order on amazon but it cameto me damaged. Now I have to find another supplier.

A  Answered on 9/13/2019 by InyoPools Product Specialist Hector F.

The PL0138 is the generic version of the original. The original version is part number R173217

?     Asked on 8/14/2019by Jerry

What Pentair Cartridge fits P/N 178555. Thanks for your help.

A  Answered on 8/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Jerry. The P/N provided is for the label, you will need to provide us with the number directly off of the cartridge or the canister model number.

?     Asked on 7/17/2019by Bart Nielsen

How do you get the center support tube removed from filter. Ours is stuck.

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi, Bart. You will just pull the cartridge off of the center core. Instructions are available in Section D of the Pentair Clean and Clear Owners Manual.

?     Asked on 7/10/2019by Inyo Visitor

Will this filter fit a Waterway Cartridge replacement #817-0200N? We are having a problem finding a replacement filter.

A  Answered on 7/10/2019 by InyoPools Product Specialist Matt S.

Hello - the correct replacement cartridge for your Waterway 817-0200N is the 200 Sq Ft, Cc2000 Rpl. (c-8319)

?     Asked on 7/4/2019by John

I have a older model pentair filter. The size of the filter in it now is 23.5 h 10.16 with the center hole at 6 in what filer does pentair recommend.

A  Answered on 7/4/2019 by InyoPools Product Specialist Lennox H.

Hi, John. Based on the dimensions provided, the CC100 filter cartridge is the replacement, R173215 (OEM), or PL0136 (Generic).

?     Asked on 6/30/2019by Dan Bennett

Are Clean and Clear 200 model the same filter diameter? My current one has a 15.5" and this model looked smaller.

A  Answered on 6/30/2019 by InyoPools Product Specialist Megan C.

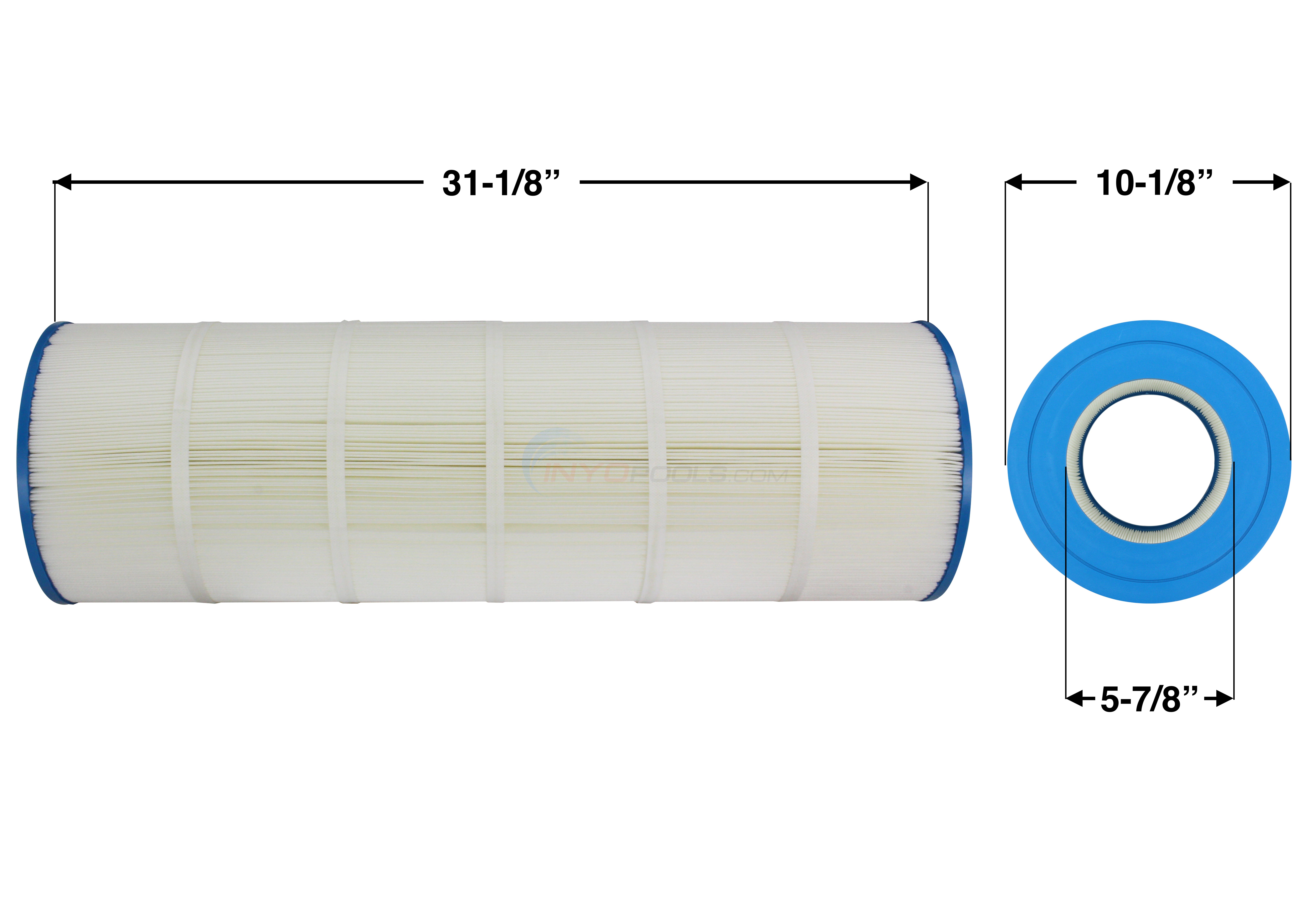

The measurements are 31-1/8" Length, 10-1/8" Outside Diameter, and 5-7/8" Inside Diameter.

?     Asked on 6/28/2019by Inyo Visitor

How to clean my new Pentair cartridge filter

A  Answered on 6/28/2019 by InyoPools Product Specialist Michelle B.

Hello, You would take it out and spray with a hose and then you would put it back into the filter.

?     Asked on 6/26/2019by David Froshaug

What are the prices of your filter cartridges for a 83/4 width by 251/2 height?

A  Answered on 6/26/2019 by InyoPools Product Specialist Lennox H.

Hi, David. We do not currently have a cartridge with those dimensions available.

?     Asked on 6/4/2019by Johan Vandersande

What is the micron rating of this cartridge and the typical flowrates possible?

A  Answered on 6/4/2019 by InyoPools Product Specialist Hector F.

Cartridge filters typically have an average of about 10-15 microns of filtration and the model Clean and Clear 200 has a max GPM(gallons per minute) rating of 150.

?     Asked on 5/25/2019by Jd

Will this filter fit Eco Kleer 200 Sq. Ft. Cartridge Filter w/ 1.5 H.P Pool Pump & Motor by Waterway


A  Answered on 5/26/2019 by InyoPools Product Specialist Patrick P.

Hi JD, We are showing that the 17-175-1356 200 Sq. Ft. Cartridge is the proper replacement cartridge for the Eco Kleer 200 and not this PL0138 Cartridge

?     Asked on 8/30/2018by Inyo Visitor

My filter is 31" tall x 10" wide with a 6" opening on both ends. Will this one work ?

A  Answered on 8/30/2018 by InyoPools Product Specialist Lennox H.

Hi. The dimensions provided are very close to this replacement cartridge. Please provide the filter model or a picture of the canister so that we can confirm.

?     Asked on 4/30/2018by Inyo Visitor

I have a Pentair Cleaner & Cleaner cartridge cc 200 model. Will this filter be the right replacement filter?

A  Answered on 5/1/2018 by InyoPools Product Specialist Patrick P.

Yes this is the proper replacement cartridge for the Pentair Clean & Clear Filter CC200

?     Asked on 4/6/2018by Rick

Had one one these filters that indicated direction to install filter and bottom was different than top. Bottom has built in piece that fit into housing bottom. Stillget these.???

A  Answered on 4/9/2018 by InyoPools Product Specialist Megan C.

The Pentair Clean and Clear O.E.M Cartridge - R173217 is the original manufacturer. The Pentair Clean and Clear 200 Replacement Cartridge (C-9419) - PL0138 is generic.

?     Asked on 7/29/2017by Inyo Visitor

how often do you change the pentair filter during a season?

A  Answered on 7/30/2017 by InyoPools Product Specialist Alex V.

Hello, A cartridge can last a few seasons as long as it is cleaned regularly during the season.

?     Asked on 1/4/2017by ronald l evans

filter # 160310 new part ##?

A  Answered on 1/4/2017 by InyoPools Product Specialist Scott W.

For filter model # 160310 there are 4 cartridges in that filter and the part number for the cartridges is PL0118.

?     Asked on 9/17/2016by Tim

How can I tell if I should get the 150 or the 200 for my pool?

A  Answered on 9/29/2016 by InyoPools Product Specialist Stacey M.

Hello Tim, please look at what model number is on your filter. For the 200 is Pentair Clean & Clear 200, the 150 is NFC0687.  These both goto Pentair Clean & Clear/Predator System.

?     Asked on 5/3/2016by Al

What is the difference between this filter and Pentair R173217 except price. Is it just because it is generic name

A  Answered on 5/4/2016 by InyoPools Product Specialist Alan M.

Hello Al, The R173217 Pentair Clean & Clear O.E.M. Cartridge is the manufacturer replacement cartridge. The NFC0688 Predator/Clean & Clear 200 Generic Cartridge is a generic replacement cartridge.

?     Asked on 3/14/2016by Inyo Visitor

please advise if a clean and clear 200 be able to replace a 150 and still work if not better?? I have a 150 now.....I am hoping to get more filtration from the 200. please advise asap.

A  Answered on 3/17/2016 by InyoPools Product Specialist Lennox H.

Hi, You can replace your 150 cartridge with the 200 cartridge, the filtration would be about the same you but you will be able to go a bit longer in between cleanings.

?     Asked on 5/3/2015by judy

Is this a replacement cartridge filter for a Hayward CC200 filter?

A  Answered on 5/3/2015 by InyoPools Product Specialist Joe S.

Good afternoon this unit is for the Pentair Predator/Clean & Clear 200 Generic Cartridge

?     Asked on 4/22/2015by steve

Hi I want to use this filter to filter rain water from my roof. How many microns will it filter? How much water flow will it take. Thank You if you know the answers.

A  Answered on 4/23/2015 by InyoPools Product Specialist Robert M.

Hello Steve - The cartridge will filter down to 10-20 microns. This cartridge is used in a filter than can handle up to 150 gpm.
