Jacuzzi R Series Parts

SERIES R, UR, ER, RT, URT, RC, URC, RTC, URTC

Jacuzzi R Series Diagram

Click to zoom in

Diagram #	Part Title
**	Jacuzzi R/RC Pump Tune Up Kit
1	NUT ASSY (42282806R000)
2	COVER, STRAINER 6 5/8” DIAMETER (39257902R000)
3	Generic Pump Strainer Basket
4	O-RING, STRAINER COVER
5	STRAINER BODY, 1 1/2IN (16098709R000)
7	O-RING OD 11/16"
8	PLUG, VENT (SET OF 2)
9	GASKET, SQUARE RING
10	BASE, FASTENER KIT
11	OBSOLETE BASE, ASSEMBLY
12	CASE, 1 1/2" DISCHARGE (03081106R000)
*	BUSHING, 2" MPT X 1 1/2" FPT
13	OBSOLETE BOLT, CASE
14	GASKET, DIFFUSER (SQUARE RING)
15	BOLT, #8 X 1-1/4"" (SET OF 2)
16	DIFFUSER (06015705R000)
17	EYE SEAL (10146207R000)
18	IMPELLER (05380605R000)
19	PUMP SEAL 201 (PSR 201)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
20	MOTOR BRACKET (02138907R000)
21	BOLT, BRACKET (6911-0-)
22	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
23	Pureline 3/4 HP Round Flange 56J Up Rate Motor
*	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
**	Jacuzzi R/RC Pump Tune Up Kit
1	NUT ASSY (42282806R000)
2	COVER, STRAINER 6 5/8” DIAMETER (39257902R000)
3	Generic Pump Strainer Basket
4	O-RING, STRAINER COVER
5	STRAINER BODY, 1 1/2IN (16098709R000)
7	O-RING OD 11/16"
8	PLUG, VENT (SET OF 2)
9	GASKET, SQUARE RING
10	BASE, FASTENER KIT
11	OBSOLETE BASE, ASSEMBLY
12	CASE, 1 1/2" DISCHARGE (03081106R000)
*	BUSHING, 2" MPT X 1 1/2" FPT
13	OBSOLETE BOLT, CASE
14	GASKET, DIFFUSER (SQUARE RING)
15	BOLT, #8 X 1-1/4"" (SET OF 2)
16	DIFFUSER (06015705R000)
17	EYE SEAL (10146207R000)
18	IMPELLER (05380605R000)
19	PUMP SEAL 201 (PSR 201)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
20	MOTOR BRACKET (02138907R000)
21	BOLT, BRACKET (6911-0-)
22	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
23	Pureline 3/4 HP Round Flange 56J Up Rate Motor
*	Protective Pool Motor Cover

Available Parts:

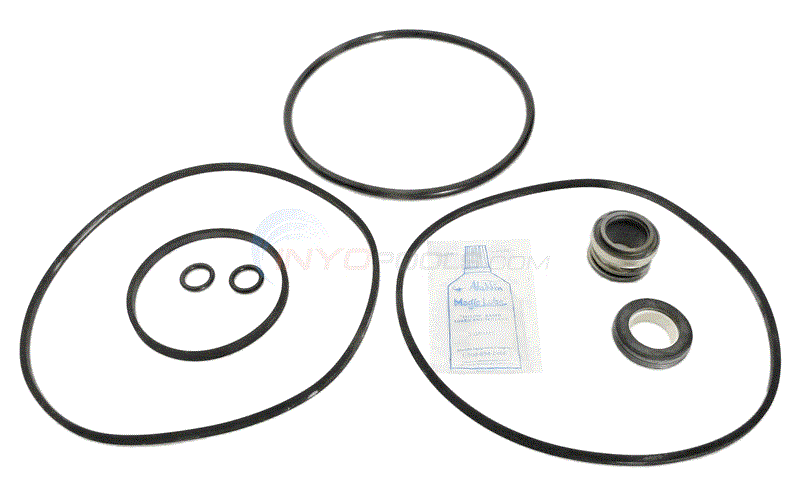

Jacuzzi R/RC Pump Tune Up Kit

Part # APCK1008

Jacuzzi R/RC Pump Tune Up Kit

$46.91

Tune Up Kit Jacuzzi R & RC Series

Part # GOKIT15

Tune Up Kit Jacuzzi R & RC Series

$50.10

NUT ASSY (42282806R000)

Part # 4665-06 Mfg # 42282806R

NUT ASSY (42282806R000)

$46.84 IN STOCK

Qty:

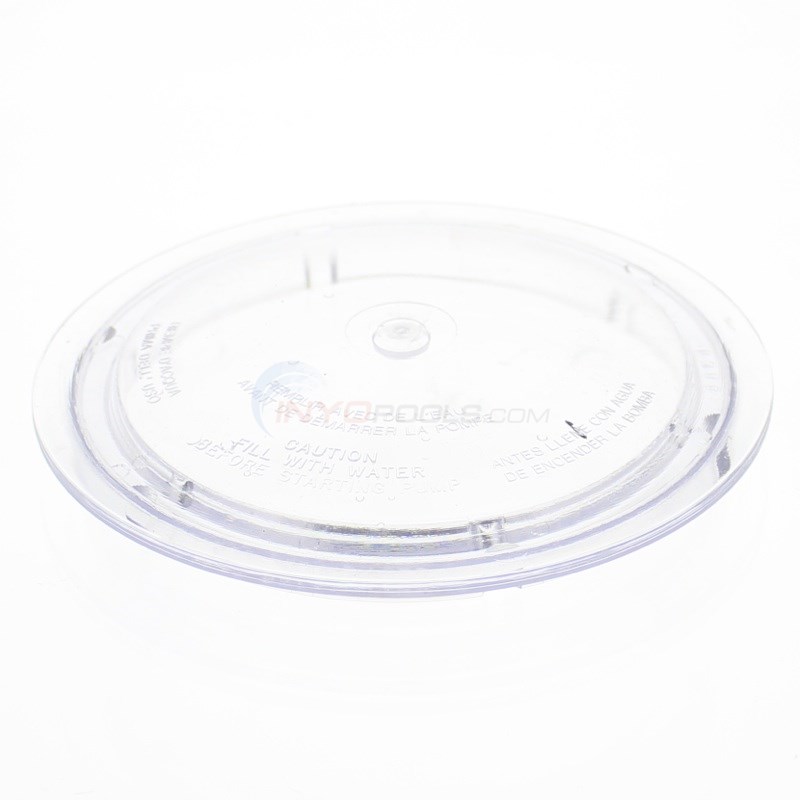

COVER, STRAINER 6 5/8” DIAMETER (39257902R000)

Part # 5067-17 Mfg # 39257902R

COVER, STRAINER 6 5/8” DIAMETER (39257902R000)

$39.81 IN STOCK

Qty:

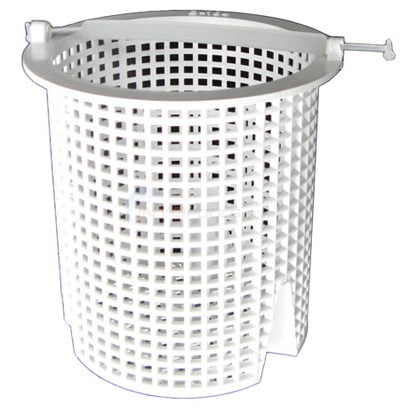

Generic Pump Strainer Basket

Part # 5400-B184 Mfg # B-184

Generic Pump Strainer Basket

$39.44 IN STOCK

Qty:

O-RING, STRAINER COVER

Part # 5000-4053 Mfg # 358

O-RING, STRAINER COVER

$16.61 IN STOCK

Qty:

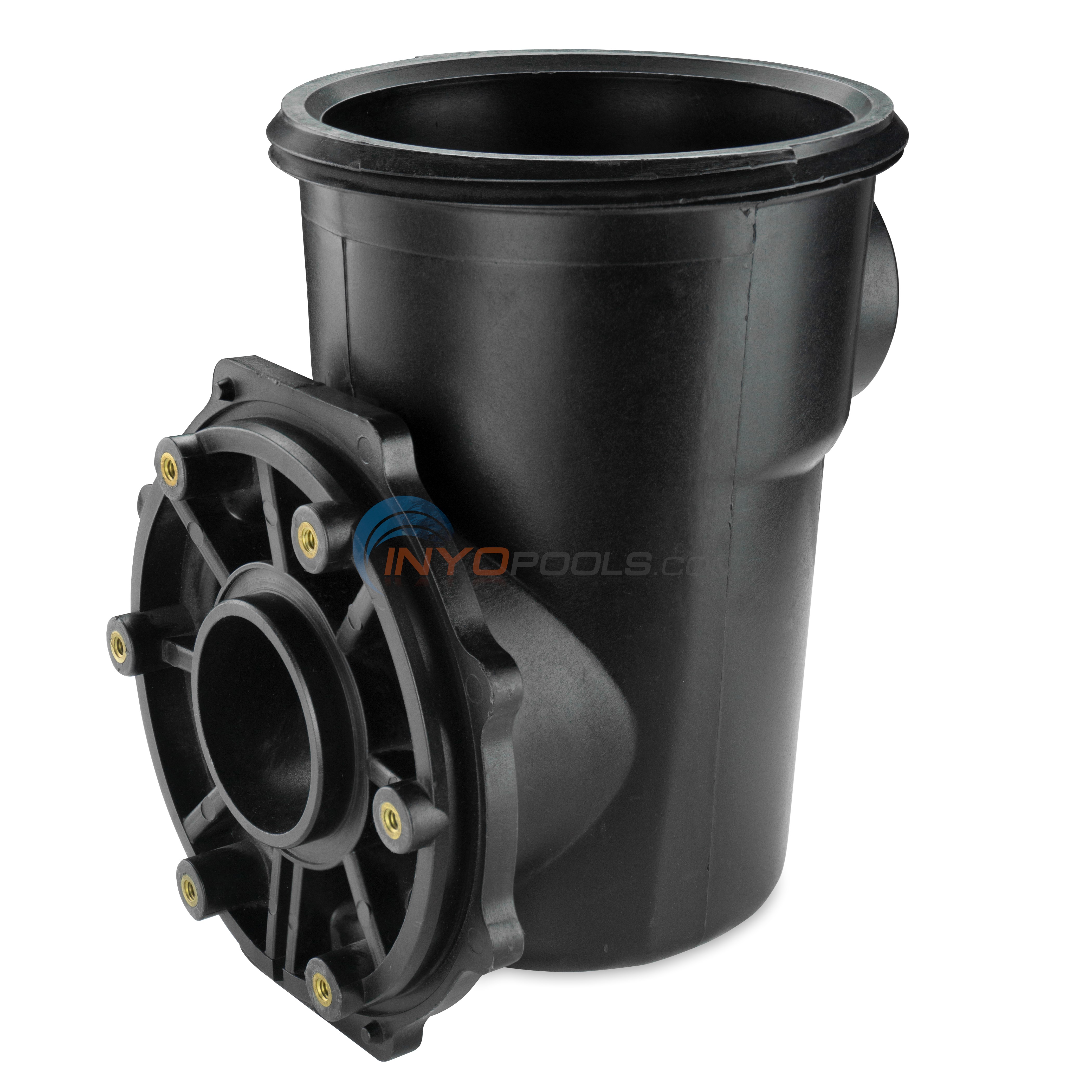

STRAINER BODY, 1 1/2IN (16098709R000)

Part # 5062-05 Mfg # 16098709R

STRAINER BODY, 1 1/2IN (16098709R000)

$139.66 IN STOCK

Qty:

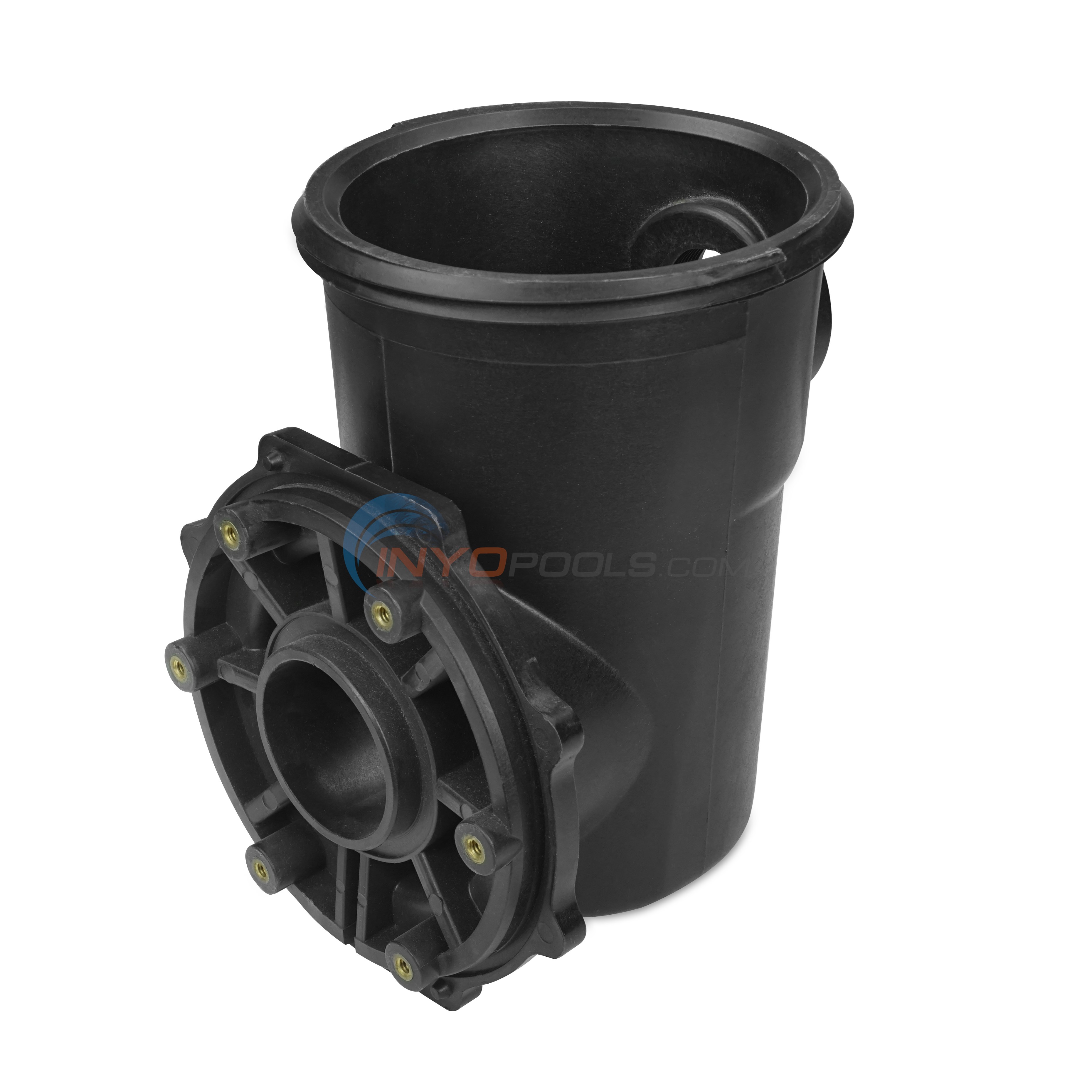

BODY,STRAINER 2IN (16098600R000)

Part # 5062-05A Mfg # 16098600R

BODY,STRAINER 2IN (16098600R000)

$139.66 IN STOCK

Qty:

O-RING OD 11/16"

Part # 3262-08 Mfg # 112

O-RING OD 11/16"

$3.66 IN STOCK

Qty:

PLUG, VENT (SET OF 2)

Part # 4665-07 Mfg # 31160906R2

PLUG, VENT (SET OF 2)

$7.83 IN STOCK

Qty:

GASKET, SQUARE RING

Part # 5067-06 Mfg # O-264

GASKET, SQUARE RING

$18.11 IN STOCK

Qty:

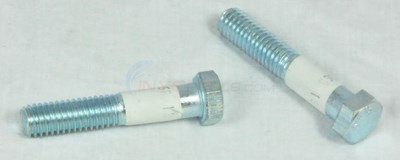

BASE, FASTENER KIT

Part # 5068-18 Mfg # 14073233R2

BASE, FASTENER KIT

$23.44

11

OBSOLETE BASE, ASSEMBLY

Mfg # 12-1036-02

OBSOLETE BASE, ASSEMBLY

NOT AVAILABLE

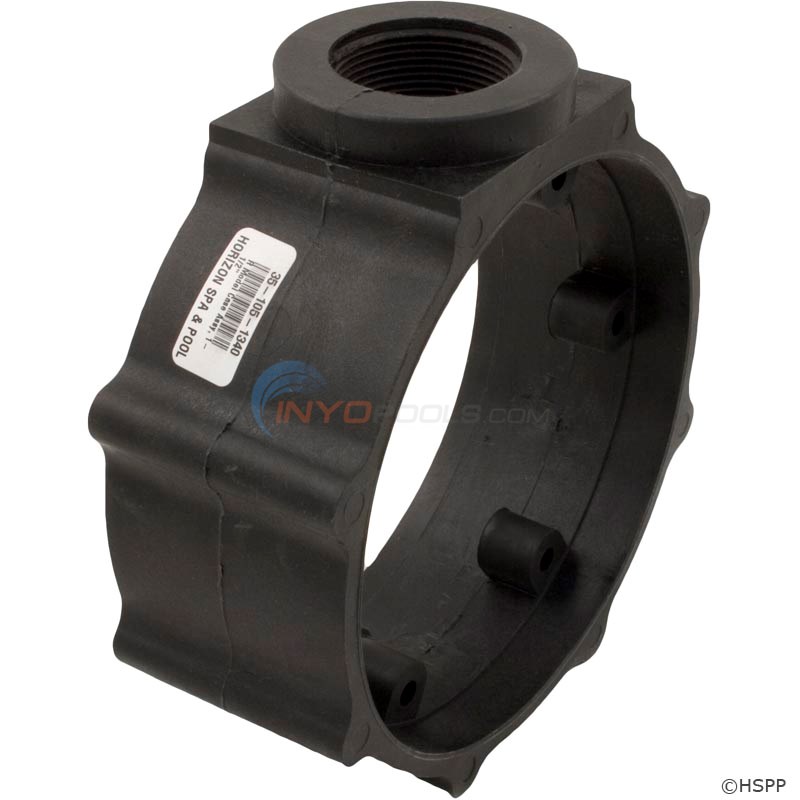

CASE, 1 1/2" DISCHARGE (03081106R000)

Part # 5067-07A Mfg # 03081106R

CASE, 1 1/2" DISCHARGE (03081106R000)

$195.10 IN STOCK

Qty:

12

OBSOLETE CASE, 2" DISCHARGE

Mfg # 03-0812-05

OBSOLETE CASE, 2" DISCHARGE

NOT AVAILABLE

12C

OBSOLETE CASE/FLANGE, ASSY. 2"

Mfg # 03-2001-02

OBSOLETE CASE/FLANGE, ASSY. 2"

NOT AVAILABLE

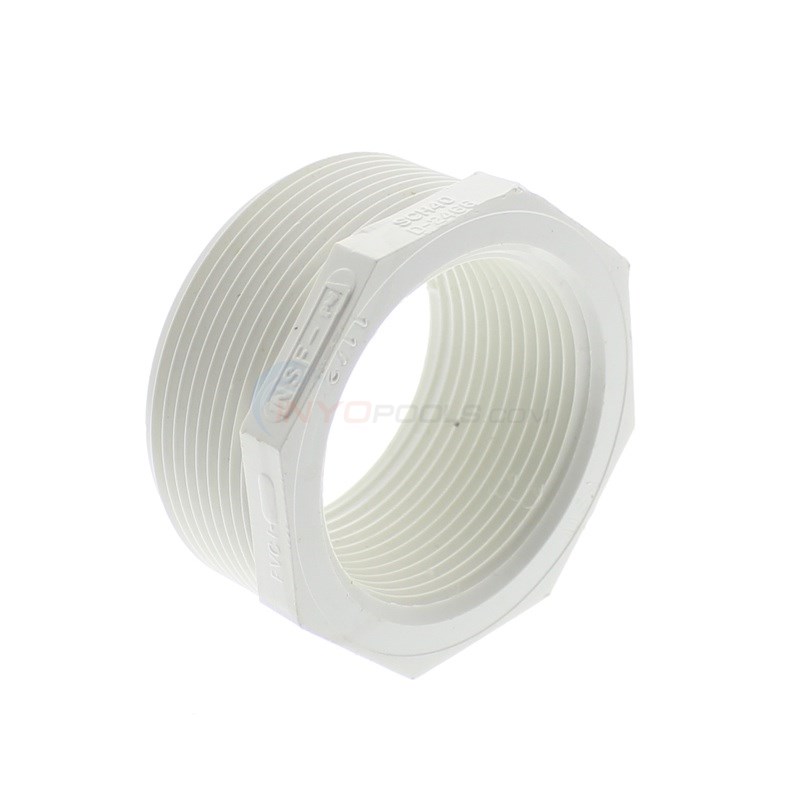

BUSHING, 2" MPT X 1 1/2" FPT

Part # 7194-0 Mfg # 439-251

BUSHING, 2" MPT X 1 1/2" FPT

$21.31 IN STOCK

Qty:

13

OBSOLETE BOLT, CASE

Mfg # 14-1269-16

OBSOLETE BOLT, CASE

NOT AVAILABLE

GASKET, DIFFUSER (SQUARE RING)

Part # 5067-11 Mfg # G-316

GASKET, DIFFUSER (SQUARE RING)

$12.78 IN STOCK

Qty:

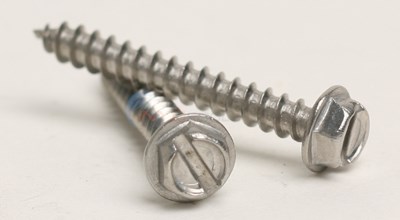

BOLT, #8 X 1-1/4"" (SET OF 2)

Part # 5062-30 Mfg # 14420608R2

BOLT, #8 X 1-1/4"" (SET OF 2)

$12.55

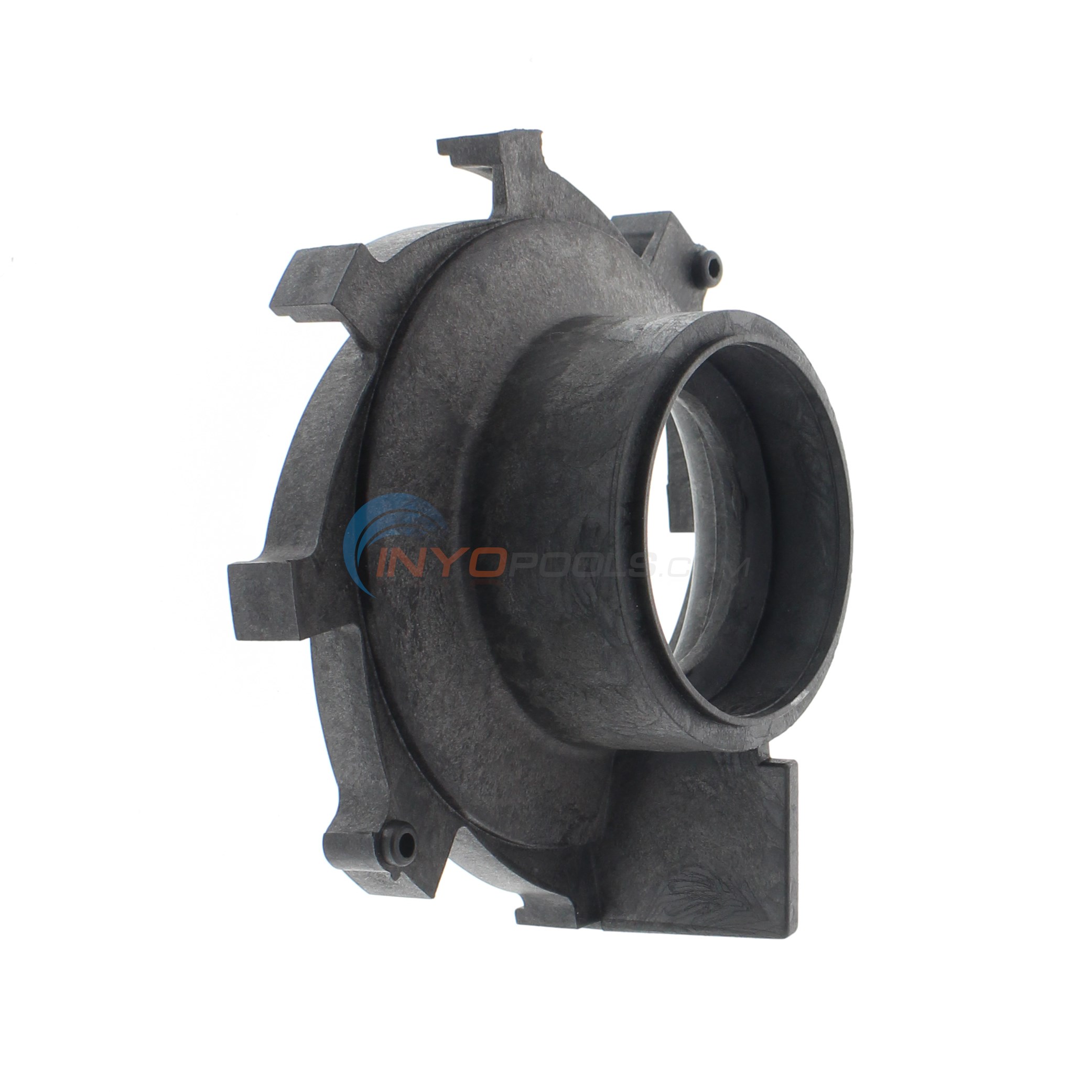

DIFFUSER (06015705R000)

Part # 5067-10A Mfg # 06015705R

DIFFUSER (06015705R000)

$51.49 IN STOCK

Full Rated H.P. 1/2, 3/4, and 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

Full Rated H.P. 1/2, 3/4, and 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

Qty:

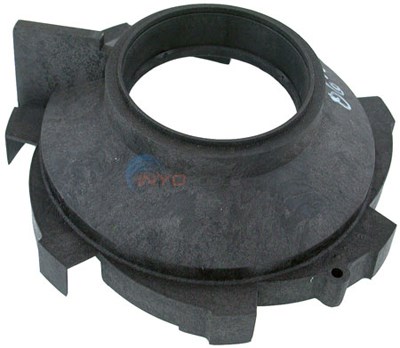

DIFFUSER (06016307R000)

Part # 5067-10B Mfg # 06016307R

DIFFUSER (06016307R000)

$67.16

Full Rated H.P. 1-1/2 & 2HP Up Rated H.P. 2HP

Full Rated H.P. 1-1/2 & 2HP Up Rated H.P. 2HP

EYE SEAL (10146207R000)

Part # 5062-17 Mfg # 10146207R

EYE SEAL (10146207R000)

$14.23 IN STOCK

Full Rated H.P. 1/2, 3/4, & 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

Full Rated H.P. 1/2, 3/4, & 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

Qty:

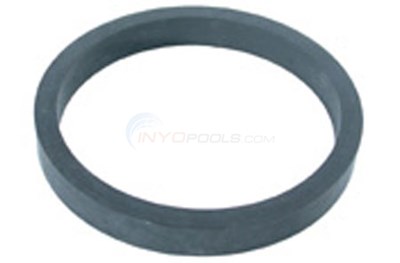

EYE SEAL (10146314R000)

Part # 5062-17A Mfg # 10146314R

EYE SEAL (10146314R000)

$26.10 IN STOCK

Full Rated H.P. 1-1/2 & 2HP Up Rated H.P. 2HP

Full Rated H.P. 1-1/2 & 2HP Up Rated H.P. 2HP

Qty:

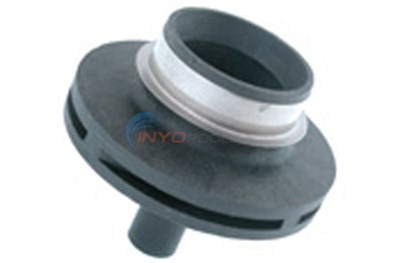

IMPELLER (05380605R000)

Part # 5062-18 Mfg # 05380605R

IMPELLER (05380605R000)

$81.02 IN STOCK

Full Rated H.P. 1/2HP Up Rated H.P. - Impeller Dia. 3-5/8"

Full Rated H.P. 1/2HP Up Rated H.P. - Impeller Dia. 3-5/8"

Qty:

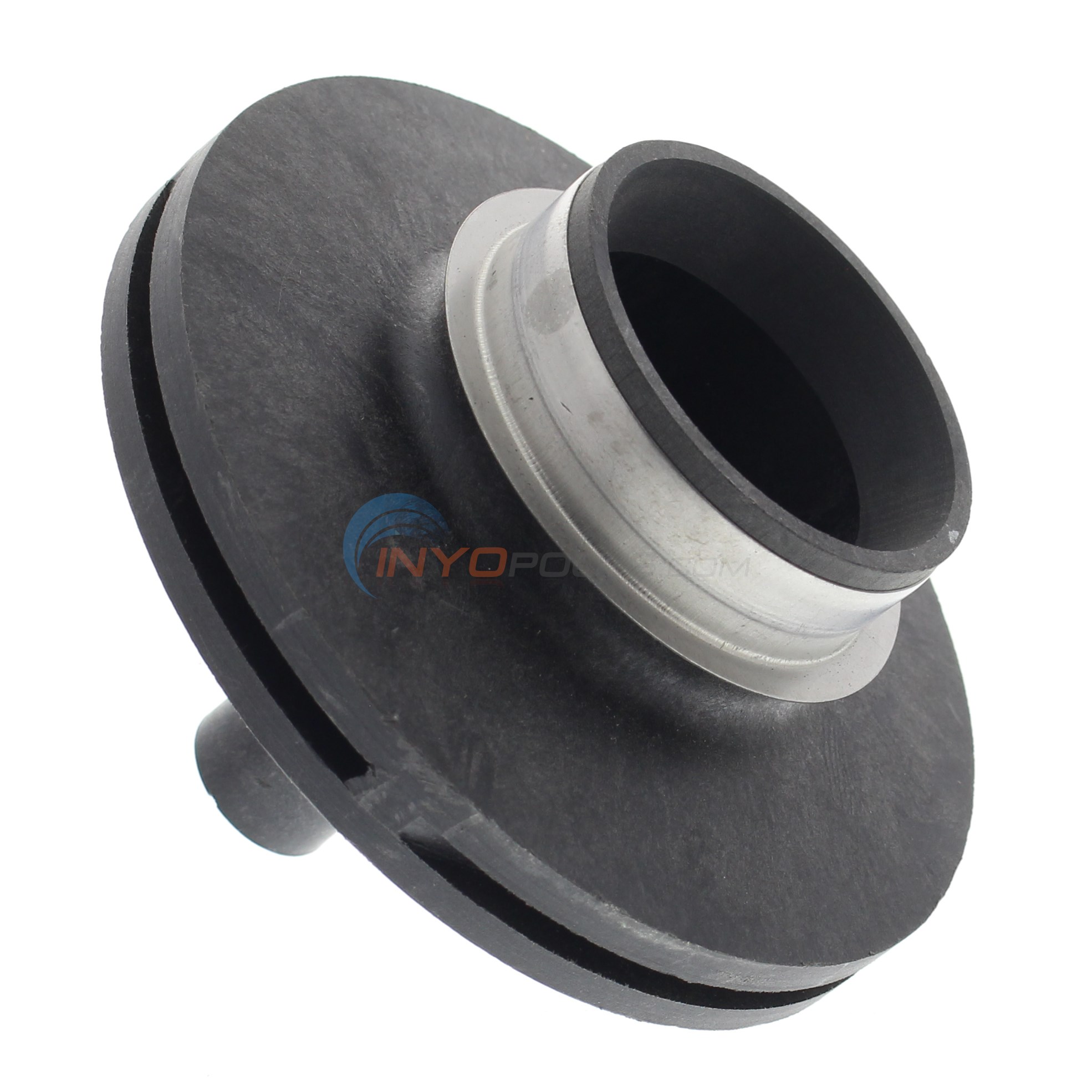

IMPELLER (05380001R000)

Part # 5062-18A Mfg # 05380001R

IMPELLER (05380001R000)

$53.76 IN STOCK

Full Rated H.P. 1/2HP Up Rated H.P. 3/4HP Impeller Dia. 4-3/16"

Full Rated H.P. 1/2HP Up Rated H.P. 3/4HP Impeller Dia. 4-3/16"

Qty:

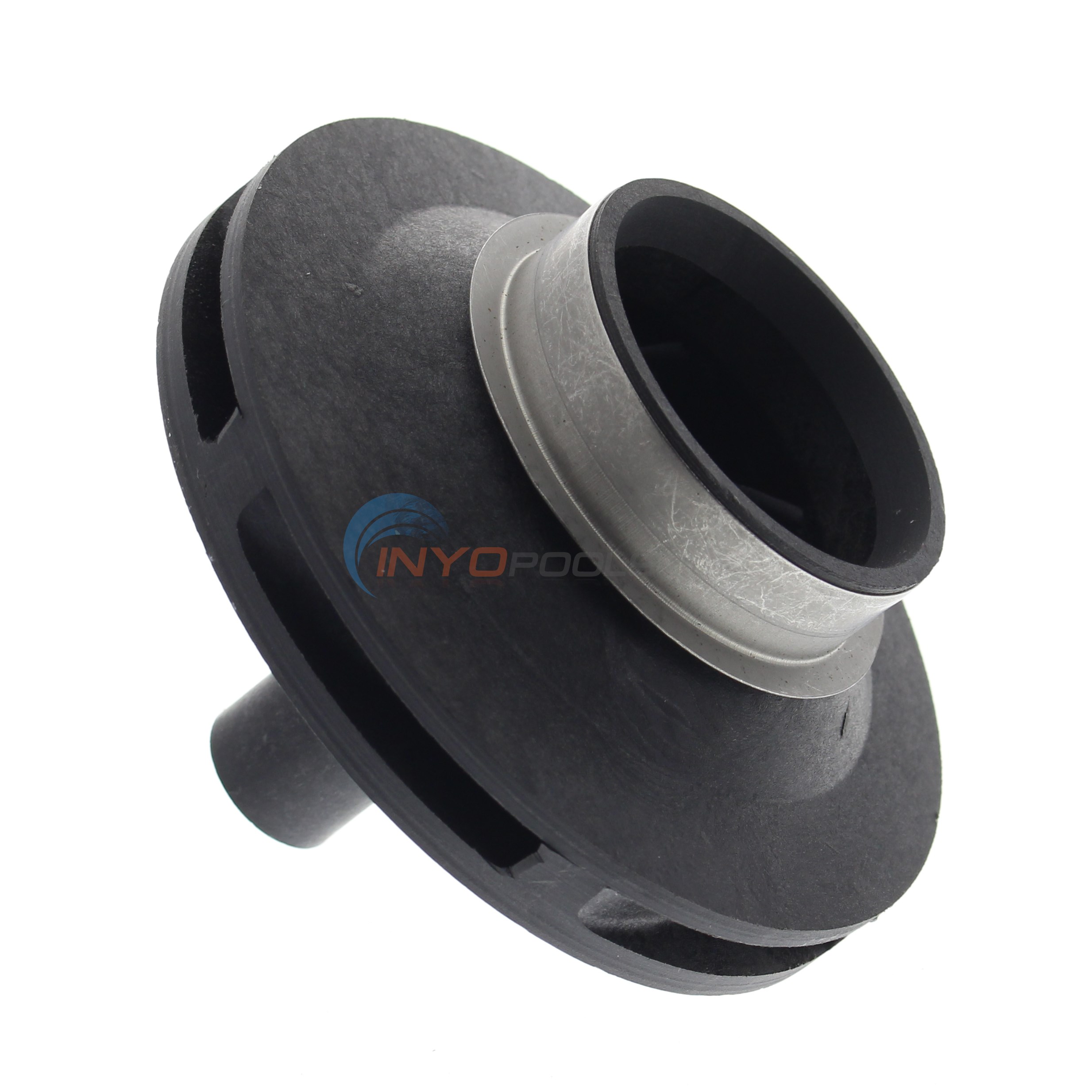

IMPELLER (05380100R000)

Part # 5062-18B Mfg # 05380100R

IMPELLER (05380100R000)

$67.16 IN STOCK

Full Rated H.P. 3/4HP Up Rated H.P. 1HP Impeller Dia. 4-1/16"

Full Rated H.P. 3/4HP Up Rated H.P. 1HP Impeller Dia. 4-1/16"

Qty:

IMPELLER (05380209R000)

Part # 5062-18C Mfg # 05380209R

IMPELLER (05380209R000)

$68.28 IN STOCK

Full Rated H.P. 1HP Up Rated H.P. 1-1/2HP Impeller Dia. 4-11/32"

Full Rated H.P. 1HP Up Rated H.P. 1-1/2HP Impeller Dia. 4-11/32"

Qty:

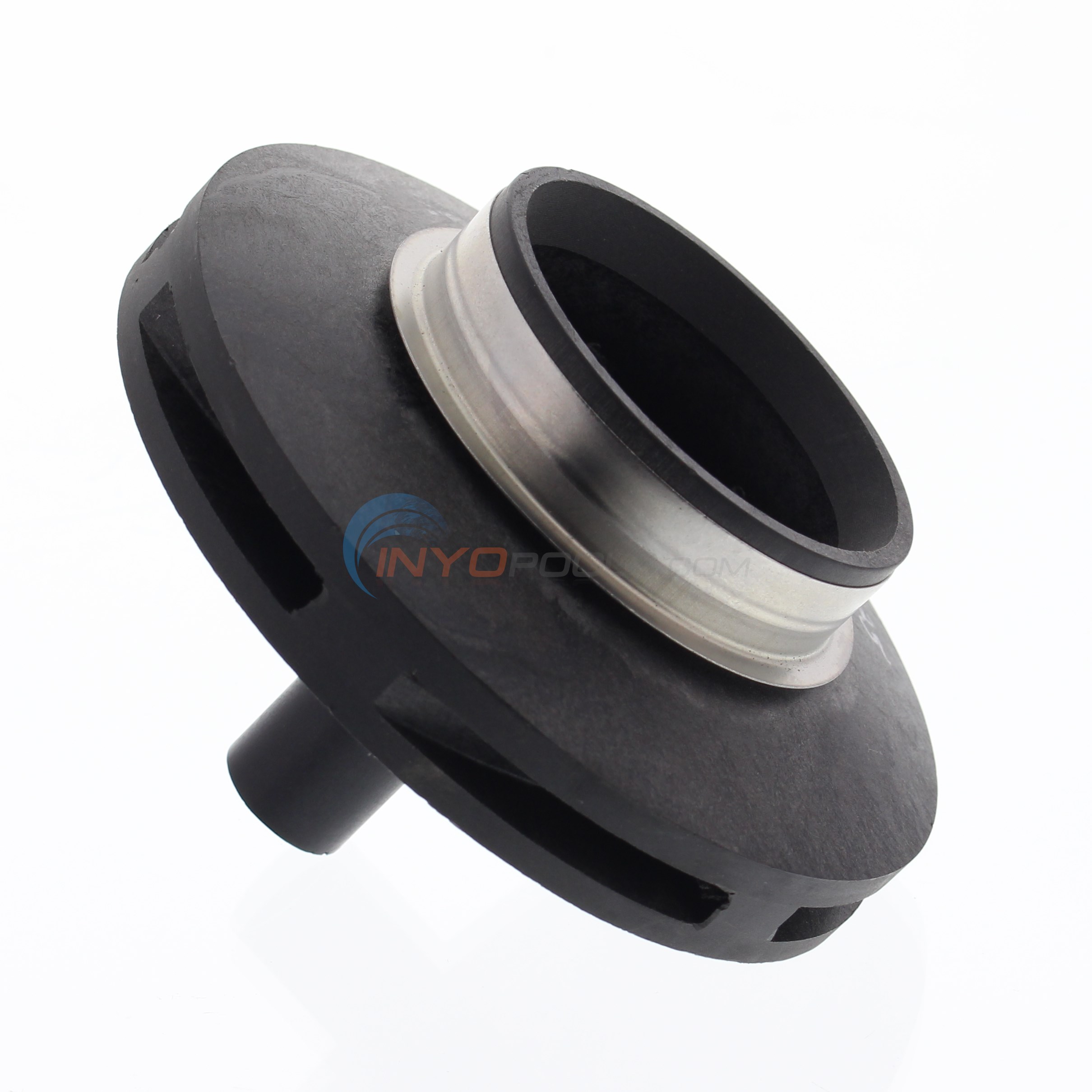

IMPELLER (05380308R000)

Part # 5062-18D Mfg # 05380308R

IMPELLER (05380308R000)

$65.02 IN STOCK

Full Rated H.P. 1-1/2HP Up Rated H.P. 2HP Impeller Dia. 4-9/16"

Full Rated H.P. 1-1/2HP Up Rated H.P. 2HP Impeller Dia. 4-9/16"

Qty:

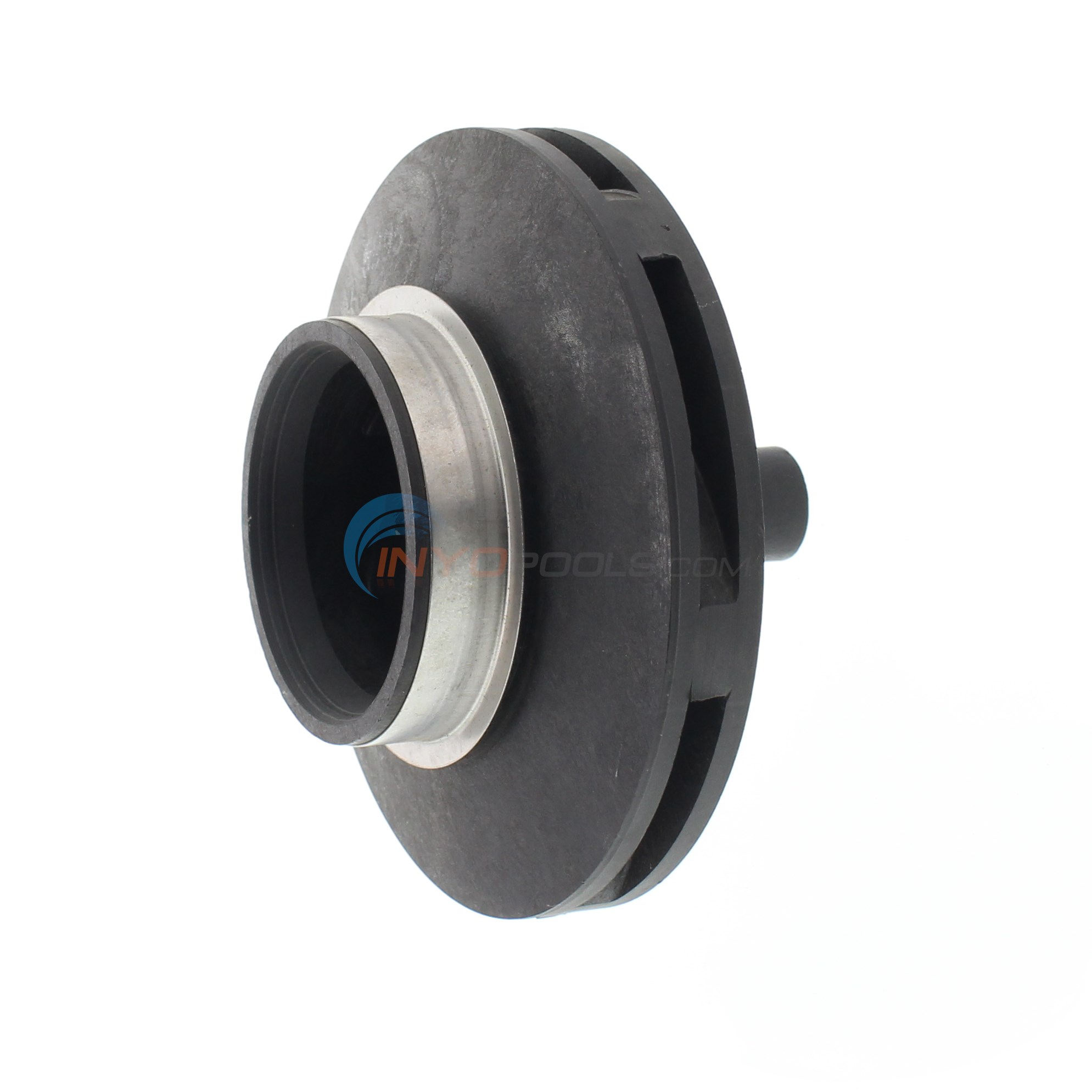

IMPELLER BEFORE 10/1989 (05380407R000)

Part # 5062-18E Mfg # 05380407R

IMPELLER BEFORE 10/1989 (05380407R000)

$65.69 IN STOCK

Full Rated H.P. 2HP Up Rated H.P. - Impeller Dia. 4-3/4"

Full Rated H.P. 2HP Up Rated H.P. - Impeller Dia. 4-3/4"

Qty:

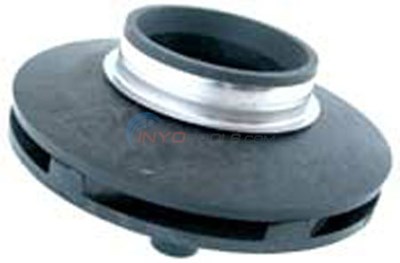

IMPELLER AFTER 10/1989 (05385208R000)

Part # 5064-15E Mfg # 05385208R

IMPELLER AFTER 10/1989 (05385208R000)

$77.07 IN STOCK

Full Rated H.P. 2HP Up Rated H.P. - Impeller Dia. 5"

Full Rated H.P. 2HP Up Rated H.P. - Impeller Dia. 5"

Qty:

IMPELLER (05380506R000)

Part # 5062-18F Mfg # 05380506R

IMPELLER (05380506R000)

$75.34 IN STOCK

Full Rated H.P. 3HP Up Rated H.P. - Impeller Dia. 4-3/4"

Full Rated H.P. 3HP Up Rated H.P. - Impeller Dia. 4-3/4"

Qty:

PUMP SEAL 201 (PSR 201)

Part # 5250-102 Mfg # PS-201

PUMP SEAL 201 (PSR 201)

$9.19 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$6.11

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97

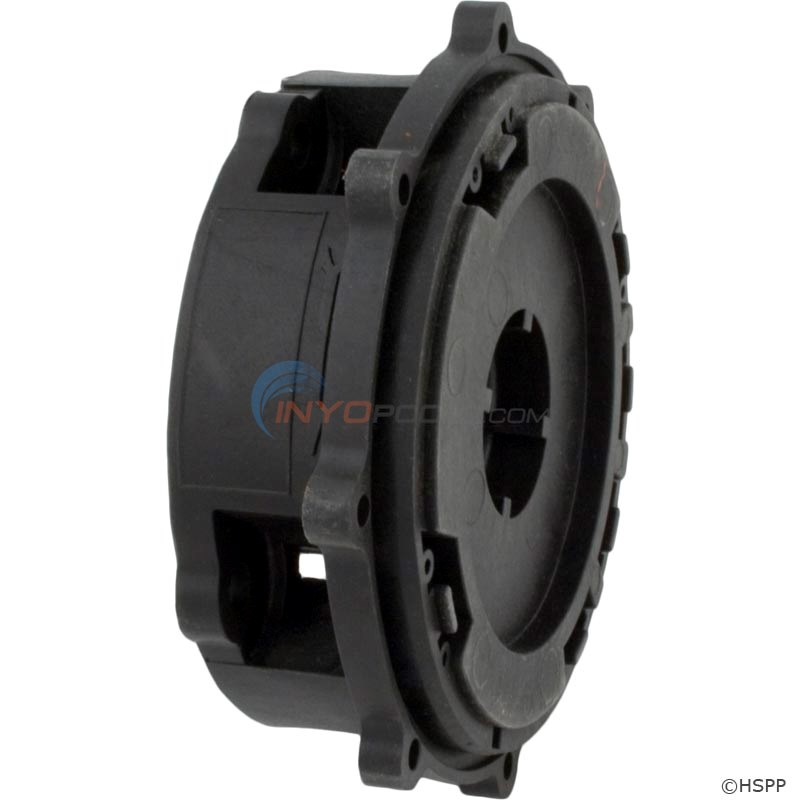

MOTOR BRACKET (02138907R000)

Part # 5067-01B Mfg # 02138907R

MOTOR BRACKET (02138907R000)

$148.19

Full Rated H.P. 1/2, 3/4, & 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

Full Rated H.P. 1/2, 3/4, & 1HP Up Rated H.P. 3/4, 1, & 1-1/2HP

MOTOR BRACKET (02135101R000)

Part # 5067-01A Mfg # 02135101R

MOTOR BRACKET (02135101R000)

$148.19 IN STOCK

Full Rated H.P. 1-1/2, 2 (BEFORE 1989), & 3HP Up Rated H.P. 2HP

Full Rated H.P. 1-1/2, 2 (BEFORE 1989), & 3HP Up Rated H.P. 2HP

Qty:

MOTOR BRACKET (02161008R000)

Part # 5067-01C Mfg # 02161008R

MOTOR BRACKET (02161008R000)

$101.27

Full Rated H.P. 2HP (AFTER 1989) Up Rated H.P. -

Full Rated H.P. 2HP (AFTER 1989) Up Rated H.P. -

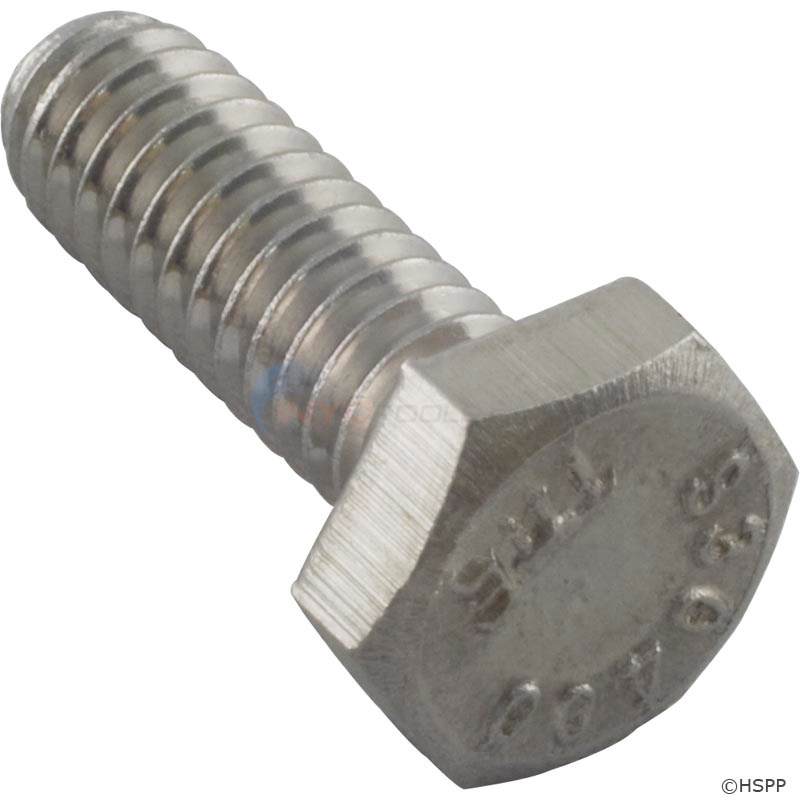

BOLT, BRACKET (6911-0-)

Part # 5062-21 Mfg # 14126635R

BOLT, BRACKET (6911-0-)

$11.71 IN STOCK

Qty:

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$7.68 IN STOCK

Qty:

Pureline 3/4 HP Round Flange 56J Up Rate Motor

Part # PL1073

Pureline 3/4 HP Round Flange 56J Up Rate Motor

$181.19 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102

Part # UST1102 Mfg # UST1102

Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102

$223.35 IN STOCK

Service Factor 1.1 Voltage 115/230 Max Amps 15.0/7.5 Frame 56J

Service Factor 1.1 Voltage 115/230 Max Amps 15.0/7.5 Frame 56J

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Round Flange 56J Frame, Single Speed - Model UST1152

Part # UST1152 Mfg # UST1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Round Flange 56J Frame, Single Speed - Model UST1152

$262.08 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

A.O Smith 2 H.P Round Flange Up Rate Replacement Motor

Part # UST1202 Mfg # UST1202

A.O Smith 2 H.P Round Flange Up Rate Replacement Motor

$353.21 IN STOCK

Service Factor 1.1 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Service Factor 1.1 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Qty:

A.O Smith 1/2 HP Round Flange Replacement Motor

Part # ST1052 Mfg # ST1052

A.O Smith 1/2 HP Round Flange Replacement Motor

$265.00 IN STOCK

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

A.O. Smith Round Flange 3/4 HP Full Rate Motor

Part # ST1072 Mfg # ST1072

A.O. Smith Round Flange 3/4 HP Full Rate Motor

$261.25 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

AO Smith 1 HP Full Rate Round Flange Motor

Part # ST1102 Mfg # ST1102

AO Smith 1 HP Full Rate Round Flange Motor

$279.02 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

A.O. Smith Round Flange 1 1/2 HP Full Rate Motor

Part # ST1152 Mfg # ST1152

A.O. Smith Round Flange 1 1/2 HP Full Rate Motor

$365.75 IN STOCK

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Qty:

A.O. Smith Round Flange 2 HP Full Rate Motor

Part # ST1202 Mfg # ST1202

A.O. Smith Round Flange 2 HP Full Rate Motor

$397.10 IN STOCK

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Qty:

A.O Smith 3 H.P Round Flange Replacement Motor

Part # ST1302 Mfg # ST1302V1

A.O Smith 3 H.P Round Flange Replacement Motor

$555.00 IN STOCK

Service Factor 1.15 Voltage 208-230 Max Amps 14.5-13.8 Frame 56J

Service Factor 1.15 Voltage 208-230 Max Amps 14.5-13.8 Frame 56J

Qty:

A.O. Smith 1 H.P Round Flange Dual Speed Full Rate Motor

Part # STS1102 Mfg # STS1102RV1

A.O. Smith 1 H.P Round Flange Dual Speed Full Rate Motor

$419.00 IN STOCK

Service Factor 1.5 Voltage 230 Max Amps 8.5/2.5 Frame 56J

Service Factor 1.5 Voltage 230 Max Amps 8.5/2.5 Frame 56J

Qty:

A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor

Part # STS1152 Mfg # STS1152R

A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor

$498.78 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 9.0/3.3 Frame 56J

Service Factor 1.0 Voltage 230 Max Amps 9.0/3.3 Frame 56J

Qty:

A.O. Smith 2 H.P Round Flange Dual Speed Full Rate Motor

Part # STS1202 Mfg # B2979

A.O. Smith 2 H.P Round Flange Dual Speed Full Rate Motor

$555.00 IN STOCK

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 56J

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 56J

Qty:

Pureline 1 HP Round Flange 56J Up Rate Motor

Part # PL1103

Pureline 1 HP Round Flange 56J Up Rate Motor

$218.34 IN STOCK

Service Factor 1.1 Voltage 115/230 Max Amps 15.0/7.5 Frame 56J

Service Factor 1.1 Voltage 115/230 Max Amps 15.0/7.5 Frame 56J

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

* NOT SHOWN
** O-RING/GASKET REPAIR KIT
