Gasket, Valve Seat - 5 Spoke - SPX0710XD

$13.99

IN STOCK

Part # 4700-10X

By Armco

  4.54 Average

Details

Top

Part # 4700-10X

Manufacturer Code SPX0710XD

Dimensions 5.33" X 0.75"

Alternate Part #'s 00597R0102, 30C3011, G-5106, HAY0613192, HAYSP710XD, O-176A, O176A, SP-710-X-D, SP710XD, SPX0710XD, SPX710XD, 90-423-1175, ALDO-176A-0, APCO2035

Product Description

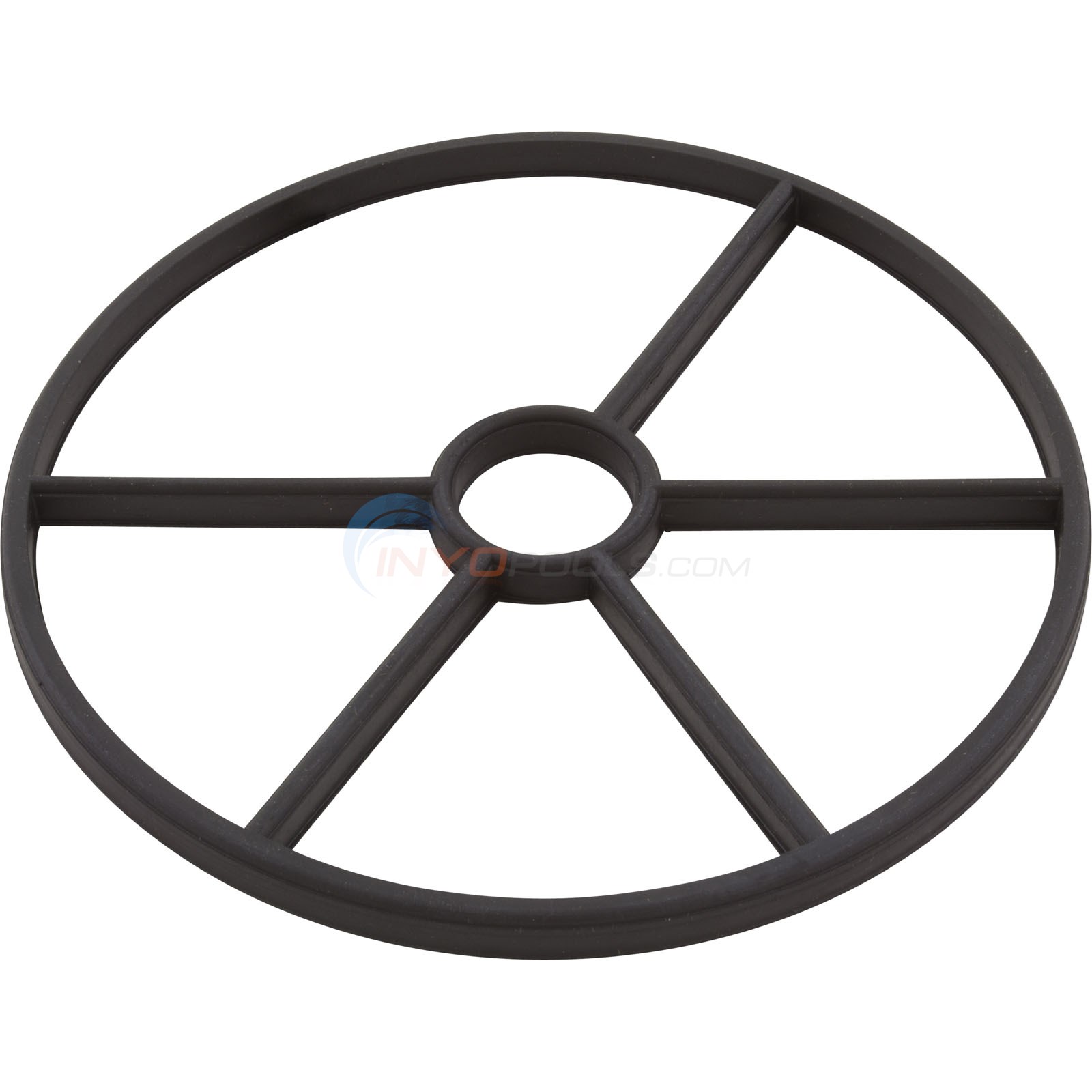

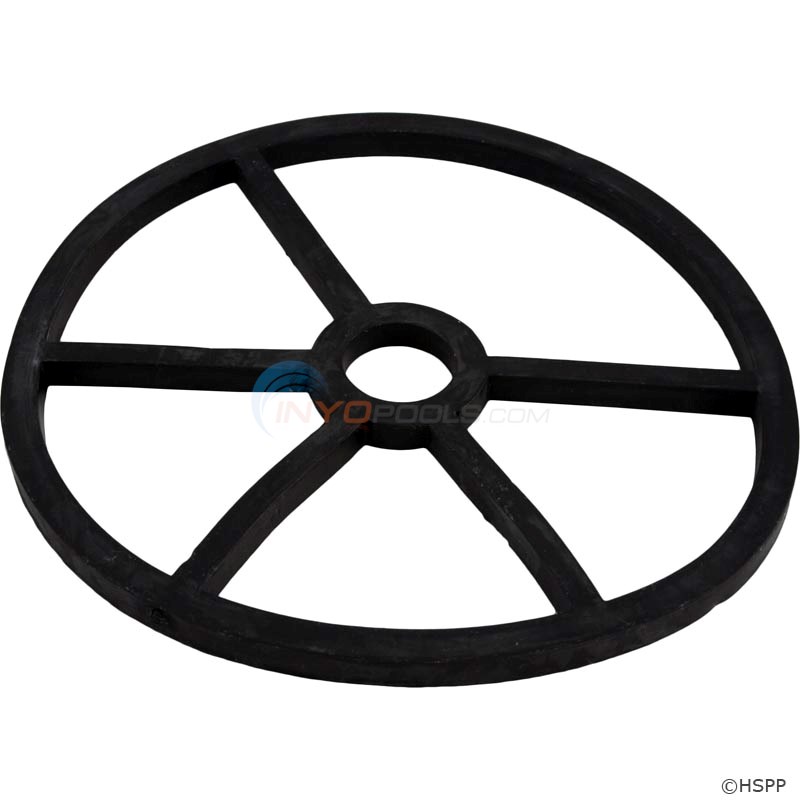

This 5-spoke spider gasket is used on the Hayward Multiport 1.5" SP710, SP711 and SP712 valves.

  • Outside Diameter: 5-5/16"
  • Center Hole Inside Diameter: 3/4"
  • Thickness: 9/32" (top to bottom)
  • Spoke Thickness: 7/32" (side to side)
  • Outside Ring Thickness: 7/32" (side to side)
Top

?     Asked on 5/1/2022by Charles Hertlein

Hi. I have a leaky 1 1/2" Hayward Variflo valve SP71 (no other digits!) attached to an S240 sand filter. Can you tell me which spider gasket this valve uses? Thanks.
 Reply

A  Answered on 5/2/2022 by InyoPools Product Specialist Craig C.

Hello Charles.  The Gasket, Valve Seat - 5 Spoke - SPX0710XD is the replacement spider gasket for the Hayward Vari-Flo 1 1/2" Multiport Valve model SP710X typically installed on the Hayward S-240 1 1/2" Sand Filter.   Hayward S-200/ S-240 Sand Filter    The Cover O-ring (O-139) (271103) - 252 should be replaced concurrent with the new spider gasket.
 Reply


?     Asked on 2/11/2022by Scott Turner

Does this gasket fit a PAC-FAB SM10-2 DE valve?
 Reply

A  Answered on 2/11/2022 by InyoPools Product Specialist Rich N.

Hi Scott, you need this G-416 - 271104 spider gasket for your model SM10 series multiport valve.  We also offer this PacFab MPV 1.5" Tune Up Kit - APCK1067 which contains all of the gaskets for that valve.
 Reply


?     Asked on 7/13/2020by Danielle Jackson

I seem to be having a water leak back into the waste/backflush line. It is small, I am replacing the screw on the side of the Jandy valve, but I am not sure that is the complete problem. I think the spider gasket might be going out because there is a bit of residual water in the multiport valve. Also even though the skimmer lid has been tightened, when the pump is turned back on after backflushing or after filtration, a stream of water comes out of the side. Not sure the model

 Reply

A  Answered on 12/11/2020 by InyoPools Product Specialist Hector F.

Hi Danielle, most often this type of leak is caused by a failed spider gasket and this is the correct one for your Hayward Vari Flow multiport valve SP711 series. Here is a guide that we put together for replacing a spider gasket that may also assist.
 Reply


?     Asked on 6/18/2020by Wayne Steffen

I believe I need a Gasket, Valve Seat - 5 Spoke - SPX0710XD but the only number showing on my Hayward multi-port Vari-flow valve is the patent number - 3640310. Is SPX0710XD the correct gasket valve seat?
 Reply

A  Answered on 11/20/2020 by InyoPools Product Specialist Hector F.

Hi Wayne, the 5 spoke gasket for the Hayward multiport valve that uses the handle part number 3640310 is part number 4701-10
 Reply


?     Asked on 7/15/2019by Inyo Visitor

I have DE powder leaking into pool as I add it to skimmer after backwashing , could this be a bad spider gasket that needs replaced ??
 Reply

A  Answered on 7/15/2019 by InyoPools Product Specialist Hector F.

Yes, it could be a bad spider gasket and or grids or parts going bad from within the filter itself. I would suggest starting with inspecting the spider gasket then going from there.
 Reply


?     Asked on 6/20/2019by Scott M Satterfield

Hello, I have a SPX0710X32 valve which is leaking from the waste port when in the filter position. From what others have posted it seems replacing this Valve seat gasket (SPX0710XD) will fix the issue, but is there anything else I need (sealant, glue, etc.)? The Valve spring is very loose as well...should I replace that while I'm at it? And if so, what other parts will I need?
 Reply

A  Answered on 6/20/2019 by InyoPools Product Specialist Hector F.

If the handle is loose I would also recommend replacing keys 8-10 on the parts diagram here. It is also recommended to use RTV silicone for the spider gasket.
 Reply


?     Asked on 6/9/2019by Kevin Olney

Good evening: I need a "spoke gasket" for a Pac-Fab Multi-Port valve. On the valve faceplate is SP 710 Sand. Inside the valve is SP-710X-B! Is this 5 spoke (spx0710XD the gasket that will work for me. Thanks, Kevin
 Reply

A  Answered on 6/10/2019 by InyoPools Product Specialist Patrick P.

Hi Kevin, Could you send us a few photos of your filter? A close of the label on the filter, a wide shot of the filter and a close up of the Valve label? To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
 Reply


A  Answered on 6/10/2019 by Industry Professional

Yes, This should work
 Reply


A  Answered on 6/11/2019 by Industry Professional

This is the correct spider gasket for that valve
 Reply


?     Asked on 5/21/2019by Paul Zins

I have a Hayward Vari Flo switch on my filter. It doesn't spring up when I turn it to a different position... and now, when I run the filter in the filter position, water is exiting the back wash pipe. I am hoping that some gaskets and maybe a spring will help. Please advise
 Reply

A  Answered on 5/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Paul. If you provide us with the model of your valve, we can get you the specific parts.
 Reply


?     Asked on 5/17/2019by Paul

Will this gasket fit to SP710 13TE?
 Reply

A  Answered on 5/18/2019 by InyoPools Product Specialist Michelle B.

Hello, This will be the correct o-ring you will need for your valve.http://www.inyopools.com/Products/07501352018283.htm
 Reply


?     Asked on 3/2/2019by Inyo Visitor

Will this work on the Waterco T400 6-way?
 Reply

A  Answered on 3/4/2019 by InyoPools Product Specialist Michelle B.

Hello, This would be the incorrect gasket. Do you have a part number on the multiport valve?
 Reply


?     Asked on 9/26/2018by Jim O'Connor

Replacing Hayward vari flow valve gasket, Valve part number SP710XR50. Would the SPX0710XD be the correct gasket? Plus, Do I need to use Loctite, if so please recommend which Loctite to use.
 Reply

A  Answered on 9/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Jim. Yes, this Valve Seat Gasket - SPX0710XD is the correct one for the SP710XR50 valve. You can use Loctite 401, 403, 416 or E6000 to secure the gasket to the valve body.
 Reply


?     Asked on 7/21/2018by Randy Leak

I am looking for a replacement for the spider gasket for a Hayward S166-T sand filter. How do I determine what one will fit? Are ther other parts I should consider replacing at the same time? It leaks water from the waste line while on filter.
 Reply

A  Answered on 7/23/2018 by InyoPools Product Specialist Hector F.

On the valve label, it should provide you with the specific valve model that you can reference for locating a parts diagram for it. You can also call in to advise us. If you cannot locate a model number on the valve then you can email us images of the valve to upload@inyopools.com so we can try and identify the model for you.
 Reply


?     Asked on 7/7/2018by BRIT

I have water flowing out my waste when turned to filter. This gasket should fix that right? Will this gasket fit my sp710x32?
 Reply

A  Answered on 7/8/2018 by InyoPools Product Specialist Lennox H.

Hi, Brit. Yes, replacing this Valve Seat Gasket - SPX0710XD will resolve your issue.
 Reply


?     Asked on 6/30/2018by Arnie

Will this spider gasket fit my Hayward vari flo spo714g11
 Reply

A  Answered on 6/30/2018 by InyoPools Product Specialist Lennox H.

Hi, Arnie. It will not, you will need Part # SPX0714CA
 Reply


?     Asked on 5/18/2018by Terry

I have a Sand filter S220T. I have replaced the o ring gasket. however i am still getting an air leak. Is there another gasket I can replace or do i need a new valve?
 Reply

A  Answered on 5/19/2018 by InyoPools Product Specialist Lennox H.

Hi, Terry. Air leaks are usually caused by a problem on the suction side of your system. You can use our How to Identify and Correct Air LeaksHow to Identify and Correct Air Leaks guide to troubleshoot.
 Reply


?     Asked on 5/7/2018by Tony Fallico

Hi: I am replacing a valve seat gasket on my multivalve SP-711. Will I need the Loctite glue to glue the gasket in place? Which Loctite should I use? Do I need the o-ring lube for the top surface of the gasket? Should I replace the cover right after gluing the gasket in place or wait til it dries? How long should I wait for it to dry? Thanks Kindly, Tony
 Reply

A  Answered on 5/8/2018 by InyoPools Product Specialist Hector F.

We recommend using clear RTV silicone to glue the gasket in the channel and you do not have to use lube on the top side of the gasket. Also depending on the silicone used you may be able to put the cover back in a few hours.
 Reply


?     Asked on 5/7/2018by Tony Fallico

Hi: I am replacing a valve seat gasket on my multivalve SP-711. Will I need the Loctite glue to glue the gasket in place? Which Loctite should I use? Do I need the o-ring lube for the top surface of the gasket? Should I replace the cover right after gluing the gasket in place or wait til it dries? How long should I wait for it to dry? Thanks Kindly, Tony
 Reply

A  Answered on 5/10/2018 by InyoPools Product Specialist Alex V.

Tony, This video will explain everything you will need to do.
 Reply


?     Asked on 3/15/2018by Jeff

On top of my multi port valve it says PAC-FAB Model NO. SP-712-2. On the side it says SP 712A 2. Is this the Gasket that I need for my valve?
 Reply

A  Answered on 3/16/2018 by InyoPools Product Specialist Lennox H.

Hi, Jeff. Yes, this is the correct Valve Seal Gasket - SPX0710XD for your model valve.
 Reply


?     Asked on 11/29/2017by Inyo Visitor

What spider gasket is compatible with the Hayward sp710x-d-e gasket?
 Reply

A  Answered on 11/29/2017 by InyoPools Product Specialist Kevin G.

Yes, that spx0710xd would be compatible with the part number that you gave me.
 Reply


?     Asked on 8/30/2017by Inyo Visitor

I need a spider gasket for a Hayward Vari-Flo XL valve model number 71113 serial #120E28
 Reply

A  Answered on 8/31/2017 by InyoPools Product Specialist Lennox H.

Hi. This Valve Seat Gasket - SPX0710XD will fit the SP7113 Vari-Flo Valve.
 Reply


?     Asked on 5/29/2017by Inyo Visitor

when replacing this spider gasket what type of glue/sealant?? do you use to make it stay inside the grove.?
 Reply

A  Answered on 5/29/2017 by InyoPools Product Specialist Hector F.

It is recommended to use clear RTV silicone for those gaskets. You would run a small bead of it in the grooves that the gasket will sit inside of.
 Reply


?     Asked on 5/27/2017by George

I need a spider gasket for a Hayward Vari-Flo XL valve SP 714-A. Will this fit?
 Reply

A  Answered on 5/27/2017 by InyoPools Product Specialist Patrick P.

Hi George, This spider gasket is not compatible with the Hayward Vari-Flo XL valve SP 714-A. The spider gasket on the Hayward SP714 valve is only available through this Hayward SP714 Diverter With Spider Gasket Glued In
 Reply


?     Asked on 6/2/2015by gerald

what spider gasket will fit spo714T1 pro series top mount valve?(sand filter) thanks.
 Reply

A  Answered on 6/6/2015 by InyoPools Product Specialist Lennox H.

Gerald, The replacement gasket for the SP0714T Top Mount valve is only available with the Key/seal Assembly (Diffuser w/ Gasket) (SPX0714CA).
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

Seal was old and leaking

Written on 6/5/2021 by Guest

I removed the cover of the backflush and replaced it with the new one. I had to use a screwdriver to remove the old one. Very easy

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

12 volt drill with phillips head

1     0

leaking out of valve top

Written on 5/19/2018 by Guest

shut off power to pump, let out air pressure, remove valve head, remove 5 spoke gasket, place non-hardening permatex at gasket corners, install 5 spoke gasket, place siclone on top of gasket ,reinstall valve head. Check operation.
