what spider gasket will fit spo714T1 pro series top mount valve?(sand filter) thanks.
Reply
Gerald, The replacement gasket for the SP0714T Top Mount valve is only available with the Key/seal Assembly (Diffuser w/ Gasket) (SPX0714CA).
Reply
I need a spider gasket for a Hayward Vari-Flo XL valve SP 714-A. Will this fit?
Reply
Hi George, This spider gasket is not compatible with the Hayward Vari-Flo XL valve SP 714-A. The spider gasket on the Hayward SP714 valve is only available through this Hayward SP714 Diverter With Spider Gasket Glued In
Reply
when replacing this spider gasket what type of glue/sealant?? do you use to make it stay inside the grove.?
Reply
It is recommended to use clear RTV silicone for those gaskets. You would run a small bead of it in the grooves that the gasket will sit inside of.
Reply
I need a spider gasket for a Hayward Vari-Flo XL valve model number 71113 serial #120E28
Reply
Hi. This Valve Seat Gasket - SPX0710XD will fit the SP7113 Vari-Flo Valve.
Reply
On top of my multi port valve it says PAC-FAB Model NO. SP-712-2. On the side it says SP 712A 2. Is this the Gasket that I need for my valve?
Reply
Hi: I am replacing a valve seat gasket on my multivalve SP-711. Will I need the Loctite glue to glue the gasket in place? Which Loctite should I use? Do I need the o-ring lube for the top surface of the gasket? Should I replace the cover right after gluing the gasket in place or wait til it dries? How long should I wait for it to dry?
Thanks Kindly,
Tony
Reply
Hi: I am replacing a valve seat gasket on my multivalve SP-711. Will I need the Loctite glue to glue the gasket in place? Which Loctite should I use? Do I need the o-ring lube for the top surface of the gasket? Should I replace the cover right after gluing the gasket in place or wait til it dries? How long should I wait for it to dry?
Thanks Kindly,
Tony
Reply
We recommend using clear RTV silicone to glue the gasket in the channel and you do not have to use lube on the top side of the gasket. Also depending on the silicone used you may be able to put the cover back in a few hours.
Reply
I have a Sand filter S220T. I have replaced the o ring gasket. however i am still getting an air leak. Is there another gasket I can replace or do i need a new valve?
Reply
Hi, Terry. Air leaks are usually caused by a problem on the suction side of your system. You can use our How to Identify and Correct Air LeaksHow to Identify and Correct Air Leaks guide to troubleshoot.
Reply
I have water flowing out my waste when turned to filter. This gasket should fix that right?
Will this gasket fit my sp710x32?
Reply
I am looking for a replacement for the spider gasket for a Hayward S166-T sand filter. How do I determine what one will fit? Are ther other parts I should consider replacing at the same time? It leaks water from the waste line while on filter.
Reply
On the valve label, it should provide you with the specific valve model that you can reference for locating a parts diagram for it. You can also call in to advise us. If you cannot locate a model number on the valve then you can email us images of the valve to upload@inyopools.com so we can try and identify the model for you.
Reply
Replacing Hayward vari flow valve gasket, Valve part number SP710XR50. Would the SPX0710XD be the correct gasket? Plus, Do I need to use Loctite, if so please recommend which Loctite to use.
Reply
Will this gasket fit to SP710 13TE?
Reply
Hello, This will be the correct o-ring you will need for your valve.http://www.inyopools.com/Products/07501352018283.htm
Reply
I have a Hayward Vari Flo switch on my filter. It doesn't spring up when I turn it to a different position... and now, when I run the filter in the filter position, water is exiting the back wash pipe. I am hoping that some gaskets and maybe a spring will help. Please advise
Reply
Hi, Paul. If you provide us with the model of your valve, we can get you the specific parts.
Reply
Good evening:
I need a "spoke gasket" for a Pac-Fab Multi-Port valve. On the valve faceplate is SP 710 Sand. Inside the valve is SP-710X-B! Is this 5 spoke (spx0710XD the gasket that will work for me.
Thanks,
Kevin
Reply
Hi Kevin, Could you send us a few photos of your filter? A close of the label on the filter, a wide shot of the filter and a close up of the Valve label? To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
Yes, This should work
Reply
This is the correct spider gasket for that valve
Reply
Hello, I have a SPX0710X32 valve which is leaking from the waste port when in the filter position. From what others have posted it seems replacing this Valve seat gasket (SPX0710XD) will fix the issue, but is there anything else I need (sealant, glue, etc.)? The Valve spring is very loose as well...should I replace that while I'm at it? And if so, what other parts will I need?
Reply
If the handle is loose I would also recommend replacing keys 8-10 on the parts diagram here. It is also recommended to use RTV silicone for the spider gasket.
Reply
I have DE powder leaking into pool as I add it to skimmer after backwashing , could this be a bad spider gasket that needs replaced ??
Reply
Yes, it could be a bad spider gasket and or grids or parts going bad from within the filter itself. I would suggest starting with inspecting the spider gasket then going from there.
Reply
I believe I need a Gasket, Valve Seat - 5 Spoke - SPX0710XD but the only number showing on my Hayward multi-port Vari-flow valve is the patent number - 3640310. Is SPX0710XD the correct gasket valve seat?
Reply
I seem to be having a water leak back into the waste/backflush line. It is small, I am replacing the screw on the side of the Jandy valve, but I am not sure that is the complete problem. I think the spider gasket might be going out because there is a bit of residual water in the multiport valve.
Also even though the skimmer lid has been tightened, when the pump is turned back on after backflushing or after filtration, a stream of water comes out of the side. Not sure the model
Hi Danielle, most often this type of leak is caused by a failed spider gasket and this is the correct one for your Hayward Vari Flow multiport valve SP711 series. Here is a guide that we put together for replacing a spider gasket that may also assist.
Reply
Does this gasket fit a PAC-FAB SM10-2 DE valve?
Reply
Hi Scott, you need this G-416 - 271104 spider gasket for your model SM10 series multiport valve. We also offer this PacFab MPV 1.5" Tune Up Kit - APCK1067 which contains all of the gaskets for that valve.
Reply

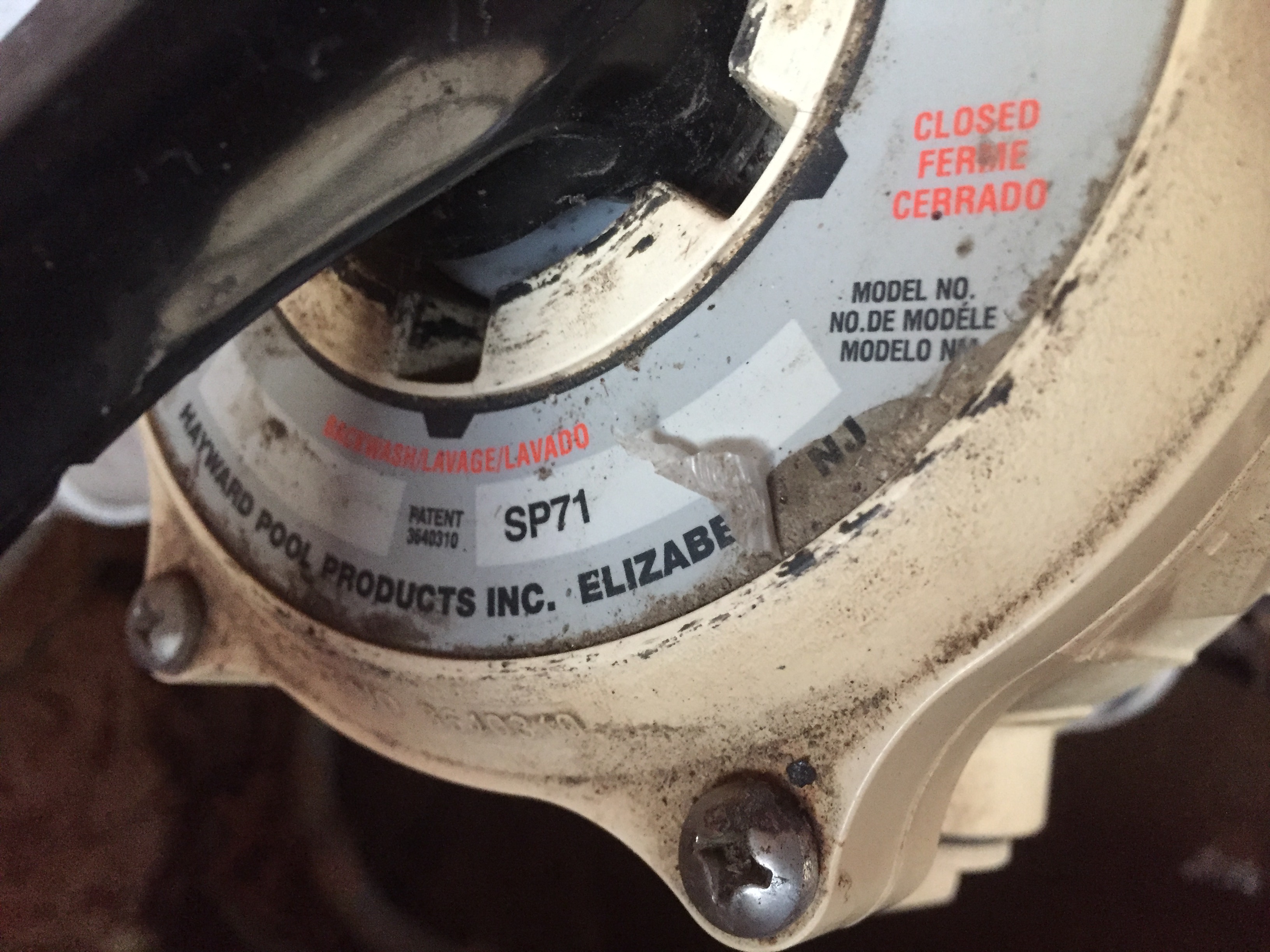

Hi. I have a leaky 1 1/2" Hayward Variflo valve SP71 (no other digits!) attached to an S240 sand filter. Can you tell me which spider gasket this valve uses? Thanks.
Reply
Hello Charles. The Gasket, Valve Seat - 5 Spoke - SPX0710XD is the replacement spider gasket for the Hayward Vari-Flo 1 1/2" Multiport Valve model SP710X typically installed on the Hayward S-240 1 1/2" Sand Filter. Hayward S-200/ S-240 Sand Filter The Cover O-ring (O-139) (271103) - 252 should be replaced concurrent with the new spider gasket.
Reply
Is this the correct replacement spider gasket for my head....see attached pics...thanks
Hello Jason, yes this is the correct spider gasket for your Hayward Variflo multiport valve. I have also emailed you an estimate that you can convert to an order if you would like including clear RTV silicone used to glue the gasket in place. Items are in stock and ready to ship. Here is our "How to Replace a Spider Gasket on a Multiport Valve" guide that we put together that should assist you with the process.
Reply
