Part # 59023400

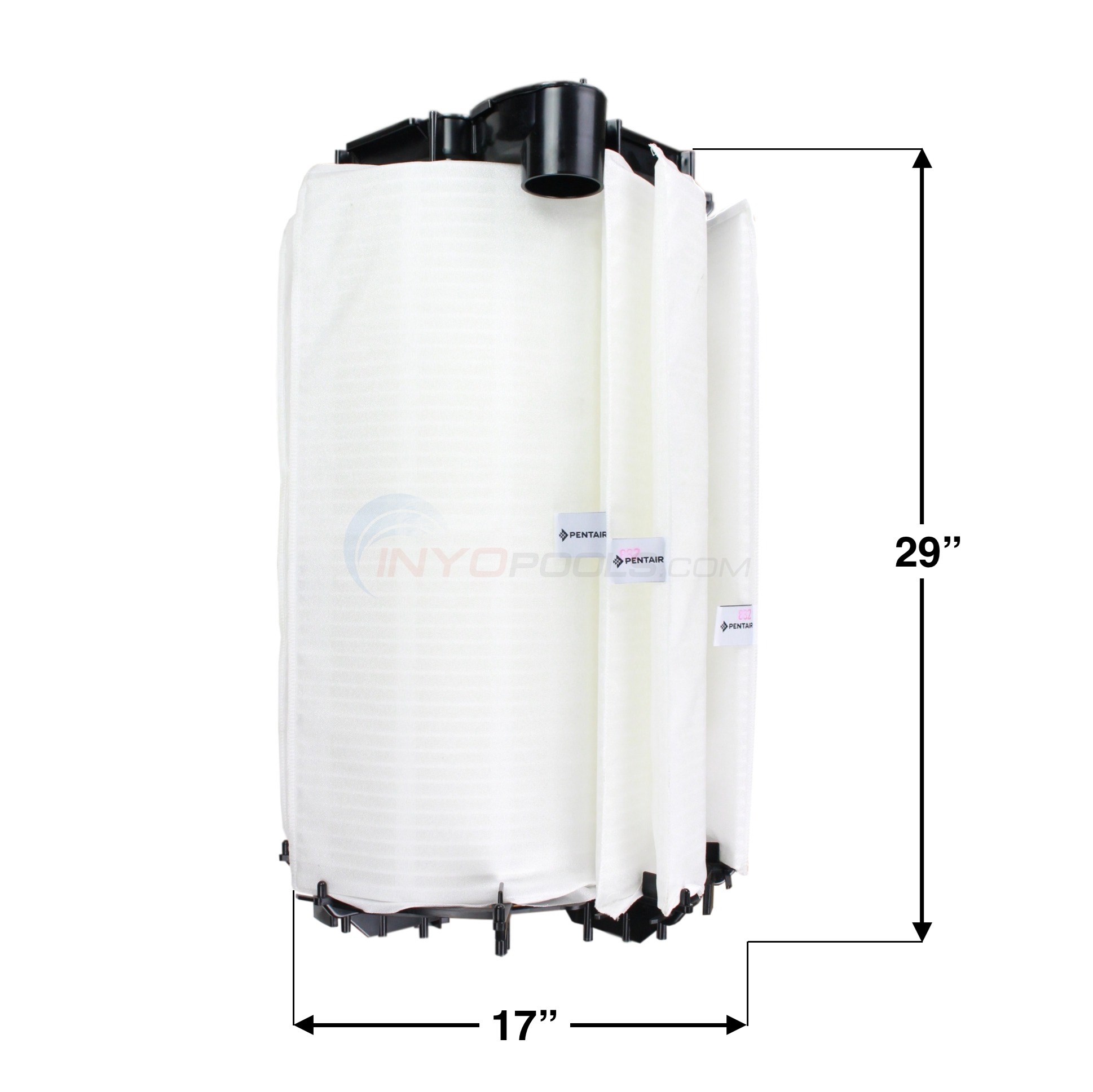

Dimensions 29" L x 17" W x 17" D
Alternate Part #'s 4657-34A, 465734A, 59023400, V20-848, V20848, AMP-051-4018, PEN59023400

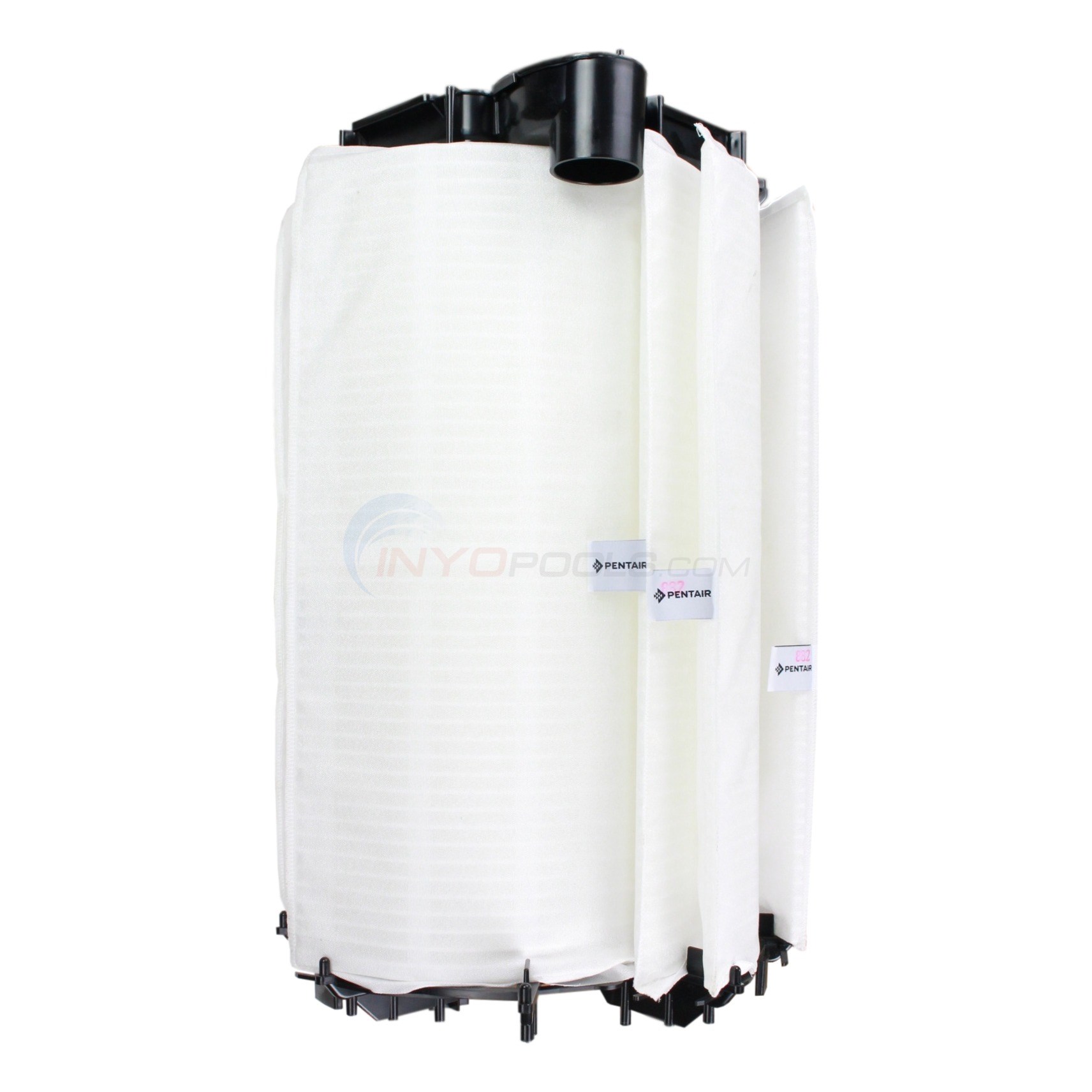

Pre-Assembled Drop-in Grid Assembly for the FNS Plus 48 Sq. Ft. DE Filter (FNSP-48)
No more hassling with re-assembling your grids!
This is the complete DE grid assembly used on the Pentair, Purex, Pac-Fab and American Products FNS Plus 48 Sq. Ft DE filter (FNSP48).

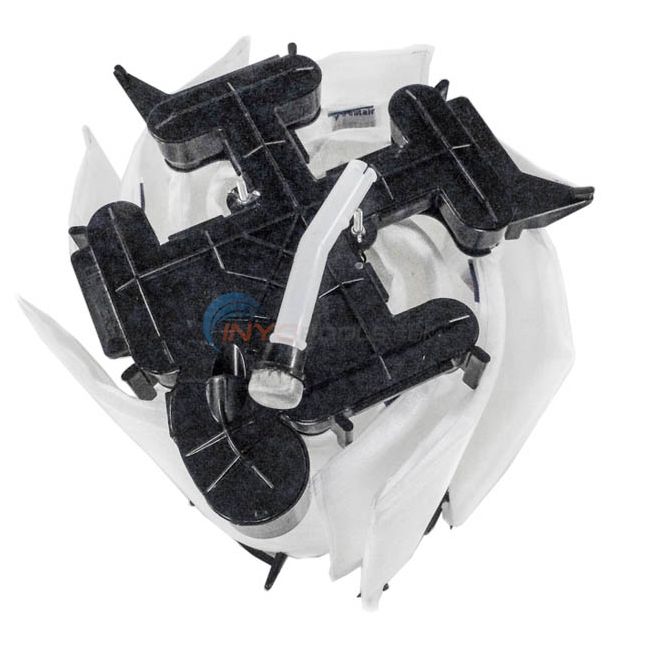

The DE grids on the 48 Sq. Ft. FNS Plus filter measure 24" in length. This is the complete pre-assembled grid assembly which includes 8 DE grids, top manifold, bottom manifold, template, air relief strainer, extension, and tie rods.
How do you clean these DE grids?
Reply
The cleaning of the grids can be done by Removing and Cleaning the DE Grids or by Backwashing your DE Grids.
Reply
Hi, I have an older American Titan SS filter Model # 584090. It is 48 sqft. area and 96 GPM. It is 22 inches in length and height and 52 inches wide. I would like to replace the interior grid assembly. Would the one I see mentioned for the filter above (59023400) fit my needs or would I have to buy a new filter (Pentair). Is there a replacement grid? Thanks
Reply
Hi Len, The DE Grid Assembly on this page is not the correct item for the American Titan SS filter. You would need the DE Grid Assembly for the American Titan SS filter 48 Sq. Ft. here.
Reply
1 to 2 hrs
Wrench Set
Turn off filter. Bleed off excess pressure. Drain water out of filter. Remove filter band and take off top half cover. Remove filter grid assembly. Clean filter. Install new filter grid assembly. Lube o-ring and reinstall filter cover. Prime pump and check pressure. Pressure in range, add DE to skimmer basket. Enjoy Pool!
1 to 2 hrs
Screwdriver, Socket Set
1 0
1) Relieve pressure out of filter,
2) drain filter by opening up backwash valve,
3) loosen metal band around filter and taking completely off,
4) pull off top portion of filter housing,
5) pull out entire grid assembly taking note as to where the drain tube is located,
6) rinse out and take off old filter gasket while cleaning inside of all debris, etc. 7) place new grid assembly into lower filter housing,
8) place new o-ring over lower filter assembly and grease with magic lube,
9) place top half of filter housing over grid and mating with lower half,
10) place metal band around center housing and re-tighten metal band while gently taping around sides with rubber mallet for even distribution while tightening,
11) turn on pool pump and turning top filter valve clockwise once water distributes out top,
12) look for leaks and normal pressure.
The Most Helpful Review
3 0
(5 out of 5 stars)
Reviewed By: Bobby S. ()
It was significantly cheaper then the local pool supply store. Works perfectly and I love the purchase! I plan on using your online store from now on for pool supplies.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Easy to replace. Perfect fit
Was this review helpful to you?
(4 out of 5 stars) Hayward filter assembly
Reviewed By: cek75 from St. Marys, GA ()
Pros: Easy install, well packaged
Cons: None yet
Just got through putting this unit in. Has been working for about 5hrs now with out a problem. Complete assembly that just dropped right in. Looks like a good product.
Was this review helpful to you?
2 0
(5 out of 5 stars) Great replacement grids
Reviewed By: Rick C. from San Diego ()
Shipped quickly and arrived when expected. Fully assembled grid package which made replacement of old set simple and quick...no problems after six months and two back washes.
Was this review helpful to you?
(5 out of 5 stars) limpia mi alberca
Reviewed By: Javier S. from laredo tx ()
Pros: limpia
Cons: nada
fabuloso el envio a tiempo , rapido y ahora mia lberca muy limpia
Was this review helpful to you?
1 0
(5 out of 5 stars)
Reviewed By: Pepe from Winchester, CA ()
Pros: Fully assembled, delivered on time
Cons: none
The item arrived on time and fully assembled. I was able to have my pool running in a relative short period of time. I was very pleased with the service provided by Inyopools.
