American Products Titan RPM D.E. Parts

REINFORCED BLACK POLYPROPYLENE MATERIAL MODELS 1 4 188549(24),188550(36),188551(48),188552(60)SQ. FT.

American Products Titan RPM D.E. Diagram

Click to zoom in

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)
*	2" Multiport Valve w/ Pre-Plumbed Port
1	Bottom Mount Pressure Gauge 0-60 1/4" NPT
2	AIR RELIEF MANUAL VALVE ASSEMBLY
3	OBSOLETE HOSE AND RETAINER CLIPS
4	LID, 36 SQ.FT. FILTER
6	O-RING, BODY (PUXP24218)
7	CLAMP KIT, RPM, TENSION CONTROL
8	STANDPIPE/OUTLET ASSY., 48 SQ.FT. FILTER
9	O-RING, RPM BULKHEAD
10	ASSEMBLY, PIPE, INLET
11	GRID ASSY, COMPLETE, 24 SQ. FT.
12	PLUG, 1 1/2" DRAIN, With O-RING
13	O-RING FOR DRAIN PLUG
14**	24 Sq. Ft. Full Grid 12 (7 Required)
14	Pentair Full Grid for 60 sq. ft. DE Filter (Single Full Grid)
15	INTERNAL AIR BLEED ASSEMBLY
16***	24 Sq. Ft. Partial Grid 12 Inches (1 Required)
17	GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)
18	BULKHEAD UNION (SET OF 2) AFTER 1/90
19	SPRING BARREL NUT ASSY.
20	SPIDER, BOTTOM TANK
21	NUT, STAINLESS STEEL 1/4 X 20
22	WASHER, 1/4" STAINLESS STEEL
23	TIE ROD, 21 1/2" 36 SQ.FT.
24	OBSOLETE BULKHEAD WRENCH
25	WASHER, .325 I.D. FOR FILTER CLAMP
26	NUT
27	NUT, LOCK 1/4" (3209)
*	TEMPLATE, FILTER

View Parts List

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)
*	2" Multiport Valve w/ Pre-Plumbed Port
1	Bottom Mount Pressure Gauge 0-60 1/4" NPT
2	AIR RELIEF MANUAL VALVE ASSEMBLY
3	OBSOLETE HOSE AND RETAINER CLIPS
4	LID, 36 SQ.FT. FILTER
6	O-RING, BODY (PUXP24218)
7	CLAMP KIT, RPM, TENSION CONTROL
8	STANDPIPE/OUTLET ASSY., 48 SQ.FT. FILTER
9	O-RING, RPM BULKHEAD
10	ASSEMBLY, PIPE, INLET
11	GRID ASSY, COMPLETE, 24 SQ. FT.
12	PLUG, 1 1/2" DRAIN, With O-RING
13	O-RING FOR DRAIN PLUG
14**	24 Sq. Ft. Full Grid 12 (7 Required)
14	Pentair Full Grid for 60 sq. ft. DE Filter (Single Full Grid)
15	INTERNAL AIR BLEED ASSEMBLY
16***	24 Sq. Ft. Partial Grid 12 Inches (1 Required)
17	GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)
18	BULKHEAD UNION (SET OF 2) AFTER 1/90
19	SPRING BARREL NUT ASSY.
20	SPIDER, BOTTOM TANK
21	NUT, STAINLESS STEEL 1/4 X 20
22	WASHER, 1/4" STAINLESS STEEL
23	TIE ROD, 21 1/2" 36 SQ.FT.
24	OBSOLETE BULKHEAD WRENCH
25	WASHER, .325 I.D. FOR FILTER CLAMP
26	NUT
27	NUT, LOCK 1/4" (3209)
*	TEMPLATE, FILTER

Available Parts:

Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)

Part # PL0186

Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)

$134.99 IN STOCK

Model 188549

Model 188549

Qty:

Pureline Replacement DE Grid Set, 36 sq. ft. Grid Pack 18" (7 Full & 1 Partial)

Part # PL0187

Pureline Replacement DE Grid Set, 36 sq. ft. Grid Pack 18" (7 Full & 1 Partial)

$149.99 IN STOCK

Model 188550

Model 188550

Qty:

Pureline Replacement DE Grid Set, 48 sq. ft. Grid Pack 24" (7 Full & 1 Partial)

Part # PL0188

Pureline Replacement DE Grid Set, 48 sq. ft. Grid Pack 24" (7 Full & 1 Partial)

$159.99 IN STOCK

Model 188551

Model 188551

Qty:

Pureline Replacement DE Grid Set, 60 sq. ft. Grid Pack 30" (7 Full & 1 Partial)

Part # PL0189

Pureline Replacement DE Grid Set, 60 sq. ft. Grid Pack 30" (7 Full & 1 Partial)

$239.99 IN STOCK

Model 188552

Model 188552

Qty:

2" Multiport Valve w/ Pre-Plumbed Port

Part # 4716-0 Mfg # SM2-SR2

2" Multiport Valve w/ Pre-Plumbed Port

$238.63 IN STOCK

Qty:

Valve, Push-pull 8" Center W/union - Black

Part # 4650-1 Mfg # 263052

Valve, Push-pull 8" Center W/union - Black

$223.35 IN STOCK

Qty:

2" Slide Valve for DE and Sand Filter

Part # 263034 Mfg # 263064

2" Slide Valve for DE and Sand Filter

$124.99 IN STOCK

Qty:

1.5" Threaded Multiport Valve for D.E Filters

Part # 261177

1.5" Threaded Multiport Valve for D.E Filters

$176.99 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$14.85 IN STOCK

Qty:

AIR RELIEF MANUAL VALVE ASSEMBLY

Part # 4655-03D Mfg # 25357-982-00

AIR RELIEF MANUAL VALVE ASSEMBLY

$30.99 IN STOCK

Qty:

NIPPLE, 1/4IN- REQUIRED With 98209804

Part # 2100-08 Mfg # 27025

NIPPLE, 1/4IN- REQUIRED With 98209804

$20.99 IN STOCK

Qty:

3

OBSOLETE HOSE AND RETAINER CLIPS

Mfg # 98201200

OBSOLETE HOSE AND RETAINER CLIPS

NOT AVAILABLE

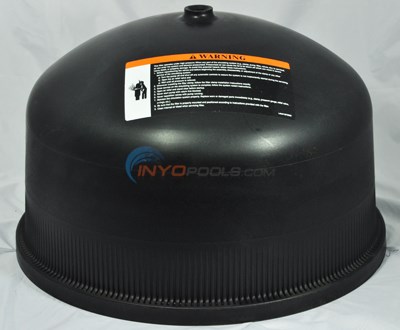

LID, 36 SQ.FT. FILTER

Part # 4657-30 Mfg # 59055300

LID, 36 SQ.FT. FILTER

$257.43 IN STOCK

Qty:

LID, 48 SQ.FT. FILTER

Part # 4657-30A Mfg # 59055400

LID, 48 SQ.FT. FILTER

$329.99

LID, 60 SQ.FT. FILTER

Part # 4657-30B Mfg # 59055500

LID, 60 SQ.FT. FILTER

$370.99

4

OBSOLETE LID 24 SQ.FT. FILTER

Mfg # 59052700

OBSOLETE LID 24 SQ.FT. FILTER

NOT AVAILABLE

O-RING, BODY (PUXP24218)

Part # 4610-38 Mfg # O-333

O-RING, BODY (PUXP24218)

$27.19 IN STOCK

Qty:

CLAMP KIT, RPM, TENSION CONTROL

Part # 4654-43 Mfg # 98222000

CLAMP KIT, RPM, TENSION CONTROL

$289.99 IN STOCK

Qty:

STANDPIPE/OUTLET ASSY., 48 SQ.FT. FILTER

Part # 4657-32A Mfg # 56620200

STANDPIPE/OUTLET ASSY., 48 SQ.FT. FILTER

$110.99

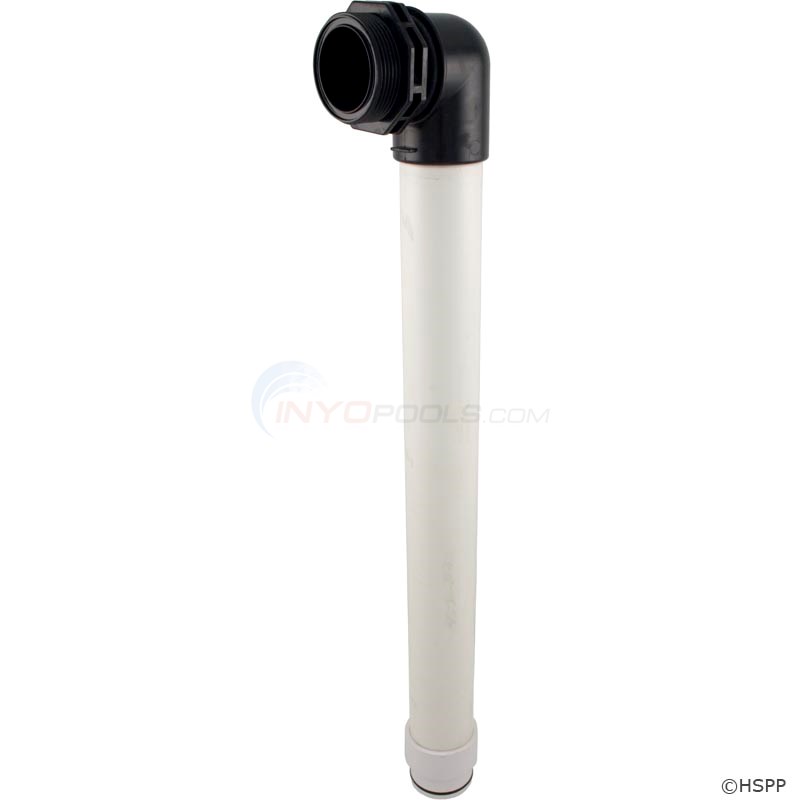

STANDPIPE/OUTLET ASSY., 60 SQ.FT. FILTER

Part # 4657-32B Mfg # 56620100

STANDPIPE/OUTLET ASSY., 60 SQ.FT. FILTER

$110.99

8

OBSOLETE ASSY, STANDPIPE, OUTLET

Mfg # 56620400

OBSOLETE ASSY, STANDPIPE, OUTLET

NOT AVAILABLE

8

OBSOLETE ASSY, STANDPIPE, OUTLET

Mfg # 56620300

OBSOLETE ASSY, STANDPIPE, OUTLET

NOT AVAILABLE

Bulkhead O-ring

Part # 4600-2320 Mfg # O-409

Bulkhead O-ring

$8.31 IN STOCK

Qty:

O-RING, RPM BULKHEAD

Part # 4655-37A Mfg # O-180

O-RING, RPM BULKHEAD

$9.80 IN STOCK

Qty:

ASSEMBLY, PIPE, INLET

Part # 4657-33 Mfg # 59019100

ASSEMBLY, PIPE, INLET

$111.99

11

GRID ASSY, COMPLETE, 24 SQ. FT.

Part # 4657-34C Mfg # 59023800

GRID ASSY, COMPLETE, 24 SQ. FT.

NOT AVAILABLE

Grid Assy., 48 Sq.ft. Filter

Part # 59023400 Mfg # 59023400

Grid Assy., 48 Sq.ft. Filter

$383.99 IN STOCK

Qty:

11

GRID ASSY, COMPLETE, 48 SQ. FT.

Part # 4657-34A Mfg # 59023400

GRID ASSY, COMPLETE, 48 SQ. FT.

NOT AVAILABLE

11

GRID ASSY, COMPLETE, 60 SQ. FT.

Part # 4657-34B Mfg # 59023300

GRID ASSY, COMPLETE, 60 SQ. FT.

NOT AVAILABLE

PLUG, 1 1/2" DRAIN, With O-RING

Part # 4650-08 Mfg # 86202000

PLUG, 1 1/2" DRAIN, With O-RING

$19.99 IN STOCK

Qty:

O-RING FOR DRAIN PLUG

Part # 4667-12 Mfg # 223

O-RING FOR DRAIN PLUG

$10.73 IN STOCK

Qty:

14**

24 Sq. Ft. Full Grid 12 (7 Required)

Part # FG1002 Mfg # 59001100

24 Sq. Ft. Full Grid 12 (7 Required)

NOT AVAILABLE

14**

36 Sq. Ft. Full Grid 18 (7 required)

Part # FG1003 Mfg # 59001800

36 Sq. Ft. Full Grid 18 (7 required)

NOT AVAILABLE

14**

48 Sq. Ft. Full Grid 24 (7 Required)

Part # FG1004 Mfg # 59002400

48 Sq. Ft. Full Grid 24 (7 Required)

NOT AVAILABLE

14**

60 Sq. Ft. Full Grid 30 (7 Required)

Part # FG1005 Mfg # 59003000

60 Sq. Ft. Full Grid 30 (7 Required)

NOT AVAILABLE

Pentair Full Grid for 60 sq. ft. DE Filter (Single Full Grid)

Part # 59003000

Pentair Full Grid for 60 sq. ft. DE Filter (Single Full Grid)

$48.99 IN STOCK

Qty:

INTERNAL AIR BLEED ASSEMBLY

Part # 4657-35 Mfg # 190092

INTERNAL AIR BLEED ASSEMBLY

$31.99 IN STOCK

Qty:

16***

24 Sq. Ft. Partial Grid 12 Inches (1 Required)

Part # PG1902 Mfg # 59001000

24 Sq. Ft. Partial Grid 12 Inches (1 Required)

NOT AVAILABLE

16***

36 Sq. Ft. Partial Grid 18 Inches (1 Required)

Part # PG1903 Mfg # 59001700

36 Sq. Ft. Partial Grid 18 Inches (1 Required)

NOT AVAILABLE

16***

48 Sq. Ft. Partial Grid 24" (1 Required)

Part # PG1904 Mfg # 59002300

48 Sq. Ft. Partial Grid 24" (1 Required)

NOT AVAILABLE

16***

60 Sq. Ft. Partial Grid 30" (1 Required)

Part # PG1905 Mfg # 59002900

60 Sq. Ft. Partial Grid 30" (1 Required)

NOT AVAILABLE

GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)

Part # 25357-600 Mfg # 25357-600-000

GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)

$92.47 IN STOCK

Qty:

BULKHEAD UNION (SET OF 2) AFTER 1/90

Part # 4654-31 Mfg # 98960311

BULKHEAD UNION (SET OF 2) AFTER 1/90

$94.99 IN STOCK

Qty:

SPRING BARREL NUT ASSY.

Part # 4654-33 Mfg # 53108900

SPRING BARREL NUT ASSY.

$48.91 IN STOCK

Qty:

SPIDER, BOTTOM TANK

Part # 4657-23 Mfg # 59000500

SPIDER, BOTTOM TANK

$83.94 IN STOCK

Qty:

NUT, STAINLESS STEEL 1/4 X 20

Part # 6930-0 Mfg # 14072508R

NUT, STAINLESS STEEL 1/4 X 20

$11.15 IN STOCK

Qty:

WASHER, 1/4" STAINLESS STEEL

Part # 4670-26 Mfg # 072183

WASHER, 1/4" STAINLESS STEEL

$10.73 IN STOCK

Qty:

TIE ROD, 21 1/2" 36 SQ.FT.

Part # 4657-20A Mfg # V38-107

TIE ROD, 21 1/2" 36 SQ.FT.

$62.99 IN STOCK

Qty:

TIE ROD, 27 1/2" 48 SQ.FT.

Part # 4657-20B Mfg # V38-108

TIE ROD, 27 1/2" 48 SQ.FT.

$55.99 IN STOCK

Qty:

TIE ROD, 33 1/2" 60 SQ.FT.

Part # 4657-20C Mfg # 59002700

TIE ROD, 33 1/2" 60 SQ.FT.

$63.99 IN STOCK

Qty:

TIE ROD, 15 1/2" 24 SQ.FT.

Part # 4657-20 Mfg # V38-106

TIE ROD, 15 1/2" 24 SQ.FT.

$64.99

24

OBSOLETE BULKHEAD WRENCH

Mfg # 43180200

OBSOLETE BULKHEAD WRENCH

NOT AVAILABLE

WASHER, .325 I.D. FOR FILTER CLAMP

Part # 4655-43A Mfg # 53006300

WASHER, .325 I.D. FOR FILTER CLAMP

$13.54 IN STOCK

Qty:

NUT

Part # 4659-19 Mfg # 98211400

$11.99 IN STOCK

Qty:

NUT, LOCK 1/4" (3209)

Part # 3267-90 Mfg # RCX3209

NUT, LOCK 1/4" (3209)

$14.69 IN STOCK

Qty:

TEMPLATE, FILTER

Part # 4657-90 Mfg # 98725800

TEMPLATE, FILTER

$24.14 IN STOCK

Qty:

* NOT SHOWN
** 7 LARGE GRIDS REQUIRED
*** 1 SMALL GRID REQUIRED
