Part # 5074-18A
Manufacturer Code 074564
Dimensions 10" L x 10" W x 2" D
Alternate Part #'s 074564, 25357-300-000, 311 PEN (mold#), 350201, 448418, 5074-10A, 5074-18A, 601197, 74564, 788379699468, 788379720421, PUR1013477, V20-208, 35-612-2090, CMP25357300000, V20208

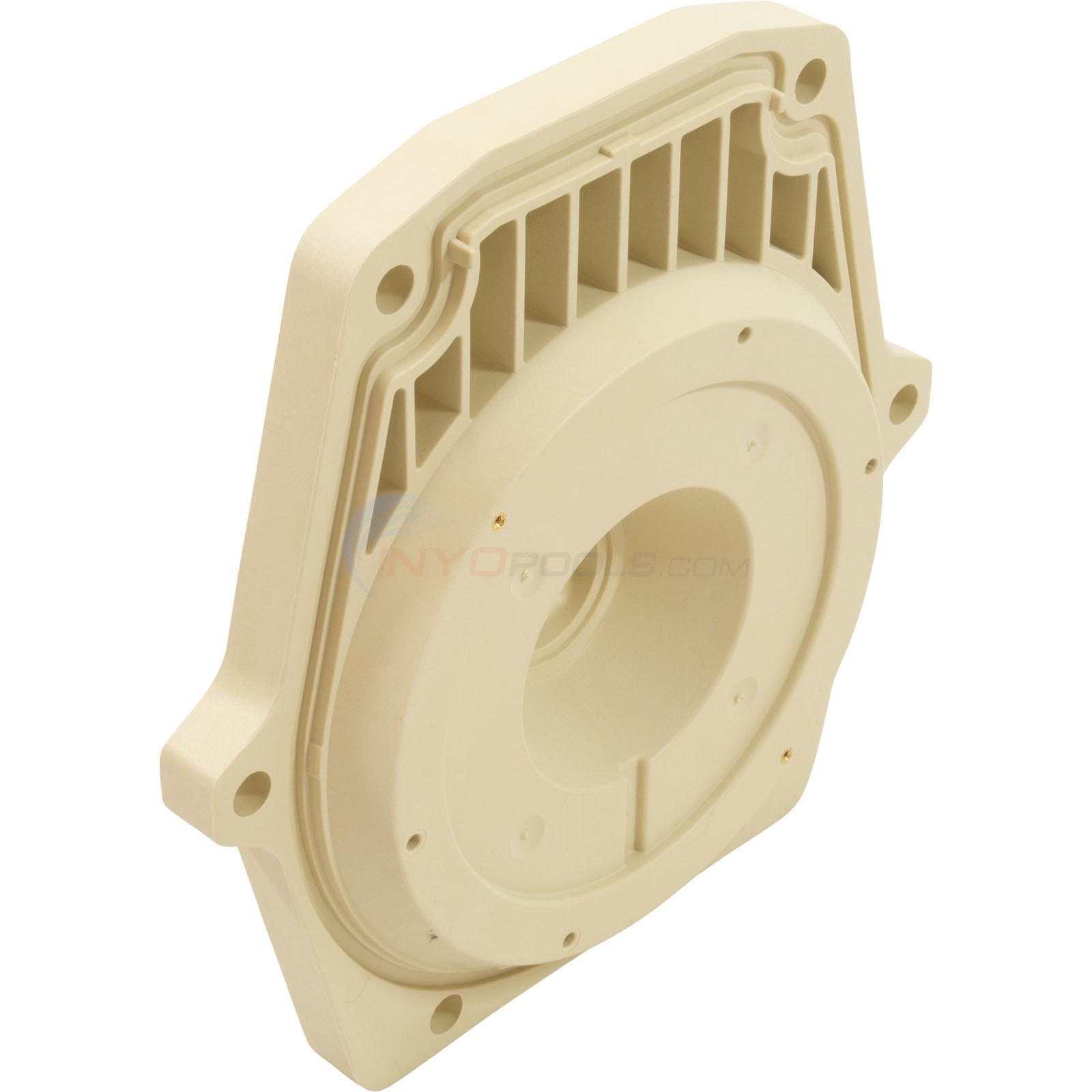

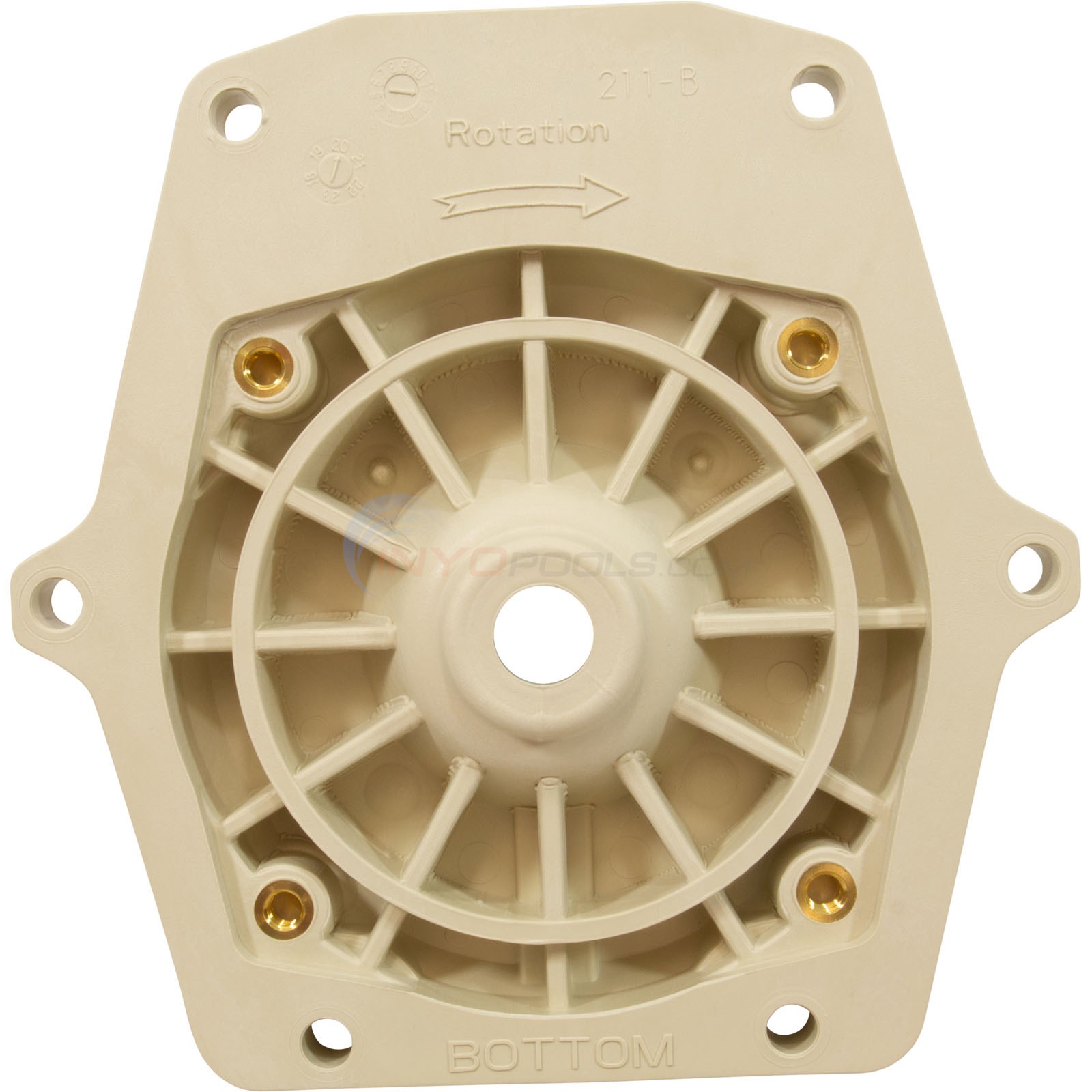

Seal Plate by CMP for Pentair Whisperflo Pumps - REPLACES PENTAIR WF Series - 074564
**NOTE: PART # 350202 includes the pump Mechanical Seal and Seal Plate Gasket.**
REPLACES Whisper-Flo Pump Seal Plate
Will this seal plate fit a wfe-28 motor?
Reply
Thank you for contacting Inyo Pools, Yes this seal plate will work. I would also recommend Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 or if you have a salt system Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT
Reply
Will this seal plate fit a wfe-28 motor?
Reply
Thank you for contacting Inyo Pools, Yes this seal plate will work. I would also recommend Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 or if you have a salt system Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT
Reply
Will this seal plate work for this model
Hello Ryan. The Custom Molded Products Seal Plate - WF Series - 074564 is compatible with your Pentair Pool Products Whisperflo Pool Pump model WFE-6. The Tune-Up Kit, GOKIT32, contains the seals and gaskets necessary to complete this project. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
Will this fit my pump? It seems like it is the correct one but wanted to verify before ordering.
Thanks
Yes this is the proper seal plate for the Whisperflo Pump in your photos.
Reply
what product do you use to seal the seal plate so water does not leak out
Reply
If you use a Seal Plate Gasket 357100 this will keep water from leaking out. This gasket is used on this particular seal plate 074565
Reply
Will this seal plate fit our Pentair Whisperflo 30 pump? Our pump model is WF-30 and the pump’s part number is 011775. Thank you.
-WF-SERIES-074564-8ae5b613-cd1b-49a9-b876-a9a6f97fd235.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-WF-SERIES-074564-8ae5b613-cd1b-49a9-b876-a9a6f97fd235.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Custom Molded Products Seal Plate Compatible with Pentair WF series WhisperFlo Pumps - 074564")
Hello, yes this is the correct seal plate for the Pentair Whisperflo WF series pool pump.
Reply
Looking to replace the seal plate and the O ring on our part 7- 177451-03. Picture attached. Can you help me.
-WF-SERIES-074564.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-WF-SERIES-074564.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Custom Molded Products Seal Plate Compatible with Pentair WF series WhisperFlo Pumps - 074564")
Unfortunately, we cannot use this image as the seals and gaskets are actually based on the front pump wet end housing that the motor attaches to.
Reply
I have a Pentair Pool Pump: Part 7-177451-03 and we are looking for parts for it. Can you advise, what alternate part numbers would work with this?
Reply
Hi Melanie, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have a whisperflo wf-26 pump made before 2008 . I always have used the almond plate gasket which is for units made before 2008. With this new seal plate which gasket should I use, Thank you
Reply
The seal plates manufactured before 1-31-2008 would be part number 5020-062 that you can view by clicking here. If you need to confirm date of manufacture you will need to provide the serial number to Pentair so they can advise. Their phone number is 1-800-831-7133 .
Reply
if i change seal plate 5074-18a from my 56y frame motor , with seal plate 5074-38 of a 48y frame, on my existing WF-12 pump housing, can I then add variable speed motor ECM27SQU and have everything else line up?
Reply
What is the required seal plate for a Pentair WhisperFlow WF-28 pump.
Reply
Hi, Bob. This Seal Plate - 074564 will fit the WF-26 Pump.
Reply
how does the seal plate come off after you have disconeted the pump
Reply
Hello, Richard. You will need to remove the diffuser cover and impeller first. I have included a link on How To Replace the Motor on Your Pool Pump http://www.inyopools.com/HowToPage/how_to_replace_the_motor_on_your_pool_pump.aspx The link is not specific to the Whisperflo, though, it will provide a general overview on how remove the parts.
Reply
Do you know what the torque specs are for the bolts? The previous one was had broken around the nut well do to overtightening. Thanks
Reply
I would recommend contacting Pentair at 1-800-831-7133. Unfortunately we do not have the information to properly answer your question.
Reply
I have an older model whisper flo wf 4,,,and it runs my pop ups,,not my filter,,and it is leaking water at the bottom of the seal plate,,new gaskets did not help ,,maybe my seal plate flange is warped from overtightening,,I doubt if the housing is warped will this item fit my pump??
Reply
Hi Ron, The WFE Seal Plate (074564) will work with your older model WF-4 Pump.
Reply
2 to 4 hrs
Screwdriver, Pliers, Socket Set, Wrench Set
Ordered O'rings and appropriate seal kit to repair leak. Removed motor,when I tried to disassemble the seal plate, two of the bolts were corroded and when they finally broke free the brass inserts fractured the mount. I ordered a new seal plate, replaced the seal, reassembled the motor to seal plate (never seized all the bolts) and reinstalled to strainer assembly. Primed and reconnected the power. Energized the pump and all was fine. No more leaks to my 12 year old Intelliflo variable speed pump
1 to 2 hrs
Screwdriver, Socket Set, Wrench Set
First the new ceramic seal is pressed into the pump impeller. Then the matching seal is pressed into the seal plate. New seal plate attaches to motor with four bolts that engage metal threaded inserts (these were corroded and wobbly in the old replaced seal plate).
Impeller is screwed into the motor shaft (holding shaft steady with small wrench). Then reverse threaded bolt is screwed onto tip of motor shaft (don't forget O-ring). Finally, use hex tool to attach water distributor to motor seal plate.
-WF-SERIES-074564.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-WF-SERIES-074564-fcc11edf-51d7-4874-b32b-26a1241cc991.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-WF-SERIES-074564.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Custom Molded Products Seal Plate Compatible with Pentair WF series WhisperFlo Pumps - 074564")
-WF-SERIES-074564-fcc11edf-51d7-4874-b32b-26a1241cc991.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Custom Molded Products Seal Plate Compatible with Pentair WF series WhisperFlo Pumps - 074564")
-WF-SERIES-074564.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-WF-SERIES-074564.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Custom Molded Products Seal Plate Compatible with Pentair WF series WhisperFlo Pumps - 074564")
The Most Helpful Review
1 0
(5 out of 5 stars) Seal Plate Replacement
Reviewed By: Phillip H. from Madison, AL ()
Pros: Easy to install except for new gasket.
Cons: Challending to install gasket.
Replace my 5-year old unit because the center was scraped by the pump as a result of pump mis-alignment due to mount corrosion. Seal Plate was not exactly the same, but because there is additional space in the motor mount housing, it fits just fine. A bit leary at first, but once bolted up, everything lined right up and fit good. No leaks and now pump runs very quiet. The gasket is a bit of a chor to put on. I recommend Vasoline and two butter knives. Install the gasket, the mount the plate loosely. Gradually tighten bolts but use the butter knives to ensure the gasket is seating properly and not being pinched.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Ordered a new faceplate for my pump that I was rebuilding. This part was well built and did the trick.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Good fast service. Great price.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Worked well
Was this review helpful to you?
(5 out of 5 stars) excellent service
Reviewed By: Inyo Customer ()
perfect part, great service and speedy delivery.
Was this review helpful to you?
(5 out of 5 stars) Fit as expected
Reviewed By: Inyo Customer ()
Fit as expected
Was this review helpful to you?
0 1
(5 out of 5 stars) Everything Fit and Lined Up as it Should
Reviewed By: Inyo Customer ()
Replaced my unit that had cracked. Everything fit and lined up as it should.
Was this review helpful to you?
1 0
(4 out of 5 stars) Exact replacement part
Reviewed By: Mikek ()
Just a reminder that you also need to purchase a pump seal. If you are taking your pump apart, half the seal is in this seal plate and half is in the impeller. So the pump seal is a separate item even though it is attached to the seal plate on your existing pump
Was this review helpful to you?
