Pentair IntelliFlo VS & SVRS Pump (June 2016-Current) Parts

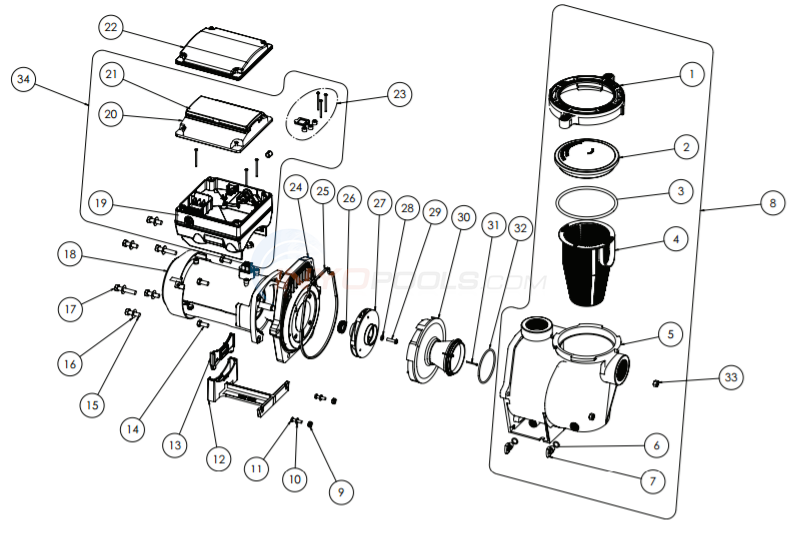

Diagram #	Part Title
*	Lid Kit for Pentair Whisperflo Pool Pump - Almond
1	Lock Ring Clamp - Almond (wisperflo) (357199)
2	Cover Lexan (357151)
3	Lid O-ring (436)
4	Pump Basket (070387)
5	Volute, Wfe (almond) (after 11/98)
6	O-ring, Plug Drain 1/16"(o-130)
7	Drain Plug
8	POT ASSEMBLY - ALMOND
9	Nut, 1/4-20 Ss Hex
10	Washer, Flat 1/4" ID x 5/8" OD (Qty 2)
11	Screw Hex Hd
12	Whisperflo Pump Foot (070927)
13	Insert, Foot Wfe Pump (070929)
14	Motor Cap Bolt - Single (3/8-16x 7/8 SS) (Single)
15	Washer Ss 7/16"id X 7/8"od (sample W-7)
16	Screw, Hex Cap (3/8-16 X 1 1/4")
17	Bolt, Hex Head (070431)
18	Motor, 3.2 kW 10 Pole
19	Drive
20	Keypad Assembly Kit (Contains item #21)
22	Keypad Relocation Kit (Contains Keypad Relocation cable and Blank Drive Cover)
23	Drive Hardware Kit (Contains Drive Screws, Drive Gasket and Screw Caps)

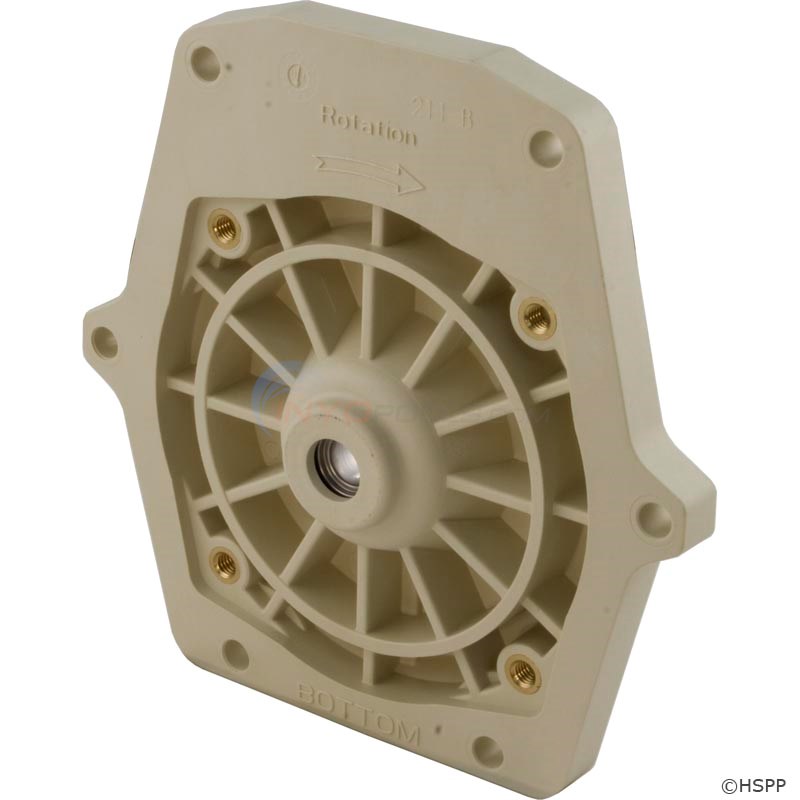

24	Seal Plate - Wfe
25	GASKET, VOLUTE - BLACK AFTER 02-01-08
26	PENTAIR SHAFT SEAL ASSEMBLY OEM
27	Impeller, 3hp Full
28	Washer
29	Set Screw
30	Diffuser Assy, 3hp Only (072928)

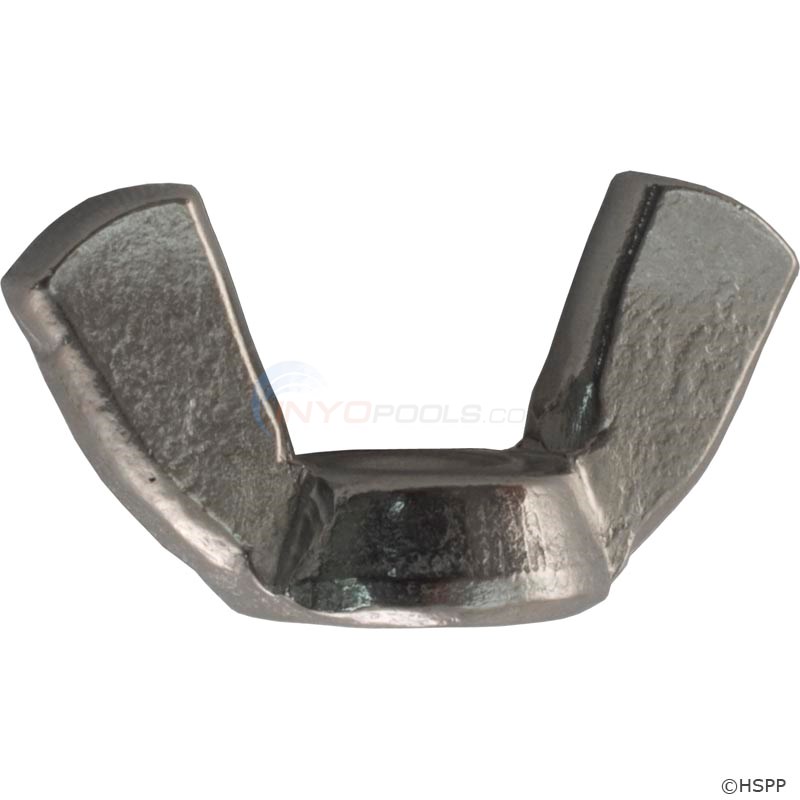

31	Screw (sold Each) (071660)
32	Diffuser O-ring (o-359) (071444)
33	Nut, Wing 1/4-20 S.s.
34	Drive Kit (Incl. Items #19-23)
*	Cable 50ft 2 Cond Intelliflo To Intellitouch (350122)
