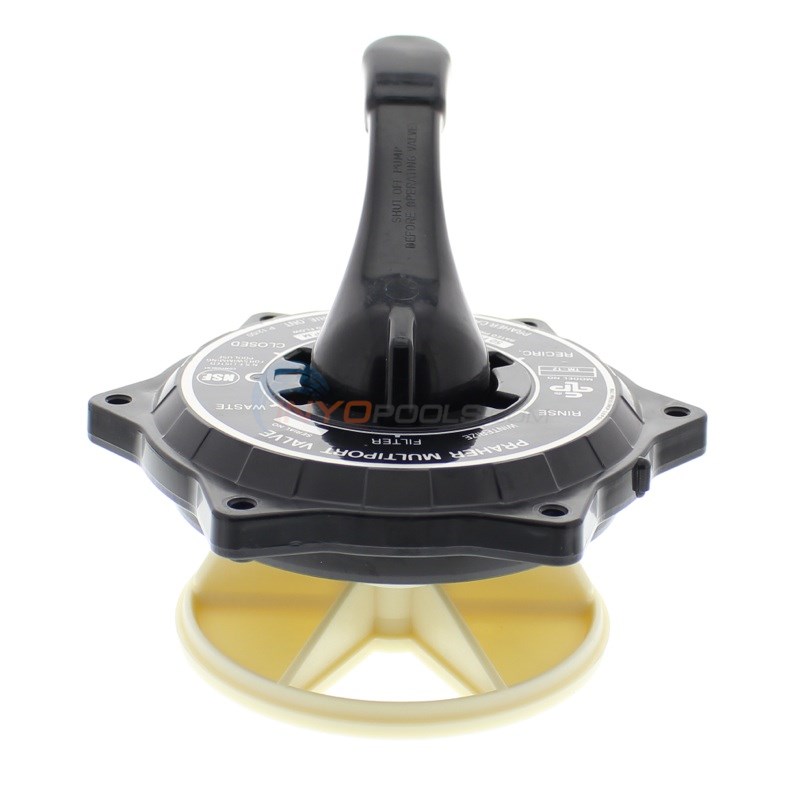

Top Assy., Valve 1 1/2" Black-with Label - E-50-S1B

$64.88

IN STOCK
FREE SHIPPING

Part # 4602-1102

By Praher

  5 Average

Details

Top

Part # 4602-1102

Manufacturer Code E-50-S1B

Alternate Part #'s 1129, 4600-1102B, 73000E50T1, E50S1B, 27-253-1102, PCPE-50-S1B, PRE50S1B

Product Description

TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL

Top

?     Asked on 8/29/2022by Justin Dixon

Does it come with a replacement o ring?
 Reply

A  Answered on 11/13/2022 by InyoPools Product Specialist Hector F.

Hello Justin, The Diverter Gasket - E12S1 and Cover O-ring - E7S1 are not included, and would need to be purchased separately.
 Reply


?     Asked on 5/12/2022by Jim

Hello, Will this fit for a SM10-2D.E
 Reply

A  Answered on 5/12/2022 by InyoPools Product Specialist Craig C.

Hello Jim.  Attached please find the Pentair - Praher 1 1/2" TM-12 & SM-10 exploded parts diagram for reference.  The Top Assy., Valve 1 1/2" Black-with Label - E-50-S1B is compatible with the Pentair Praher Multiport Valve SM10 -2DE.
 Reply


?     Asked on 5/31/2021by Nancy McCarson

Will this part fit for a replacement on a Sta-Rite model S7D75 DE filter system? Mine is getting hard to turn a does not want to lock when on filter selection. Having water draining.
 Reply

A  Answered on 5/31/2021 by InyoPools Product Specialist Patrick P.

Hi Nancy, Yes this would be the proper upper handle assembly replacement for the S7D75 DE Filter.
 Reply

  • Commented on 6/1/2021 by Product Owner

    Do I also need to order any gasket or o-ring with this purchase? Also, what adhesive do you recommend?
     Reply

    • Commented on 6/2/2021 by InyoPools Product Specialist Patrick P.

      Hi Nancy, I glad you mentioned that! Yes you will need this Spider Gasket and this Spider Gasket Adhesive
       Reply

      • Commented on 6/2/2021 by Product Owner

        I never received a confirmation for my order.
         Reply

        • Commented on 6/4/2021 by InyoPools Product Specialist Patrick P.

          Hi Nancy, We have received your order and your order # is 1213120 and it has shipped.
           Reply

          • Commented on 6/9/2021 by Product Owner

            I need a return confirmation number please. I needed a 2 inch not a 1 1/2 inch
             Reply


?     Asked on 5/24/2021by Ronald Wilhoit

i need to replace model sm10-ao
 Reply

A  Answered on 5/24/2021 by InyoPools Product Specialist Patrick P.

Hi Ronald, This is the proper top assembly for the SM10-AO valve. Please note this top assembly does not come with the spider gasket if you would like to order the spider gasket then you will need to order this 4600-1104 Spider Gasket. If you want to purchase the entire SM10-AO Valve then you would purchase this SM10-AO Replacement Valve - 4700P
 Reply


?     Asked on 8/13/2020by jdb

I have a Purex/Triton SM10-3 Sand multiport valve. I believe the replacement top assembly is the E-50-S1B, and that the spider gasket is the E12S1 or G-416, is this correct?
 Reply

A  Answered on 10/29/2020 by InyoPools Product Specialist Hector F.

Hello, yes for the Pentair model SM10-3 multiport valve this is the top valve assembly and part number E12S1/G-416 is the correct spider gasket.
 Reply


?     Asked on 5/20/2020by Inyo Visitor

It leaks out thru the back-floe when running Model # SM10-3
 Reply

A  Answered on 12/4/2020 by InyoPools Product Specialist Hector F.

Hello, this is caused by a failing or failed spider gasket. The part number E12S1/G-416 is the correct spider gasket and this is the correct top valve assembly.
 Reply


?     Asked on 3/14/2019by Inyo Visitor

Will this fit the top assembly of the one that is pictured?
 Reply

A  Answered on 3/14/2019 by InyoPools Product Specialist Lennox H.

Hi. This is the Top Valve Assembly that is in the picture. This part can be used with the following valves; Pentair - Praher 1 1/2" TM12 & SM10Zodiac Multiport Valve TM-12-H8Cooper Industries Multiport ValvePoolco Multiport Valve, and the Speck 1 1/2" Top Mount Valve
 Reply


?     Asked on 6/6/2018by Inyo Visitor

Mine only say TM-12 with no letters after the TM-12. Will this work on mine? Also, does this come with an oring/gasket that goes between it and the bottom part of the assembly? Also, does it come with a spider gasket? Mine leaks a bit out the backwash when on filter setting. And a little water is also around the handle area. Suggestions as to what I need.
 Reply

A  Answered on 6/6/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Valve Top Assy - E-50-S1B is compatible with your TM-12 Valve. The Diverter Gasket - E12S1 and Cover O-ring - E7S1 are not inlcuded, they will have to be purchased separately.
 Reply


?     Asked on 6/21/2017by Inyo Visitor

So this will fit a Pentair SM10-3 SAND VALVE
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Patrick P.

Yes this will work on the Pentair SM10-3 Sand Filter Valve.
 Reply


?     Asked on 4/5/2017by chuck

will this fit a tm12 valve ,the only number on my valve is Tm12 with no letters?
 Reply

A  Answered on 4/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Chuck. Yes, this Top Assy - E-50-S1B will fit all the TM12 valve.
 Reply


?     Asked on 7/19/2016by Dian Curtis

can I get just the label that goes on top of a sm10-2 zodiac pool filter
 Reply

A  Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Dian, Unfortunately, we don't have the label is not available as a replacement part.
 Reply


?     Asked on 7/7/2016by Tim

Is this the complete assembly? Meaning can I just take the nuts and screws off, remove the entire top using the handle, and install the new one? It's got the spring and selector plate already assembled correct?
 Reply

A  Answered on 7/11/2016 by InyoPools Product Specialist Lennox H.

Hi Tim, Yes, this Top Assy is complete as pictured, the only part you may have to purchase separately will be the Diverter Gasket.
 Reply


?     Asked on 6/22/2016by Leona

Will this part [Top Assy., Valve 1 1/2" Black-with Label (e-50-s1b)] fit the Praher Multiport Valve Model #TM-12-L?
 Reply

A  Answered on 6/22/2016 by InyoPools Product Specialist Lennox H.

Hi Leona, This Top Assy can be used with the Praher TM-12-L valve.
 Reply


?     Asked on 6/18/2016by JACK

Correction to my request for a diverter for a Tagelus (Pentair) sand filter - I said a 5 spoke diverter when it is actually a 3 spoke diverter I need. I am only talking about the gasket the diverter. Sorry - thank you
 Reply

A  Answered on 6/18/2016 by InyoPools Product Specialist Alex V.

Jack, Please provide the model number on the valve. There are a few different valves that fit on the Tagelus filter.
 Reply


?     Asked on 5/22/2016by Brad

Is Praher SM10-A0 the same as the e-50-s1B diverter/assembly?
 Reply

A  Answered on 5/22/2016 by InyoPools Product Specialist Patrick P.

Hi Brad, the SM10-A0 is the complete multiport valve and the E-50-S1B is the top half of the Praher SM10-A0. So if you need to replace the top half of your Praher SM10-A0 valve then this is the part for you.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers, Socket Set

The valve was getting more difficult to turn to back wash pool

Written on 6/26/2018 by Guest

I removed the top of the valve and attempted to hand turn the valve while it was in my hand. This too proved that it was very hard to turn. I inspected the valve cover and noticed a bit of discoloration at the top of the spring which may have indicated some type of corrosion. I contacted Inyo Pool and gave them the number on the valve cover and got the correct replacement part. When it arrived, I removed the defective top and replaced with the new!
