Cooper Industries Multiport Valve Parts

MODEL TM-12-L USED ON THE RANGER FILTER
USED ON THE RANGER MODELS RS-1615, RS-2015, & RS-2415 VALVE FLANGE DIAMETER IS 8 1/4"
NOTE - SPIDER GASKET, OUTSIDE DIA 5 3/16"
INSIDE DIA 3/4". THIS VALVE IS ALSO USED ON THE SPECK AQUASWIM FILTER AS-250

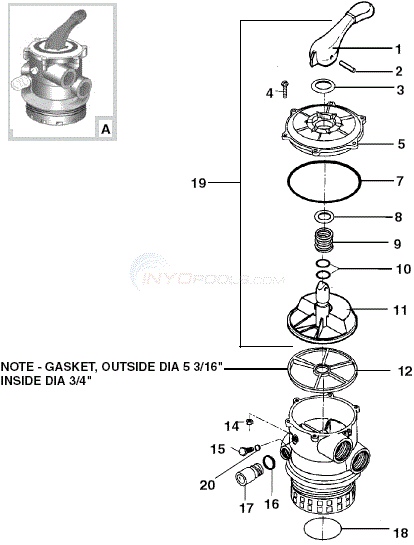

Cooper Industries Multiport Valve Diagram

Click to zoom in

Diagram #	Part Title
A	VALVE ASSEMBLY, 6-WAY PRAHER
1	HANDLE (E-1-S1 1 1/2")
2	PIN FOR HANDLE
3	Teflon Washer
4	SCREW TOP VALVE (SAMPLE S-20)

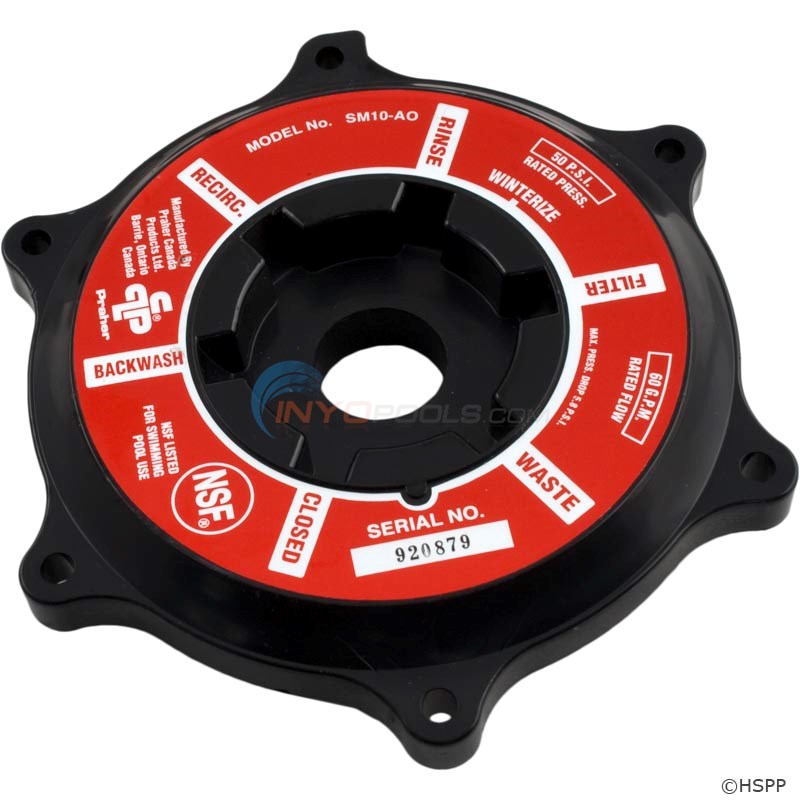

5	COVER 1 1/2" - BLACK
5	SPECK AQUASWIM COVER WITH LABEL

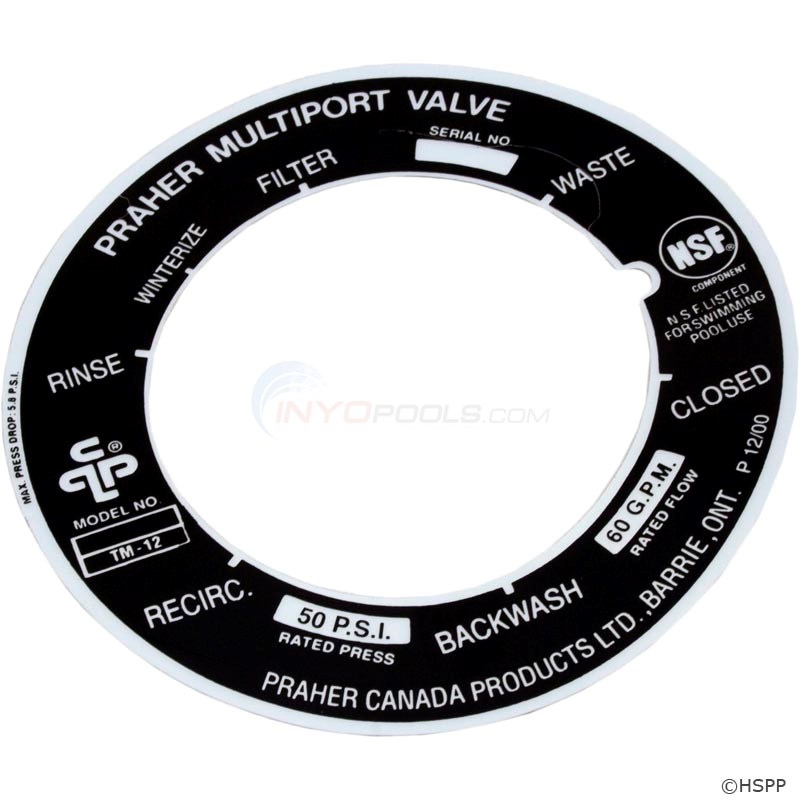

*5	Valve Cover Decal, 1-1/2" Top Mount
7	O-RING, FOR COVER
8	WASHER, VALVE SPRING
9	SPRING
10	O-RING, VALVE STEM
11	DIFFUSER, VALVE 1 1/2IN (E-11-S1 1 1/2")
12	GASKET, DIVERTER 1 1/2IN (E-12-S1 1 1/2")
14	NUT
15	1/4" Plug With O-ring
16	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
17	SIGHT GLASS
18	Stand Pipe O-ring, 1-1/2" Standpipe
18	Stand Pipe O-ring, 1-1/2" Standpipe

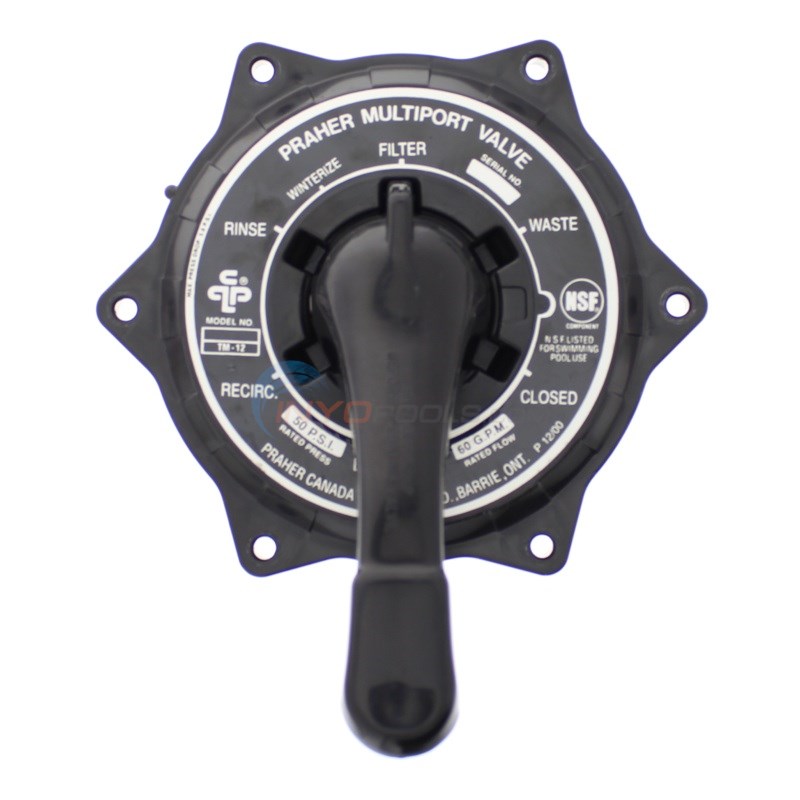

19	TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL
*	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
*	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

View Parts List

Diagram #	Part Title
A	VALVE ASSEMBLY, 6-WAY PRAHER
1	HANDLE (E-1-S1 1 1/2")
2	PIN FOR HANDLE
3	Teflon Washer
4	SCREW TOP VALVE (SAMPLE S-20)
5	COVER 1 1/2" - BLACK
5	SPECK AQUASWIM COVER WITH LABEL
*5	Valve Cover Decal, 1-1/2" Top Mount
7	O-RING, FOR COVER
8	WASHER, VALVE SPRING
9	SPRING
10	O-RING, VALVE STEM
11	DIFFUSER, VALVE 1 1/2IN (E-11-S1 1 1/2")
12	GASKET, DIVERTER 1 1/2IN (E-12-S1 1 1/2")
14	NUT
15	1/4" Plug With O-ring
16	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")
17	SIGHT GLASS
18	Stand Pipe O-ring, 1-1/2" Standpipe
18	Stand Pipe O-ring, 1-1/2" Standpipe
19	TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL
*	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
*	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Available Parts:

VALVE ASSEMBLY, 6-WAY PRAHER

Part # 4770-01 Mfg # TM-12-L

VALVE ASSEMBLY, 6-WAY PRAHER

$125.99 IN STOCK

Speck Model # TM-12-L

Speck Model # TM-12-L

Qty:

HANDLE (E-1-S1 1 1/2")

Part # 4600-1156 Mfg # E-1-S1

HANDLE (E-1-S1 1 1/2")

$18.99 IN STOCK

Speck Model # 2603102010

Speck Model # 2603102010

Qty:

PIN FOR HANDLE

Part # 4700-02X Mfg # E-2-S1

PIN FOR HANDLE

$5.49 IN STOCK

Speck Model # 2603102012

Speck Model # 2603102012

Qty:

Teflon Washer

Part # 4600-1157 Mfg # E-3-S1

Teflon Washer

$14.49 IN STOCK

Speck Model # 730000E3T1

Speck Model # 730000E3T1

Qty:

SCREW TOP VALVE (SAMPLE S-20)

Part # 4600-1138 Mfg # E-4-S1

SCREW TOP VALVE (SAMPLE S-20)

$12.99

Speck Model # 5879850635

Speck Model # 5879850635

COVER 1 1/2" - BLACK

Part # 4600-1165 Mfg # E-6-S1B

COVER 1 1/2" - BLACK

$50.99

Speck Model # NONE

Speck Model # NONE

Valve Cover Decal, 1-1/2" Top Mount

Part # 4602-04 Mfg # E5-T1

Valve Cover Decal, 1-1/2" Top Mount

$23.49 IN STOCK

Speck Model # NONE

Speck Model # NONE

Qty:

SPECK AQUASWIM COVER WITH LABEL

Part # 4765-001 Mfg # 2603102008

SPECK AQUASWIM COVER WITH LABEL

$131.99

Speck Model # 2603102017

Speck Model # 2603102017

SPECK AQUASWIM COVER LABEL ONLY

Part # 4765-005 Mfg # 2603102017

SPECK AQUASWIM COVER LABEL ONLY

$17.49 IN STOCK

Speck Model # 730000E5T1

Speck Model # 730000E5T1

Qty:

Valve Cover Decal, 1-1/2" Top Mount

Part # 4602-04 Mfg # E5-T1

Valve Cover Decal, 1-1/2" Top Mount

$23.49 IN STOCK

Qty:

O-RING, FOR COVER

Part # 4700-05A Mfg # 252

O-RING, FOR COVER

$5.49 IN STOCK

Speck Model # 2603102007

Speck Model # 2603102007

Qty:

WASHER, VALVE SPRING

Part # 4600-1160 Mfg # E-8-S1

WASHER, VALVE SPRING

$13.49 IN STOCK

Speck Model # 730000E8T1

Speck Model # 730000E8T1

Qty:

SPRING

Part # 4600-1161 Mfg # E-9-S1

SPRING

$14.49 IN STOCK

Speck Model # 730000E9T1

Speck Model # 730000E9T1

Qty:

O-RING, VALVE STEM

Part # 4700-08A Mfg # 212

O-RING, VALVE STEM

$4.49 IN STOCK

Speck Model # 73000E10T1

Speck Model # 73000E10T1

Qty:

DIFFUSER, VALVE 1 1/2IN (E-11-S1 1 1/2")

Part # 4600-1163 Mfg # E-11-S1

DIFFUSER, VALVE 1 1/2IN (E-11-S1 1 1/2")

$133.99 IN STOCK

Speck Model # 73000E11T1

Speck Model # 73000E11T1

Qty:

GASKET, DIVERTER 1 1/2IN (E-12-S1 1 1/2")

Part # 4600-1104 Mfg # 271104

GASKET, DIVERTER 1 1/2IN (E-12-S1 1 1/2")

$16.99 IN STOCK

Speck Model # 2603101002

Speck Model # 2603101002

Qty:

NUT

Part # 4600-1139 Mfg # E-14-S1

NUT

$8.99 IN STOCK

Speck Model # 5879340600

Speck Model # 5879340600

Qty:

1/4" Plug With O-ring

Part # 4600-1137 Mfg # E-15-S1

1/4" Plug With O-ring

$10.99 IN STOCK

Speck Model # NONE

Speck Model # NONE

Qty:

GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

Part # 4600-1106 Mfg # E-16-S1

GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

$6.99 IN STOCK

Speck Model # 73000E16T1

Speck Model # 73000E16T1

Qty:

SIGHT GLASS

Part # 4600-1107 Mfg # E-17-S1

SIGHT GLASS

$19.99 IN STOCK

Speck Model # 73000E17T1

Speck Model # 73000E17T1

Qty:

Stand Pipe O-ring, 1-1/2" Standpipe

Part # 4602-05 Mfg # E-20-T1

Stand Pipe O-ring, 1-1/2" Standpipe

$14.49 IN STOCK

Qty:

Stand Pipe O-ring, 1-1/2" Standpipe

Part # 4602-05 Mfg # E-20-T1

Stand Pipe O-ring, 1-1/2" Standpipe

$14.49 IN STOCK

Qty:

TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL

Part # 4602-1102 Mfg # E-50-S1B

TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL

$97.49 IN STOCK

Speck Model # 73000E50T1

Speck Model # 73000E50T1

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

$18.49 IN STOCK

Speck Model # 7300002062

Speck Model # 7300002062

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$12.99 IN STOCK

Speck Model # NONE

Speck Model # NONE

Qty:

* NOT SHOWN

** COMPLETE VALVE INCLUDES THE 2 FILTER TO VALVE O-RINGS

VALVE FLANGE DIAMETER IS 8 1/4"
