PRAHER VALVES W/ PENTAIR ARRANGEMENT

TM12A (261124 OLD PAC FAB STYLE) TOPMOUNT

TM12PB (261130 OLD PAC FAB STYLE) TOPMOUNT

SM10-2 (261173 PAC FAB) SIDEMOUNT SAND

SM10-2 (261177 PAC FAB) SIDEMOUNT DE

PRAHER VALVES ARE USED ON OTHER MFG FILTERS ALSO, INCLUDING MILLENIUM

SPECIAL NOTE - THE PRAHER KEY COVER HANDLE ASSEMBLY CLOSELY RESEMBLES THE HAYWARD VERSION. THE HAYWARD VERSION MUST BE USED FOR HAYWARD VALVES & PRAHER VERSION FOR THE PRAHER
VALVES. THE PRAHER KEY & STEM MEASURES 5 3/16" ACROSS. THE HAYWARD MEASURES 5 5/16" ACROSS.
THIS IS THE EASIEST WAY TO IDENTIFY THEM IF LABELS ARE NOT READABLE.

Diagram #	Part Title

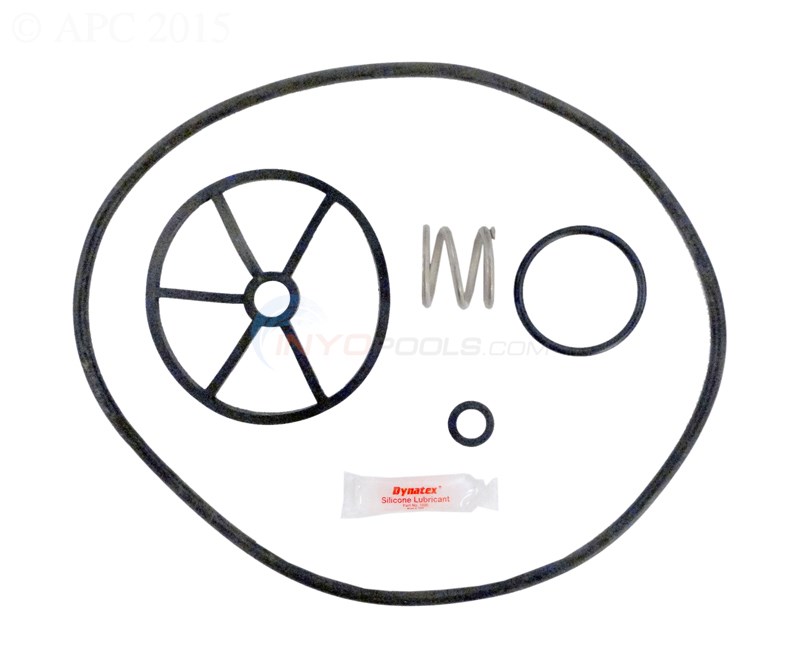

*	PacFab MPV 1.5" Tune Up Kit
*	Valve Cover Decal, 1-1/2" Top Mount

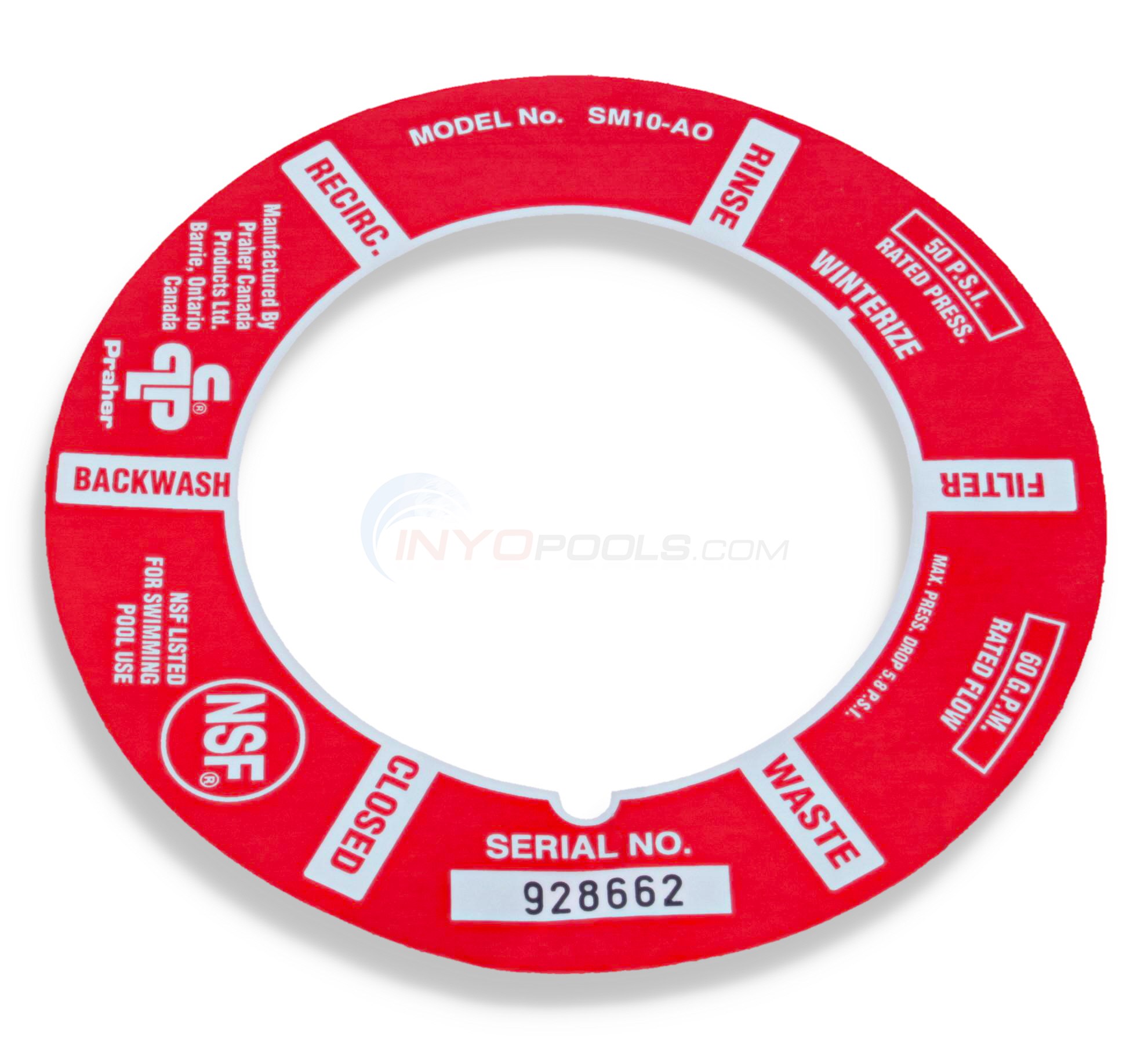

*	Decal for Top Assy. Valve 1-1/2" (e-5-s2)
A	COMPLETE VALVE, TOP MT "V" THREAD-PRAHER (TM-12-A) REPLACES 261124
A	COMPLETE VALVE, TOP MOUNT TM-12-H8
A	COMPLET VALVE, TOP MT.BUTRS.THD.-PRAHER (TM-12-PB) REPLACES 261130
B	COMPLETE VALVE,MULTIPORT KIT 1 1/2" GENERIC EQFV (SM1-PP3) REPLACES 26-1173
B	COMPLETE 1 1/2" MULTIPORT VALVE - DE W.G. (261177) SIDE MOUNT
B	COMPLTE VALVE,SM With PLUMBING 1 1/2" P.F. D.E. (SM1-PP2) REPLACES 26-1177
1	TOP ASSY., VALVE 1 1/2", WHITE
1	TOP ASSY., VALVE 1 1/2" BLACK-WITH LABEL

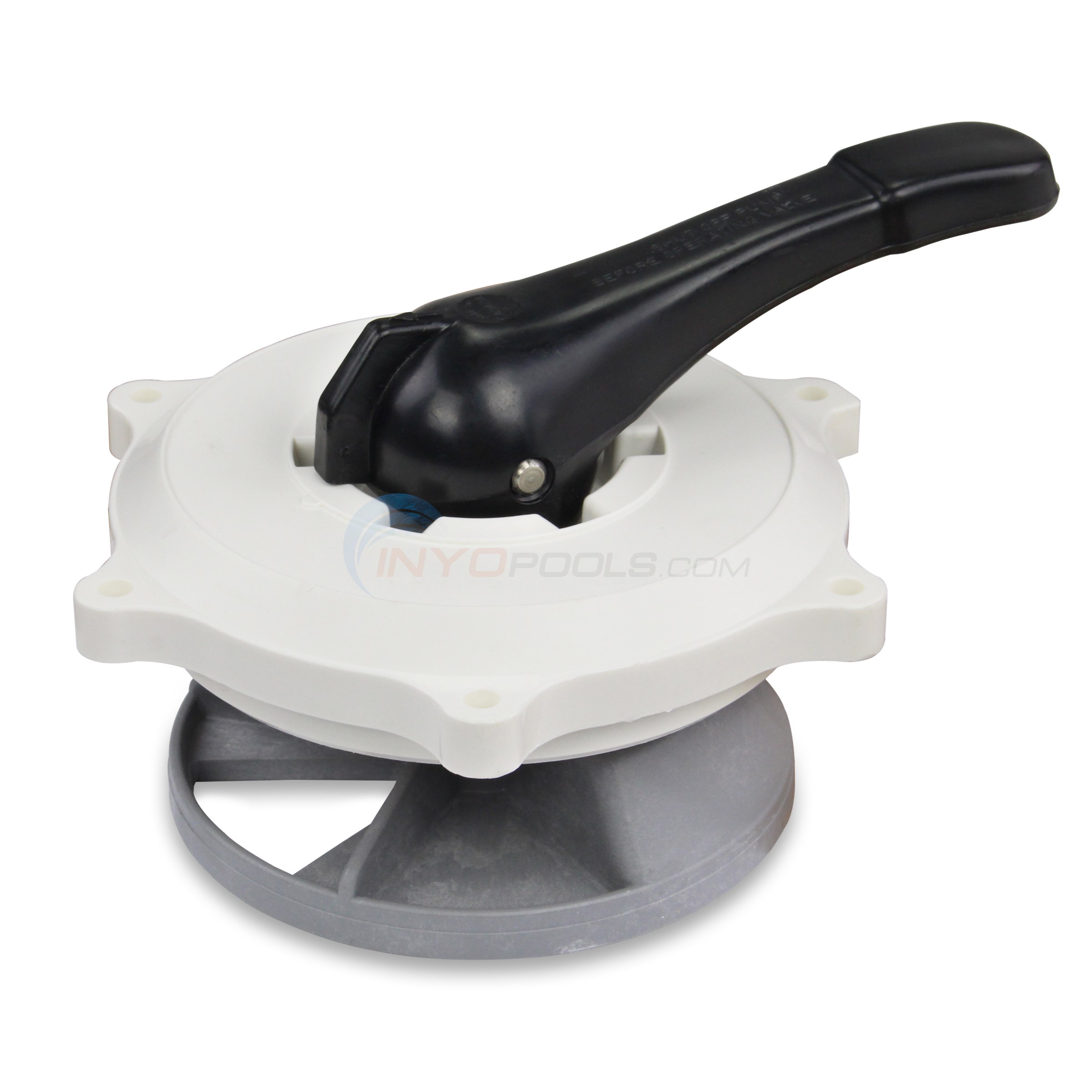

1	TOP VALVE ASSY, 1 1/2"" (W/DE & SAND DECALS)
2	HANDLE (E-1-S1 1 1/2")
3	PIN FOR HANDLE
4	WASHER, HANDLE

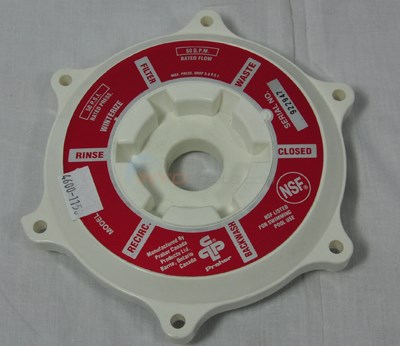

5	COVER, 1-1/2" VALVE (E-6-S 1 1/2")
5	COVER 1 1/2" - BLACK
6	O-RING, FOR COVER
7	WASHER, VALVE SPRING
8	SPRING
9	O-RING, 7/8IN X 1 1/8IN X 1/8IN (4700-08A-)
10	DIFFUSER, VALVE 1 1/2IN (E-11-S1 1 1/2")
11	SCREW TOP VALVE (SAMPLE S-20)
12	NUT
**	1/4" Plug With O-ring
13	DIVERTER GASKET, 1 1/2IN
14	SIGHT GLASS
14	SIGHT GLASS, With VACUUM PROTECTR
15	GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

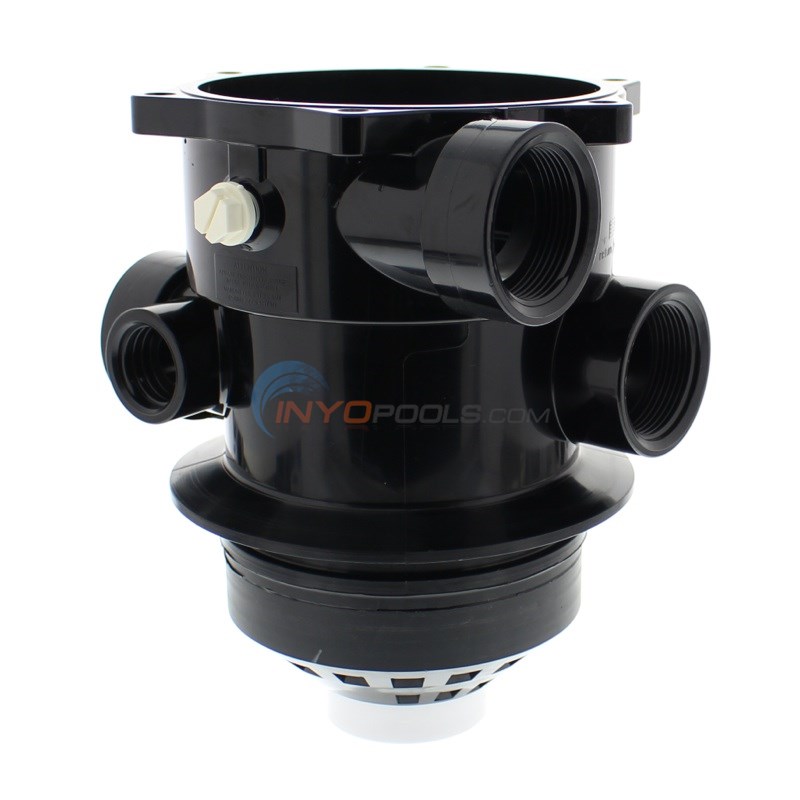

16	BODY, REPLACEMENT WITH DIFFUSER
19	LID WRENCH PLASTIC
22	O-RING CLOSURE
23	NUT, VALVE ADAPTER

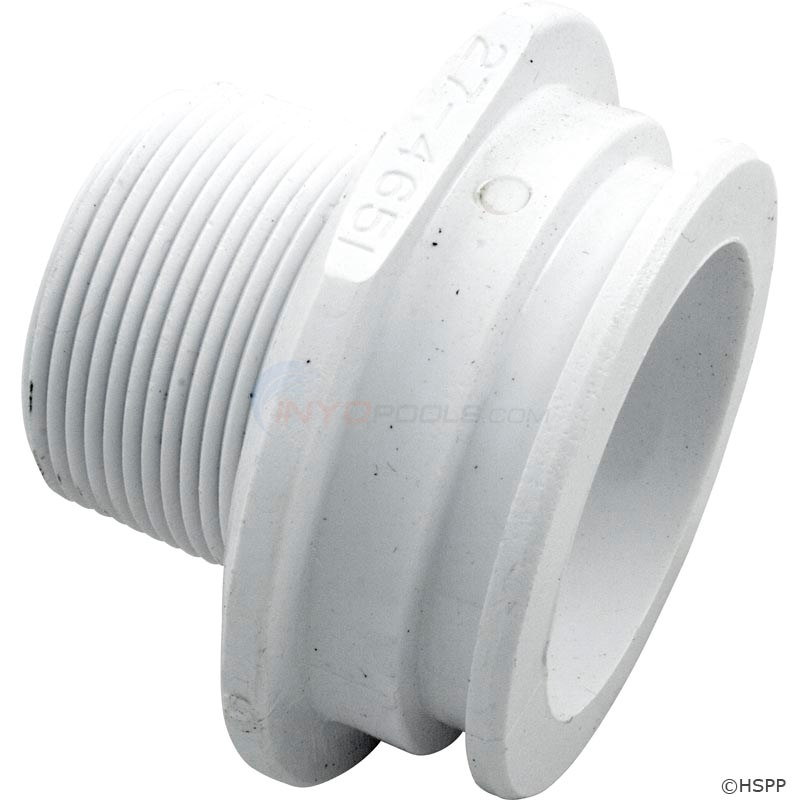

24	ADAPTER, VALVE THD. 1 1/2IN
25	O-RING, VALVE ADAPTER (4620-529)
26	ADAPTER, BULKHEAD 1 1/2" X 2" SLIP
**	LABEL
*	Praher Universal Multiport Valve 1-1/2" FPT (Sand/D.E.)
