By Custom Molded Products

Details

Top

Part # 4802-01F

Manufacturer Code SP0715X62

Alternate Part #'s 27517-204-000, SP0715X62, SP715X62, SPX0715X62, SPX715X62, _27517-204-000

Product Description

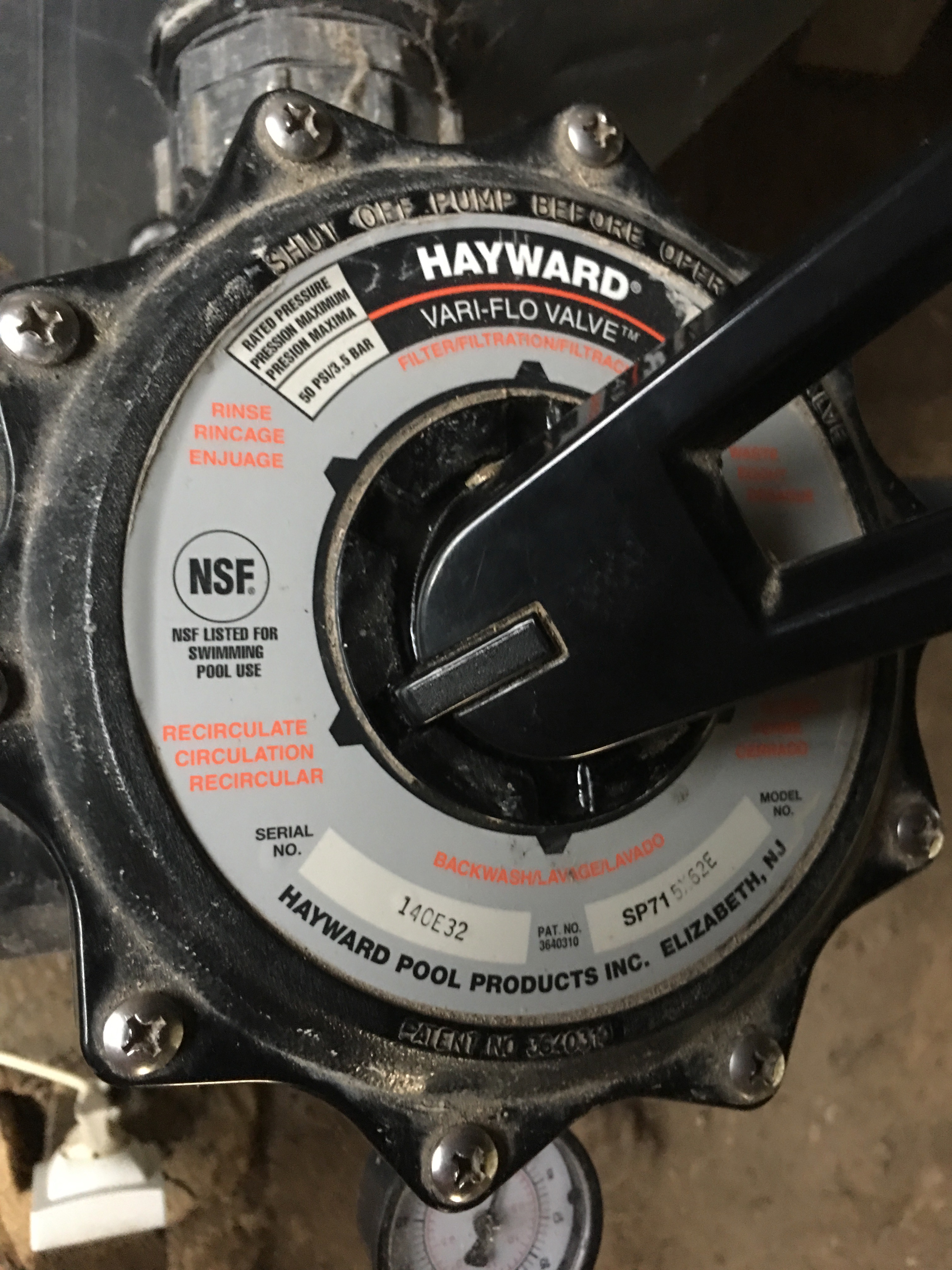

THIS IS AN AFTER-MARKET VALVE BY CMP FOR THE HAYWARD SP0715X62 VALVE

USED ON PRO SERIES WITH 2" PLUMBING, AND ON THE HAYWARD SIDE MOUNT VALVE (2") SUPER PRO SERIES VALVE COLOR IS BLACK ROUND COVER, ATTACHED WITH 10 BOLTS & NUTS "SP715 X62" ON VALVE COVER "SP-715-A 8" ON VALVE BODY (THE 8 MAY LOOK LIKE A 3 ON SOME VALVES)

********

DIMENSIONS FRONT TO BACK WITH PLUMBING IS 11-1/8" PLUMBING FOR FILTER CONNECTIONS ATTACHED SIGHT GLASS With GASKET (SCREW IN TYPE) (2) O-RINGS FOR FILTER ATTACHEMENT (1) BOTTOM MOUNT PRESSURE GAUGE HEIGHT WITH PLUMBING IS 13-1/4" CENTERLINE SPACING OF PIPES IS 6" (AT THE ENDS THE . INSIDE DIMENSION BETWEEN PIPES IS 3-1/2") PORTS ARE 2" MPT (ABOUT 2-3/8" INSIDE DIAMETER)

********

VALVE POSITIONS

********

PORT ARRANGEMENT

********

INCLUDES

Top
Ask A Question
?     Asked on 4/28/2018 by Gary Gamble

I purchased a Hayward Pro Series sand filter. Model No. S244S and Serial No. 14660. It came with a 1 1/2 inch valve. I have 2 inch plumbing. Does the WG (sp0715x62) work on this filter with my 2 inch plumbing? Thanks, Gary
 Reply

A  Answered on 4/29/2018 by InyoPools Product Specialist Lennox H.

Hi, Gary. Yes, this 2" Valve - SP0715X62 will fit your S244S filter and 2" plumbing.
 Reply


?     Asked on 7/15/2019 by Inyo Visitor

I am having a problem with the SP715X62E vari flo valve. The selector is floppy and therefore doesn't clip into the correct port. I therefore can't make it for example Filter. I have replaced the gasket - but to no avail. If this valve still manufactured - if so can I purchase it - I am currently in France. Thanks Gilly Guy

 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi. This SP0715X62 valve is the correct replacement. We can ship this valve to France, we will need the complete shipping address in order to provide you with a shipping quote.
 Reply


?     Asked on 7/17/2019 by GASAN HASSAN

Hello my pool system currently has a 2" ASTRAL POOL MULTIPORT CLASSIC, and i need to replace it.

 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi, Gasan. We do not have that specific Astral valve available, however, you can use the Hayward Multiport Valve, 2" Universal - SP0715XALL as a substitute.
 Reply


?     Asked on 8/23/2019 by Inyo Visitor

Is this valve a direct replacement for the hayward sp0715g11m valve?
 Reply

A  Answered on 8/23/2019 by InyoPools Product Specialist Lennox H.

Hi. In order to confirm, we will need to know the model of the filter that the valve operates.
 Reply


?     Asked on 12/7/2019 by Darrell

Need a replacement valve for s310t2 sand filter, the vari flo valve has stamped SP-715 B. It the replacement SP0715x62?
 Reply

A  Answered on 12/9/2019 by InyoPools Product Specialist Steve M.

Darrell, the SP715-B will not fit the Sand Filter with Top Mount Valve 30 Inch Tank - W3S310T2 based on information from the manufacturer. The correct replacement would be the Top Mount Valve for Sand 2" - SP071621.
 Reply
