Replacement Valve for Hayward SP0714T - PL0714

Part # 4802-01CP

By Custom Molded Products

  4.16 Average

Details

Top

Part # 4802-01CP

Manufacturer Code PL0714

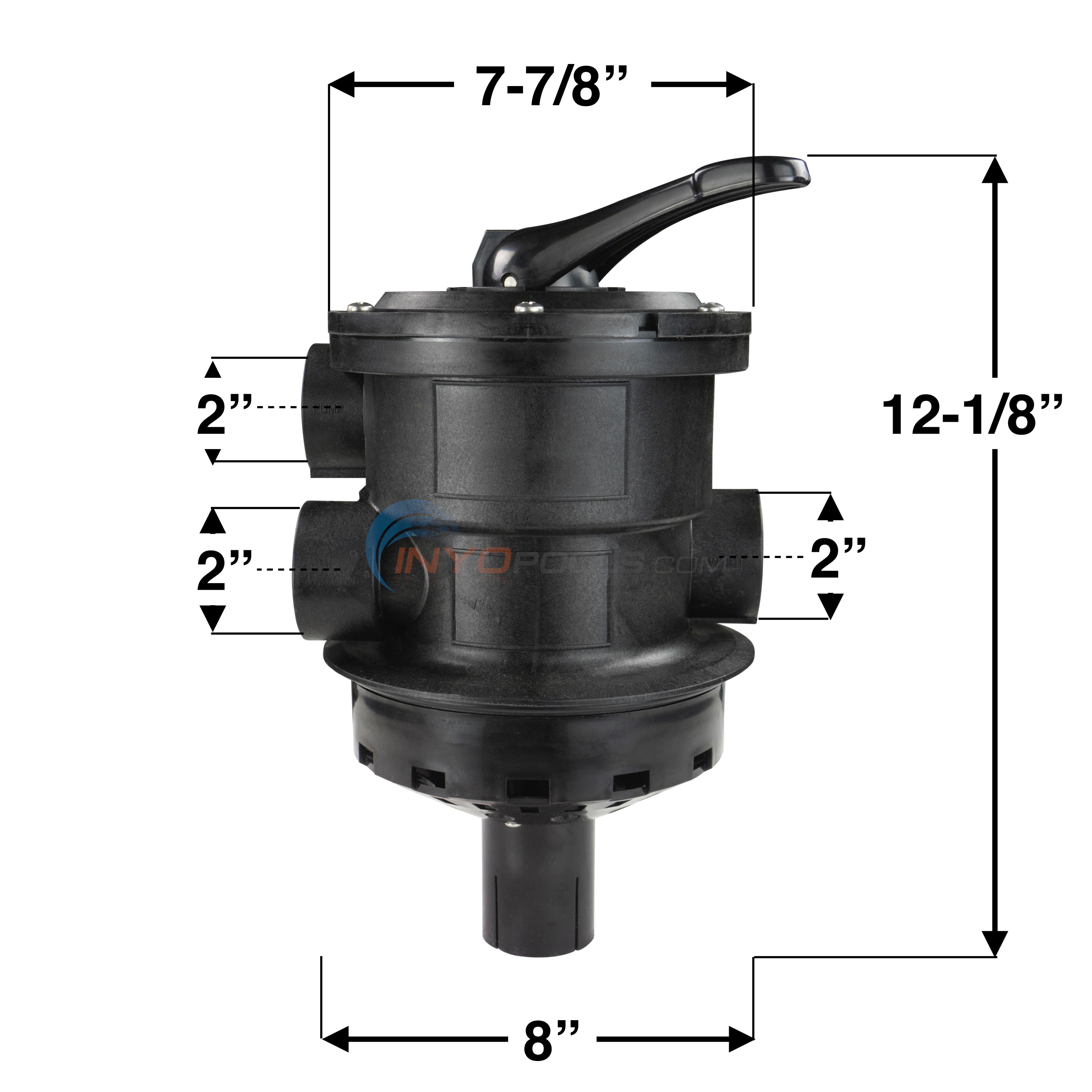

Dimensions 9" L x 8" W x 15" D

Alternate Part #'s 27515-154-000, 39-2585-09-R, 39258509R, DVK-7, SP071113, SP0714T, SP0714TC, TM12H8

Product Description

Is your backwash valve leaking?

Why spend 30% for the Hayward original when you can get an after market valve at the same quality!

This is a replacement top mount backwash valve which is a direct replacement for the Hayward SP0714T & SP711-13 valves as well as the Jacuzzi DVK7 valve.

The Hayward SP0714T & SP711-13 valves are commonly used on the following Hayward Pro Series Sand Filters: S166T, S180T, S210T, S220T, S244T & S270T.

The Jacuzzi DVK7 valve is commonly used on the following Jacuzzi Laser Sand Filters: 160L, 190L, 225L, 250L please note that the Jacuzzi Laser had two style valves a bolt on style and a clamp on style this is the clamp on style. The bolt on style valve is far more common and can be found here Jacuzzi Laser bolt on style valve

Valve does include the pressure gauge.

Product Specifications

Plumbing Size:
1.5 in.
Diameter:
8 in.
Flange:
Clamp Style
Top

?     Asked on 10/2/2022by Larry

Will this fit model s190tscp.
 Reply

A  Answered on 10/2/2022 by InyoPools Product Specialist Hector F.

Hi Larry, yes this multiport valve is compatible with the Hayward s190tscp model sand filter.
 Reply


?     Asked on 3/28/2022by Lisa

I have a Hayward professional servers inground pool pump filter. Model #S244T. The place where you have the psi gage has gone bad like water coming out where I put the new one in. Is this the replacement head for this? Thank you

 Reply

A  Answered on 3/29/2022 by InyoPools Product Specialist Rich N.

Hi Lisa, the Replacement Valve for Hayward SP0714T - PL0714 will be a perfect replacement for the valve on your S244T filter.
 Reply


?     Asked on 6/15/2021by Nett

Would this replace a Hayward Variflo XL Valve, SP 0714C? Cannot seem to find this available anymore. Thank you
 Reply

A  Answered on 6/15/2021 by InyoPools Product Specialist Patrick P.

Hi Nett, Yes this valve is the correct replacement for the Hayward Variflo XL Valve SP0714C.
 Reply


?     Asked on 6/11/2021by Monica

Would this fit the model SW166T Hayward filter for above ground pool?
 Reply

A  Answered on 6/11/2021 by InyoPools Product Specialist Stephen B.

Monica thank you for contacting Inyo Pools,  Yes that valve would fit your filter
 Reply


?     Asked on 6/3/2021by Victor Foreman

Will this valve replace a Hayward so-711-A-13 or is it a direct replacement?
 Reply

A  Answered on 6/3/2021 by InyoPools Product Specialist Craig C.

Hello Victor.  Yes, the Custom Molded Products Multi-Port Valve Assy 4802-01CP is a compatible replacement for the Hayward SP71113 series Multi-Port Valve Assy which is no longer available.
 Reply


?     Asked on 5/24/2021by Inyo Visitor

Will this fit a Hayward S-244T Sand Filter? Thanks
 Reply

A  Answered on 5/24/2021 by InyoPools Product Specialist Patrick P.

Yes this will fit the S-244T Sand Filter.
 Reply


?     Asked on 5/21/2021by Jeffrey Zurell

i need the o ring that is just below the handle on my Pureline plo714 valve and I can't find it on your website
 Reply

A  Answered on 5/21/2021 by InyoPools Product Specialist Craig C.

Hello Jeffrey.  The replacement o-ring is part# 4700-08x.   O-ring w/ Teflon Seal - O-418-KIT
 Reply


?     Asked on 5/17/2021by Joseph Gargano

Will it replace this top mount valve ? I can’t find the model number on mine

 Reply

A  Answered on 5/17/2021 by InyoPools Product Specialist Patrick P.

Hi Joseph, Thank you for the photos! No this is not the correct valve for the valve included in your photos. You will require this Waterway WVS 7-Position Valve.
 Reply


?     Asked on 5/16/2020by nikki

Will this fit Hayward model E100?
 Reply

A  Answered on 1/4/2021 by InyoPools Product Specialist Hector F.

Hi Nikki, yes this multiport valve is compatible with the Hayward model E-100 sand filter.
 Reply


?     Asked on 11/3/2019by Kenneth Green

Will it replace this assembly?

 Reply

A  Answered on 11/12/2019 by InyoPools Product Specialist Steve M.

Kenneth, yes, based on the photos that you sent the PureLine Replacement Valve for Hayward SP0714T will be a direct replacement for your existing valve assembly.
 Reply


?     Asked on 9/27/2019by Inyo Visitor

How do I find a multi port valve for S244T Hayward Sand Filter?
 Reply

A  Answered on 9/27/2019 by InyoPools Product Specialist Lennox H.

Hi. This aftermarket valve or the OEM SP0714T can be used with your S244T model valve.
 Reply


?     Asked on 9/9/2019by Jesi Munoz

can i have a description of all that comes with this. Because i see the gauge doesnt come included.
 Reply

A  Answered on 9/12/2019 by InyoPools Product Specialist Michelle B.

Hello, This will come with the entire valve (including all internal components), pressure gage, and the oring that goes under the valve.
 Reply


?     Asked on 9/8/2019by CHRIS BUFIS

Is the SP714-A the same as the Sp714T?
 Reply

A  Answered on 9/12/2019 by InyoPools Product Specialist Michelle B.

Hello, They will be the same valve.
 Reply


?     Asked on 9/7/2019by Richard Cole

Will this valve replace a Hayward SP0714G11 Key?
 Reply

A  Answered on 9/12/2019 by InyoPools Product Specialist Michelle B.

Hello, Yes, this would be the same valve.
 Reply


?     Asked on 8/27/2019by Lorrrr

Cant really read my tag, but looks like serial # 120D30 and model 710???. Will this valve work?

 Reply

A  Answered on 9/13/2019 by InyoPools Product Specialist Hector F.

Unfortunately, this valve will not work as you have a side mount valve. You would use one of the listed options on this parts diagram on key 25.
 Reply


?     Asked on 8/13/2019by Temple

Will this valve assembly fit the Hayward Model S-244T Pro Series?
 Reply

A  Answered on 8/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Temple. Yes, this valve will fit the S-244T model.
 Reply


?     Asked on 7/22/2019by Jim

Does this come with a new clamp and o-ring?
 Reply

A  Answered on 7/23/2019 by InyoPools Product Specialist Hector F.

These valves do not come with the clamp or o ring as they are used with multiple different model filters which will change the clamp and o ring needed.
 Reply


?     Asked on 7/16/2019by Inyo Visitor

this says sureline. is this the sME AS A HAYWARD PRO SWRIES ALSO MY BASKET ON THE BOTTOM FELL OFF IS THAT BROKEN OR IS THAT OK
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi. This Pureline is an aftermarket option to the OEM Hayward Valve SP0714T. A broken Diffuser - SPX0714D is not okay, it will need to be replaced.
 Reply


?     Asked on 6/22/2019by Steven

I have a SwimPro SW256T sand filter with busted pressure valve threads. Would this work as a replacement for my current model?
 Reply

A  Answered on 6/22/2019 by InyoPools Product Specialist Patrick P.

Yes this is the proper replacement valve for the Hayward SwimPro SW256T.
 Reply


?     Asked on 6/17/2019by Karl U

Will this replacement work for a Hayward SP0704T? If not what do you recommend?
 Reply

A  Answered on 6/18/2019 by InyoPools Product Specialist Matt S.

Hello - what is the model number of your filter tank?
 Reply


?     Asked on 6/15/2019by Brad

Will this valve fit aquapro sand filters?

 Reply

A  Answered on 6/19/2019 by InyoPools Product Specialist Matt S.

What is the model number of your AquaPro sand filter?
 Reply


?     Asked on 6/10/2019by Jim

Does it have a backwash setting. I don’t see one
 Reply

A  Answered on 6/11/2019 by InyoPools Product Specialist Patrick P.

Hi Jim, Yes this valve does have a backwash setting.
 Reply


?     Asked on 6/8/2019by Inyo Visitor

The valve cracked and needs to be replaced - does this come with the O ring and the clamp or do I need to purchase separately
 Reply

A  Answered on 6/8/2019 by InyoPools Product Specialist Patrick P.

Hi Randy, this valve does not come with the clamp to secure the valve to the tank or the clamp o-ring. The most common filter this valve is used on is the Hayward Pro Series Top Mount Sand Filter if you have this filter then clamp and clamp o-ring can be purchased through this link - Hayward Pro Series Top Mount Sand Filter Parts.
 Reply


?     Asked on 6/6/2019by Rosanne

This appears to be almost the same but I do not have a site valve?? Also does it matter what valve positions are in? I can barely read mine.

 Reply

A  Answered on 6/6/2019 by InyoPools Product Specialist Patrick P.

Hi Rosanne, This is a different valve then what you show in your photos. You have Waterway Sand Filter and will require this Waterway Sand Filter Valve. Yes it does matter which valve positions are in, please read this Article on How a Multiport Valve Works which will explain the different positions on the valve.
 Reply

  • Commented on 6/6/2019 by Product Owner

    The top of my valve does say Hayward on it but I have had the sand filter for about 14 years. It was purchased from namco. Also I did not see a place where the pressure dial fits?

     Reply

    • Commented on 6/7/2019 by InyoPools Product Specialist Patrick P.

      Hi Rosanne, when I review the valve photos I don't see any place where it says Hayward could you please take a photo of the place on the valve that says Hayward?
       Reply


?     Asked on 6/3/2019by Tracy Massey

Will this fit a Hayward vari Flo xl sand filter SP 714
 Reply

A  Answered on 6/6/2019 by InyoPools Product Specialist Patrick P.

Hi Tracy, Yes this valve does fit a Hayward vari Flo xl sand filter SP 714
 Reply


?     Asked on 6/2/2019by Tracy Massey

Will this assembly fit a Hayward E series part #SPO71113
 Reply

A  Answered on 6/8/2019 by InyoPools Product Specialist Michelle B.

Hello, Yes, this will be the correct part.
 Reply


?     Asked on 5/29/2019by Sam

I have a splash filter ss185. Would this item work with it? It is a clamp on filter head. I can not make out any numbers of the original unit.
 Reply

A  Answered on 5/29/2019 by InyoPools Product Specialist Patrick P.

Yes this valve does work as a replacement valve for the splash filter ss185
 Reply


?     Asked on 5/26/2019by Lila

Will this replace an Intex SF6101101?

 Reply

A  Answered on 5/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Lila. This valve will not fit the Intex SF6101101 system. We do not have a valve that is compatible with that system.
 Reply


?     Asked on 5/25/2019by Patti Nauer

How long to ship to Ny
 Reply

A  Answered on 5/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Patti. This valve can take 3-5 business day for delivery to NY.
 Reply


?     Asked on 5/25/2019by Karen

Does this come with the o-ring on the bottom to seal it to the filter?
 Reply

A  Answered on 5/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Karen. Yes, that o-ring is included.
 Reply


?     Asked on 5/22/2019by Rene

Will this fit a hay wood 7113 sand filter
 Reply

A  Answered on 5/22/2019 by InyoPools Product Specialist Patrick P.

Yes this will work as a replacement for a Hayward 7113 Sand Filter Valve
 Reply


?     Asked on 5/8/2019by Inyo Visitor

will this replace a aqua tools AT3120
 Reply

A  Answered on 5/8/2019 by InyoPools Product Specialist Hector F.

This valve is not compatible with that model filter but if you click here you can view the parts diagram which lists a few valve options for that model.
 Reply


?     Asked on 5/7/2019by RAS

WILL THIS BE CORRECT REPLACEMENT FOR TAGELUS P/N 25-1124 / TA50 FILTER PLS?
 Reply

A  Answered on 5/7/2019 by InyoPools Product Specialist Hector F.

Unfortunately, this valve is not compatible with your model filter but if you click here you can view the parts diagram for your filter with all of the listed model valves that are.
 Reply


?     Asked on 4/30/2019by Rick

Looking for a replacement for a Hayward sp0714g11m valve. I can’t find any info on this specific model.
 Reply

A  Answered on 4/30/2019 by InyoPools Product Specialist Lennox H.

Hi, Rick. This PureLine - PL0714 valve can be used as a direct replacement for your model valve.
 Reply


?     Asked on 4/15/2019by ted long

Looking for a replacement for SP0714t
 Reply

A  Answered on 4/15/2019 by InyoPools Product Specialist Patrick P.

Hi Ted yes this is the proper replacement for the Hayward SP0714T valve.
 Reply


?     Asked on 4/2/2019by Frank

Will this replace a Jacuzzi splash pak model 39258509-R valve? Also, I noticed that this valve has a pipe sticking out of the bottom. Mine does not have this. Can this pipe be removed? Thanks.
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Lennox H.

Hi, Frank. Yes, this PureLine Valve - PL0714 can be used as a replacement for a Jacuzzi Splash-Pak Model 39258509-R valve.
 Reply


?     Asked on 3/12/2019by malcolm smith

will it work with s21ot
 Reply

A  Answered on 3/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Malcolm. Yes, this valve will fit the S210T model filter.
 Reply


?     Asked on 7/15/2018by James Oliveira

Will this valve fit Haywood sand filter S18OT. THANKS
 Reply

A  Answered on 7/16/2018 by InyoPools Product Specialist Lennox H.

Hi, James. Yes, this valve will fit a Hayward S180T filter.
 Reply


?     Asked on 6/17/2018by Darby L Mooring

Will it fit a s180t
 Reply

A  Answered on 6/17/2018 by InyoPools Product Specialist Alex V.

Darby, Yes, this will fit the S180T.
 Reply


?     Asked on 6/13/2018by Mike Watson

I this part fit a doughboy pool pump serial no. 384717
 Reply

A  Answered on 6/14/2018 by InyoPools Product Specialist Lennox H.

Hi, Mike. This valve will not fit a Doughboy or any manufacturer pool pump, however, will fit selected filter models. We're unable to confirm that it will fit any Doughboy equipment.
 Reply


?     Asked on 6/11/2018by Inyo Visitor

my pump says SP714 Pat No. 3640310. Will a Sp0714 fit?
 Reply

A  Answered on 6/11/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this PL0714 valve will work as a replacement.
 Reply


?     Asked on 6/2/2018by Ralph

I see it comes with the gauge;I assume the sight glass as well? Does it have everything needed (all gaskets) for a complete switch out or is there something else that needs to be purchased for installation?
 Reply

A  Answered on 6/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Ralph. This valve comes complete with the pressure gauge, gaskets etc. You will only need the plumbing connections for installation.
 Reply


?     Asked on 6/2/2018by John

I have a SP0714T During normal operation, I have water coming out my waste line? Do I need a new valve replacement or can this valve be taken apart and rebuilt, does it have a spider gasket like others? The valve seems to turn OK, but seems to be leaking internally by passing out the waste line, thanks thinking of the Pureline replacement if I need new valve. thanks for any help, John
 Reply

A  Answered on 6/2/2018 by InyoPools Product Specialist Lennox H.

Hi, John. Replacement parts to resolve your issue is available. The Key/Stem Assy - SPX0714CA or Key,cover And Handle Assembly - SPX0714BA  are available and are listed on Hayward Multiport Variflo XL 1 1/2" SP714T Parts Diagram.
 Reply


?     Asked on 6/1/2018by Joe

Will this replace an “antique” Hayward 711-13 valve?
 Reply

A  Answered on 6/2/2018 by InyoPools Product Specialist Patrick P.

Hi Joe, Yes this will replace the old Hayward 711-13 valve
 Reply


?     Asked on 5/30/2018by Don Elder

How many days for shipping to 43964 ? Thank you
 Reply

A  Answered on 5/30/2018 by InyoPools Product Specialist Andrea E.

Shipping would be approximately 3-5 business days to that area.
 Reply


?     Asked on 5/20/2018by JOHN

Will this fit dreamline model S190TSCP
 Reply

A  Answered on 5/21/2018 by InyoPools Product Specialist Lennox H.

Hi, John. Yes, this Valve - PL0714 will fit the Dreamline filter model S190TSCP.
 Reply


?     Asked on 5/10/2018by Missy

Will this fit s210T Hayward filter?
 Reply

A  Answered on 5/11/2018 by InyoPools Product Specialist Charlie R.

Missy, Yes, the Hayward SP0714T valve fits the s210T filter.
 Reply


?     Asked on 5/7/2018by Todd keffer

Will this work for . a SP714T.
 Reply

A  Answered on 5/8/2018 by InyoPools Product Specialist Hector F.

Yes, this valve is a direct replacement for the SP714T series valves.
 Reply


?     Asked on 5/6/2018by George Gann

what is the difference between this valve and my Hayward Variflow valve # SP714A ? Thanks.
 Reply

A  Answered on 5/6/2018 by InyoPools Product Specialist Patrick P.

Hi George, this is the same valve the only difference is that it is an aftermarket valve made by PureLine and not manufactured by Hayward. We have found the quality of the PureLine valve to be every bit as good if not better than the Hayward valve, however, the price is much better for the PureLine. This PureLine valve is a direct drop-in replacement for your Hayward Variflow valve # SP714A.
 Reply


?     Asked on 5/4/2018by Inyo Visitor

Will this fit sp 704
 Reply

A  Answered on 5/4/2018 by InyoPools Product Specialist Patrick P.

Hi Felicia, Yes this will fit the SP704 valve. The SP704 valve was discontinued and this is the suitable replacement.
 Reply


?     Asked on 4/25/2018by Damon B

I have a Jacuzzi Flo-Pro SS185. Would this replacement valve work? If not, do you have one that would?
 Reply

A  Answered on 4/25/2018 by InyoPools Product Specialist Kevin G.

Hello, yes the 4802-01CP would work for your system.
 Reply


?     Asked on 4/24/2018by Damon B

I have a Jacuzzi Flo-Pro SS185. Would this replacement valve work? If not, do you have one that would?
 Reply

A  Answered on 4/24/2018 by InyoPools Product Specialist Lennox H.

Hi, Damon. Yes, this valve or the PL0714 valve can be used with the Jacuzzi Flo-Pro SS185 filter.
 Reply


?     Asked on 1/28/2018by Inyo Visitor

What about for a Hayward s245t with the metal flange tightening ring. It shows 2 different ones. One says the regular and the other says flanged
 Reply

A  Answered on 1/29/2018 by InyoPools Product Specialist Lennox H.

Hi. This replacement valve will fit the Hayward S245T sand filter.
 Reply


?     Asked on 12/20/2017by Ben

Will this replace a SP714-A?
 Reply

A  Answered on 12/20/2017 by InyoPools Product Specialist Kevin G.

Yes, this will replace the SP714-A.
 Reply


?     Asked on 7/31/2017by Les

Hi, I have a Jacuzzi model number 16SS HK6 FP, do you know if this would be the correct replacement multiport valve unit for it ?
 Reply

A  Answered on 8/1/2017 by InyoPools Product Specialist Lennox H.

Hi, Les. This Valve will fit the Splash Pak - SS160 filter.
 Reply


?     Asked on 7/11/2017by Tina

Will this work on dreamline S190TSCPFT
 Reply

A  Answered on 7/11/2017 by InyoPools Product Specialist Alex V.

Tina, Yes, this aftermarket replacement will work.
 Reply


?     Asked on 7/9/2017by Inyo Visitor

will this vave fit the ss240 Jacuzzi sand filter
 Reply

A  Answered on 7/9/2017 by InyoPools Product Specialist Stacey M.

Hello, Yes this is the replacement valve for Jacuzzi ss240.
 Reply


?     Asked on 7/1/2017by paul matye

i am looking for the part that will fit the splash pak ss185. will this one work. thank you
 Reply

A  Answered on 7/2/2017 by InyoPools Product Specialist Alex V.

Paul, This valve will fit the SplashPak SS185 filter.
 Reply


?     Asked on 6/11/2017by Marilyn Shaw

will this work on a Jacuzzi Splash Pak SS185 sand filter? Our manual also has the number E-1540 on it but no part number for the dial valve.
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Hector F.

Yes, this valve will work on the Splash Pak SS185 filter.
 Reply


?     Asked on 6/10/2017by Inyo Visitor

Does this include the seals for this part? Will this fit the hayward s190tscp?
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Hector F.

Yes, this will work for your filter, it comes with all inner seals within the valve itself and also the valve o-ring to seal it to the filter.
 Reply


?     Asked on 6/10/2017by tsr3905

Is the O-Ring that goes between the head and tank included?
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Lennox H.

Hi. Yes, the Valve To Filter O-ring - GMX600F is included with this valve.
 Reply


?     Asked on 6/7/2017by Inyo Visitor

Hi. I have a Hayward 20 year old SW236T sand filter will this valve work with my filter Thanks
 Reply

A  Answered on 6/7/2017 by InyoPools Product Specialist Patrick P.

Yes, this is the correct replacement valve for your Hayward SW236T sand filter.
 Reply


?     Asked on 6/7/2017by Steven Bell

We have a Hayward E-Series above ground vari flo XL valve SP714-A that is fairly old. Will this fit my filter? Thanks for your time
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Yes this is the correct valve replacement for your Hayward E-Series Filter.
 Reply


?     Asked on 6/4/2017by donna drayton

does it include the clamp to tighten to filter body or do you just use the one you have ?
 Reply

A  Answered on 6/8/2017 by Product Owner

USE THE ONE YOU HAVE. IT DOESN'T COME WITH ONE
 Reply


?     Asked on 6/4/2017by Donna M Drayton

does this valve include the rubber o ring that fits the bottom of valve that the clamps tightens on
 Reply

A  Answered on 6/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Donna. The Valve Tank O-ring is included with this valve.
 Reply


?     Asked on 5/31/2017by Inyo Visitor

i have a hayward pro series S180T will this fit your replacement valve? Thank You!
 Reply

A  Answered on 6/1/2017 by InyoPools Product Specialist Lennox H.

Hi. Yes, this aftermarket valve will fit the Hayward S180T filter.
 Reply


?     Asked on 5/15/2017by Sherri

I have an Aqua Tool top mount, above ground pool, sand filter. The top "dial" is leaking out the side. Its' a 26" sand filter. What part is compatible for replacement?
 Reply

A  Answered on 5/15/2017 by InyoPools Product Specialist Hector F.

The top mount valves that we carry are specifically for the models AT3115, AT3118, AT3120, AT3124, and AT3130. If you need the 1.5 inch version that part number is 4600-1186 and the 2 inch version is part number 4684-10A which is only for the model AT3130. If you do not know what filter model that you have then please send us images and dimensions of it through our support request page.
 Reply


?     Asked on 5/1/2017by Inyo Visitor

will this fit on a S310t2 sand filter
 Reply

A  Answered on 5/1/2017 by InyoPools Product Specialist Lennox H.

Hi. This valve is not compatible with the S310T2 filter, you will need p/n SP071620T.
 Reply


?     Asked on 4/27/2017by Angela Hughes

Will this work on my Jacuzzi FLO PRO Hayward HIGH RATE SAND FILTER MODEL SS160
 Reply

A  Answered on 4/27/2017 by InyoPools Product Specialist Scott W.

Yes, that is the correct replacement top mount valve for your SS160.
 Reply


?     Asked on 4/16/2017by Wilbert Bryant

The handle on my valve broke.i admit my pool is over 11years old. The label on my tank says dream line. Can I replace it with a Hayward valve system
 Reply

A  Answered on 4/18/2017 by InyoPools Product Specialist Stacey M.

Hello Wilbert, I would send in a picture of the label of the unit to upload@inyopools.com so we can better look at unit to see if we can match this up for you.
 Reply


?     Asked on 4/12/2017by pam

do you get everything in picture the hole filter and glass gauge
 Reply

A  Answered on 4/12/2017 by InyoPools Product Specialist Scott W.

Yes, the glass and gauge come with the replacement valve.
 Reply


?     Asked on 4/12/2017by pam latham

will this fit a hayward sp 711
 Reply

A  Answered on 4/12/2017 by InyoPools Product Specialist Lennox H.

Hi, Pam. Yes, this valve will replace the SP711 valve.
 Reply


?     Asked on 2/19/2017by Benny

I need to replace a Hayward 711 valve. Will a 714 fit the same filter? I am aware of the inlet/outlet offset but need to know if it will fit on the filter. Thanks.
 Reply

A  Answered on 2/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Benny. The SP0714T valve will fit on the same filter as the SP711 valve.
 Reply


?     Asked on 12/1/2016by Mitch

I have a Hayward E-series High rate sand filter, with a SP0714T1 valve. Will this valve fit my filter.
 Reply

A  Answered on 12/1/2016 by InyoPools Product Specialist Adam Y.

Good afternoon Mitch, Yes, This valve is for the SP0714T.
 Reply


?     Asked on 11/29/2016by Alan

I have a Splash Pak sand filter md #mfm 15 or 17by Jacuzzi Bros. Will this control valve work for my filter?
 Reply

A  Answered on 11/30/2016 by InyoPools Product Specialist Adam Y.

Good morning Alan, No, This part will only work with Splash Pak models - 16, 18.5, & 24" Sand Filters.
 Reply


?     Asked on 8/19/2016by Eddie Johnson

I have a Swim Pro SW196T Will this valve fit my filter
 Reply

A  Answered on 8/31/2016 by InyoPools Product Specialist Lennox H.

Hi Eddie, Yes, this valve will fit the SW196T filter.
 Reply


?     Asked on 8/2/2016by Darryl Segraves

Can I purchase a gauge with this valve or can I use the one on my existing valve? (The handle is broken off on the current valve.) Thank you
 Reply

A  Answered on 8/3/2016 by InyoPools Product Specialist Alan M.

Hello, This valve comes with the pressure gauge.
 Reply


?     Asked on 5/14/2016by Inyo Visitor

I have a Hayward Model S244T will this fit my sand filter?
 Reply

A  Answered on 5/15/2016 by InyoPools Product Specialist Matt S.

Yes the TM-12-H8 is a compatible replacement multiport valve  for the Hayward S244T.
 Reply


?     Asked on 5/8/2016by Inyo Visitor

our Jacuzzi splash pak sand filter model ss18.5 is from 2002. will this part work with a filter that old.
 Reply

A  Answered on 5/11/2016 by InyoPools Product Specialist Lennox H.

Hi, This valve will work with the Jacuzzi Splash Pak SS185 filter.
 Reply


?     Asked on 1/31/2016by Nikkk

Will this valve fit the Splash Pac SS 185?
 Reply

A  Answered on 2/2/2016 by InyoPools Product Specialist Lennox H.

Hi, The CMP Generic Valve (27515-154-000) can fit onto a Plash Pak SS185 Filter. The pressure gauge is not included so you can use either the Bottom Mount (101D-204D) or Back Mount (102D-204D) pressure gauge.
 Reply


?     Asked on 8/13/2015by Barbara

I have a Jacuzzi sand filter Model # SS240. Will this valve replacement work on that model?
 Reply

A  Answered on 8/14/2015 by InyoPools Product Specialist Andy O.

Barbara- The Generic Valve (No Pressure Gauge) 4802-01CP would be the correct replacement valve for your SS40-7 Jacuzzi Filter.
 Reply


?     Asked on 8/11/2015by Johnny

Does this come with the V-Band Clamp? And if I replace the entire valve do I have to replace the stand pipe and laterals?
 Reply

A  Answered on 8/13/2015 by InyoPools Product Specialist Lennox H.

Hi Johnny, The Generic Valve (4802-01CP) does not come with the clamp and you would not have to replace the stand pipe if you replace the entire valve.
 Reply


?     Asked on 7/26/2015by mary

I have a splash pak ss160 will this work on that
 Reply

A  Answered on 7/26/2015 by InyoPools Product Specialist Hector F.

Yes this valve will work for the model SS160 Splashpak filter.
 Reply


?     Asked on 7/1/2015by Inyo Visitor

sorry to bother you again. Does this include the spider gasket? thanks.
 Reply

A  Answered on 7/1/2015 by InyoPools Product Specialist Hector F.

Yes these valves have the spider gaskets included.
 Reply


?     Asked on 6/30/2015by debbi

Does the replacement part have instructions and label on the top describing the different spots to position the handle? Sorry, but I just own the pool, I don't do the repairs. thanks.
 Reply

A  Answered on 7/1/2015 by InyoPools Product Specialist Brian M.

The new one does have descriptions of the notches the handle goes into. If you click on the smaller pictures, you will be able to see what the top will look like.
 Reply


?     Asked on 6/23/2015by Kevin

I have a Splash pack 18.5 . Will this Valve work for this Filter
 Reply

A  Answered on 6/24/2015 by InyoPools Product Specialist Lennox H.

Hi Kevin, The Generic Valve For Hayward Sand Filters will work with your Splash Pak 18.5 Sand Filter.
 Reply


?     Asked on 6/23/2015by john

i have a haywood swim pro sw196t will this fit for this unit
 Reply

A  Answered on 6/24/2015 by InyoPools Product Specialist Lennox H.

HI John, The Generic Valve For Hayward Sand Filters (4802-01CP) will work on your Hayward Swim Pro SW196T sand Filter.
 Reply


?     Asked on 6/21/2015by lane

Will this valve work on Hayward model# SM1900T filter?
 Reply

A  Answered on 6/21/2015 by InyoPools Product Specialist Hector F.

Yes this model valve will work for your model filter.
 Reply


?     Asked on 6/16/2015by Patricia

Would this style valve diffuser be smaller than the on the SP0714T this one the diffuser is one quarter inch to big to fit int the filter tank
 Reply

A  Answered on 6/18/2015 by InyoPools Product Specialist Lennox H.

Patricia, Can you provide us with the MFGR and model of the filter you have, that will allow us to find you the correct replacement valve.
 Reply


?     Asked on 6/14/2015by Tracy

Will this fit the Jacuzzi sand filter #SS160?
 Reply

A  Answered on 6/14/2015 by InyoPools Product Specialist Alex V.

Tracy, Yes this will work on the Jacuzzi SS160 filter.
 Reply


?     Asked on 6/12/2015by Heidi

Will this work for the sp714 model?
 Reply

A  Answered on 6/13/2015 by InyoPools Product Specialist Patrick P.

Yes this valve works as a replacement for the Hayward SP714 valve.
 Reply


?     Asked on 6/12/2015by Randy Harris

Is the pipe fittings on this valve fit 1 1/2in pipe?
 Reply

A  Answered on 6/12/2015 by InyoPools Product Specialist Patrick P.

Hi Randy, Yes the pipe fittings on this valve are for 1-1/2" plumbing.
 Reply


?     Asked on 6/11/2015by Bill Reed

I'm Interested in replacement parts for a 190tscp filter.
 Reply

A  Answered on 6/11/2015 by InyoPools Product Specialist Patrick P.

Hi Bill, This valve does work for the Hayward Dreamline 190TSCP filter. We also carry all of the parts for the Hayward Dreamline Sand Filter S190TSCP here.
 Reply


?     Asked on 6/10/2015by Joe

1) I have a Splash pak SS240 is this the correct replacement? 2) is the stem than goes into the tank removable current valve that I have does not have that stem.
 Reply

A  Answered on 6/10/2015 by InyoPools Product Specialist Andy O.

Joe- Per the MFG the Generic Valve For Hayward Sand Filters 4802-01CP  replacement  for your splashpak. The stem should slide right inside your standpipe.
 Reply


?     Asked on 6/10/2015by Shem Powell

Will this valve work on the GM 140 series? I know that the dimensions are different. I have the 4802-01 valve now, it is just worn out.
 Reply

A  Answered on 6/16/2015 by InyoPools Product Specialist Lennox H.

Shem, The Generic Valve For Hayward Sand Filters will work on the Hayward GM-140 Sand Filter.
 Reply


?     Asked on 6/4/2015by John

Are gaskets required for the 3 fittings on the filter valve? What is the part number of the gaskets and where can I order them?
 Reply

A  Answered on 6/4/2015 by InyoPools Product Specialist Patrick P.

Hi John, Gaskets are not used on the 3 ports on the filter valve. Normally you would screw male adapters into theese ports and wrap the male adapters with teflon tape.
 Reply


?     Asked on 6/4/2015by John

Where can I purchase the fittings for the three ports of this Valve? I just purchased a new Hayward Sand Filter (SP210 Pro Series) and I need the fittings to hook up the hoses from the pump, the return, and the waste.
 Reply

A  Answered on 6/4/2015 by InyoPools Product Specialist Andy O.

John- For the Hayward Generic Valve For Hayward Sand Filters 4802-01CP you can use a Combo Hose Adapter (SPX1091Z7) 31-150-1030 to screw into the ports of the valve and clamp down your hoses to.
 Reply


?     Asked on 5/30/2015by John

I have a "Splash Pak SS160" from Jacuzzi Bros sand filter. Is this the correct replacement multiport valve?
 Reply

A  Answered on 5/31/2015 by InyoPools Product Specialist Patrick P.

Hi John, Yes this valve is the correct replacement valve for the Splash Pak SS160 from Jacuzzi Bros.
 Reply


?     Asked on 5/21/2015by Matt

This looks like the part I need The only thing I know is that its a Hayward and there's a number on it (27-2599 6/98) If I were to order this from you and it does not fit correctly, Can I send it back for a refund?
 Reply

A  Answered on 5/21/2015 by InyoPools Product Specialist Patrick P.

Hi Matt, The part # of 27-2599 is the part # for a label which goes onto a Pac-Fab or Purex Valve and these valves are different than the Hayward valve. Is it possible you could get the name of the filter or model #, this should be located on a label on the side of the filter tank. You could also reply back to our email with photos as this would help us determine the valve you require.
 Reply


?     Asked on 5/18/2015by Inyo Visitor

My sand filter says splash pak ss185, it is a clamp on valve, is part #480291cp the right valve?
 Reply

A  Answered on 5/18/2015 by InyoPools Product Specialist Patrick P.

Yes this is the correct replacement valve for the Splash Pak SS185.
 Reply


?     Asked on 9/26/2014by Guest

The handle is hard to turn. Any ideas?
 Reply

A  Answered on 9/26/2014 by InyoPools Product Specialist Patrick P.

You may need a new spring or to check the gasket inside. There are also plastic washers under neath the handle that make turning it a little smoother. Those do dry out and crack. This is a parts explosion that shows the pieces - http://www.inyopools.com/pool_parts_multiport_valve_2_models_sp715_sp716.aspx
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Pliers

It was cracked and not working.

Written on 6/11/2021 by Guest

Used a pair of pliers twisted off and replaced with new one hooked up the quick attached wires bam done.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

2     0

My husband broke the handle at the end of the season while closing up the pool.

Written on 6/26/2018 by Guest

He purchased a new handle and once we opened the pool this year, he attempted to attach the new handle. He is not a handy person and this replacement handle cost half as much as replacing the entire valve. From day one, the leaks we're massive. After a few weeks, I purchased the replacement value from your company. It came quickly. My husband replaced this one piece valve without incident and we have been leak free since!

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Wrench Set

Replacement valve cracked

Written on 2/10/2018 by Guest

Just installed the new one, very easy

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers

1     0

Leak out waste port

Written on 6/26/2017 by Guest

Remove the Hayward valve and replaced with generic valve. Generic valve works great. Hayward valve had built in gasket that couldn't be replaced.

Were these instructions helpful?


Top

Review Summary

 (Average 4.16  out of 5 stars)
13 Rating
5 star:

(8)
4 star:

(3)
3 star:

(0)
2 star:

(0)
1 star:

(2)

The Most Helpful Review


The Most Recent Reviews
