Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller - B2980T

Part # B2980T

By Century Motors

  5 Average



Part # B2980T

Alternate Part #'s 196442T, 35-126-1262, AOSB2980T

Product Description

Premium-Efficiency 2-Speed Pool Motor with Integrated Timer

A. O. Smith’s new 2Green two-speed premium efficiency replacement pump motor with integrated timer packs tremendous value into an easy to- nstall package. Energy efficiency continues to drive the needs of the pool market, from legislation to increased awareness of energy costs and environmental impact. And thanks to the 2Green’s energy efficient high and low speed windings paired with an onboard timer interface, energy consumption can be reduced by as much as 58% over single speed motors. The all-in-one integrated motor and timer means less work for an installer and maximum energy savings for pool and spa owners. A. O. Smith’s 2Green is Title 20 compliant** and best of all, there is no additional wiring required for new construction or retrofit installations!

**California’s Title 20 legislation states that pumps > 1HP (total) must be 2-speed or variable speed, and must have a control to default to low-speed (i.e. timer)


Features Benefits
All-in-one design with integrated motorand timer as one unit No additional wiring required! – other aftermarket
timers require external leads and can be wired
Rain-proof timer enclosure Other aftermarket timers require a secondary enclosure
for outdoor use of the electronics
On-screen motor status updates Unique feature that provides user feedback (if the shaft
is locked for instance) which can reduce motor failures;
shows the mode (high, low, off) and time remaining
Built-in battery backup protects
programming for 7 full years
No need to replace battery (unlike other timers) or
reset time/settings during a power outage or off-season

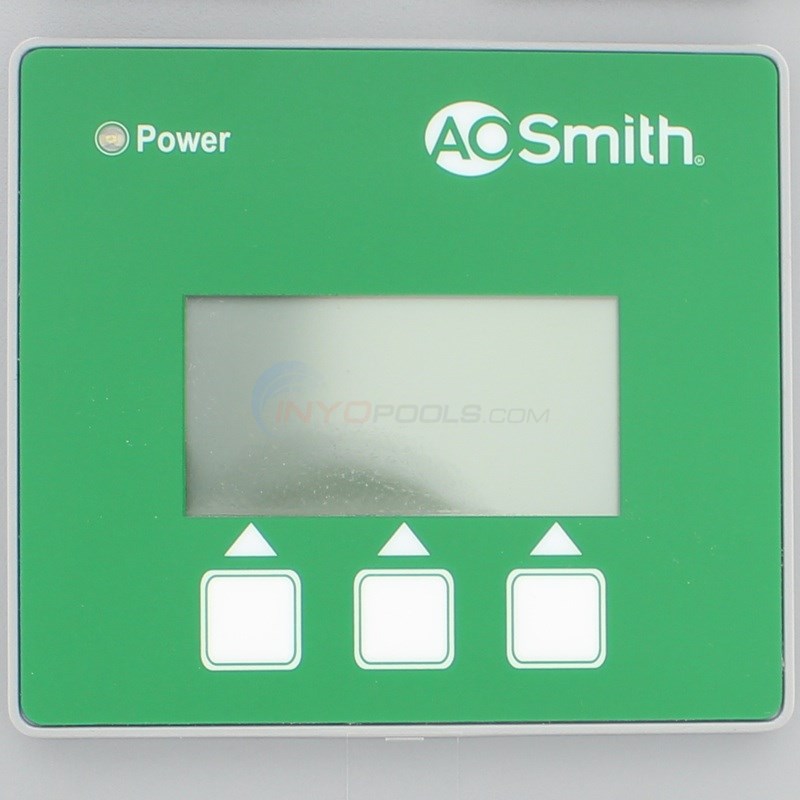

Integrated LCD backlight and
adjustable contrast
Ensures the display can easily be viewed in dark, shady, or direct sunlight conditions
Intuitive step-by-step screen instructions Step-by-step instructions make initial setup and any
future programming changes simple
Manual override User can instantly change motor parameters for cleaning or maintenance without adjusting permanent settings

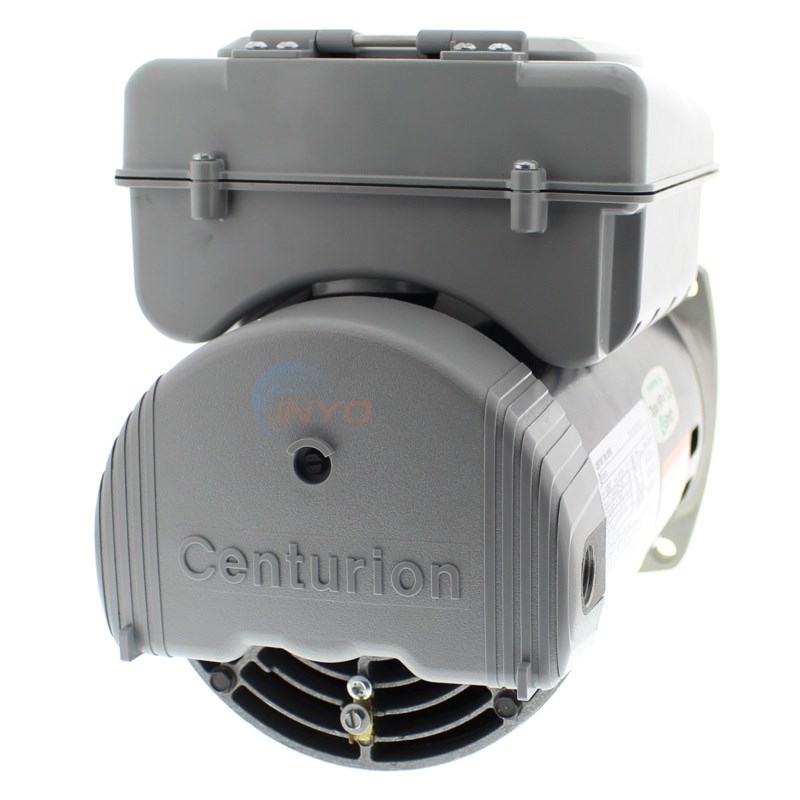

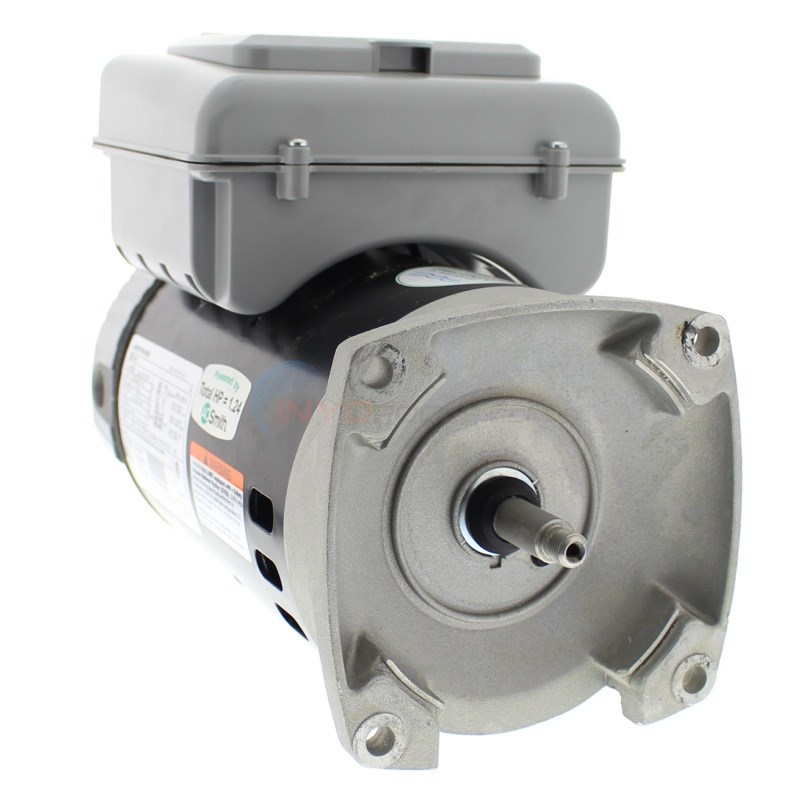

Motor Image Motor Image

Product Specifications

Commonly Used On:
Pentair, Pac-Fab, Purex, WhisperFlo, Challenger, Sta-Rite Pumps, Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II & Max-E-Pro Pumps

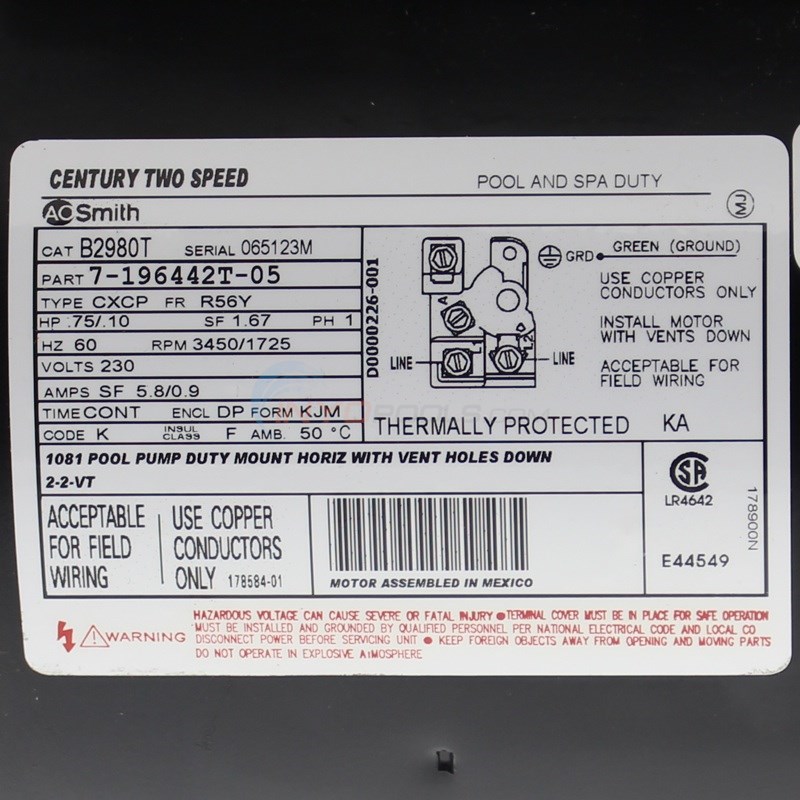

Motor Name:
0.75 HP B2980T Replacement Pool Motor
75/.10 HP
3450/1725 RPM
230 V
6/1 amp
Service Factor:
Total HP:
1.25 HP
Stock #:
Overload Protector:
Digital Timer
California Title 20 Compliant

?     Asked on 2/3/2020by Steve

Hi there I am wanting to replace the pump in the attached picture with a variable speed pump and I am wondering if this pump will work. Please let me know. Thanks


A  Answered on 2/4/2020 by InyoPools Product Specialist Lennox H.

Hi, Steve. This B2980T motor is no longer available. You can use the ECM16SQU - Variable Speed Motor.

?     Asked on 10/26/2019by Inyo Visitor

I have a 1 HP single speed motor now. Can I substitute a 3/4 HP dual speed pump and run it longer?

A  Answered on 10/28/2019 by Industry Professional

We do not know what pump you have to determine whether you need to change the impeller but Yes, you should be able to use this motor for a 1 hp with a 1.25 service factor single speed replacement.

?     Asked on 9/15/2019by William Cornette

Looking to replace the motor in the image with a dual speed with digital controller. What are my options? Will this one work?

A  Answered on 9/18/2019 by InyoPools Product Specialist Lennox H.

Hi, William. Please resend the image to us so that we can confirm.

?     Asked on 8/6/2019by marcus van overbeek

Will this motor work with a STA-Rite MPRA6F-148L? It has a 2HP motor attached to it.


A  Answered on 8/6/2019 by InyoPools Product Specialist Lennox H.

Hi, Marcus. Unfortunately, this motor is too small to be used with your original pump.

?     Asked on 7/10/2019by George Leake

I purchased the B975T 1hp/.10hp variable speed motor in May of 2017 (now discontinued.) Yesterday, it was much louder, and now the bearings seem to need replacing. As opposed to repairing, would this motor be a suitable replacement?

A  Answered on 7/10/2019 by InyoPools Product Specialist Lennox H.

Hi, George.  You can use the following options, (1) B2975 motor along with the T106R or T10604R dual speed controller, (2) ECM16CU - V-Green 1.65 HP Round Flange 56J Variable Speed Motor.

?     Asked on 6/18/2019by Inyo Visitor

Hi - can this replace a QC 1072 motor? Thanks!

A  Answered on 6/19/2019 by InyoPools Product Specialist Matt S.

Yes, the B2980T is a good replacement for the QC1072 single speed square flange.

?     Asked on 6/9/2019by Gregg

Is this a direct replacement for my Century part # 7-196443-05?


A  Answered on 6/10/2019 by InyoPools Product Specialist Patrick P.

Hi Gregg, This is not a direct replacement for the B2982 in your photo. You would require the B2982 1 HP Dual Speed Replacement Motor, unfortunately the B2982T with Digital Controller has been discontinued so your motor is not available with a digital controller. We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could a photo then a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.

  • Commented on 6/12/2019 by Product Owner

    Here is the pump The pump is 25 years old Should I consider replacing the whole assembly? I saw the PureLine PL 2605. Would that work for me?


    • Commented on 6/12/2019 by InyoPools Product Specialist Patrick P.

      Hi Gregg, You have a Hayward TriStar and you would require this Hayward TriStar Seal Kit. Yes I would consider the PureLine PL2605 Variable Speed Pump you will save a ton on your operational costs with a variable speed pump. The plumbing ports on the PureLine Prime are not in the exact same spot as your current pump so you will have a little re-plumbing if you go that route.

?     Asked on 4/22/2019by Kevin

Is this a direct replacement for AO Smith 2 speed part 0-177065-05? Thanks

A  Answered on 4/22/2019 by InyoPools Product Specialist Lennox H.

Hi, Kevin. This B2980T can be used as a direct replacement.

?     Asked on 1/15/2019by Inyo Visitor

How do I get this ad removed from my tablet? IT is annoying. Thank you.

A  Answered on 1/15/2019 by InyoPools Product Specialist Lennox H.

Hi. Unsubscribing from our promotional emails will remove you receiving any unwanted emails. I already unsubscribe you from our promotional emails.

?     Asked on 9/21/2018by David

I'm looking for a replacement for a 2 speed replacement for an A.O.Smith USQ1102 Mod. C48K2PA105C5 Encl. ODP 1 HP 115/230 V motor. Would the A.O.Smith B2980T be a good replacement? If so, what is the shipping weight and package dimensions? I would need to ship it to the Cayman Islands after I receive it. Thanks.

A  Answered on 9/25/2018 by InyoPools Product Specialist Lennox H.

Hi, David. This B2980T Dual Speed motor can be used to replace the A.O.Smith Motor USQ1102  Mod. C48K2PA105C5. This motor weighs 30 lbs and I'm unable to get the shipping dimensions at this time.

?     Asked on 9/20/2018by Mike H

I have a Sta-Rite P4EA6E-186L pump. I replaced the original motor with a Marathon imPower RB003 3-speed motor (we only used 2 of the 3 speeds - fast and slow) whose electronics have gone haywire. Based on the imPower specs this 2-speed motor looks like the perfect replacement. The imPower maximum power is 1.25HP (1HP x 1.25 SF). This motor is also 1.25HP (.75 x 1.67 SF). Will this motor work for me and should I be concerned about the difference in HP vs. SF if the total is the same?

A  Answered on 9/20/2018 by InyoPools Product Specialist Hector F.

Yes, this motor would work as a replacement. Just keep in mind that this is a 230 volt and also that it has a 56y frame.

?     Asked on 9/12/2018by lynh

Can I replace Pentair Pinnacle 3/4 motor single speed with this one to save energy? Will it fit?

A  Answered on 9/15/2018 by InyoPools Product Specialist Lennox H.

Hi, Lynh. Yes, you can use this B2980T motor with your Pinnacle pump if you have the proper Seal Plate - 356012.

?     Asked on 7/13/2017by jana

is it possible to just buy the digital timer? my pump works fine but the digital display on the timer has stopped working (water got under the plastic on the display) so now I cant set or reset my timer. I also have an old timer on the wall that still works, can I somehow bypass the timer on the pump and use the other timer that I already have?

A  Answered on 7/15/2017 by InyoPools Product Specialist Alex V.

Jana, Unfortunately, the timer can not be replaced. You can use a wall timer to turn the motor on and off but you will not be able to control the high and low speeds.

?     Asked on 6/6/2017by Pino Valle

can i purchase a 3/4 hp dual speed 230 volt pool pump motor with a timer that will fix my hayward super pump.?

A  Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Pino. This Century 2-Green Motor - B2980T can be used to operate a Hayward Super Pump that has the following Impeller # SPX2605C and SPX2605C.

?     Asked on 4/28/2017by seth

I got this pump as a replacement. My old pump did not have the impeller ring (white ring) when I pulled it off and the new one did not come with one. Is that on purpose? Do I now need to buy an impeller ring? Also, the new pump has 3 electric leads, plus the ground. They are labeled ground, L1, L2, and A. My wiring has a ground wire, red, and black. obviously one if the leads will not have a wire attached, which one? The owners manual is all about the timer, nothing about installation.

A  Answered on 4/28/2017 by InyoPools Product Specialist Lennox H.

Hi, Seth. If your original pump did not have an impeller ring then your pump does not require one. To wire this motor you will need the two hot line and the ground, you will not use the wire that goes to the A terminal. Because these motors can be used on several different pump installation instructions can vary.

?     Asked on 3/23/2017by Bryan

I'm looking to replace the motor on our Max-E-Glass II P4E6E-187L pump. It currently has a B2953 P56Y 1 hp 1.25 SF motor. Will this work? We're looking at replacing the current motor with something much more efficient.

A  Answered on 3/23/2017 by InyoPools Product Specialist Hector F.

The correct dual speed with timer motor that you would use if you currently are using the original motor or matching would be the B2982T. You could also use a variable speed motor which would be the ECM16SQU. The first is a wider motor so you would not need the motor pads or stand but the second fits the same as the original. Also it would be wise to replace the seals and gaskets using the gokit38.

?     Asked on 2/25/2016by TN

My system already has a timer and had a single speed motor. This motor comes with its own digital timer so when I replace it, what do I do with the already installed timer? Do I have to rewire or how to I set my old timer?

A  Answered on 2/29/2016 by InyoPools Product Specialist Lennox H.

Hi TN, You can either bypass the current timer completely and wire the motor directly from the breaker or you can keep the old timer in place and use the wires to run power to this motor but remove the trippers so that the timer does not turn on/off constantly feeding power to the motor.

?     Asked on 2/24/2016by THN

Your site has a guide on measuring the pool size and use the Gallon/minute to purchase the correct motor size. But all these motor I looked at doesn't have the GPM rating. How do I get the GPM for a motor, specifically this model?

A  Answered on 2/25/2016 by InyoPools Product Specialist Andy O.

Hello, The gallon per minute rating (GPM) is determined by the pump not the motor. To find out the gpm of B2980T Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller we would need to know the model of the pump that you will be installing this motor on.

?     Asked on 2/19/2016by Tony

Can this replace my sq1072 single speed motor? 3/4 HP 1.65 SF 230volt

A  Answered on 2/22/2016 by InyoPools Product Specialist Andy O.

Hello Tony, The B2980t Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller is the dual speed replacement for the SQ1072 A.O. Smith 3/4 HP Square Flange Full Rate Motor.

?     Asked on 1/31/2016by Jimbo

Will this work on my very old Dyna-glas 1HP MPFA6E-146L as an upgrade to the 1HP A.O. Smith currently making Lots of noise?

A  Answered on 2/2/2016 by InyoPools Product Specialist Lennox H.

Hi Jimbo, The A.O. Smith 3/4 HP Full Rate Square Flange Dual Speed w/ Digital Controller 230V Motor work with your  Dyna-glas 1HP MPFA6E-146L.

?     Asked on 1/13/2016by Don

When this motor eventually fails (they all do) can I transfer the digital controller to an identical new pump motor?

A  Answered on 1/13/2016 by InyoPools Product Specialist Lennox H.

Hi Don, Unfortunately the controller can not be removed and placed on a different motor, you will have to replace the entire motor with the built-in controller.

?     Asked on 8/23/2015by Wendy

the screen on the timer is blank after power turned off. Power light is on nothing showing on the screen? Can not find any trouble shooting information.

A  Answered on 8/24/2015 by InyoPools Product Specialist Joe S.

Hello Wendy it will be best to contact AO Smith directly at 937-667-2431 and speak with one of their technical support reps to walk you through troubleshooting this

?     Asked on 7/14/2015by alain

Hello, i owned an Dura-glass 3/4 HP (model: AO SMITH C48J2PA105C1) can i replace with your B2980T model ? thks you

A  Answered on 7/16/2015 by InyoPools Product Specialist Lennox H.

Hi Alain, You can replace your 3/4 HP motor with the  3/4 HP 230V Full Rate Dual Speed w/ Digital Controller (B2980T), you will also need to change your impeller to the  3/4 Full Rated Impeller (C105-138PEB) and get a Sta Rite Dura Glas & Max E Glas Pump Pre 1998 Tune Up Kit (GOKIT6) or 1998 To Present Tune Up Kit (GOKIT54) whichever version you have..

?     Asked on 5/18/2015by Bill

I have a 3/4 hp sta-rite dyna glas / dyna max that is 15 years old, mpra series. wil this fit my pump

A  Answered on 5/18/2015 by InyoPools Product Specialist Patrick P.

Yes this motor would work on a 3/4 hp sta-rite dyna glas / dyna max. We would also suggest a sta-rite dyna glas / dyna max tune up kit when replacing your motor.

?     Asked on 4/24/2013by Guest

Can I rotate the timer box on the motor 180 degrees?

A  Answered on 4/24/2013 by InyoPools Product Specialist Patrick P.

No, unfortunately the timer control on the motor is permanently attached to the motor and can not be rotated.

?     Asked on 1/19/2012by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.

?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.

?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.

?     Asked on 1/11/2012by Guest

What is Service Factor?

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.


Est. Repair Time

1 to 2 hrs

Tools Needed

Socket Set, Wrench Set

Oversized motor

Written on 3/20/2017 by Guest

The new pump I bought last year was overpowered I bought a energy efficient Hayward 1 hp but the actual,rating was 1.85 too much for my 1 1/2 pipes into helped me get a proper sized 3/4 hp Ao smith that is 2 speed to help with my desire for energy conservation and a smaller impeller to match the 3/4 hp with gaskets etc. I am thrilled with the excelent customer service the help,they provided
