Sta-Rite SuperMax Pump

Sta-Rite SuperMax Pump Diagram
Key Part # Item Price
* GOKIT78 Tune Up Kit Sta-Rite SuperMax $33.95 Description

Key Part # Mfg Code Item Service Factor Voltage Max Amps Frame Price
1 B846 B2846 A.O. Smith 1/2 HP Standard Motor - Full Rate 1.95 115/230 10.8 / 5.4 56Y $228.47 Description
1 B852 B2852 A.O. Smith 3/4 HP, 56Y Frame, Up-Rate Motor 1.25 115/230 10.8 / 5.4 56Y $201.95 Description
1 B853 B2853 Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 1.25 115/230 11.4/5.7 56Y $227.62 Description
1 B854 B2854 Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 1.10 115/230 13.0/6.5 56Y $239.19 Description
1 PL2840 Pureline 2 H.P Pool Motor Square Flange 56Y Up Rate 230V 1.10 230 10.2 56Y - -
1 B840 B2840 A.O. Smith 2.5 HP, 56Y Frame, Up-Rate Motor 1.04 230 11.5 56Y $397.57 Description
1 B981 B2981 A.O. Smith 3/4 HP Dual Spd. Motor - Full Rate 1.67 115 14.6 / 4.7 56Y $360.87 Description
1 B982 B2982 A.O. Smith 1 HP Dual Spd. Motor - Full Rate 1.65 230 7.2 / 3.0 56Y $354.63 Description
1 B983 B2983 A.O. Smith 1.5 HP Dual Spd. Motor - Full Rate 1.47 230 10.0 / 3.5 56Y $434.65 Description
1 B984 B2984 A.O. Smith 2 HP Dual Spd. Motor - Full Rate 1.30 230 11.0 / 4.0 56Y $537.67 Description

Key Part # Mfg Code Item Price
* 3050-38 R221016 Protective Pool Motor Cover $39.13 Description

Key Part # Mfg Code Item Price

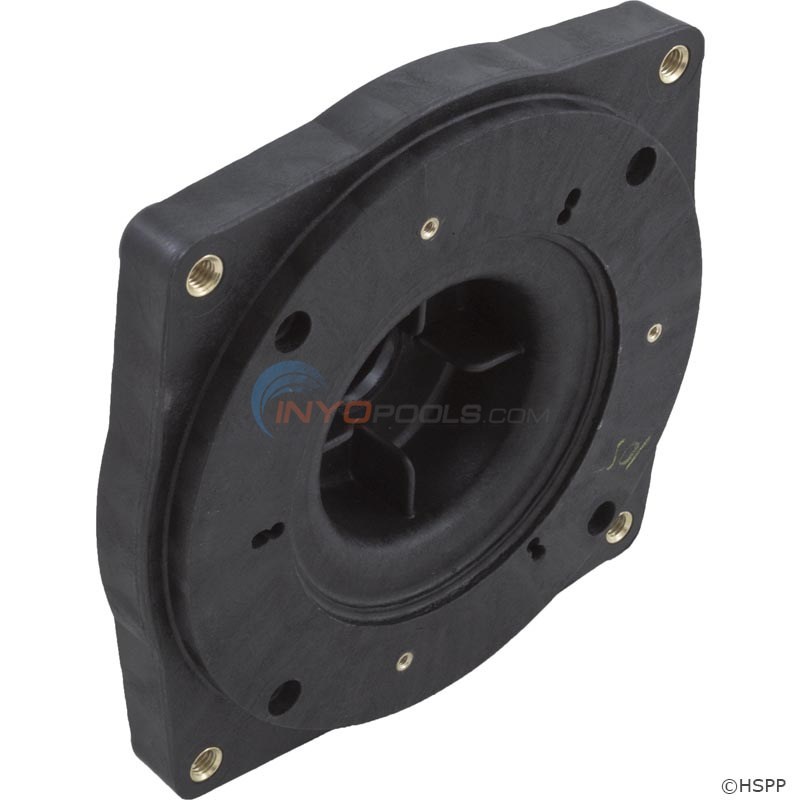

2 5003-03 355612 Seal, Bracket $93.72 Description

Key Part # Mfg Code Item Price

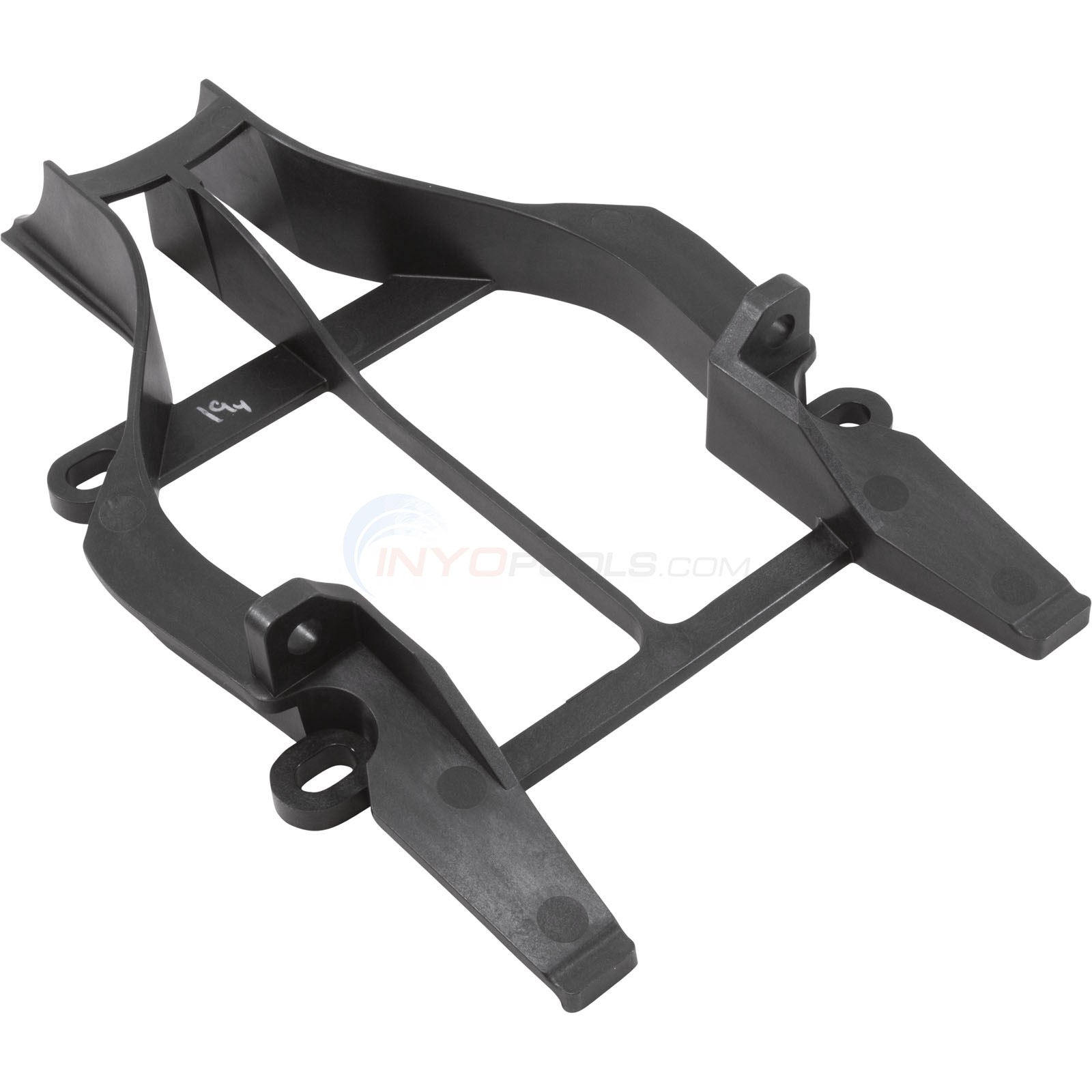

3 35-110-1150 351094 Base, Black (SuperMax) $138.99 Description

Key Part # Mfg Code Item Price

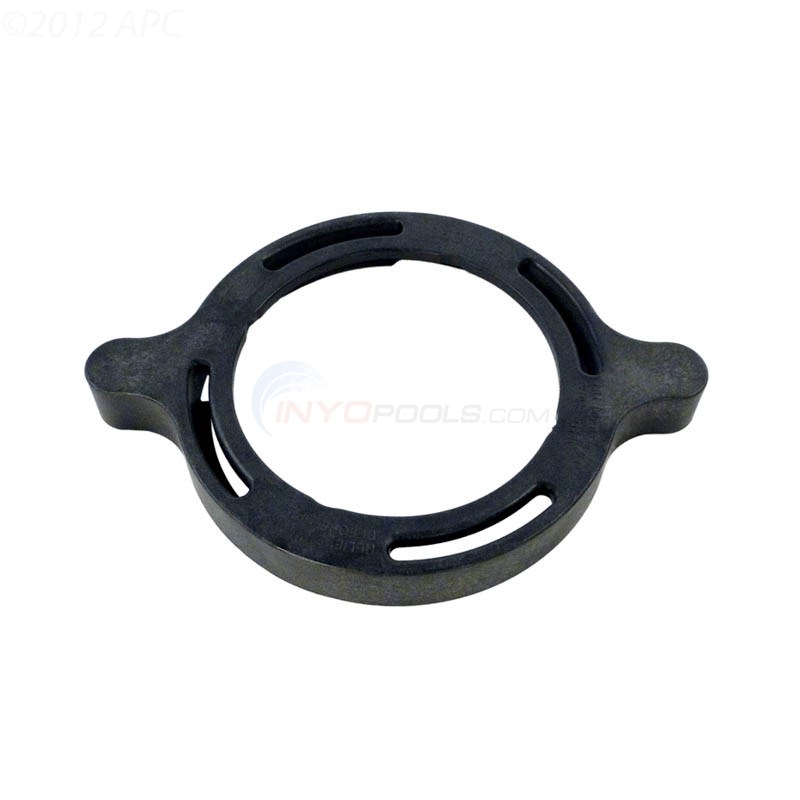

4 35-110-1154 351090 Clamp, Ramp & Cam., Black (SuperMax)
Normally $69.99!
$65.27 Description

Key Part # Mfg Code Item Price
5 5007-050 350091 Lid, Pump $38.10 Description

Key Part # Mfg Code Item Price
6 4060-84 357 O-ring, Lid $10.22 Description

Key Part # Mfg Code Item Price

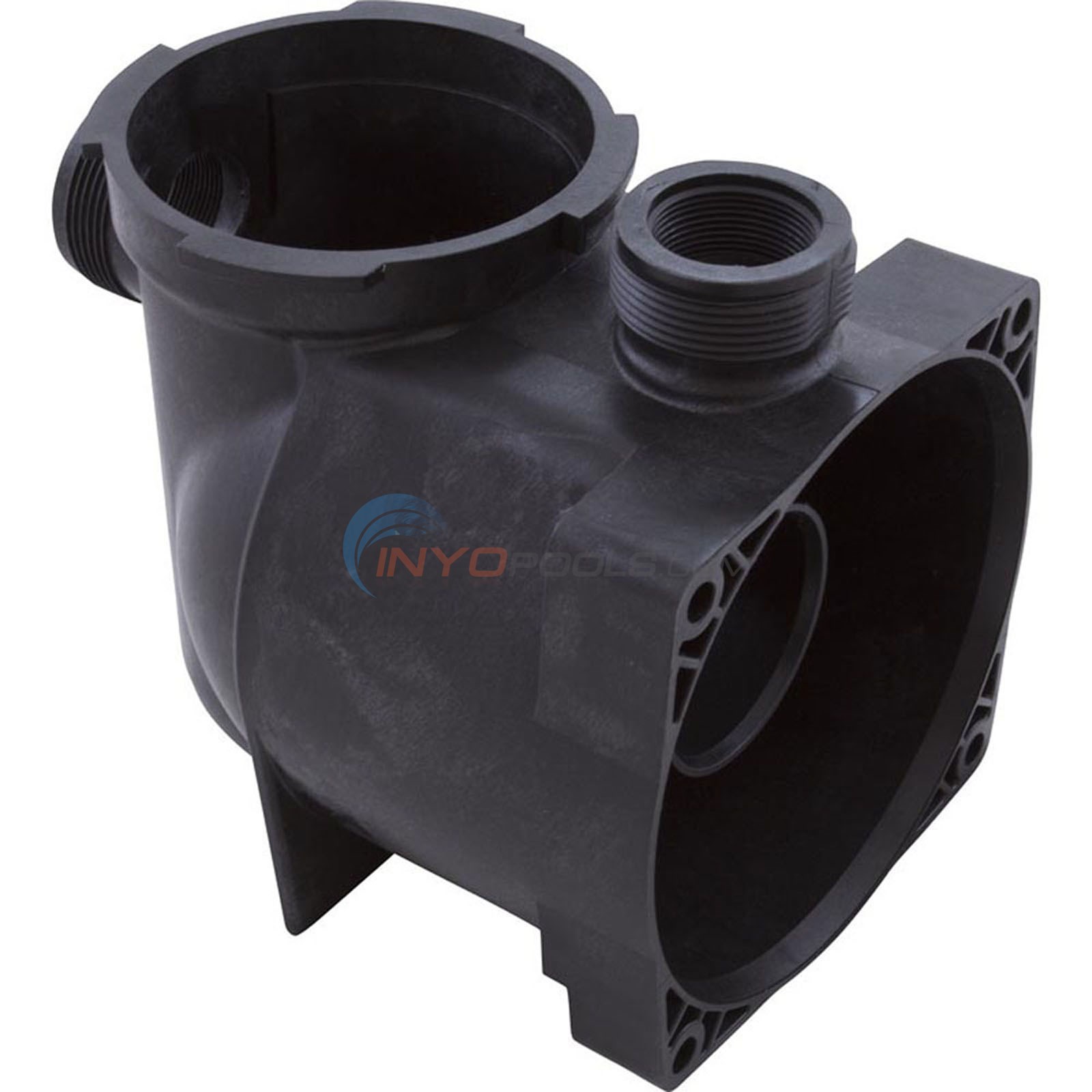

7 35-110-1162 351089 Volute, Black $313.99 Description

Key Part # Mfg Code Item Price
8 5007-080 350093 Adapter, Pump (2 Req.) $18.99 Description

Key Part # Mfg Code Item Price
9 4601-0141 270141 Nut, Black For Push-pull Valve (2 Req.) $38.99 Description

Key Part # Mfg Code Item Price
10 3262-08 112 O-ring Od 11/16" $10.22 Description

Key Part # Mfg Code Item Price
11 4600-4699 154699 Plug, Drain 1/4" (2 Req.) $6.99 Description

Key Part # Mfg Code Item Price
12 5003-18 355621 Screw, Hex Head $6.99 Description

Key Part # Mfg Code Item Price
13 6982-0 072184 Washer Ss 7/16"id X 7/8"od (sample W-7) $2.99 Description

Key Part # Mfg Code Item Price
14 5003-04 368 O-ring $10.22 Description

Key Part # Mfg Code Item Price
15 5056-11 O-49 O-ring (2 Req.) (226) $8.36 Description

Key Part # Mfg Code Item Price
16 5002-13A 355030 O-ring, Diffuser (square Ring) High Head $10.99 Description

Key Part # Mfg Code Item Price
17 5002-12 355334 Screw Ss Hex Washer Head $3.99 Description

Key Part # Mfg Code Item Price
18 5003-10A 355617 Diffuser, 1/2 - 1 HP $116.38 Description
18 5003-10 355618 Diffuser, 1-1/2 - 2 HP $84.23 Description
18 5007-180 350170 Diffuser 2 1/2hp $98.93 Description

Key Part # Mfg Code Item Price
19 6901-0 354290 Hex Head Cap Screw, 3/8”- 16 X 1” $4.11 Description

Key Part # Mfg Code Item Price
20 5002-05AA 355043 Impeller, 1/2 & 3/4 HP
Normally $54.99!
$36.04 Description
20 5002-05BA 355067 Impeller, 1 HP $56.64 Description
20 5002-05CA 355074 Impeller, 1-1/2 HP $59.99 Description
20 5002-05DA 355086 Impeller, 2 HP $59.73 Description
20 5002-05EA 355093 Impeller, 2-1/2 HP
Normally $59.99!
$41.99 Description

Key Part # Mfg Code Item Price
21 5002-10 355389 Screw, Impeller Locking $5.57 Description

Key Part # Mfg Code Item Price
22 5250-210 PS-3867 Pump Seal 200, Extra Heavy Duty Ps3867 $19.99 Description
22 5250-104 PSR-200 Seal, Pump 200 (psr 200) 5/8" $10.99 Description

Key Part # Mfg Code Item Price
23 5003-5667 355667 Basket, Oem
Normally $30.99!
$21.99 Description

Key Part # Mfg Code Item Price
24 35-110-1182 351157 Union Kit (Includes 2 of Items 8, 9, & 15) $116.38 Description

* NOT SHOWN
