Can I install this myself?
Reply
The Air Relief Assembly can be installed by a homeowner. It requires that you unthread the old one, wrap some teflon tape around the threads of the new valve, and thread it back into place.
Reply
Will this valve assembly work on an Aquatec FN/FNS-48 filter?
Reply
My relief valve is dripping. I have a Purex-Triton Filter model #CC100..
Design flow=100 g.p.m. and 6.5 psi residential. There is a pin number on the tank housing =178555..Do I need to purchase the entire relief valve OR the very small "O" rings inside the valve? I have had this unit since 2000. I do not know if this assembly 998209800 is the correct fit But it sure looks like it! Thanks
Reply
Hi Charlie, This would be the correct air relief for the Purex-Triton Clean & Clear CC100 filter. For the CC100 filter I do not show where the small o-ring is sold separately so I would suggest the entire air relief.
Reply
the pressure gauge broke but I only need the bottom black part not the actual gauge is that part sold separately?
Reply
Hi, The Air Relief Manual Valve Assembly (98209800) is olny sold as a kit which includes the pressure gauge.
Reply
Will this assembly fit and work OK, on my 38 year old American 582090 vertical grid DE filter, which I believe is now owned by Pentair?
Reply
Hi ED, This Air Relief Assembly will fit onto the American Products 582090 filter.
Reply
Sometimes it will show no pressure unless you release water [air]. When pressure is released then it will fil5ter again,
Reply
Hi, It sounds like you have a suction leak causing air to get into your system. You can review our How To: Identify and Correct Air Leaks to find out how to fix your problem.
Reply
Is a Purex Triton FNS Plus filter the Same as a Pentair FNS Plus.
Reply
Hello, Dave. Yes, the Pentair FNS Plus D.E. Filter is comparable to the Purex Triton FNS Plus D.E. Filter. You may use the Pentair FNS Plus D.E. Filter Parts Page as a guide for all parts needed for replacement.
Reply
Hi will this valve work with a Pentair 2000 series?
Reply
Hi, Beth. This Air Relief Manual Valve Assembly will not work with the Pentair 2000 Series filter. You can view the parts needed via the Purex 2000 Series Stainless DE Parts page.
Reply
I just ordered one of these assemblies tonight from you. My pressure relief valve is leaking at the base where it screws into the filter top. It looks like it has a crack in the relief valve body at the threads. My question is: what is the plastic clamp used for and where does it go? I don't see that clamp anywhere on my filter (Pentair Clean and Clear model 160317).
Reply
Hello Richard- The clamp affixes to the small white air bleed sock on the top of the manifold.
Reply
I like to know how to install FNS relief valve
Reply
Jose. Installation instructions are provided on page 7 of the FNS® Plus Vertical Grid D.E. Filter Owner's Manual.
Reply
What is the difference between parts 4677-16 n 4655-03D
Reply
Hi, Lee. The Gauge Assembly, Complete (073027) - 4677-16 includes this Air Relief Manual Valve Assembly (98209800) - 4655-03D plus additional parts specifically for the Purex 4000 Series Molded D.E. Filter.
Reply
Is the Pentair 98209800 valve interchangeable with the 98209804 valve? I have the American Products Commander lid & I thought I was buying the correct valve when I bought the 98209804.
Reply
Hi, Rhonda. The two parts are somewhat interchangeable but are used in different applications and include different parts.
Reply
What's the outer diameter of the air/water output on this? (You know, the part that sprays you if you stand in front of it) I need to attach a small piece of tubing to redirect the water that sprays out when I release the pressure and I don't see that listed on the spec sheet(s).
Reply
Hi. James. The Air Relief port diameter is 5/8".
Reply
Will this work on an American Products Titan CM model 57026000 DE filter?
All I really need is a replacement manual bleed valve stem - the washer is bad & it leaks air/water.
Does that part exist?
Reply
Yes, this assembly will work with the model American Products CM Titan filter.
Reply
Opened my pool and can't get my filter completely air tight. No drips or leaks present. Cleaned the pump thoroughly. My question is this: could the pressure monitor be the cause of my problem?
Reply
Hi, Pat. If the filter is not airtight, since it's on the pressure side of your system water will out of the area where it is not sealed including the air relief assembly. The problem may not be the filter. You can use our How to Identify and Correct Air Leaks guide to help you resolve this matter.
Reply
I replaced the relief valve and gauge last year. Seems to be working fiine, but recently when I turned the cap to relief the pressure it wouldn't click back into closed position. It's not leaking, but I don't think it's closed properly. Is that adjustable? Any thoughts?
Reply
Hi, Tom. It's not adjustable. I would recommend that you inspect it closer since it's not leaking.
Reply
I have a Pentair FNSP 60 filter. Will this assembly fit?. I also see what appears to be a hose clamp in the picture. Is this a needed part. I don't seem to have that on my filter.
Reply
Hello Jim- Yes the Air Relief Manual Valve Assembly (98209800) would be the correct assembly for your filter. The clamp is for the older models that had a hose that connected to the air relief on the side.
Reply
Will this fit onto a Sta-Rite S8M500 if I remove the adaptor bushing?
Reply
Hi. We're unable to confirm. We recommend using the specified manufacturer Valve And Gauge Assembly - 24850-0105.
Reply
What size hose attaches to the air relief valve for discharge?
Reply
Normally this doesn't have a hose attached to it
Reply
Even though it is a barb fitting No hose actually attaches to the air relief valve. A relief valve is just that, needing an immediate relief, attaching a hose to it will slow down the release pressure.
Reply
My pool equipment is located indoors and I don’t want water blowing all over the walls when bleeding the air. The filter has been delivered now so I was able to measure the barb. 3/4 clear tubing fit perfectly. Thanks for the replies.
Reply
Is this compatible with Sta rite system 3 modelS7M120
Reply
Hi. No, the item to use on the Sta-Rite System 3 is 24850-0105.
Reply
Will this work on starite system 3 model S7M120
Reply
Hi Paul, No this air relief assembly does not work on the Sta-Rite System 3 S7M120. However, we do carry the Air Relief Assembly for the Sta-Rite System 3. You can view or purchase the S7M120 Air Relief Assembly or individual parts for the S7M120 Air Relief Assembly through this link Sta-Rite System 3 S7M120 Parts Page (Assembly is key 25)
Reply
Will this item for a pentair 4000 series.. see the screen shot
Hi, Danny. This Air Relief Manual Valve Assembly - 98209800 is compatible with the SMBW 4000 Series filter if it was manufactured or your lid was replaced after 1999.
Reply
Yes, this is the high flow Air Relief valve for the SMBW 4000 series filter
Reply
Will this fit the American Titan SS 584090? My filter currently does not have an air relief valve.
Reply
Hi Kalina, Yes this does fit the American Titan SS 584090 and you will also require this Air Relief Nipple
Reply

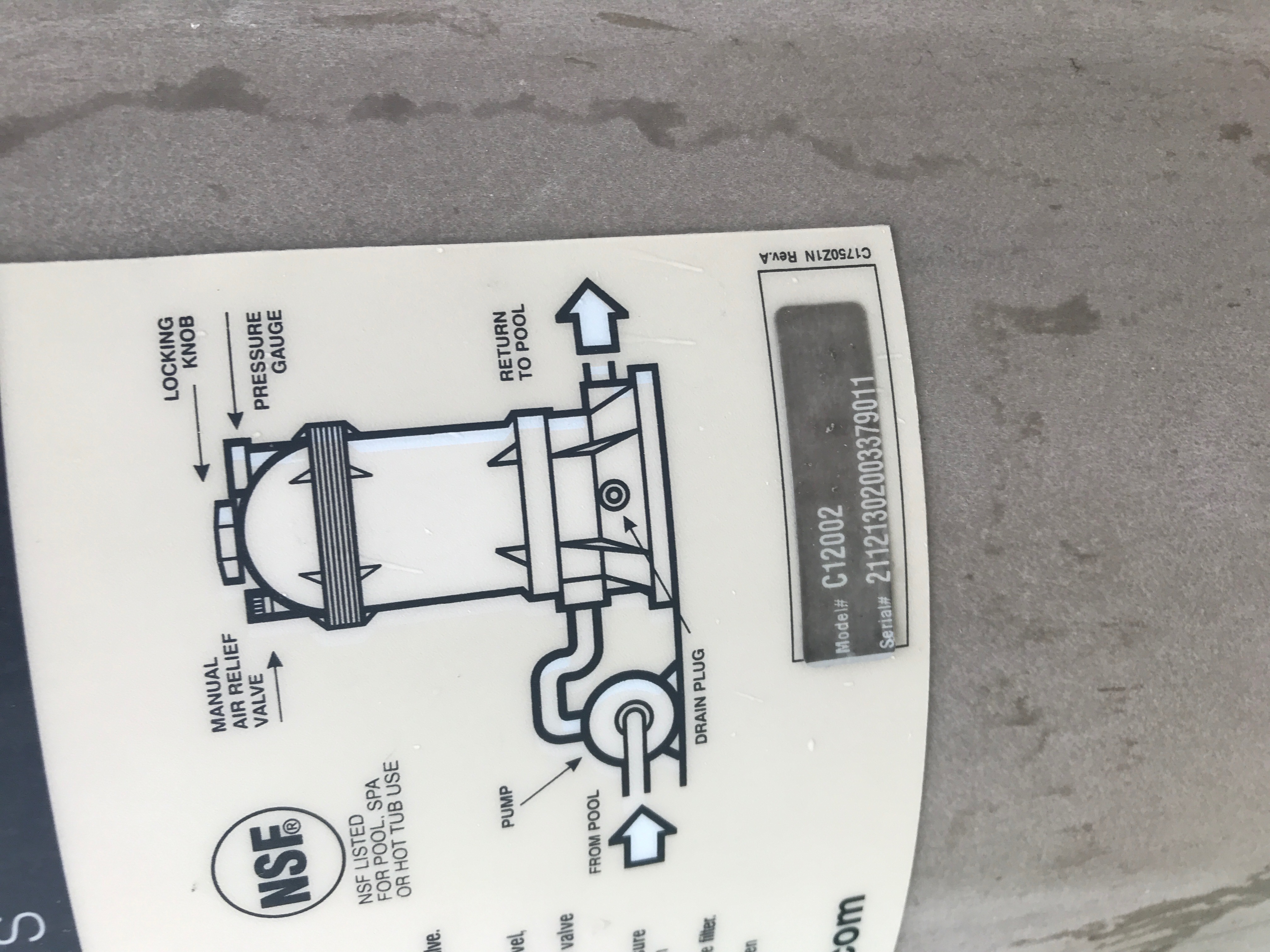

Can I used this filter for Hayward Star Clear Plus model# C12002
What are the internal oring sizes?
Reply
The bottom stem o-ring measures 15/16" I.D. x 3/32" cross section, part # 90-423-7119. There is no breakdown for the internal o-rings, if needed you will need to replace the assembly.
Reply
"Need to replace the assembly..." Not true. The top can be removed and then you can access the internal orings easily.
Reply
Hi Mel, I guess a better way to word this, is that the manufacturer does not supply the internal o-rings as a replacement part they only sell down to the air relief assembly and not parts within the air relief assembly. You may be able to track down o-rings that match the exact size of those within the assembly but unfortunately, we do carry those.
Reply
Right. The part is not serviced down to that level, similar to auto parts that could be repaired, but are not serviceable, causing the whole part needing to be purchased. I tried some small orings for the internal stem and they seem to hold back leaks pretty well. Thanks for responding.
Reply
Thanks Mel, that's great to hear that you were able to find something that worked.
Reply
Hello, can you please explain where the plastic clamp gets attached to relief valve?
If it's not attached,.can it cause low pressure?
Thanks.
Reply
Hi, Paul. The plastic hose clip is used to connect a hose to the air relief port. If it's not used, it will not cause low pressure.
Reply
Customer has this valve on filter, but when I press down and turn counterclockwise, the unit doesn't vent. When I twist harder, the whole unit wants to twist around on top of the filter. Is valve defective, clogged, or am I doing something wrong? Does the valve come without the guage as the guage works fine. Also, the unit is not leaking currently.
Reply
These assemblies do come with the gauge and should not rotate 360 degrees. It sounds like it has failed.
Reply
Will this pressure relief system work on an American titan stainless de filter model 586090?
Thanks
Reply
Hi, Josh. This will work on some Lid styles for that model based on what you currently have.
Reply
I am not sure what lid style I have. Please see the picture below, does it look like it will work? Thanks
Josh, You have the old style lid. This manual air relief will NOT work.
Reply
Is there anything I can get to just plug the hole on the right side? I lost the old gauge cock and cannot find anything that actually fits the thread so I can run the pump again?
Reply
Air Relief Manual Valve Assembly - 98209800
please confirm that air relief valve assembly includes new pressure gauge
Reply
Bruce, yes, the Air Relief Manual Valve Assembly - 98209800 includes all items pictured in this listing. The high flow manual air relief manual valve (1), Plastic Clamp (1), and Pressure Gauge (1) would all be included.
Reply
I have water dripping from the pressure release valve on my Purex triton warrior at the opening where the water rushes out when you open it. It continues to drip once its closed. Do I just need a whole new one. And will this one fit
Reply
This is for the Pentair FNS 48, correct?
Reply
Hi Sandi, Could you let us know if you have the FNS Plus or the Nautilus FNS as each require a different air relief.
Reply
FNS plus
Hi Sandi, Thank you for the confirmation and the photo. Yes this Air Relief Manual Valve Assembly - 9820980 is the correct air relief for the Pentair FNS Plus Filter
Reply
Will this Assembly work on an American Titan Vertical Grid Filter
Stainless Steel 48sq ft System (Model 584090)?
Reply
Hi Koh, Yes this Air Relief Assembly does work on an American Titan Vertical Grid Filter Stainless Steel 48 sq ft System (Model 584090). We do have this in stock ready to ship!
Reply
Will this valve be the right replacement for a Pentair Clean & Clear Plus CCP420? Currently my relief valve will not completely stop the flow of water when it's twisted closed, so I suppose this is the problem?
Yes, this is the correct replacement for the Pentair CCP420. I leaking air relief assembly is a good sign that it needs to be replaced.
Reply
It appears that I order this air relief valve assembly I do not need to order the pressure gauge separate?
pressure gauge paart #4726-1
Reply
Hi Sally, Yes that is correct the pressure gauge is included.
Reply
Attached are photos of my vintage pentair pool filter tank. Will this gauge be compatible with my tank? Thanks!
Hello Julie. Yes, the Custom Molded Products Air relief Assembly part #4655-03D is compatible with your Pentair Pool Filter.
Reply
Hi
Will this assembly work with Titan Vertical Grid Filter Model # 586090, 60 SQ FT?
Thank you very much.
Thai
This Air Relief Assembly is the correct part for your 60 sqft. American Products Titan Filter.
Reply
Will this valve fit a Pentair FNS 48 Filter?
Reply
Hello Vicki. The Custom Molded Products Air Relief Assembly part number 4655-03D is NOT compatible with the Pentair Nautilus DE Filter but IS compatible with the Pentair FNS Plus DE Filter. Please verify the Pentair DE Filter model prior to ordering a replacement air relief assembly. Attached please find the air relief assembly;y part number for the Pentair Nautilus FNS DE Filter. Air Relief Assembly - 273550
Reply
Hello, Does this air relief valve work with Pentair FNS Plus (FNSP 60) ?
Hi Patrick, yes, the Air Relief Manual Valve Assembly for Pentair Filters - 25357-982-00 will be perfect for your Pentair FNS Plus FNSP60 D.E. Filter.
Reply
Will this release valve fit a Nautilus NS 36?
Hello. The CMP Air Relief Assembly 4655-03D is NOT compatible with the Pentair Nautilus Stainless DE Filter. The Air Relief Manual (261003) is the correct replacement manual air relief assembly for this model.
Reply
Will this fit our triton II sand filter?
Reply
Hello Ronald. The Custom Molded Products Air Relief Valve Assembly 4655-03D is NOT compatible with the Pentair Triton II Fiberglass Sand Filter. The Air Relief Assembly Kit by CMP for Pentair Triton II is the compatible assembly. The Air/Tee Bleeder Assembly (154689) is identical in both assemblies, however, the filter attachment points are not. The Back Mount Pressure Gauge is a compatible pressure gauge with the Triton II Air Relief Assembly Kit.
Reply
