Sta-Rite System 3 Cartridge S7M120, S8M150, S7M400, S8M500 Parts

Replacement Parts for Sta-Rite System 3 Filter Models S7M120, S8M150, S7M400, S8M500

Sta-Rite System 3 Cartridge S7M120, S8M150, S7M400, S8M500 Diagram

Click to zoom in

Diagram #	Part Title
6 & 7	Pureline Replacement Cartridges For S7M120 Pool Filter
1	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	AIR RELIEF ASSEMBLY (WC212-120P)
3	NIPPLE
4	ADAPTER BUSHING
5	O-RING
6	System3 Modular Media S7M120 200 Sq Ft. Outer Replacement Cartridge
7	Sta Rite System3 Modular Media S7M120 100 Sq Ft. Inner Replacement Cartridge
8	FILTER, AIR BLEED
9	TUBE, AIR BLEED (25021-0003)
10	FITTING, BAFFLE & BULKHEAD
11	O-RING
12	O-RING
13	ELBOW & BULKHEAD ASSY.
14	O-RING
15	O-RING, VALVE ADAPTER 2IN
16	ADAPTER FITTING
17	DRAIN PLUG With O-RING
18	PLUG (SAND REMOVAL)
19	NUT, BULKHEAD RETAINING
20	CLAMP ASSEMBLY
21	BOLT, CLAMP
22	TANK, LOWER HALF S7M120
23	Tank O-ring for 21" Filter (24850-0008 for S7M120 & S7M400)
24	TANK KIT, UPPER HALF S7M120 & S7M400
25	VALVE AND GAUGE ASSEMBLY
*	CLAMP, RETAINING RING (24850-0006)
*	ADAPTER, SLIP 2IN (U11-196P)
*	COLLAR, UNION (NUT) (U11-200P)
*	O-RING, ADAPTER
*	ADAPTER KIT,UNION 2" SLIP WG
*	Modular Media Cart Conversion Kit

View Parts List

Diagram #	Part Title
6 & 7	Pureline Replacement Cartridges For S7M120 Pool Filter
1	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	AIR RELIEF ASSEMBLY (WC212-120P)
3	NIPPLE
4	ADAPTER BUSHING
5	O-RING
6	System3 Modular Media S7M120 200 Sq Ft. Outer Replacement Cartridge
7	Sta Rite System3 Modular Media S7M120 100 Sq Ft. Inner Replacement Cartridge
8	FILTER, AIR BLEED
9	TUBE, AIR BLEED (25021-0003)
10	FITTING, BAFFLE & BULKHEAD
11	O-RING
12	O-RING
13	ELBOW & BULKHEAD ASSY.
14	O-RING
15	O-RING, VALVE ADAPTER 2IN
16	ADAPTER FITTING
17	DRAIN PLUG With O-RING
18	PLUG (SAND REMOVAL)
19	NUT, BULKHEAD RETAINING
20	CLAMP ASSEMBLY
21	BOLT, CLAMP
22	TANK, LOWER HALF S7M120
23	Tank O-ring for 21" Filter (24850-0008 for S7M120 & S7M400)
24	TANK KIT, UPPER HALF S7M120 & S7M400
25	VALVE AND GAUGE ASSEMBLY
*	CLAMP, RETAINING RING (24850-0006)
*	ADAPTER, SLIP 2IN (U11-196P)
*	COLLAR, UNION (NUT) (U11-200P)
*	O-RING, ADAPTER
*	ADAPTER KIT,UNION 2" SLIP WG
*	Modular Media Cart Conversion Kit

Available Parts:

Pureline Replacement Cartridges For S7M120 Pool Filter

Part # PL0163

Pureline Replacement Cartridges For S7M120 Pool Filter

$409.00 IN STOCK

Model S7M120 Cartridge Brand Pureline

Model S7M120 Cartridge Brand Pureline

Qty:

Replacement Cartridges For S7M120 Pool Filter- 170145

Part # 170145 Mfg # 170145

Replacement Cartridges For S7M120 Pool Filter- 170145

$525.99 IN STOCK

Model S7M120 Cartridge Brand Sta-Rite

Model S7M120 Cartridge Brand Sta-Rite

Qty:

Replacement Cartridges For S7M400 Pool Filter- 170146

Part # 170146 Mfg # 170146

Replacement Cartridges For S7M400 Pool Filter- 170146

$645.00 IN STOCK

Model S7M400 Cartridge Brand Sta-Rite

Model S7M400 Cartridge Brand Sta-Rite

Qty:

Replacement Cartridge Set for S8M150 - 170147

Part # 170147 Mfg # 170147

Replacement Cartridge Set for S8M150 - 170147

$712.99 IN STOCK

Model S8M150 Cartridge Brand Sta-Rite

Model S8M150 Cartridge Brand Sta-Rite

Qty:

Replacement Cartridge Set for S8M500 - 170148

Part # 170148 Mfg # 170148

Replacement Cartridge Set for S8M500 - 170148

$929.99 IN STOCK

Model S8M500 Cartridge Brand Sta-Rite

Model S8M500 Cartridge Brand Sta-Rite

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$12.99 IN STOCK

Qty:

AIR RELIEF ASSEMBLY (WC212-120P)

Part # 9239-02 Mfg # 154689Z

AIR RELIEF ASSEMBLY (WC212-120P)

$34.49 IN STOCK

Qty:

NIPPLE

Part # 4680-02 Mfg # 35202-0959

NIPPLE

$21.49 IN STOCK

Qty:

ADAPTER BUSHING

Part # 4682-01 Mfg # 24900-0504

ADAPTER BUSHING

$30.99 IN STOCK

Qty:

O-RING

Part # 4682-02 Mfg # 317

O-RING

$17.49 IN STOCK

Qty:

System3 Modular Media S7M120 200 Sq Ft. Outer Replacement Cartridge

Part # 250220201S Mfg # 25022-0201S

System3 Modular Media S7M120 200 Sq Ft. Outer Replacement Cartridge

$461.99 IN STOCK

Qty:

Sta Rite System3 Modular Media S7M400 264 Sq Ft. Outer Replacement Cartridge

Part # 250220224S Mfg # 25022-0224S

Sta Rite System3 Modular Media S7M400 264 Sq Ft. Outer Replacement Cartridge

$703.99 IN STOCK

Qty:

Sta-Rite System3 Modular Media S8M150 259 Sq Ft. Outer Replacement Cartridge

Part # 250220203S Mfg # 25022-0203S

Sta-Rite System3 Modular Media S8M150 259 Sq Ft. Outer Replacement Cartridge

$648.99 IN STOCK

Qty:

Sta RiteSystem3 Modular Media S8M500 291 Sq Ft. Outer Replacement Cartridge

Part # 250220225S Mfg # 25022-0225S

Sta RiteSystem3 Modular Media S8M500 291 Sq Ft. Outer Replacement Cartridge

$745.99 IN STOCK

Qty:

Sta Rite System3 Modular Media S7M120 100 Sq Ft. Inner Replacement Cartridge

Part # 250210200S Mfg # 25021-0200S

Sta Rite System3 Modular Media S7M120 100 Sq Ft. Inner Replacement Cartridge

$250.99 IN STOCK

Qty:

Sta Rite System3 Modular Media S7M400 136Sq Ft. Inner Replacement Cartridge.

Part # 250210223S Mfg # 25021-0223S

Sta Rite System3 Modular Media S7M400 136Sq Ft. Inner Replacement Cartridge.

$280.99 IN STOCK

Qty:

Sta Rite System3 Modular Media S8M150 191 Sq Ft. Inner Replacement Cartridge

Part # 250210202S Mfg # 25021-0202S

Sta Rite System3 Modular Media S8M150 191 Sq Ft. Inner Replacement Cartridge

$432.99 IN STOCK

Qty:

Sta-Rite System3 Modular Media S8M500 209 Sq Ft. Inner Replacement Cartridge

Part # 250210224S Mfg # 25021-0224S

Sta-Rite System3 Modular Media S8M500 209 Sq Ft. Inner Replacement Cartridge

$389.99 IN STOCK

Qty:

Sta-Rite System3 S8M150 Outer Cartridge

Part # 4683-02A Mfg # 25022-0203S

Sta-Rite System3 S8M150 Outer Cartridge

$648.99 IN STOCK

Qty:

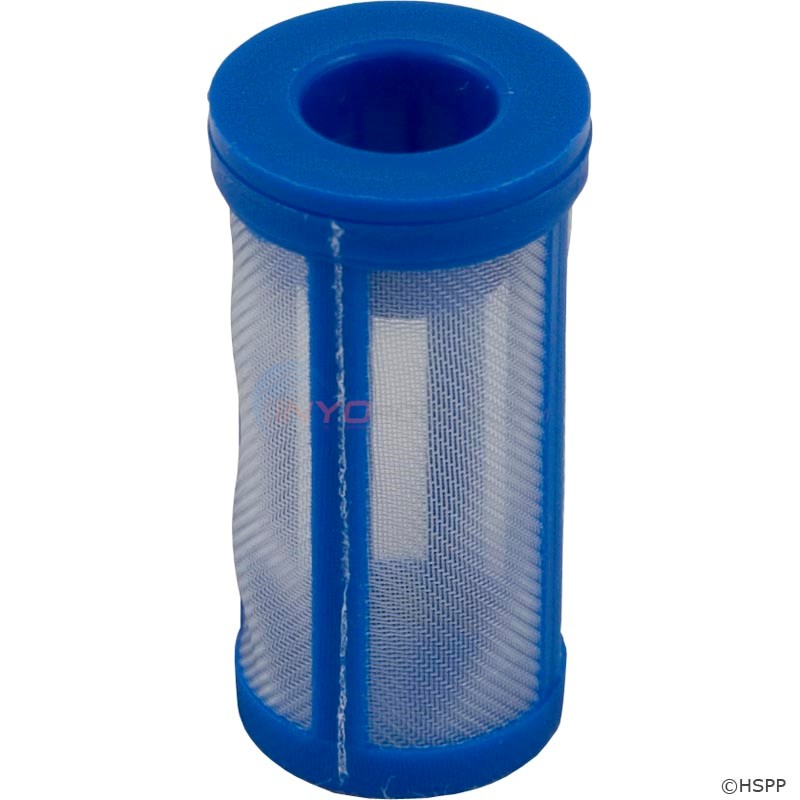

FILTER, AIR BLEED

Part # 4683-04 Mfg # 25021-0004

FILTER, AIR BLEED

$30.49 IN STOCK

Qty:

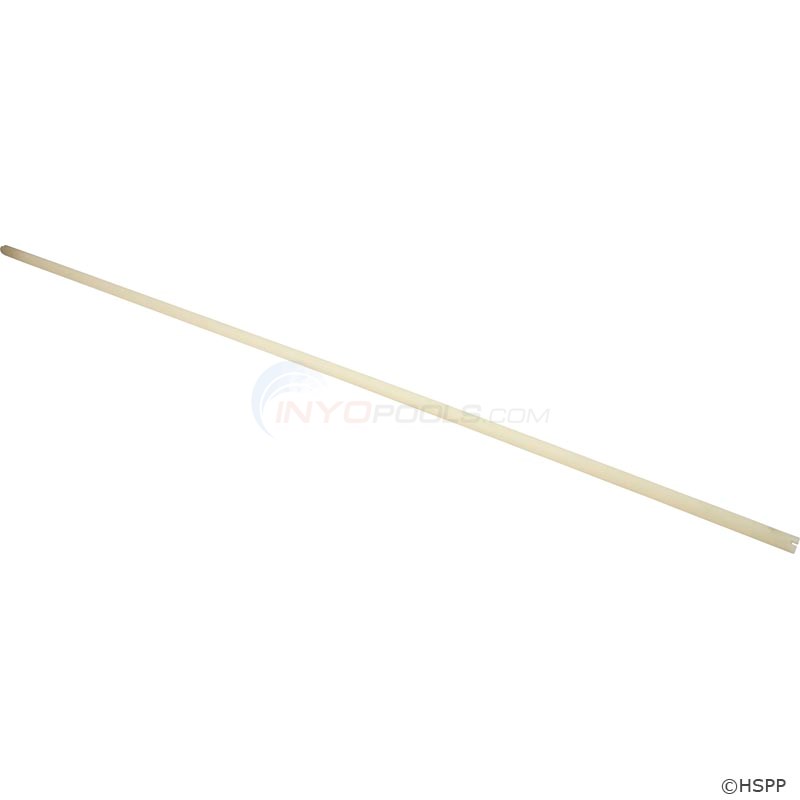

TUBE, AIR BLEED (25021-0003)

Part # 4683-05 Mfg # 25021-0003Z

TUBE, AIR BLEED (25021-0003)

$28.49 IN STOCK

Qty:

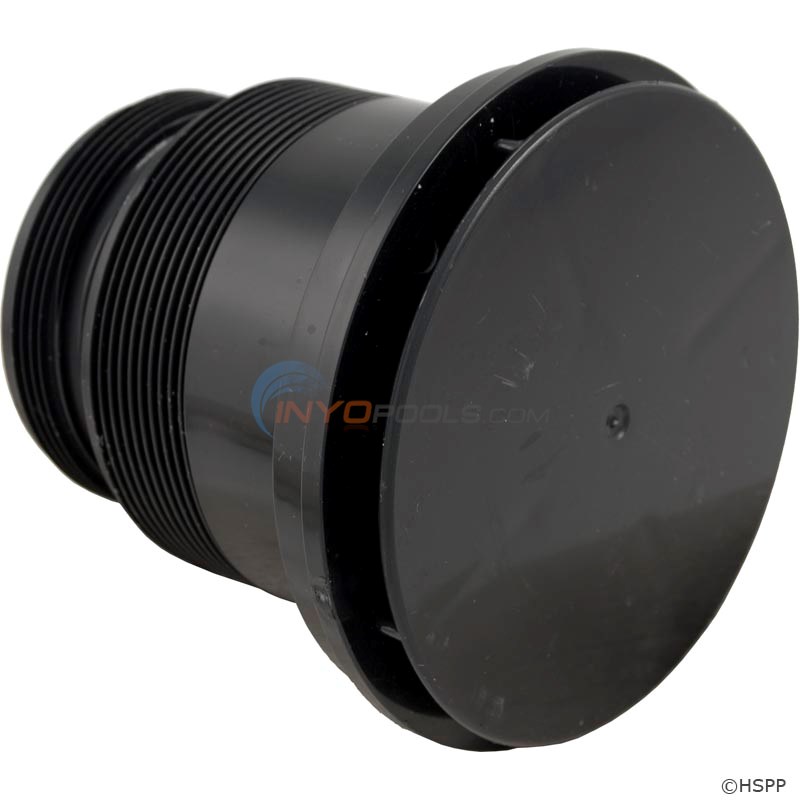

FITTING, BAFFLE & BULKHEAD

Part # 4683-01 Mfg # 25021-0101

FITTING, BAFFLE & BULKHEAD

$120.99 IN STOCK

Qty:

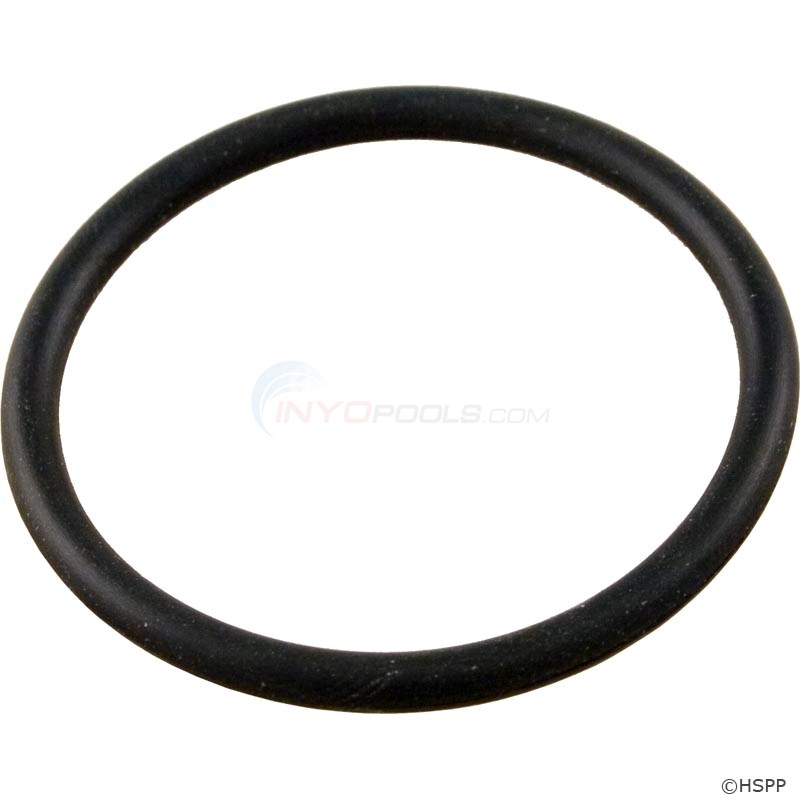

O-RING

Part # 4600-3062 Mfg # 227

O-RING

$8.49 IN STOCK

Qty:

O-RING

Part # 4890-05 Mfg # 35505-1429

O-RING

$15.99 IN STOCK

Qty:

ELBOW & BULKHEAD ASSY.

Part # 4683-06 Mfg # 25021-0100

ELBOW & BULKHEAD ASSY.

$154.99 IN STOCK

Qty:

O-RING

Part # 2114-02 Mfg # O-283

O-RING

$11.49 IN STOCK

Qty:

O-RING, VALVE ADAPTER 2IN

Part # 4620-529 Mfg # 332

O-RING, VALVE ADAPTER 2IN

$14.99 IN STOCK

Qty:

ADAPTER FITTING

Part # 4683-08 Mfg # 24900-0509

ADAPTER FITTING

$41.49 IN STOCK

Qty:

DRAIN PLUG With O-RING

Part # 4682-20 Mfg # 27001-0022

DRAIN PLUG With O-RING

$8.49 IN STOCK

Qty:

PLUG (SAND REMOVAL)

Part # 4682-10 Mfg # 24900-0503

PLUG (SAND REMOVAL)

$41.49 IN STOCK

Qty:

NUT, BULKHEAD RETAINING

Part # 4683-09 Mfg # 24752-0050

NUT, BULKHEAD RETAINING

$52.99 IN STOCK

Qty:

CLAMP ASSEMBLY

Part # 4682-07 Mfg # 24850-0200

CLAMP ASSEMBLY

$119.99 IN STOCK

Qty:

BOLT, CLAMP

Part # 4682-08 Mfg # 24850-0010

BOLT, CLAMP

$55.49 IN STOCK

Qty:

TANK, LOWER HALF S7M120

Part # 4683-07 Mfg # 24850-0102S

TANK, LOWER HALF S7M120

$1151.99 IN STOCK

Qty:

TANK, LOWER HALF S8M150

Part # 4683-07A Mfg # 24851-0103S

TANK, LOWER HALF S8M150

$999.99 IN STOCK

Qty:

Tank O-ring for 21" Filter (24850-0008 for S7M120 & S7M400)

Part # 4682-06 Mfg # 24850-0008

Tank O-ring for 21" Filter (24850-0008 for S7M120 & S7M400)

$44.49 IN STOCK

Models S7M120 & S7M400

Models S7M120 & S7M400

Qty:

Tank O-ring for 25" Filter(24850-0009 for S8M150 & S8M500)

Part # 4682-06A Mfg # 24850-0009

Tank O-ring for 25" Filter(24850-0009 for S8M150 & S8M500)

$93.99 IN STOCK

Models S8M150 & S8M500

Models S8M150 & S8M500

Qty:

Generic Tank O-ring for S8 Filter Bodies

Part # O-486 Mfg # 24850-0009

Generic Tank O-ring for S8 Filter Bodies

$30.49 IN STOCK

Models S8M150 & S8M500

Models S8M150 & S8M500

Qty:

TANK KIT, UPPER HALF S7M120 & S7M400

Part # 4683-10 Mfg # 24851-9000

TANK KIT, UPPER HALF S7M120 & S7M400

$915.99

TANK KIT, UPPER HALF S8M150

Part # 4683-10A Mfg # 24851-9001

TANK KIT, UPPER HALF S8M150

$1167.99 IN STOCK

Qty:

VALVE AND GAUGE ASSEMBLY

Part # 4683-16 Mfg # 24850-0105

VALVE AND GAUGE ASSEMBLY

$117.99 IN STOCK

Qty:

CLAMP, RETAINING RING (24850-0006)

Part # 4682-14 Mfg # 24850-0016

CLAMP, RETAINING RING (24850-0006)

$13.99 IN STOCK

Qty:

ADAPTER, SLIP 2IN (U11-196P)

Part # 5057-25 Mfg # U11-196PS

ADAPTER, SLIP 2IN (U11-196P)

$19.49 IN STOCK

Qty:

COLLAR, UNION (NUT) (U11-200P)

Part # 5057-24 Mfg # U11-200PS

COLLAR, UNION (NUT) (U11-200P)

$35.99 IN STOCK

Qty:

O-RING, ADAPTER

Part # 5057-26 Mfg # 231

O-RING, ADAPTER

$14.99 IN STOCK

Qty:

ADAPTER KIT,UNION 2" SLIP WG

Part # 5057-29B Mfg # PKG 188

ADAPTER KIT,UNION 2" SLIP WG

$40.99 IN STOCK

Qty:

ADAPTER KIT, UNION 2" FPT

Part # 5057-29C Mfg # PKG 189

ADAPTER KIT, UNION 2" FPT

$79.99 IN STOCK

Qty:

ADAPTER KIT, UNION 1 1/2" SLIP

Part # 5057-29 Mfg # 77703-0101

ADAPTER KIT, UNION 1 1/2" SLIP

$58.99

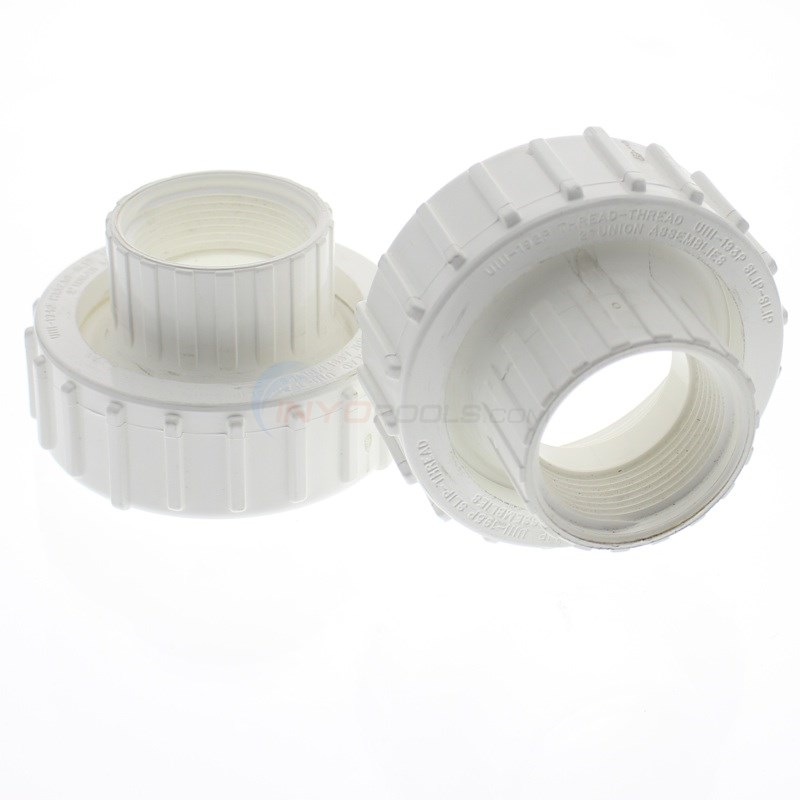

LTD QTY 1 1/2" FPT UNION ADAPT KIT

Part # 5057-29A Mfg # 77703-0100

LTD QTY 1 1/2" FPT UNION ADAPT KIT

$79.49 IN STOCK

Qty:

Modular Media Cart Conversion Kit

Part # 25021-0021 Mfg # 25021-0021

Modular Media Cart Conversion Kit

$251.99

• SOLID BLACK COLOR

MODELS S7M120 & S7M 400
USES 7 CLAMPS & NUTS

MODELS S8M150 & S8M 500
USES 8 CLAMPS & NUTS

* NOT SHOWN
