Hayward S-200/ S-240 Sand Filter Parts

Replacement Parts for Hayward Sand Filter Models S200 and S240. S-200/ 21" SAND FILTER and S-240/ 24" SAND FILTER

Hayward S-200/ S-240 Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
**	Hayward S200 O-ring Kit
1	CAP, AIR RELIEF
2	O-RING, ID 5/8", OD 13/16"
3	DOME, LID
*	DOME WRENCH
4	Valve Body O-ring (O-284)
5	TOP, FILTER TANK (S-200), TAUPE
6	NUT 1/4-20 S.S.
7	WASHER
8	BOLT, HEX HEAD SS 1/4-20X 1.75 IN
9	TUBE, AIR FOR S-200
10	SCREW, AIR TUBE LOCK
11	DIFFUSER, TOP
12	PIPE, INTERNAL ELBOW (S-200)
13	PIPE, INTERNAL ELBOW (S-200)
14	O-RING, TANK (S-200)
14	Generic O-ring for SX240Z1, Tank
15	LATERAL OLD THREADED STYLE (S-200)
*	10-Pack Laterals (threaded Style) Sx200q (sx200q)
16	Lateral Assembly S-200 Pivot
17	SCREEN, BOTTOM
18	BOTTOM, FILTER TANK - TAUPE FOR S-200
19	STAND, FILTER SUPPORT
20	GASKET, DRAIN CAP
21	CAP DRAIN WITH GASKET
22	PIPE, DRAIN
23	O-RING, BULKHEAD
24	FITTING, BULKHEAD - 2 REQUIRED
25	HAYWARD VARI FLO MULTIPORT VALVE 1.5 FOR S200 SAND FILTER
26	Bottom Mount Pressure Gauge 0-60 1/4" NPT
27	O-RING
36	UNION, BALL END
37	NUT, UNION
38	O-RING
39	ELBOW, UNION WITH O-RING (S-200)
40	GASKET, ELBOW
41	O-RING, 13/16" O D (PRIOR TO 1980)
42	GASKET, COMPRESSION
43	FITTING, COMPRESSION ASSEMBLY

View Parts List

Diagram #	Part Title
**	Hayward S200 O-ring Kit
1	CAP, AIR RELIEF
2	O-RING, ID 5/8", OD 13/16"
3	DOME, LID
*	DOME WRENCH
4	Valve Body O-ring (O-284)
5	TOP, FILTER TANK (S-200), TAUPE
6	NUT 1/4-20 S.S.
7	WASHER
8	BOLT, HEX HEAD SS 1/4-20X 1.75 IN
9	TUBE, AIR FOR S-200
10	SCREW, AIR TUBE LOCK
11	DIFFUSER, TOP
12	PIPE, INTERNAL ELBOW (S-200)
13	PIPE, INTERNAL ELBOW (S-200)
14	O-RING, TANK (S-200)
14	Generic O-ring for SX240Z1, Tank
15	LATERAL OLD THREADED STYLE (S-200)
*	10-Pack Laterals (threaded Style) Sx200q (sx200q)
16	Lateral Assembly S-200 Pivot
17	SCREEN, BOTTOM
18	BOTTOM, FILTER TANK - TAUPE FOR S-200
19	STAND, FILTER SUPPORT
20	GASKET, DRAIN CAP
21	CAP DRAIN WITH GASKET
22	PIPE, DRAIN
23	O-RING, BULKHEAD
24	FITTING, BULKHEAD - 2 REQUIRED
25	HAYWARD VARI FLO MULTIPORT VALVE 1.5 FOR S200 SAND FILTER
26	Bottom Mount Pressure Gauge 0-60 1/4" NPT
27	O-RING
36	UNION, BALL END
37	NUT, UNION
38	O-RING
39	ELBOW, UNION WITH O-RING (S-200)
40	GASKET, ELBOW
41	O-RING, 13/16" O D (PRIOR TO 1980)
42	GASKET, COMPRESSION
43	FITTING, COMPRESSION ASSEMBLY

Available Parts:

Hayward S200 O-ring Kit

Part # APCK1135

Hayward S200 O-ring Kit

$45.40 IN STOCK

Model S200

Model S200

Qty:

Hayward S240 O-ring Kit

Part # APCK1136

Hayward S240 O-ring Kit

$29.00 IN STOCK

Model S240

Model S240

Qty:

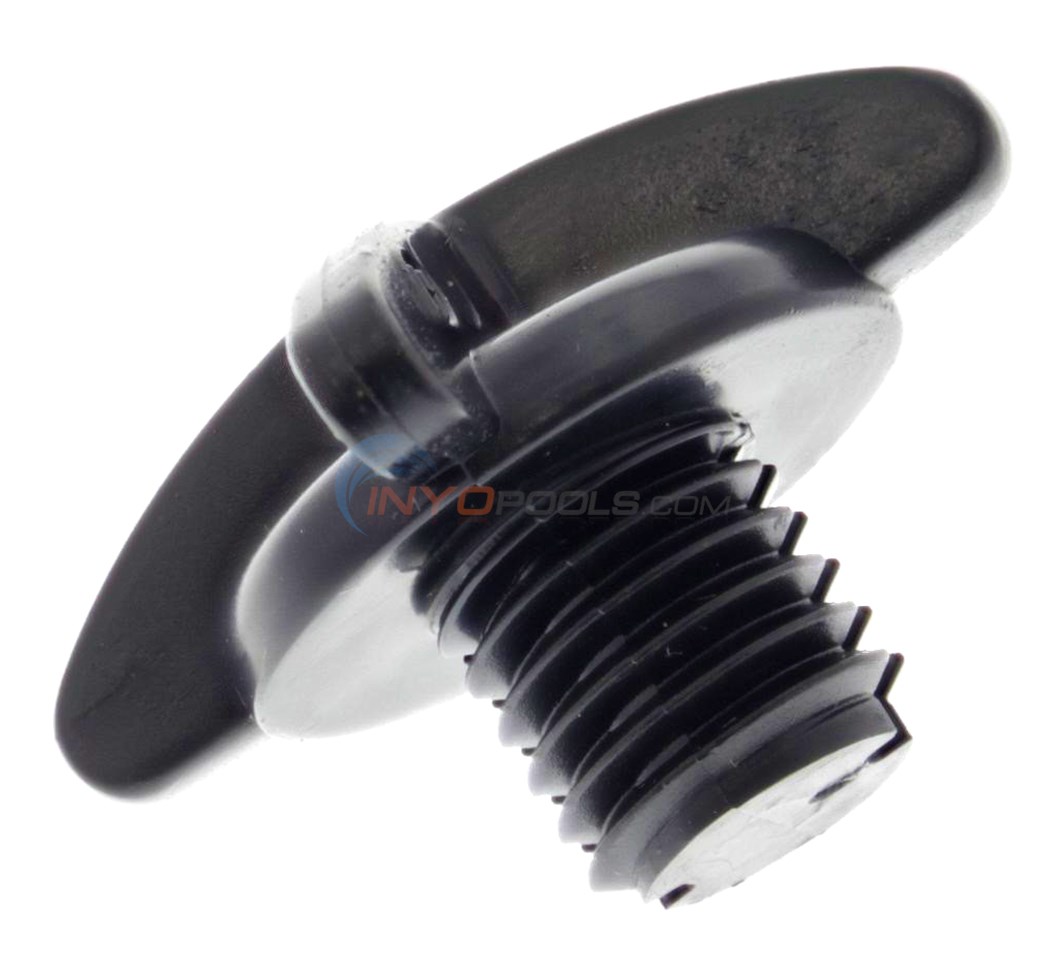

CAP, AIR RELIEF

Part # 4800-01 Mfg # SX200G

CAP, AIR RELIEF

$14.76 IN STOCK

Qty:

O-RING, ID 5/8", OD 13/16"

Part # 4800-02 Mfg # 114

O-RING, ID 5/8", OD 13/16"

$16.15 IN STOCK

Qty:

O-RING. 1’ O.D. AFTER 80

Part # 4662-04A Mfg # 210

O-RING. 1’ O.D. AFTER 80

$3.18 IN STOCK

Qty:

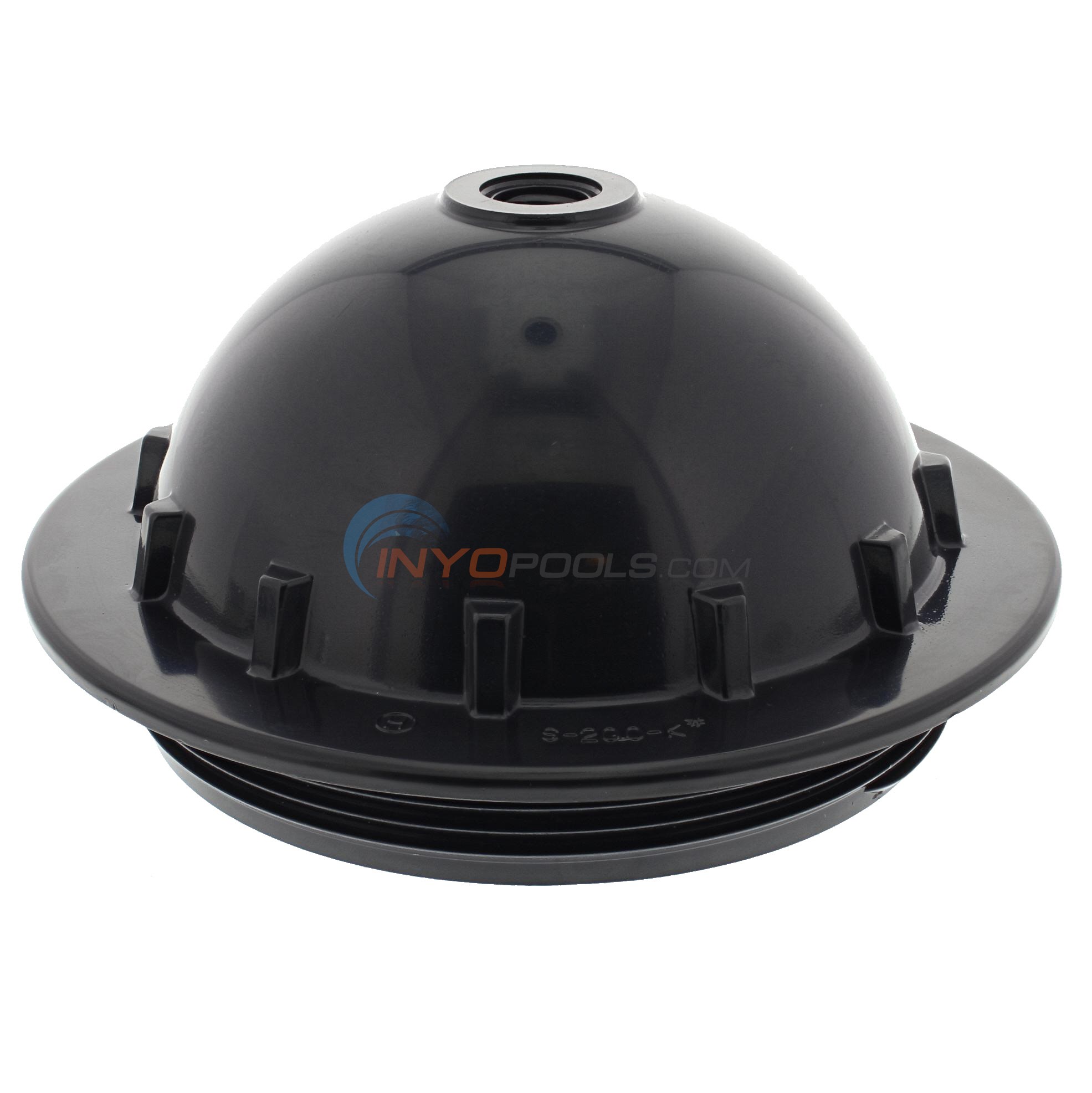

DOME, LID

Part # 4800-03 Mfg # SX200K

DOME, LID

$90.83 IN STOCK

Qty:

DOME WRENCH

Part # 4800-29 Mfg # S200KT

DOME WRENCH

$23.05 IN STOCK

Qty:

Valve Body O-ring (O-284)

Part # 4600-5333 Mfg # 275333

Valve Body O-ring (O-284)

$9.48 IN STOCK

Qty:

TOP, FILTER TANK (S-200), TAUPE

Part # 4800-05 Mfg # SX200BT

TOP, FILTER TANK (S-200), TAUPE

$535.34

Model S200

Model S200

TOP, FILTER TANK (S-240), IVORY

Part # 4800-05A Mfg # SX240B

TOP, FILTER TANK (S-240), IVORY

$705.77

Model S240

Model S240

NUT 1/4-20 S.S.

Part # 6930-0 Mfg # 14072508R

NUT 1/4-20 S.S.

$11.90 IN STOCK

Qty:

WASHER

Part # 4810-14A Mfg # ECX1077

WASHER

$10.90 IN STOCK

Qty:

BOLT, HEX HEAD SS 1/4-20X 1.75 IN

Part # 4800-08 Mfg # ECX1642215

BOLT, HEX HEAD SS 1/4-20X 1.75 IN

$9.91 IN STOCK

Qty:

BOLT, HEX HEAD 1/4-20 X 2IN

Part # 4800-08A Mfg # SX240Z3

BOLT, HEX HEAD 1/4-20 X 2IN

$20.24 IN STOCK

Qty:

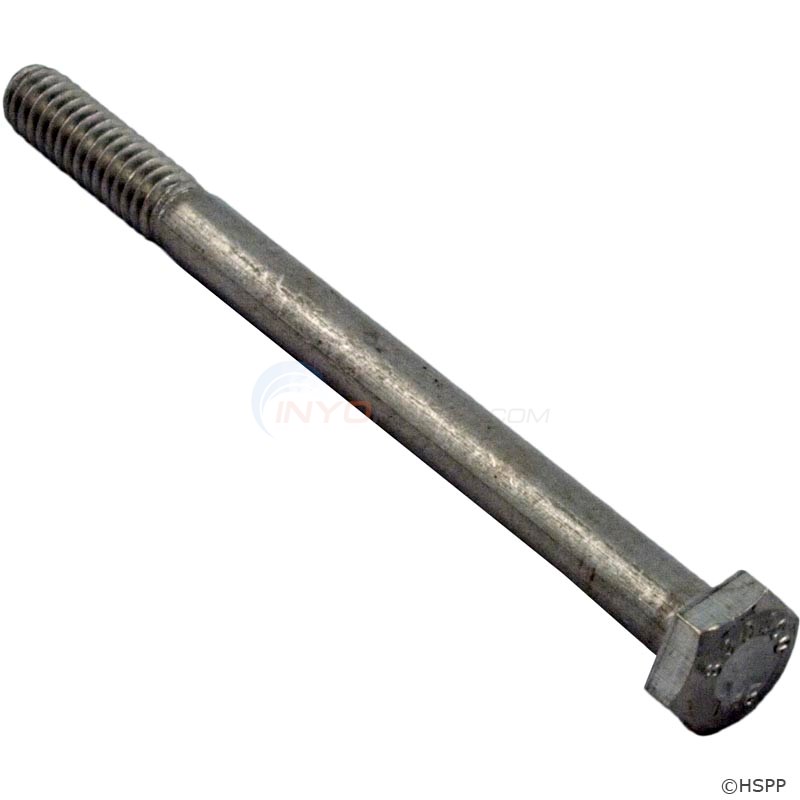

BOLT, HEX HEAD 1/4-20 X 3IN

Part # 4800-08B Mfg # SX240Z4

BOLT, HEX HEAD 1/4-20 X 3IN

$21.31 IN STOCK

Qty:

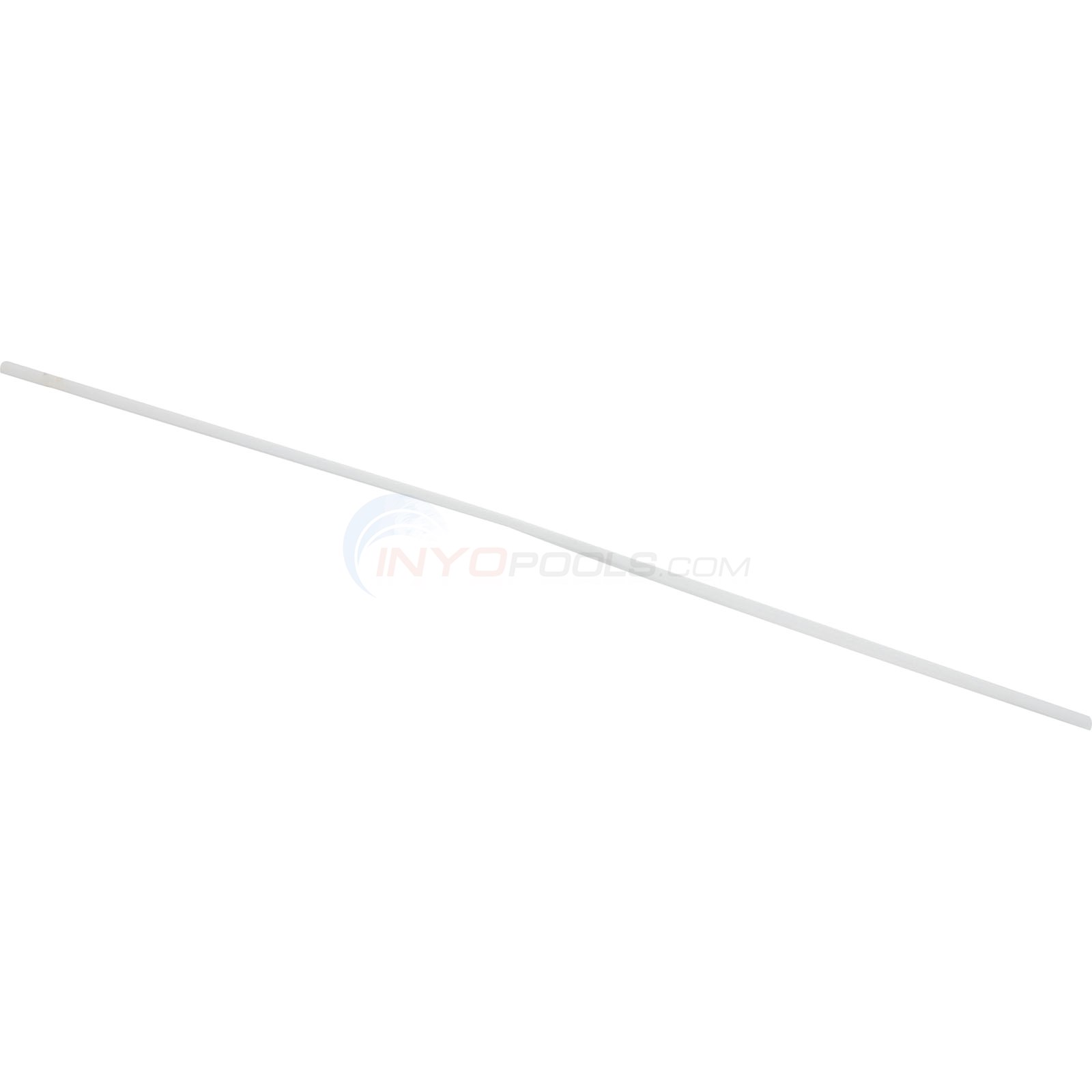

TUBE, AIR FOR S-200

Part # 4800-09 Mfg # SX200Z1

TUBE, AIR FOR S-200

$77.56 IN STOCK

Model S200

Model S200

Qty:

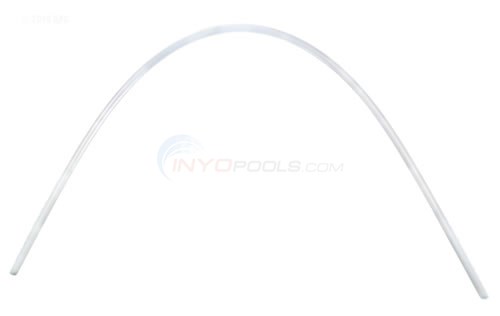

TUBE, AIR FOR S-240

Part # 4800-09A Mfg # SX240Z2

TUBE, AIR FOR S-240

$38.38 IN STOCK

Model S240

Model S240

Qty:

SCREW, AIR TUBE LOCK

Part # 4800-10 Mfg # SX200Z2

SCREW, AIR TUBE LOCK

$12.78 IN STOCK

Qty:

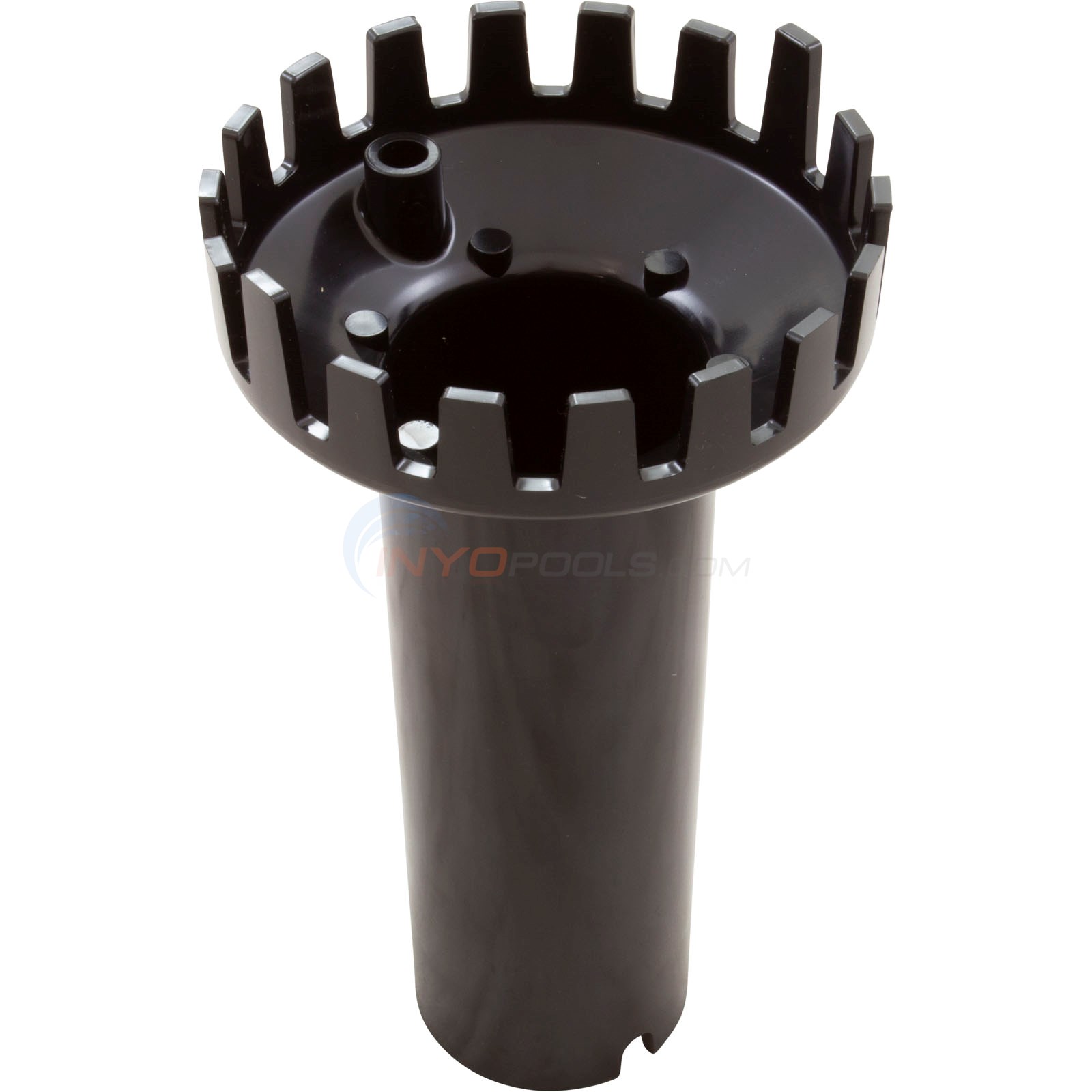

DIFFUSER, TOP

Part # 4800-11 Mfg # SX200L

DIFFUSER, TOP

$74.28 IN STOCK

Qty:

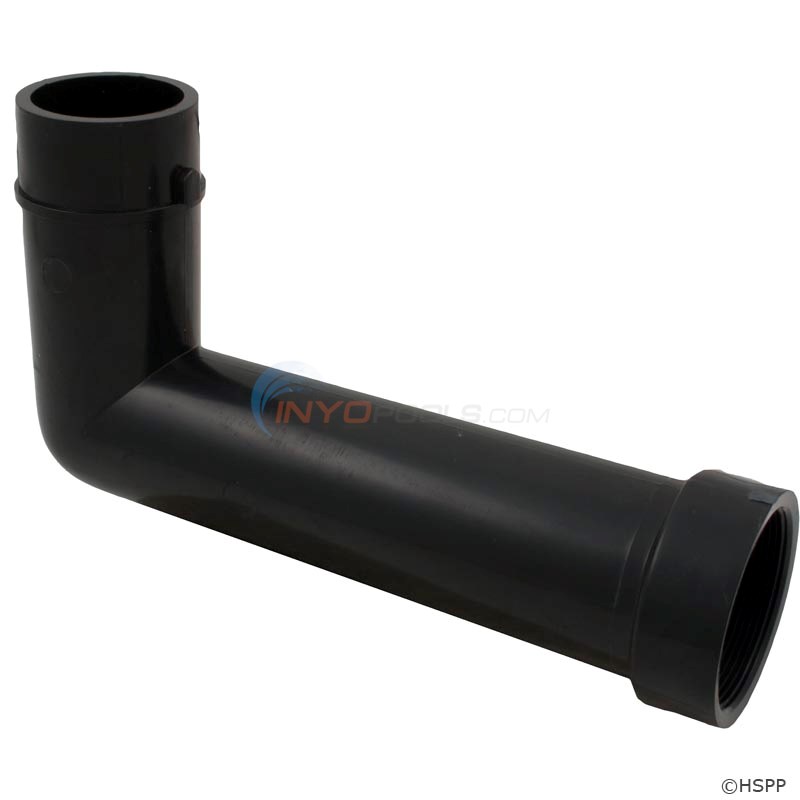

PIPE, INTERNAL ELBOW (S-200)

Part # 4800-12 Mfg # SX200C

PIPE, INTERNAL ELBOW (S-200)

$76.27 IN STOCK

Model S200

Model S200

Qty:

PIPE, INTERNAL ELBOW (S-240)

Part # 4800-12A Mfg # SX240C

PIPE, INTERNAL ELBOW (S-240)

$78.89

Model S240

Model S240

PIPE, INTERNAL ELBOW (S-200)

Part # 4800-13 Mfg # SX200C1

PIPE, INTERNAL ELBOW (S-200)

$59.30

Model S200

Model S200

PIPE, INTERNAL ELBOW (S-240)

Part # 4800-12A Mfg # SX240C

PIPE, INTERNAL ELBOW (S-240)

$78.89

Model S240

Model S240

O-RING, TANK (S-200)

Part # 4800-14 Mfg # SX200Z7

O-RING, TANK (S-200)

$53.76 IN STOCK

Model S200

Model S200

Qty:

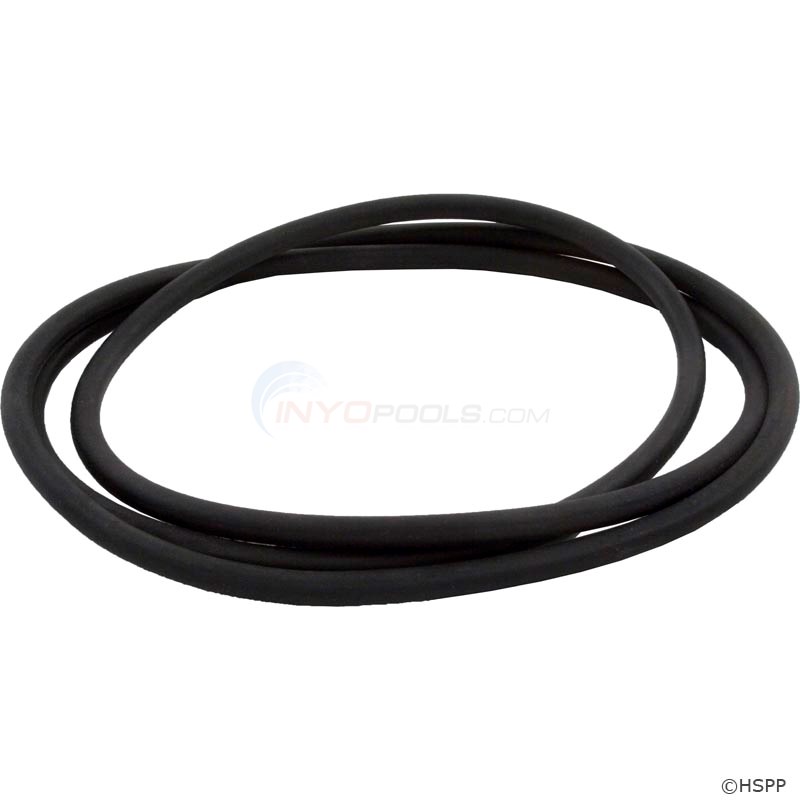

Hayward OEM S200 Sand Filter O-Ring SX200Z7

Part # 31-150-1497 Mfg # SX200Z7

Hayward OEM S200 Sand Filter O-Ring SX200Z7

$66.16 IN STOCK

Model S200

Model S200

Qty:

Generic O-ring for SX240Z1, Tank

Part # 4800-14A Mfg # O-340

Generic O-ring for SX240Z1, Tank

$31.12 IN STOCK

Model S240

Model S240

Qty:

Hayward O.E.M S240 Sand Filter O-Ring

Part # SX240Z1

Hayward O.E.M S240 Sand Filter O-Ring

$62.74 IN STOCK

Model S240

Model S240

Qty:

LATERAL OLD THREADED STYLE (S-200)

Part # 4800-15 Mfg # SX200Q

LATERAL OLD THREADED STYLE (S-200)

$8.57 IN STOCK

Qty:

LATERAL OLD THREADED STYLE (S-240)

Part # 4800-15A Mfg # SX240D

LATERAL OLD THREADED STYLE (S-240)

$11.18 IN STOCK

Qty:

10-Pack Laterals (threaded Style) Sx200q (sx200q)

Part # SX200QPAK10

10-Pack Laterals (threaded Style) Sx200q (sx200q)

$68.98 IN STOCK

Qty:

10-Pack Laterals Threaded Models S210T/S220T/S230T/S244T

Part # SX240DPAK10

10-Pack Laterals Threaded Models S210T/S220T/S230T/S244T

$67.32 IN STOCK

Qty:

Lateral Assembly S-200 Pivot

Part # 4800-49 Mfg # SX202QA

Lateral Assembly S-200 Pivot

$123.83 IN STOCK

Model S200

Model S200

Qty:

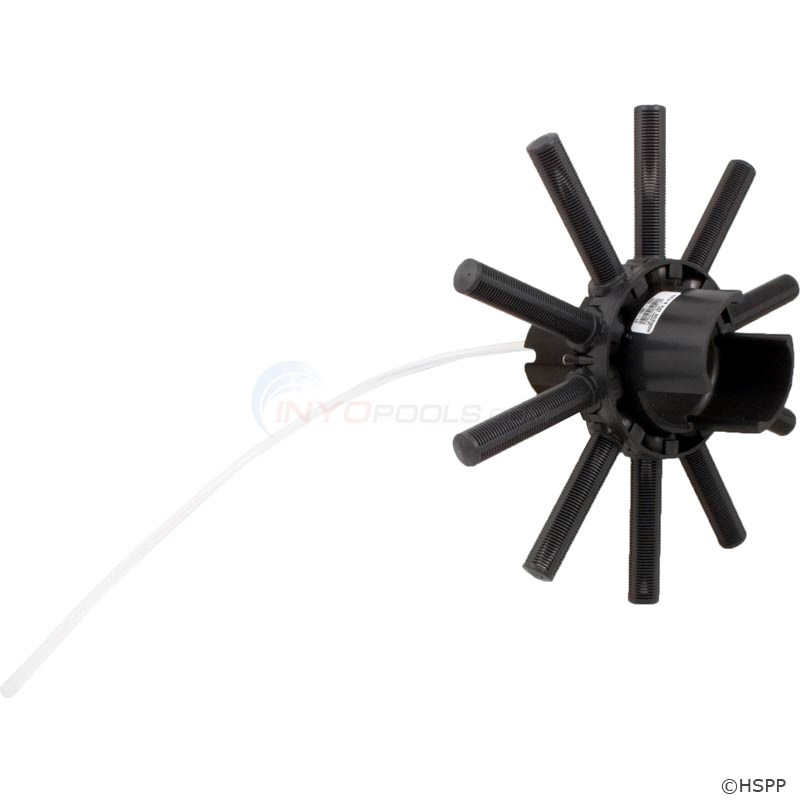

Folding Lateral Assembly for S240

Part # SX242DA

Folding Lateral Assembly for S240

$163.11 IN STOCK

Model S240

Model S240

Qty:

SCREEN, BOTTOM

Part # 4800-17 Mfg # SX200H

SCREEN, BOTTOM

$21.31 IN STOCK

Qty:

BOTTOM, FILTER TANK - TAUPE FOR S-200

Part # 4800-180 Mfg # SX200AA1T

BOTTOM, FILTER TANK - TAUPE FOR S-200

$627.35 IN STOCK

Qty:

18

obsolete BOTTOM, FILTER TANK (S-240)

obsolete BOTTOM, FILTER TANK (S-240)

NOT AVAILABLE

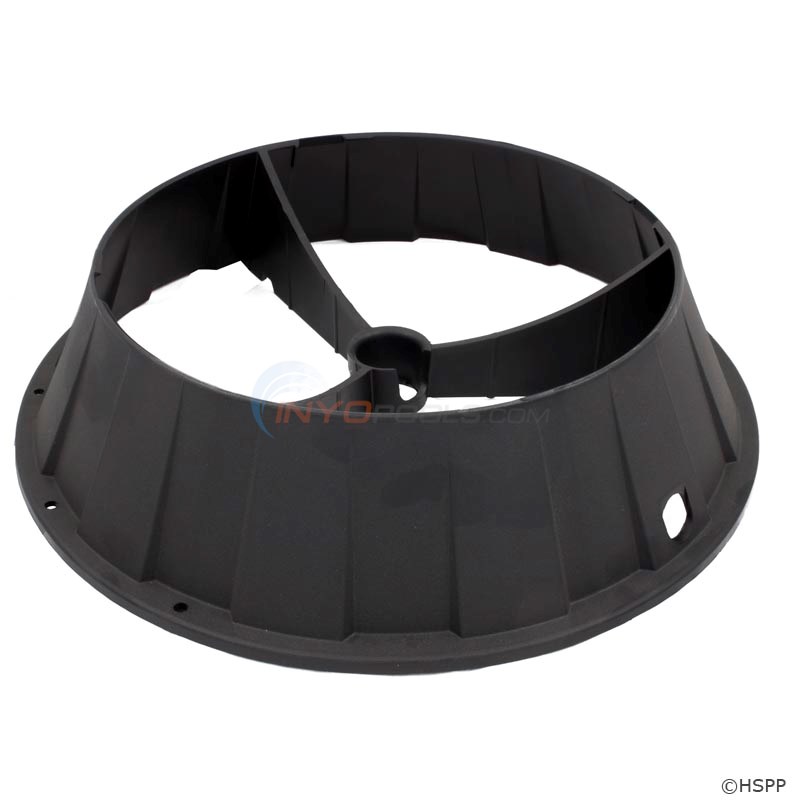

STAND, FILTER SUPPORT

Part # 4800-19 Mfg # SX200J

STAND, FILTER SUPPORT

$143.92 IN STOCK

Qty:

GASKET, DRAIN CAP

Part # 4800-20 Mfg # HWS-200-Z-9

GASKET, DRAIN CAP

$11.71 IN STOCK

Qty:

CAP DRAIN WITH GASKET

Part # 4800-210 Mfg # SX200Z8A

CAP DRAIN WITH GASKET

$14.34 IN STOCK

Qty:

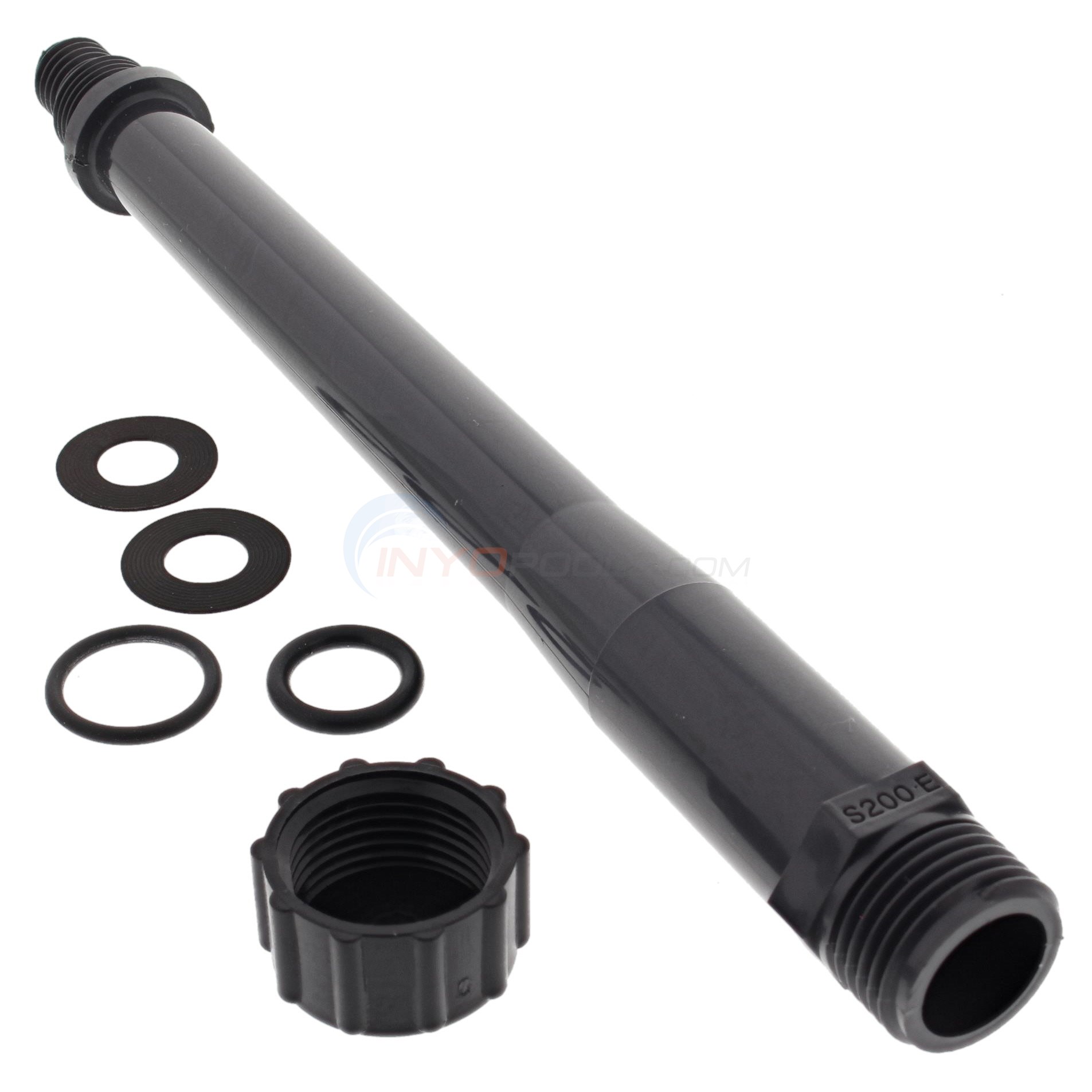

PIPE, DRAIN

Part # 4800-22 Mfg # SX200EB

PIPE, DRAIN

$41.84

O-RING, BULKHEAD

Part # 4800-23 Mfg # O-43

O-RING, BULKHEAD

$9.68 IN STOCK

Qty:

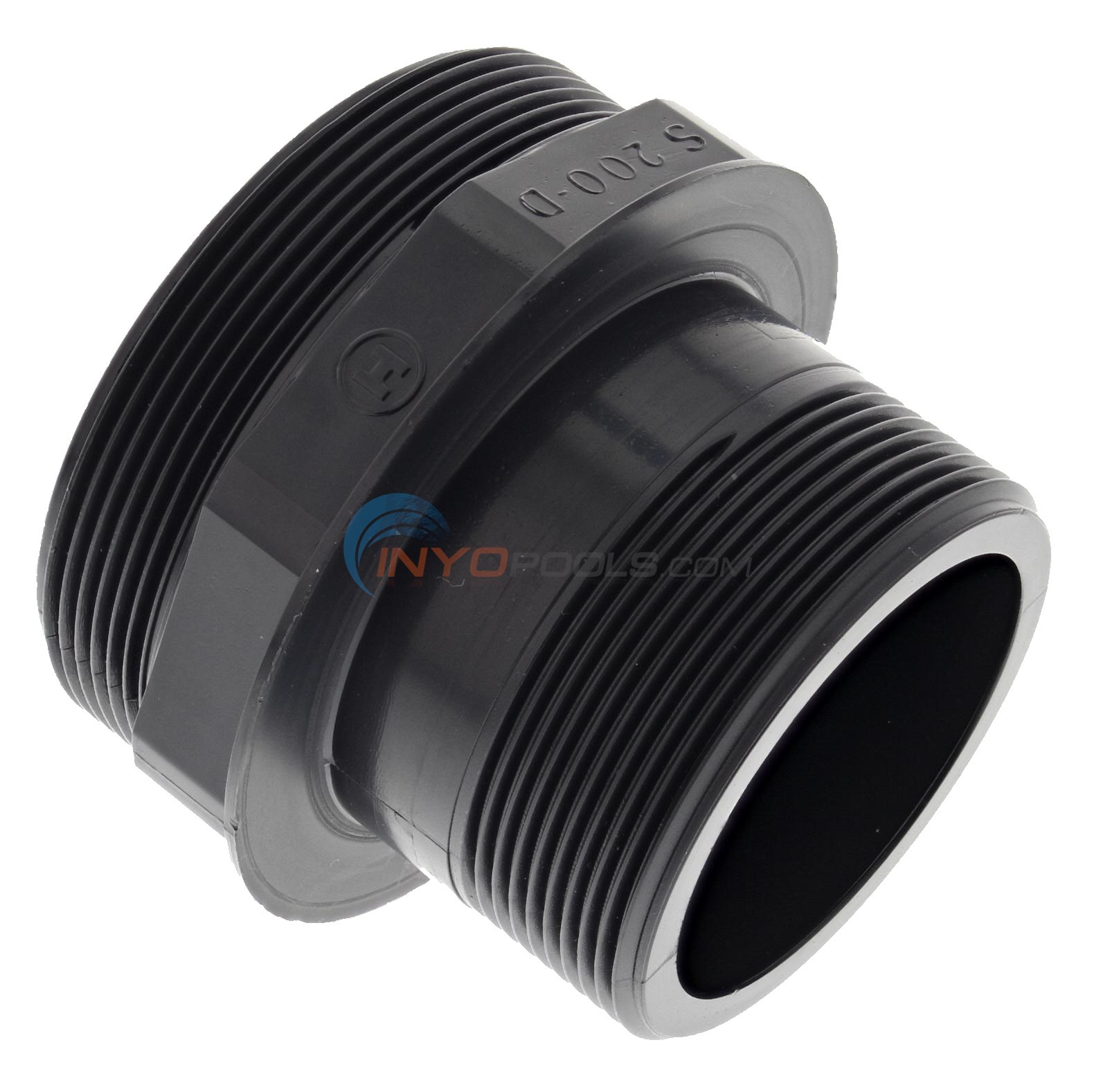

FITTING, BULKHEAD - 2 REQUIRED

Part # 4800-24 Mfg # SX200D

FITTING, BULKHEAD - 2 REQUIRED

$33.03 IN STOCK

Qty:

HAYWARD VARI FLO MULTIPORT VALVE 1.5 FOR S200 SAND FILTER

Part # SP0710X32

HAYWARD VARI FLO MULTIPORT VALVE 1.5 FOR S200 SAND FILTER

$240.10 IN STOCK

Qty:

PRAHER VALVE ASSEMBLY, 1 1/2"- PRAHER

Part # 4800-25P Mfg # SM1-HP3

PRAHER VALVE ASSEMBLY, 1 1/2"- PRAHER

$146.89 IN STOCK

Qty:

2 In. Vari Flo Valve Side Mount

Part # SP0715X32

2 In. Vari Flo Valve Side Mount

$315.71 IN STOCK

Qty:

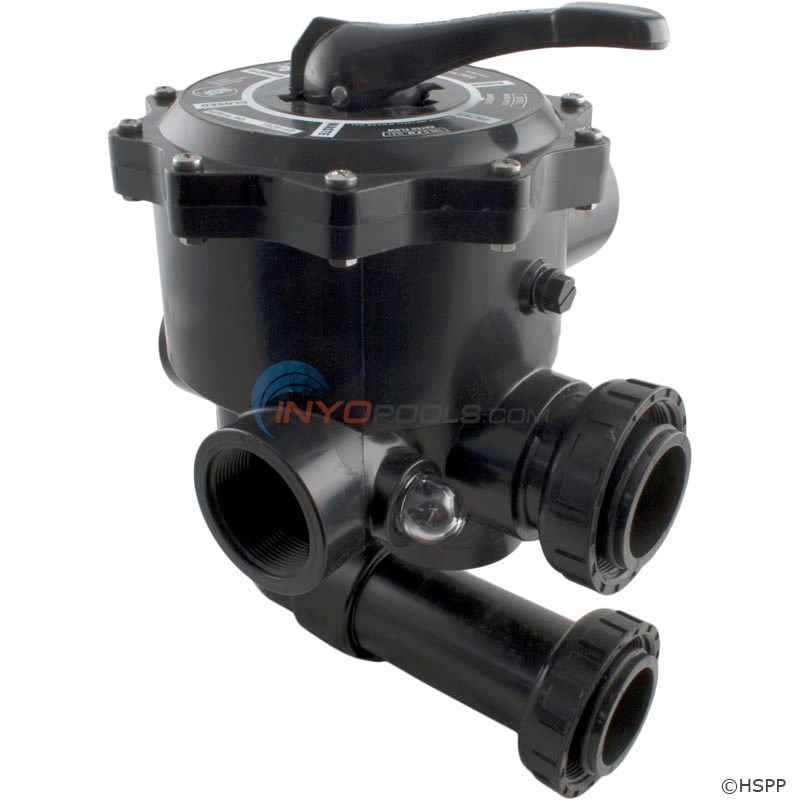

Generic Multiport Valve 2" - SP0715X32

Part # 26-253-1115 Mfg # SM2-HP3

Generic Multiport Valve 2" - SP0715X32

$226.02 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$16.38 IN STOCK

Qty:

O-RING

Part # 4800-27 Mfg # 228

O-RING

$4.33 IN STOCK

Qty:

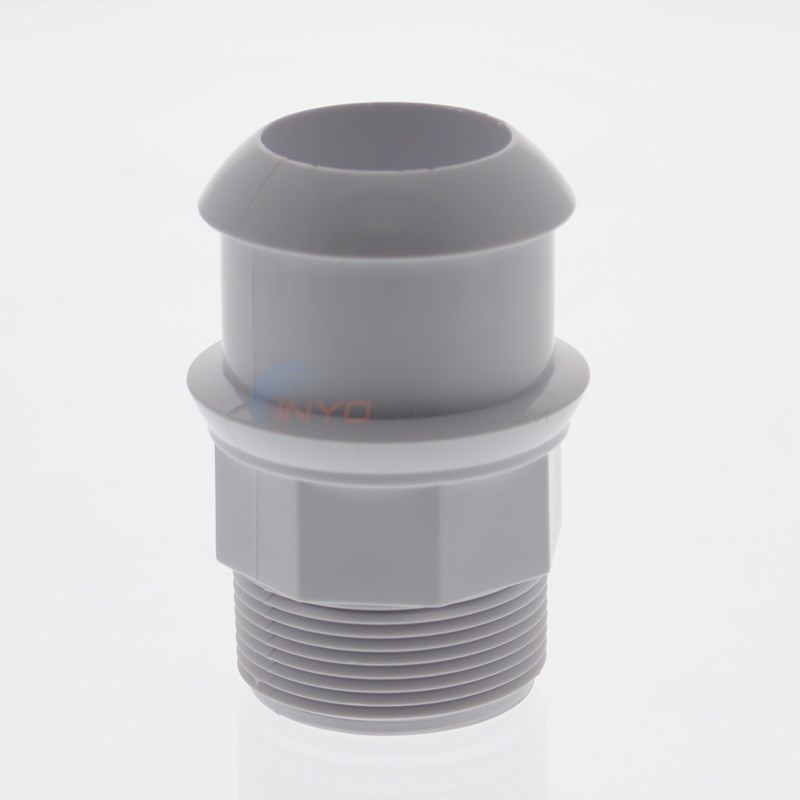

UNION, BALL END

Part # 4800-36 Mfg # SPX1480A

UNION, BALL END

$31.97 IN STOCK

Qty:

NUT, UNION

Part # 4800-37 Mfg # SPX1480C

NUT, UNION

$28.77 IN STOCK

Qty:

O-RING

Part # 5056-11 Mfg # O-49

O-RING

$9.77 IN STOCK

Qty:

ELBOW, UNION WITH O-RING (S-200)

Part # 4800-39 Mfg # SPX1485B3

ELBOW, UNION WITH O-RING (S-200)

$91.08 IN STOCK

Qty:

ELBOW, UNION WITH O-RING (S-240)

Part # 4800-39A Mfg # SPX1485B6

ELBOW, UNION WITH O-RING (S-240)

$120.47 IN STOCK

Qty:

GASKET, ELBOW

Part # 4800-40 Mfg # O-341

GASKET, ELBOW

$12.78 IN STOCK

Qty:

O-RING, 13/16" O D (PRIOR TO 1980)

Part # 4800-02 Mfg # 114

O-RING, 13/16" O D (PRIOR TO 1980)

$16.15 IN STOCK

Qty:

O-RING, 1" OD (1980-CURRENT)

Part # 4662-04A Mfg # 210

O-RING, 1" OD (1980-CURRENT)

$3.18 IN STOCK

Qty:

GASKET, COMPRESSION

Part # 4800-42 Mfg # SPX1485G

GASKET, COMPRESSION

$11.71 IN STOCK

Qty:

FITTING, COMPRESSION ASSEMBLY

Part # 4800-43 Mfg # SPX1485DA

FITTING, COMPRESSION ASSEMBLY

$33.03 IN STOCK

Qty:

* NOT SHOWN
** O-RING/GASKET KIT
