$209.99

Qty:

By Century Motors


Details

Top

Part # UST1102

Warranty 1 Year

Dimensions 14" L x 6.5" W x 6.5" D

Alternate Part #'s 168098, 177019, 186921, 54023, 5KC39PN2822BX, 5KC39PN2822X, 5KC49NN2135X, 7-184948-22, 8-168098-20, 8-168098-21, 8-177019-20, 8-177019-22, 8-177019-24, AST125, B228, B228SE, C1318, C48AA35A01, C48AB47A01, C48K2N117A9, C48K2N143, C48K2N143A3, C48K2N143A4, C48K2N143A5, C48K2N143A6, C48K2N143A9, C48K2N143B1, C48K2N143B3, C48K2N143C1, C48K2N143C1C, C55CXKMB-5012, c55cxkmb5012, EB228, EUST1102, HST110, JD10UP1, KC39PN2822BX, SP1607Z1M, SP1607Z1MBK, SP1607Z1MH, t55cxcmm-1407, UST1102, V54023, CRMUST1102

Product Description

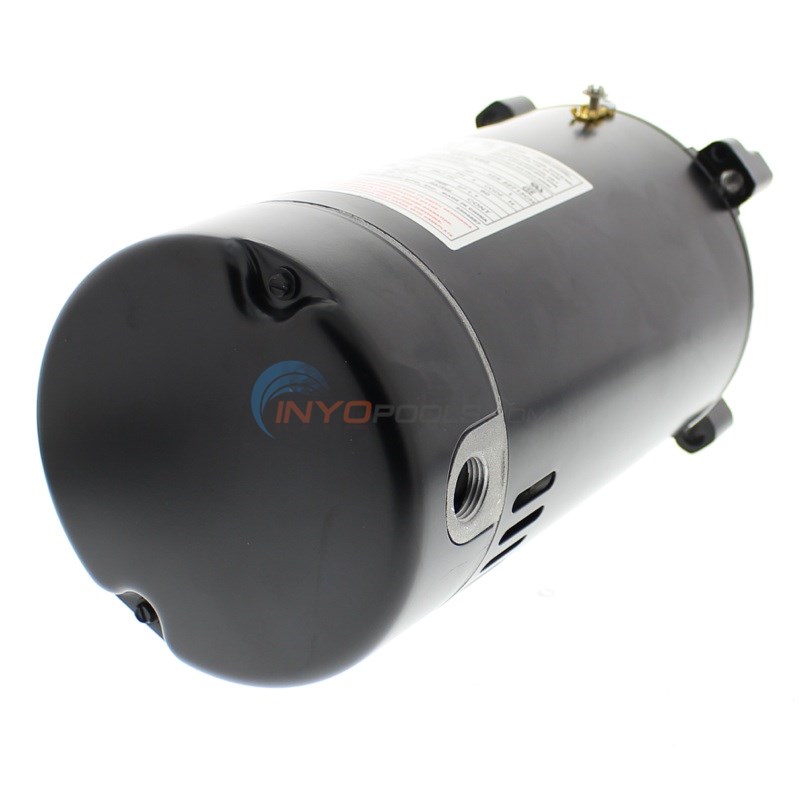

Century UST1102 Details

Rugged and quiet Century brand motor (formerly A.O. Smith) designed for the demands of your pool. Sealed ball bearings, specifically selected for extended life and low noise, have lifetime lubricant to protect against heat and moisture.  This quality pool pump replacement motor is used on Hayward Max Flo, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum pumps.

Voltage 115/230, Max Amps 115V = 15.0 230V = 7.5, Single Speed, Round Flange, RPM = 3450, Threaded Shaft, Frame = 56J

Don't Forget Your Tune Up Kit

Hayward Super Pump Tune Up Kit
Hayward Super II Tune Up Kit
Hayward Max-Flo Tune Up Kit
Jacuzzi Magnum Tune Up Kit

Compatible Pool Pump Models

  • Hayward Super Pump SP2607X10
  • Hayward Super II Pump SP3007X10AZ
  • Hayward Max-Flo Pump SP2807X10
  • Hayward RS Series RS750CA
  • Jacuzzi Magnum 1UMF-S

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Options:

Motor Dimensions Motor Dimensions
Motor Image Motor Image

Product Specifications

HP:
1.0 HP
Frame:
56J
Volts:
115/230 V
Speed:
Single
Amps:
15.0/7.5 amp
Service Factor:
1.1
Total HP:
1.1 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Round
RPM:
3450 RPM
Phase:
Single
Commonly Used On:
Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum
Notes:
NOT California Title 20 Compliant
Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/18/2012by Guest

I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.
 Reply


?     Asked on 1/19/2012by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Hammer for old pump cap

1     0

My old pump died.

Written on 12/8/2022 by Guest

Pretty easy replacement. I found a video on youtube to help me out. Only word of warning. Make sure the voltage dipswitch is set to the correct voltage, Save yourself the headache.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

Replaced motor with a bad capacitor

Written on 9/26/2022 by Guest

Watched youtube videos.
Removed old motor from pump.
Installed new shaft seals and gaskets.
Reinstalled new motor on pump.

Easy job

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

1     0

I replaced the bearings in my old AO Smith motor but it failed after 3 weeks.

Written on 8/13/2022 by Guest

I disconnected the power supply from my old pump motor. Removed the four 14mm bolts connecting the motor and impeller to the pump housing and removed it. I put the motor on a work bench. I then removed four other bolts that hold a cover for the pump impeller that bolt directly to the motor and removed the cover. The impeller threads onto the motor shaft and I removed it. I bought a seal kit and replaced the seals in the housing around the impeller and reassembled the motor and pump impeller. I installed the new motor with the old impeller and new seals back onto the pump housing. I also replaced a seal that goes between the pump and impeller and the actual pump housing. I reinstalled the wiring and started the pump. This motor is identical to the old gold colored AO Smith motor that I removed.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

Original pump was 17 yrs old

Written on 7/29/2022 by Guest

Dismantle old pump just pay attention how things go. Take pictures if necessary. Reverse order for new install.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Pliers, Socket Set

2     0

Pump motor

Written on 7/8/2022 by Guest

Pump motor was seized ( bearings ) causing the main circuit breaker to trip ,
Remove 4 bolts (9/16 socket ) to take apart the pump housing , remove impeller housing cover ( small flat screwdriver ) remove Impeller ( by hand . right handed thread ) now you can see the 4 bolts holding the motor .
Install new seal on motor and put everything back together

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

3     0

Hayward Pool Pump SP2607X10 1.0 hp bad motor

Written on 6/19/2022 by Guest

Cut off breaker at electrical panel.
Close water valves.
Remove motor electrical cover at back of motor.
Use multimeter to verify no power present.
Confirm whether existing electrical voltage is 230v or 115v (mine is 230v).
Unwire motor.
Remove four bolts that connect motor to pump.
Pull motor, with impeller still attached, away from pump housing. Carry motor/impeller to a workbench or area suitable for disassembly.
Slip a 7/16 wrench behind electrical components to prevent the motor shaft from turning.
Applying slight pressure, use the tongue and groove pliers to rotate the impeller off the threaded shaft.
This exposes 4 more bolts to release the remaining housing from the motor.
Replace seals (I used the tune-up kit).
Reverse process to install new motor.
Make sure new motor wiring matches the original setup for voltage (230v or 115).
Verify electrical connections.
Engage breaker.
Test pump function.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

Motor was making high pitched noise

Written on 5/20/2022 by Guest

Absolutely as advertised great product runs quietly. The installation was relatively easy once I saw the video.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Adjustable Wrench

3     0

Replaced pool pump motor

Written on 5/4/2022 by Guest

1. Turned power of to pool pump
2. Disconnected power and ground wires to motor
3. Separated the pump from the motor
4. Took the diffuser off pump
5. Removed the bad pump motor
6. Connected the new pump motor to the diffuser
7. Reconnected the pump and motor
8. Connected the power and ground wires to new pump
Motor
9. Turned on power to the pool pump
10. Turned the pool pump on and checked for any leaks.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Adjustable Wrench

1     0

ceased pump motor

Written on 2/19/2022 by Guest

1. shut off power and breakers.
2. get volt meter and verify power is off.
3. open strainer basket to relieve pressure.
4. unbolt motor.
5. remove wiring
6. unbolt motor from basket housing mount shroud.
7. Replace pump gasket seal and shaft seals while disassembled.
8. Lubricate all seals and gaskets.
9. Repeat in reverse order.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set

The motor went out

Written on 2/17/2022 by Guest

Order motor

Receive motor in the mail.

Install the motor correctly (Inyo YouTube Channel helps).

Enjoy pool.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

1     0

Needed to replace old pool pump motor.

Written on 1/29/2022 by Guest

The video is easy to follow provides detailed step by step instructions to remove the old motor and to install the new one. I’m not handy at all but was able to install this myself with guidance from the how to video.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

2     0

Original pump died

Written on 12/14/2021 by Guest

Simply put I called INYO Pools told them what I needed to do. They walked me through what they needed to know and helped me place the order. A few days later the replacement kit with all the seals arrived. Then I simply watched the INYOPools video on YouTube on how to replace my pump and followed along with their installation instruction on my phone. It was EXACTLY how they described it. It only took about an hour total from opening the boxes to the pool up and running! It really makes me wonder why my pool people here wanted $1200 for a repair that cost less than $300 and 1 hour's worth of work!

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Socket Set, Wrench Set

1     0

Pool pump stopped working

Written on 10/5/2021 by Guest

I looked up videos on rebuilding the pump. It was very easy and Inyopools had all the parts necessary available to me. I purchased the motor since I had the gasket and seal replacement kit already. It only took removing the 8 bolts and using a 7/16 wrench to hold the shaft in place to remove the impeller. The videos were excellent I just paused until I finished each step. I did watch the entire video first.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Socket Set, Adjustable Wrench

old motor locked up...UST1102 motor was the best replacement for the job.

Written on 10/4/2021 by Guest

Had an electrician help install.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Nut Drivers, Socket Set, Wrench Set

2     0

Pool pump motor failed

Written on 8/23/2021 by Guest

After six years , Century HST110 pool pump motor failed. Identified pump motor, HP, and mounting configuration (56J).
Checked online for pricing and availability. INYO Pools had the best price and FREE shipping.
Ordered UST 1102 56J Up rate motor from INYO Pools and pump arrived within 48 hours of purchase.
Installation Steps :
1. Turn off circuit breaker to pool pump motor.
2. Verify power is off at pump and motor.
3. Release water pressure from pump, remove strainer basket, and drain water from pump housing.
4. Using a nut driver, remove grounding wire from exterior of motor housing. Now remove 2 screws holding rear cover of motor to access wiring harness.
5. Make note of wire color & installation positions on old motor: Red to L-1, Blk to L-2, Green to green grounding tab.
6. Using a philips head screwdriver, remove mounting screws and disconnect all three wires.
7. Carefully work the three wires through the mounting hole in back of motor.
8. Using a 3/8 drive ratchet and 9/16 shallow socket, remove the four mounting bolts holding the motor to pump housing.
9. Slide Motor out of pump housing, paying attention to position of housing and impeller covers.
10. Remove impeller cover O-ring from inside pump housing. Recommend replacing this seal.
11. Rinse inside of pump housing and motor mounting area completely.
12. Move old motor to bench and remove new motor from box. Verify HP, voltage and mounting flange on motors.
13. Remove impeller cover and impeller off old motor, clean and inspect. Pay attention to ceramic shaft bearing and tension spring. Recommend replacement.
14. Remove rear cover on new motor to access wiring harness.
14. Reinstall impeller, shaft bearing, & tension spring, on new motor.
15. Install new impeller O-ring in pump housing.
16. Carefully slide new motor into pump housing and reinstall 4 mounting bolts.
17. Carefully work electric wires through mounting hole in rear of motor. Connect wires to harness in original configuration from old motor.
18. Install rear motor cover and exterior grounding wire.
19. Install strainer basket and prime pump housing with water.
20. Turn on circuit breaker, start new motor, and verify there are no leaks at pump housing.
Done.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

My pump motor stopped working.

Written on 6/21/2021 by Guest

I disconnected the mounting and seal plate that houses the motor from the pump. Then I needed to remove the impeller, in order to replace the seal assembly, that I had from a previous purchase from Inyo Pools. Once that was completed, I reassembled in reverse order to include the new motor. finally, I reconnected motor to the pump. It operates like a dream and runs smoothly and quietly.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set, Wrench Set

Bad worn bearings on 10 year old pump motor, needed replaced.

Written on 6/7/2021 by Guest

Pulled motor, removed impeller and broke down motor with help from online tutorial. Not as easy as it sounds need a long shaft bearing tool.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Lube

Old pump seized..stopped working

Written on 5/30/2021 by Guest

Very straight forward process for any pool owner. Pay attention to orientation and details when removing so when installing new motor..just reverse order.
1. Shut off power to pump at breaker. Open pump/drain screws to drain any water.
2. Disconnect bonding wire by loosening screws on top of motor.
3. Remove 4 bolts holding motor in place.
4. Pull motor from housing.
5. Remove back motor housing cap to disconnect wiring. Pay attention to terminal connections and voltage selection to ensure reinstall is the same.
6. Good time to check and replace/lube all gaskets.
7. Reverse process to reinstall pump.
8. Might be beneficial to add some-water to lines so pump primes easily.

Check for leaks.
Enjoy

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

Burned out motor

Written on 9/19/2020 by Guest

Easy peasy!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

Pump was overheating and shutting off

Written on 7/25/2020 by Guest

Bought this pump and we have had no issues at all. Works great even with the heat and humidity right now and running it more often. Very happy with product.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench, WIRE CRIMPS

MOTOR REPLACEMENT

Written on 7/6/2020 by Guest

TOOK OFF EXISTING MOTOR AND REPLACED THE SEALS AND PUT THE NEW MOTOR BACK ON. SUPER EASY.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set

Old motor burned out

Written on 6/16/2020 by Guest

My old motor started making noise. Had been installed for almost 7 years. Called up and purchased a new motor and it was shipped to my house within a few days. I also purchased all new seals. Replace the motor, seals in about an hour.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Adjustable Wrench

Pump motor was totally dead to start the season. Had to buy new motor and seal kit

Written on 6/13/2020 by Guest

1. remove old motor from pump housing
2. bolt on new motor to pump housing, as well as replacing old seals with new ones.
3. attach impeller and diffuser to motor/pump housing.
4. attach motor/pump housing to filter
*Easy to do. only time will tell if the motor holds up

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Socket Set, Wrench Set

1     0

Just for openers

Written on 6/8/2020 by Guest

It's Memorial day, 80 degrees, a beautiful day and we take the winter cover off and the water is green. we need to get things cleaned up, get the pump and filter working and get the water circulating. OK, cleanup is done fire it up! What the .........the pump is frozen up and WILL NOT MOVE.

I worked on it for 2 or more hours IT WILL NOT TURN!!! Son of a...... gun. We need to order a pump motor. My wife called a certain pool company and they screwed up the whole order. She canceled them and called INYOPOOLS. She ordered a new motor and some chemicals and stuff.

The chemicals came 1st and we had to wait a few days for the motor as the water was getting greener and greener. It finally came got it all in order and is working great and was swimming again today. The info and tips you sent were a big help too.

Thanks Inyopools!!!
Michelle and John

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set

Motor died because cottonwood clogged the air intake over a period of 3 years.

Written on 6/7/2020 by Guest

I removed the motor from the pump housing according to the instruction manual for the Hayward Superpump. You have to carefully lay out the parts as you remove them. The impeller was the most difficult to unscrew, but it came off as per the manual. I used a new Hayward shaft seal as I put the parts back together in the correct sequence. Rewired the new motor and tested for leaks. It took more than an hour to get it up and running again. I have purchased a new motor to have on the shelf for future use.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers

1     0

Pump quit

Written on 6/6/2020 by Guest

I hooked the new pump up and it worked perfectly. Thank you Inyo

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

3     0

Motor burned up

Written on 9/29/2019 by Guest

Super simple install, stripped old motor down of all parts (seal plate, impeller, shaft seal) and went back through the steps to reinstall... Very happy with new motor, super quiet and runs great!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

Pump motor bearings went bad.

Written on 9/24/2019 by Guest

Unbolted seal plate from pump/strainer housing. Took back cover off motor and disconnected wiring. Used open end wrench to secure motor rotor to unscrew diffuser. Ubolted seal plate from motor. Replaced seals and bolted new motor to seal plate. Took back cover off motor and secured rotor with open end wrench. Screwed diffuser back on motor shaft. Bolted motor with seal plate back on pump/strainer assembly.

Reconnected wiring and put back cover on motor. Took about 90 minutes.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

0     1

Broken pump

Written on 7/25/2019 by Guest

Burned out 15 year old pump replaced with new 1 hp century pump and tuneup kit .... easy job with minimal experience

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

0     1

GFI breaker kept tripping sporadically and then would not stay on at all

Written on 7/19/2019 by Guest

1. Determined that the pool pump motor was the source of the breaker tripping.
2. Ordered and received new replacement motor from Inyo Pools, ordering was easy shipping time was reasonable as expected.
3. Bought new gasket set.
4. Re-wired the pump house switch box line to the motor.
5. Installed new gasket set on motor and then installed motor. Prep, wiring, install took about 3 hours including the new wiring. GFI breaker doesn’t trip anymore sporadically, pool motor stays running, pool motor runs nearly silent now and the pool is finally open here.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

1     0

Bearnings Going Out

Written on 3/31/2019 by Guest

First, kill power to pump, then remove motor from pump. Take back off the motor to remove power connections from old motor, then rewire to new motor and attach back to pump. Restore power.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench

Pump Quit Working

Written on 2/11/2019 by Guest

Removed old pump to see if it could be repaired.
Purchased new pump.
Installed new pump.
Working great.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

1     0

Old Pump Motor Needed Replacing

Written on 11/20/2018 by Guest

Removed motor from Hayward Super Flo pump. Easily replaced a few bolts to pump and replaced wire to the motor. Very easy and saved lots of money.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set

Burned Out

Written on 11/18/2018 by Guest

Swapped out the wires. Plumbed it up. Works perfectly.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set

Old pump had bad bearings and made a horrible noise.

Written on 10/23/2018 by Guest

Got new pump. Pulled old pump out and replaced it with new pump using seal kit I also purchased. Everything working great with no noise.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

2     1

Motor bearings going out

Written on 8/9/2018 by Guest

Replaced Motor and installed seal kit on Heyward pump for 35,000 gal in-ground pool. Since my recent retirement I now have time to do this work myself saving hundreds of $ by not having to hire it done. The videos and directions were thorough and easy to follow. Take it from a first time, novice, impatient DIYer, if you can follow directions, you too can have the satisfaction of successfully repairing your own equipment and keeping your money invested in your 401K.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

Bad pump motor

Written on 7/4/2018 by Guest

Looked at the video on Inyopools site. Printed the instructions, followed them and had my pump in before you knew it!! The instructions were extremely helpful. Saved hundreds of dollars!!!! Thank you inyopools..

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Wrench Set

Bad bearings on shaft

Written on 6/30/2018 by Guest

Freed up bearings but they are sealed and cannot lubricate them so ordered a new replacement motor from inyo pools and was here in 2 days and motor fit perfectly
I buy all my pool products from inyo
Thanks for great service!!!

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

Bearings in old motor finally locked up

Written on 6/14/2018 by Guest

I started by removing the motor from the box. I then Inspected the item for any visible damage. I removed the old motor from the pump. Having both motors side by side I removed the impeller, and the back of the pump housing to the motor replacing any seals as I put the parts back on. I reinstalled the parts back onto the new motor. After that was done I checked the output of the electricity and switched the motor accordingly. I reinstalled the new motor to the pump, tightened everything down and filled the pump up with water. I then turned on the electricity checked the pump for any leaks and made sure the motor ran ok.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Socket Set, Wrench Set

Old Hayward motor stop working

Written on 5/26/2018 by Guest

Took 4 bolts off pump to remove motor from housing took diffuser off unscrewed impeller Unbolt 4 bolt to remove motor from housing in wired motor then reinstalled

Were these instructions helpful?


Difficulty

Est. Repair Time

More than 8 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench

Not positive but my Hayward super wouldn't work

Written on 5/24/2018 by Guest

So I replaced the motor same day key valve hand , spring breaks replace that.So the motor went out July 2017 so the pool was a swamp and then some , so I watched inyo videos religiously till I had all my problems worked out, especially the motor replacement , and key valve , couldn't have done it without them , Thanks a million, and the great prices saved me a ton....,

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Adjustable Wrench

1     0

Motor shorted out

Written on 4/7/2018 by Guest

No problems just followed video lnstructions and worked great!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

3     0

Pool motor burn up

Written on 4/6/2018 by Guest

Before replacing the motor I cut the power off first. I also took pictures before I took the motor off and then when I took the Impala off so I could have a picture to go back and reference at anytime. Then I removed two screws on the end cap and unhooked the wires. Then I removed four bolts holding the motor to the housing. Then I replace the seals. It's always a good idea 2 replace the seals when you remove the motor for any reason . To do that I had to stop the impeller from turning by sticking a screwdriver in the end and then using my other hand to turn the impeller . Then I replaced the seals. Be sure to take note how the seals come off so you can put them back on the right way . I screwed the four bolts back in to connect the motor back to the housing. I hooked up my wires backup and then screwed the end cap back on. Cut the power on and it purred like a kitten!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

2     0

pool pump was making a lot of noise

Written on 3/20/2018 by Guest

I turned off breaker to pump; removed 4 bolts that held motor in place. opened back end of pump motor , took a picture of wiring for future reference. Disconnected wiring , took old and new pumps to workbench , discharged capacitor to avoid getting shocked, loosened screw holding it in place to allow me access to the motor shaft. This allowed me to use a 7/16" wrench to hold the shaft so I could remove the impeller from the front end of motor using slip joint pliers and turning impeller CCW. removed the parts of the impeller assembly. To remove the last piece remove 4 bolts which held the impeller assembly to the motor. turn the last piece of the impeller assembly over and use a flat tipped screwdriver to remove the ceramic ring. (when ordering pump also order bearing and seal kit.) after replacing bearings and seals reassemble everything in reverse order check your wiring picture and make sure to rewire correctly. Turn on breaker and prime your pump and turn it on.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set, Wrench Set

Motor failed

Written on 3/15/2018 by Russell J.

Turn off the Breaker! Disconnect wires under motor end cap. Unbolt motor from pump housing. Remove the funnel shaped housing that covers the impeller. You the slide an open end wrench on the motor shaft at the opposite end of the motor. Not the impeller end. You have to do this between a couple of the electrical components, but it’s not hard. Just work your way around until you find good access. There are wrench flats on the motor shaft. I think it’s a 7/16 wrench. Hold the shaft and unscrew the impeller counter clockwise with your hand. Remove the old shaft seal from the housing with a screw driver. Install the new seal . Make sure you have the selector switch on the motor set to you correct voltage. The motor ships set for 220v. Reassemble everything in reverse using a new seal kit. You may want to lay out everything in the order that you took it apart to ease putting it back together. Pay attention to how the shaft seal goes on.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Strap wrench for impeller

Hayward 1hp motor burnt out.

Written on 1/25/2018 by Guest

The motor I purchased was an exact fit for the original. It was a simple matter of cutting the power and removing the old motor. The new motor was an exact fit. Simply reversed the process and in business. Kudos for a inexpensive repair.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

Pump motor failure

Written on 1/9/2018 by Guest

Secure power
Remover motor rear cover.
Disconnect electrical feeds & grd
Remove 4 mounting bolts. This allows the removal of the motor and pump
Place to motor& pump on a bench. At the rear of the motor use a 7/16” wrench to hold the motor shaft.
Remove the pump rear housing and the mechanical seal.
Reverse the above process.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Wrench Set, Adjustable Wrench

1     0

We heard a loud grinding and then clicking noise in our brine pool motor before it stopped working.

Written on 12/21/2017 by Guest

My brother first thought the capacitor was dead, but we put in a new one, and it didn't help. He told us that we needed a new motor, and that he could take off the old one, keeping the frame. So we took a picture of the motor's specs and searched for the best price online. I found yours on your site, ordered it on 9/22/17, and it was delivered on 9/26/17. My brother took off the old motor being careful not to break the seal, installed your new motor, and it purred like a kitty cat when we turned it on. Thank you so much!

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Socket Set, Wrench Set

1     1

Motor on the pump quit

Written on 10/6/2017 by Guest

Remove old motor from pump..first I turned off the power to the motor by way of the breaker on the panel...then I removed the wiring from the old motor...then removed the motor from the pump housing...removed the old pump seal and removed the motor...putting the new seal on and then the new motor...placing the new motor on the pump housing. I wired new motor and turned on the breaker..🙏

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set

1     0

Pool Pump went out.

Written on 7/12/2017 by Guest

Well I got a price at INYOpools.com on a motor that exactly met the specs of my old Super Pump that was 1/3 the cost. I could not believe it and it came with free shipping. So I gave it a try. I watched the videos on replacing it and wallah..... It works like a charm and quieter than ever before. Great website and great online assistance.

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

1     0

Old Hawyad pump quit

Written on 6/20/2017 by Guest

After confirming the correct pump needed with INYO, I placed the order adding the seal kit recommended. I took on this case motivated by wanting to save over $ 300.00 from two local pool shops quotes. After watching the INYO Pools tutorial video twice I started. About three hours later it was time for the moment of truth. With a flick of the breaker and the timer switch we were back in business. The process could not have been explained any simpler than it was. INYO was right there next to me every step of the way. I used the video on my smart phone and paused it after each step to make sure I was doing it correctly. Thank you very much for providing the expert installation instructions and the online support I needed for the "Bonding Wire". I had no clue what that was but your web site resolved the questions and I finished the job.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set

1     0

Hayward motor seased up

Written on 6/11/2017 by Guest

Turn off power.
remove electrical connections
remove four bolts connecting motor to filter
remove two screws and back cover on motor
secure shaft with open end wrench and remove propeller.
remove four bolts and pump housing
reverse all steps to install new motor

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

Our original pump motor died.

Written on 6/9/2017 by Guest

Removed motor from pump housing. Replaced all seals and reassembled using the inyopools online instructions which were easier than what came with the new motor.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

pump motor running noisy

Written on 4/13/2017 by Guest

disconnect power, seperate pump then remove pump cover from motor, attached to new motor in reverse order.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

2     0

My old pump wasd squealing so loud the neighbors complained

Written on 3/27/2017 by Guest

I ordered new pump from Inyopools, watched the how to video on their web site and I was up and running 30 mins later. They saved me $250 in repair and labor charges!!

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers, Adjustable Wrench

1     0

Need new pump motor

Written on 3/18/2017 by Guest

The information that is on the website is great. Followed step by step, and it was quite easy.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Wrench Set, Adjustable Wrench

3     0

Bad motor

Written on 11/25/2016 by Guest

I ordered this motor for much cheaper than my dealer wanted. Changing it was a breeze.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

3     0

Motor stopped working

Written on 11/17/2016 by Joseph V.

I watched the video on the disassembling of the pump motor to see if it was doable on my part which I'm happy to report it was. I then called INYO Pools to make sure I was ordering the right motor. I also ordered a new impeller and seal kit to complete the rebuild. The tech at INYO Pools was also very helpful and told me to call if I ran into any problems. I'm happy to report everything fit perfect and it took about 2 hrs to complete.

Were these instructions helpful?


Top

Review Summary

 (Average 4.85  out of 5 stars)
345 Rating
5 star:

(301)
4 star:

(38)
3 star:

(4)
2 star:

(1)
1 star:

(1)

The Most Helpful Review


The Most Recent Reviews
