Maytronics Dolphin Deluxe 3 Parts

Maytronics Dolphin Deluxe 3

Maytronics Dolphin Deluxe 3 Diagram

Click to zoom in

Diagram #	Part Title
1	Impeller Cover
2	Handle Assembly
3	Outer Casing
4	Impeller w/ Screw
5	Cable Holder
6	Internal Float
7	Internal Float for PVC Brush
8	Retrofit For Cable Conn.-3 Pin
9	Motor Assembly
10	Hexagon Adapter
11	Drive Pulley (Single)
12	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
13	Tracks - Yellow (Long & Short)
*13	Maytronics Long Yellow Track 2-Pack
14	Side Panel w/ Wheel
15	Cover Plug for Frame
16	Non Return Diaphragm
17	Tracks - Yellow (Long & Short)
18	Side Panel w/ Fins
19	Wheel Tube Assembly
20	Full Brush - Magenta (Single)
21	Filter Screen
22	Filter Bag Clip
23	Filter Bag
24	Bottom Lid & Support Assembly
25	Chassis
26	Power Supply
27	60' Cable,Swivel,DIY Plug,Metal Spring,2W
29	Cable Float
30	Spring For Cable 3 Wires
31	Amphenol Plug

View Parts List

Diagram #	Part Title
1	Impeller Cover
2	Handle Assembly
3	Outer Casing
4	Impeller w/ Screw
5	Cable Holder
6	Internal Float
7	Internal Float for PVC Brush
8	Retrofit For Cable Conn.-3 Pin
9	Motor Assembly
10	Hexagon Adapter
11	Drive Pulley (Single)
12	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
13	Tracks - Yellow (Long & Short)
*13	Maytronics Long Yellow Track 2-Pack
14	Side Panel w/ Wheel
15	Cover Plug for Frame
16	Non Return Diaphragm
17	Tracks - Yellow (Long & Short)
18	Side Panel w/ Fins
19	Wheel Tube Assembly
20	Full Brush - Magenta (Single)
21	Filter Screen
22	Filter Bag Clip
23	Filter Bag
24	Bottom Lid & Support Assembly
25	Chassis
26	Power Supply
27	60' Cable,Swivel,DIY Plug,Metal Spring,2W
29	Cable Float
30	Spring For Cable 3 Wires
31	Amphenol Plug

Available Parts:

Impeller Cover

Part # 9982291

Impeller Cover

$84.49

Handle Assembly

Part # 99957025-ASSY

Handle Assembly

$106.99

Outer Casing

Part # 99960046

Outer Casing

$139.99

Impeller w/ Screw

Part # 3295-152 Mfg # 9995269

Impeller w/ Screw

$16.99 IN STOCK

Qty:

Cable Holder

Part # 3295-289 Mfg # 9982332

Cable Holder

$49.99

Internal Float

Part # 3295-026 Mfg # 6250931

Internal Float

$7.49 IN STOCK

Qty:

Internal Float for PVC Brush

Part # 6250944

Internal Float for PVC Brush

$28.49

Retrofit For Cable Conn.-3 Pin

Part # 3295-325 Mfg # 9991279

Retrofit For Cable Conn.-3 Pin

$12.49 IN STOCK

Qty:

Motor Assembly

Part # 99953035-EX

Motor Assembly

$332.99 IN STOCK

Qty:

Hexagon Adapter

Part # 3295-194 Mfg # 3865005

Hexagon Adapter

$28.49 IN STOCK

Qty:

Drive Pulley (Single)

Part # 3295-456 Mfg # 3883645

Drive Pulley (Single)

$27.49 IN STOCK

Qty:

Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3

Part # 3884997R3

Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3

$33.49 IN STOCK

Qty:

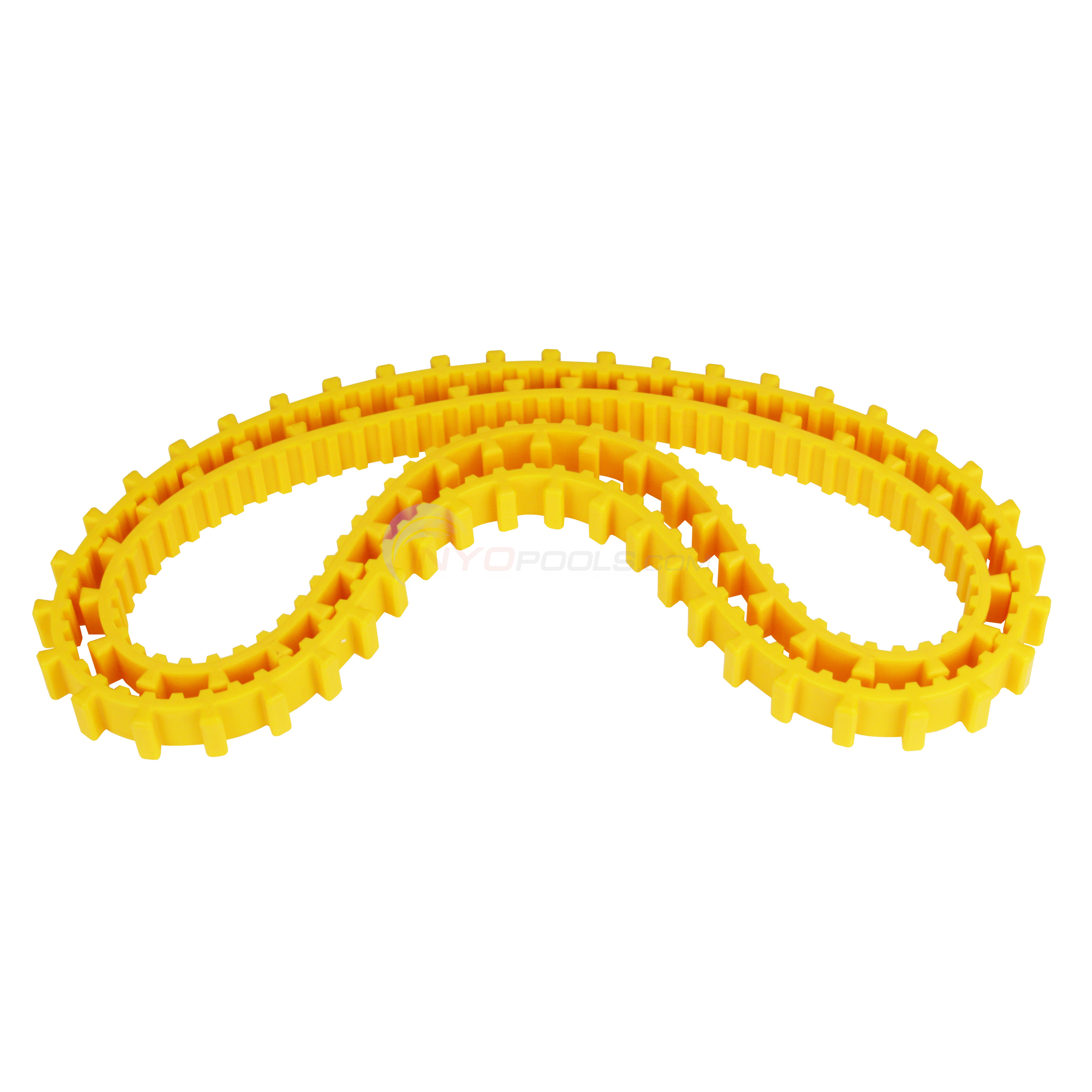

Tracks - Yellow (Long & Short)

Part # 9985016 Mfg # 9985016-R2

Tracks - Yellow (Long & Short)

$56.49 IN STOCK

Qty:

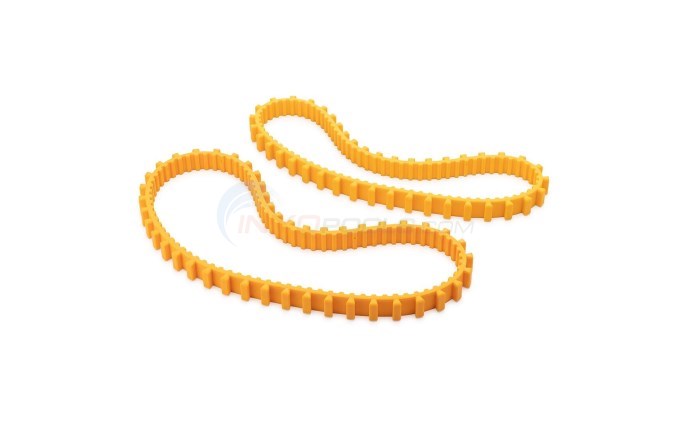

Maytronics Long Yellow Track 2-Pack

Part # 9985007-R2

Maytronics Long Yellow Track 2-Pack

$51.49

Side Panel w/ Wheel

Part # 9997104-ASSY

Side Panel w/ Wheel

$113.99

Cover Plug for Frame

Part # 3390223

Cover Plug for Frame

$30.49

Non Return Diaphragm

Part # 3295-257 Mfg # 9980220

Non Return Diaphragm

$28.49 IN STOCK

Qty:

Tracks - Yellow (Long & Short)

Part # 9985016 Mfg # 9985016-R2

Tracks - Yellow (Long & Short)

$56.49 IN STOCK

Qty:

Side Panel w/ Fins

Part # 9982316

Side Panel w/ Fins

$124.99

Wheel Tube Assembly

Part # 3295-131 Mfg # 99955951-ASSY

Wheel Tube Assembly

$48.99 IN STOCK

Qty:

Full Brush - Magenta (Single)

Part # 3295-088 Mfg # 6101604

Full Brush - Magenta (Single)

$16.99 IN STOCK

Qty:

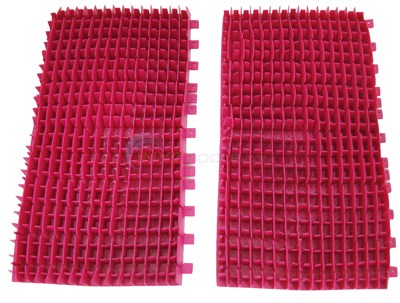

Full Brush - Magenta (Set of 2)

Part # 3295-435

Full Brush - Magenta (Set of 2)

$148.99

Combined Brush - Magenta (Set of 2)

Part # 3295-458 Mfg # 6101640-R2

Combined Brush - Magenta (Set of 2)

$33.99 IN STOCK

Qty:

Climbing Ring (Set of 4)

Part # 3295-457 Mfg # 6101611-R4

Climbing Ring (Set of 4)

$51.99 IN STOCK

Qty:

Filter Screen

Part # 3295-084 Mfg # 9982300

Filter Screen

$14.99 IN STOCK

Qty:

Filter Bag Clip

Part # 3295-050 Mfg # 9981430-R2

Filter Bag Clip

$12.49 IN STOCK

Qty:

23

Filter Bag

Part # 99854307 Mfg # 99854307

Filter Bag

NOT AVAILABLE

Filter Cartridge Conversion Kit

Part # 3295-156 Mfg # 9991412-ASSY

Filter Cartridge Conversion Kit

$137.99 IN STOCK

Qty:

Spring Filter Replacement (Set of 4)

Part # 9991407-ASSY

Spring Filter Replacement (Set of 4)

$66.99 IN STOCK

Qty:

Ultra Fine Filter Replacement (Set of 4)

Part # 3295-155 Mfg # 9991422-ASSY

Ultra Fine Filter Replacement (Set of 4)

$83.99 IN STOCK

Qty:

Bottom Lid & Support Assembly

Part # 3295-071 Mfg # 99919116

Bottom Lid & Support Assembly

$43.49 IN STOCK

Qty:

Bottom Lid Spring

Part # 3295-024 Mfg # 3917014

Bottom Lid Spring

$30.99 IN STOCK

Qty:

Chassis

Part # 3295-256 Mfg # 9980200

Chassis

$62.99 IN STOCK

Qty:

Power Supply

Part # 3295-472 Mfg # 9995670-US-ASSY

Power Supply

$230.99 IN STOCK

Qty:

Amphenol Socket For Power Supply

Part # 3295-219 Mfg # 5020011/5020016

Amphenol Socket For Power Supply

$16.49 IN STOCK

Qty:

Amphenol Socket Cover For Power Supply

Part # 3295-044 Mfg # 5020012

Amphenol Socket Cover For Power Supply

$10.49 IN STOCK

Qty:

7' Power Cable for Power Supply

Part # 5898412LF

7' Power Cable for Power Supply

$23.99 IN STOCK

Qty:

60' Cable,Swivel,DIY Plug,Metal Spring,2W

Part # 9995861-DIY Mfg # 9995861-DIY

60' Cable,Swivel,DIY Plug,Metal Spring,2W

$206.99 IN STOCK

Qty:

Cable Float

Part # 3295-136 Mfg # 99960081

Cable Float

$16.99

Spring For Cable 3 Wires

Part # 3295-207 Mfg # 3917033

Spring For Cable 3 Wires

$14.99

Amphenol Plug

Part # 3295-218 Mfg # 5000009

Amphenol Plug

$35.99 IN STOCK

Qty:
