Sta-Rite System 3 Modular D.E. Filter S7MD60 & S7MD72 Parts

MODELS S7MD60, S7MD72

Sta-Rite System 3 Modular D.E. Filter S7MD60 & S7MD72 Diagram

Click to zoom in

Diagram #	Part Title
*	Sta-Rite System 3 S7M Series Modular O-Ring Kit
*	Valve And Gauge Assembly - 24850-0105
1	SR PRESSURE GAUGE
2	SCREEN
3	AIR RELIEF ASSEMBLY (WC212-120P)
4	NIPPLE
5	ADAPTER BUSHING
6	O-RING
7	TANK KIT, UPPER HALF S7M120
8	O-RING S7S50
9	Sta Rite 60 sq ft Mod DE Replacement Grid for S7MD60
10	BAFFLE KIT WITH SCREWS
12	ELBOW AND BULKHEAD ASSY
13	ELBOW O-RING
14	DEFLECTOR BULKHEAD ASSY
15	O-RING
16	DRAIN PLUG With O-RING
17	ADAPTER FITTING
18	O-RING, VALVE ADAPTER 2IN
19	PLUG (SAND REMOVAL)
20	NUT, BULKHEAD RETAINING
21	TANK, LOWER HALF S7M120
22	BOLT, CLAMP
23	CLAMP ASSEMBLY
24	AIR BLEED ASSEMBLY
*	Valve, Multiport 2" W/unions System 3 Mod De
*	Valve, 2" Push-pull, 7.81" Center (263053)
*	System 3 Modular DE Conversion Kit

View Parts List

Diagram #	Part Title
*	Sta-Rite System 3 S7M Series Modular O-Ring Kit
*	Valve And Gauge Assembly - 24850-0105
1	SR PRESSURE GAUGE
2	SCREEN
3	AIR RELIEF ASSEMBLY (WC212-120P)
4	NIPPLE
5	ADAPTER BUSHING
6	O-RING
7	TANK KIT, UPPER HALF S7M120
8	O-RING S7S50
9	Sta Rite 60 sq ft Mod DE Replacement Grid for S7MD60
10	BAFFLE KIT WITH SCREWS
12	ELBOW AND BULKHEAD ASSY
13	ELBOW O-RING
14	DEFLECTOR BULKHEAD ASSY
15	O-RING
16	DRAIN PLUG With O-RING
17	ADAPTER FITTING
18	O-RING, VALVE ADAPTER 2IN
19	PLUG (SAND REMOVAL)
20	NUT, BULKHEAD RETAINING
21	TANK, LOWER HALF S7M120
22	BOLT, CLAMP
23	CLAMP ASSEMBLY
24	AIR BLEED ASSEMBLY
*	Valve, Multiport 2" W/unions System 3 Mod De
*	Valve, 2" Push-pull, 7.81" Center (263053)
*	System 3 Modular DE Conversion Kit

Available Parts:

Sta-Rite System 3 S7M Series Modular O-Ring Kit

Part # FK3-21

Sta-Rite System 3 S7M Series Modular O-Ring Kit

$48.99

Valve And Gauge Assembly - 24850-0105

Part # 4683-16 Mfg # 24850-0105

Valve And Gauge Assembly - 24850-0105

$117.99 IN STOCK

Qty:

SR PRESSURE GAUGE

Part # 4680-23T Mfg # 33600-0023T

SR PRESSURE GAUGE

$63.99 IN STOCK

Qty:

SCREEN

Part # 9239-01A Mfg # WC8-72D

SCREEN

$15.99 IN STOCK

Qty:

AIR RELIEF ASSEMBLY (WC212-120P)

Part # 9239-02 Mfg # 154689Z

AIR RELIEF ASSEMBLY (WC212-120P)

$34.49 IN STOCK

Qty:

NIPPLE

Part # 4680-02 Mfg # 35202-0959

NIPPLE

$21.49 IN STOCK

Qty:

ADAPTER BUSHING

Part # 4682-01 Mfg # 24900-0504

ADAPTER BUSHING

$30.99 IN STOCK

Qty:

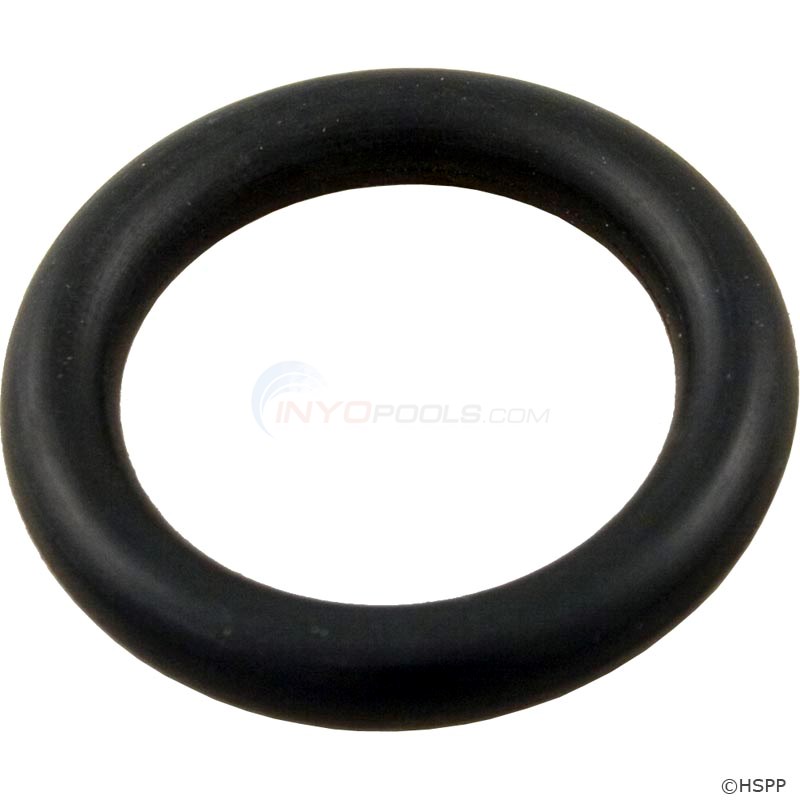

O-RING

Part # 4682-02 Mfg # 317

O-RING

$17.49 IN STOCK

Qty:

TANK KIT, UPPER HALF S7M120

Part # 4683-10 Mfg # 24851-9000

TANK KIT, UPPER HALF S7M120

$915.99

O-RING S7S50

Part # 4682-06 Mfg # 24850-0008

O-RING S7S50

$44.49 IN STOCK

Qty:

Sta Rite 60 sq ft Mod DE Replacement Grid for S7MD60

Part # 250230160S

Sta Rite 60 sq ft Mod DE Replacement Grid for S7MD60

$580.99 IN STOCK

Qty:

Sta Rite 72 sq ft Mod DE Replacement Grid for S7MD72

Part # 250230172S

Sta Rite 72 sq ft Mod DE Replacement Grid for S7MD72

$974.99 IN STOCK

Qty:

BAFFLE KIT WITH SCREWS

Part # 4682-23 Mfg # 23910-0013S

BAFFLE KIT WITH SCREWS

$75.49

ELBOW AND BULKHEAD ASSY

Part # 4682-25 Mfg # 23910-0100S

ELBOW AND BULKHEAD ASSY

$178.99

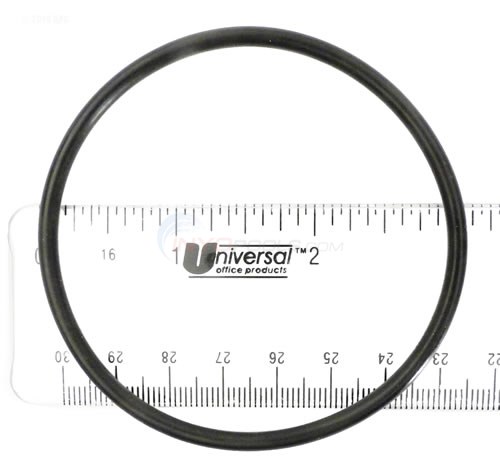

ELBOW O-RING

Part # 4682-27 Mfg # 35505-7438

ELBOW O-RING

$15.49 IN STOCK

Qty:

DEFLECTOR BULKHEAD ASSY

Part # 4682-26 Mfg # 23910-0101S

DEFLECTOR BULKHEAD ASSY

$133.99

O-RING

Part # 2114-02 Mfg # O-283

O-RING

$11.49 IN STOCK

Qty:

DRAIN PLUG With O-RING

Part # 4682-20 Mfg # 27001-0022

DRAIN PLUG With O-RING

$8.49 IN STOCK

Qty:

ADAPTER FITTING

Part # 4683-08 Mfg # 24900-0509

ADAPTER FITTING

$41.49 IN STOCK

Qty:

O-RING, VALVE ADAPTER 2IN

Part # 4620-529 Mfg # 332

O-RING, VALVE ADAPTER 2IN

$14.99 IN STOCK

Qty:

PLUG (SAND REMOVAL)

Part # 4682-10 Mfg # 24900-0503

PLUG (SAND REMOVAL)

$41.49 IN STOCK

Qty:

NUT, BULKHEAD RETAINING

Part # 4683-09 Mfg # 24752-0050

NUT, BULKHEAD RETAINING

$52.99 IN STOCK

Qty:

TANK, LOWER HALF S7M120

Part # 4683-07 Mfg # 24850-0102S

TANK, LOWER HALF S7M120

$1151.99 IN STOCK

Qty:

BOLT, CLAMP

Part # 4682-08 Mfg # 24850-0010

BOLT, CLAMP

$55.49 IN STOCK

Qty:

CLAMP ASSEMBLY

Part # 4682-07 Mfg # 24850-0200

CLAMP ASSEMBLY

$119.99 IN STOCK

Qty:

AIR BLEED ASSEMBLY

Part # 4687-18 Mfg # 24800-0120

AIR BLEED ASSEMBLY

$38.49 IN STOCK

Qty:

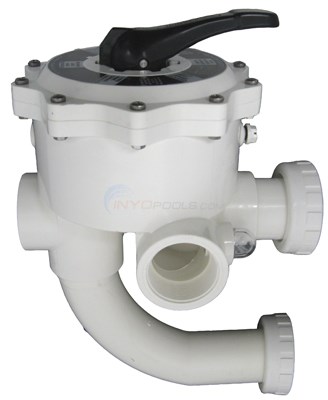

Valve, Multiport 2" W/unions System 3 Mod De

Part # 4685-2 Mfg # 18201-0300

Valve, Multiport 2" W/unions System 3 Mod De

$334.99 IN STOCK

Qty:

Valve, 2" Push-pull, 7.81" Center (263053)

Part # 4685-1

Valve, 2" Push-pull, 7.81" Center (263053)

$200.99 IN STOCK

Qty:

System 3 Modular DE Conversion Kit

Part # 23910-1100S Mfg # 23910-1100S

System 3 Modular DE Conversion Kit

$218.99

NOTE - REPLACEMENT MODULES ALSO INCLUDE THE 4 BAFFLE SCREWS
