Sta Rite System 2 MOD Media & MOD D.E. PLM & PLD Parts

PLM 100, 125, 150, 175, 200, 300 MODULAR MEDIA

MODELS PLD50, 70 - MODULAR DE

Sta Rite System 2 MOD Media & MOD D.E. PLM & PLD Diagram

Click to zoom in

Diagram #	Part Title
1	POSI LOCK RING (27001-0054)
2	AIR RELEASE VALVE WITH O-RING
3	TANK SHELL UPPER HALF
4	CORD-RING (3/97 TO CURRENT)
5	TANK SHELL LOWER HALF
6	RING SAFETY LATCH
7A	DRAIN PLUG With O-RING
8	O-RING, VALVE ADAPTER 2IN
9	BUSHING, REDUCING 2 X 1 1/2" SXS
10	Back Mount Pressure Gauge 0-60 1/4"
11	AIR BLEED ASSY. (PLM100,150)
12	Filter Module, Plm100 Wg
13	FLAPPER VALVE (PLD50,70)
14	SPRING CHECK VALVE

View Parts List

Diagram #	Part Title
1	POSI LOCK RING (27001-0054)
2	AIR RELEASE VALVE WITH O-RING
3	TANK SHELL UPPER HALF
4	CORD-RING (3/97 TO CURRENT)
5	TANK SHELL LOWER HALF
6	RING SAFETY LATCH
7A	DRAIN PLUG With O-RING
8	O-RING, VALVE ADAPTER 2IN
9	BUSHING, REDUCING 2 X 1 1/2" SXS
10	Back Mount Pressure Gauge 0-60 1/4"
11	AIR BLEED ASSY. (PLM100,150)
12	Filter Module, Plm100 Wg
13	FLAPPER VALVE (PLD50,70)
14	SPRING CHECK VALVE

Available Parts:

POSI LOCK RING (27001-0054)

Part # 4686-32 Mfg # 27001-0054S

POSI LOCK RING (27001-0054)

$176.70 IN STOCK

Qty:

AIR RELEASE VALVE WITH O-RING

Part # 4686-01 Mfg # 25010-0200

AIR RELEASE VALVE WITH O-RING

$17.27 IN STOCK

Qty:

TANK SHELL UPPER HALF

Part # 4686-33 Mfg # 27001-0020S

TANK SHELL UPPER HALF

$296.74 IN STOCK

Qty:

TANK SHELL UPPER HALF (PLM300)

Part # 4686-37 Mfg # 27001-0030S

TANK SHELL UPPER HALF (PLM300)

$407.70 IN STOCK

Qty:

CORD-RING (3/97 TO CURRENT)

Part # 4686-21 Mfg # 27001-0061S

CORD-RING (3/97 TO CURRENT)

$73.18 IN STOCK

Qty:

BODY O-RING (PRE 3/97)

Part # 4686-22 Mfg # 27001-0060S

BODY O-RING (PRE 3/97)

$82.65 IN STOCK

Qty:

TANK SHELL LOWER HALF

Part # 4686-34 Mfg # 27001-0009S

TANK SHELL LOWER HALF

$426.11 IN STOCK

Qty:

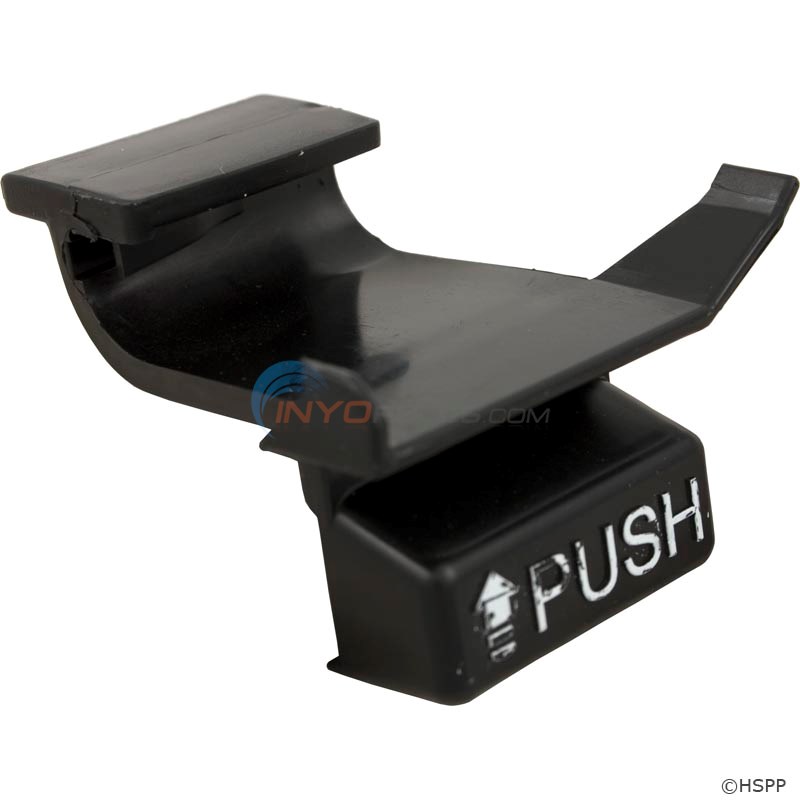

RING SAFETY LATCH

Part # 4683-11 Mfg # 27001-0051

RING SAFETY LATCH

$28.38 IN STOCK

Qty:

DRAIN PLUG With O-RING

Part # 4682-20 Mfg # 27001-0022

DRAIN PLUG With O-RING

$4.02 IN STOCK

Qty:

ADAPTER FITTING

Part # 4683-08 Mfg # 24900-0509

ADAPTER FITTING

$34.25 IN STOCK

Qty:

O-RING, VALVE ADAPTER 2IN

Part # 4620-529 Mfg # 332

O-RING, VALVE ADAPTER 2IN

$10.78 IN STOCK

Qty:

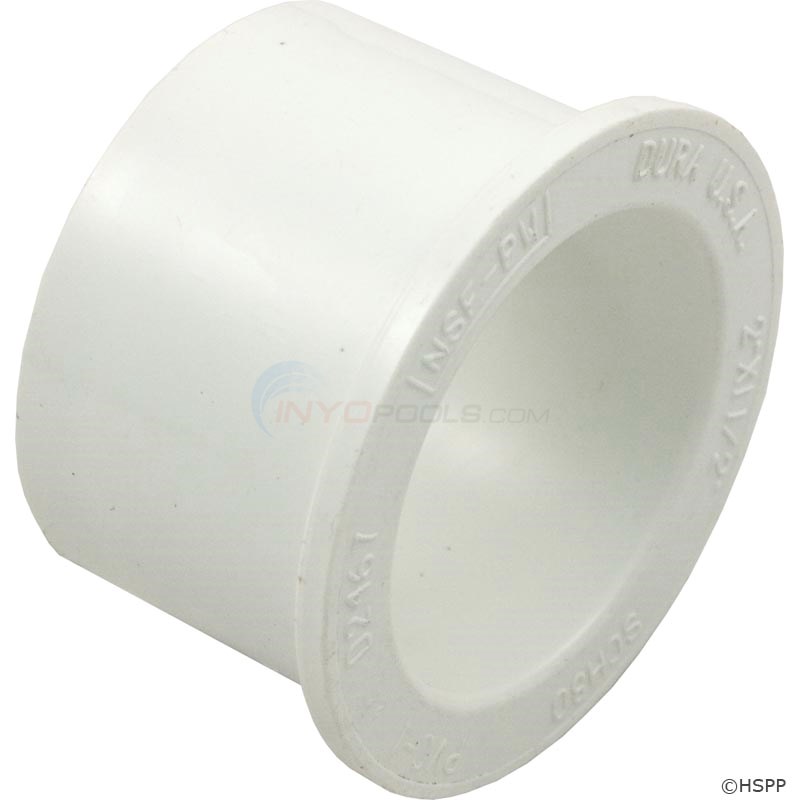

BUSHING, REDUCING 2 X 1 1/2" SXS

Part # 7153-0 Mfg # 437-251

BUSHING, REDUCING 2 X 1 1/2" SXS

$15.06 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4"

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4"

$10.04 IN STOCK

Qty:

Top Mount Pressure Gauge 1/4"

Part # 4680-50 Mfg # 15060-0000T

Top Mount Pressure Gauge 1/4"

$71.89 IN STOCK

Qty:

SCREEN

Part # 9239-01A Mfg # WC8-72D

SCREEN

$13.61 IN STOCK

Qty:

AIR BLEED ASSY. (PLM100,150)

Part # 4687-90 Mfg # 24800-0121

AIR BLEED ASSY. (PLM100,150)

$20.09 IN STOCK

Qty:

AIR BLEED ASSY. (PLD50,70)

Part # 4687-91 Mfg # 24800-0122

AIR BLEED ASSY. (PLD50,70)

$40.19 IN STOCK

Qty:

Filter Module, Plm100 Wg

Part # 4686-20 Mfg # 27002-0100S

Filter Module, Plm100 Wg

$235.17 IN STOCK

Qty:

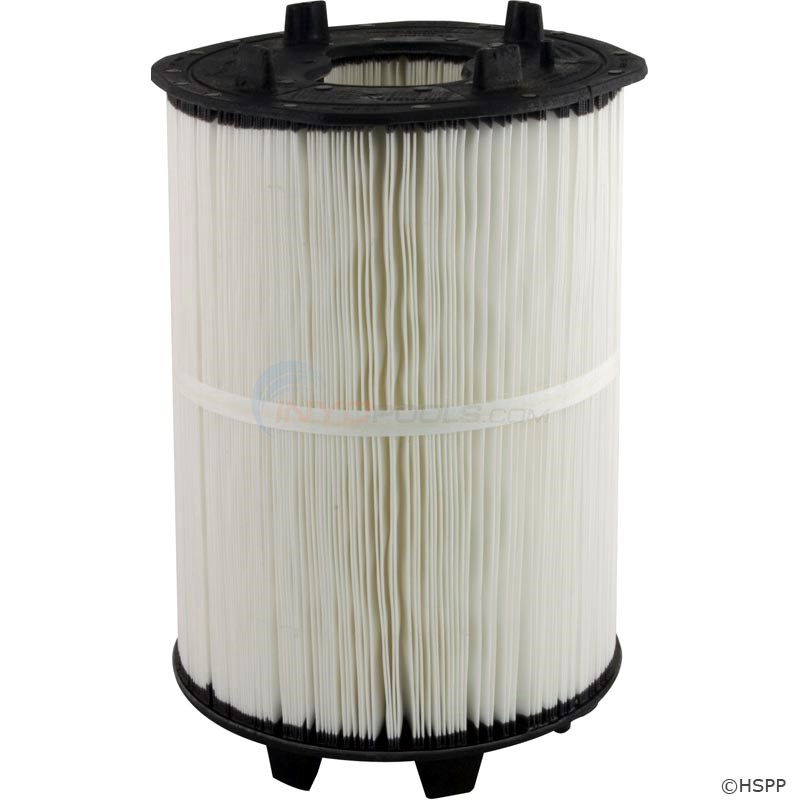

FILTER MODULE PLM 125 (2700-20125S)

Part # 4686-25 Mfg # 27002-0125S

FILTER MODULE PLM 125 (2700-20125S)

$231.14 IN STOCK

Qty:

Sta-Rite Modular Media PLM150 150 Sq Ft Replacement Cartridge

Part # 270020150S Mfg # 27002-0150S

Sta-Rite Modular Media PLM150 150 Sq Ft Replacement Cartridge

$339.36 IN STOCK

Qty:

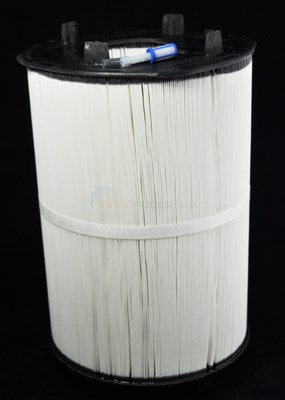

FILTER MODULE PLM 175 (2700-20175S)

Part # 4686-26 Mfg # 27002-0175S

FILTER MODULE PLM 175 (2700-20175S)

$331.64

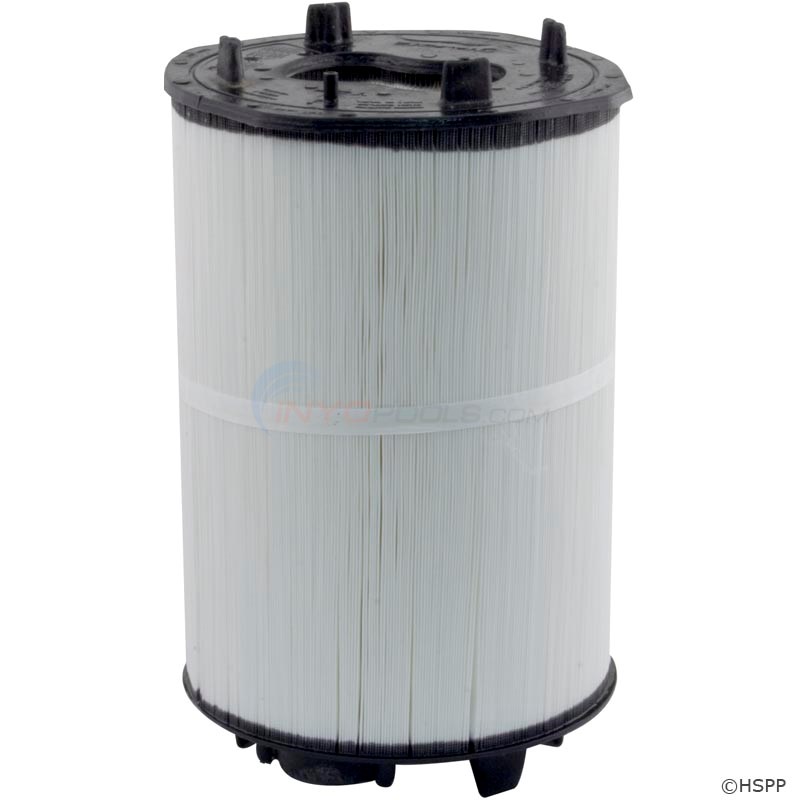

Sta-Rite System 2 Replacement Module 200 Sq. Ft. for PLM200

Part # 270020200S Mfg # 27002-0200S

Sta-Rite System 2 Replacement Module 200 Sq. Ft. for PLM200

$414.38 IN STOCK

Qty:

Sta-Rite System 2 Replacement Module, 300 Sq. Ft. for PLM300

Part # 270020300S

Sta-Rite System 2 Replacement Module, 300 Sq. Ft. for PLM300

$508.83 IN STOCK

Qty:

De Filter Module,30 Sq Ft F/pld50 Wg

Part # 4686-31 Mfg # 27002-0030S

De Filter Module,30 Sq Ft F/pld50 Wg

$310.41

Sta-Rite PLD 70 Replacement Module 36 Sq Ft

Part # 270020036S

Sta-Rite PLD 70 Replacement Module 36 Sq Ft

$317.58 IN STOCK

Qty:

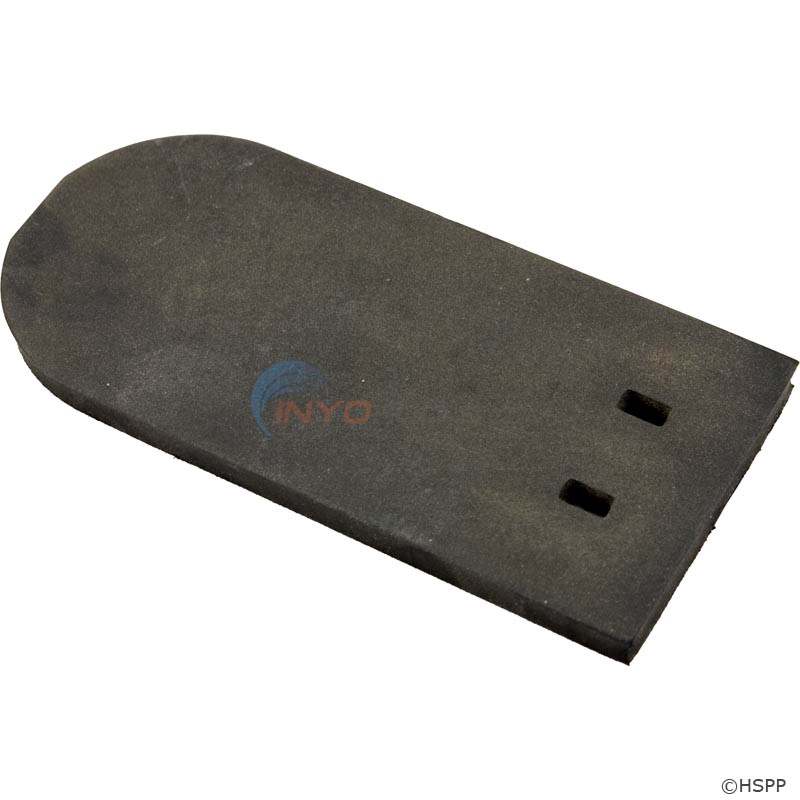

FLAPPER VALVE (PLD50,70)

Part # 4686-51 Mfg # 27001-0011

FLAPPER VALVE (PLD50,70)

$39.94 IN STOCK

Qty:

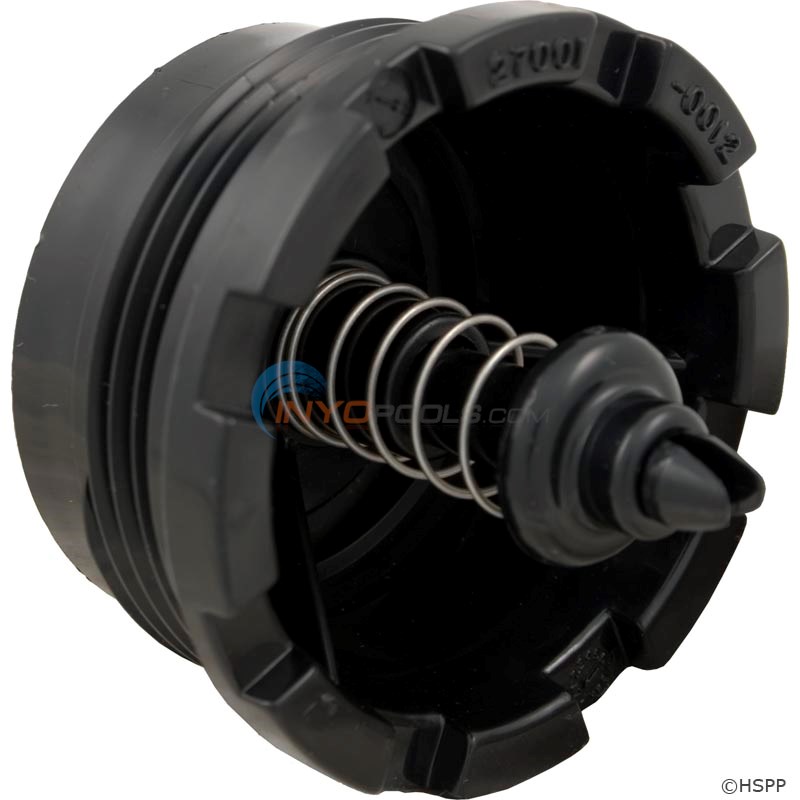

SPRING CHECK VALVE

Part # 4686-90 Mfg # 27001-0130S

SPRING CHECK VALVE

$22.46 IN STOCK

Qty:
