Vico Ultima & Ultima Plus Pump Parts

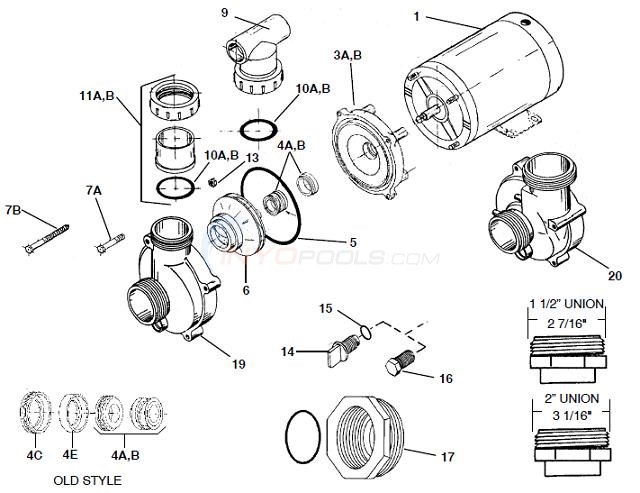

Vico Ultima & Ultima Plus Pump Parts Diagram

Click to zoom in

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
3A	ULTIMA VOLUTE BACK (PPULHSVB)
4A	GENERIC SHAFT SEAL
5	O-RING, ULTRA FLO (4654-19)
6	IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)
7A	OBSOLETE VOLUTE BOLT, ¼-20 x 1-5/8”
9	UNION, PUMP, 1-1/2" NUT X 1" TEE
10A	O-RING (226)
11A	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
13	NUT, VOLUTE
14	PLUG, DRAIN 1/4"

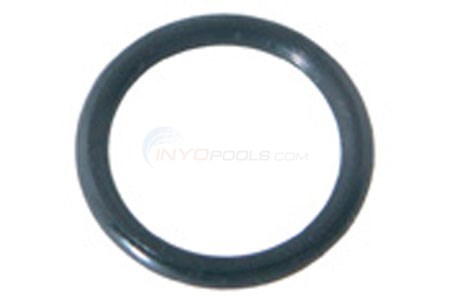

15	O-RING
16	PLUG, POLY, 1/4" MPT (3F14)
17*	THREADED ADAPTER ASSY., 1 1/2" X 2" (50100120)

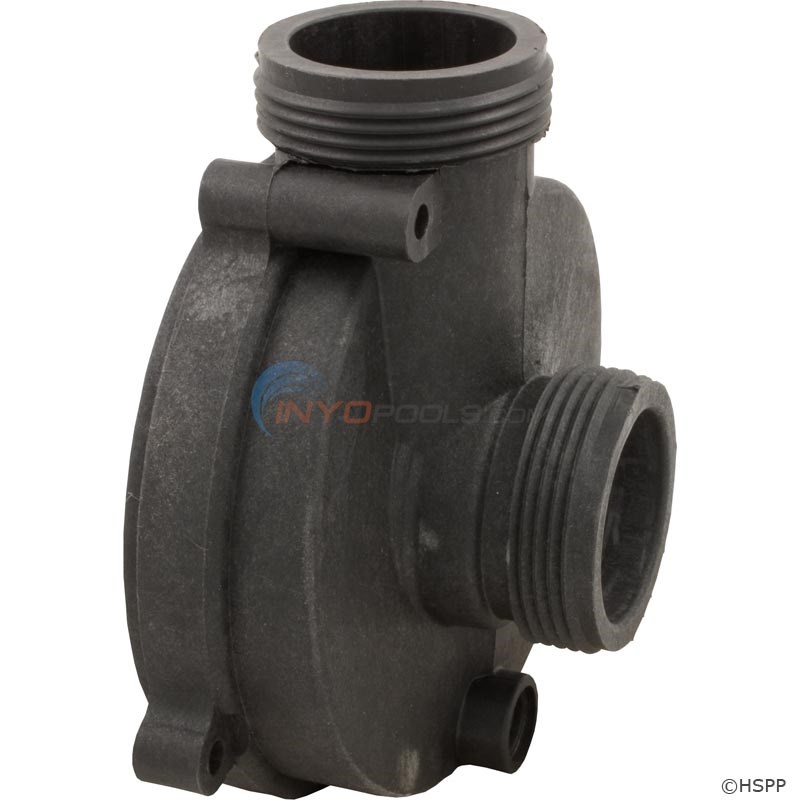

19	VOLUTE (PPULVFTDCS)

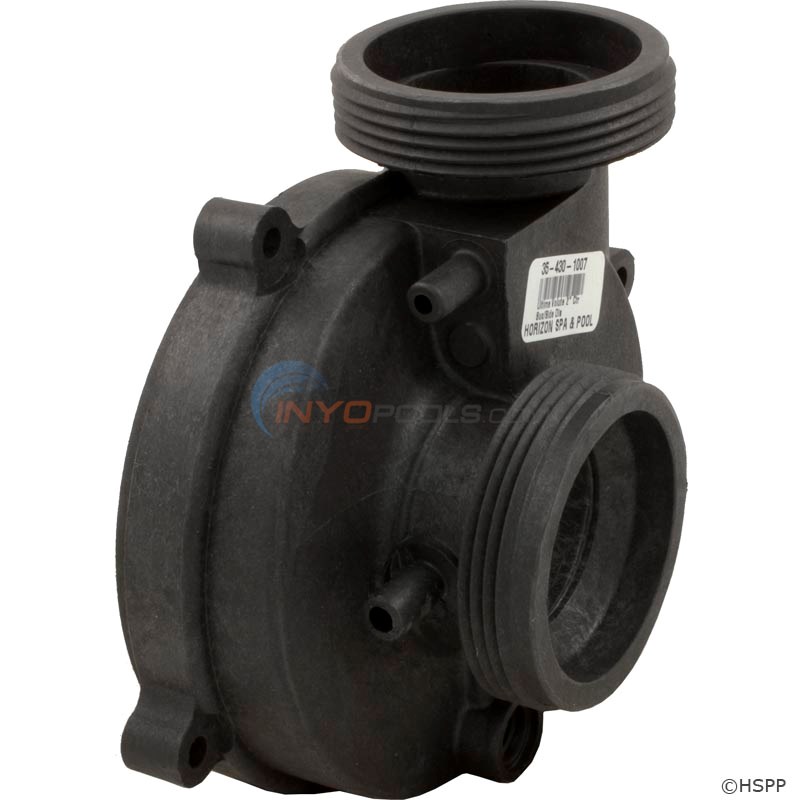

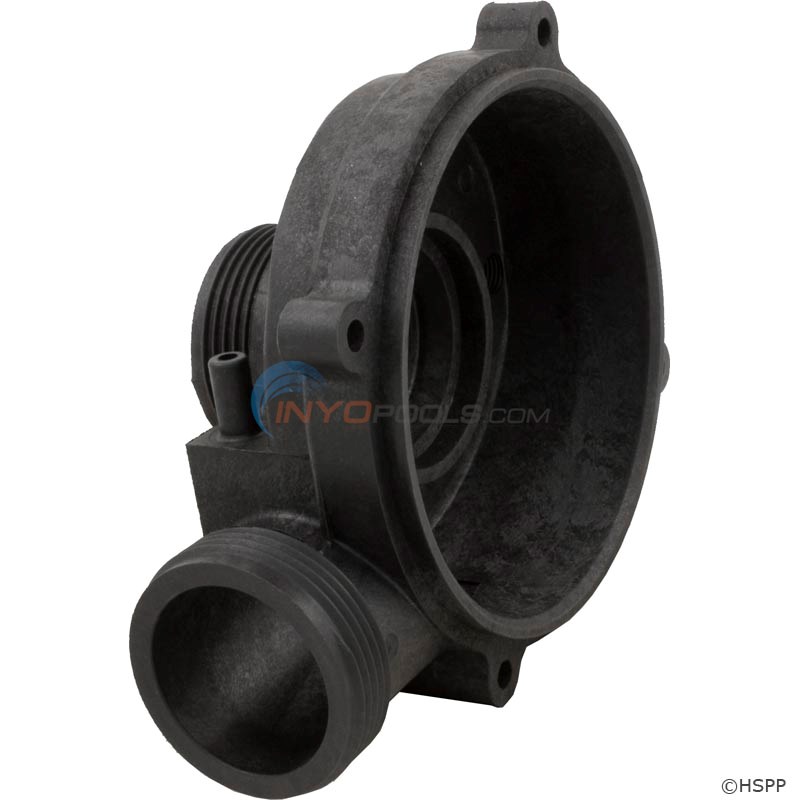

20	ULTIMA VOLUTE FRONT SD/CS 1 1/2" (PPULVFSDCS)

View Parts List

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
3A	ULTIMA VOLUTE BACK (PPULHSVB)
4A	GENERIC SHAFT SEAL
5	O-RING, ULTRA FLO (4654-19)
6	IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)
7A	OBSOLETE VOLUTE BOLT, ¼-20 x 1-5/8”
9	UNION, PUMP, 1-1/2" NUT X 1" TEE
10A	O-RING (226)
11A	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
13	NUT, VOLUTE
14	PLUG, DRAIN 1/4"
15	O-RING
16	PLUG, POLY, 1/4" MPT (3F14)
17*	THREADED ADAPTER ASSY., 1 1/2" X 2" (50100120)
19	VOLUTE (PPULVFTDCS)
20	ULTIMA VOLUTE FRONT SD/CS 1 1/2" (PPULVFSDCS)

Available Parts:

1/2 HP 115V Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP 115V Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 7.2 Frame 48Y

Qty:

3/4 HP 115V Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP 115V Thru Bolt Motor

$193.33 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$192.71 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Qty:

1.5 H.P 230/115V Thru Bolt Motor

Part # BN35V1 Mfg # BN35V1

1.5 H.P 230/115V Thru Bolt Motor

$249.76 IN STOCK

Service Factor 1.0 Voltage 230/115V Max Amps 8.0/16.0 Frame 48Y

Service Factor 1.0 Voltage 230/115V Max Amps 8.0/16.0 Frame 48Y

Qty:

1.5 H.P 115V Thru Bolt Motor

Part # BV35SS

1.5 H.P 115V Thru Bolt Motor

$246.21 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 17.0 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 17.0 Frame 48Y

Qty:

2 HP 230/115V Thru-Bolt Motor

Part # BN40SS Mfg # BN40SS

2 HP 230/115V Thru-Bolt Motor

$250.11 IN STOCK

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Thru Bolt Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Thru Bolt Motor

$218.00 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Thru Bolt Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Thru Bolt Motor

$308.28 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 16.4/4.4 Frame 48Y

Qty:

1 1/2 HP 2 Speed 230V Thru Bolt Motor

Part # BN34 Mfg # BN34V1

1 1/2 HP 2 Speed 230V Thru Bolt Motor

$300.60 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 8.0/2.6 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 8.0/2.6 Frame 48Y

Qty:

2 HP 2 Speed 230V Thru Bolt Motor

Part # BN51 Mfg # BN51

2 HP 2 Speed 230V Thru Bolt Motor

$343.25 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN38 Mfg # BN37V1

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

$262.00 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 10.3/3.1 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 10.3/3.1 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN60 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Low Amps Thru Bolt Motor

$296.24 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Qty:

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN61 Mfg # BN61

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

$340.32 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Qty:

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN62 Mfg # BN62

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

$361.79 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Qty:

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN63 Mfg # BN63

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

$392.94

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

ULTIMA VOLUTE BACK (PPULHSVB)

Part # 5190-039 Mfg # 1211008

ULTIMA VOLUTE BACK (PPULHSVB)

$44.77

ULTIMA VOLUTE BACK - WIDE (PPULVBW)

Part # 5190-041 Mfg # 1211009

ULTIMA VOLUTE BACK - WIDE (PPULVBW)

$42.64 IN STOCK

Qty:

GENERIC SHAFT SEAL

Part # 5190-016 Mfg # 1213003

GENERIC SHAFT SEAL

$13.84 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-260 Mfg # PS-3870

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$18.38 IN STOCK

Qty:

4C

OBSOLETE HEAT SINK BOOT, RUBBER

Mfg # PPUFHSBOOTVITON

OBSOLETE HEAT SINK BOOT, RUBBER

NOT AVAILABLE

ULTRA FLO HEAT SINK (PLASTIC CUP) (PPUFHEATSINK)

Part # 5190-029 Mfg # 1218001

ULTRA FLO HEAT SINK (PLASTIC CUP) (PPUFHEATSINK)

$18.11

O-RING, ULTRA FLO (4654-19)

Part # 5190-033 Mfg # O-329

O-RING, ULTRA FLO (4654-19)

$13.47 IN STOCK

Qty:

IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)

Part # 5190-150 Mfg # 1212206

IMPELLER, 1/2 HP, GREEN STRIPE (PPUF5IMP)

$38.38 IN STOCK

Qty:

IMPELLER, 3/4 HP, NO STRIPE (PPUF7IMP)

Part # 5190-151 Mfg # 1212207

IMPELLER, 3/4 HP, NO STRIPE (PPUF7IMP)

$39.44

IMPELLER, 1 HP, BLACK STRIPE (PPUF1IMP)

Part # 5190-152 Mfg # 1212205

IMPELLER, 1 HP, BLACK STRIPE (PPUF1IMP)

$44.77

IMPELLER, 1.5 HP, RED, GREEN STRIPES (PPUL15IMP)

Part # 5190-035 Mfg # 1212215

IMPELLER, 1.5 HP, RED, GREEN STRIPES (PPUL15IMP)

$50.21

IMPELLER, 2 HP, RED STRIPE (PPUL20IMP)

Part # 5190-036 Mfg # 1212218

IMPELLER, 2 HP, RED STRIPE (PPUL20IMP)

$44.77

IMPELLER, 3 HP, RED, BLACK STRIPES (PPUL3IMP)

Part # 5190-037 Mfg # 1212225

IMPELLER, 3 HP, RED, BLACK STRIPES (PPUL3IMP)

$39.44

IMPELLER,4 HP, BLACK, GREEN, RED STRIPES (PPUL4IMP)

Part # 5190-038 Mfg # 1212221

IMPELLER,4 HP, BLACK, GREEN, RED STRIPES (PPUL4IMP)

$44.77

7A

OBSOLETE VOLUTE BOLT, ¼-20 x 1-5/8”

Mfg # PPSFVBOLT

OBSOLETE VOLUTE BOLT, ¼-20 x 1-5/8”

NOT AVAILABLE

ULTIMA VOLUTE BOLT - LONG

Part # 5190-040 Mfg # PPULVBOLTL

ULTIMA VOLUTE BOLT - LONG

$21.31

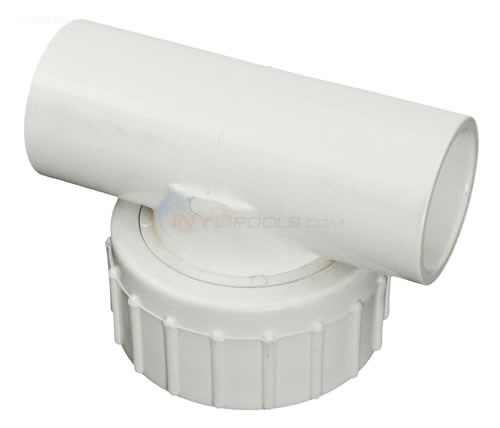

UNION, PUMP, 1-1/2" NUT X 1" TEE

Part # 9175-02B Mfg # 400-4200

UNION, PUMP, 1-1/2" NUT X 1" TEE

$28.77 IN STOCK

Qty:

O-RING (226)

Part # 5056-11 Mfg # O-49

O-RING (226)

$9.77 IN STOCK

Qty:

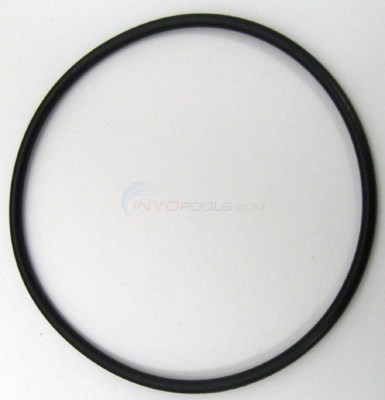

O-RING, 2" UNION (7404-03)

Part # 9170-04CA Mfg # 4600-2320

O-RING, 2" UNION (7404-03)

$11.43 IN STOCK

Qty:

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

Part # 9175-02 Mfg # 0602-15

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

$19.18 IN STOCK

Qty:

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

Part # 9175-03 Mfg # 400-5570B

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

$8.52 IN STOCK

Qty:

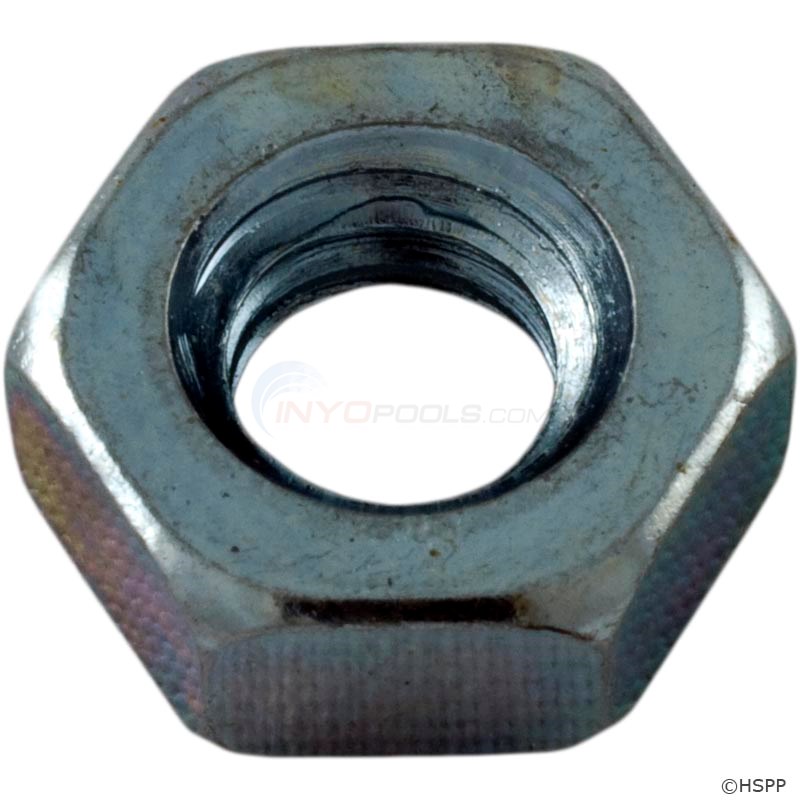

NUT, VOLUTE

Part # 5190-019 Mfg # PPSFVNUT

NUT, VOLUTE

$11.71 IN STOCK

Qty:

PLUG, DRAIN 1/4"

Part # 4600-4699 Mfg # 154699

PLUG, DRAIN 1/4"

$10.66 IN STOCK

Qty:

O-RING

Part # 3250-F07 Mfg # 014

O-RING

$6.41 IN STOCK

Qty:

PLUG, POLY, 1/4" MPT (3F14)

Part # 6761-0 Mfg # SPX1700FG

PLUG, POLY, 1/4" MPT (3F14)

$11.81 IN STOCK

Qty:

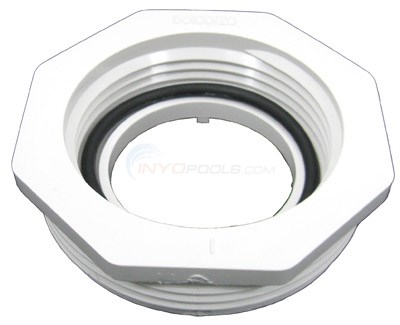

THREADED ADAPTER ASSY., 1 1/2" X 2" (50100120)

Part # 5124-17 Mfg # 50100130

THREADED ADAPTER ASSY., 1 1/2" X 2" (50100120)

$22.37 IN STOCK

Qty:

VOLUTE (PPULVFTDCS)

Part # 5190-153 Mfg # 1210016

VOLUTE (PPULVFTDCS)

$35.16

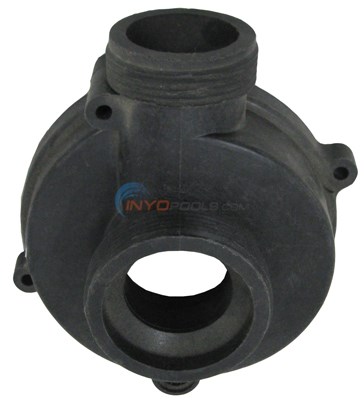

ULTIMA VOLUTE FRONT TD 1 1/2" X CS 2" (PPULVFTDCS15/2)

Part # 5190-047

ULTIMA VOLUTE FRONT TD 1 1/2" X CS 2" (PPULVFTDCS15/2)

$79.95

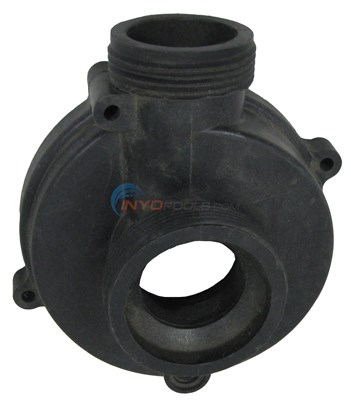

2” CENTER DISCH; 1-1/2” CENTER SUCT

Part # 5190-154 Mfg # PPULVFTDCS2/15

2” CENTER DISCH; 1-1/2” CENTER SUCT

$72.49

19

OBSOLETE 2” CENTER DISCH

Mfg # PPULVFTDCS2/2

OBSOLETE 2” CENTER DISCH

NOT AVAILABLE

ULTIMA VOLUTE FRONT SD/CS 1 1/2" (PPULVFSDCS)

Part # 5190-042 Mfg # 1210017

ULTIMA VOLUTE FRONT SD/CS 1 1/2" (PPULVFSDCS)

$35.16 IN STOCK

Qty:

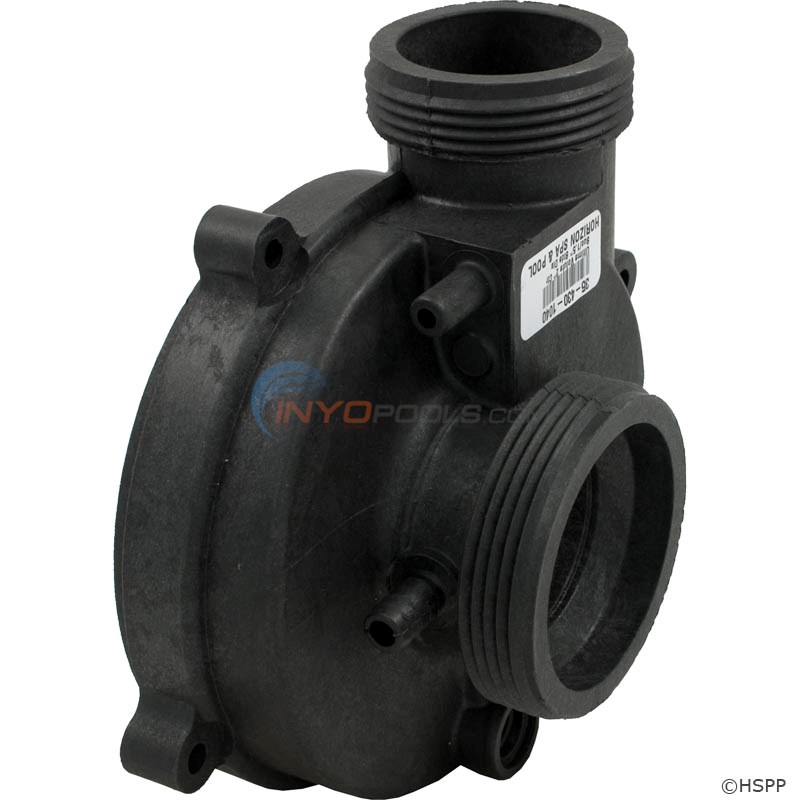

ULTIMA VOLUTE FRONT SD 1 1/2" X CS 2" (PPULVFSDCS15/2)

Part # 5190-043 Mfg # 1210015

ULTIMA VOLUTE FRONT SD 1 1/2" X CS 2" (PPULVFSDCS15/2)

$35.16

20

OBSOLETE 2” SIDE DISCH

Mfg # PPULVFSDCS2/15

OBSOLETE 2” SIDE DISCH

NOT AVAILABLE

ULTIMA VOLUTE FRONT SD 2" X CS 2" (PPULVFSDCS2/2)

Part # 5190-044 Mfg # 1210014

ULTIMA VOLUTE FRONT SD 2" X CS 2" (PPULVFSDCS2/2)

$35.16

20

OBSOLETE WIDE FRONT, 2" SIDE DISCH

Mfg # PPULVFSDCS2/2W

OBSOLETE WIDE FRONT, 2" SIDE DISCH

NOT AVAILABLE

IMPELLER STRIPES ARE LISTED IN ORDER FROM THE MOTOR END
* SCREWS ONTO 1 1/2” UNION THREADS TO CONVERT THEM TO 2” THREADS. INCLUDES O-RING
KEYS 19 & 20 ARE VOLUTE FRONTS
