Can the light be changed without draining the pool?
Reply
Yes you can replace the bulb in your pool light with this LED bulb without needing to drain your pool water. You will first need to turn off power to the pool light at your breaker then go to the pool light and remove the pilot screw which is located on the face ring of your light. Once the pilot screw is removed this will allow you to bring your entire light fixture up on to your pool deck where you can then replace the bulb. The replacing of the bulb is as simple as unscrewing the old bulb and screwing in the new bulb. I would also suggest replacing your lights lens gasket when replacing the bulb, the two most popular would be the Hayward Astrolite Lens Gasket and the Pentair Amerlite Lens Gasket. We also have a great Video on How to Replace a Swimming Pool Light Bulb which will walk you through the process.
Reply
is there a remote control to stop the changing colors or does it cycle the different colors constantly?
Reply
The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
Reply
Can the light be stopped on one particular color? I tried downloading the owners manual and there seems to be a bad link
Reply
Yes the light can be stopped on a color there are 7 fixed colors white, red, green, blue, gold, cyan and violet. You would cycle to the fixed colors by flipping your pool light switch relatively quickly. In addition to the fixed colors there are 9 color shows..... Evening Sea (slow animation of blue and red), Evening rivers (slow animation of green and red), Riviera (slow animation of blue and green, Rainbow (slow animation of all colors), River of Colors (slow animation of all colors followed by Four Seasons), Disco (fast animation followed by Rainbow) and Party (Fast animation followed by River of Colors).
Reply
What is the correct wattage for lighting equivelent to the existing 12V 300W bulb?
Reply
Hi Dane, I would suggest the 12V 35 Watt Pure Colors LED Pool Bulb as an equivalent replacement to a 12V 300 Watt Bulb.
Reply
What size is the base ? I need a replacement for a halogen mini candelabra style
bulb.
Reply
Hi Steve, This bulb has an R40 base. Unfortunately there is no LED bulb that can work with a fixture that uses a mini candelabra style bulb.
Reply
I currently have a 500 watt bulb is one of your LED equiv. to that brightness
Reply
Hi Bob, this is more in the range of the brightness of a 300 or 400 W bulb so it will be a little less bright than your 500 W bulb
Reply

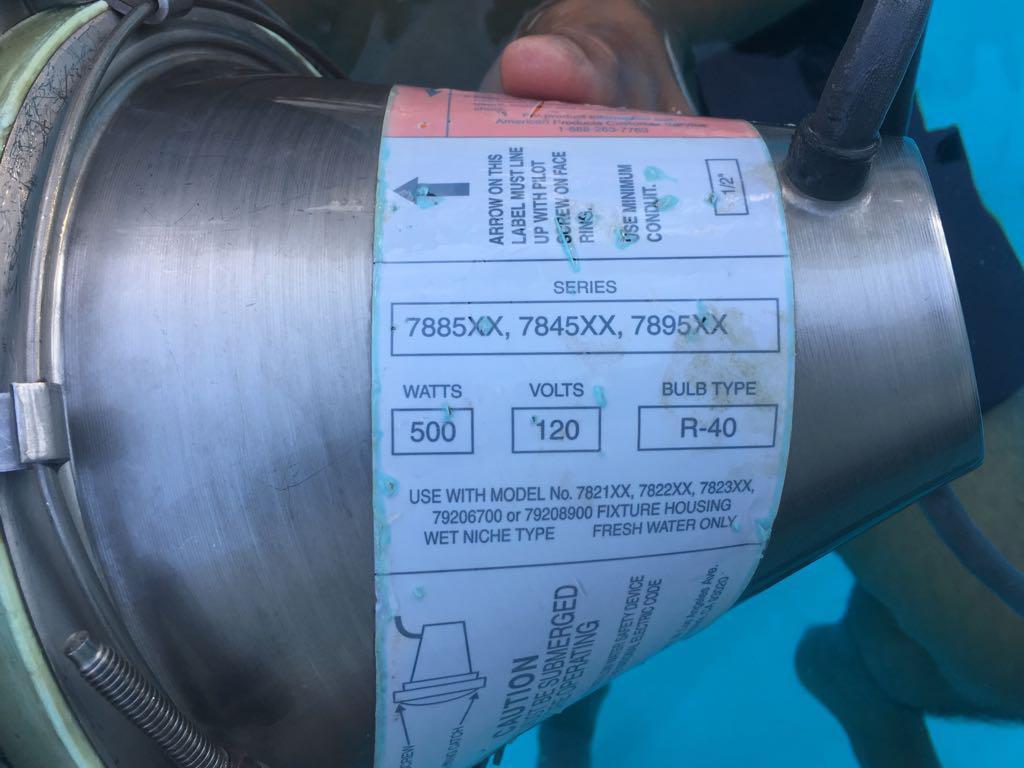

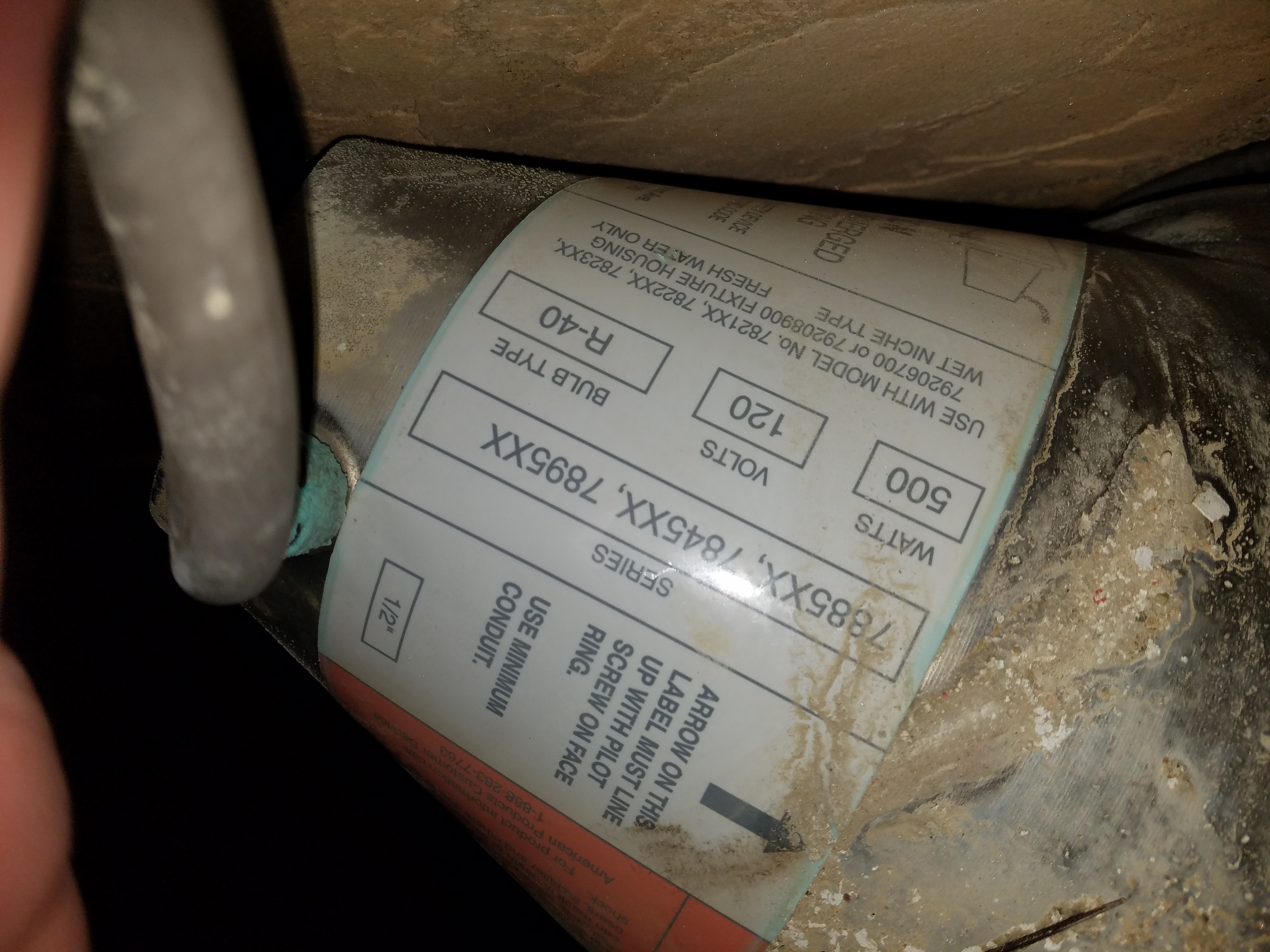

I have American products in ground pool light series 7885xx,7845xx,7895xx 500watt 120 volt R-40 bulb type.
Would this led pool bulb be compatible with this American products housing?
Reply
Hi David, Yes this LED replacement bulb is compatible with the American Product AmerLite 7885xx,7845xx,7895xx 500watt 120 volt R-40 bulb type.
Reply
Can these lights be used to cycle colors when used on a timer and if you can when the timer goes off and turns back on will it be the color you had it on previously or will it change.
Reply
Yes the Pure Colors Bulb can be used to cycle colors with a timer and it does have memory so if the light is turned off for more than 20 seconds then the next time the light is turned on the light will remember the last color show it was on.
Reply
I believe I have an amerilite pool light bur how would I know for sure? Also how would I know if it's 12V or 120V? Thanks You!
Reply
The best bet would be to remove the light fixture from the niche in the wall of the pool. To do this you will turn off the breaker to the light then get in the swimming pool and remove the pilot screw at the top of the light face ring. This will then free the light from the wall of the pool and you can bring the light fixture up onto your deck. There should be a label on the light housing which will give you the manufacture and model # of your light. If this information has worn off then you can check your dimensions against the Pentair Amerilite Dimensions or the Hayward Astrolite Dimensions and if they match up then this bulb will fit. The voltage information should be on the light housing but if it has worn off then you can remove the bulb from inside the light fixture and the voltage information should be right on the light bulb.
Reply
Will this pool light fit and work in an Anthony pool light fixture? The Anthony pool light an existing 500 watt 120 volt lamp.
Reply
Hi Ken, Yes the Pure Colors LED Bulb will fit in an old Anthony Light Fixture.
Reply
I have a PAC-FAB 500 Watt Light Fixture will this bulb Fit
What is the correct replacement bulb in LED
Reply
Hi Dan, We have yet to confirm or deny that the PL5809 Pure Colors will work on a Pac Fab light housing. If you would like to be our guinea pig then if it does not work then we will issue a full credit and pay for the shipping back to us.
Reply
I am interested in this product. Is it controllable by the Pentair Easytouch system's built in light show controls? Or is that proprietary to Intellibrite lights?
Reply
Hi Mike, The light can be controlled by the EasyTouch by powering the light on and / off you cycle through the colors. The built in light show controls are just for the Pentair Lights so those shows do not correspond to the Pure Colors light.
Reply

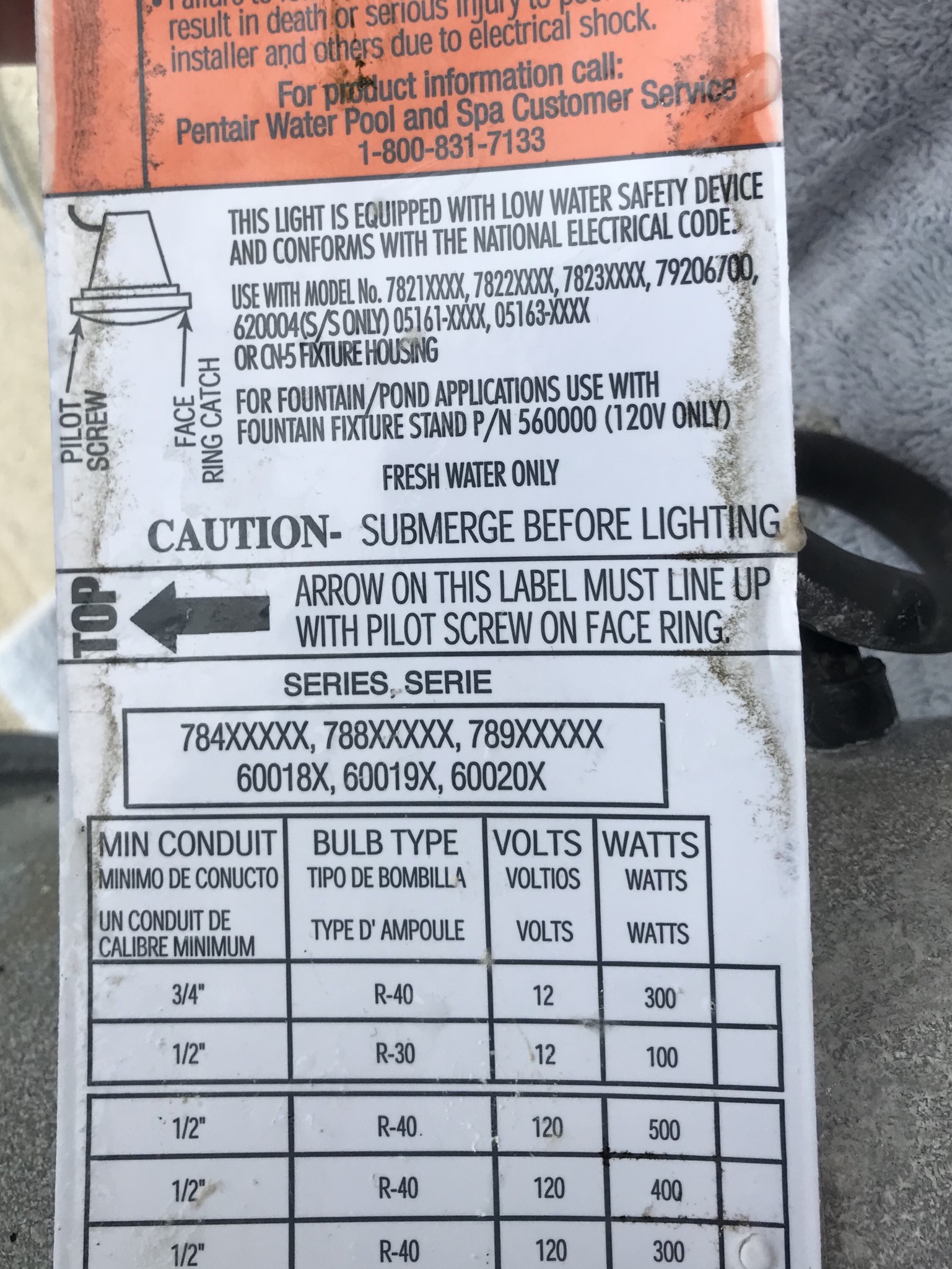

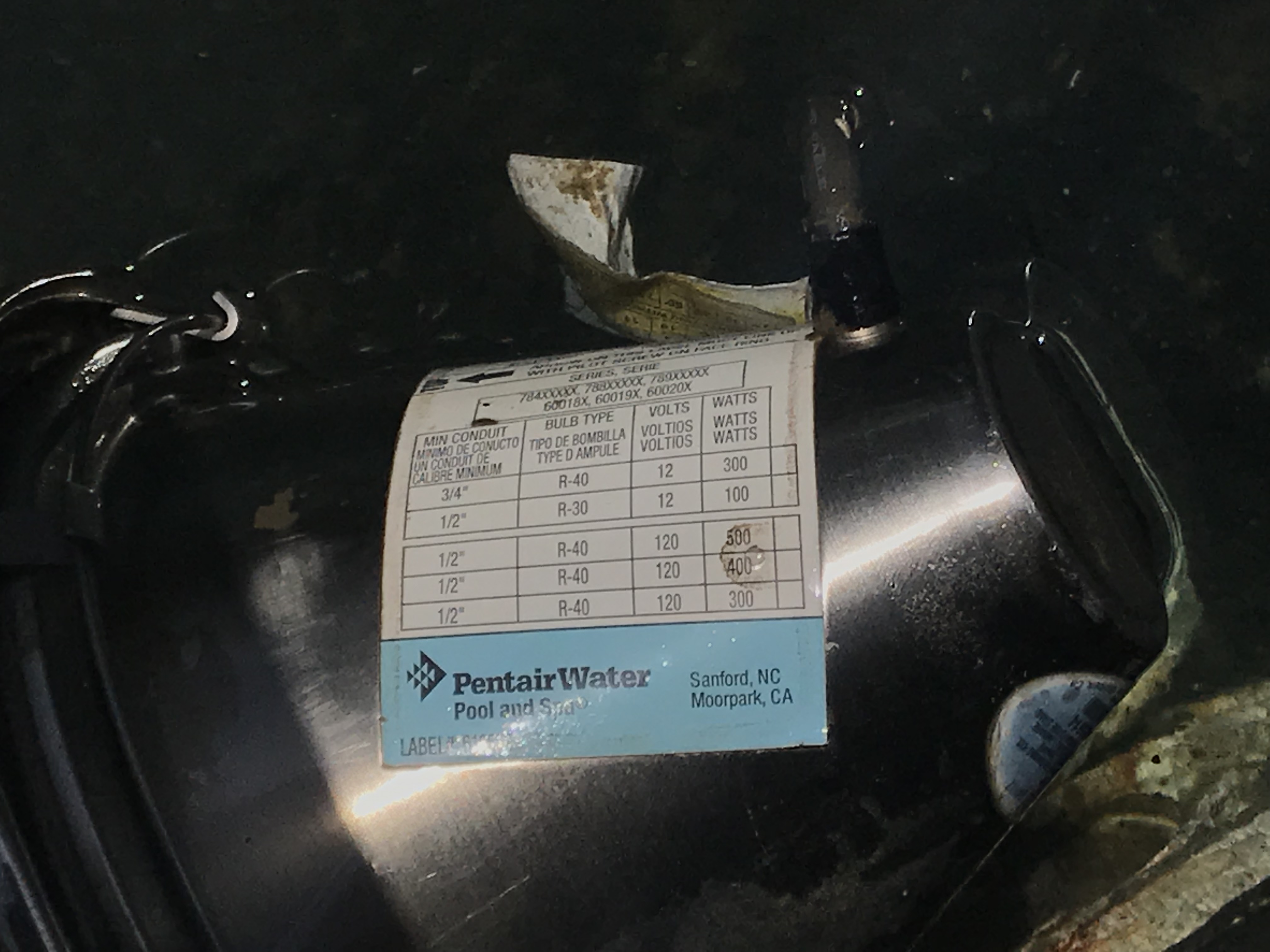

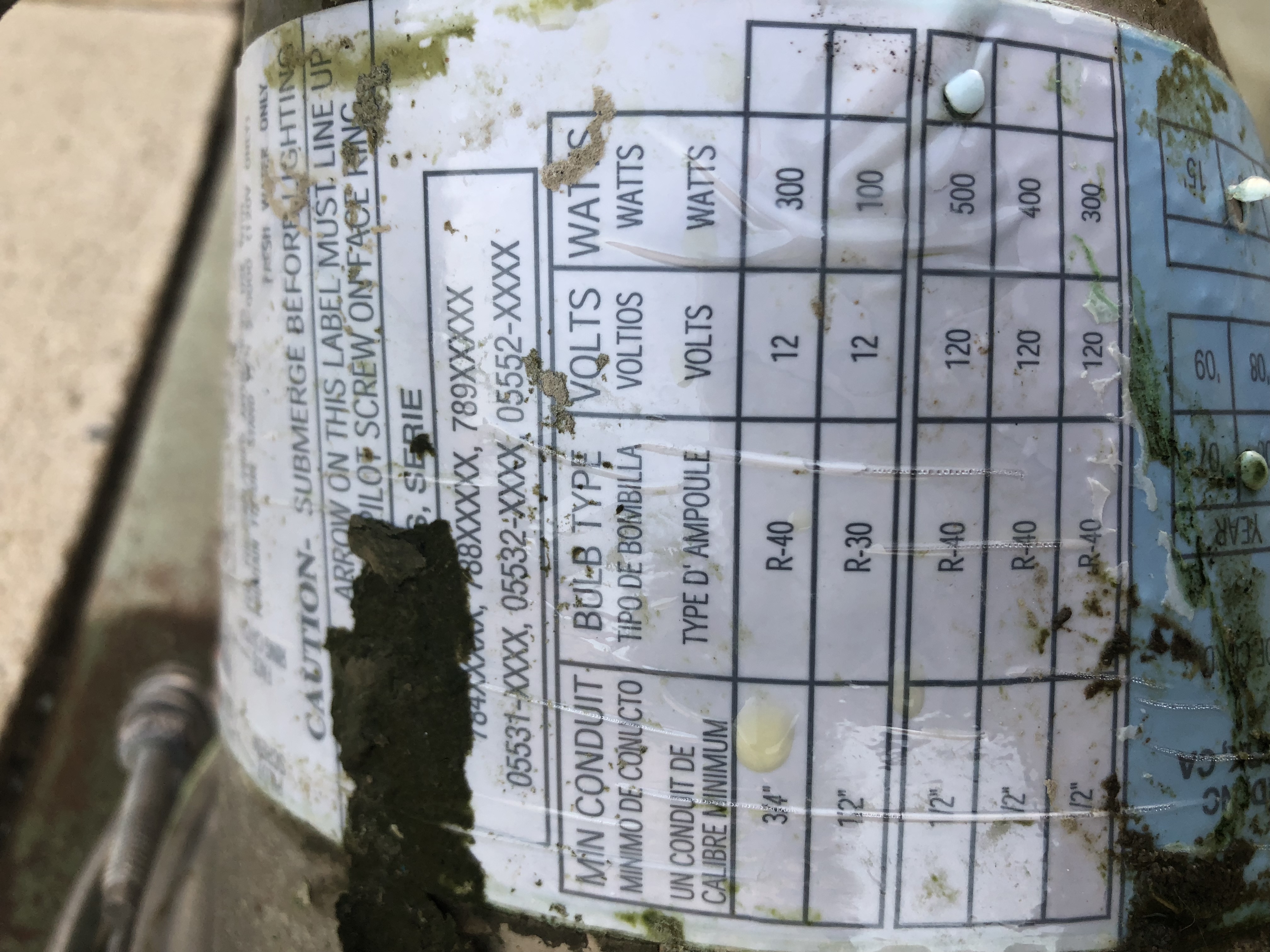

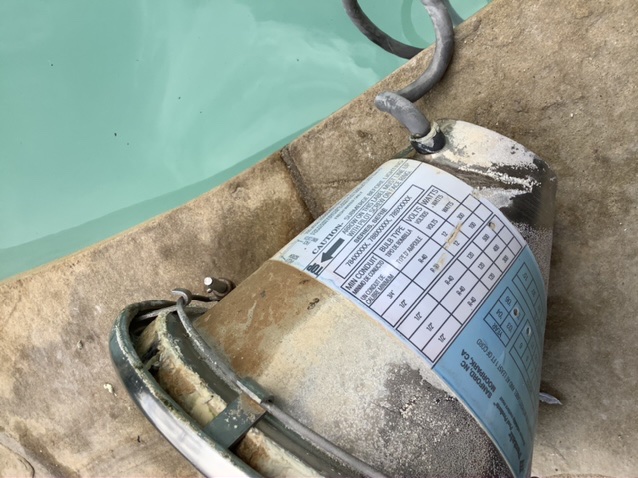

The label on my pool light reads series 784XXXXX, 788XXXXX, 789XXXXX, 60018X, 60019X, 60020X.IT is a 120V 400 Watt unit with an R-40 Bulb Type. There is another label that lists No. AC-794985. Will this LED bulb work with my fixture and will it be equivalent in brightness?
Reply
Hi Kirk, Yes this bulb would be the correct replacement bulb for your Pentair Amerlite series with the part #'s you referenced. We would also suggest a Pentair Amerlite Lens Gasket when replacing your bulb.
Reply
Hello, I have two Sta-Rite Sunglow in ground pool lights that use the 120 volt, 500 watt, R40 bulb. The light model is # 05532 and/or #05552-xxxx. Will these LED bulbs work in my fixtures?
Reply
Hi Randy, This bulb will not work with the Sta-Rite Sunglow light fixture.
Reply
Hello, I Have Sta- Rite Sunglow lights in my pool. Are there any LED replacement bulbs that will work with these fixtures. They currently use 120v, 500 watt R40 bulbs.
Reply
Hi Randy, This bulb is not compatible with the Sunglow light fixture.
Reply
I have a 12 year old Hayward Astrolite pool light; SP-583L 120V. I am looking at replacing with an LED J & J Color Splash or the Pureline Color LED listed on your web. Are they compatible as a replacement bulb with my Hayward light? If not, what would you recommend? Thanks Paul
Reply
Either one of those LED color changing lights will fit your astrolite.
Reply
Hello,
I have an old Swimquip underground pool (kidneybean shape with concrete bottom and fiberglass sides).
The opening for a bulb is only 5.5 inches. I would like a color changing bulb but is cannot go over BR40 in size. Any suggestions?
Thank you,
Adam Erickson
Reply
Hi Adam, The only LED Bulb available for the Swimquip light is the White LED SwimQuip Bulb here.
Reply
We have an Amerlite - Pentair pool light and need a new bulb. The lighting brochure from 2006 when it was installed gives replacement part numbers for the gasket (79101600) and the screw-in-base bulb (79102100 Floodlamp medium base 500 watt, 130 volt OR 79102200 Floodlamp, medium base 400 watt, 120 volt).
Reply
Hi Kam, This LED bulb would work as replacement in your light fixture, we would also suggest replacing your Amerlite Gasket when replacing your bulb.
Reply

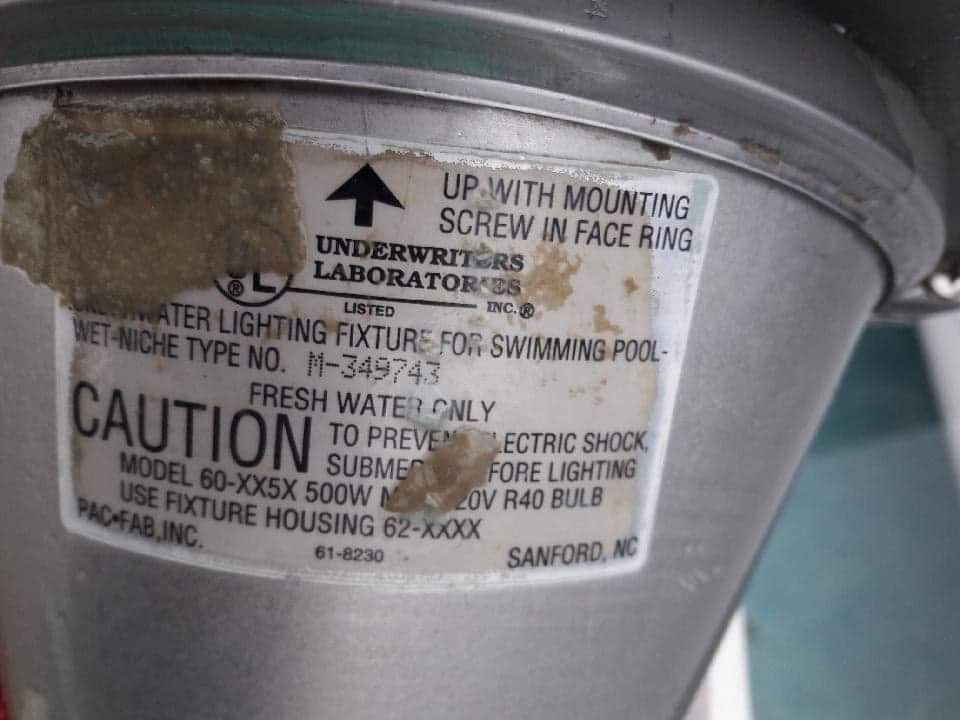

A few months ago I asked if this bulb PL5809 would fit my Pac-Fab pool light
YES it fits and works great .
Thanks Dan
Reply
Dan, Thanks so much for reporting back, I just had a customer call yesterday about a Pac-Fab light and this bulb. We now know the answer!
Reply
How many LED lights are there on this bulb?
Reply
Unfortunately we do not have access to the exact number of LED's on the bulb, and my counting skills are good, but I lost count. The picture of the face of the bulb shows that there are a large number of LED's on this bulb. My closest estimation is approximately 500-600+ LED's.
Reply
Do I need the controller or will it still run through a color sequence on its own?
Reply
The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
Reply
will the light fit Zodiac wphv500wp100 light fixture
Reply
Yes, the LED Pool Bulb Color Changing 120V 35W - PL5809 is compatible with the Large White Light, 120V, 500W, Plastic, 100 Ft. - WPHV500WP100. Please remember to replace the Silicone Lens Gasket - R0451100 used on the Jandy Incandescent White Light, click here to view the schematic. The Bulb, 12v 100w Flood (br30cl100/12v) is not able to use the PL5809.
Reply
The description says it is compatible with Pentair 784 models. My lamp says model number 78949100. Will this bulb work?
Reply
Hello, This PL5809 is an LED and will work, please check whether you have a 12v or a 120v. Light may not function properly with incorrect volts/watts
Reply
I have DuraLite Replacement Light 100W, 12V, 50' Cord. that I purchased through you. Will this LED pool light work with what I have now?
Thank you
Cullen
Reply
Hello, Cullen. No, the LED Pool Bulb Color Changing 120V 35W - PL5809 is not compatible with the Hayward DuraLite product line. The DuraLite only offer the Lens Kit, Selecta-color Wg (SP0580L) as the alternative to color. Please make sure you order the correct voltage. The Universal ColorLogic Pool Light 12V 50' Cord - LPCUS11050 is an another alternative that you may be interested in viewing.
Reply
I have the Hayward SP-607 fixture housing and the SP-580 bulb. Can I replace with this LED light? Also do you recommend changing the lens gasket when replacing bulb. Do you sell gasket?
Reply
Hi, Yes if you have the Hayward SP-607 Niche then this is the bulb for you, as long as your voltage is 120V. Yes we highly reccomend the Hayward Lens Gasket when replacing your bulb.
Reply
Hi! I currently have an old incandescent light fixture (guessing Hayward 300-watt equivalent)
Will this bulb be adequate for what I need as far as brightness? Also, my existing light is controlled by a single switch. Do I need to purchase anything additional for this or does it automatically have a rotation of colors along with some light show? Please advise, thanks so much!
Reply

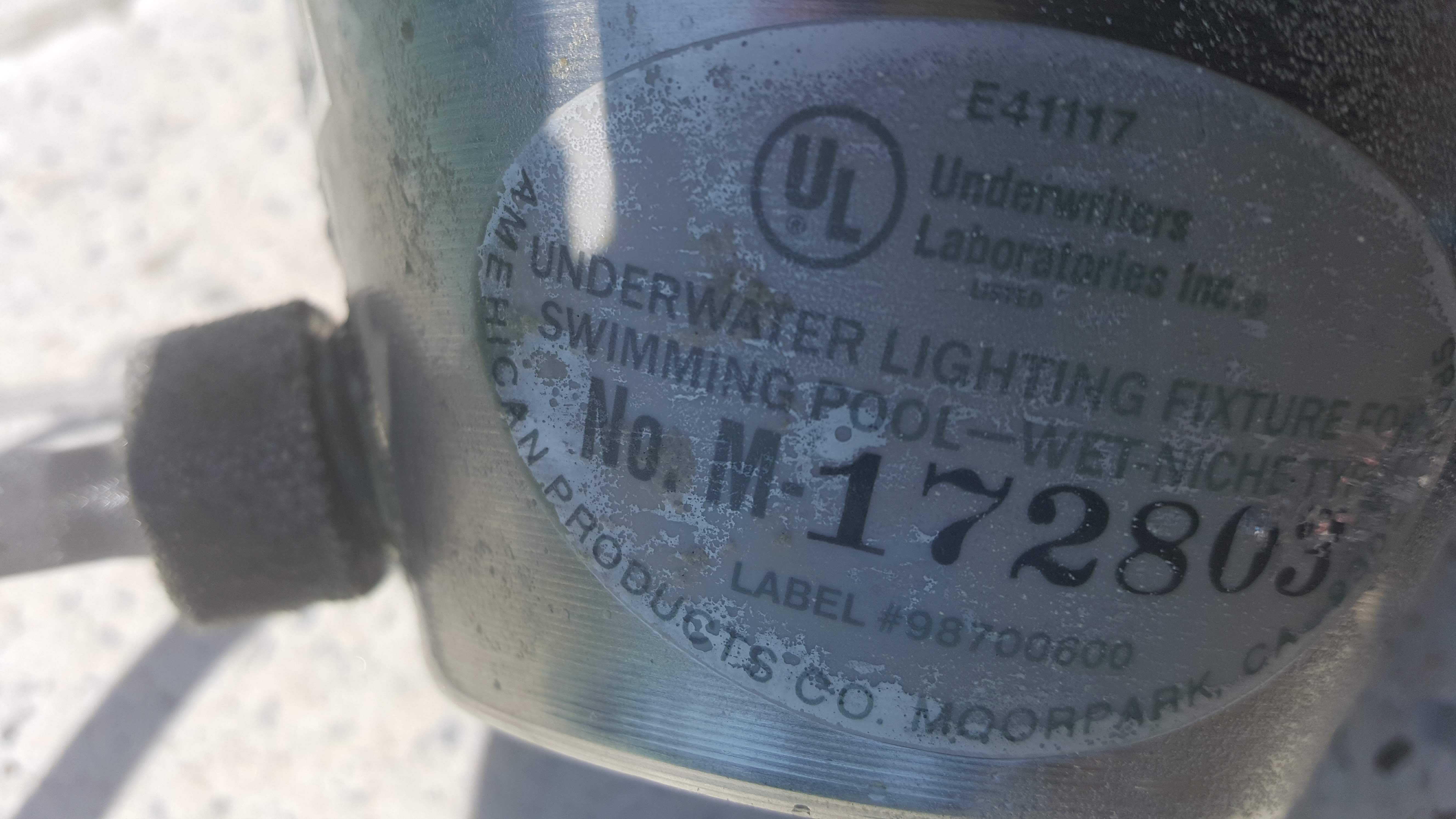

I have an Amerlite (American Products) underwater pool light Model # R-400 BC , 120 volt, 400wt, bulb type G30. The light niche was installed when the pool was built in 1985. Do you have an led bulb and gasket available? Thanks!
Reply
Hi Ronald, This would be the correct LED Replacement Bulb for your Amerlite (American Products) 120V 400 Watt fixture.
Reply
Can you tell me which color changing LED bulbs would be compatable with my Hayward SP-583-L, 500 watt, 120 volt housing. I was also advised that switching to a 12 volt system is preferable. Any information regarding that would be helpful.
Reply
PL5809 is the color changing LED bulb that will replace your current bulb and part number 3550-24 is the lens gasket you need to replace when replacing the bulb.
Reply
I currently have a Jacuzzi Full Moon Light Assembly in my Inground Pool. It was originally installed in the pool in 2002. The Jacuzzi Color Changing Bulb was replaced 3 years ago with a white flood light bulb. I am replacing the liner this year in May or June, so I want to replace the light bulb as well. Is your LED Pool Bulb Color Changing 120V 35W - PL5809 compatible? Also Part # 3560-003 (O ring) should probably be replaced also. Correct part ? Anything else I should be concerned with?
Reply
The PL5809 and 3560-003 will be the only parts needed to replace when changing that bulb.
Reply
I have a 120v Hayward DuraNiche SPO600U housing. Would this bulb work in this housing and would this be the brightest option?
Reply
Hi. This bulb requires a fixture. If you have the Hayward Astrolite 580 Series then you can use this bulb.
Reply
I realized I provided the housing info which you don't need for the bulb replacement, the fixture is a Jandy WPHV500WS30, checking that this bulb will work in this and that this is the brightest option.
Reply
Hi, This bulb is not compatible with the WPHV500WS30 fixture.
Reply
I am considering buying the 120v 35w as a replacement bulb for my Hayward Astrolite. My current bulb 300 watts seems to turn off every half hour as if it is overheating and than comes back on 20 minutes later. The GFI switch does not trip so I don't think anything is getting wet. Does the lower wattage mean it will produce less heat and consume less power? thank you
Reply
Hi Mike the lower wattage does mean that it produces less heat, the light also draws less amps meaning it costs less to operate. The issues you describe are common with needing to replace the complete light fixture.
Reply

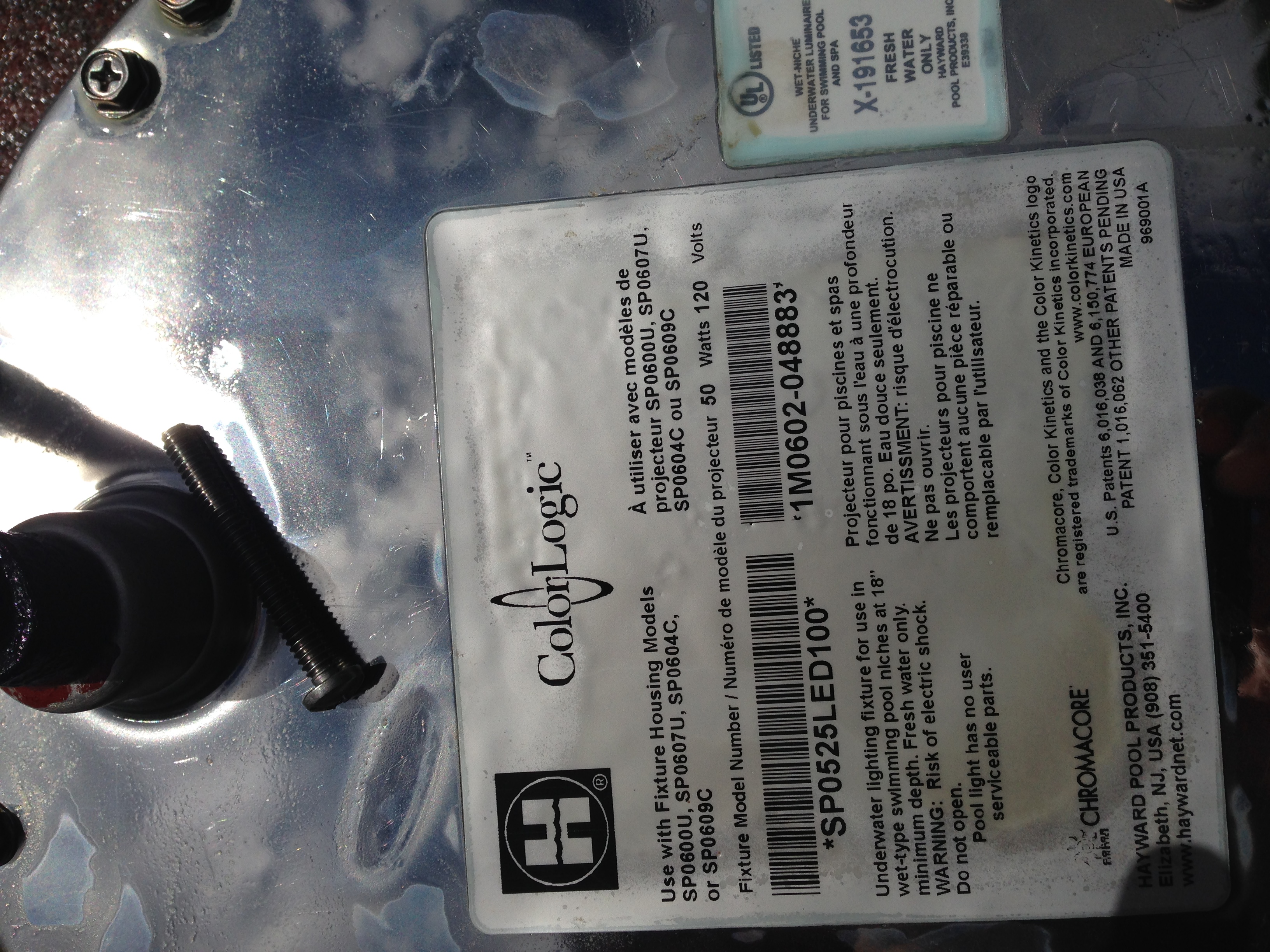

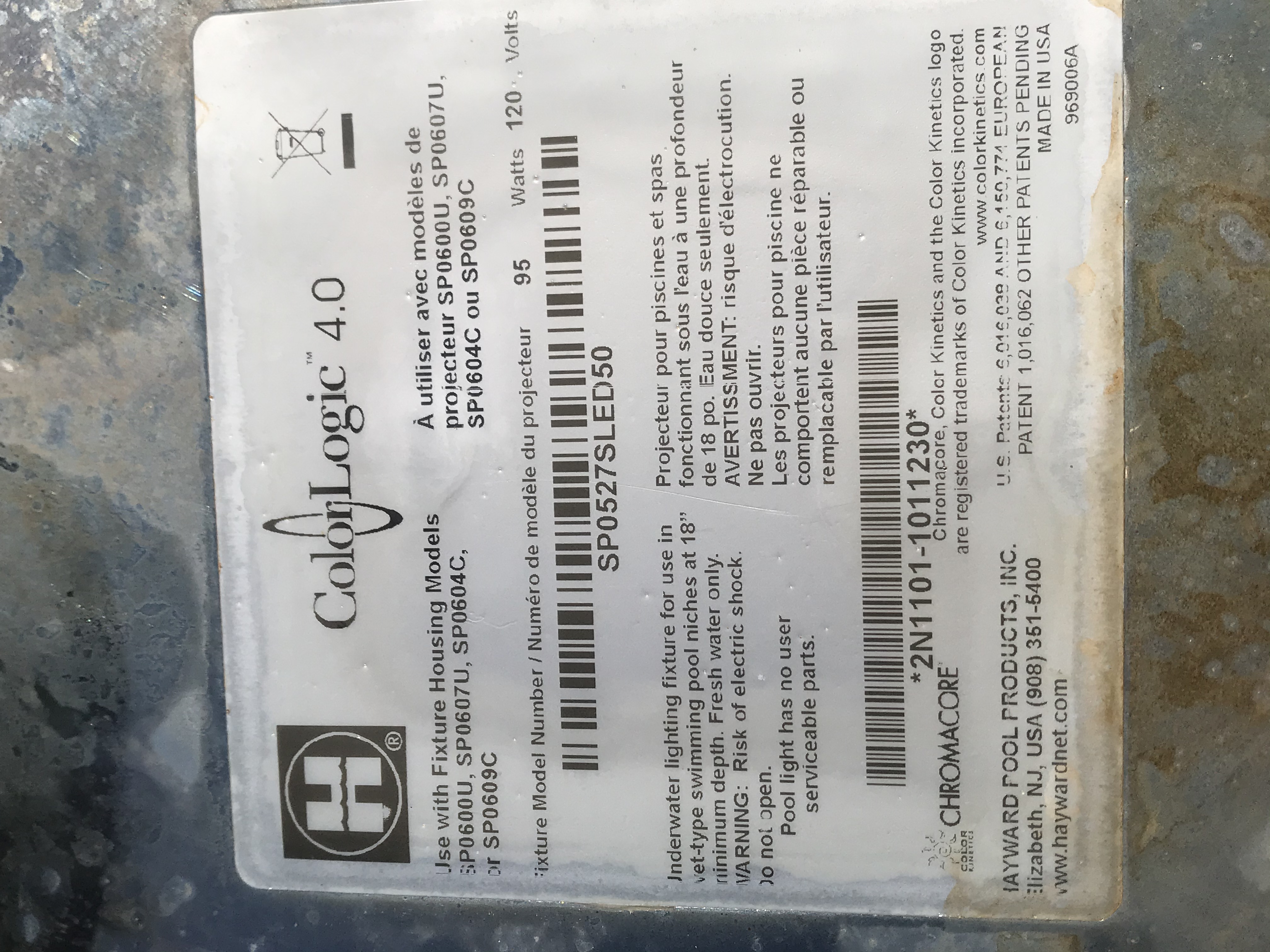

I currently have a 120v color logic light (50' cable) that failed. It seems like replacing it with a fixture and replacement bulb is much more cost effective than another color logic. Can you recommend a fixture that would fit in the niche and the brightest color led bulb? Is it possible to buy the fixture without the incandescent bulb? How hard is it to successfully reseal the fixture after changing the bulb? Thanks!
Reply
Hi JT, Unfortunately, the ColorLogic does not have a replaceable bulb and this is one of the things I don't like about that light. I would suggest replacing the complete light fixture with the PureLine PureColors 120V Light Fixture w/ 50' Cord the PureColors does have a replaceable bulb so if the light bulb ever goes out you don't have to replace the complete fixture. The PureColors light fixture will fit in your Hayward Niche. If you have multiple lights then I would suggest replacing them all with the PureColors so they synchronize together. Here is a Video on How to Replace a Pool Light Fixture and here is a Video on How to Replace a LED Pool Bulb.
Reply
Does this bulb work with a Hayward SP-582-SL fixture?
Reply
Hi, Richard. This PL5809 bulb is compatible with the Hayward SP-582-SL fixture. You'll also need the Hayward Astrolite Lens Gasket SPX0580Z2.
Reply
do the LED color changing light also need the controller
Reply
Hi Billy, No a seperate controller is not needed. The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
Reply
Is this bulb compatible with the Pac-Fab Hatteras? If so, which gasket do you suggest I use with it?
Reply
Hi Doug, for the Pac-Fab Hatteras you would need to replace the complete light fixture with the one of these PureLine PureColors LED Stainless Steel Light Fixtures. The complete PureColors Light Fixture will fit into your Hatteras light niche but the replacement bulb by itself will not fit into the Hatteras Light Fixture.
Reply
will that bulb fit a Model #R-500 BC 500 Watts 120 volts R-40 Bulb
Reply
Hi Scot, This bulb does replace a R-500 BC 500 Watts 120 volts R-40 Bulb. However to be 100% sure that the PL5809 LED Bulb will fit in your light housing it would be best for you to reply to this email with some photos of your light fixture including the label where the cord attaches to the fixture, to send the photos simply reply to this email or you may email them to upload@inyopools.com
Reply
can I use this light to replace Heyward color logic?
Reply
Hi, Will. This Pureline Bulb will not fit into the ColorLogic fixture. If you have a compatible niche you can use the Hayward Astrolite fixture with this bulb.
Reply
how do i determine what type of pool light that I have. I can't find any markings on the light.
Reply
Normally where the cord meets the back of the light housing there will be a label with the light information. Also if you a trying to determine your voltage or wattage this information can be found on the face of your light bulb. You can also email us photos to upload@inyopools.com and we can try to help.
Reply
We have the Jandy Aqualink system as our pool system controller with all functions controlled via wifi/Internet and our smart phones. No remote control, no wall control and no light switch. The Manual posted online says you must turn the lights on and off within 2 seconds to cycle through the modes and colors. Using the Aqualink system, there is a slight delay in getting commands to the system - hard to say if longer then 2 seconds. Will these lights cycle properly for us?
Reply
Hi, Shawn. If there is a delay then that can pose an issue with controlling this bulb.
Reply
Looking for a light similar to this one but ONLY in BLUE. I DO NOT WANT ALL THE OTHER COLORS. Do you know if these lights are manufactured in a single Color only?
Reply
Hi, Jim. Unfortunately, Inyo does not have these bulb available in a single color.
Reply
Does this bulb have 3G LEDs? How does this one compare to J&J Colorsplash?
Reply
Jeff, "3G" is a version of the J&J Colorsplash. Both lights are LED lights that can change colors. Both lights are also very bright.
Reply
I have a Hayward SP-540-Z1 inground pool light with the standard flood light bulb. I am looking to possibly upgrade to an LED bulb and need to know if this bulb will work?
Reply
Brian, The part number you provided for the lens of your light can fit 4 different lights. We will need to know which light you have as well as what voltage you have in order to recommend a replacement bulb.
Reply

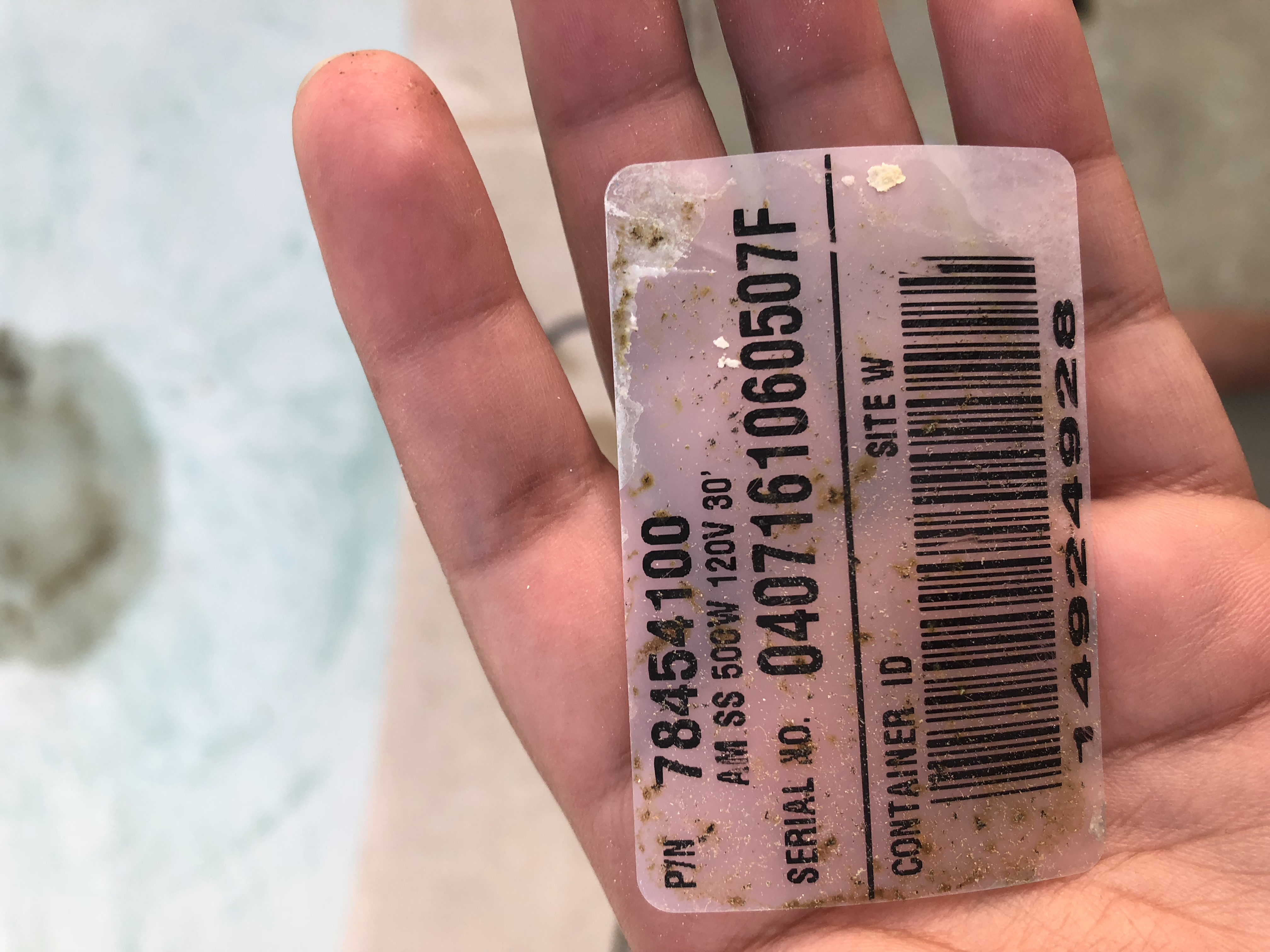

will this light fit in a pentair amerilite 78458100 fixture
Reply
Hello, The Pentair 78458100 is a 120v, 500w light. This PureColors bulb will be the correct bulb. Be sure to change the gasket when you change the bulb.
Reply
WILL THIS LIGHT WORK WITH HAYWARD ASTROLITE SP-580 SERIES MODEL# 583SL 115V 500W .
Reply
Hi, Russell. Yes, this PL5809 LED bulb will work with the Hayward SP583SL pool light fixture. You will also need to replace the Astrolite Lens Gasket - SPX0580Z2.
Reply
I have a pool built in 1974. The aluminum light ring says "Amerlite" Made in N. Hollywood CA. The inside diametter of the ring is 7.5". The gasket is ID 7.5 with OD 8.5. Will this light work with my housing? How about the gasket?
Reply
Hi, Ken. This Bulb is compatible with the Amerlite Fixtures. The replacement Lens Gasket are listed on the Pentair Amerlite Pool Light Parts Diagram page.
Reply
Will this fit for Jandy : PLNICLRG Pentair:620004, 78210200 through 700, Hayward DuraNiche: SPO600U Sta-Rite: 05161-2352 thru 2369? I have no idea how to replace mine.
Thank you
Reply
Hi, Natalie. I will need the actual light fixture model in order to confirm if this LED bulb will fit. This bulb is compatible with the following light fixtures, the Hayward Astrolite SP058 Series and the Pentair Amerlite 784 Series fixtures.
Reply
I'm considering this lamp to purchase but I can't figure out how it works. I've looked at the owners manual and have watched the replacement video along with the product video and there is no demonstration on how to change the programs. How does on actually select the different programs by turning a switch off and on? What's the secret?
Thank you.
Reply
Hi, Chris. This bulb is controlled by the pool light switch. Switching it on/off will cycle through the different colors and shows. Operating instructions are available in the Start-Up section of the PureLine PureColors LED 120V Owners Manual.
Reply
Is this bulb compatible with Hayward SP-573L that uses a Hayward replacement bulb SPX0504Z7? My bulb has an edison fixture. thanks.
Reply
Hi, Tamara. This bulb is not compatible with the SP-573-L fixture. There is not an LED bulb that is compatible.
Reply
How does the control system work for operating. It says control switch. Is there something I need to add to my Hayward control panel? Can two pool lights and a spa light be synchronized?
Reply
Hi, Nick. This bulb is controlled by a pool light switch. You do not need to add anything to your Hayward Controller, turning the lights on/off using your Hayward controller will also control this bulb.
Reply
Will this work with in a Pentair Plastic Niche part #79206700?
Reply
Hi, Brandon. You will need a compatible light fixture like the Pentair Amerlite which will fit into the Pentair Plastic Niche - 79206700.
Reply
Do you carry a color changing bulb toHayward SP0573LN100 DuraLite Pool Light with 100-Foot 500-Watt 120-Volt Cord fit a
Reply
Our pool light is operated by a sensor, will I be able to use this bulb with it. How will it change sequence?
Reply
Hi. Janice. It will depend on what type of sensor. If you do not have a light switch, I would not recommend that you use this bulb.
Reply
I have an old American Products R-400 BCL light whose Phillips 400W bulb's blown. Can I replace it with the 35W LED model listed here?
Many thanks in advance!
Reply
Hi, Paul. You can use this LED Bulb in your old American Products R-400 BCL fixture. You will also need to replace the lens gasket, you can choose from the following options. The OEM - 79101600, Generic - 791016 or Heavy Duty Silicone - LPL-G-P.
Reply
Which led bulb is compatible with the hayward SP0540 series fixture
Reply
Hi Ash, We actually brought in a SP0570 light which should be the same as the SP0540 and the PL5809 did work on the SP0570 so I'm fairly confident the PL5809 will work on the Hayward SP0540 even though our website says the contrary. This PL5811 PureColors 120V LED Bulb will definitely work on the SP0540 but it has a few less LED's so the PL5809 will be brighter. If you want to try the PL5809 and it does not fit then you can return at no charge to you, if you do try the PL5809 then if you could report back to us if it works then that would allow us to help others with this light.
Reply

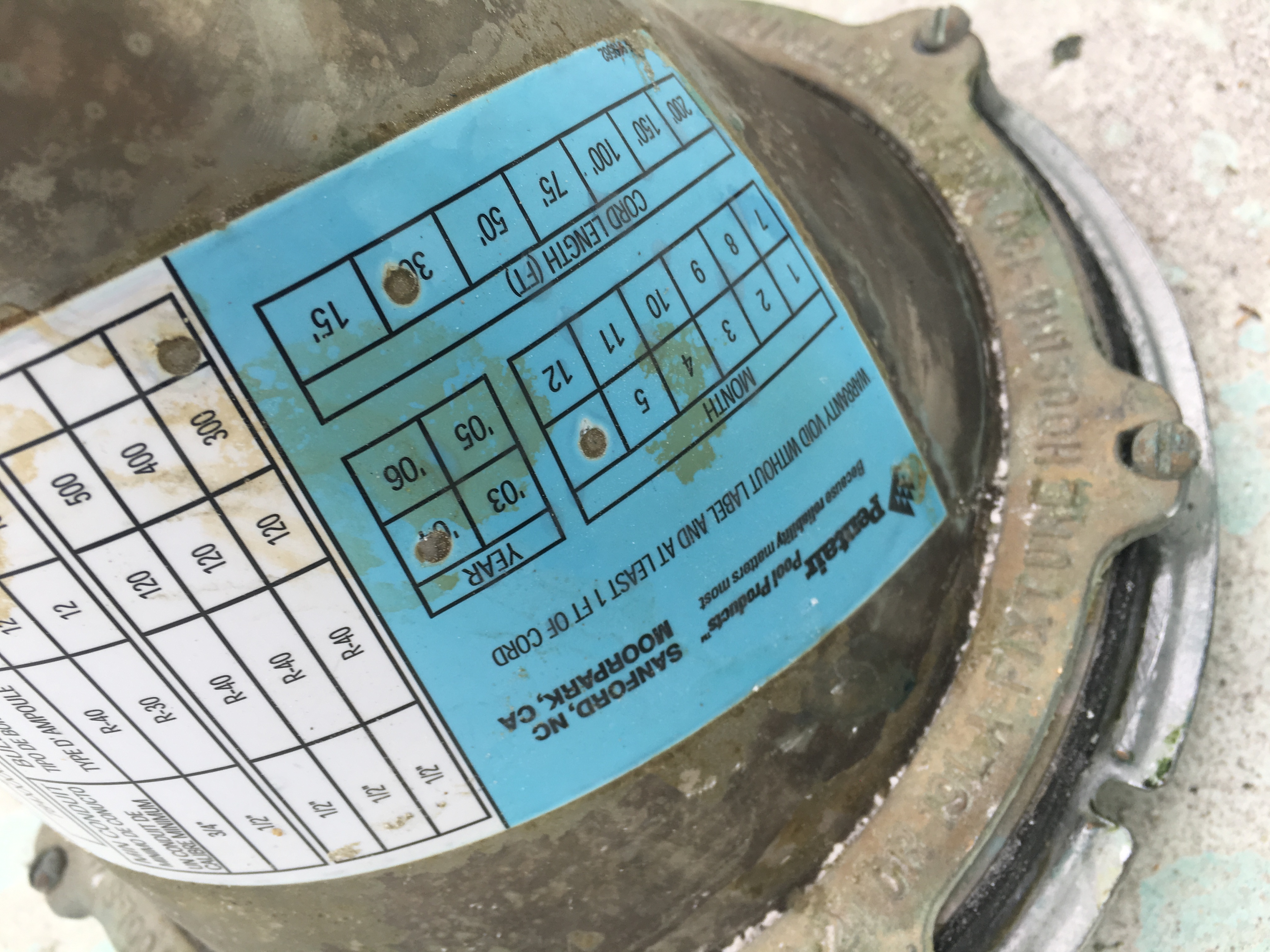

I have what I believe is a Pentair Amerlite in my pool that has long since stopped working.
When I removed the light by its single screw from the pool is saw that on the light housing the following information was provided: 500 Watt, 120 Volt, R-40. Serial # 7885xx, 7845xx, 7895xx. There is a silver sticker with the number
N-652659.
Will the above LED work with my existing light? And what about a gasket replacement, what model as mine is awfully old?
Reply

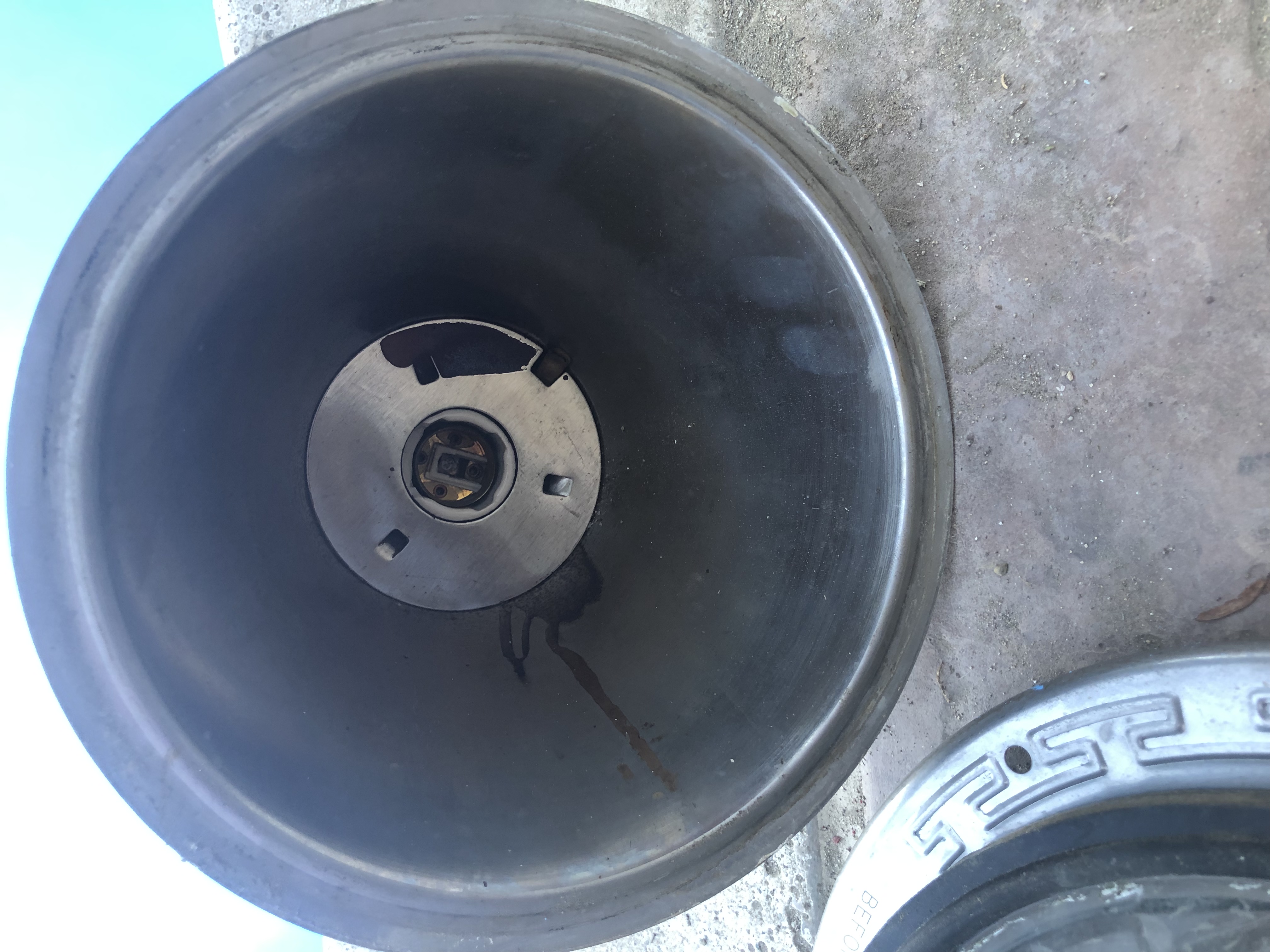

Hello. I am looking to replace my bulb but I'm not sure what housing I have because the label is worn off. The only things I can read is Model 15120 500W max and PAC FAB Inc. Base Fixture Housing #FS or N 10000. I was trying to replace with one of the color changing bulbs and also need a new lens and gasket. Can you help point me in the right direction?
Thanks!
Reply
Hi. Unfortunately, none of the Color Changing LED bulbs we carry are compatible with a PacFab light fixture. You will need o replace your entirre light fixture with something that is compatible with your niche. If you can provide us with pictures of your light fixture and or the niche model we can point you in the right direction.
Reply
Is this compatible with Spectrum Amerilite (SAM) Light 120V
Reply
Hi, Eric. This is not compatible with the Spectrum Amerilite (SAM) Light. You will have to replace the entire fixture. The PureLine PureColors LED Pool Light Fixtures is a great option.
Reply
Will this light work in a purex housing? Pool
Was built in the early 80’s.
Reply
Hi Anthony, Yes this bulb will work on an old Purex Pool light just as long as the bulb has a screw in base like this bulb. There were some clip in bulbs and your light used a clip in bulb then it would not work.
Reply

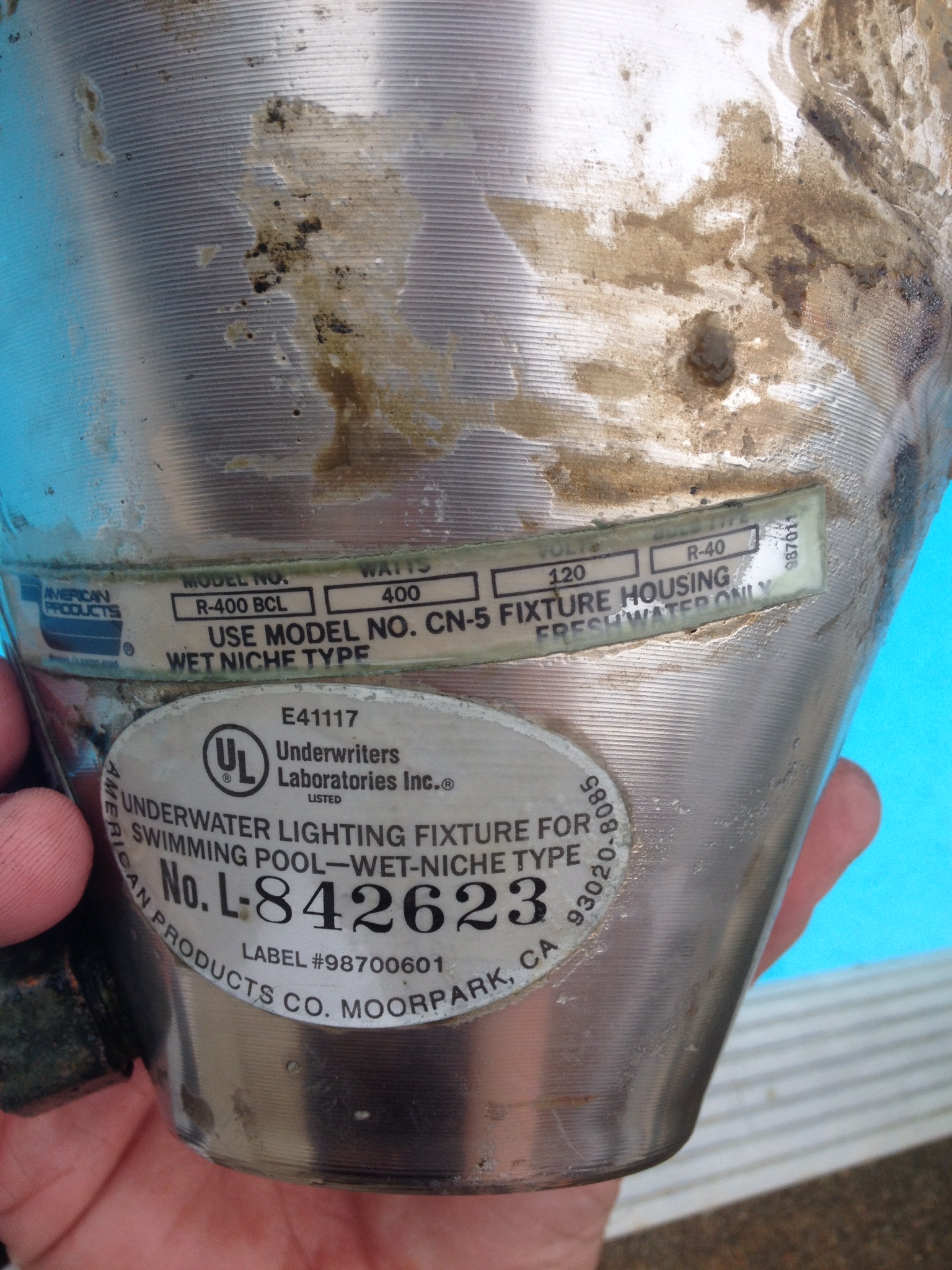

Hi, I have an American Products, fixture housing CN-5, wet niche type J-791904. Will this work? Thank you.
Reply
Hi, Patty. That is an older fixture, I would recommend that you use the PureColors LED Bulb & Pentair Amerlite Pool Light Fixture Kit 120V 50' Cord - PL5831 or PureColors LED Bulb & Pentair Amerlite Pool Light Fixture Kit 120V 100' Cord - PL5832.
Reply

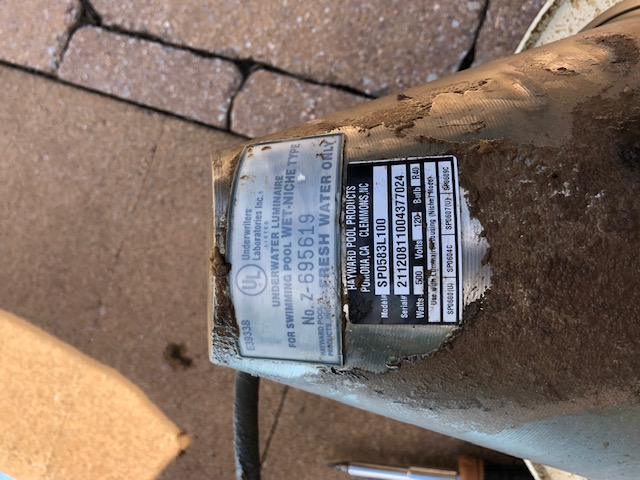

i have a hayward in ground pool light fixture model SP0583sl15 will this bulb work in this fixture
Reply
Good day yes this bulb will fit that light housing. You will also need to change Hayward Astrolite Lens Gasket (SPX0580Z2) PART # 3550-24.
Reply

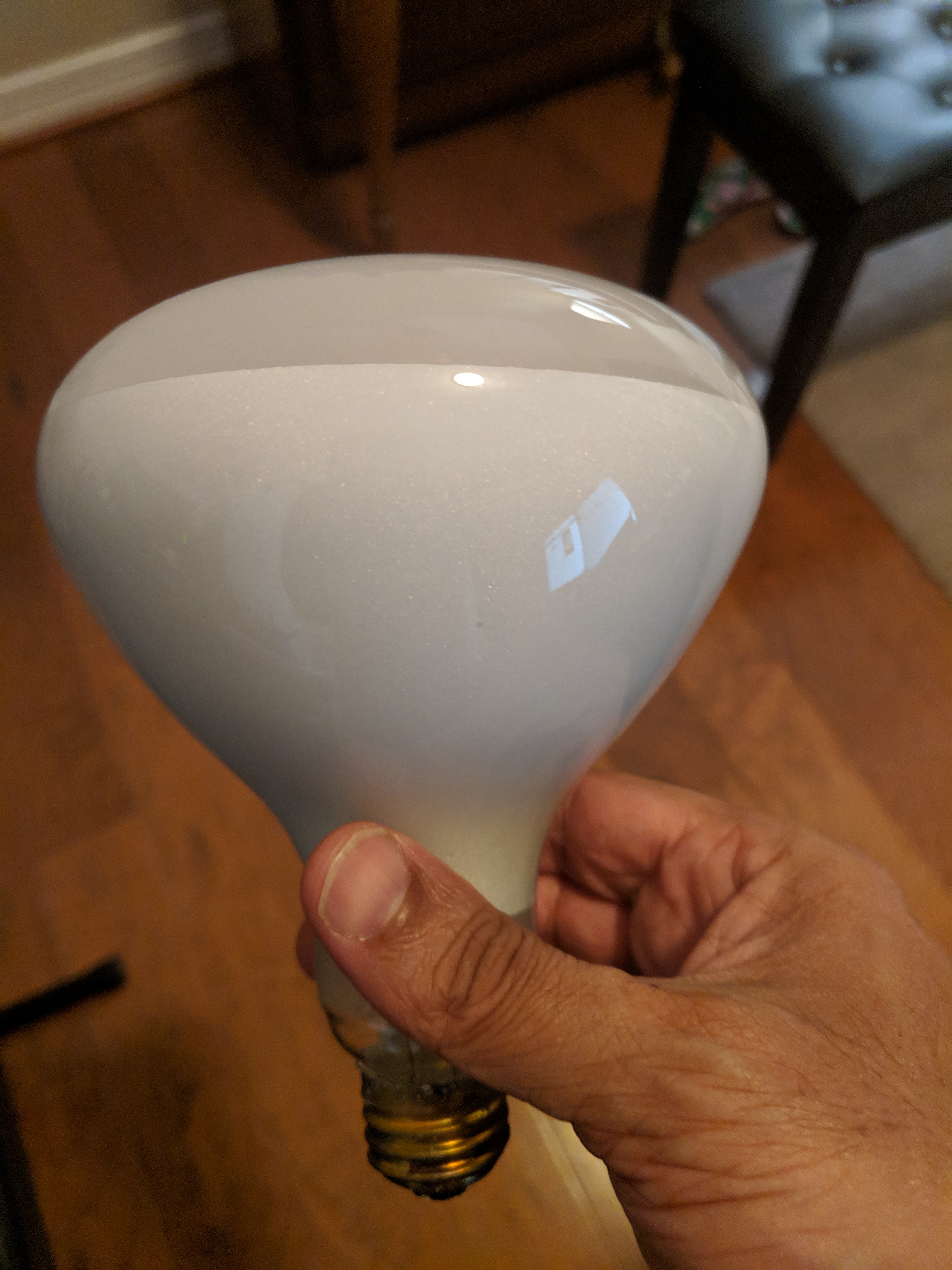

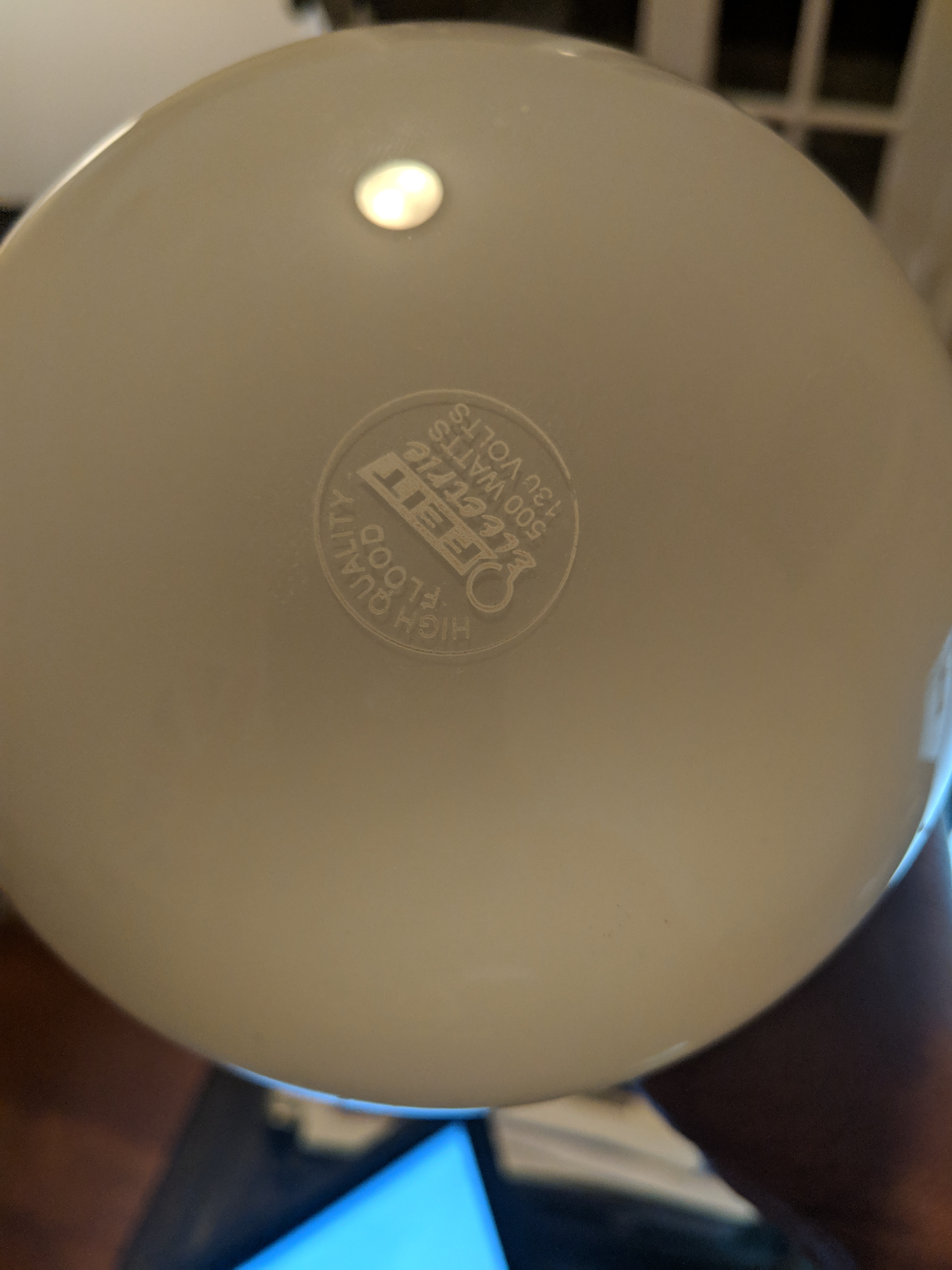

I currently have a 500w Incandescent bulb and want to achieve at least the same amount of light.The housing is a hayward SP0583L30 500W120VR40 Bulb.My lens gasket it markedSP-580-Z2 I would like to replace the gasket for my current one. I would prefer a silicone replacement gasket.If the LED replacement can change colors that would be great however my pool light switch is at a remote location from the pool so programing would be cumbersome unless you have a remote that could be used instead.
Reply
This is the correct LED bulb but we do not carry a silicone gasket for this model. Just the standard 3550-24. Also, this model does not have a wireless remote option. Color changing and light shows must be controlled by the standard on/off switch.
Reply
Will this bulb work with a American Lighting fixture. Model number R500 BC 500 watt 120 volt R40 bulb. The housing model number is CN5 fixture housing.
Reply

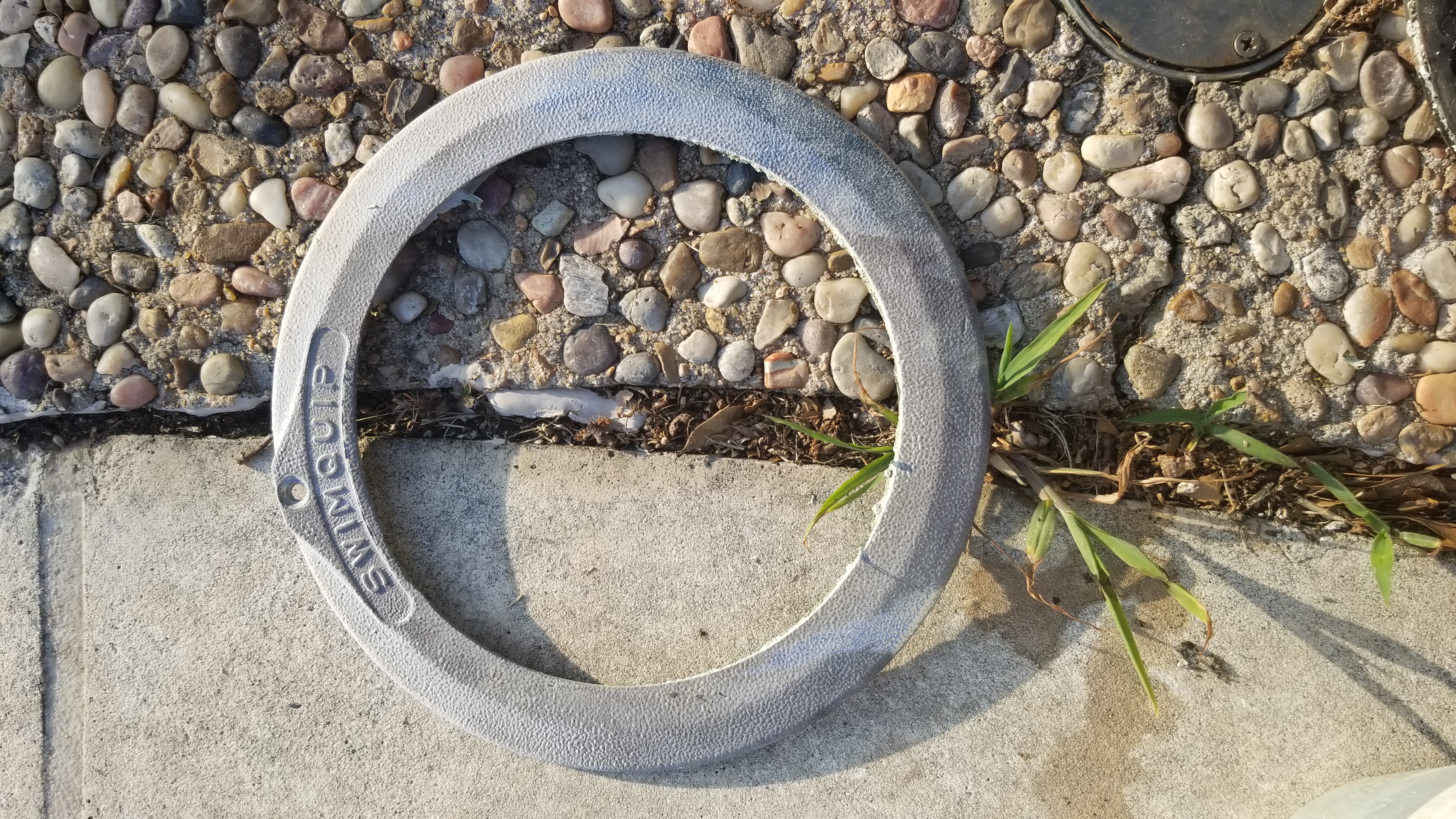

I have a 500 watt swimquip light fixture and I am looking for a Color changing LED. Is one available? If not is there a white one?
Reply
Hi, Johnny. We do have a LED bulb that can be used with the SwimQuip Fixtures. See the Sta-Rite / Swimquip Pool Light Parts Diagram for the available LED Bulb options.
Reply

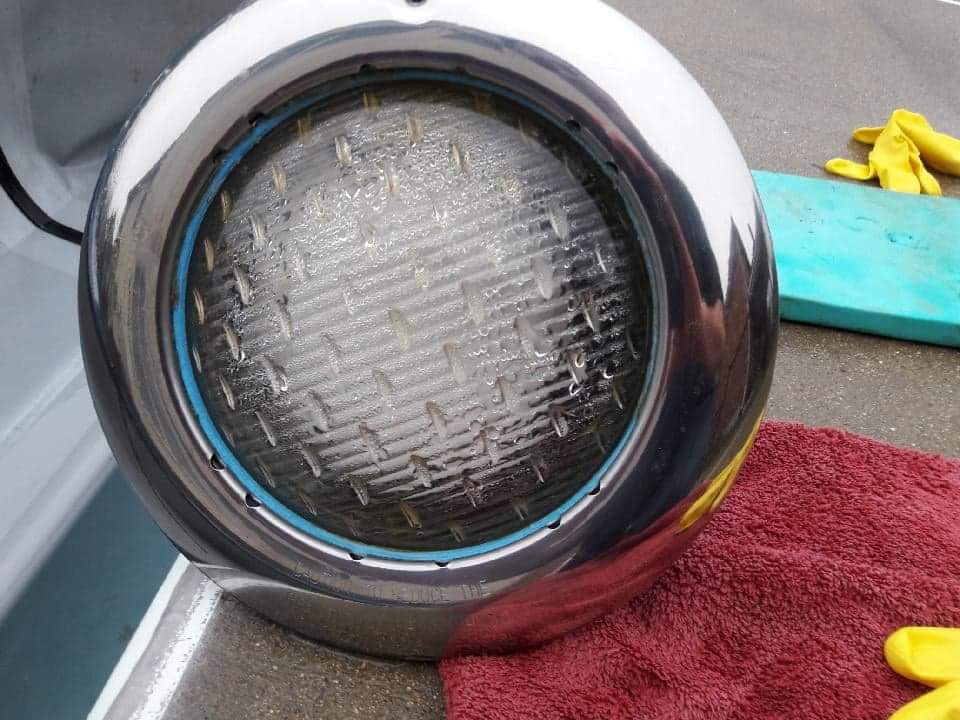

I have a Pool light that has water inside the glass.
It appears to have multiple color lights - but I didn't open it. I think it is the old color-wheel style.
The LENS says SAM and Standard
The chassis for the light, when I pulled it out says "No. V-862613"
Series 600015, 600016,600017,600022
165W, 120V Bulb MR16 75W
What should I buy to replace this bulb/seal? Thanks!
Reply
Hi James, If there is light inside the lens then you would need to replace the entire light fixture. I would suggest something like these PureColors Light Fixtures.
Reply
Will this Color changing LED work with the Pentair color light program in the EasyTouch controller?
Reply
Unfortunately no, when you turn the power to the light on and off that will cycle through the colors and light shows.
Reply
The manufacturer's label is fading, what I can see is Arrow... Underwriters Laboratories, Wet Niche Type No. L 1520, Model (possibly) 15120, Series One. 500W 120V. Would you know which light bulb fits; LED White and/or Color changing? Thanks in advance.
Reply
Hi, Israel. Based on the info provided, I'm not able to confirm if this LED is compatible with your fixture. You can provide pictures of your fixture.
Reply
Maybe I am missing this somewhere in the description. Will this RGB replacement unit do both RGB color and White, or is this color only? Thanks.
Reply
Hi, Brian. This bulb does have a neutral white color option.
Reply
what LED lightbulb replacement can I get for my 120v Pool Star pool light?
Reply
Hi. Unfortunately, there is not an LED bulb compatible with the Pool Star Fixture. You will have to replace the entire fixture using PureLine PureColors LED Pool Light Fixtures.
Reply
Will this bulb fit the pentair series 7810xxxx 60 watt 120volt housing?
Reply
Yes this bulb works with the Pentair 784 series. Just be sure the voltage matches and you get the bulb for either a pool or spa fixture depending on what you have and all is well.
Reply
Hi, I have ala Sta-Rite 100W fixture. Will this bulb work with it?
Reply
Hi, Tave. This LED Bulb is NOT compatible any Sta-Rite fixtures. We do have selected bulbs that are compatible with the Sta-Rite SwimQuip Lights
Reply
Hi. I have a Pentair SAM light (120v/165 Watts, bulb type MR16 71W) that needs replacing. Is this bulb compatible? If not, what do you recommend? Thanks in advance.
Reply
This bulb is not compatible. If you click here you can view the parts diagram for your model light. If the only part that you need is the bulb then I would recommend replacing that and the gasket. Those are listed at keys 6 and 8.
Reply
Can I get an 120V 35W multi-color LED that does not screw in? My light fixture does not use a screw in bulb. The old light was wired in
Reply
Unfortunately, the LED bulbs that we carry are all edison screw based.
Reply
Can you please advise led color changing light bulb to replace T4, 120v, 250w bulb in Hayward Luminaire SP0592SL light? Thanks.
Reply
Hello- Unfortunately, there is no LED option for the T4 Bulbs.
Reply
I have a Poolstar fixture with regular screw in bulb. Looks like its parts ate compatible with Amerilite fixtures. Assume this will work?
Reply
Hi, JB. This bulb is not compatible with the Poolstar fixture. You will have to replace your fixture with the PureColors LED Pool Light Fixture Kit.
Reply
I have a old Hayward SP0582SL100 (300W, 120V, R40 type).
I want to replace the bulb with a led changing light bulb, can I replace just the bulb with a 120v ligthbulb or do I need to add a 12v transformer? The pool company told me I need to spend $600 on a whole new led fixture.
Reply
Is this light compatible with SP0583SL100 ?? Also how do you change the colors ?? Lastly Is white / normal color part of the color scheme?
Reply
Will this work in my jandy wphv500ws100 fixture?
Reply
Hi, Dan. Unfortunately, this LED bulb is not compatible, However, the ColorSplash LXG LED Pool Lamp 120V - LPL-P2-RGB-120 is.
Reply
How would the brightness of this bulb compare to a hayward color logic 4.0.? Want to replace with astrolight and considering getting a led bulb. Tired of replacing the whole light every year or two.
Reply
Hi, Corey. Based on customers feedback, you will not notice a difference. Installing the Astrolite and this LED bulb will be a suitable fit if you have a compatible niche.
Reply
Will this bulb fit my Hayward 120V Astrolite Pool Light?
Reply
Yes this is the proper replacement bulb for your Hayward light (IP)
Reply
Yes this PureLine LED bulb will work as a replacement bulb for your Hayward Astrolite.
Reply
Yes this is the proper replacement bulb.
Reply
Will this bulb fit an Anthony model 30 fixture?
Reply
Hello Jason- Yes, the LED Pool Bulb Color Changing 120V 35W - PL5809 will work with your light fixture. We also recommend purchasing the Gasket, Light Lens (14118 Anthony).,
Reply
I want to replace my Pentair AM SS 500w 120v 30’ poollight with P/N 78454100 to a color changing light. Is this light compatible? Also do I also need to get a new gasket or anything else and if so which gasket and other items should I replace that will work? Thanks!
Hello!
Would this work with this fixture (attached image)?
Also, I have 500 Watts and I could not found this option.
Thanks!
Hi, Tarun. Yes, this PureColor LED Bulb - PL5809 is compatible with your fixture. You will also need to get a new Lens Gasket OEM - 79101600, Generic - 791016 or Heavy Duty Silicone - LPL-G-P.
Reply
The links you provided for the gasket is not working. Could you please provide again. Thank you!
Reply
Thank you! Seems like the links are not working. Also, Is 35W the max I can get?
Reply
I have a Hayward Fix Mod SP-583-L 120 volt light. Looks like the serial number is N-465157. Will the 35 watt 120 volt LED light bulb work for my light? Thanks
Reply
Hi Mike yes this is a compatible LED replacement for your Hayward Fixture Mod SP-583-L
Reply
Will this fit my American Products r-400 BCL light with cn-5 fixture? It is model no L-842623
Hi Aaron yes this PureColors LED Bulb will be the correct replacement for your CN-5 Pool Light Fixture. We would suggest replacing your Lens Gasket when you do the bulb replacement.
Reply
I have a American Products model # R-500 BC 120V R-40 Bulb CN-5 Fixture and want to change over to LED what are my choices if any
Reply
Hi William this PureColors PL5809 would be the correct LED replacement bulb to upgrade your CN-5 Fixture to LED color changing. We would suggest replacing your Lens Gasket when you do the bulb replacement.
Reply
Thank you for the response, does the led light come with a remote to change the colors and also which is best seal gasket for the LED PL 5809 bulb.
Reply
Hi Bill the PureColors Bulb does not come with a remote control, you would use your standard light switch to cycle between the color shows. By simply flipping the switch you cycle through the colors, the bulb also has memory which is nice. The memory works as follows, if you find your favorite color show and the bulb is on that show for more than 15 seconds then the next time you power on the bulb it will start in that color show. For your American products light, I think this American Products Light Lens Gasket is the best.
Reply

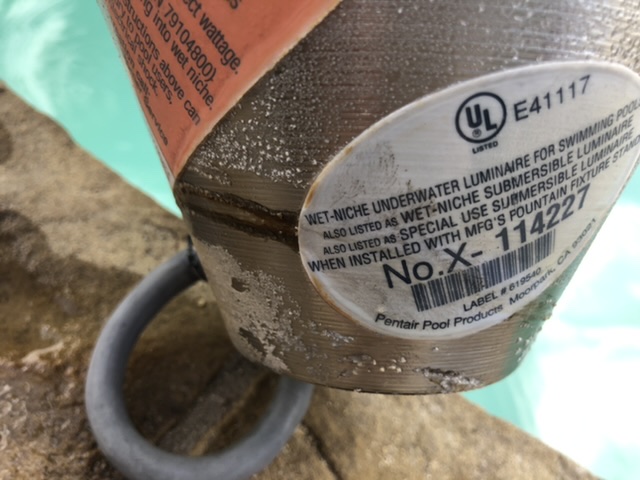

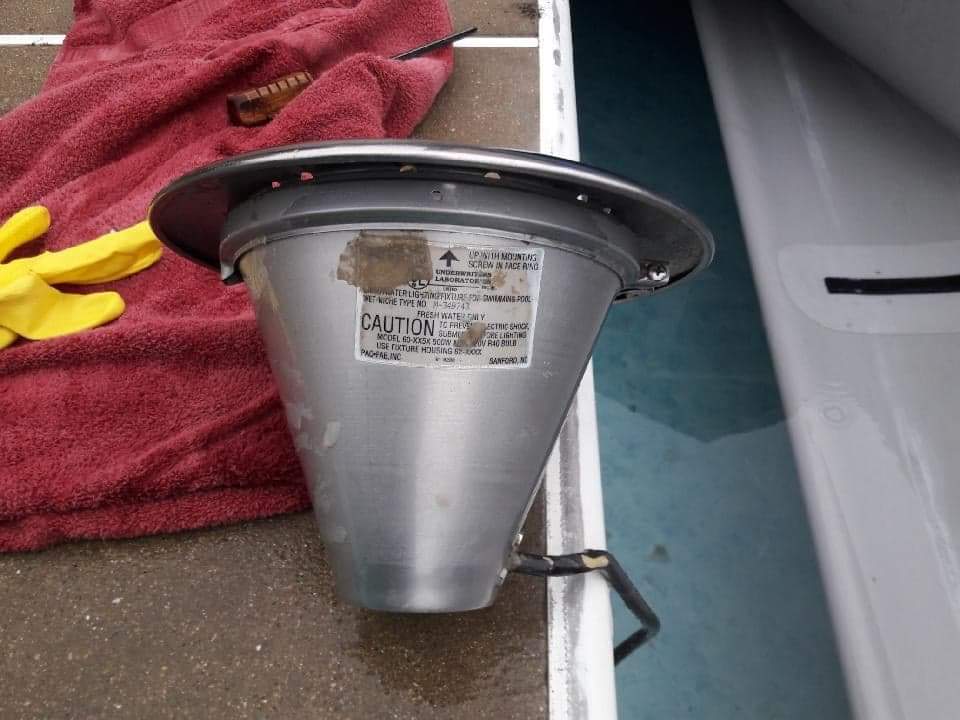

Does this light fit the pentair pac fab hatteras light? See attached images. Thx
Hi Marty, Yes the PL5809 PureColors LED Color Changing Bulb will work as a replacement in your Pac Fab Hatteras light.
Reply
Can I use this bulb for my Hayward housing - I know I will have to replace the hayward sp580z2 gasket wanted to make sure the bulb is right
Yes this Pure Colors LED Color Changing Bulb will work as replacement inside of your Hayward housing. Here is the SPX580Z2 Gasket you will need.
Reply
I have a Fix Mod SP-583-SL, 500 watt, 120v, R-40 bulb, and would like to replace with a LED color light, 35 watt, 120v that has different colors and programs. Would this bulb work or fit or can you recommend a bulb that would work. What else would need to be replace, Gasket?
Reply
I have a pentair p/n 78457100 with 500w 120v. I saw your video on colorsplash, using my light switch (which is fine, I don't need anything fancier). Then I looked at the price. But it seems you guys are recommending pureline, which seems to have one for $160. Is 35w equivalent to 500w, and what's the difference between colorsplash and pureline to justify the big price difference?
Reply
Hi, Randolph. The PureLine 35 watts LED bulb is equivalent to a 300 watt incandescent bulb. The ColorSplash bulbs were one of the first of it kind and still around. It is a great product.
Reply
I have a 500W Incandescent that i want to replace, preferably with an LED color changing. What wattage shall i look for to mimic the amount of light i was getting with the 500W? On your website I see up to 35W replacement LEDs but I'm worried it won't be bright enough to illuminate the whole pool. Thank you.
Reply
Hi, The brightness of a light is determined on the lumen rating and it is difficult to compare the brightness of a color compared to white light (i.e. comparing the brightness of red compared to the brightness of white). With this being said the best bet is to compare the lumen rating of white on the incandescent light the lumen rating of the LED on white. The standard lumen rating of a 500 watt incandescent light is 4,500 lumens where the 35 watt LED is about 2,800 lumens, so the LED will be a bit less bright. I have seen both styles of lights and I have not been able to see a significant decrease in brightness in the LED.
Reply

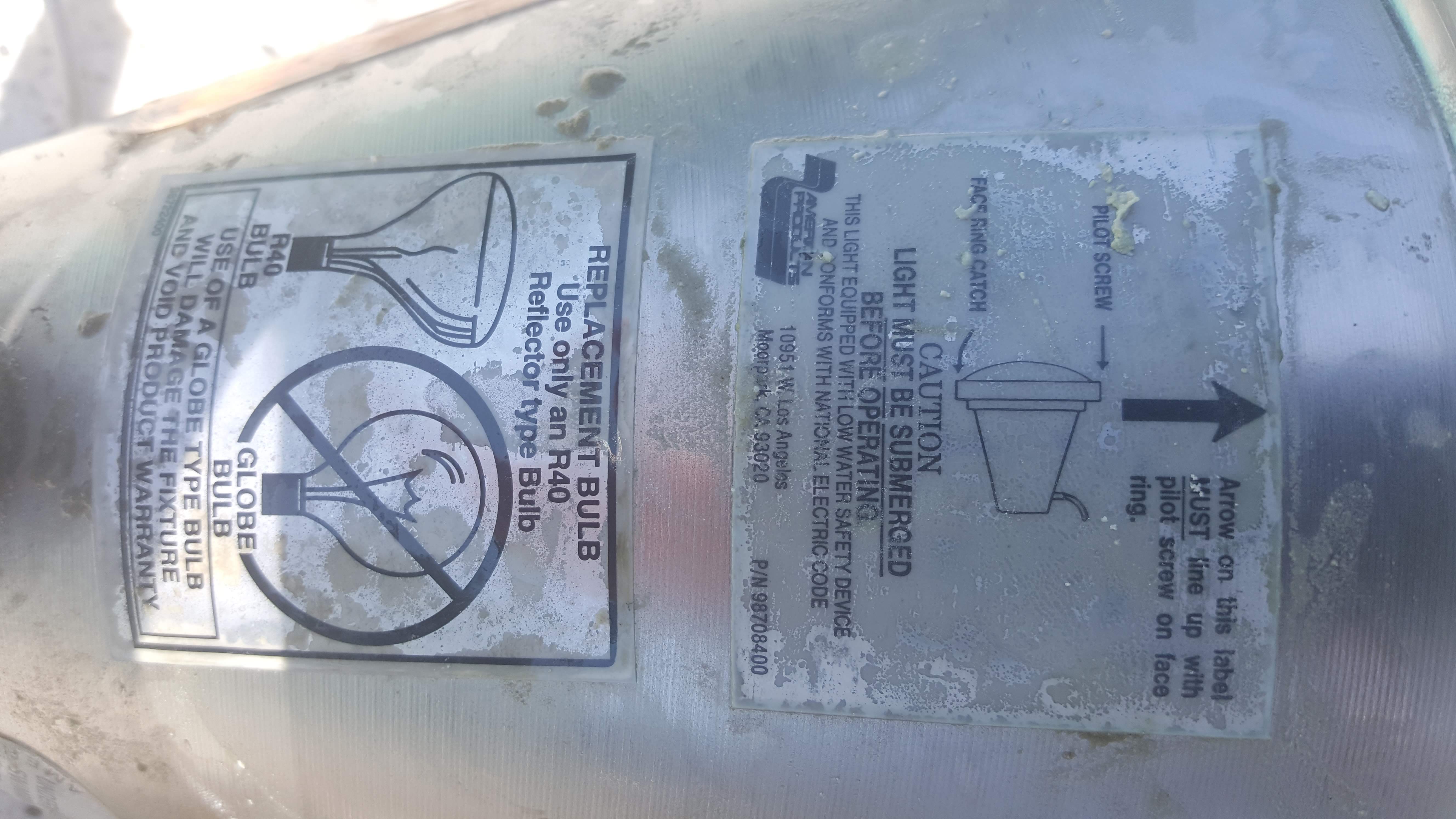

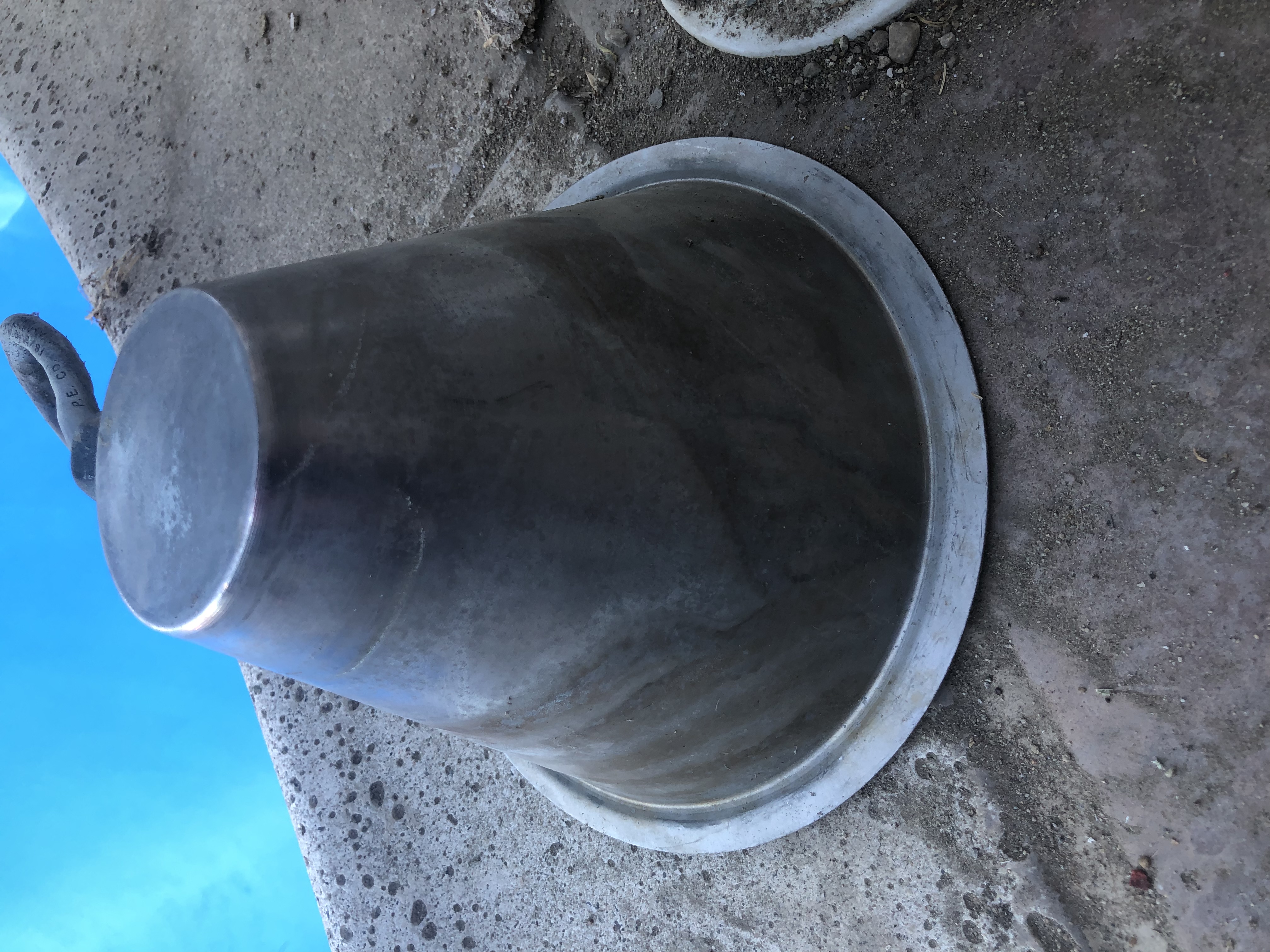

Hi, would this light bulb fit my pool light? Please recommend best option.
Thanks!
Hi, would this light bulb fit my pool light? Please recommend best option.
Thanks!
Reply
Hi, Eric. Yes, this bulb will fit your model fixture. The best option will be the LED Pool Bulb v2 Color Changing 120V 35W - PL5859. You will also need to purchase a replacement Lens Gasket OEM - 79101600, Generic - 791016 or Heavy Duty Silicone - LPL-G-P.
Reply
Will this fit a swimquip housing and if so, what gasket do I need to buy?
The PL5809 does not fit the SwimQuip light however the PL5811 PureColors 120V Color Changing LED Bulb for SwimQuip does fit the Swimquip light, just make sure you light is 120V and not 12V. The gasket you will require is the SwimQuip Replacement Light Gasket and you can here you can view all of the SwimQuip Pool Light Replacement Parts.
Reply
will this bulb work in my jandy R0450502 pool light?
Thx
Reply
Hi, Dave. This PureColors LED bulb is not compatible with a Jandy fixture. You can use the ColorSplash LXG LED Bulb - LPL-P2-RGB-120.
Reply
what would be an led replacement bulb for this light?
Hi Jennifer, If you would like to go with LED Color Changing then we would suggest this PL5811 PureColors LED Bulb we would also suggest replacing your lens gasket when you replace your bulb and you will require this Hayward SP573 Lens Gasket. We do have a Video on How to Replace a Pool Light Bulb which you may find helpful when you tackle this project.
Reply
I need to know which bulb, gasket, and lense replacement to order for this housing. The lense has a dark spot on it.
Will this PART # PL5809 light fit in the 05086-25 swimquip light housing?
Reply
Hi Patrick the PL5809 does NOT fit the 05086-25 swimquip light but the PL5811 Swimquip LED Bulb Replacement will work in the 05086-25 swimquip light housing.
Reply

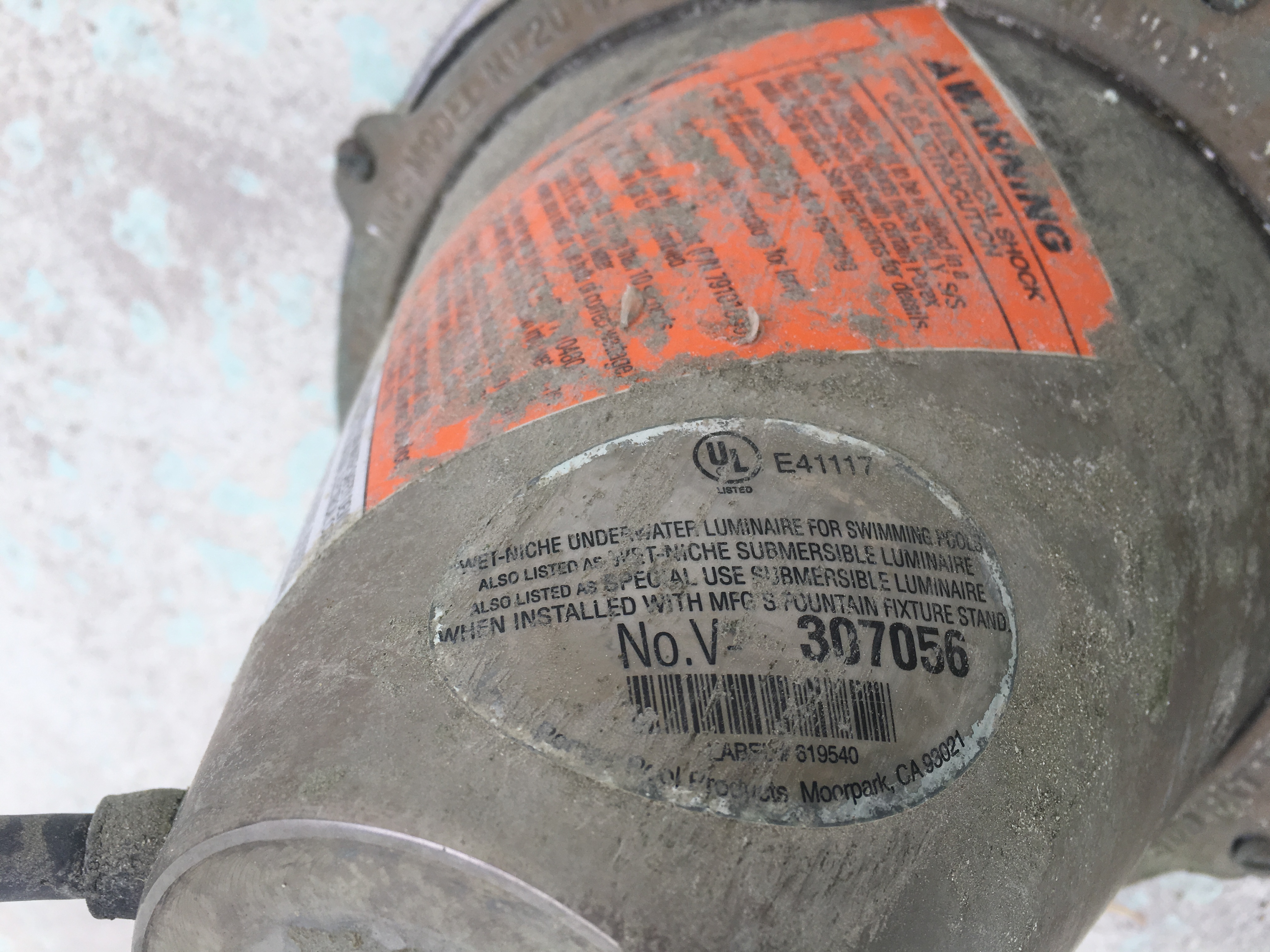

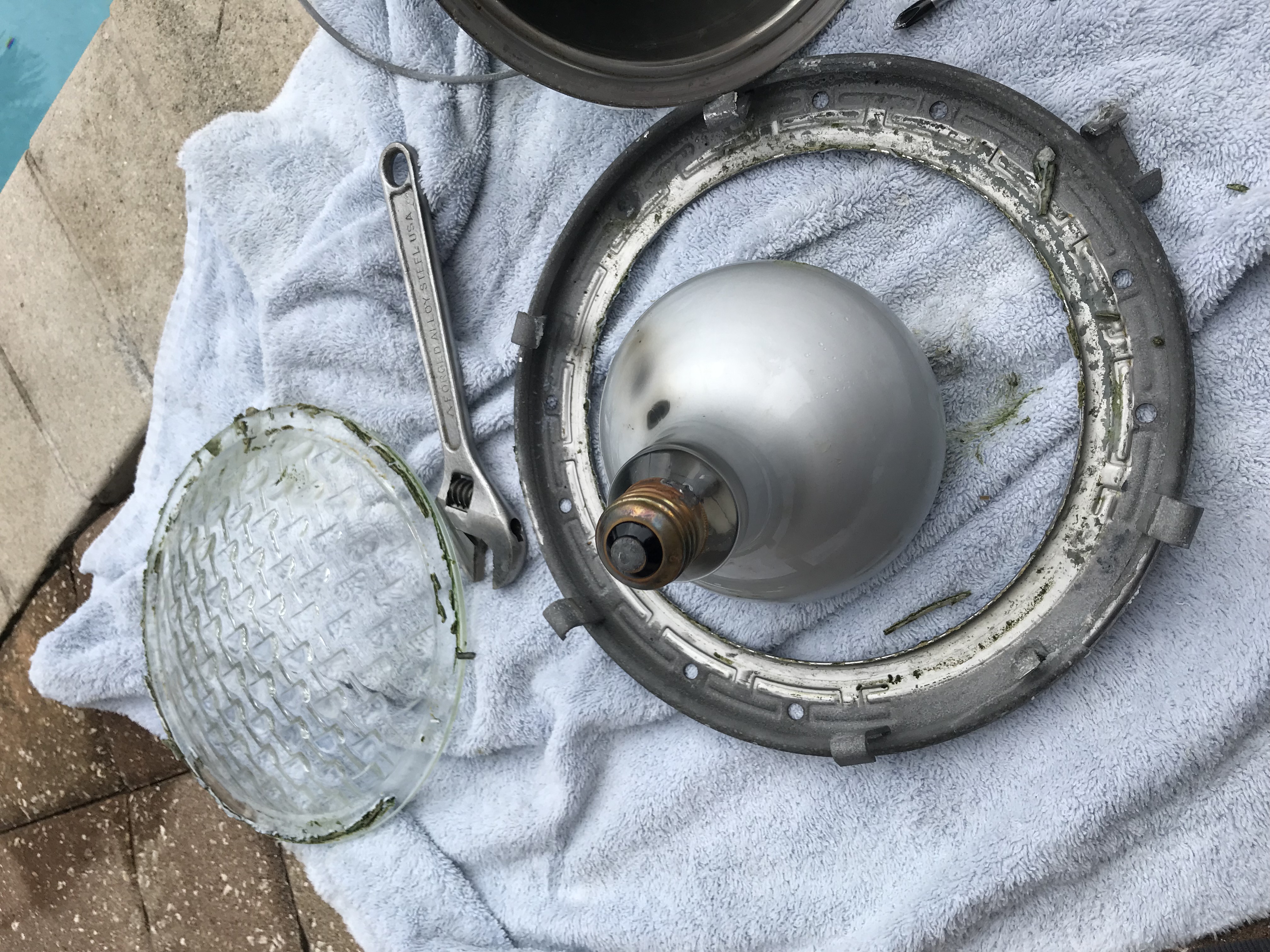

I have a 20-year old American Products swimming pool light (see attachment). I have not been able to find good information about its size. I want to purchase this light bulb from Amazon. Can you tell me if it will fit properly?
Hi Michael, The PL5809 LED bulb will fit the light in your photo. I cannot confirm if the bulb you saw on Amazon will work or not.
Reply
Hello. I'm looking to purchased a color changing LED bulb. Would this bulb work for my fixture or is there another you would recommend? Thanks.
Hi Luke, This PL5809 PureColors LED Color Changing Bulb would be the exact bulb we would suggest for the Hayward SP0583L100 shown in your photo. We would also suggest replacing your Hayward Lens Gasket when you replace the bulb.
Reply
like to change my pool light to new LED color changing light bulb. how do I change light settings, do I also need to buy a remote controller
Reply
Hi Kevin, you would use your standard light switch to cycle between the color shows. By simply flipping the switch you cycle through the colors, the bulb also has memory which is nice. The memory works as follows, if you find your favorite color show and the bulb is on that show for more than 15 seconds then the next time you power on the bulb it will start in that color show. A remote control is not needed.
Reply
Will this work with my Hayward sp-583-L? And if so what gasket will i need?
Reply
Looking to replace my 12 yr old 300W 120V incandescent bulb with a multi color LED. Is this a good choice? Thanks in advance!
This is an addendum to my first email.
I neglected to ask about our remote. We have a 12 yr old GoldLine remote that is the only way to turn on the light. Would this bulb still work? Replacing 300 W 120V incandescent R-40. Thanks
Hi Scott, Yes this bulb does work your remote, you will simply power the light on and off through the remote relatively quickly to cycle through the color shows. The nice thing is that the bulb has memory, meaning that once the bulb is off for more than 15 seconds then the next time the light gets powered on it will turn in the last color show the light was set to (i.e. your favorite color show).
Reply
Ca.n you confirm that this will replace the bulb for my Hayward colorlogic sp0525led 100
Thanks
Hi, Jim. Unfortunately, this bulb is not compatible with your existing fixture. To use this bulb, you will need to use the Astrolite Fixture - SP0582L100 or SP0582SL100.
Reply
Do you have any replacement for the Hayward sp0525led100
Reply
Just removed old bulb, a GE 500W 120V. Am considering replacing it with a PL5809 LED Color Changing bulb. My problem is the lens can has zero brand identification on it so I'm uncertain exactly what lens gasket to order. Can is 7 3/4", as is old black gasket. Please advise a gasket that will fit so I can order the light. Thanks in advance.
Reply
Hi Steve, You will need to remove the light fixture from the wall of your pool by following these instructions here Learn How to Remove Pool Light Fixture From Pool Wall you then can pull a part # off of the back of the light housing. Please click the reply link below and supply this information.
Reply
Will this bulb fit my application? I could not find a serial or model number on the housing …
Hello, You have the Pentair Amerilight. Here is a break down of your light. http://www.inyopools.com/pool_parts_pentair_amerlite_pool_light.aspxYou will need to look at key number 9.
Reply
Is the PL5809 bulb compatible with my fixture and which gasket do AI need? American Products R-400 BCL. The current bulbs is R-40 400 Watts 120Volts.
Reply
Looking for the right LED color changing replacement bulb for a Pentair 78458100 AM SS 500W 120V 50'. What do you recommend?
Hi David, this PL5809 PureColors Bulb is the correct replacement bulb for your Pentair 78458100 light fixture.
Reply

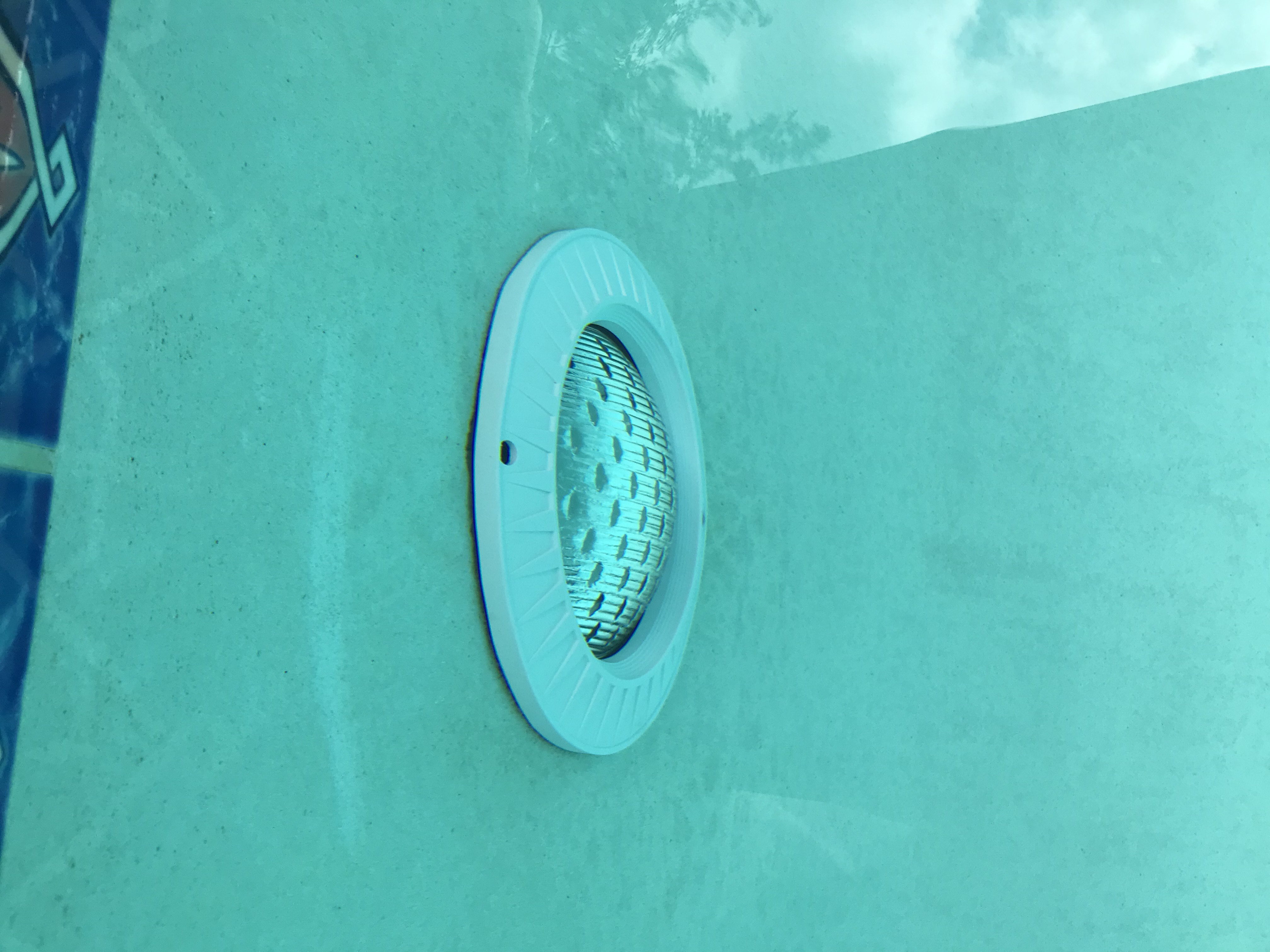

I have a Hayward fixture that pool company installed about a year ago. They did not give me any info but I'm 99% certain it's regular bulb. I would like to install a LED.. Is this bulb the one I need to order or should I pull light out and get detail before I order.. Pool is about 16 X 30 so I need a bulb as big as possible?
Reply
Your model may or may not be compatible with one of our Pureline color LED bulbs. We would need to get images and dimensions of your current model. You can send those details to upload@inyopools.com for us to further advise.
Reply
Hi, I have a brand new Hayward SP0583L fixture being installed and I am thinking about purchasing this LED bulb as a replacement for the incandescent bulb. Would I need a lens gasket if my fixture is brand new? I am assuming that the advice to purchase a new lens gasket is for those with previously installed / used fixtures?
Reply
Hi, James. You will not need to purchase a new lens gasket if the fixture has not been submerged in water.
Reply
I have a hayward SP05839L fixture, will this bulb work and what gasket do I need
Reply
I have a Hayward Pool Light that is about 1 year old. I want to replace the current 300W bulb with the PL 5809 120V 35W. Is this the bulb I need to do that, Also, will this Led 35W be brighter than the 300W? I need a little more brightness.
Thanks
hello i have the hayward sp-540-z-1 LG light with a 300 watt (130v) in my pool now. i want to replace it with an led light, would this be the best light to replace my current setup?? thanx in advance
Reply
Hi, Gary. The number provided if for the fixture lens which can be used with several different pool light fixtures. Of the fixture, this LED bulb is only compatible with the Hayward Duralite SP-570 Series or Hayward Astrolite SP-580 Series fixtures.
Reply
I have an old Anthony 120v niche fixture with a incandescent bulb. Is this the correct replacement bulb and what is the correct gasket
Reply
Hi, Barry. It is not, we do not currently have an LED bulb that is compatible with your fixture manufacturer.
Reply
I have a Hayward SP580 SERIES WALL NICHE LIGHT FIXTURE. Will this bulb fit the fixture (PL5809)?
second question: how do I control it through a hayward aqua logic system including programs and different colors?
Reply
Yes, this bulb is compatible with your Astrolite Sp1580 series pool light, and you will not be able to control colors through your automation system, however, you can by simply turning that light circuit on and off to cycle through different colors or light shows.
Reply

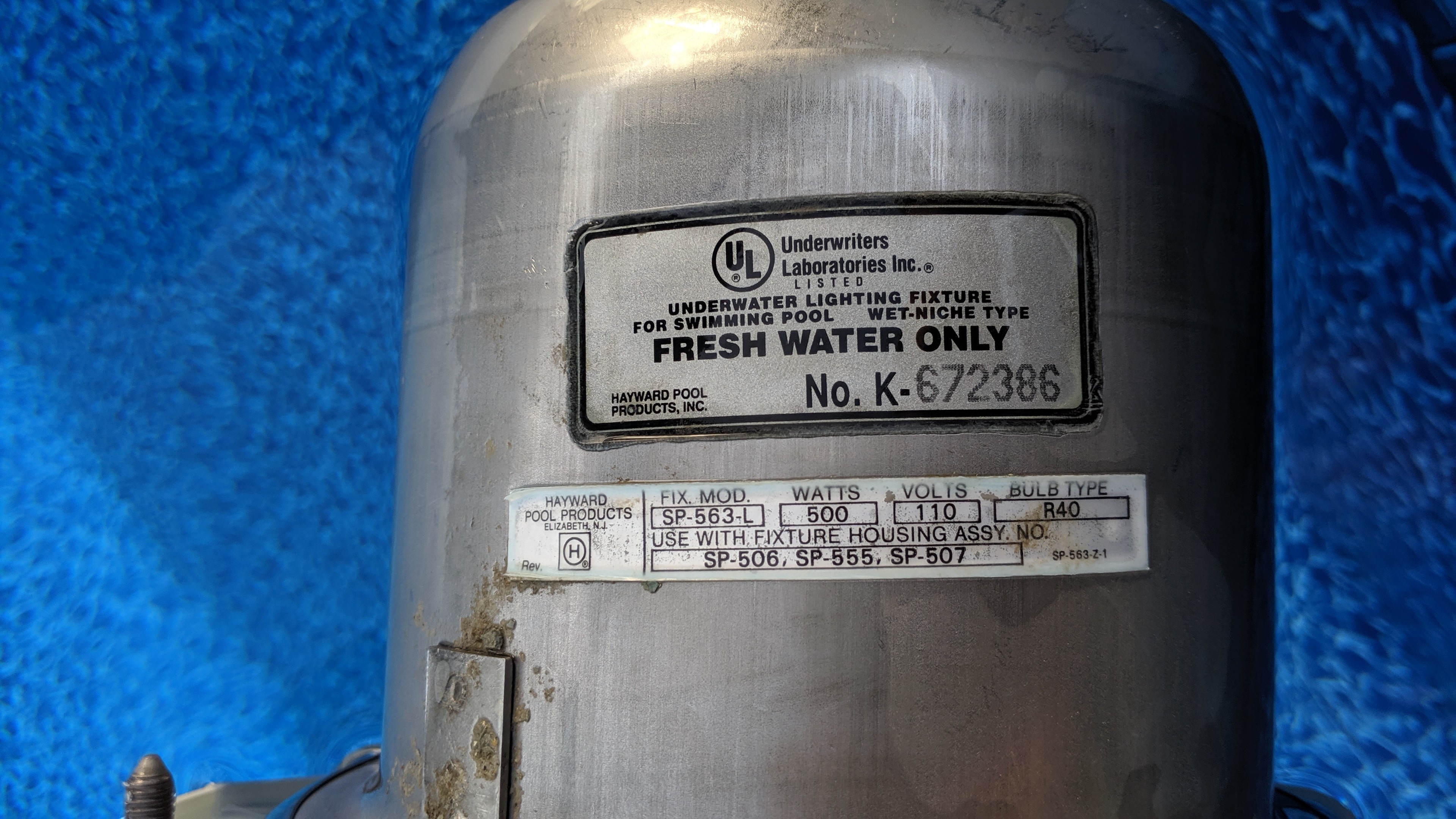

I have a Hayward SP-563-L fixture and want to replace the old bulb with an LED bulb. Is the fixture compatible with this, or any other, LED bulb or do I have to replace it altogether?
Thanks in advance for any assistance.
Hi, Harry. Unfortunately, there is not an LED bulb that is compatible with your model fixture. You will have to replace the entire fixture with the Hayward Duralite Fixture.
Reply
Hi, I have an american products light niche, model # m-172803 from the late 80's and need to update the bulbs to led. I would like to purchase single color led bulbs in blue if possible. The pool is 30 x 50 and has 2 light niches, deep end is 12' deep. The label on light housing is missing the wattage, we can tell it should be 120volt. Which led bulbs would you suggest, and what gaskets should I order? 2 pictures of housing below, thanks for your help.
Hi, Des. There is not a single color blue LED bulb available. You have an older American Products fixture which is now manufactured as the Pentair Amerlite. This bulb is compatible with your model fixture. You will also need to get a new Lens Gasket OEM - 79101600, Generic - 791016 or Heavy Duty Silicone - LPL-G-P.
Reply
I have a Jandy WPHV500WS50, will this bulb work?
Reply
Hi, Brett. Unfortunately, his bulb is NOT compatible. The ColorSplash LXG LED Pool Lamp 120V - LPL-P2-RGB-120 is compatible.
Reply
Is this bulb compatible with a Hayward SP0583L fixture? Thanks
Reply
COMPATIBILITY:Hayward Astrolite SP0580 Series Hayward DuraLite SP0570 Series Pentair Amerlite 784 Series Note: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.
Reply
i have R0450504 light bulb can i switch it to led light light bulb ? and if i can what's the part number you have thank you
Reply
If you have a Jandy pool light, unfortunately, we do not carry an LED bulb replacement that would fit, however, if you have another model fixture as long as it is a Pentair Amerlite, Hayward Astrolite or Jacuzzi Full Moon model then yes, this LED bulb will work.
Reply
I have a Hayward SP0583L100 light fixture that uses an R400 bulb, the unit is rated for 500 watts and 120 volts, would this bulb work?
Yes, this LED bulb is compatible with your pool light model. We also recommend replacing the light gasket.
Reply
I chatted with someone a bit ago and got a bulb replacement number (PL5809). I called the Jandy folks and they recommended that the 'light engine' be replaced and not just the bulb. It worries me if they're saying I shouldn't just replace the bulb. Or course they would like for consumers to buy more stuff. Just want to make sure it's OK to just replace the bulb with the recommended PL5809. And it's easy to replace the bulb so that the unit remains water tight? Just making sure!
Reply
Hello,What is the model number of your current light?
Reply
Will it stay on a setting if you turn it off..What I really wonder is can I set it to blue and have a timer turn on at 7 and off at 11 and stay as blue?
Reply
Mark, no, you cycle through the colors on the LED Pool Bulb Color Changing 120V 35W - PL5809 by relaying power on and off to the device. Anytime you turn the bulb off and on it will change to a different color or light show. At this time, there are no products in our inventory with that functionality.
Reply

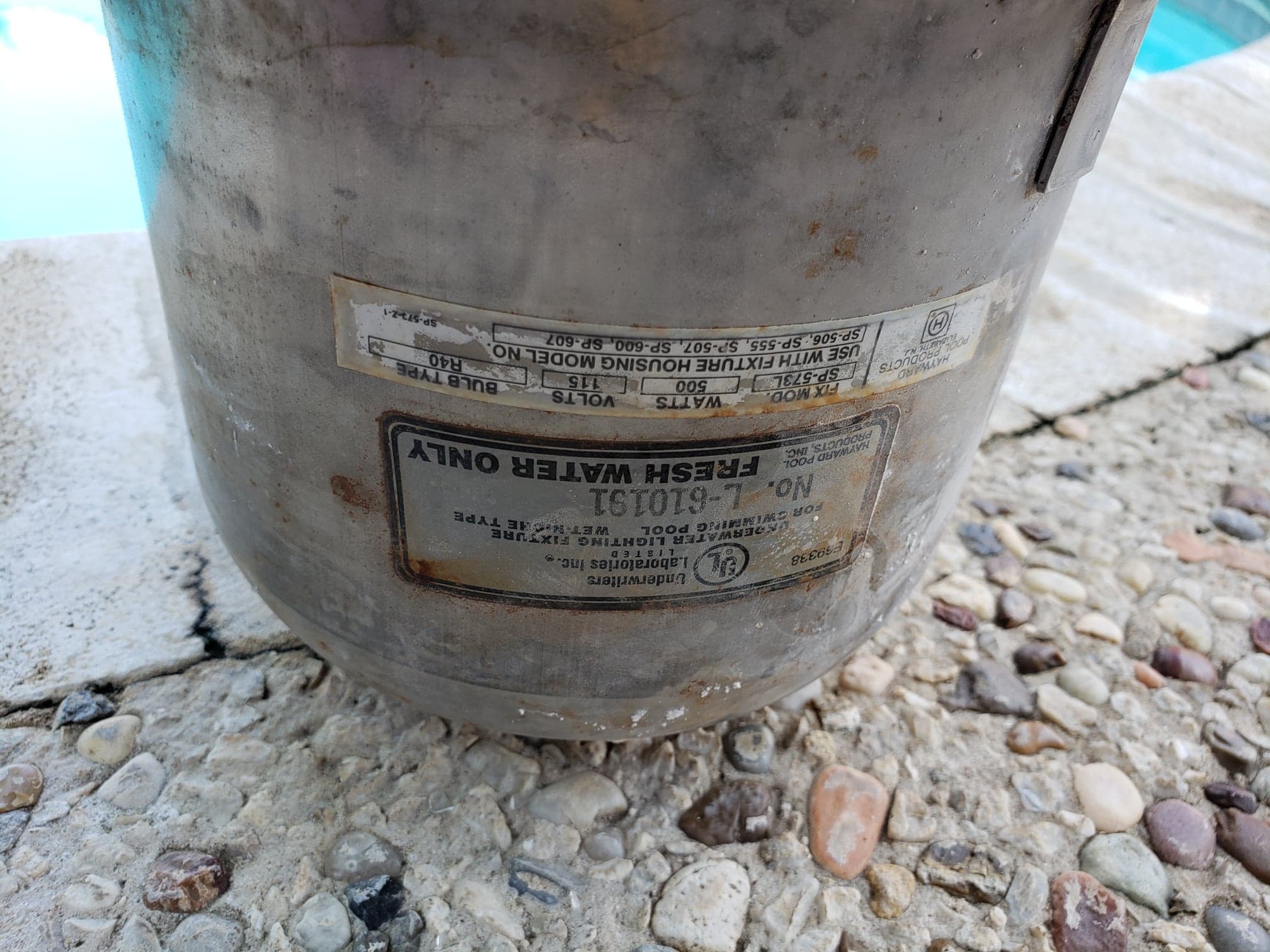

Would this bulb be compatible? It’s 500w, 115v, and is model SP-573L.
Thank you.
Will this fit in a J&J Electronics 120V - Incandescent Light Fixture - Pool - 500W - 50' Cord - TPL-P120-500-50? Would it fit in the 300W version? You have it paired with the Pentair housing as a bundle, but the J&J is more reasonably priced.
Thanks!
Reply
Hi Dustin, unfortunately, this bulb series is not compatible with the J & J Colorsplash light series nor do we carry any bulbs that are. We may however have an entire light that may be compatible. We would just need the niche model that you have so we can confirm for you.
Reply
Will this bulb fit a Pentair 78456300?
Hi Lance, yes this LED bulb is compatible, however, is no longer available. You can however use the J & J Colorsplash LED bulb model LPL-P2-RGB-120. It is also recommended to replace the lens gasket so for your Pentair Amerlite series pool light that would be part number 3525-07.
Reply

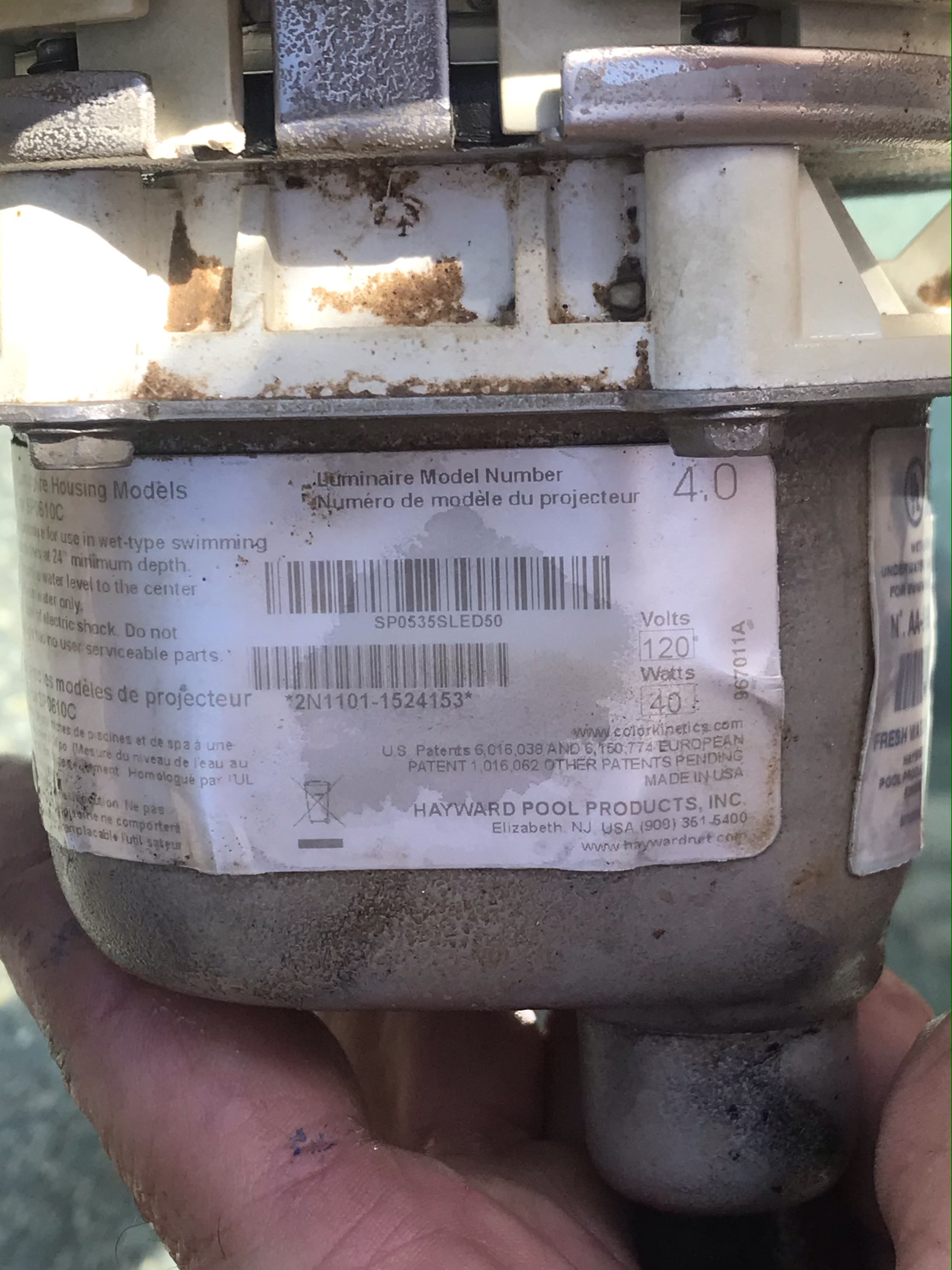

Would this be compatible with Hayward Colorlogic 4.0?
SP0527SLED50 for pool light
SP0535SLED50 for spa light
Hi Allison, unfortunately, we do not carry any LED bulbs that are compatible with this Hayward Colorlogic light fixture. You would need to replace it with another Hayward Colorlogic light which we also do not carry or if you can provide us with the light niche model we may have another light fixture model that would fit into it. The niche model should be located on the actual niche itself.
Reply
We have the LED Pool Bulb Color Changing 120V 35W - PL5809 and it no longer works. What is the replacement for it? We have 2 of them in the pool so we need it to be same colors.
Reply
Hi Karen, you can replace these Pureline LED pool bulbs with the ColorSplash LXG LED Pool Lamp 120V - LPL-P2-RGB-120 and would need to replace both of these bulbs in order for the light shows to match.
Reply
This bulb is no longer available. What can we substitute it with?
Reply
Hi Chris. you can also use the J & J Colorsplash LED bulb in the place of this light bulb. Be sure to replace the gasket as well. You will need to know the model of the light in order to cross-reference that gasket. The label on the back of the light fixture should tell you the model.
Reply
Hello I am trying to get a compatible color LED replacement light for my pool. My Current pool lamp part number is:
R0450502 -- Lamp Replacement Kit, Pool White Light (300W, 120V)
I need something similar to this one.
Thank you
Reply
Hi Edwin, You could use this 120V 300W Bulb or if you want LED Color Changing then go with this 120V J&J LXG Color Changing LED Bulb.
Reply
