$1,359.00

Qty:

By Hayward Pool Products


Details

Top

Part # W3DE4820

Warranty 1 Year Warranty

Alternate Part #'s HAYW3DE4820

Product Description

Inyo Recommended Filters

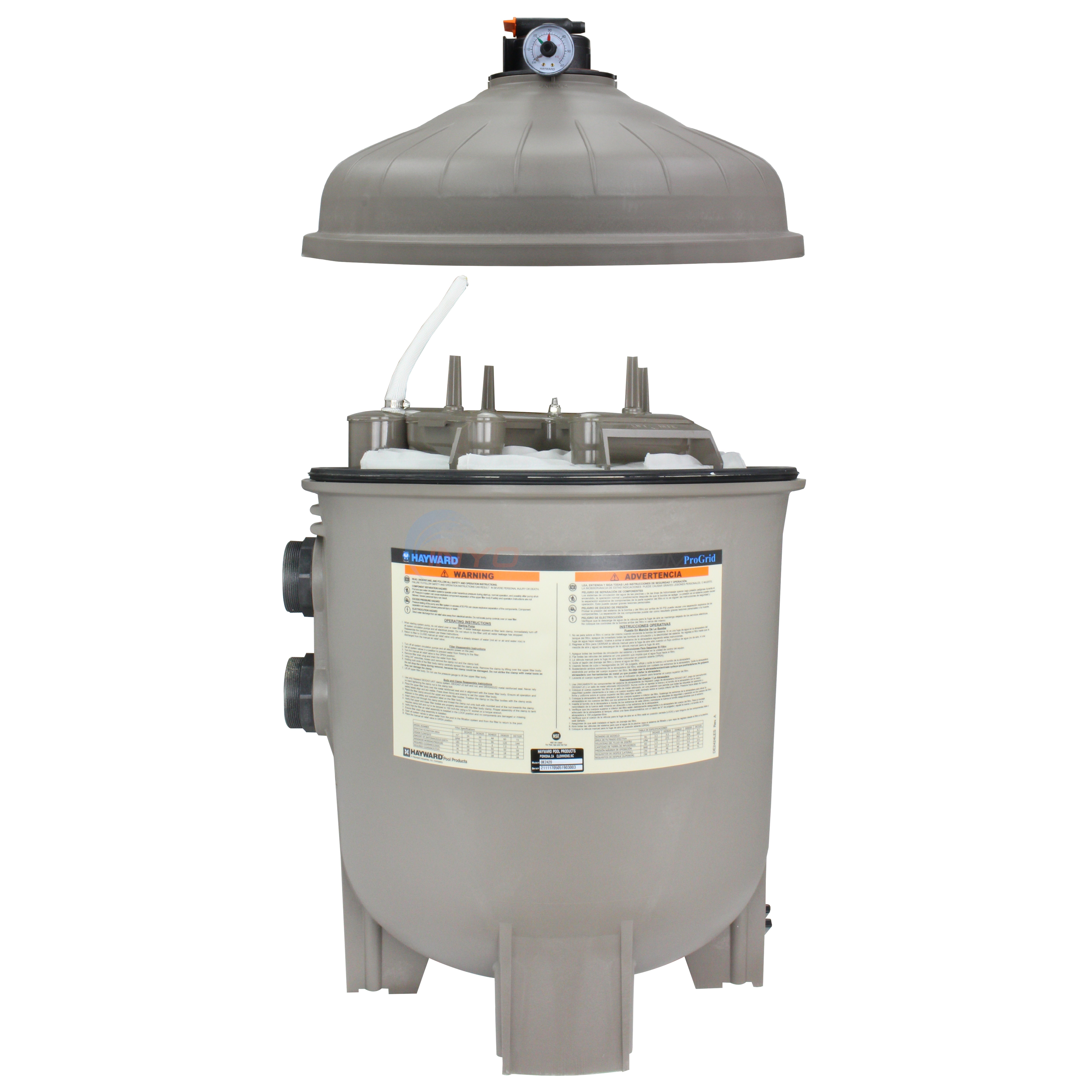

Hayward Pro-Grid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Constructed with high-strength reinforced thermoplastic, Pro-Grid combines high-technology features and "service-ease" design for an unparalleled filtration value for both new pool and aftermarket installations.

In addition, the Hayward Pro-Grid filter delivers low maintenance and dependable operation.

Features

  • Reinforced thermoplastic filter tanks constructed from durable glass reinforced copolymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
  • Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple
  • Heavy-duty, tamper-proof one-piece flange clamp securely fastens tank top and bottom, allowing for quick access to all internal components without disturbing piping or connections
  • High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency
  • Integral lift handles and uniform low-profile base make removal of grid nest fast and simple
  • Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids
  • 72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance
  • New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever

Click here for more Hayward Filters

Product Specifications

Multiport Valve:
without
DE Required:
6 lbs.
Flow Rating:
96 GPM
Filtration Area:
48 sq. ft.
Turnover 8 Hrs.:
46080 gal.
Turnover 10 Hrs.:
57600 gal.
Manufacturer:
Hayward
Pool Type:
In Ground
Filter Type:
DE
Top

?     Asked on 10/8/2013by Guest

How do I backwash my Hayward Vertical Grid DE filter?
 Reply

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

When the filter pressure rises 8-10 PSI over the clean starting pressure, the filter must be backwashed. Turn off the pool pump. Rotate the multiport valve to backwash position or slide the slide valve up. When the pump is turned on, the dirty DE and water will flow out to waste. Once the water runs clear, turn off the pump. With a slide valve, push the handle down and start the pump. Once the pump is primed, add the required DE. If using a multiport valve, rotate the handle to rinse. Turn on the pump and let water flow for 20-30 seconds, cleaning out the plumbing lines. Turn off the pump and rotate the valve back to filter. Turn on the pump and once primed add required DE.
 Reply


?     Asked on 9/15/2014by Guest

How much D.E. powder does this Hayward de4820 filter use?
 Reply

A  Answered on 9/15/2014 by InyoPools Product Specialist Patrick P.

This filter model uses approximately 8 lbs. of D.E. powder when completely empty and approximately 4 lbs. of D.E. after backwashing.
 Reply


?     Asked on 9/16/2014by Guest

I am getting DE back into my pool after I backwash, do you know why?
 Reply

A  Answered on 9/16/2014 by InyoPools Product Specialist Patrick P.

The main reason is that one or more of your grids are torn and DE is passing through. Please remove all the grids and thoroughly inspect each for rips or cracks in the plastic structure. Also check the manifold ( the piece the grids fit into ) for cracks in the plastic. If there is nothing wrong with either of those, one other possibility is that the spider gasket in the multi-port valve may be torn and not sealing correctly.
 Reply


?     Asked on 4/19/2015by FRAN MCHALE

YOUR DE4820 APPEARS LARGER THAN WHAT I AM REPLACEING WHAT IS THE SIZE SO I CAN MAKE SURE
 Reply

A  Answered on 4/20/2015 by InyoPools Product Specialist Joe S.

Hello Fran, Measurements for this unit are 41 inches High, 23 inches wide
 Reply


?     Asked on 5/3/2015by Inyo Visitor

I have a Hayward Micro Clear model DE 4800 - will this 4820 model replace it?
 Reply

A  Answered on 5/3/2015 by InyoPools Product Specialist Patrick P.

Yes the Hayward DE4820 Pro Grid DE Filter is the direct replacement for the Hayward Micro Clear model DE 4800.
 Reply


Top
Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Nut Drivers, Adjustable Wrench

My old filter pretty much the same a Hayward, around 15 to 18 years old cracked on the top.

Written on 10/6/2022 by Guest

1. First I measured the connections up and the old filter and the new filter were pretty much the same.
2. Removed the old Filter.
3. The new filter stood a little lower so I just added about 1/4" of hardiboard on the bottom.
4. The filter screwed into my existing connections perfectly, no PVC work was required.
5. Followed the instructions and added DE earth.

Were these instructions helpful?


Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Nut Drivers, Adjustable Wrench

My old filter pretty much the same a Hayward, around 15 to 18 years old cracked on the top.

Written on 10/6/2022 by Guest

1. First I measured the connections up and the old filter and the new filter were pretty much the same.
2. Removed the old Filter.
3. The new filter stood a little lower so I just added about 1/4" of hardiboard on the bottom.
4. The filter screwed into my existing connections perfectly, no PVC work was required.
5. Followed the instructions and added DE earth.

Were these instructions helpful?
