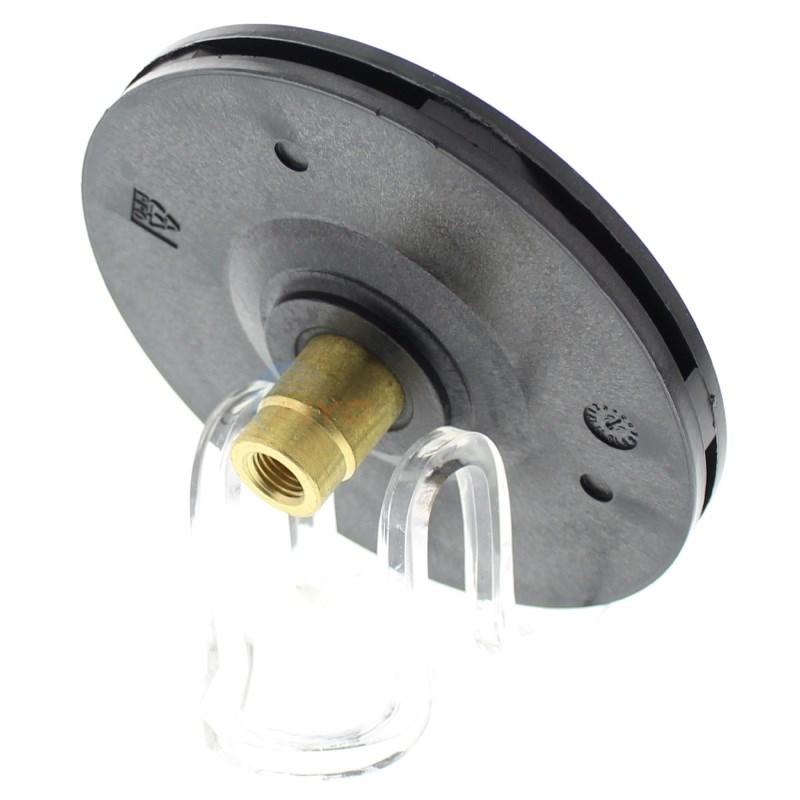

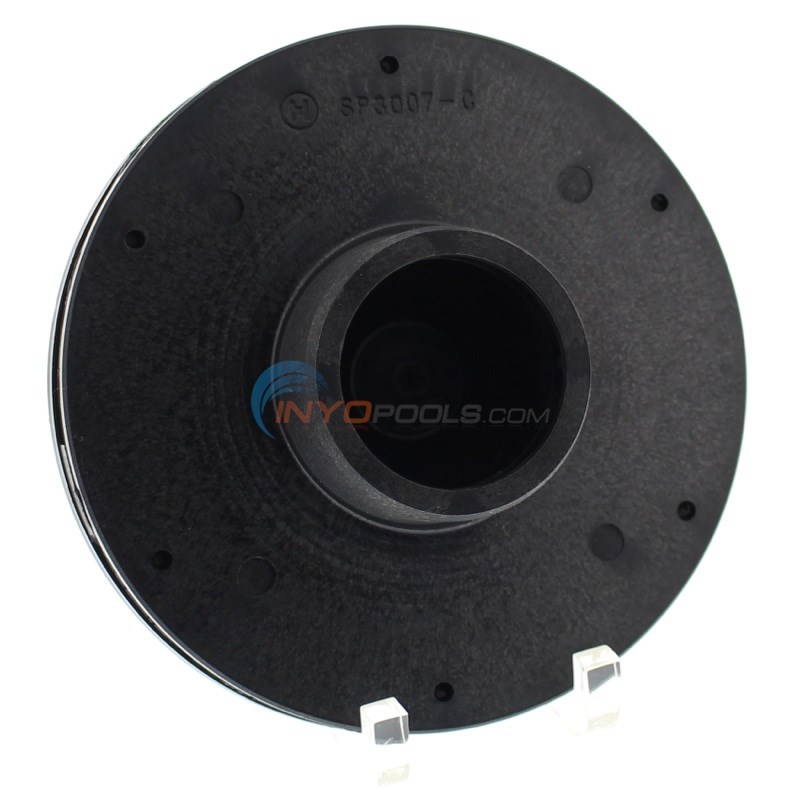

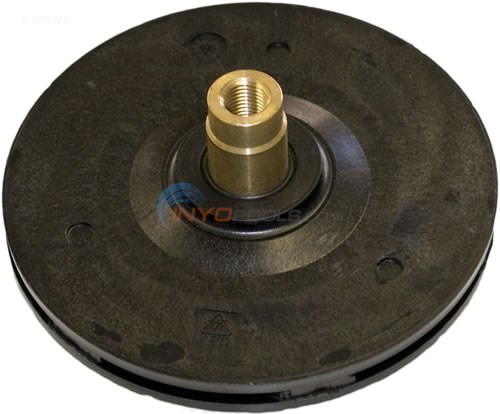

PureLine 1 HP Impeller Compatible with Hayward™ Super II - SPX3007C



Part # 5110-10H

By PureLine

  5 Average



Part # 5110-10H

Manufacturer Code SPX3007C

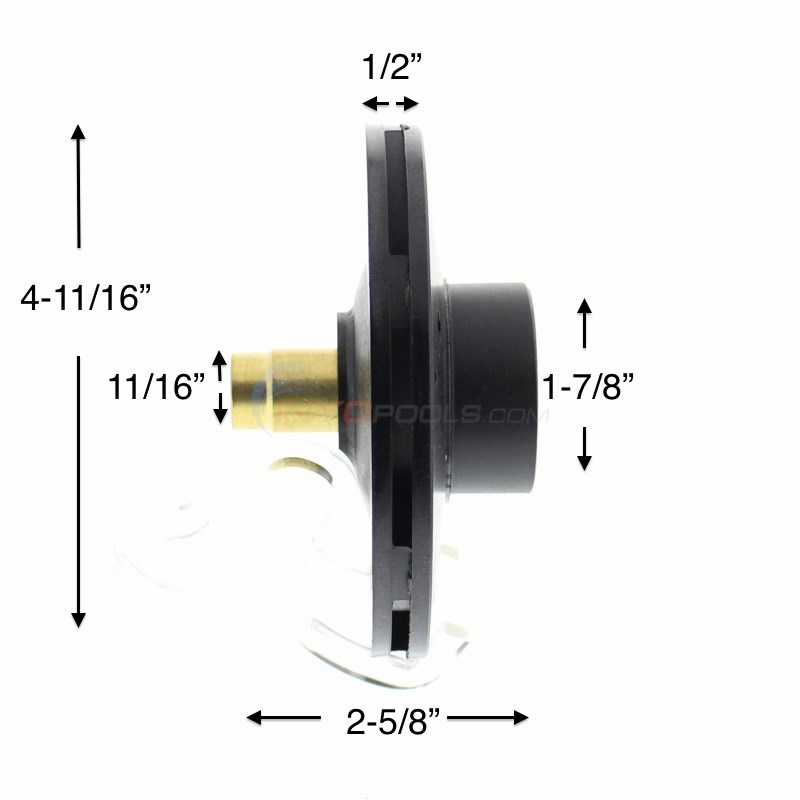

Dimensions 4.7" X 0.5"

Alternate Part #'s HAY1012070, PL2750, SP3007C, SPX3007C

Product Description

This Impeller is not the Hayward™ original Impeller and is an After-Market generic Impeller by Pureline

This is an After-Market Impeller by PureLine for the Hayward Super II 1.0 THP - SPX3007C

Compatible With

  • Hayward™ Super II™ SP3000 Series
  • Leslie's™ Hydromax II
  • Hayward™ Sper Spa
  • Hayward™ RS Series

*Inyo Pools is not affiliated with Hayward® Industries Inc. The use of such trademarks herein is for informational purposes only, and the goods are not those of Hayward® Industries Inc, but rather they are simply compatible with the referenced Hayward® product.

Product Specifications

Pump Model:
Super II & RS Series
.75 Full & 1.0 Uprate HP

?     Asked on 10/27/2020by Monica

How can you tell is your impeller has gone bad?

A  Answered on 10/28/2020 by Industry Professional

The normal things that would cause an impeller to not work correctly would be wither its jammed with debris, the diffuser it works with is damaged, or the threads where the motor shaft screw in are bad.

?     Asked on 5/26/2020by Dianne Fortenbury

On model SP3007x10 up rated, does impeller SPX3007C require an impeller ring for diffuser SPX3000BN? Thank you!

A  Answered on 5/27/2020 by InyoPools Product Specialist Hector F.

Based on the impeller and diffuser part numbers, you have a Hayward Super II pool pump which will require impeller ring part number 5110-23 that you can view by clicking here

?     Asked on 3/17/2020by Robert Karlin

On a super 2 with a 1 hp motor can I use a spx 3010 Impeller, instead of a spx 3007c ??? If not, why not??

A  Answered on 3/17/2020 by InyoPools Product Specialist Lennox H.

Hi, Robert. If you're using a 1.0 HP up rated motor, you cannot use the SPX3010C impeller. That is because the load that it will be placed on the 1.0 HP up rated motor since it is larger. That is not the case if you're using a 1.0 HP full rated motor.

?     Asked on 5/7/2019by Inyo Visitor

is this impeller for a sp3007x10 ?

A  Answered on 5/7/2019 by InyoPools Product Specialist Patrick P.

Yes this is the proper replacement impeller for the Hayward Super II Pump SP3007X10 1 H.P.

?     Asked on 6/11/2016by Toni Moore

Does this part have a spring-loaded gasket or have you changed from the spring loaded gasket to the brass.

A  Answered on 6/11/2016 by InyoPools Product Specialist Alan M.

The impeller does not come with a spring loaded gasket. The part you are referring to is called the pump/shaft seal. It is a 2 part seal that protects the motor from water damage. It is recommended that you change the pump/shaft seal every time you change the motor. You can identify the correct seal you will need by matching the pump make and model and the corresponding parts list.
