Hayward Super Spa Parts

MODEL SP-3500 Series (Uprated)

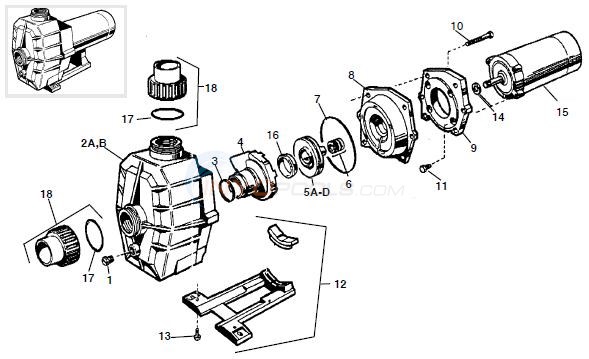

Hayward Super Spa Diagram

Click to zoom in

Diagram #	Part Title
1	PLUG, POLY, 1/4" MPT (3F14)
2A	NO LONGER AVAILABLE
3	GASKET, DIFFUSER
4	DIFFUSER, SUPER SPA PUMP
5A	IMPELLER, SP3005-C, HAYWARD
6	HAYWARD SUPER SPA SHAFT SEAL (OEM)
7	GASKET, HOUSING (SPX3000T)
8	PLATE, SEAL, SP3020-E HAYWARD
9	PLATE, MOTOR MOUNTING
10	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
11	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
12*	BRACKET, MOUNTING With ADAPTER
13	BRACKET, MOUNTING With ADAPTER
14	SLINGER, WATER (G-71)
15	3/4 H.P Round Flange Dual Speed Full Rate Motor
16	RING, IMPELLER 3/4-3 HP
17	O-RING
18	UNION CONNECTORS 1 1/2" SKT X 2" SLIP WG

View Parts List

Diagram #	Part Title
1	PLUG, POLY, 1/4" MPT (3F14)
2A	NO LONGER AVAILABLE
3	GASKET, DIFFUSER
4	DIFFUSER, SUPER SPA PUMP
5A	IMPELLER, SP3005-C, HAYWARD
6	HAYWARD SUPER SPA SHAFT SEAL (OEM)
7	GASKET, HOUSING (SPX3000T)
8	PLATE, SEAL, SP3020-E HAYWARD
9	PLATE, MOTOR MOUNTING
10	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
11	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
12*	BRACKET, MOUNTING With ADAPTER
13	BRACKET, MOUNTING With ADAPTER
14	SLINGER, WATER (G-71)
15	3/4 H.P Round Flange Dual Speed Full Rate Motor
16	RING, IMPELLER 3/4-3 HP
17	O-RING
18	UNION CONNECTORS 1 1/2" SKT X 2" SLIP WG

Available Parts:

PLUG, POLY, 1/4" MPT (3F14)

Part # 6761-0 Mfg # SPX1700FG

PLUG, POLY, 1/4" MPT (3F14)

$11.81 IN STOCK

Qty:

2A

NO LONGER AVAILABLE

Part # N/A Mfg # SPX3500AA

NO LONGER AVAILABLE

NOT AVAILABLE

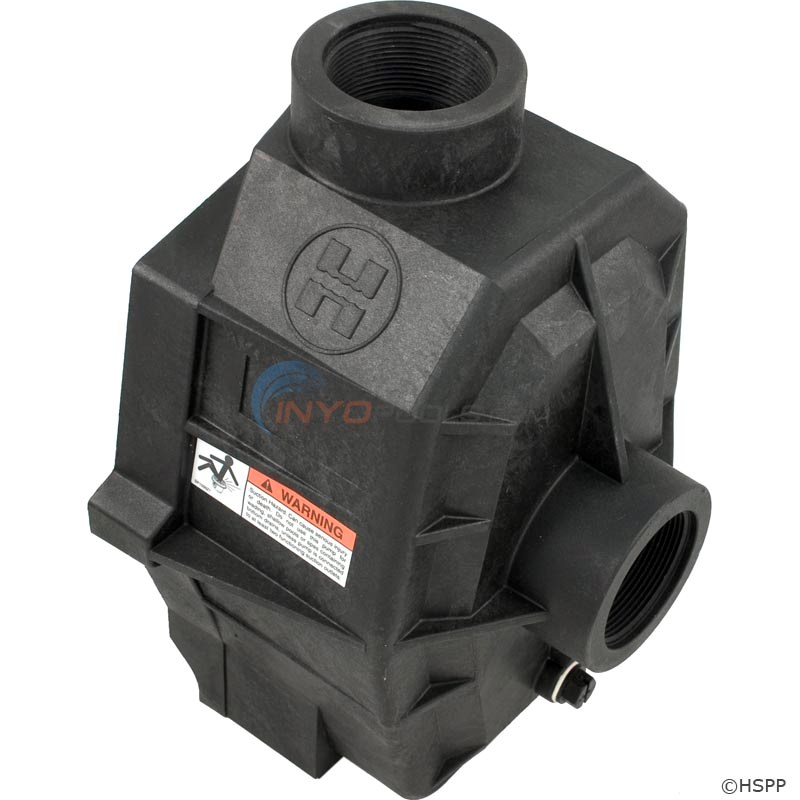

HOUSING, SUPER SPA PUMP 2"

Part # 5111-46 Mfg # SPX3520AA

HOUSING, SUPER SPA PUMP 2"

$266.54 IN STOCK

Qty:

GASKET, DIFFUSER

Part # 5110-08 Mfg # SPX1600R

GASKET, DIFFUSER

$6.83 IN STOCK

Qty:

DIFFUSER, SUPER SPA PUMP

Part # 5111-48 Mfg # SPX3500B

DIFFUSER, SUPER SPA PUMP

$91.68

IMPELLER, SP3005-C, HAYWARD

Part # 5110-10G Mfg # SPX3005C

IMPELLER, SP3005-C, HAYWARD

$26.51 IN STOCK

Qty:

IMPELLER, SP3007-C, HAYWARD

Part # 5110-10H Mfg # SPX3007C

IMPELLER, SP3007-C, HAYWARD

$26.51 IN STOCK

Qty:

IMPELLER, SP3010-C, HAYWARD

Part # 5110-10J Mfg # SPX3010C

IMPELLER, SP3010-C, HAYWARD

$25.52 IN STOCK

Qty:

IMPELLER, SP3015-C, HAYWARD

Part # 5110-10K Mfg # SPX3015C

IMPELLER, SP3015-C, HAYWARD

$57.03 IN STOCK

Qty:

HAYWARD SUPER SPA SHAFT SEAL (OEM)

Part # SPX1600Z2 Mfg # SPX1600Z2

HAYWARD SUPER SPA SHAFT SEAL (OEM)

$37.51 IN STOCK

Qty:

SHAFT SEAL (GENERIC)

Part # 5110-11 Mfg # PS-201

SHAFT SEAL (GENERIC)

$11.02 IN STOCK

Qty:

SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-235 Mfg # PS-3868

SHAFT SEAL (FOR SALTWATER POOLS)

$17.65 IN STOCK

Qty:

GASKET, HOUSING (SPX3000T)

Part # 5110-12A Mfg # G-345

GASKET, HOUSING (SPX3000T)

$8.39 IN STOCK

Qty:

PLATE, SEAL, SP3020-E HAYWARD

Part # 5110-13E Mfg # SPX3020E

PLATE, SEAL, SP3020-E HAYWARD

$35.51 IN STOCK

Qty:

PLATE, MOTOR MOUNTING

Part # 5110-14A Mfg # SPX3000F

PLATE, MOTOR MOUNTING

$31.82 IN STOCK

Qty:

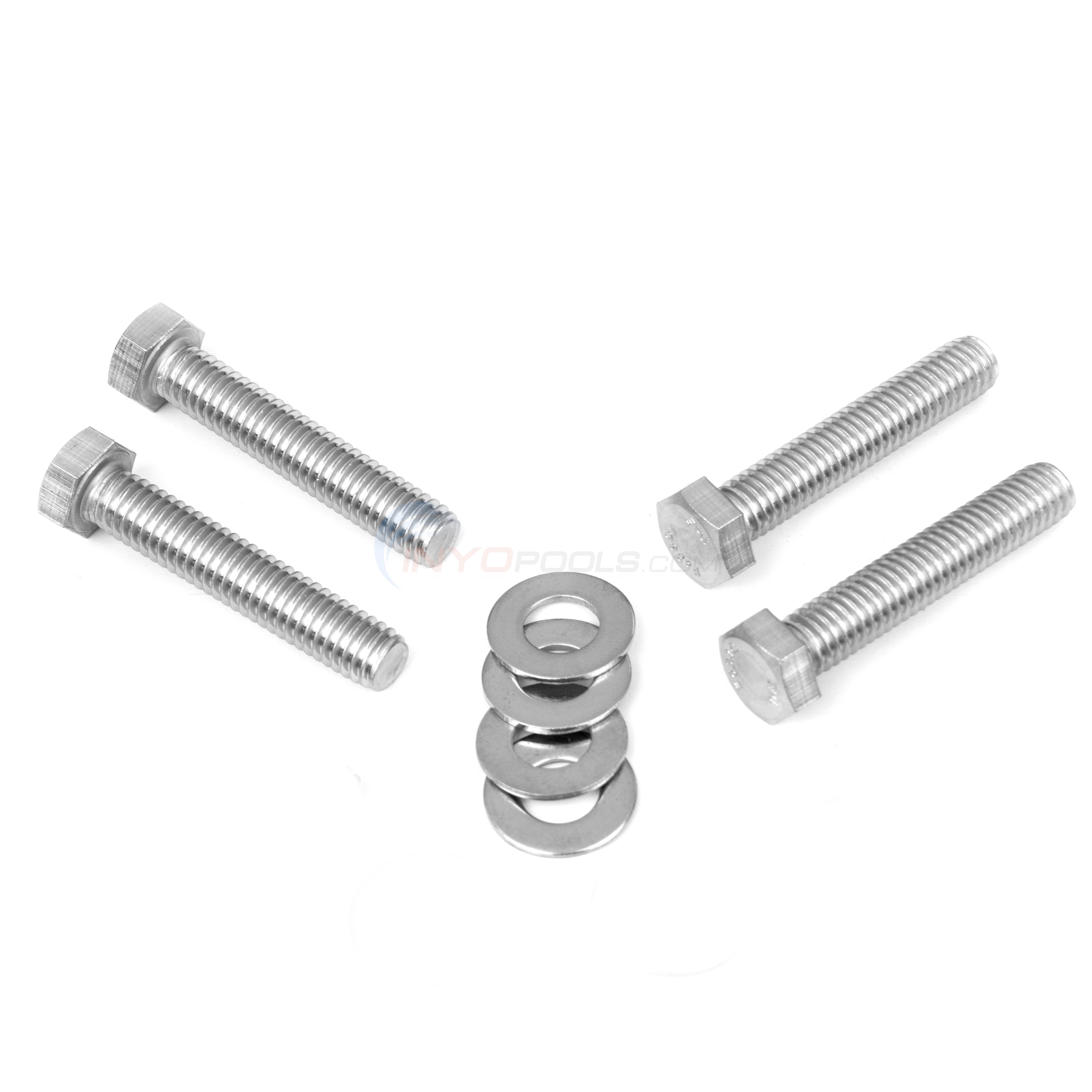

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

Part # 5110-15 Mfg # 37C200HCS1

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

$5.29 IN STOCK

Qty:

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$7.68 IN STOCK

Qty:

BRACKET, MOUNTING With ADAPTER

Part # 5110-17B Mfg # SPX3000GA

BRACKET, MOUNTING With ADAPTER

$31.93 IN STOCK

Qty:

BRACKET, MOUNTING With ADAPTER

Part # 5110-17B Mfg # SPX3000GA

BRACKET, MOUNTING With ADAPTER

$31.93 IN STOCK

Qty:

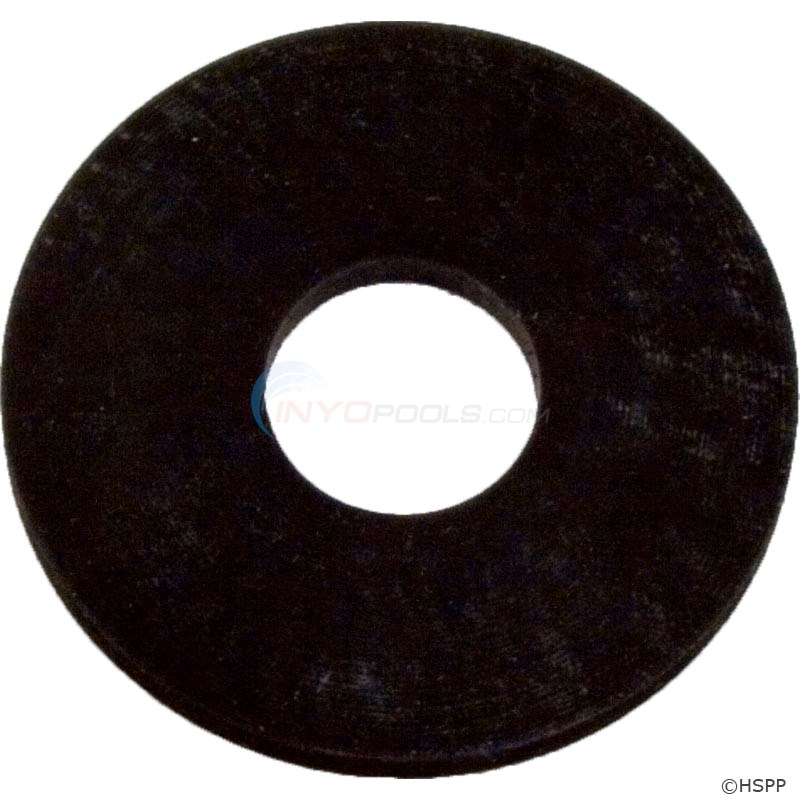

SLINGER, WATER (G-71)

Part # 5110-20 Mfg # SPX0125F

SLINGER, WATER (G-71)

$11.45 IN STOCK

Qty:

3/4 H.P Round Flange Dual Speed Full Rate Motor

Part # STS1072R Mfg # STS1072R

3/4 H.P Round Flange Dual Speed Full Rate Motor

$361.79

Service Factor 1.5 Voltage 230V Max Amps 6.4/1.9 Frame 56J

Service Factor 1.5 Voltage 230V Max Amps 6.4/1.9 Frame 56J

MOTOR, 56J 1 HP 2 SPD 230V

Part # 5387-1 Mfg # STS1102R

MOTOR, 56J 1 HP 2 SPD 230V

$422.00 IN STOCK

Service Factor 1.5 Voltage 230V Max Amps 8.5/2.5 Frame 56J

Service Factor 1.5 Voltage 230V Max Amps 8.5/2.5 Frame 56J

Qty:

MOTOR, 56J 1 1/2 HP 2 SPD 230V

Part # 5388-1 Mfg # STS1152R

MOTOR, 56J 1 1/2 HP 2 SPD 230V

$495.00 IN STOCK

Service Factor 1.3 Voltage 230V Max Amps 9.0/3.3 Frame 56J

Service Factor 1.3 Voltage 230V Max Amps 9.0/3.3 Frame 56J

Qty:

MOTOR, THD FULL RATED, 2 SPD 2 HP

Part # STS1202R Mfg # STS1202VR1

MOTOR, THD FULL RATED, 2 SPD 2 HP

$515.55

Service Factor 1.2 Voltage 230V Max Amps 11.4/4.1 Frame 56J

Service Factor 1.2 Voltage 230V Max Amps 11.4/4.1 Frame 56J

RING, IMPELLER 3/4-3 HP

Part # 5110-23 Mfg # SPX3005R

RING, IMPELLER 3/4-3 HP

$10.60 IN STOCK

Qty:

O-RING

Part # 4600-3062 Mfg # 227

O-RING

$7.07 IN STOCK

Qty:

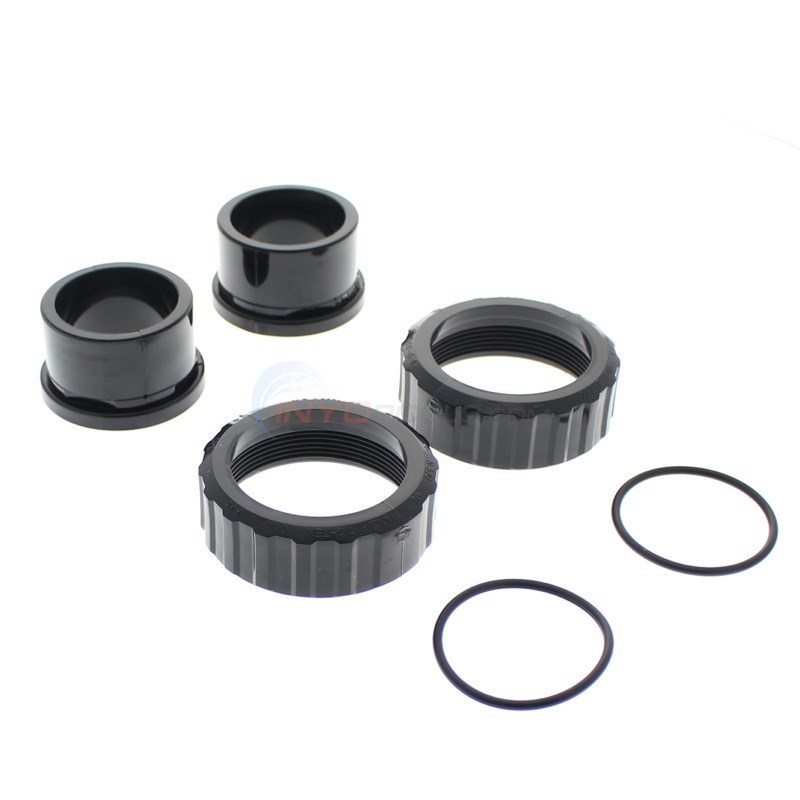

UNION CONNECTORS 1 1/2" SKT X 2" SLIP WG

Part # 5111-27A Mfg # SP1500UNPAK2C

UNION CONNECTORS 1 1/2" SKT X 2" SLIP WG

$25.57 IN STOCK

Qty:

* INCLUDES KEY 12 & 13
