Replacement Valve for 1-1/2" Pentair™ Sand Filters Clamp Style - PL0700

$129.99

IN STOCK
FREE SHIPPING

Part # PL0700

  5 Average

Details

Top

Part # PL0700

Alternate Part #'s 262506, 27502-154-000, 4600-2506, 4600-2506P, TM-12-PB, TM12CFC, 26-253-1040, 27502154000

Product Description

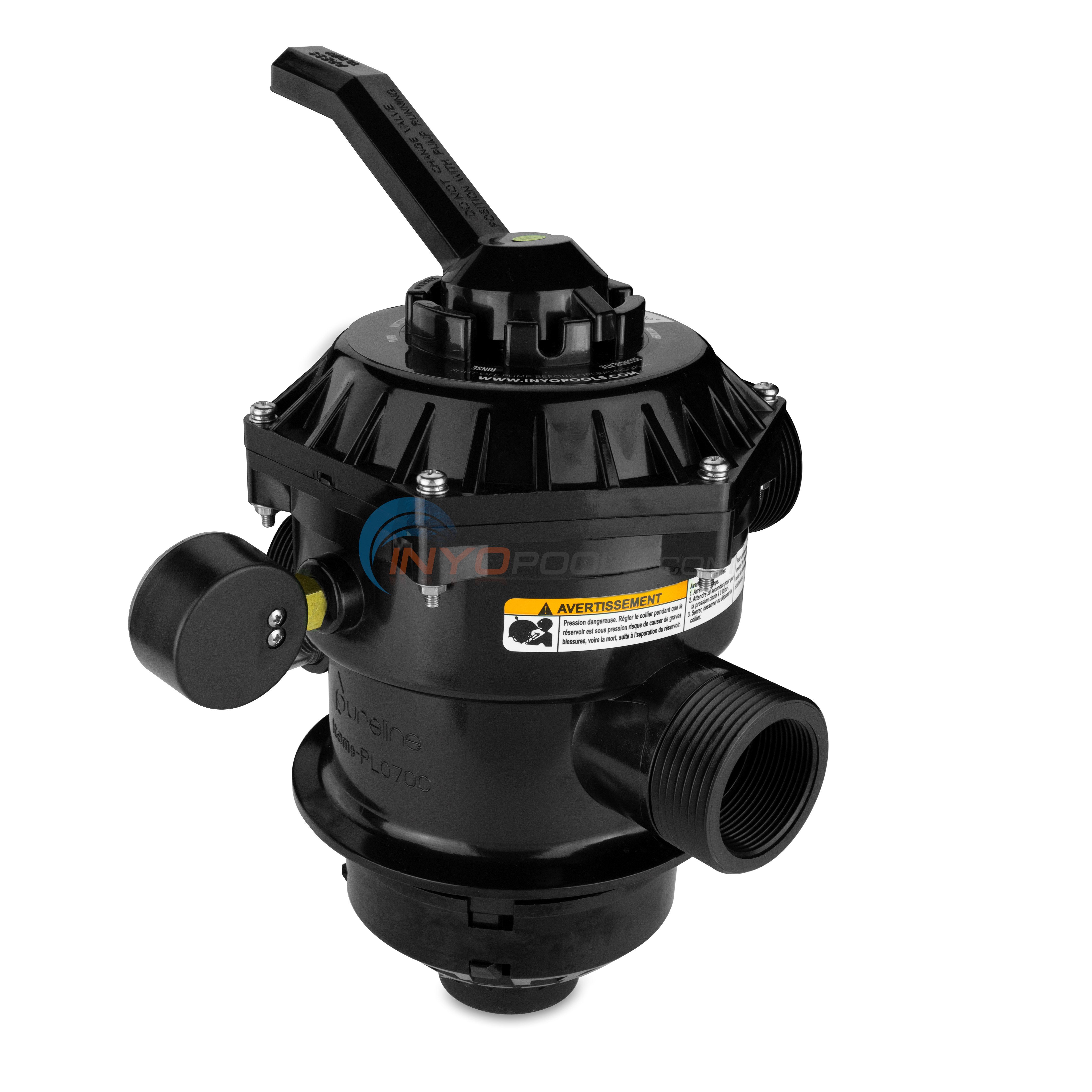

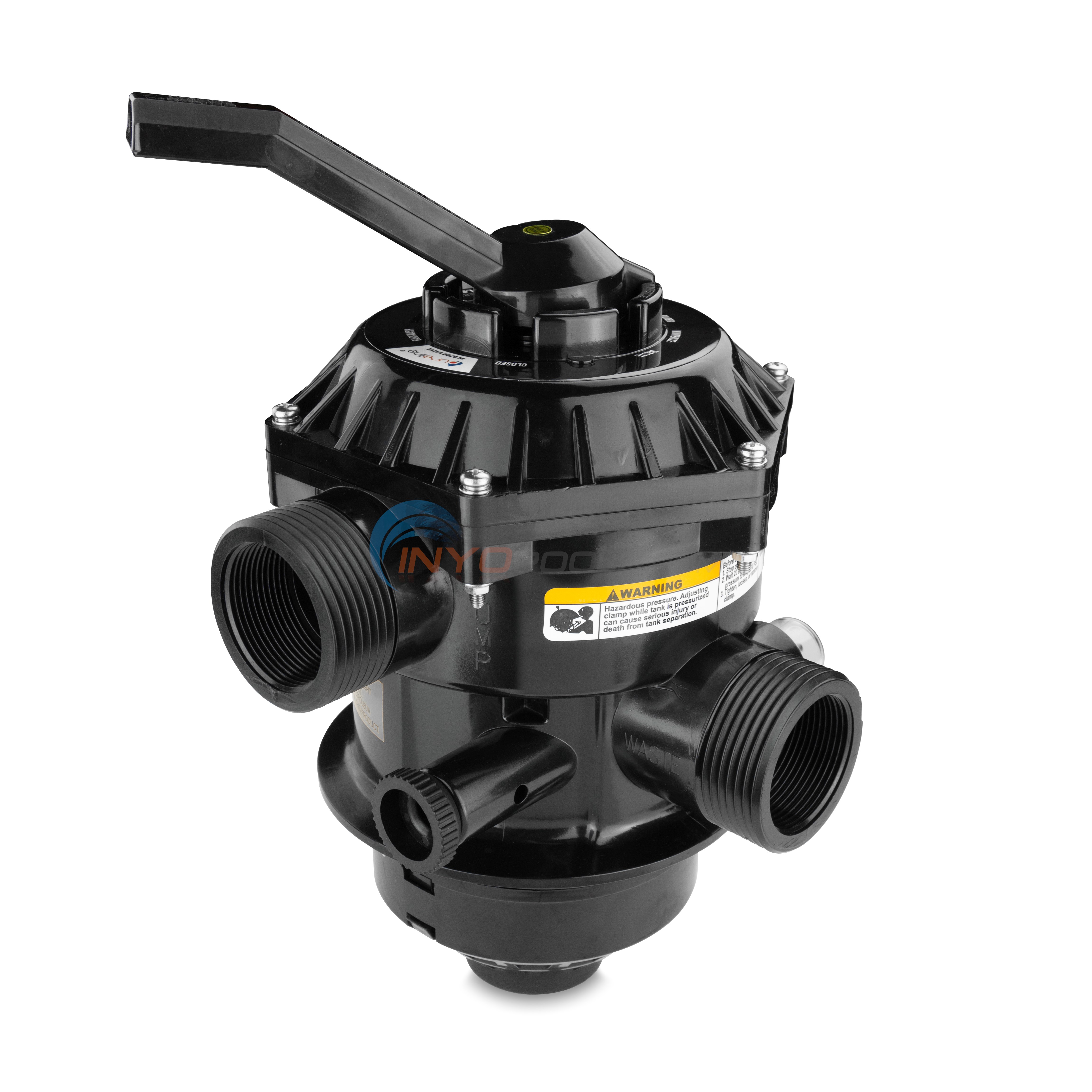

Generic Replacement Valve for Pentair™ Top Mount Sand Filters

This is a Generic Replacement Valve for the Pentair™ 262506 Valve. This valve is used on Pentair™ Sand Filters that use a clamp on style valve and this valve accommodates 1-1/2" plumbing. This valve is most commonly used on Pentair™ Tagelus, Pentair™ Sand Dollar, Pentair™ Meteor and Sta-Rite™ Crystal-Flo II sand filters.

Easy Homeowner Installation

Watch our Video on How to Replace a Pool Multiport Valve

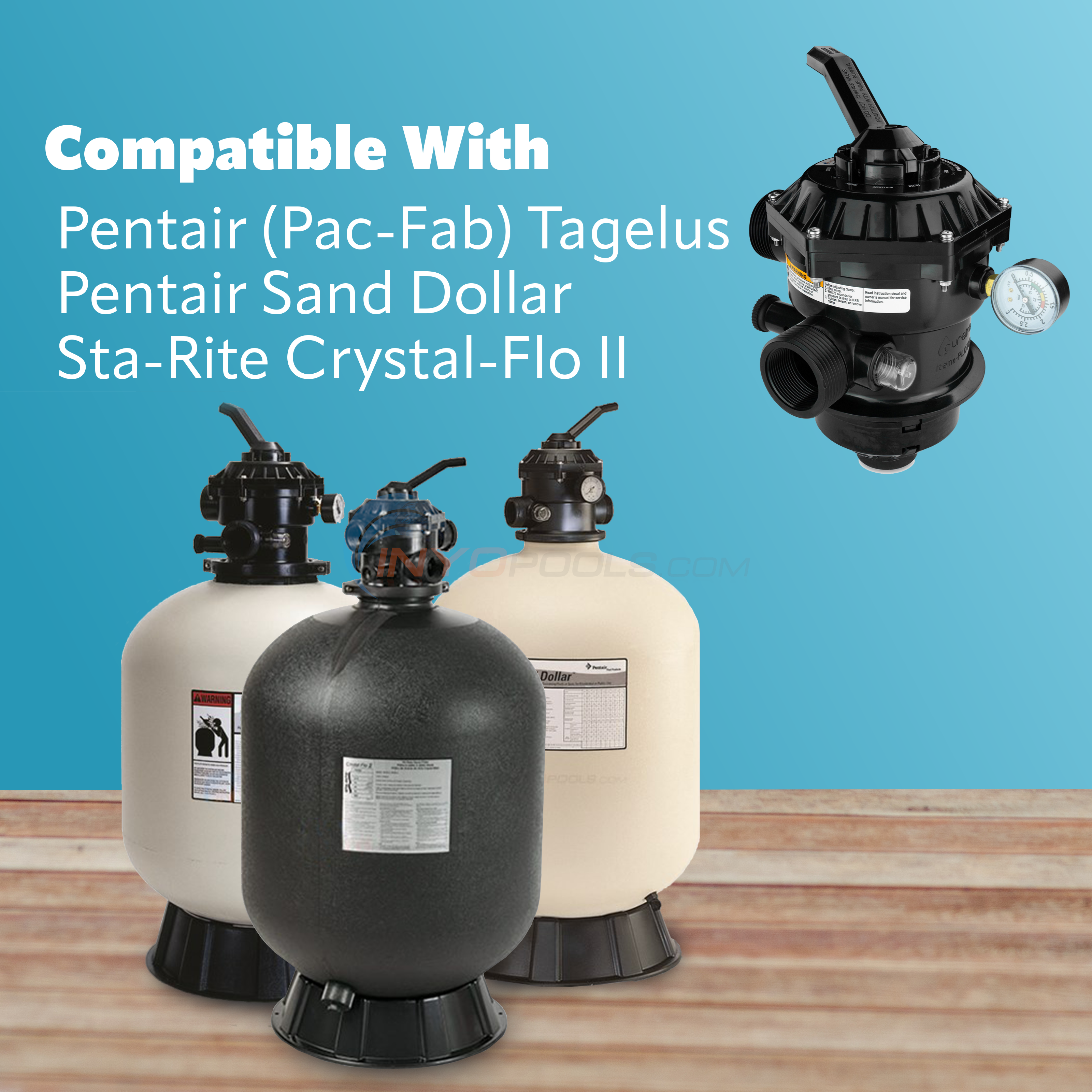

Commonly Used On

  • Pentair™ 262506
  • Pentair™ Sand Dollar SD-30, SD-35, SD-40, SD-60, SD-80
  • Pentair™ Tagelus TA-35D, TA40D, TA50D, TA60D
  • Sta-Rite™ Crystal-Flo II SRCF20, CFII16, CFII19, CFII22, CFII24, CFII26, CFII26-2
  • Pentair™ Meteor Sand Filters
  • Pac Fab™ Top Mount Sand Filters
  • StarBright Filters SF-30, SF-35, SF-40, SF-50
Top

?     Asked on 4/30/2021 by Ed

My multiport filter valve is leaking to waste when in the recirculate position. It is a Sta-Rite sand filter model T-240BP-1 Code 34H06P. The valve label has MDO NO 112-147/112-148, plumbing in/out of the valve is 1.5". Needing to determine the correct replacement valve.
 Reply

A  Answered on 5/1/2021 by InyoPools Product Specialist Patrick P.

Hi Ed, If you have the T-240BP-1 Sta-Rite Filter then you will require this TM-12L Replacement Valve Also here is a link to the Exploded Parts Diagram for your T-240BP-1 Sand Filter which may be helpful for you to keep on hand if you need any additional replacement parts in the future.
 Reply


?     Asked on 4/28/2021 by E

Will this replace a 27-2527 Multiport? Do I need any special connector to the existing parts of the filter?
 Reply

A  Answered on 4/30/2021 by InyoPools Product Specialist Patrick P.

Could you send us a few photos complete filter, filter label and valve? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 4/19/2021 by John

My multi port valve is currently leaking and is about 15-20 years old and the marking are very faint. its for a sand filter here are some numbers: 272526 0518053060181K 13176418 on the top label 27-2599 6/98
 Reply

A  Answered on 4/19/2021 by InyoPools Product Specialist Charlie R.

Hi John, If the # on your valve label is 272526, then the correct replacement valve is the Pentair Top Mount Valve 6 Pos 1-1/2" Flanged. You can view it HERE
 Reply


?     Asked on 10/28/2020 by Susan

Hello -I currently have a Sta-Rite 77704-0104 1-1/2" MPV Plug & Key Cover Assembly which developed a severe leak. Will this work as a replacement? Many thanks.
 Reply

A  Answered on 2/4/2021 by InyoPools Product Specialist Hector F.

Hi Susan, unfortunately, this multiport valve is not a compatible replacement for yours. Please see the replacement valve options on this Sta-Rite 1-1/2" WC112 Series Multiport Valve parts diagram
 Reply


?     Asked on 10/18/2020 by James E Hangen

I have a tegelus 60D sand filter but the original valve has 2 inch lines. Would this replacement valve work? Thank you.
 Reply

A  Answered on 10/19/2020 by InyoPools Product Specialist Hector F.

Hi James, if you have 1.5-inch plumbing then yes this multiport valve will work on your TA60D Tagelus sand filter. If you have 2-inch plumbing then you will need one of these 2-inch model valves that you can view on this Tagelus sand filter parts diagram on key 3.
 Reply


?     Asked on 10/2/2020 by

Will this fit an Aqua Tools AT3124?
 Reply

A  Answered on 10/14/2020 by InyoPools Product Specialist Joe S.

Good day,Based on the model AT3124 you would need to order Praher Top Mount Valve 6-Way - TM-12-L Part Number 4770-01.
 Reply


?     Asked on 9/19/2020 by Lushen Evans

Does all the parts come with the part
 Reply

A  Answered on 12/17/2020 by InyoPools Product Specialist Hector F.

Hi Lushen, this valve does not come with a clamp but does come with all other parts of the valve. The clamp used on this specific valve with the specific model filters that it is used on is part number 4600-2162
 Reply


?     Asked on 9/16/2020 by

Is this valve an exact replacement for the Pentair 272526?
 Reply

A  Answered on 12/17/2020 by InyoPools Product Specialist Hector F.

Hello, yes this is the direct replacement for the Pentair multiport valve model 272526.
 Reply


?     Asked on 8/5/2020 by David

Will this fit a sta-rite t-210wf? Also does it come with a clamp to attach it to the filter? If not can you tell me which clamp I will need. Thank you
 Reply

A  Answered on 8/5/2020 by InyoPools Product Specialist Patrick P.

Yes the PL0700 is the proper replacement valve for the sta-rite t-210wf and you will also need this 152165 Valve Clamp
 Reply


?     Asked on 8/3/2020 by

will standard PVS fittings fit on back wash outlet of pump
 Reply

A  Answered on 12/21/2020 by InyoPools Product Specialist Hector F.

Hi Brent, I believe that you are referring to PVC and yes this multiport valve can use standard PVC.
 Reply


?     Asked on 7/4/2020 by David Herndon

What is the diameter of the valve that fits to the filter top. I have a WC112-148 and its diameter is 8" with drop down lip of 6 1/2". Trying to buy the right complete value.
 Reply

A  Answered on 12/14/2020 by InyoPools Product Specialist Hector F.

Hi, David we actually do carry the Pentair multiport valve model WC112-148
 Reply


?     Asked on 6/19/2020 by Steve

I need the clear plastic backwash indicator replaced. I do not know what it is called. Do you have these?
 Reply

A  Answered on 11/20/2020 by InyoPools Product Specialist Hector F.

Hi Steve, I believe that you are referring to the clear site glass that is on the multiport valve. If you can confirm the model multiport valve then we can confirm that part number for you. The model number of your valve should be on the top label and if no longer legible you can reply to this with an image uploaded.
 Reply


?     Asked on 6/15/2020 by lisa McCabe

Will this work on an Aqua Tools AT3118 sand filter?
 Reply

A  Answered on 6/15/2020 by InyoPools Product Specialist Patrick P.

Hi Lisa, No this PL0700 valve will not. You will need this TM-12-L Valve as a replacement for an Aqua Tools AT3118 sand filter
 Reply


?     Asked on 5/28/2020 by Patrick Morrissey

Looking for a possible replacement for the Pentair #261186. Will this Praher multi-port valve be just as comparable to the Pentair version?
 Reply

A  Answered on 11/2/2020 by InyoPools Product Specialist Hector F.

Hi Patrick, this valve, unfortunately, is not a replacement for your Pentair multiport valve model 261186  however our part number 4600-1186 is the direct replacement.
 Reply


?     Asked on 5/25/2020 by George Haluska

I need the gasket for the top half
 Reply

A  Answered on 10/22/2020 by InyoPools Product Specialist Hector F.

Hi George, I believe that you are referring to the lid o ring for the valve which you can see on key 6 on this parts diagram however if you are referring to another one then it should be listed there as well.
 Reply


?     Asked on 5/9/2020 by Rhonda Adams

Does this product come with a manufacturer warrenty?
 Reply

A  Answered on 5/9/2020 by InyoPools Product Specialist Patrick P.

Yes it includes a 1 year warranty.
 Reply


?     Asked on 4/30/2020 by Monica

Does this come with the clamp
 Reply

A  Answered on 12/10/2020 by InyoPools Product Specialist Hector F.

Hi Monica, this valve does not come with a clamp. The clamp used on this specific valve with the specific model filters that it is used on is part number 4600-2162
 Reply


?     Asked on 4/30/2020 by L. Ray Brooks

is it as good as and will it fit a tagelus TA 35d/ta 35 and does it come with all the attaching clamps brackets etc????
 Reply

A  Answered on 5/6/2020 by InyoPools Product Specialist Alex V.

L. Ray, The Pl0700 is just as good as the OEM valve. It will fit the TA35/35D filter if you are replacing the 262506 valve.
 Reply


?     Asked on 4/24/2020 by Robert M. Moore

Do you sell couplers for the PL0700? Please provide coupler specs.
 Reply

A  Answered on 4/24/2020 by InyoPools Product Specialist Hector F.

Yes, the union kit will be part number 150119 that you can view by clicking here
 Reply


?     Asked on 4/19/2020 by Robert M. Moore

I just want to confirm that this is a suitable replacement for my Purex Triton sand filter (by PacFab). I can't find a part number on it, but your replacement valve is very similar (if not identical) to what is currently installed (see photo).
 Reply

A  Answered on 12/22/2020 by InyoPools Product Specialist Hector F.

Hi Robert, this valve is unfortunately not compatible with the Purex Triton sand filter series however if you can provide the specific filter model number then we can confirm what valves are.
 Reply

  • Commented on 12/23/2020 by Product Owner

    I just received your reply indicating the valve I purchased is not compatible with my Purex Triton sand filter. I never installed it or the recommended couplers which I ordered separately. Can I exchange them for compatible units? I will try and find the exact model number, but needed to ask this question first. Thanks!
     Reply

    • Commented on 2/19/2021 by InyoPools Product Specialist Hector F.

      Hi Robert, please contact our customer service department using our live online chat feature so we can look into a return for you.
       Reply


?     Asked on 4/14/2020 by Bryan

Hi do you have replacement parts mainly spider seal and possibly spring for swimquip model #14960 ( AKA STA-RITE?) believe seal is part# 14960-09, if not any idea where I could locate parts and is this valve featured the correct replacment. If not what would be the correct replacement? Thank You for any help/information you can give. Bryan
 Reply

A  Answered on 11/24/2020 by InyoPools Product Specialist Megan C.

The Diverter w/ Gasket - 14962-0017 can be ordered to replace the spider gasket, it is not sold separately. The Valve Assy., Multiport 1 1/2in, W/union - 18202-0150 is the replacement valve.
 Reply


?     Asked on 4/13/2020 by Dustin

Will this work on a Sta-Rite T-200 BP-1? If not could you help me find something that will? Thanks.
 Reply

A  Answered on 4/13/2020 by InyoPools Product Specialist Patrick P.

Hi Dustin, Actually this TM12L Valve would be the proper replacement valve for your Sta-Rite T-200 BP-1 and not the PL0700.
 Reply


?     Asked on 4/11/2020 by chris Whitehall

Does this valve replace the Tagelus 26-2506?
 Reply

A  Answered on 4/13/2020 by InyoPools Product Specialist Lennox H.

Hi, Chris. Yes, this valve can be used as a replacement.
 Reply


?     Asked on 4/8/2019 by

Will this valve work on a Tagelus 40 TA 40D sand filter ? I think this is the model I ordered and received from INYO last fall. Unfortunately the input and output ports are 90 degree opposed which will require many changes to my plumbing. The pictured valve have the ports parallel which would align with my existing plumbing.
 Reply

A  Answered on 4/9/2019 by InyoPools Product Specialist Lennox H.

Hi. Yes, this valve will fit the TA-50D filter your purchased. You will have to replumb if you use this valve, or you can replace it with the original P/N 262506.
 Reply


?     Asked on 7/25/2015 by Dennis

I have a Pac Fab Tagelus TM 30 Sand Filter for my In-ground Pool. I need to replace the valve, as it is not shutting off the waste water completely when in the "Filter" position. The Current Valve is a TM 12 A. It is threaded rather than flanged. Do you have a replacement valve for me?
 Reply

A  Answered on 7/29/2015 by InyoPools Product Specialist Lennox H.

Hi Dennis, The Top Mount "V" Thread Valve (TM-12-A) will be the correct replacement valve for your Pac Fab Tagelus Sand Filter.
 Reply


?     Asked on 6/19/2014 by Guest

I have a Tagelus Sand Filter model# TA 50 D / TA 50, will this part work with my sand filter?
 Reply

A  Answered on 6/19/2014 by InyoPools Product Specialist Patrick P.

Yes if you have a Tagelus filter and the valve is a clamp on style valve then this would be the valve you require.
 Reply


Top
Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Pliers, Adjustable Wrench

1     0

Broken Handle

Written on 4/4/2021 by David A.

The issue that forced the replacement was the valve handle snapping off. This makes the valve unchangeable. I decided to replace the valve instead of just the handle. Due to some hairline cracks in the connector area and the fact that the handle was brittle enough to snap then other parts may also be. I also used this as a chance to replace the sand in my filter. Due to running very high pressure that was not corrected by backwash. The result a filter like new. Thank you INYOpools for your online instruction manuals
