Muskin Sand Filter System -- Model FS683B Parts

MODEL FS683B

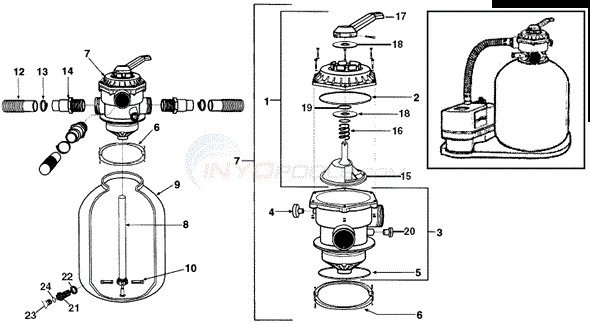

Muskin Sand Filter System -- Model FS683B Diagram

Click to zoom in

Diagram #	Part Title
1	TOP ASSEMBLY, VALVE (272531)
2	O-RING
3	BODY, VALVE With DIFFUSER-BLACK
4	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	O-RING, VALVE BODY TA30D,35D,40D,50D,60D (350)
6	VALVE CLAMP, PLASTIC
7	VALVE, 1 1/2" TOP MT. FLANGED EQFV WG
8	PIPING, ASSEMBLY- SD30
9	OBSOLETE TANK SHELL
10	LATERAL
12	"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"
13	CLAMP
14	PUMP ADAPTOR
15	DIVERTER, VALVE With GASKET (272512)
16	SPRING
17	HANDLE, VALVE
18	WASHER, PLASTIC 2 REQ. (272505)
19	Star-Clear Oring 1/2IN
20	AIR BLEEDER With O-RING
21	SAND DRAIN 1"
22	SAND DRAIN GASKET
23	PLUG, DRAIN 1/4"
24	O-RING OD 11/16"

View Parts List

Diagram #	Part Title
1	TOP ASSEMBLY, VALVE (272531)
2	O-RING
3	BODY, VALVE With DIFFUSER-BLACK
4	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	O-RING, VALVE BODY TA30D,35D,40D,50D,60D (350)
6	VALVE CLAMP, PLASTIC
7	VALVE, 1 1/2" TOP MT. FLANGED EQFV WG
8	PIPING, ASSEMBLY- SD30
9	OBSOLETE TANK SHELL
10	LATERAL
12	"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"
13	CLAMP
14	PUMP ADAPTOR
15	DIVERTER, VALVE With GASKET (272512)
16	SPRING
17	HANDLE, VALVE
18	WASHER, PLASTIC 2 REQ. (272505)
19	Star-Clear Oring 1/2IN
20	AIR BLEEDER With O-RING
21	SAND DRAIN 1"
22	SAND DRAIN GASKET
23	PLUG, DRAIN 1/4"
24	O-RING OD 11/16"

Available Parts:

1

TOP ASSEMBLY, VALVE (272531)

Part # 4600-2531 Mfg # 72197

TOP ASSEMBLY, VALVE (272531)

NOT AVAILABLE

OLD MFG.# 72217

OLD MFG.# 72217

O-RING

Part # 5000-4053 Mfg # 358

$13.54 IN STOCK

OLD MFG.# 72218

OLD MFG.# 72218

Qty:

BODY, VALVE With DIFFUSER-BLACK

Part # 4600-2530 Mfg # 272530

BODY, VALVE With DIFFUSER-BLACK

$149.99 IN STOCK

OLD MFG.# 72219

OLD MFG.# 72219

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$9.99 IN STOCK

OLD MFG.# 72200

OLD MFG.# 72200

Qty:

O-RING, VALVE BODY TA30D,35D,40D,50D,60D (350)

Part # 4600-2541 Mfg # 272541

O-RING, VALVE BODY TA30D,35D,40D,50D,60D (350)

$11.74 IN STOCK

OLD MFG.# 72221

OLD MFG.# 72221

Qty:

VALVE CLAMP, PLASTIC

Part # 4600-2162 Mfg # 152165

VALVE CLAMP, PLASTIC

$28.99 IN STOCK

OLD MFG.# 72222

OLD MFG.# 72222

Qty:

VALVE, 1 1/2" TOP MT. FLANGED EQFV WG

Part # 4600-2506 Mfg # 262506

VALVE, 1 1/2" TOP MT. FLANGED EQFV WG

$184.99 IN STOCK

OLD MFG.# 72223

OLD MFG.# 72223

Qty:

PureLine After Market Replacement Valve for Pentair 262506

Part # PL0700 Mfg # PL0700

PureLine After Market Replacement Valve for Pentair 262506

$89.99 IN STOCK

OLD MFG.# 72223

OLD MFG.# 72223

Qty:

PIPING, ASSEMBLY- SD30

Part # 4600-5504 Mfg # 155504

PIPING, ASSEMBLY- SD30

$74.99 IN STOCK

OLD MFG.# 72224

OLD MFG.# 72224

Qty:

9

OBSOLETE TANK SHELL

Mfg # 72205

OBSOLETE TANK SHELL

NOT AVAILABLE

OLD MFG.# 72225

OLD MFG.# 72225

LATERAL

Part # 4600-5007 Mfg # 155007

$13.77 IN STOCK

OLD MFG.# 72226

OLD MFG.# 72226

Qty:

"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"

Part # 4880-112

"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"

$66.99

OLD MFG.# 102-7040

OLD MFG.# 102-7040

CLAMP

Part # 4880-011 Mfg # 56009

$20.99

OLD MFG.# NONE

OLD MFG.# NONE

PUMP ADAPTOR

Part # 5182-0020 Mfg # 62082

$54.99

OLD MFG.# NONE

OLD MFG.# NONE

15

DIVERTER, VALVE With GASKET (272512)

Part # 4600-2512 Mfg # 27-2512

DIVERTER, VALVE With GASKET (272512)

NOT AVAILABLE

OLD MFG.# NONE

OLD MFG.# NONE

SPRING

Part # 4623-07 Mfg # 272400

$12.99 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

HANDLE, VALVE

Part # 4623-01 Mfg # 272520

$26.99 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

WASHER, PLASTIC 2 REQ. (272505)

Part # 4600-2505 Mfg # 27500-154-080

WASHER, PLASTIC 2 REQ. (272505)

$4.19 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

Star-Clear Oring 1/2IN

Part # 4662-04A Mfg # 210

Star-Clear Oring 1/2IN

$2.99 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

AIR BLEEDER With O-RING

Part # 4600-3512 Mfg # 273512

AIR BLEEDER With O-RING

$17.13 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

SAND DRAIN 1"

Part # 4600-4710 Mfg # 154710

$44.63

OLD MFG.# NONE

OLD MFG.# NONE

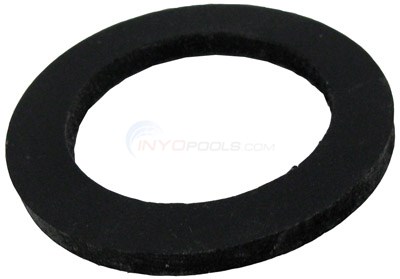

SAND DRAIN GASKET

Part # 4600-4713 Mfg # 154713

SAND DRAIN GASKET

$10.22 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

PLUG, DRAIN 1/4"

Part # 4600-4699 Mfg # 154699

PLUG, DRAIN 1/4"

$9.34 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:

O-RING OD 11/16"

Part # 3262-08 Mfg # 112

O-RING OD 11/16"

$2.99 IN STOCK

OLD MFG.# NONE

OLD MFG.# NONE

Qty:
