Is Hayward part number SPX0714BA (4703-20) the correct Key, Cover, and Handle Assembly for the Hayward XL SP0714T?
Reply
Yes, Hayward part number SPX0714BA is the correct Key, Cover, and Handle Assembly for the Hayward XL SP0714T.
Reply

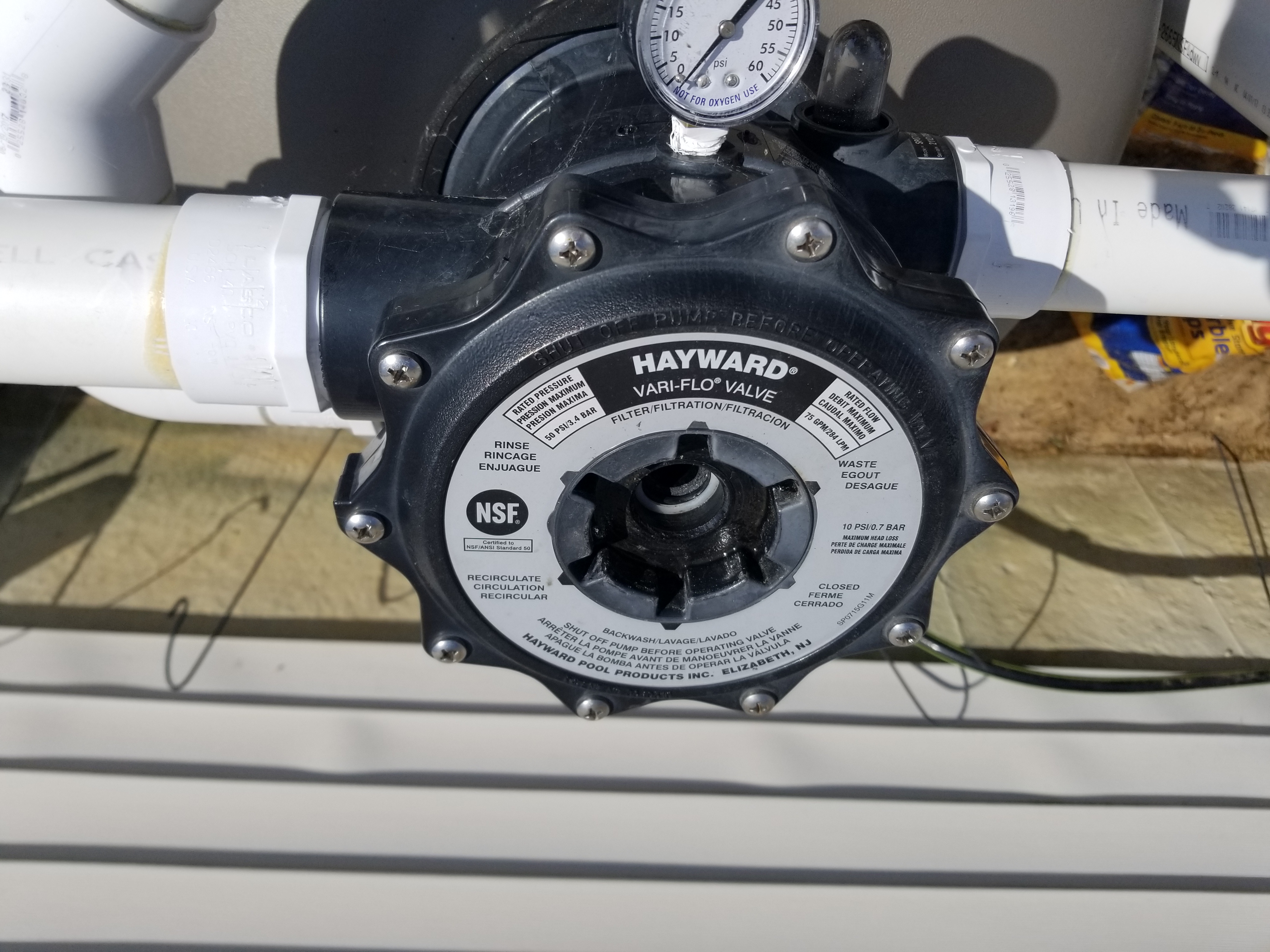

The valve handle on my SP0714T broke in the assembly valve. Do I need to replace the entire SP0714T or just replace the key cover and handle assembly part SPx0714ba? Are other parts needed to replace this part?
Reply
You do not need to replace the entire assembly valve to replace the handle. You can either take apart the top valve assembly and replace the handle or replace the top valve assembly as you have suggested. More commonly people replace the entire top for it is easier and also replaces the small parts inside of the top vave assembly.
Reply
I need to purchase a new key cover for my sand filter. I found the number inside of the key cover asd SP0714A. I find no item matching that number. Please provide information if this number has changed.
Reply
Hi Sandy, The SPX0714BA on this page would be the correct replacement key cover and handle assembly for your SP0714A.
Reply
my part number is sp0714c.when turning the handle a white is sticking along side and causing not to turn do I replace the hole they or remove handle to replace ,and how do I get the pin out. I think I would like to replace .it would be a lot easier for me. can I use this part number.
Reply
Yes you could use this part to replace the top half of your Hayward sp0714c valve, I think this would be the best route for you.
Reply
Will this handle replace the sp071113 ?
Thanx
Reply
The Key Cover And Handle Assembly (SPX0714BA) will replace the handle on the SP071113 model.
Reply
Is Hayward part number SPX0714BA (4703-20) the correct Key, Cover, and Handle Assembly for the Hayward XL SP0714 C? Is there a gasket replacement available for this assembly?
Reply
Hi Edward, yes the SPX0714BA is the correct Key, Cover, and Handle Assembly for the Hayward XL SP0714 C valve. The spider gasket is included with this valve assembly.
Reply
I just need the rubber ring on the bottom of this assembly it is white with e a shpaes in the gasket
Reply
Hi John,Can you identify the part you need in this parts diagram/list? Hayward Multiport Variflo XL 1 1/2" SP714T
Reply
i have a hayward vari flo valve screw ear is broke cracked model 711 13 serial no 120f28
i meed a replace no for this please send no that will work
Reply
Hi Frank. The Key Cover And Handle Assembly (p# 4703-20) will work on a SP071113 model.
Reply
Will a Hayward Vari Flo XL valve assembly SPX0714BA replace the handle on the SP0714T1 model?
Reply
Hi, The Key, Cover & Handle Assembly (SPX0714BA) will fit onto the SP0714T1 Valve.
Reply
Is Hayward part number SPX0714BA (4703-20) the correct Key, Cover, and Handle Assembly for the Hayward XL SP0714TX?
Reply
Hi Jason, The Key,Cover And Handle Assembly (SPX0714BA) can be used on the Hayward XL SP0714TX Valve.
Reply
I need a replacement key cover and was wondering if this will fit on my Hayward vari flo valve. The broken key cover I have now is part number sp710x62. I read somewhere that this will work with all 200 series side and top mount filters. Mine is a s210s and side mount 6 position 1.5" valve.
Reply
Hi Kai, The Key,Cover & Handle Assy. 1 1/2" Black (SPX0710XBA17) will be the correct part that will fit onto the SP710X62 model valve.
Reply
I broke the stem that attaches to the handle, would purchasing this part fix that problem? Or does the stem go through the middle of this part. I cant tell from the picture
Reply
Hi Kristie, Replacing this part "SPX0714BA" would be your best option or you can also replace just the Key/Seal Assembly (SPX0714CA).
Reply

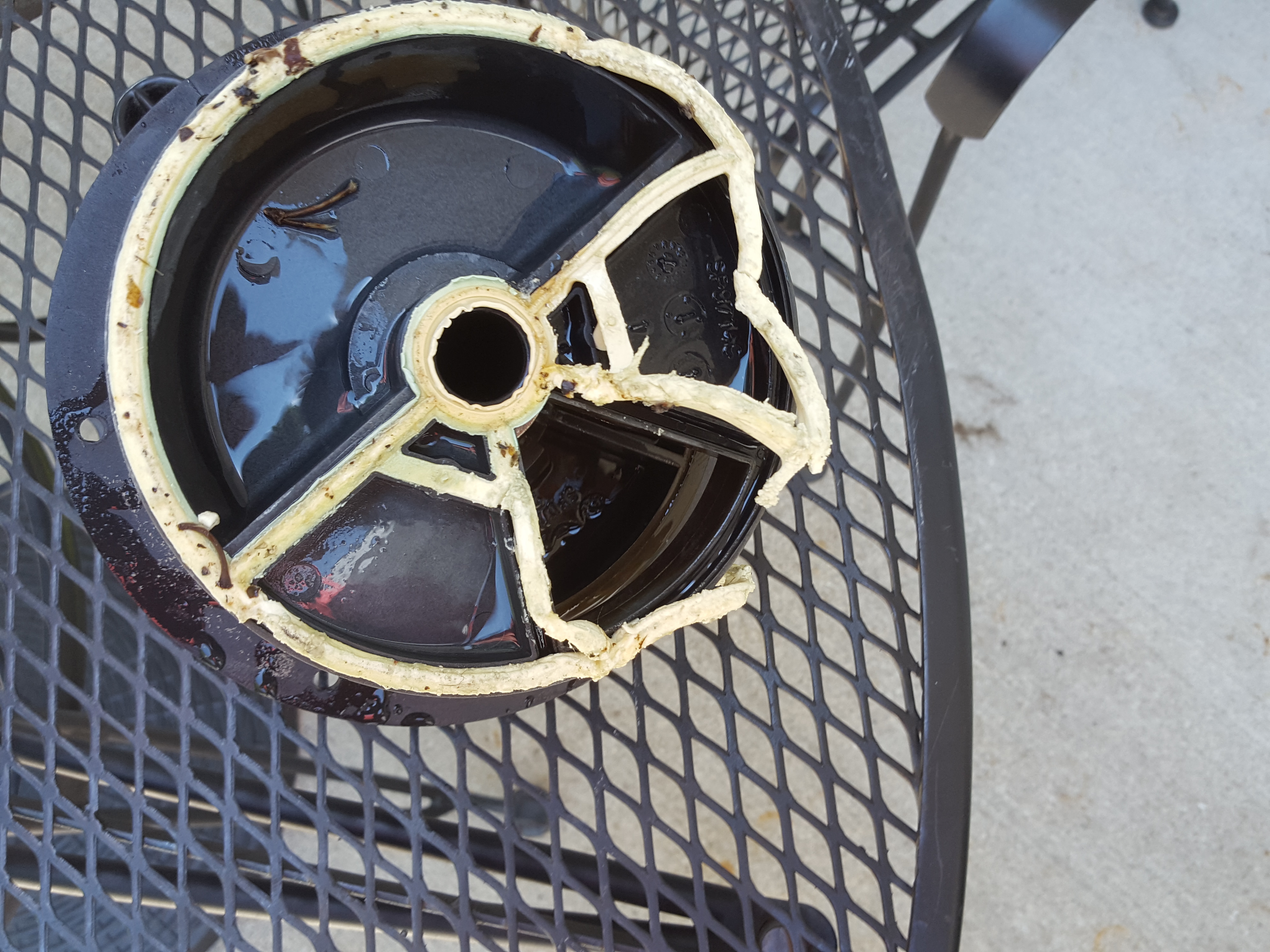

Need to replace the spider gasket for a Hayward SP0714T. Does it take just a gasket or do I have to replace the whole key cover & handle assembly?
Reply
Hi Donna, You will need to replace the Key/Seal Assembly (SPX0714CA), but if you replace the Key,Cover & Handle Assembly the installation will be fairly easy.
Reply
Will this work on SP0714T/SP014TE filter?
Reply
This assembly does work on the model valve SP0714T.
Reply

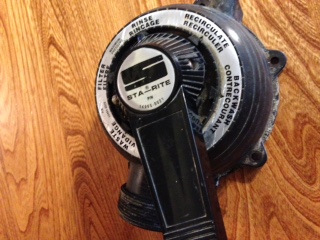

I have a sta-rite sand filter and I need replacement parts for model number t-180wf. It is for the valve on my sta-rite crystal-flo sand filter. Do you stock parts for this model? Ty
Reply
Hello Kurt, I am unable to determine the correct valve that corresponds with the T-180wf Crystal-flo sand filter. I would need information on the valve itself to determine the correct replacement parts. The model number of the valve would be extremely helpful in a search for related parts, but any additional information (less the serial number) may assist.
Reply
This Assembly (SPX0714BA) comes complete with Key/Seal Assy (Diffuser w/ Gasket glued in) (Spx0714ca), Part# 4703-23? Any thing else needed?
Reply
Warren, this assembly comes with almost everything you need to do a full tune up of your valve. I would suggest purchasing the SPX0714L Cover O-ring separately.
Reply
is the spx0714ba the same as the sp714-a key cover and handle
Reply
Hi Donna, This Key,Cover & Handle Assembly (SPX0714BA) is the replacement for SP714-A.
Reply
I have a slight leak out my backwash hose while running the filter. I also can't seem to draw more than 10 psi. Would this be caused by a bad gasket or wear in my vari-flo valve? I've run air pressure thru the pipes and have seen no evidence of an obstruction.
Reply
Hi JT. Yes, if the gasket is not seal properly that can lead to the valve leaking and a lower than normal pressure reading. This cover assembly does not come with the Cover O-ring (SPX0714L) which I will also recommend replacing.
Reply
How many screws are on the top of the top assembly part#4703-20?
Reply
This key cover and handle assembly has 6 screws holding it in place.
Reply
How do you replace the cover and stop it from leaking.
Reply
The spider gasket going to be what is leaking. That top assembly is going to be the easiest way to replace that gasket. You will remove the screws, take the old top assembly out and put the new one in its place.
Reply
Will this fit a S-220T filter?
Reply
Hello, Richard. Yes, the Key,cover And Handle Assembly (spx0714ba) is the correct replacement part for the original valve installed on the S-220T. The original valve part number is SP0714T click here to view the parts and complete valve available for order.
Reply
Will this assy fit a Hayward S-244T
Reply
It's going to depend which multiport valve you have on your filter. Do you have a part number from the valve?
Reply
will this fit sp0714g11 vai-flo XL valve
Reply
Yes, that is the correct key, cover and handle assembly for that valve.
Reply
My pool filter is only putting out about 10 psi, and the water will not clear up, the chemical are in line .Can the vari- flo xl valve be bad . I have a Hayward model # s166t.
Thanks John
Reply
If there is no water leaking out of the valve, the handle rotates smoothly then the valve is likely okay. Clearing a pool up that uses a sand filter can be challenging. Kill then vacuum out any dead organic material and balance the water as you go. Sometimes clarifiers and flocculants assist as well.
Reply
I have a sp714 my handle broke will this be what I need to get to replace it
Reply
Hello Terri, here is the parts breakdown for Hayward Multiport Variflo XL 1 1/2" SP714T.
Reply
why is replacment valve system cheaper than handle and key assembly
Reply
Hi, Charles. This is an OEM product Handle assembly which will fit the Hayward SP0714T valve. The replacement valve that is cheaper is a generic replacement.
Reply
Handle and stem of spider valve broke. We cannot find exact model #. SP714-A is on side of vari-flow valve. Is this the correct replacement for handle, key cover and gasket?
Reply
Hi, Alan. This Cover Assembly - SPX0714BA is the correct part for the SP714-A valve body. I would also recommend getting the Cover O-ring SPX0714L because it's not included.
Reply
I replaced the key cover handle assembly. I think I put it on wrong or something. Water flows out the backwash when its in the filter position. The filter hasn't needed to be back washed in 4 weeks. The water is very cloudy. The chemicals are balanced. I've taken it apart several times. Bugs and junk is flowing back in the pool. My sand is clean.The laterals have also been replaced. Can you send a picture of what the key cover sits on so I know which way it goes? I lined up the notches.
Reply
Nancy, I do not have a photo but the assembly can only be installed one way. If you notice, there is a notch/cut out on the key assembly that has to line up with the same notch/cut out on the valve body.
Reply
Will this work for a Hayward vari-flo XL valve sp0714c?
Reply
Hello Sarah, Yes this 4703-20 goes with the Hayward Multiport Variflo XL 1 1/2" SP714T
Reply
Will this fit a Hayward sp0714-A valve body? thanks
Reply
Yes this handle assembly will fit a Hayward sp0714-A valve body.
Reply
Hi. Handle snapped on our pump. Pump has SP714 on it, no other number other than this - pat.no. 3640310. Is this the correct replacement part? Thank you in advance for your help.
Reply
Hi. This Cover Assembly - SPX0714BA will fit the Vari-flo SP0714 valve.
Reply
cannot read any numbers on handle or unit. Filter was put in around 99*00
Reply
Hi, Don. I would recommend sending pictures of the valve or provide the filter tank model to us so that we can try to identify the valve to get you the correct part.
Reply
Is there anything not included with the assembly? My filter is a Pro Series S-166T. The water leaks a small amount out the waste line, so I figure it is the spider gasket. But, I read that Hayward does not sell replacement gaskets for this model and they are pre-glued into it in the factory. If that is my real issue, should I buy this? I don't know that I will have assistance to just replace the part with the gasket (spx0714CA).
Thanks
Reply
Hello, this does not come with the cover o-ring, but it does come with the spider gasket.
Reply
Does this include the spring
Reply
Yes, the spring is part of this assembly.
Reply
hi i broke the handle off on my hayward filter control valve its a model s210t will your part work for mr thanks
Reply
This filter model can use the model SP0714T valve so if that is your model valve then yes this would be correct. If you are not sure of your model valve then you can always send us images of the valve to upload@inyopools.com so we can confirm for you.
Reply
does this fit an SP0714TC/SP0714TE/SP0714T Series Vari-Flo XL
Reply
Why does the how to video describe the spider valve replacement SP714CA? The advertised model comes already assembled with that part. I have already broken two spider valve replacement parts trying to get the spring compressed to put on the handle. If I buy the one advertised, I want to make sure it is already assembled with the handle in place as shown. Is that correct?
Reply
Hi, Maxwell. This Upper Handle Assembly does include the Diverter Gasket attached to the Diverter.
Reply

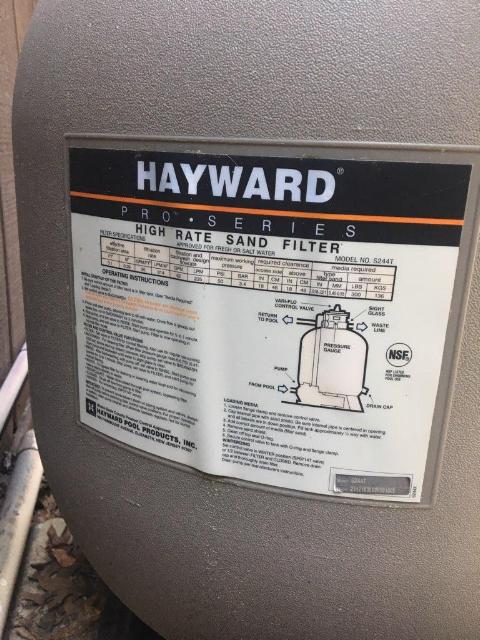

is this for model #S244T
Reply
Hello, Yes, that would be the correct handle replacement.
Reply
I have the Hayward model S244T. The valve assembly has SP714A on it. Will the SP0714T (SPX0714BA) work on my model?
Reply
Yes this will be the proper upper handle assembly for your SP0714T valve on a Hayward S244T filter.
Reply
Will this part replace a Hayward Variflow XL Valve SP0714C?
Reply
Hi Russell, Yes this is the upper handle assembly that is used on the Hayward Hayward Variflow XL Valve SP0714C.
Reply
will this fit my hayward vari flow 75gpm model SPO714T1
Reply
Yes this will fit your hayward vari flow 75gpm model SPO714T1
Reply
I have a spo714t/spo14te. Will this fit
Reply
Hi Chris, Yes this the proper upper handle assembly for the Hayward spo714t/spo14te and yes it will fit.
Reply
I have a s-210T will this fit on it.
Reply
Hi David, Yes this is the proper replacement upper handle assembly for the Hayward S-210T.
Reply
Sorry I gave you the wrong Numbers . the correct # SP0714-A
Reply
Hi Mike, Yes this will work as a replacement handle assembly for the Hayward SP0714-A.
Reply
do i need an o ring to go with this? Or any other items to replace this?
Reply
Hi, Ann. The Cover O-ring is included with this assembly.
Reply
Hi Ralph, You are correct in that you only the need the upper handle assembly. This upper handle assembly on this page is NOT correct replacement for the SP071621. You will require this SP071621 Upper Handle Assembly Replacement.
Reply
If the Upper Handle Assy. for Hayward SP0714T (SPX0714BA) is hard to turn, is something wrong with the part?
After backwashing I repositioned the handle to filter but later the pool water was going down.
Any thoughts?
Thanks
Mr. Adams
Reply
The usual signs that a multiport valve is malfunctioning is leakage from the waste pipe while the pump is set to normal filter mode. Do you see that symptom or any other water leaks around your pump and filter system?
Reply
is this for a Hayward S-200 pump??
Reply
Hello - the Hayward S200 uses the Vari-Flo SP0710X32 valve. The correct key, cover, and handle assembly is the SPX0710XBA17
Reply
Is this a Vari Flow valve? how big around is it where it screws in
Reply
The lid is 9-inches in diameter
Reply
Will this part fit on a Hayward filter serial number 25479?
It looks like you have a Hayward Perflex Filter and this valve is not used on that filter. You may view the parts for the Perflex through this link Hayward DE Filter Parts
Reply
will this replace the Hayward SP0714T1
Hi, Tim. Yes, this Upper Handle Assy will fit your model valve.
Reply
Is the handle on top of Hayward SP714 interchangeable with SP0714T?
Reply
Hi, Frances. Yes, they are.
Reply
I have a Hayeard Swim Pro round tub type sand filter. In the spring we ordered a new valve unit. Yesterday it started to leak at the clamp. Even though an o ring came with the unit, I purchased another and put it on. It still leaks. I can not find any damage to the unit of the tub. What can I do to stop the leak?
Reply
Hi, Jerry. The issue could be with the tank, these have been known to warp.
Reply
My valve shows it is an SP714A..
Will this fit ?
Reply
Hi, Mark. Yes, this assembly will fit.
Reply
Thanks for answering my question.. Would I need to purchase any gaskets when replacing this item ..
Reply
Hi, Mark. All the gaskets and seals are included with this assembly.
Reply
My valve shows model number SP714TX. I cannot find this anywhere, not even on Hayward site. Will this fit?
Reply
The model number on my handle assembly is worn off. The only thing I can see on the valve is “Patent No. 3640310” stamped into the lid.
So will this fit? or do you know what part I need?
Reply
Hi, Thomas. Unfortunately, we're unable to use the Patent No. to confirm. Please provide pictures of the valve so we can confirm.
Reply
Is this a replacement for my 30 year old handle...sp-71? If not do you sell one?
Reply
Hi. Unfortunately, we're unable to confirm using the limited info provided. Please provide a picture of your valve so that we can confirm.
Reply
Will this part fit SPO714G11M
Reply
Yes this is the proper replacement valve for a SPO714G11M.
Reply
My valve is identified as a Hayward Vari -Flo-XL will this upper handle Assy. fit and does it come with an O Ring.
Reply
Hi, Robert. In order to confirm, I will need the Hayward Vari -Flo-XL model #. That number will consist of the letters "SP."
Reply
Hello, This will be the gasket you will need. 149650-0028The gasket is glued to the key assembly.
Reply
You need OEM part number 149650-0028 plug/gasket assy.
Reply
Based on our information it should be a WC112-148 valve that you have. That requires that you get a new Diverter/Rotor that includes the spider gasket. see part # 14965-0028 ( 27-102-1322 )
Reply
The information I have on my valve with a broken handle is as follows.....Hayward Vari-flow-XL Valve. Will this item (SPX0714BA) and does include the O ring?
Reply
In order to confirm, I will need the Hayward Vari -Flo-XL model #. That number will consist of the letters "SP."
Reply
This will work but does not include an oring
Reply
Does NOT come with "O" ring SPX0714L
Reply
It is the correct valve, not sure what o-ring you are referring to. It does include the spider gasket 9 see image added ) but if you want the o-ring where the valve meets the filter tank body it would be item # 90-423-5358
My MPV model number is SP0714G. Will this replacement work? ( I have "G" this one is "T")
Reply
Hi, Deborah. Yes, this Upper Handle Assembly will fit your model valve.
Reply
Will this work in a hayward s244t sand filter
Reply
Hi, Larry. Yes, this Upper Handle Assembly will work if you have the original valve that came with the unit.
Reply
Will this Upper Handle Assy. SP0714T work to replace a Hayward SP0714G11? I could not find SP0714G11.
Reply
Hi, Clarence. Yes, this Upper Handle Assy is compatible with the SP0714G11 model valve.
Reply

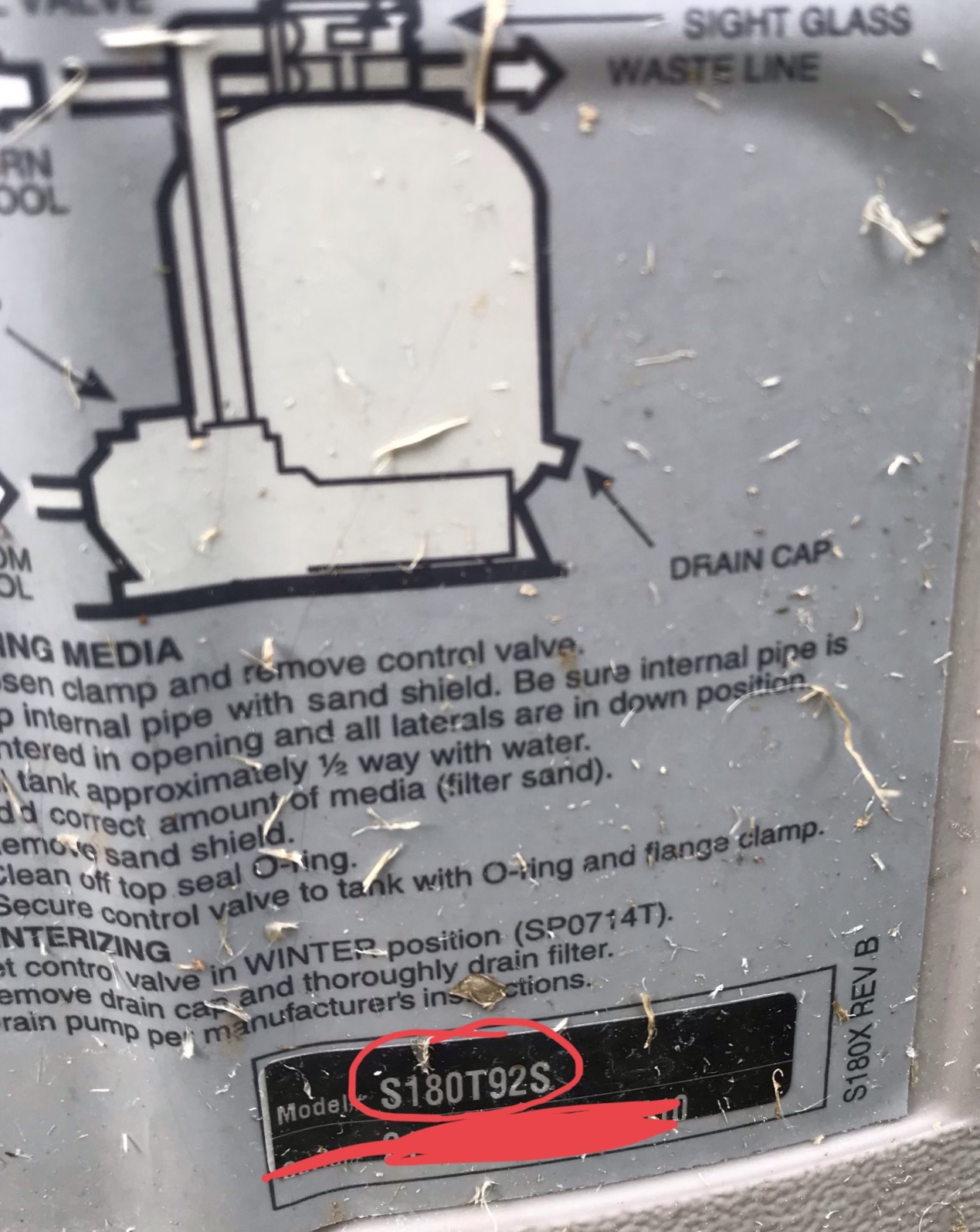

Will this replace the vari-flo control valve assembly for model S-180T?
Reply
Yes this will replace the upper half of the vari-flo control valve which is currently on your Hayward S-180T filter.
Reply
Need replacement for SP0714T & SPX0714T. Can you tell me if you have and length of time approx for shipping to Tempe, AZ 98282
Reply
Yes, we have the replacement for the SP0714T valve being part number 4802-01CP that you can view by clicking here. The average lead time is approximately 3-7 business days but please be aware of possible delays due to the current pandemic.
Reply
Can you get a replacement spider gasket for this valve?
Reply
Does the Replacement Upper Handle Assy. for Hayward SP0714T - 4703-20 come with an O-ring?
Reply
the only numbers I could find on the part I need is SP714A will this replace the handle for my veriflow pump
Reply
Stephen, Yes, this would be the correct replacement valve.
Reply

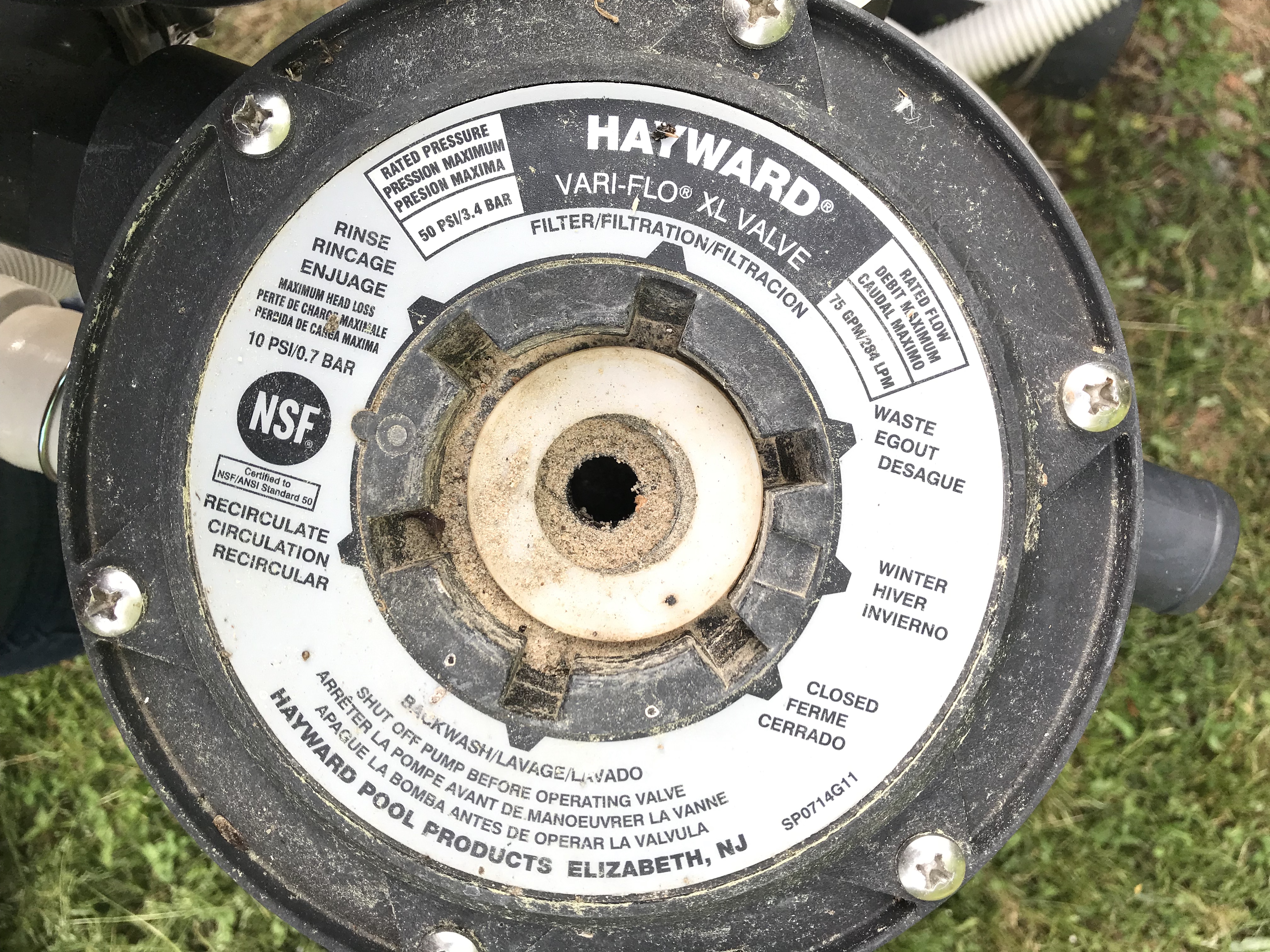

will this fit a sp0714G11
Reply
Hi Albert, yes this is the correct upper handle assembly for the Hayward multiport valve model sp0714G11.
Reply
I have a hayward valve model# SP714 . will the SP714T work in its place and what is the T for
Reply
Hi Richard, yes the Hayward multiport valve model SP714T will replace the SP714. I am not sure what the extra letter T is however many parts in the swimming pool industry have multiple alternate part numbers based on vendors and other distributors that carry the items.
Reply
Do I need to disconnect all hoses when replacing this unit or diverter valve with gasket ??
Reply
Hi Tony, no you do not need to disconnect all hoses in order to replace this assembly. Here is a guide we put together called "How to Replace a Hayward Key Cover & Handle Assembly" that may also assist.
Reply
Have Hayward filter SP 71113. Looking for Key Cover and Handle Assembly. Can you identify the correct part?
Reply
Hi, Malcolm. The part number is SPX0710XBA17 - Key, Cover, & Handle Assy. 1 1/2" Black.
Reply
Does this part include the spider gasket?
Reply
Malcolm, The Gasket, Valve Seat - 5 Spoke - SPX0710XD and Cover O-ring - SPX0710XZ3 are not included.
Reply
Is this a replacement for spx0714ba?
Reply
Hi Scott, yes this is the correct upper handle assembly for the Hayward Variflo multiport valve model spx0714ba.
Reply
replacing sp0714g11m hayward multi port which other models fit same
Reply
Hi Joyce, whether you are needing replacement parts or a complete valve, here is the parts list for your Hayward multiport Variflo XL multiport valve model
Reply

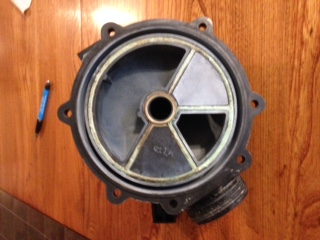

how long is estimated regular delivery? i can only submit a photo via email because i'm not tech savvy. will this work? i think i need part 4703-20 but i'm not sure.
Reply
Hi Jim, could you send us a few photos of the unit that you need parts for to upload@inyopools.com? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

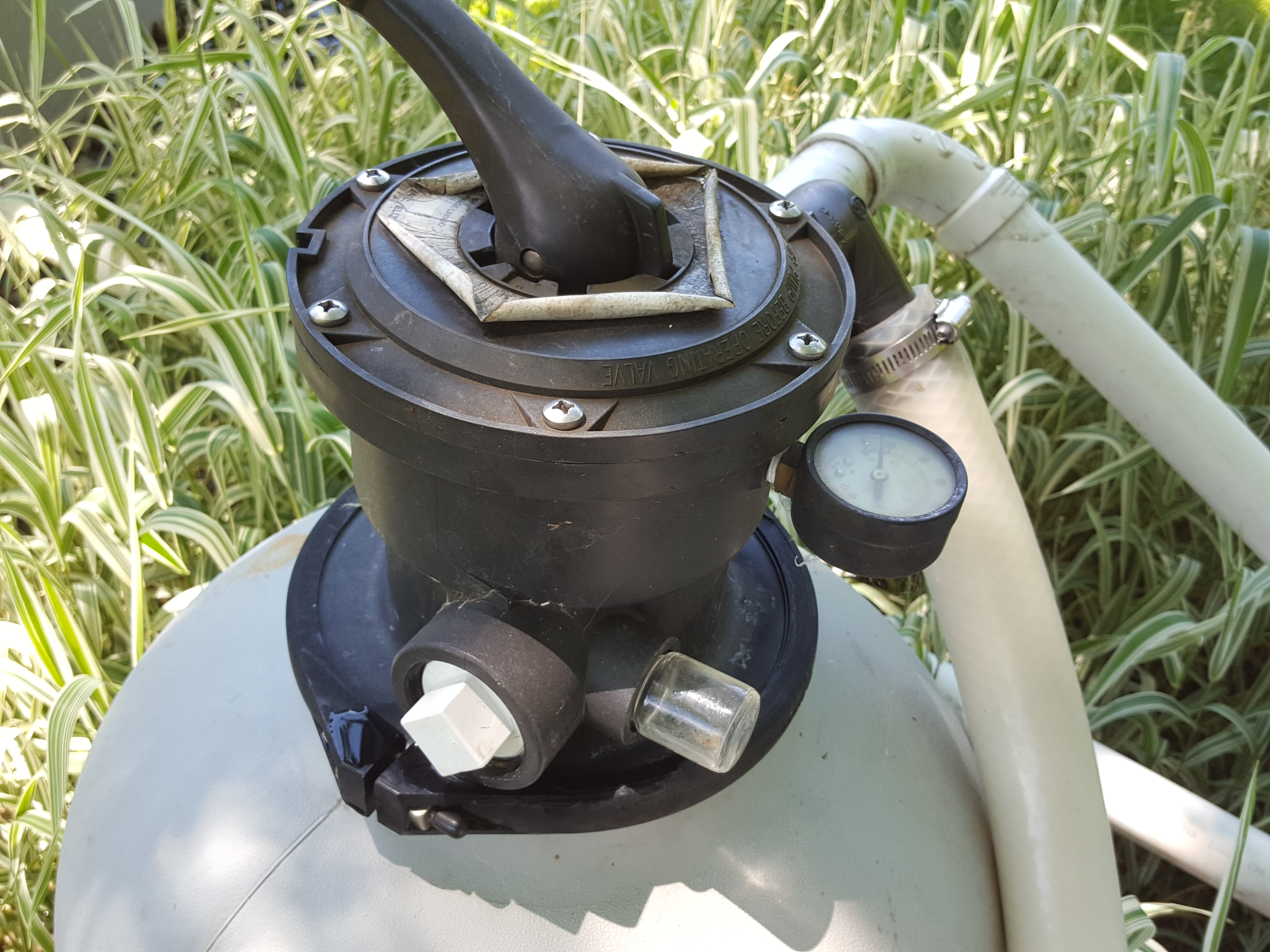

Will this replace a Hayward Vari Flo XL SP0174G11M ?
Reply
Hi, Mile. Yes, this Upper Handle Assy will fit your model valve.
Reply

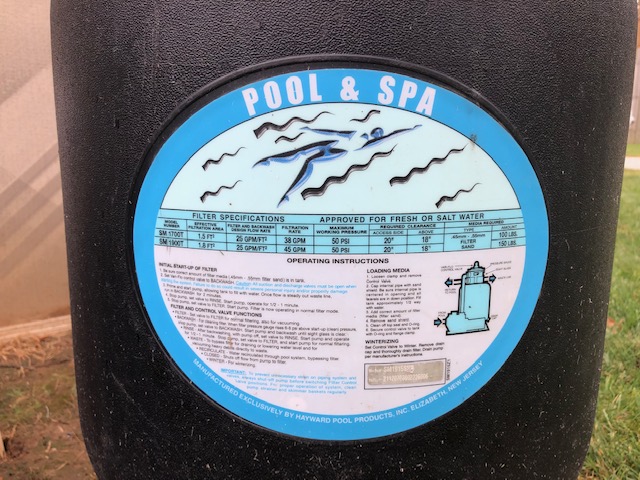

I have a Hayward sand filter. M# SP0714T1 S# 21121609002722023. Will this fit my filter?
\ Thanks
Reply
Hi James yes this is the proper replacement for the SP0714T1
Reply
will this fit my SP714-A
Reply
Hi John, Yes this will fit your SP714-A.
Reply
will this fit model # SP0714TX
Reply
Yes this upper handle assembly will work on the SP0714TX
Reply
Hello. The Pureline Replacement Diverter w/ Spider gasket for Hayward SP0714T is an option to the Pureline Replacement Upper Handle Assy. The Spider gasket is not available separately and is glued to the face of the diverter. Replacement Diverter w/ Spider Gasket for Hayward SP0714T - SPX714CA
Reply
WILL THIS WORK FOR A SP0714G11M
-4703-20.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-4703-20.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "SPX0714BA Handle Assembly for Hayward SP0714T Valve | By Pureline | PL0734")
Hello Donald. The PureLine Replacement Upper Handle Assy for Hayward SP0714T Multiport Vales is compatible with the Hayward Multiport Valve SP0714G11M.
Reply
Can the key cover be replaced while the sand filter is filled during the winterization?
Reply
Hello, yes you can replace this assembly while the filter is filled with sand and or water.
Reply
