Waterway SMF Pump Parts

* Not Shown

Waterway SMF Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Motor 3/4 HP Up Rate
2	Bolt 16-3/8 x 7/8"
3	Neoprene Motor Support Strip
4	Motor Support Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Flat Washer, 3/8", Type B
7	Handle
8	Face Plate
9	Face Plate Gasket
10	Pump Shaft Seal
11	Washer, Impeller
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assembly
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Drain Plug
18	Drain Plug O-Ring
20	Basket Assembly
21	Lid & Nut & O-ring - 6" Trap
21a	Trap Lid O-Ring 6"
26	Impeller Assembly 3/4 HP
27	Pump Housing - 2" x 2" NPT
28	Washer, Split Lock 3/8"
30	Bolt, 3/8"-16 x 2" Lg Hex Head
1	Self Aligning Union Nut 2"

View Parts List

Diagram #	Part Title
1	Motor 3/4 HP Up Rate
2	Bolt 16-3/8 x 7/8"
3	Neoprene Motor Support Strip
4	Motor Support Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Flat Washer, 3/8", Type B
7	Handle
8	Face Plate
9	Face Plate Gasket
10	Pump Shaft Seal
11	Washer, Impeller
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assembly
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Drain Plug
18	Drain Plug O-Ring
20	Basket Assembly
21	Lid & Nut & O-ring - 6" Trap
21a	Trap Lid O-Ring 6"
26	Impeller Assembly 3/4 HP
27	Pump Housing - 2" x 2" NPT
28	Washer, Split Lock 3/8"
30	Bolt, 3/8"-16 x 2" Lg Hex Head
1	Self Aligning Union Nut 2"

Available Parts:

Motor 3/4 HP Up Rate

Part # B852 Mfg # B2852

Motor 3/4 HP Up Rate

$220.04 IN STOCK

Service Factor 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56Y

Service Factor 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56Y

Qty:

Motor 1.0 HP Up Rate

Part # B853 Mfg # B2853

Motor 1.0 HP Up Rate

$301.12 IN STOCK

Service Factor 1.25 Voltage 115/230 Max Amps 13.2/6.6 Frame 56Y

Service Factor 1.25 Voltage 115/230 Max Amps 13.2/6.6 Frame 56Y

Qty:

Motor 1.5 HP Up Rate

Part # B854 Mfg # B2854

Motor 1.5 HP Up Rate

$270.35 IN STOCK

Service Factor 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56Y

Service Factor 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56Y

Qty:

Motor 2.0 HP Up Rate

Part # B859 Mfg # B2859

Motor 2.0 HP Up Rate

$379.88 IN STOCK

Service Factor 1.10 Voltage 115/230 Max Amps 22.4/11.2 Frame 56Y

Service Factor 1.10 Voltage 115/230 Max Amps 22.4/11.2 Frame 56Y

Qty:

Bolt 16-3/8 x 7/8"

Part # 35-270-2144 Mfg # 819-0035B

Bolt 16-3/8 x 7/8"

$13.05

Neoprene Motor Support Strip

Part # 5032-45 Mfg # 672-1310

Neoprene Motor Support Strip

$27.12 IN STOCK

Qty:

Motor Support Base

Part # 5033-008 Mfg # 319-1500B

Motor Support Base

$78.38 IN STOCK

Qty:

Screw Slot Hex Washer 1/4" x 1-1/4"

Part # 5033-009 Mfg # 819-0013B

Screw Slot Hex Washer 1/4" x 1-1/4"

$11.04 IN STOCK

Qty:

Flat Washer, 3/8", Type B

Part # 5033-012 Mfg # 820-0017

Flat Washer, 3/8", Type B

$10.27 IN STOCK

Qty:

7

Handle

Part # 319-1700B Mfg # 319-1700B

Handle

NOT AVAILABLE

Face Plate

Part # 5033-006 Mfg # 311-1450

Face Plate

$113.11 IN STOCK

Qty:

Face Plate Gasket

Part # 5033-007 Mfg # 711-1400

Face Plate Gasket

$20.99 IN STOCK

Qty:

Pump Shaft Seal

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal

$7.53 IN STOCK

Qty:

Pump Shaft Seal - Viton

Part # 5250-225 Mfg # PS-3865

Pump Shaft Seal - Viton

$16.07 IN STOCK

Qty:

Washer, Impeller

Part # 5033-011 Mfg # 711-4300B

Washer, Impeller

$13.84 IN STOCK

Qty:

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

Part # 5032-61 Mfg # 819-4360

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

$15.82 IN STOCK

Qty:

Diffuser Assembly

Part # 5033-004 Mfg # 310-7470

Diffuser Assembly

$100.39 IN STOCK

Qty:

Screw #4-40 x 1-1/4"

Part # 5032-52 Mfg # 819-0018B

Screw #4-40 x 1-1/4"

$12.28 IN STOCK

Qty:

Diffuser O-ring

Part # 5032-51 Mfg # 805-0238

Diffuser O-ring

$9.54 IN STOCK

Qty:

Diffuser Plate

Part # 5033-003 Mfg # 319-1420

Diffuser Plate

$64.31 IN STOCK

Qty:

Quarter Slot 3/8" Drain Plug

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Drain Plug

$14.06 IN STOCK

Qty:

Drain Plug O-Ring

Part # 805-0014 Mfg # 805-0014

Drain Plug O-Ring

$9.03 IN STOCK

Qty:

Basket Assembly

Part # 5033-014 Mfg # 319-1430B

Basket Assembly

$31.65 IN STOCK

Qty:

Lid & Nut & O-ring - 6" Trap

Part # 5019-22 Mfg # 319-4100B

Lid & Nut & O-ring - 6" Trap

$35.16 IN STOCK

Qty:

Trap Lid O-Ring 6"

Part # 35-270-1312 Mfg # 805-0436B

Trap Lid O-Ring 6"

$11.77 IN STOCK

Qty:

Impeller Assembly 3/4 HP

Part # 310-7500

Impeller Assembly 3/4 HP

$89.43

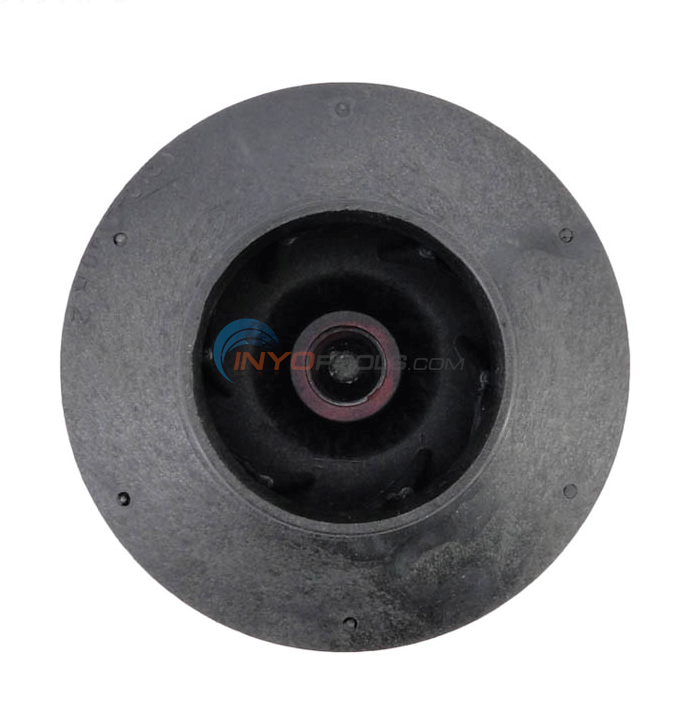

Impeller Assembly 1.0 HP

Part # 310-7510 Mfg # 310-7510

Impeller Assembly 1.0 HP

$55.26 IN STOCK

Qty:

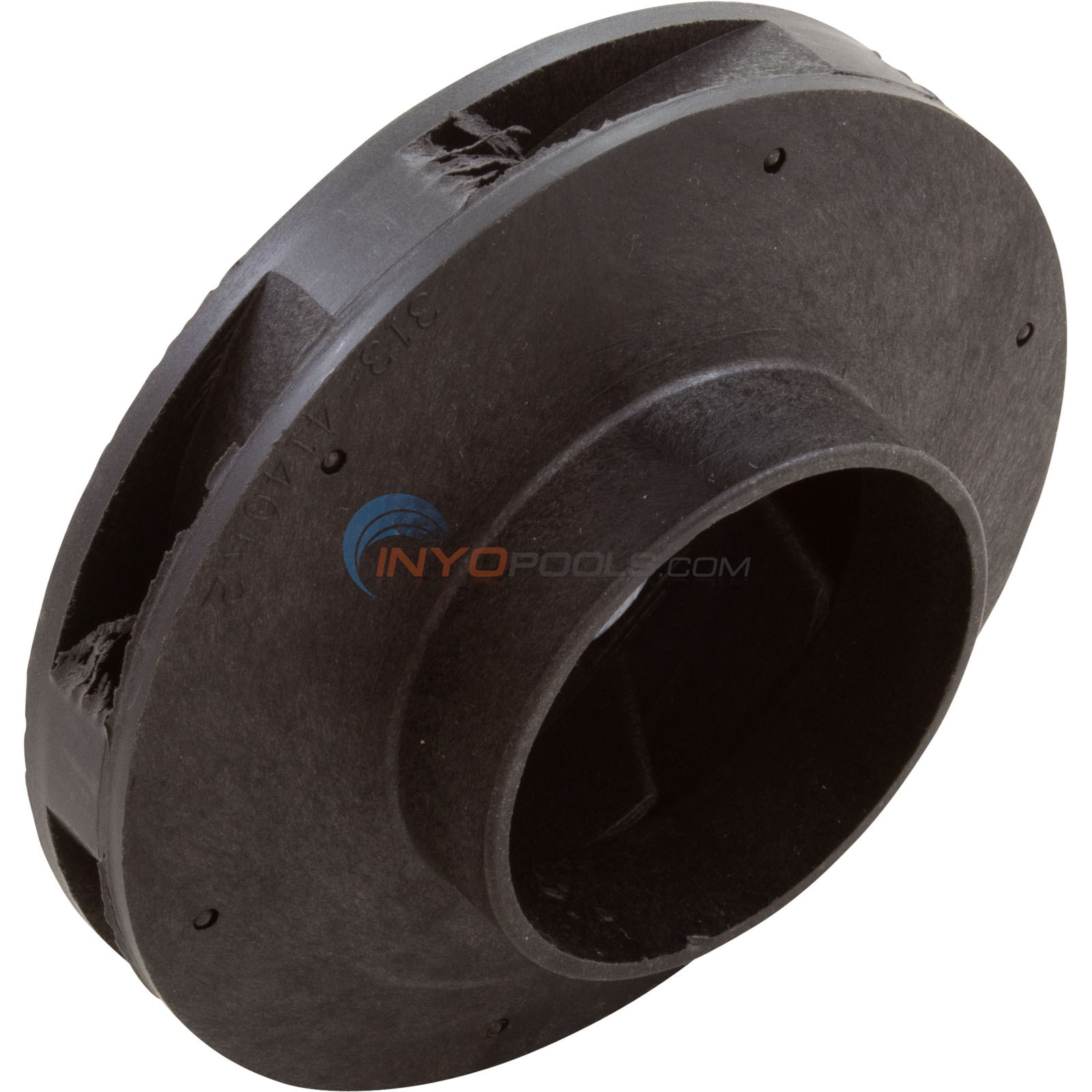

Impeller Assembly 1.5 HP

Part # 310-7520 Mfg # 310-7520

Impeller Assembly 1.5 HP

$102.13 IN STOCK

Qty:

Impeller Assembly 2.0 HP

Part # 310-7530 Mfg # 310-7530

Impeller Assembly 2.0 HP

$101.49 IN STOCK

Qty:

Pump Housing - 2" x 2" NPT

Part # 5033-001 Mfg # 315-1400B

Pump Housing - 2" x 2" NPT

$200.99 IN STOCK

Qty:

Washer, Split Lock 3/8"

Part # 5033-012 Mfg # 820-0017

Washer, Split Lock 3/8"

$10.27 IN STOCK

Qty:

Bolt, 3/8"-16 x 2" Lg Hex Head

Part # 4742-35 Mfg # 819-0016

Bolt, 3/8"-16 x 2" Lg Hex Head

$12.05 IN STOCK

Qty:

1

Self Aligning Union Nut 2"

Part # 415-4061B Mfg # 415-4061B

Self Aligning Union Nut 2"

NOT AVAILABLE

2

Tailpiece, Self-Aligning Union 2" - Black

Part # 417-2111B Mfg # 417-2111B

Tailpiece, Self-Aligning Union 2" - Black

NOT AVAILABLE

Valve Adapter O-ring

Part # 4600-4494 Mfg # O-83

Valve Adapter O-ring

$6.34 IN STOCK

Qty:

4

Tailpiece 2" MPT, Self-Aligning Union

Part # 417-2121-CPVCB Mfg # 417-2121-CPVCB

Tailpiece 2" MPT, Self-Aligning Union

NOT AVAILABLE
