Seal Plate for Hayward Super II Pump - SPX3020E

$39.99

IN STOCK
FREE SHIPPING

Part # 5110-13E

By PureLine

  5 Average

Details

Top

Part # 5110-13E

Manufacturer Code SPX3020E

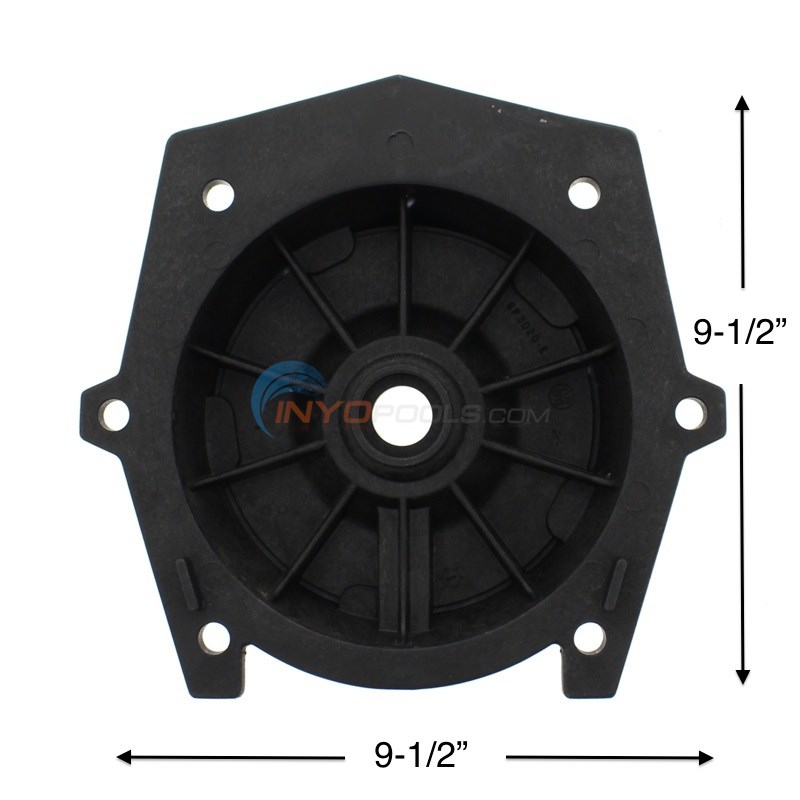

Dimensions 9" L x 9.5" W x 2" D

Alternate Part #'s HAY1012074, SPX3020E, SPX3020F, PL2744

Product Description

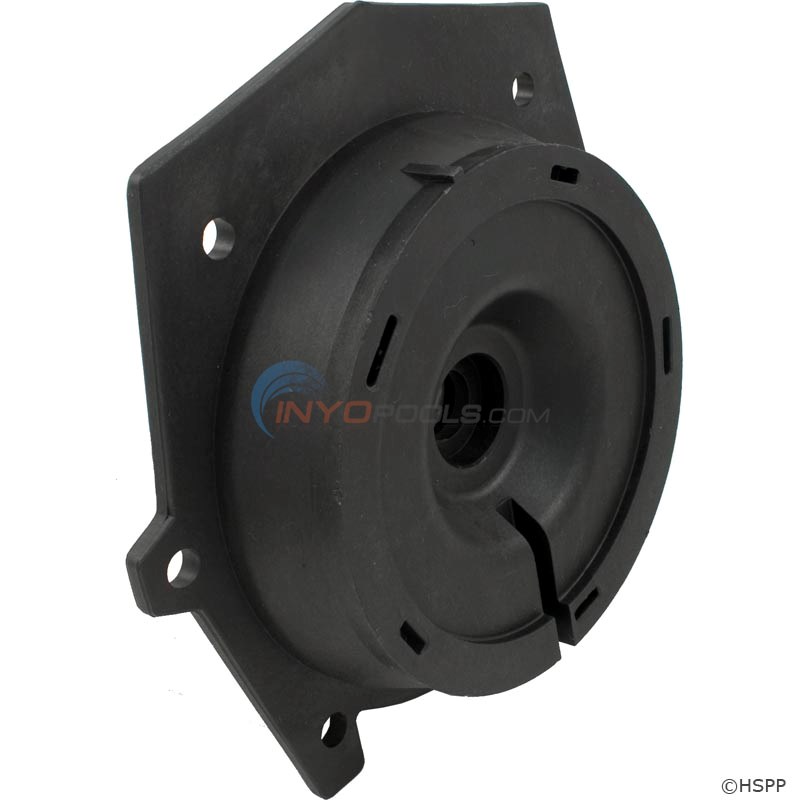

This is an After-Market Seal Plate by PureLine for the Hayward Super II Pump™ - SPX3020E

Top

?     Asked on 5/28/2020by Inyo Visitor

What is the corresponding motor mounting plate that goes with this seal plate? I have a SP-1615-Z1-BEE. And is it recommended to replace the motor mounting plate when replacing the motor?
 Reply

A  Answered on 10/21/2020 by InyoPools Product Specialist Hector F.

Hello, this seal pate is used on the Hayward Super II series pool pump so the mounting plate will be part number 5110-14A
 Reply


?     Asked on 6/21/2019by Carson Barnes

I have water slowly leaking from the join of the pump with the AO Smith UST 1102 motor. Which seal do I need? I can see a break in it on the upper edge above where it's leaking water out (and letting air into the lines back to the pool).
 Reply

A  Answered on 6/21/2019 by InyoPools Product Specialist Lennox H.

Hi, Carson. You can use either one of these Pump Shaft Seal - SPX1600Z2 (OEM), PS-201 (Generic) or PS-3868 (Heavy Duty).
 Reply


?     Asked on 9/29/2018by dryheat

I have a leak when the pump is running (SP3010EEAZ), it looks like its coming from the bottom between the seal plates where the notch is, was going to replace the plates and ordered the SPX3000F and the SPX3000E but it looked like the plates were not compatible(plates should be flat). Would the SP3020E be compatible with the SPX3000F?
 Reply

A  Answered on 10/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Dryheat. Both Seal Plate - SPX3020E and SPX3000E are compatible. However, your model pump requires SPX3020E
 Reply


?     Asked on 8/15/2018by Brian

Will this seal plate fit Hayward Super Pump SP-2610X15? Thanks, Brian
 Reply

A  Answered on 8/16/2018 by InyoPools Product Specialist Hector F.

Actually no. If you click here to view the parts diagram for you pump and view key number 13 that shows the seal plate.
 Reply


?     Asked on 5/27/2018by scott

I have a leak on my Hayward super II where the two halves of the pump/housing bolt together. I replaced the housing gasket, but still have the leak. Would the seal plate be the most likely suspect and what do I look for?
 Reply

A  Answered on 5/28/2018 by InyoPools Product Specialist Lennox H.

Hi, Scott. The issue could be either the Seal Plate - SPX3020E or the Pump Housing Strainer - SPX3120AAZ. You want to look for signs of unevenness, warping etc.
 Reply


?     Asked on 5/12/2018by Rene

I have a RS1000 1hp pump wit a leak at the seal plate. Is the Sp3020-e and the GOKIT2 the correct replacement parts?
 Reply

A  Answered on 5/12/2018 by InyoPools Product Specialist Alex V.

Rene, Yes, you can use both the 5110-13E and the GOKIT2 for the RS1000 pump. If you have a salt system, I would reecommend the GOKIT2SALT.
 Reply


?     Asked on 1/15/2018by Sid

I have a Hayward Super 2 pump. I replaced the motor and when I reassembled the unit I got a leak on the right side of the seal plate. I noticed the seal plate broke at the middle attachment bolt, a small piece of the seal plate broke off. also the top bolt does not tighten. Do I need a new seal plate? Or do I need a new Pump Housing? If so what parts do you recommend?
 Reply

A  Answered on 1/15/2018 by InyoPools Product Specialist Lennox H.

Hi, Sid. You will need to replace both the Seal Plate - SPX3020E and the Housing - SPX3100AAZ (1-1/2") or SPX3120AAZ (2").
 Reply


?     Asked on 9/23/2017by Bill Nolden

On Hayward pump, what holds seal plate (5110-13E)? I removed motor and impeller housing from strainer, but seal plate appears to not have any fasteners. Prying it up bends it, but won't remove
 Reply

A  Answered on 9/26/2017 by InyoPools Product Specialist Lennox H.

Hi, Bill Nolden. This Seal Plate is held in place by the housing bolts. Once the housing bolts, the diffuser, and the impeller are removed then you're able to remove the seal plate allow access to the motor mounting screw.
 Reply


?     Asked on 5/30/2017by Inyo Visitor

Is this part good for RS2000?
 Reply

A  Answered on 5/30/2017 by InyoPools Product Specialist Patrick P.

Yes this is the correct seal plate for the RS2000 pump.
 Reply


?     Asked on 10/6/2016by wayne

my housing is a sp3020e and the seal I ordered is too large, cerramic
 Reply

A  Answered on 10/6/2016 by InyoPools Product Specialist Alan M.

If you have the Hayward Super 2 pump, the correct replacement seal is the SHAFT SEAL 201 (GENERIC) - AS-1521 or the manufacturer's version the HAYWARD SHAFT SEAL (OEM) - SPX1600Z2.
 Reply


?     Asked on 7/21/2016by Ernie

I have a Hayward RS1000 and it is leaking at the top of the seal plate. In addition to replacing the seal plate, do I also need to replace any gaskets in that area?
 Reply

A  Answered on 7/23/2016 by InyoPools Product Specialist Alex V.

Ernie, Depending on the age of the pump, I would recommend getting the GOKIT2. It will have all the seals for the pump.
 Reply


?     Asked on 7/23/2015by Ed

Our Hayward Super pump II was leaking so I ordered a seal kit from you folks. when I got into the pump I find the old ceramic seal is broken and looks like it had been spinning in the seal plate! Melted the heck out of the shoulder. The diffuser has SP3000-BN on it. The seal plate has no number but looks like the illustration. Just want to make sure I'm ordering the right one. Thanks Ed
 Reply

A  Answered on 7/24/2015 by InyoPools Product Specialist Lennox H.

Hi Ed, The Hayward Seal Plate (SPX3020E) would be the correct seal plate that can be used with Diffuser p/n SP3000-BN for your Hayward Pump.
 Reply


?     Asked on 6/9/2015by Albert

Will this fit a hayward rs1000 1hp pump?
 Reply

A  Answered on 6/9/2015 by InyoPools Product Specialist Brian M.

Yes, This seal plate ( SPX3020E ) or 5110-13E will fit on 1/2 - 2 1/2 Hayward Super II  It is part 10 on the parts explosion.
 Reply


?     Asked on 2/23/2015by guy

i have 3 very small pissing stream of water coming from the top of my pool motor where it meets the pump is there a seal or gasket that goes there?
 Reply

A  Answered on 2/24/2015 by InyoPools Product Specialist Robert M.

Hello Guy - This seal plate goes with the Hayward Super II Pump. If that is what you have, we would recommend the GOKIT2. This kit would include all of the internal seals for the Super II.
 Reply


Top
Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Wrench Set, Adjustable Wrench

Hayward Super II pump leak (bottom)

Written on 4/21/2021 by Guest

Pretty much followed everything described here:
https://youtu.be/iASdiPdrDsU

I kept my motor and pump. I replaced the seal plate, impeller and diffuser. The impeller valve kit appeared to have everything needed and I could have got away with cleaning up the calcium build up, but opted to replace those 3 parts noted earlier since I had it opened up. This video is great and helped me have the understanding to replace the parts in my own. I no longer have a leaking super II. Looks like I need to replace the cartridge filter too as the water pressure in the pool is inadequate. Suction on the attached rebel vacuum is strong. Thank you Inyo!
