Can the light be changed without draining the pool?
Reply
Yes you can replace the bulb in your pool light with this LED bulb without needing to drain your pool water. You will first need to turn off power to the pool light at your breaker then go to the pool light and remove the pilot screw which is located on the face ring of your light. Once the pilot screw is removed this will allow you to bring your entire light fixture up on to your pool deck where you can then replace the bulb. The replacing of the bulb is as simple as unscrewing the old bulb and screwing in the new bulb. I would also suggest replacing your lights lens gasket when replacing the bulb, the two most popular would be the Hayward Astrolite Lens Gasket and the Pentair Amerlite Lens Gasket. We also have a great Video on How to Replace a Swimming Pool Light Bulb which will walk you through the process.
Reply
is there a remote control to stop the changing colors or does it cycle the different colors constantly?
Reply
The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
Reply
Can the light be stopped on one particular color? I tried downloading the owners manual and there seems to be a bad link
Reply
Yes the light can be stopped on a color there are 7 fixed colors white, red, green, blue, gold, cyan and violet. You would cycle to the fixed colors by flipping your pool light switch relatively quickly. In addition to the fixed colors there are 9 color shows..... Evening Sea (slow animation of blue and red), Evening rivers (slow animation of green and red), Riviera (slow animation of blue and green, Rainbow (slow animation of all colors), River of Colors (slow animation of all colors followed by Four Seasons), Disco (fast animation followed by Rainbow) and Party (Fast animation followed by River of Colors).
Reply
What is the correct wattage for lighting equivelent to the existing 12V 300W bulb?
Reply
Hi Dane, I would suggest the 12V 35 Watt Pure Colors LED Pool Bulb as an equivalent replacement to a 12V 300 Watt Bulb.
Reply
I see you have an 18 W and a 35 W LED in the 120V series.. So that I pick the correct LED replacement. What is the equivalent wattage to the incandescent / halogen bulb that I'd be replacing? If this helps, my pool is an inground 16x32 gradient from 8 ft to 3 ft ..Thanks
Reply
Hi Lew, For a 16' x 32' pool I would suggest the 35 Watt 120V Pure Colors LED Pool Bulb. The 35 Watt bulb is comparable to a 300 - 400 Watt Incandescent bulb.
Reply
Can these lights be used to cycle colors when used on a timer and if you can when the timer goes off and turns back on will it be the color you had it on previously or will it change.
Reply
Yes the Pure Colors Bulb can be used to cycle colors with a timer and it does have memory so if the light is turned off for more than 20 seconds then the next time the light is turned on the light will remember the last color show it was on.
Reply
I believe I have an amerilite pool light bur how would I know for sure? Also how would I know if it's 12V or 120V? Thanks You!
Reply
The best bet would be to remove the light fixture from the niche in the wall of the pool. To do this you will turn off the breaker to the light then get in the swimming pool and remove the pilot screw at the top of the light face ring. This will then free the light from the wall of the pool and you can bring the light fixture up onto your deck. There should be a label on the light housing which will give you the manufacture and model # of your light. If this information has worn off then you can check your dimensions against the Pentair Amerilite Dimensions or the Hayward Astrolite Dimensions and if they match up then this bulb will fit. The voltage information should be on the light housing but if it has worn off then you can remove the bulb from inside the light fixture and the voltage information should be right on the light bulb.
Reply
Hi...I have an 8000 gallon pool with Pebbletec. Do I need a 3g bulb or will a 2g do the job? I don't want to overkill the lighting. Also, will this fit a PacFab 60x11x 100 watt light? Many thanks.
Reply
Hi John, For a pool your size the 2G bulb will do. However, this bulb is might not be compatible with a PacFab fixture since it's an older fixture.A 100 watt bulb is also used in spa light fixture not pool light. If you can send photos of the fixture we can confirm.
Reply
I am currently using r40 light bulb I think it is 400w 120v what LED bulb I could use
Reply
Good day, this light bulb will only have the COMPATIBILITY:Hayward Astrolite SP058 Series Pentair Amerlite 784 Series Note: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.
Reply
Looking for Carvin replacement Color Led 120 volt bulb for Pool light.
Reply
If what you currently have is a Jacuzzi Full Moon than that pureline will fit that light fixture. If that isn't what you have, if you want to provide which model Jacuzzi you have and I can help you find the correct light for your fixture.
Reply
Will this bulb work in American Products Model CN-5, R-500 BC R-40 bulb type, 120 Volt 500 Watts unit. Label 987012, No. M502243, label 98700600? Thank you!
Reply
Hi Susan, Yes. This bulb can be used with your light fixture. You will also need to replace the lens gasket which you can use the OEM Lens Gasket (79101600) or the Guardian Silicone Lens Gasket (LPL-G-P).
Reply
Looking to replace my current jandy 120volt 500w bulb with a compatible led
Bulb. The part number of my bulb is R0450504. Which if any led bulbs that you sell would work?
Reply
Hello Carl, there is a Bulb, 120v 500w Flood (r40fl500/hg) which is not an LED, depending on what pool light housing you have there is LED replacement that only works for Hayward astrolite and Pentair amerilite.
Reply
This says "Pool" next to "Pool/Spa Type". Is it not compatible with spas? I currently have a American Products CN-5 R-500 in my spa and would like to replace it with a color-changing LED light.
Also any tips for loosening a stuck pool light screw?
Reply
The American Products CN-5 R-500 references to the Pentair Amerliter 120V / 500W. This light is normally installed in pools. If you have this model, you may install the PL5814 or the PL5809 with the use of the Guardian Silicone Lens Extra Heavy Duty Gasket for Pentair Amerlite - LPL-G-P. You may try to use vice grips or locking pliers to get a better grip on the screw.
Reply
Hi our burned out light is 300w 120volt GE reflector flood light. I want to replace it with a color bulb. Which one. the 120v 18 watts is throwing me off.
Thank you
Reply
The LED Pool Bulb Color Changing 120V 18W - PL5814 has 252 LED's and the LED Pool Bulb Color Changing 120V 35W - PL5809 has 441 LED's. The more LED's the brighter the illumination of the light. Please ensure that you replace the lens gasket and verify the compatibility of the replacement bulb with your current fixture. COMPATIBILITY:Hayward Astrolite SP058 SeriesPentair Amerlite 784 SeriesNote: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.
Reply
Hi you answered my ? about which bulb was best, but in the meantime, I read the previous questions and because we have a 42ft pool, I ordered the 38 watt instead of the 18 watt. Is this OK?
Reply
The 38 watt is the brighter of the two. This would be the better option.
Reply
I have a pentair amerilite 500watt 120 volt pool light clear bulb,what led color light you have that you have that allows me to change out with this bulb.
Reply
Hi Bobby, The PL5809 120V 35W PureColors LED Bulb would be the replacement bulb I would suggest. This bulb will fit into the Pentair Amerlite.
Reply
Looking to switch to the LED bulb. Current niche housing is by American Products with the label of series 7884XX, 7844XX,7894XX 400 watts, 120 volts, bulb type R-40. Would this LED replacement work and what gasket would be needed. Lastly, pool is 22'x11' is the 18 watt sufficient for brightness?
Reply
I have an American Products 400 watt, 120 volts, bulb type R-40, will the color changing LED bulb work? What gasket should I get? Pool is 22' x 11' will the 18 watt be bright enough?
Reply
Hi Kevin, The PureColors LED Bulb will work on your American Product Light however I would suggest the 120V 35W PureColors LED Bulb and you would need this American Products Light Gasket
Reply
How easy is it to replace the bulb if it is under water ? do I drain the pool to below the bulb ? what are the steps in REPLACING OLD BULBS WITH YOUR NEW LED....
ALSO what do you do when there are NO BULBS in the pool and I want to add lighting ? are there specialists for this or an ordinary electrician will do...?
thank you
David
Reply
Hi David, Replacing a light bulb in a swimming pool is relatively easy and you don't need to drain the pool water. Here is a Video on How to Replace a Pool Bulb which outlines this process step by step.
Reply
IS THE GAQSKET INCLUDED
Reply
No, the gaskets are not included. Those gaskets are dependant on the model of the light fixture itself. You can call in with that information or if you are not sure you can send a few images of the light itself to upload@inyopools.com to assist in identifying it. Please keep in mind that these bulbs are compatible with the Pentair Amerlite, Hayward Astrolite, and the Jacuzzi Full Moon.
Reply
I have a Underwriters Laboratories Inc. in ground pool light No. S-216195. Will an LED replacement bulb work in this fixture? I also need a new seal. What seal should work for this fixture? Thanks for the help!
Reply
Hi Bob, could you take a few photos of your light including a photo of the label near where the cord attaches to the back of the light housing. You can simply reply to this email with those photos or you can email them to upload@inyopools.com the photos will help us determine the proper replacement bulb for you.
Reply
Can these bulbs be tested while the pool is empty, or do they need to be submerged so they will not blow out like traditional poool light bulbs.
Reply
Yes, you can test these while a pool is empty but would not recommend testing them over a long period of time. 5 to 10 minutes should be plenty to run the tests.
Reply
We have a in ground pool -- 18K gallons. Light just went out and need to replace- we had an LED color changer, by switch,. I don't know what the housing is, with out taking out the whole light fixture. Would like to have the new gasket and light on hand before I start to pull out light. Are all the lights standard size? I know I am a 120 v. ???
Reply
Stephanie, In order to confirm if this bulb will fit, we will need to know the model number of your fixture.
Reply

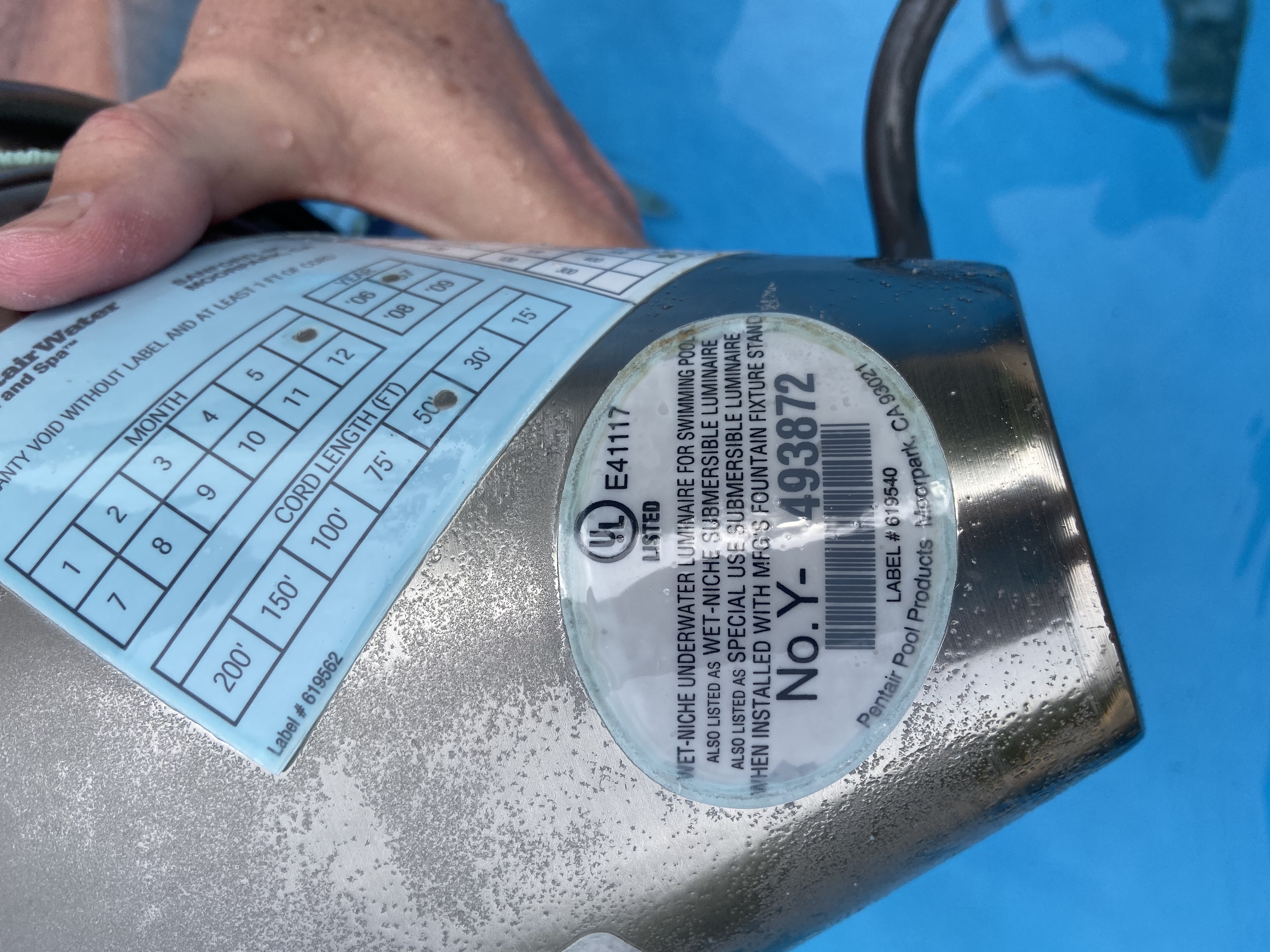

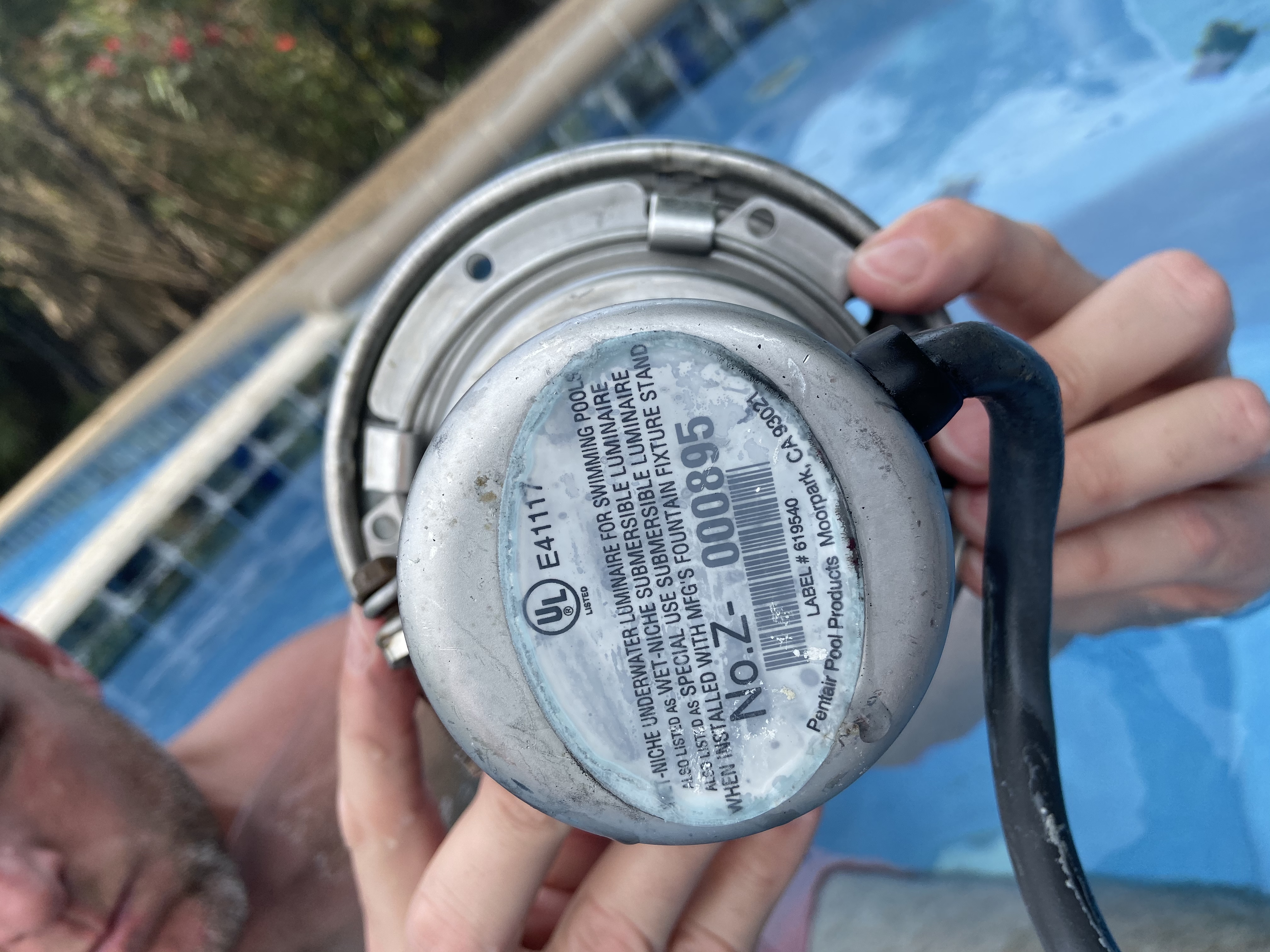

I have a pentair fixture with a label #619562. Is that a 120v fixture?
Reply
Hi, Mike. I will need the fixture series or model number, I can't use the label number to confirm if this bulb will work. This bulb is only compatible with the Pentair Amerlite 784 Series fixture.
Reply
I have a 400W -120V Bulb in a Hayward fixture will this LED light work for me? It's a 9' dining pool.
Reply
Mark, If you have a Hayward Astrolite or Duralite, this bulb will fit. If you do not have either of these models, please call us and provide us with your model number.
Reply
I have a Underwriters Laboratories Inc. in ground pool light No. R-491823,label on it Fix MOD SP-583L use with fixturehousing model NO SP-600, SP-607 WATTS 500 VOLTS 120 BULB TYPE R-40. Will an LED replacement bulb work in this fixture? I also need a new seal. What seal should work for this fixture? Thanks for the help!
Reply
Hi, Frank. You can use either the PL5814 or the PL5809 LED bulb along with the Hayward Astrolite Lens Gasket - SPX0580Z2.
Reply
I have a Hayward light in an in-ground pool, it has a 120volt 300watt now. can I replace just the bulb to get a changing light display LED?
Reply
These LED bulbs are compatible with the Hayward Astrolite series pool and spa lights. You would need to check the model of your light which should be located on the light label or if are not sure then you can email us images of the light face to upload@inyopools.com so we can assist in identifying the model.
Reply
Will the PL5814 bulb work with a Haywood SP0570N50 100W 12V light? Thank you!
Reply
My pool, built in 1990, has one pool light and one spa light, both 10 inch niches, 500 watt and 300 watt respectively. The fixtures were replaced with Pentair Amerlite units 5 years ago. In reviewing the Pureline product specs, I don't see a 500 watt equivalent in the color changing LED bulbs. Would the 35 watt and 18 watt equivalent sizes be suitable replacements and are they synchronizable with the different wattages? Thank you.
Reply
Hi, Larry. There is not a LED color changing fixture that will be equivalent to 500 watts. The 35 and 18 watts LED bulbs can be used as a replacement and will sync if they're on the same circuit.
Reply
I have a hayward color logic led lighting fixture in my pool. The light no longer works properly. It will come on for a few minutes and then die out. It is a SP0524 or SP0525 .
It is 12 V - 50 watts
Can I replace this with a color changing bulb system?
Reply
Hi, Mark F. Unfortunately, you cannot. You will have to replace the entire light fixture.
Reply
My 18000 gallon pool has a light on both ends. Do you recommend two 35w watt bulbs or two 18 watt bulbs?
Reply
Hi, Al. It depends on the pool size and the current light wattage. I would recommend one 18 and one 35 watt bulb.
Reply
I need to replace 2 American Products lamps. THe series markings are 7885xxx,7845xx and 7895xx with the watts 500, volts 120 and bulb type r-40. Says to use with model no 7821xx, 7822xx 7823xx 79296799 or 79208900 fixture houseing wet niche type
I want to use LED technology. What bulb and gasket do I order from you to make this work?
Reply
Hi Nick, Thanks for supplying those model #'s as that really helps. For your light, we would suggest the PureColors PL5809 120V LED Replacement Bulb or the PL5859 PureColors v2 120V LED Replacement Bulb both would work great.
Reply
Will this light work with Hayward Dura Niche # sp0600h?
Reply
Hi Jim, The SP0600 is the part # for the niche or light can that is embedded into the wall of the pool. If you already have the light fixture that goes into that can/niche and it is 120V then yes this bulb will work in your light fixture as long as your current bulb has a standard screw-in Edison base. If you are needing the complete light fixture with cord and bulb that goes into the SP0600 niche then you will need one these PureLine Pool Light Fixtures.
Reply
I currently have a 120V/100W bulb in my 6' foot spa. Would this bulb be the compatible replacement regarding brightness? Also would the 120V/35W be the correct one for a single light 15x30 pool?
Reply
Hi Wiley, Normally the spa light is smaller in diameter than your pool light. If your spa light measures roughly 6" diameter then you would need the PureColors 120V Spa Bulb and if your pool light measures roughly 10" in diameter then you will need the PL5809 PureColors 120V Pool LED Bulb
Reply
Can you tell me what bulb and light will work on a
Purex fixture from the 80’s?
Reply
Hi, If you are looking to replace the complete light fixture with cord then the PureColors Color Changing Light Fixture would replace your Pac Fab Light.
Reply
Will PL5814 replace my 500W, 120V, R40 flood?
Some of the numbers I found:
Jandy PLN1/CLRG.
Pentair 62004
Series WPHV500ws250
p/N R4505040
Reply
Hi. The Pureline Bulbs are not compatible with the WPHV500WS250 model fixtures. However, the ColorSplash LXG LED Pool Lamp 120V - LPL-P2-RGB-120 and the Silicone Lens Gasket - R0451100 are.
Reply
need a replacement for a 500w bulb with an LED bulb, what would be compatible n the cost please?
Reply
Hi, Pete. In order to deermine compatibility, you will need to provide us with the model of the fixture.
Reply
I have a Jandy WaterColors 120V LED that has stopped working. My pool is 10,000 gallons, 24 ft by 12 ft. with a 3ft shallow end to a 5ft deep end. I have 2 questions; 1, how do I check to determine if the Light Engine is bad or the whole unit is bad? It's 6 years old.
2, if it is just the Light engine that's bad, are there compatible replacements that are not Jandy?
Reply
Hi, Chris. You can use our Tips for Troubleshooting Your Pool Light Blog. They're no aftermarket replacement for the light engine.
Reply
I have a Hayward SP0583L50 Fixture and am looking for a blue colored replacement bulb (current bulb is HALCO white/clear 500W/120V). What are my options.
Thank you!
Reply
I have a 30,000 gallon inground with a single light in the deep end. The current light assembly is a PAC-FAB Series One with an R-40 bulb. Can you recommend a multi-color LED replacement bulb that will work well with this configuration?
Reply
Hi, Jim. Unfortunately, there is not an LED bulb that is compatible with a Pac-Fab series fixture. You will have to replace the entire fixture using the PureColors LED Fixture Kits.
Reply
I have a Underwriters Laboratory inc. wet niche type No. A753024. Model #100. Forming shell#429 120V. 400W. Lamp G30. Purex pool products division .
I would like to order a LED bulb (standard fitting) so I can have a color light show , can you please advise me as to what bulb I should get. My pool is 20x40.
Thanks lynda
Reply
Hi, Lynda. Unfortunately, this LED bulb is not compatible with your Purex fixture. You will have to replace your old fixture with a current replacement. Replacement options will be the PureColors LED.
Reply
I have Hayward SP607 light niche with a SP583-30 500W Hayward light with a 30’ cord. What would be a good LED multi color replacement bulb?
Reply
Hi, Don. You can use this PL5814 - 18W, the PL5809 - 35W or the LPL-P2-RGB-120 - ColorSplash LXG bulb with your model fixture. You will also need to replace the Astrolite Lens Gasket - SPX0580Z2.
Reply
will this bulb fit a hayward
AstroLite 120V, 500W, 30' Cord with Stainless Steel Face Ring Pool Lights
Sku: SP0583SL30
Reply
Hello - we have two Hayward Color logic Fixtures, SPO523SLED30. Both have now stopped working. Would this light work with my system or do I have to replace the entire fixture? Thank you!
Reply
Hi, Adrienne. You will have to replace the entire fixture. You can use the Hayward Astrolite Fixture with this LED bulb.
Reply
Hi, I have a Pentair 600015 color changing pool light and need to replace the light and gasket. Can you tell me if this bulb will work?
Thanks...
Reply
Hi Don, This bulb does not work as a replacement for the Pentair 600015 Sam Light. You may view the replacement parts and replacement bulb by clicking on this link here - Pentair SAM Light Replacement Parts 600015
Reply
Will this work with my Hayward sp-583-L? And if so what gasket will i need?
Reply
I need to replace my incandescent bulb and was thinking about upgrading to the LED color changing bulb. Will this work with a dimmer switch or will I need to install a regular switch?
Reply
You would need to use a standard light switch/on/off circuit for this bulb.
Reply
I am looking to replace my current pool bulb with a color changing LED I have removed my pool light and it is Fiberstars "Jazz Light" 120 Volts, 84 Watts HID-50. Wil this bulb work, if not will any bulb work or do I need a whole new light?
Unfortunately, this bulb will not fit and you will need to replace the entire light fixture if you want an LED light.
Reply
I have a 45,000 gallon pool with a Pentair 784 light at each corner. Would you recommend the 18W or 35W LED bulb if replacing all 4?
Reply
Hi, Alex. I recommend getting (2) 18 watt and (2) 35 watt LED bulb based on the current incandescent wattage.
Reply
Will this bulb work in a Hayward SP-580A fixture? Was unable to find this model in previous questions, thanks.
Reply
Yes, this bulb would be compatible with your SP580 series pool light as long as you do indeed have 120 volts.
Reply
How do you get it to change light? Is there just a switch or is there a controller that you can choose the lights?
Reply
By turning the light switch off then back on, the light will cycle through the different colors and or light shows.
Reply
Will the PL5814 work with my old American Products light, which is a R-40 500 watts 120 volt?
Reply
Good afternoon..should the existing screw holding the existing light be replaced also along with the lens?
Reply
Hi Alfred, You don't have to replace the lens and screw when replacing your bulb however it is good preventative maintenance if they are really old. We do suggest replacing your lens gasket when replacing your bulb.
Reply

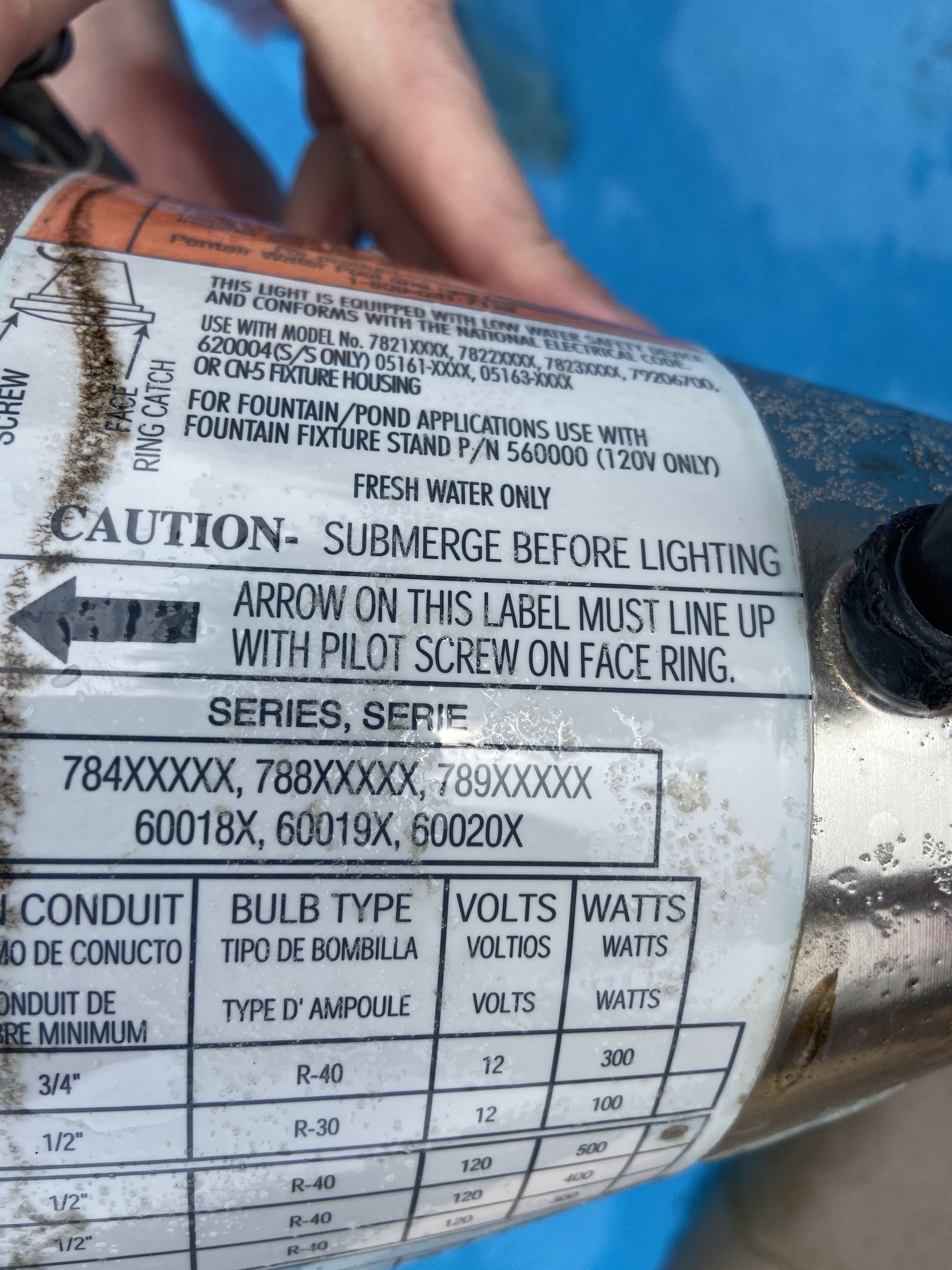

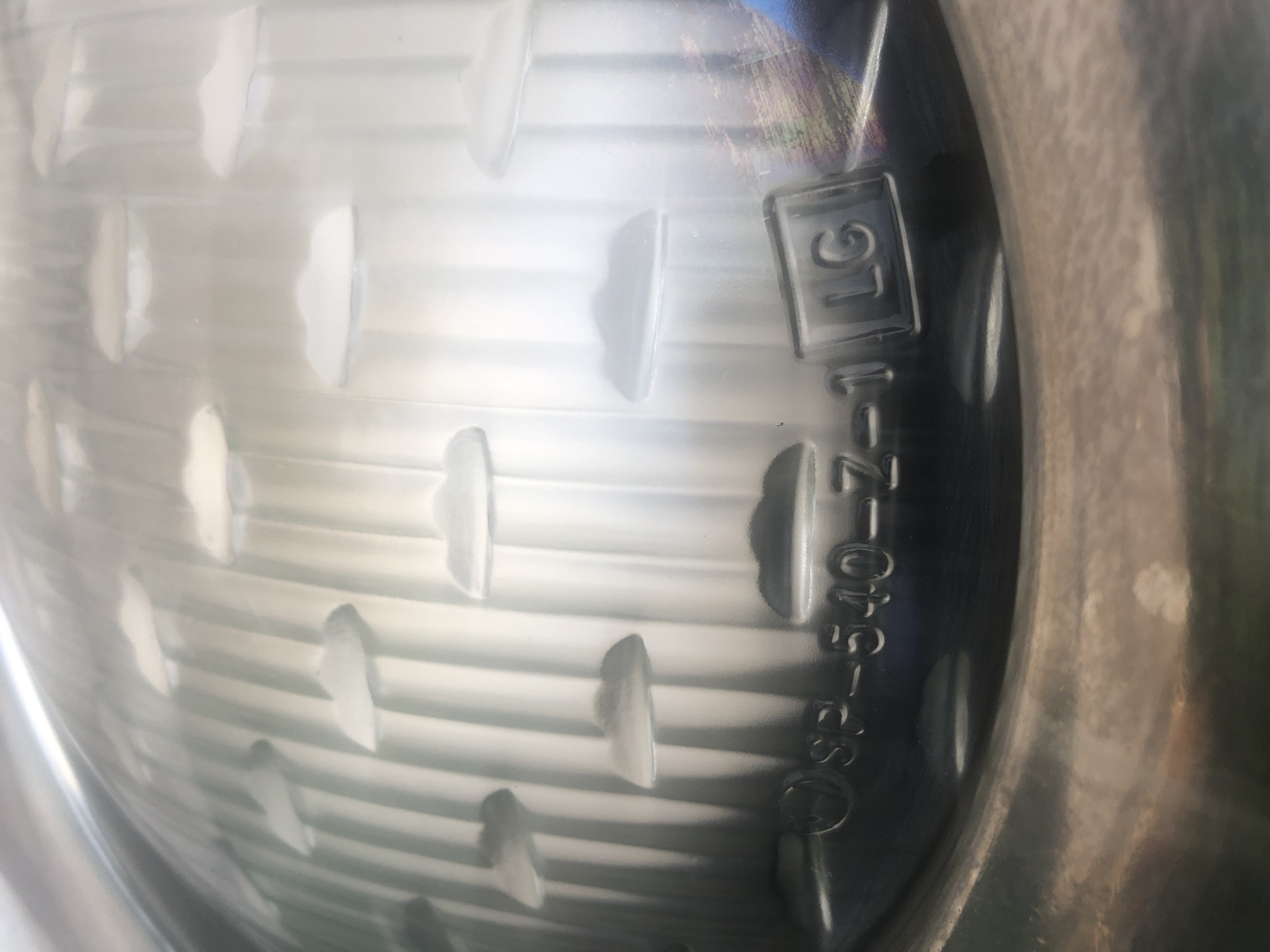

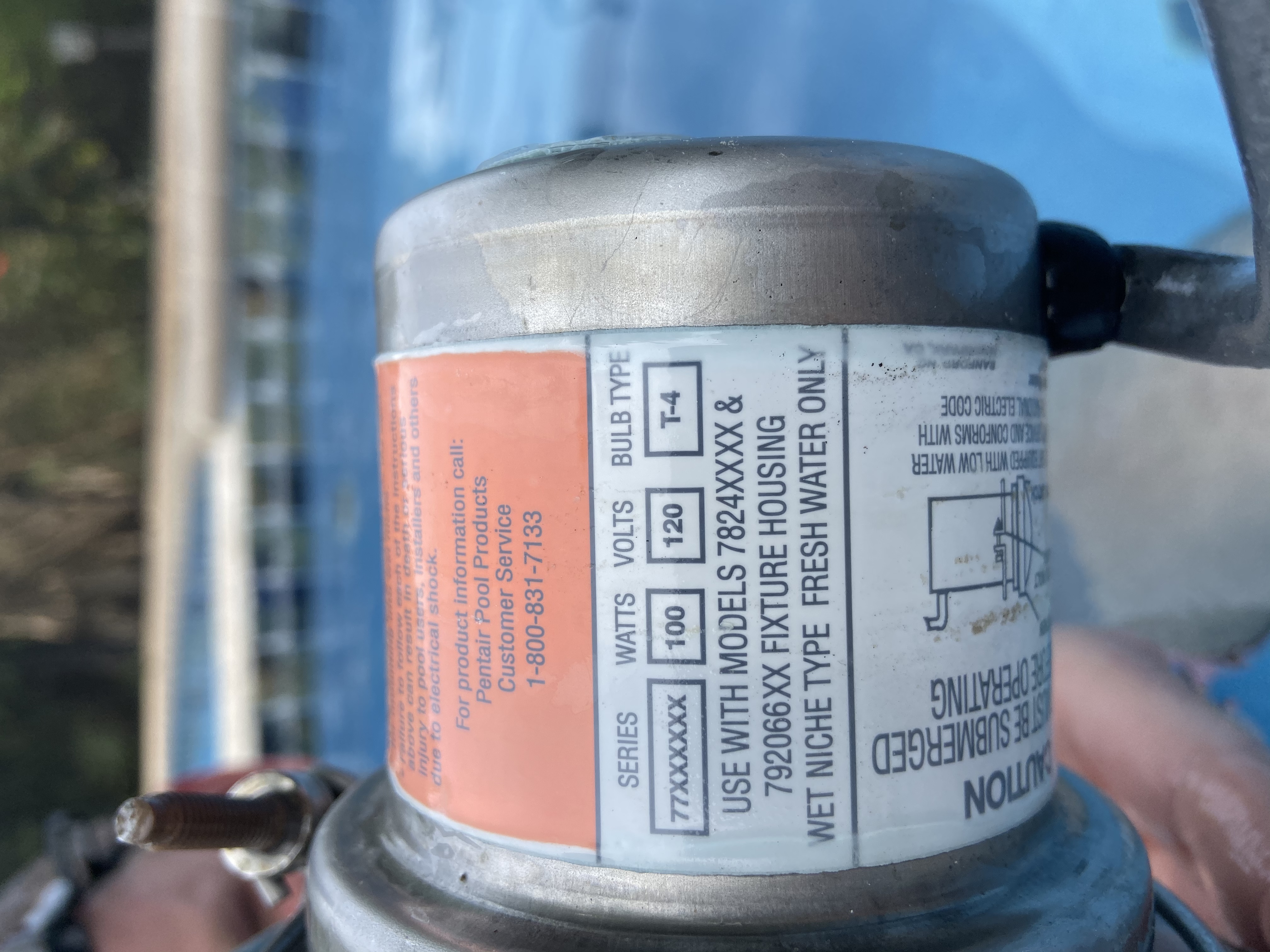

I am wanting to replace the old school lights in my pool and hot tub. Can you tell me which color changing LEDs are compatible as well as the gasket I will need. Thanks
The first 2 pics are the hot tub light. Last 3 are for the pool
Hi Misty, For the pool lights you can go with this PL5814 Bulb. Unfortunately, your Spa Housing takes a T-4 Bulb and there is not a LED replacement for a T4 bulb. This means you would need to replace the complete spa fixture with this Pentair Spa Light Fixture and this 120V J&J LED Spa Bulb please note that the bulbs in the pool and spa do not synchronize if you go with PureColors and J&J. If you want them to synchronize then you would need this J&J 120V Pool LED Bulbs for the pool and this
Reply
Bummer! We probably won't take on the challenge of replacing the entire fixture. Do you carry these T-4 replacement bulbs?
Reply
Hi Misty, Here is the link to the T4 Spa Bulb 100 Watt 120V If your okay with White in the Spa and Color Changing in the Pool then you could still go with the PL5814 LED Bulb for the pool, one of the color options for the PL5814 is white.
Reply
I have a Sp-583-sl 500w 120v r40 would like to switch bulb to led is there a bulb that’s compatible for my unit? Also can you tell me which gasket I would need. I’m not looking for color changing we prefer plain white light thanks for your help.
Reply
This PL5814 Pure Colors LED Bulb would be the correct upgrade bulb for your sp-583-sl 500w 120v r40 light. You will also need this SP 583 Hayward Lens Gasket
Reply
I have a Hayward SP0584SLB100 pool light. Is this the correct replacement bulb? If not what would the correct bulb be and what gasket will I need.
Reply
Hi Dave, The LED color changing bulb compatible with your Hayward Astrolite model SP0584SLB100 pool light is part number LPL-P2-RGB-120. The gasket is part number 3550-24.
Reply
I just recently bought a LED color changing light. With the light came the new lenses gasket which I replaced as well. It took 2 days for water to get into the light socket area burning the LED light out. Im afraid to spend over $100.00 again for a light that if seal does not seal right I will burn that light out as well. If I buy from your company and if this happens again will I get a replacement bulb for free or will I have to keep paying $100 for a new bulb until the gasket seals correctly.
Reply
Carl, If the lens fails and causes damage to the bulb, that is not covered under warranty. Before re-installing the light, I would recommend placing the light assembly in a bucket of water to check for any leaks before installing it back into the pool. Also, when installing the gasket, make sure that the ridge side is facing away from the light housing.
Reply
pl5808 led bulb is not available anymore?
Reply
Hi Valery, yes this Pureline bulb is no longer available but you can use the J & J Electronics Colorsplash LED bulb as well.
Reply

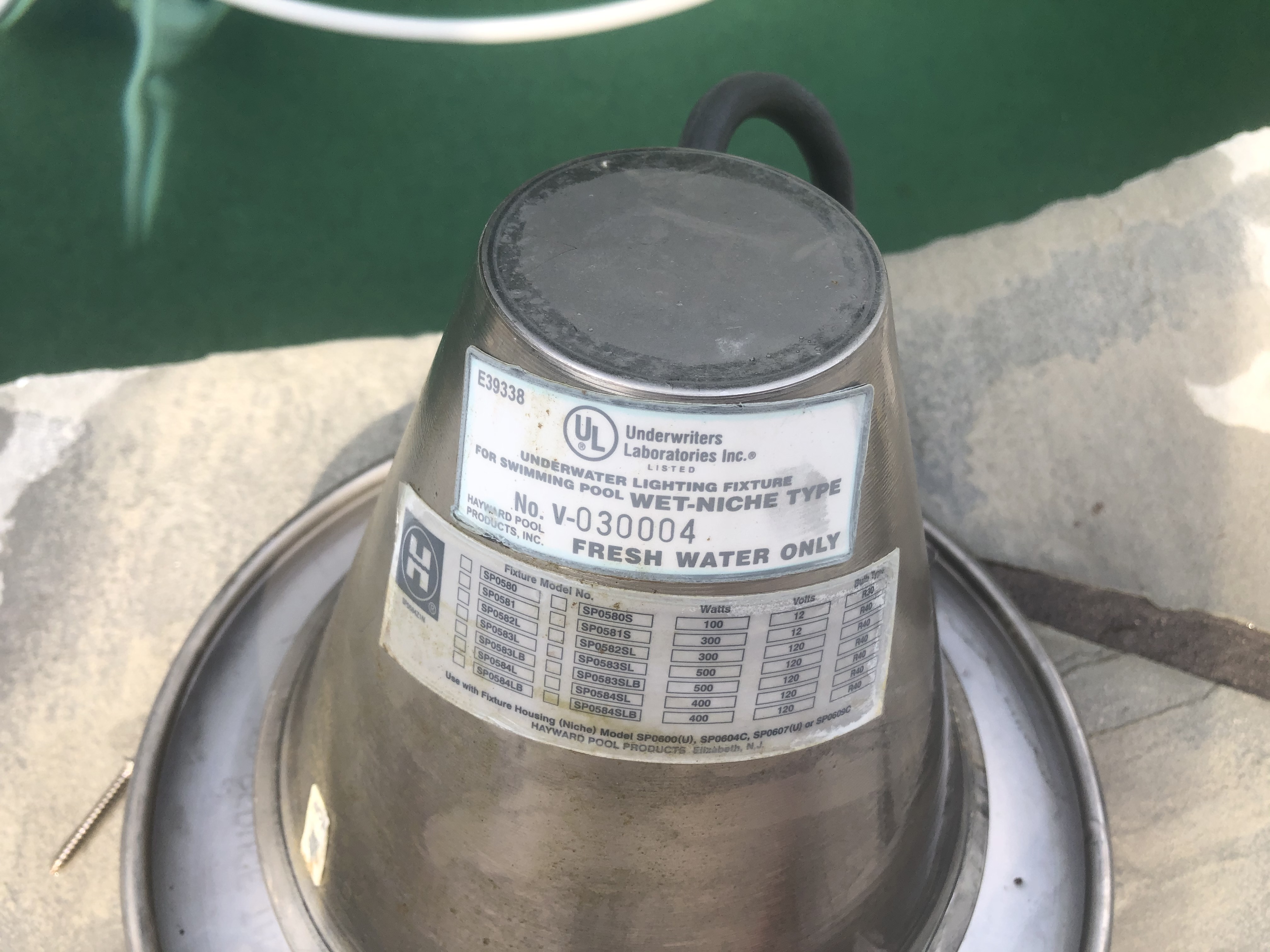

Will this bulb fit my Hayward housing? E39338. pics attached.
Donald, While the bulb will physically fit inside of your light housing, you will still need to confirm what voltage you currently have (120v or 12v). The PL5814 is a 120v bulb and will not work with a 12v fixture. We also recommend replacing the lens gasket when you replace the bulb.
Reply

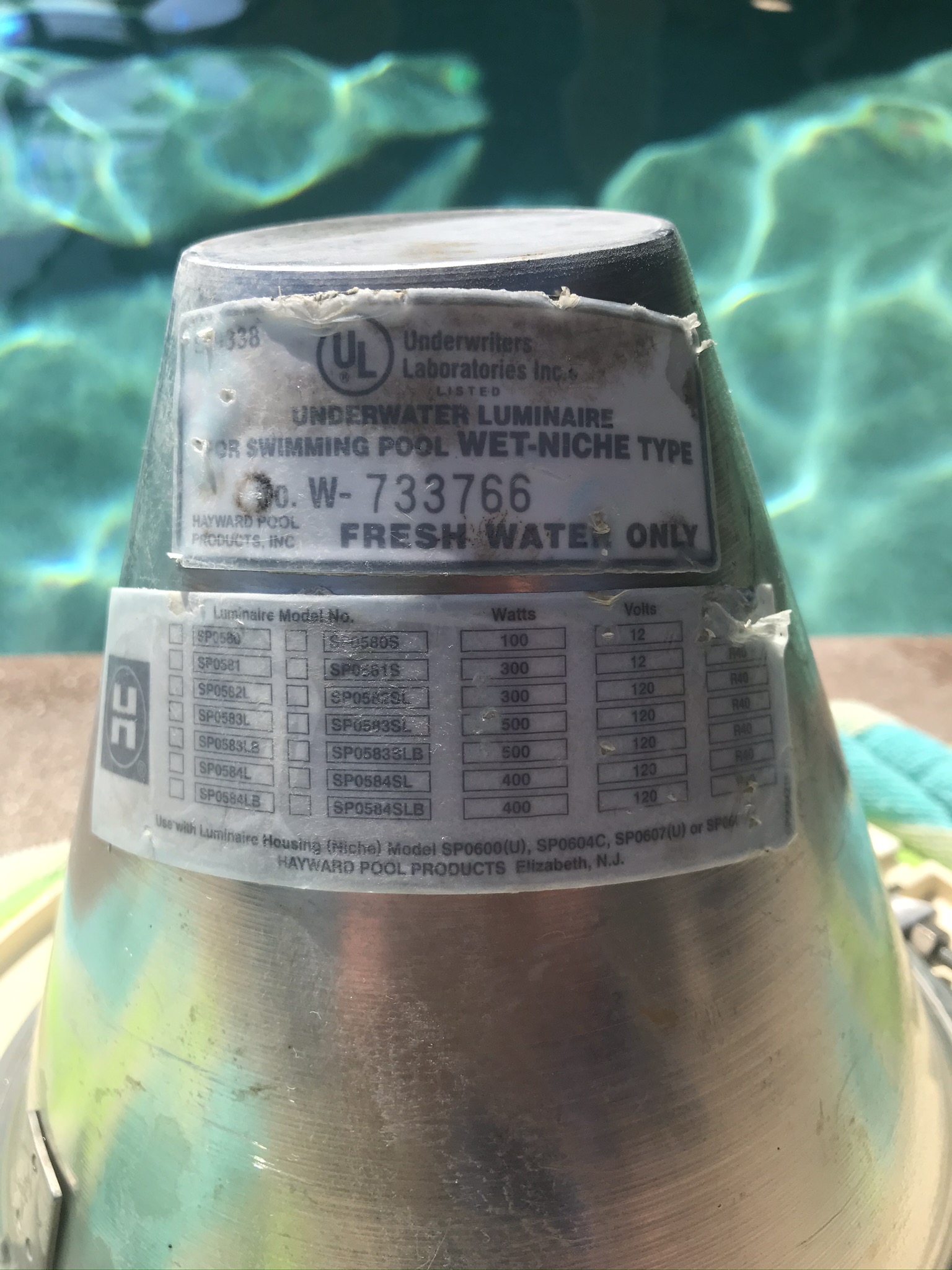

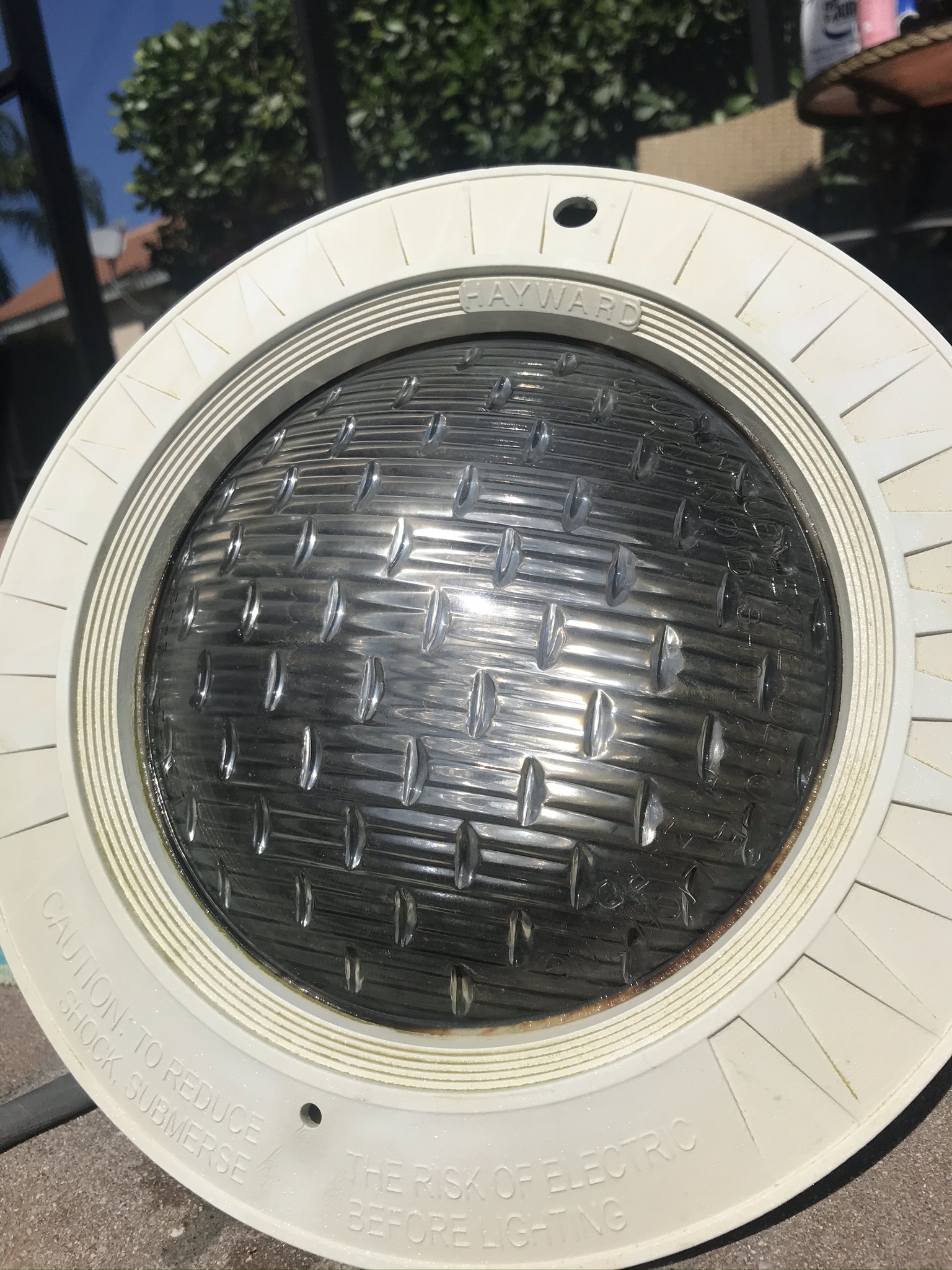

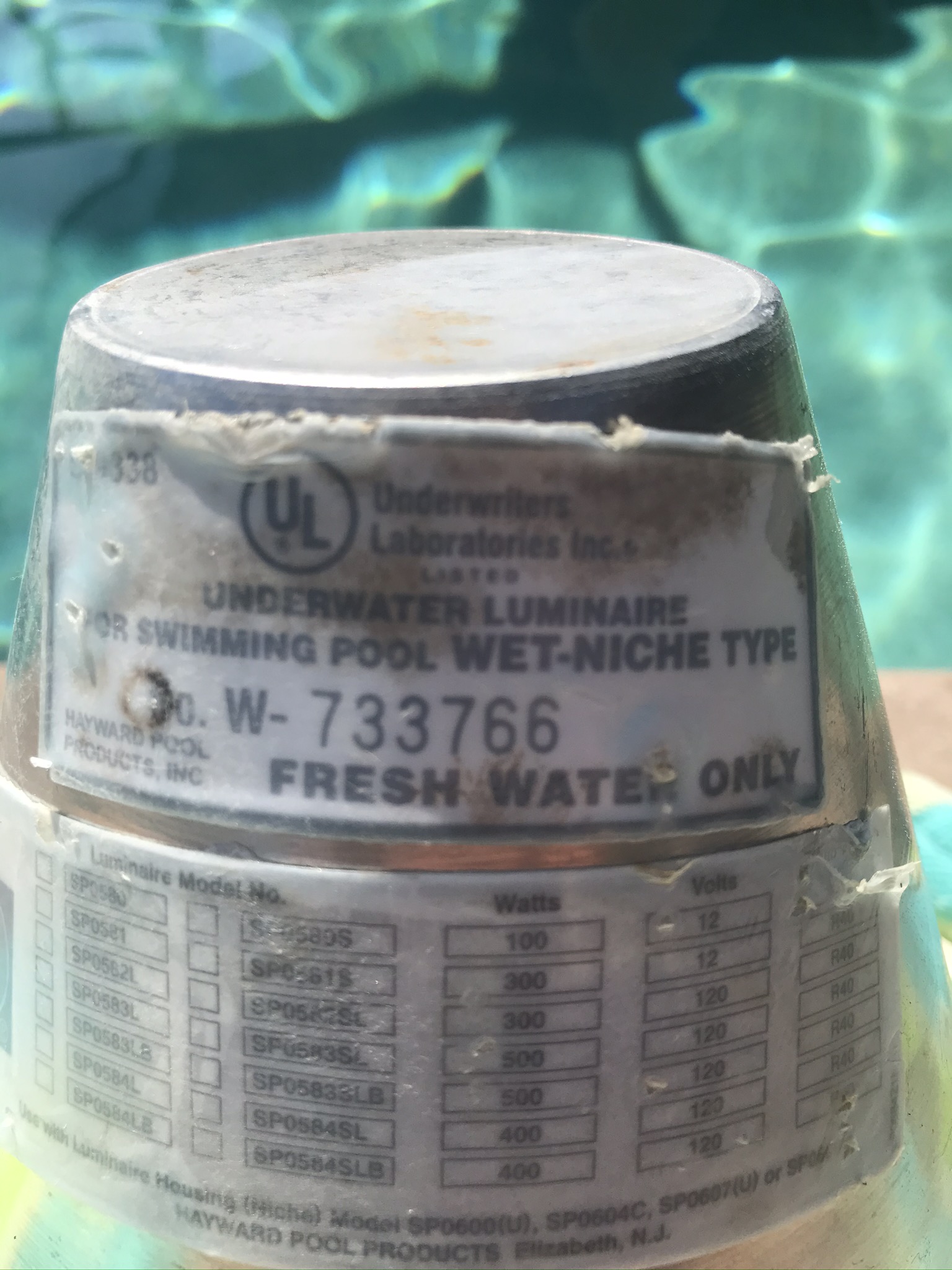

Will this light work with a UL wet niche W-733766 Hayward? It says to use for niche model SP0600(U), SP0604C and SP0607(U)
Yes this bulb will work with the light fixture shown in your photo, you will just need to double check your voltage to make sure your light is 120V, normally this is written on the face of your current light bulb.
Reply
Thank You!
Reply
What lens gasket would be required for the PL5814 LED bulb?
Reply
Hi, You will require this Hayward Lens Gasket
Reply
Hello..I purchased two of these bulbs back in March and now when I turn it on it doesnt proceed through the colors as I flip light switch..it just lights up as in pic..it has a 1 year warranty
Hi Alfred, if you are within the warranty period and the light bulb is failing please contact our customer service department using our chat feature on our website and we can commence the warranty claim for you.
Reply
