Will a gas heater operate at the low speed of a dual speed motor?
Reply
Probably not - Most gas heater will shut off at low GPM levels (20-40) to keep the heater cores from overheating - 20 for 200 BTUs, 40 for 400 BTUs. Depending on your pool system you might get these GPM levels at the low speed but generally these heaters must be run at the motor's high speed.
Reply
What is the difference between an Electronic and Millivolt ignition?
Reply
The basic answer is that Millivolt is the old style of ignition, using a standing pilot light. While the electronic ignition uses a spark start system like a gas grill. Electronic ignitions are more efficient in gas usage and also are better suited for high wind areas where a pilot light might get extinguished.
Reply
Can you get a remote control for the Raypak 266000?
Reply
Hello Suljo - You could use something like the Intermatic PE653RC to remotely control the Raypak heater.
Reply
Hi, I wondered how high I can turn up the heat on the Raypak 266? My last heater, a Hayward, only went up to 90, and I don't believe the actual water temp ever got near that. Hopefully, I won't need to turn it so high, but there are always a few cool evenings when I like to crank it up. Thanks.
Reply
Therese, these units are factory set for a max temperature of 104 degrees. A licence contractor can adjust it to 107 degrees max following Raypak instructions.
Reply
Is this heater available above 2,000 feet?
Reply
This particular model is good for 0' - 1,999' we do have our Raypak High Altitude Heaters which go from 2,000' - 9,000' so I would suggest the high altitude model.
Reply
Can you explain the electrical hookup required for the digital electronic model?
Reply
Hello Connie - The Raypak 009217 is supplied with a dual-voltage transformer for 120VAC or 240VAC input power hookup. We recommend contacting a certified installer for the installation of this heater.
Reply
what is difference between 266 and 267- I was looking PR267A but you show a 266 with different letters? I am concerned with the gas line length listed. I am replacing an existing heater, so gas is at heater location, but from gas source at house to pool is 80-100 feet, so how does this footage apply ? One last question, my pool is 18 x 40, is the 266/267 large enough ?
Reply
Hi Brad, The 266 & 267 would be the same heater, over the years this heater has been tested and at one point the testing agency rated it at 267,000 BTU's and then it was retested and rated at 266,000 BTU's the difference is negligible. Based on your measurements you would need a 1-1/4" gas line to adequately supply this heater. This 266,000 BTU heater would be a good choice for your 18' x 40' pool.
Reply
Is there anything that would make the hot water output seem cooler one year as opposed to years past? The water from this seemed really hot coming into the pool 2 years ago. Each of the last 2 years it seems the water is a little cooler each year and the heating process is taking longer. Odd, right?
Reply
Ron, I would recommend calling RayPak Teach Support at 805-278-5300 to see if there's a service comapany that can come out to see what's going on. They can run a diagnostic on the heater.
Reply
My unit is a model P-M266A-EN-C. Is this the same unit
Reply
Hello Barb, yes the PR266AENC is the same as the PM266AENC you current have. The heater we list on the website is the Raypak version and your current heater is the Rheem; and as you probably know they are the same company.
Reply
I am replacing a raypak 2100 264K BTU, pool is 20x40, 3-8 feet deep. Is this the heater I would want? Or is there a less expensive model that would work?
Reply
Hi Nadia, If you have an electronic ignition heater then this would be the correct pool heater for you. You would be able to tell if you have an electronic ignition heater if your heater has digital display on the heater. If you heater does not have have digital display on the heater and just has basic knobs then you would need the Raypak 266,000 Milivolt Heater.
Reply
My heater now is a Ray Pack millivolt P R266A MP C, I would like to change over to a Ray Pack #009217 electronic heated. Is this possible?
Reply
Hello Chuck it is possible we recommend checking with your installer certain states and cities have different codes.
Reply
I am looking to replace a 3-year Raypak gas-fired pool heater after the heating element is no longer working. The current model is P-R266A-EN-C. It appears this is the same product ? Our pool is 18x36. Can you advise if this is the same as our current model and effective for the size pool ? Thanks !
Reply
Hi Dina, The Raypak Heater 266000 BTU NG ELE (009217) would be the same unit as the P-R266A-EN-C unit that you currently have. The 266,000 BTU unit would be the correct size heater for for pool.
Reply
My pool heater leaks at the bottom and does not ignite anymore model# is P-R407A-EN-C
Reply
Hi Ruby, At this point replacing the entire unit will be the best option. Based off of the model # you provided the RayPak LoNox Heater 407000 BTU NG Elec Ign the replacement unit.
Reply
Replacing the old P-R266A-MP-C. I can get power to the new unit for the no pilot light option. I have propane, not natural gas. Is this the right unit? Thanks.
Reply
Scott,This unit is for natural gas with electronic ignition (no pilot). If you're looking for this same heater but with propane, it's part # 009225.
Reply
I am wanting to use a raypak heater with my salt water pool system,how does this heater work with salt?
Thank you
Jim
Reply
Hello Jim, if you have a salt pool it will be best to go with a Cupro-nickel Model 014939. This Raypak Digital heater has cupro-nickel fin tube heat exchangers for added protection against aggressive water chemistry
Reply
I need a replacement unit. for 400,000 BTU'S. Can I reduce the size since I don't use it very often.
Reply
Hello, John. If you want to reduce the size of your current heater please make sure the BTU size is adequete for the surface area, before replacing. Reducing the BTU may also result in longer run times to achieve the desired temperature. If you would like us to size a heater for you please send a separate email including the dimension of the pool and or the spa. Click here to contact us.
Reply
My pool is 17Ft. wide by 35ft long oval. the deep end is 8ft deep and the shallow end is 4ft. I believe about 20,000 gallons. would I be better going with a 206,000 btu or a 266,000 btu Raypack?
Reply
Hi Brian, You would be better off going with the 266,000 BTU heater verses the 206,000. It will heat the pool faster and the unit will not have to work at it max to heat the pool which would increase it's longevity.
Reply
Does heater come with venting piping
Reply
Hello Rex, The 009217 Raypak Heater 266000 BTU NG ELE does not come and venting. If you need a vent you can click here for the outdoor stack and click here for the indoor stack.
Reply
we have a 16 x 32 in ground pool 4ft at the shallow end 8ft at the deep end is this the right heater for our size pool
Reply
Hi Steve, This 266000 BTU unit is the proper size heater for your size pool.
Reply
Hi, I want to be sure that this unit is for natural gas.
Also, will this be compatible to control with my AquaLink RS 4 remote system?
Thank you!
Reply
Hello, Paul, The Raypak Heater 266000 BTU NG ELE 009217 is a Natural Gas (NG) unit. This will and won't work with your Aqualink. You will be able to turn the unit on and off but will not be able to control the temperature setting from your remote. Essentially, you'll be able to provide power but nothing more.
Reply
Hello, my pool is a straight back kidney and is 39 X 22 (at the deep end) and about 16 ft across at the shallow. I believe it is 3-9 ft deep. Is this the correct size?
Reply
I was wondering if the Raypak 266,00 BTU (P-R266A-EN) comes with a pilot light ignition rather than an electronic start.
Reply
Is this heater for natural gas hook up?
pool is 10000 gallon salt water, also want electric start
thanks
Reply
Abbie, this Raypak heater is the Natural Gas (NG) version but it is not suited for a saltwater pool. This heater has a copper heat exchanger which will corrode easier due to saltwater. For saltwater pools, the manufacturer suggests using the Cupro-Nickel version which is model number PR266AENX.
Reply
Does Raypak make an electric heater? I have a 22,000 gallon inground pool. Thanks
Reply
Hello, Raypak does have a number of Electric Heat Pumps to choose from. I would recommend either the Raypak Standard 117K BTU Digital Heat Pump or the Raypak Standard 133K BTU Digital Heat Pump. Remember, the bigger the unit the faster it will heat your pool.
Reply
Can the manifold be changed from the right side to the left side?
Reply
Hi Todd, The water connections can be reversed, however, the manufacturer recommends that this process is completed by an authorized professional.
Reply
our pool is above ground and is 14,364 gallons 32x16x53 how big of a heater would we need?
Reply
Hi Sharon, The selection of heater size depends on how fast you want to heat up the pool. 266,000 BTU is a good compromise for cost vs operation for your size pool. For more information, see our guide on "How To Select a Gas Heater For Your Pool or Spa".
Reply
I just purchased a RayPac PR 266A EN - C heater to replace my PR265A MV heater. Do I need an electrical source for the new heater and if so can I use the electric source from a disconnected pool pump?
Reply
The breaker has to be at least 50amps.
Reply
Is there a part we can order that prevents rain/snow getting into the outdoor stack we have on our 266 btu Raypak pool heater?
Reply
Hi Pauline, The outdoor stack is designed to be outdoor, there is not a part available to keep rain or snow from getting into the outdoor stack.
Reply
I live at 5300 feet above sea level (Louisville Colorado). Do I need any adoptors to use this Raypak 266 NG?
Reply
Hi Eric, You would need this 266,000 BTU Raypak Heater Natural Gas for Elevations 2,000' - 6,000' if you have a commercial pool like a hotel or condominium then you will need this 266,000 BTU Raypak Heater Natural Gas for Elevations 2,000' - 6,000' ASME Certified
Reply
I have a 16x38 new build w/ saltwater. Looking at options for equipment. Which heater would you recommend ? will it work with Pentair Easytouch automation?
Thanks!
Reply
Hi Mike, The Raypak heaters are great heaters and do work with the Pentair EasyTouch automation system. If you have a salt pool then I would suggest the Raypak 266,000 BTU with Heavy Duty Heat Exchanger.
Reply
Live in St Louis. Pool is 18 x 36 & 8 ft. @ deep end. Swim mid-May to mid-Sept. only. Your size recommendation for NG pool heater.
Reply
I would suggest a Raypak 336,000 BTU Heater for a pool your size but you will want to make sure to adhere to these Gas Line Sizing Specifications.
Reply
I have a 16 x 36 in the ground pool and I'm looking for a heat pump. can you tell me what size I need and what is the voltage and amps would need. thanks
Reply
I am looking at a Raypak 266000 BTU NG does the heater come with a left side connection to water inlets and exit and also a external connection for a exhaust vent above heater possibly a 7inch vent. Please respond.
Reply
Hi, Pat, The water connection on these Raypak heaters can be reverse in the field by a pool professional. The Indoor Stack Kit-009839 or Outdoor Stack Kit-009835 can be used with this unit.
Reply
I have a 18 X 40 8 foot deep end used may thru sept in Minnesota. It is a saltwater poo; what heater would you recommend. I have natural gas.
Reply
Hi Mark, For your size pool I will recommend the 406K BTU (PR406AEN) unit.
Reply
what do I need to convert this to propane
Reply
Hi Kelly, You will need the Burner Tray w/Gas Valve Propane IID 266A (010412F) to convert this unit to propane.
Reply
What is the easiest way to clean out a spider web on my new PR 266A MN C? Also, where is the little wax fuse located? That may need to be replaced again.
Reply
I recommend giving RayPak a call cleaning your unit, I don't want to tell you something that might void the warranty on it if they have a specific way of cleaning it. Also, not sure where that fuse is located either so that would also be a great question for RayPak.
Reply
Will this Heater be large enough for 45000 Gallons of Water
Reply
That heater will work, it will take a while for it to warm up. I would recommend going with part number 009219, the 406k BTU model. It will be much more efficient with a 45,000 gallon pool. If you have a saltwater pool I would go with part number 014941. That heater has a cooper reinforced heat exchanger that makes it last longer because it will not corrode not nearly as fast.
Reply
what is the warranty on 266 ray pac gas heater parts and labor
Reply
There is a 1 year limited warranty on this heater. Please review the product description on the product page for details on the warranty exclusions.
Reply
I have a 18x36 pool with the deep end at 8 feet what heater is preferred
Reply
I would suggest a Raypak 336,000 BTU Heater depending on MV (millivolt) or ELE (electric) part numbers 009194, 009202, 009218, 009226. For a pool your size but you will want to make sure to adhere to these Gas Line Sizing Specifications.
Reply
what is the difference between the 266 btu nat gas ele for $1499.00, and the 266 btu nat gas milivolt for $1529.00? and what discounts do have coming when i order it today such free shipping, $25.00 off, and the $5.00 dollar off with code becbbbjuy, and what other discounts exist if any?
Reply
The milivolt has the manual dial and the electric has the digital read out screen which is the one everyone is going to. I do not have any other discounts.
Reply
What are the dimensions of the 26000 Raypak pool heater
Reply
Hi, Ken. The unit is 23"W x 28"D x 40"H. These specs are also located on the RP Series Technical Data Sheet.
Reply
I need to replace a broken Rheem P-M266A-EN-X. Will the Raypak P-R266A-EN-C be a comparable replacement? Also, if I would like to instead upgrade to a larger BTU model (P-R336A-EN-C), would that add a bunch more work during install such as cutting out some plumbing and/or gas lines to accommodate the larger width of the heater?
Reply
Is the top open or is there a flap over it. How to prevent objects getting in it?
Reply
Hello, There are Stack Kit, Indoor R265 (006697), but that is the only thing that goes over the top hole.
Reply
Hi,
I have a natural gas heater for my in-ground pool. it is Laars & Jandy LITE 2 Model LG250N. Is the Raypak 266000 BTU NG ELE the correct replacement for mine?
I live in Ohio. How long will it take to ship to Hudson, OH 44236?
Reply
Hi Krish, Yes the Raypak 266,000 BTU (009217) pool heater, would be a good replacement for your Jandy LITE 2 Model LG250N. Delivery is 5-7 business days.
Reply
Hi, I have the raypak 266. Great unit, however the LCD screen has crapped out on it. Are there replacements available in Canada?
Reply
Hi Brad, Here is the Raypak 266 Digital Display that you would require. We do ship to Canada but we do not have a store in Canada.
Reply
Can you tell me up to what pool size does the RayPak 206 heat, debating between that or the Raypak 266. I am also wanting to know if I need anything additional for the install? Or does it all come with the pool heater? Thank you
Reply
Hi Becky, If this is replacing an exsisting heater then I would not go larger than your old heater BTU size as you run the risk that the gas supply line is not large enough. If this is a new installation and you are running a new gas line then I would go with the larger unit. Everything needed for an outdoor installation is included with this heater.
Reply
I now have a Raypak 1200 digital, which has died. Pool is around 30,000 gallons. The 1200 did a fine job. What new heater is appropriate for this size pool. There is also a spa, in the same system.
Reply
Hi, Ken. I will need to know the surface area of the pool to confirm what size heater you'll need.
Reply
Hi, I have a 27 year old Tropic isle 240,000 BTU heater. Will this model be sufficient as a replacement? pool is 18x36 3.5 to 5.5 deep (est) roman style with steps on one end and 40 from center to center so to speak. Also is this an outside heater that can weather the elements in Mi? Thanks
Reply
Hi, Gary. A Raypak 266,000 would provide sufficient heat for a pool that size and can be installed outdoors. I would recommend getting a Pool Heater Cover.
Reply
I have a 20 x 40 inground vinyl lined pool 8 ft on deep end current heater is raypak p-m266A-MN-C is that sufficient?
Reply
John, For your size pool, I would recommend a 336k btu or a 406k btu heater. Since you have a 266k btu installed, I would recommend checking with your gas company to see if your gas lines can support the additional btu size.
Reply
can the water outlets be installed on the left side also? Also can it weather the elements during the season outside and a cover recommended during winter months or all year long?
Reply
Yes you can change the sides of the units outlets and yes it it designed for outdoor usage. You may want to be sure and drain the unit during the winter months if you get freezes.
Reply
I'm having a pool/spa built in my backyard. Freeform, 50 ft at longest t4 to 8.5 ft deep, 1020 sq ft area. Builder saying he will use a heater (propane) with BTU of 405,000. Salt disinfection system. Friend told me to ensure builder uses your brand with specific material like Copprum-Nichol.1) What model you would recommend for our size poo/spal, propane and salt system? 2) How do you spell the material that is most compatible with a salt system?
Reply
Hello, if you are looking for a Cupro Nickel Propane unit Raypak Heater 406,000 BTU's LP ELE W/ Cupro-Nickel Heat Exchanger - 014953
Reply
how far does the pool heater have to be from the house - huntington ny
Reply
For U.S. installations, the point from where the flue products exit the heater must be a minimum of 4 ft below, 4 ft horizontally from, or 1 ft above any door, window or gravity inlet into any building. The top surface of the heater shall be at least 3 ft above any forced air inlet, or intake ducts located within 10 ft horizontally
Reply
I have an existing in ground pool that we want to add a NG heater. Due to the location of the existing pump and filter near the house, we would need to install the heater approx. 30 feet away from the pump ad filter. Is there any potential problem with that?
Reply
Dean, As long as the pump is strong enough to provide enough water flow (gpm) to the heater and the gas line is sized correctly, you can install the heater 30ft away from the pump and filter. Please refer to the installation manual for space requirements.
Reply
I'm looking to replace an old Pentair 200K BTU heater for my 17,000 Gal inground pool and want to know if replacing it with the Raypak Heater 266000 BTU NG ELE - PR266AEN would work? I’m not sure how to read your gas line table…
Reply
Hi, Keith. This Raypak 266K BTU unit can be used to replace an old Pentair 200k BTU unit. The gas line pipe chart shows the maximum equivalent pipe length (ft) from the meter.
Reply

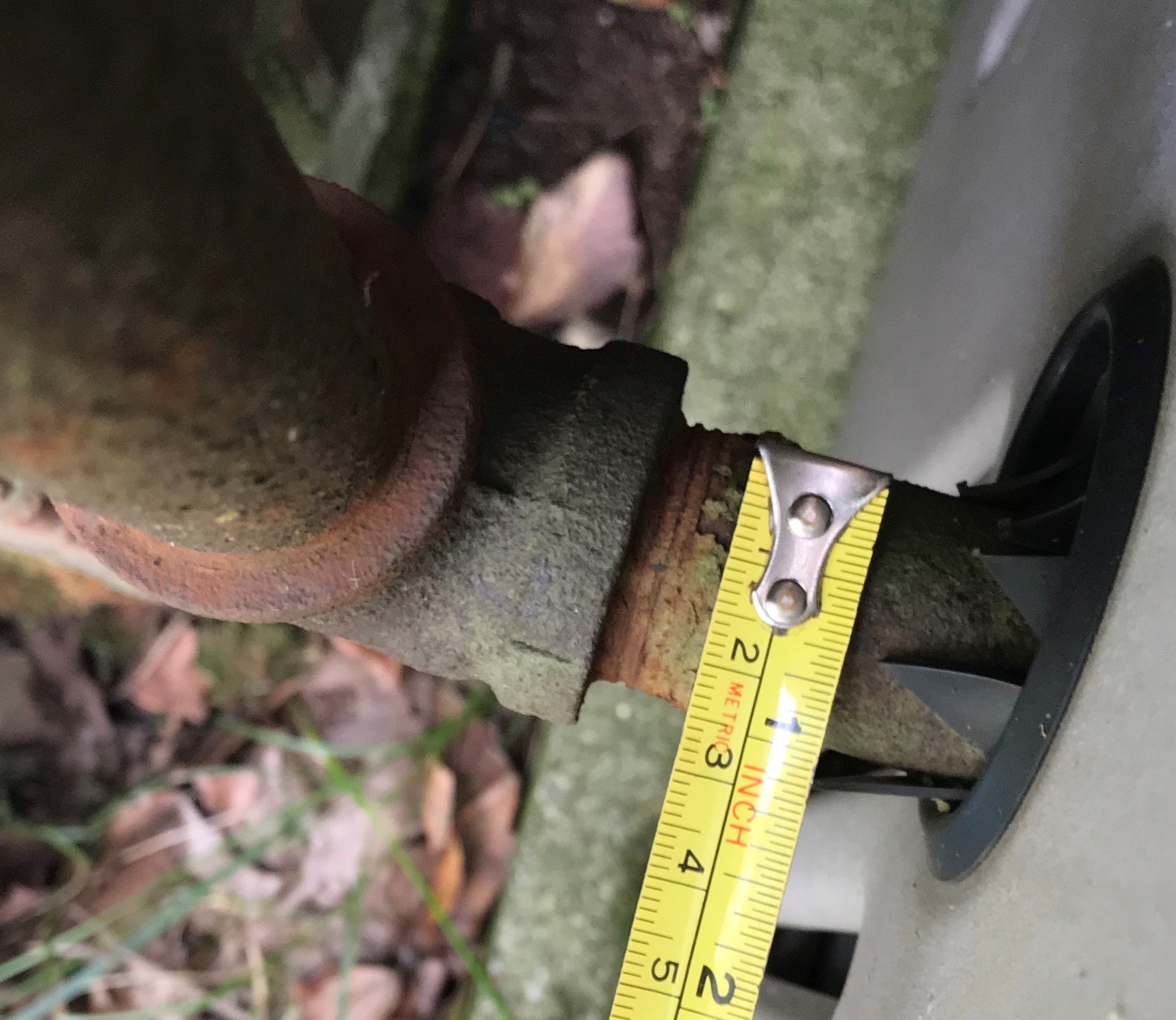

What if the gas pipe doesnt fit? Can I return it?
Reply
Hi Chris, You can return the heater within 30 days in new and unused condition and you would be responsible for any of the return shipping fees which can be quite expensive on a pool heater.
Reply
Hi I have A Rheem pool heater Serial # 0701192349 Model 3 P-M266A-EN-X its leaking underneath the heather on the left front corner is that the heat exchasnger leaking ? Can I just replace the heat exchanger or is it a big job ?
Reply
Hi, Dennis. Water can only leak from the Heat Exchanger Assy- 010044F which includes the manifold. Replacing the heat exchanger assembly is a big job and is recommend to be done by a professional.
Reply
What are the electrical requirements for this gas heater? I have a 15 amp convenience outlet by the pool filter would that work for the 266 natural gas heater? I cant seem to find anywhere how many amps these things draw.
Reply
Hi, Ben. This unit draws 2 amps at 220 volts and 4 amp at 120 volts as stated in the RP Series Technical Data Sheet. B2981
Reply
Heater is not working.....Code ROL please advise
Thank you
Reply
Hi, Lori. The ROL code is letting you know that the "Heat roll-out safety switch open." You will need to replace the Raypak Thermal Fuse - 005899F in your unit.
Reply
Does the copper heat exchanger work with saltwater?
Reply
I have an 18x36 in ground pool. My deep end is about 9' deep. I curretly have a raypak boiler I want to replace. It is 266,000 but and is a millivilt system. I live in west Michigan on the lakeshore. Is this unit oversized? I'd like to go with an electronic ignition unit? Can you give me a recommendation please? Thanks!
Reply
Hello, based on the size of your pool, your heater is slightly oversized, but that is fine because we typically recommend oversizing your heater. If you have natural gas I would recommend this heater, but if you have propane you will need this one.
Reply
I have an 18x36 in ground pool. My deep end is about 9' deep. I curretly have a raypak boiler I want to replace. It is 266,000 but and is a millivilt system. I live in west Michigan on the lakeshore. Is this unit oversized? I'd like to go with an electronic ignition unit? Can you give me a recommendation please? Thanks!
Reply
Just bought a home with a 18x35 pool and would like to install a heater. We received a quote from a local company to purchase a 266 btu heater from them and install it for us. Nice people, but for everything total it was way more than double the price of this Raypak 266 btu that INYO is offering. My question...does everything come in the box that we need? Thank you!
Reply
Hello, the only thing that is not included with this unit is a check valve. This is an important aspect of the installation due to the fact that it prevents water from flowing backwards when the pump is not running. Please click here to see our selection of check valves.
Reply
I am looking to replace my 266k Raypak Inground Propane pool heater. Do you sell the CUPRO-Nickel version
Reply
I am looking to replace my Raypak Rp2100 R265A-EN inground pool heater.
could you let me know what the replacement model is?
Reply
I live at 3850 ft elevation. Is there a high altitude option on the 00917 pool heater? Is the heat exchanger Cupro/Nickel? Finally, what is the cost for this heater with the required options and is it taxable for El Paso Tx. delivery?
Reply
I am replacing a Rheem P266 BTU heater. I am in Wisconsin and have no issues with elevation challenges. My challenge is to find an authorized tech to install it.
Can you provide any suggestions. My previous Raypak tech is no longer in the business.
Reply
Jclark, We recommend giving Raypak a call. They should be able to put you in touch with an authorized installer. You can reach Raypak at 805-278-5300.
Reply
I have a 28,000 gallon salt water pool, will this heater work?
Reply
Hi Beth, Yes this heater would work for a 28,000-gallon pool. You just need to make sure that you have the properly sized gas line to supply the heater, here you can View the Gas Heater Gas Pipe Sizing Chart to determine the gas pipe needed for your heater.
Reply
I have a 30’ x 14’ (approx) in-ground, Fiberglas, figure 8 shaped pool with shallow-end 3.5’ & deep-end 5.5’. Should I use 266 or 206 btu heater?
Reply
Hi Steve, I would suggest the 266,000 BTU heater for your sized pool. You just need to make sure that you have the properly sized gas line to supply the heater, here you can View the Gas Heater Gas Pipe Sizing Chart to determine the gas pipe needed for your heater.
Reply
What does water sw open mean on the display
Reply
Hi, Charline. That means there is not sufficient water flow to close the water pressure switch. You will need to start by cleaning your filter or pump basket.
Reply
We have a above ground pool 18ft round by 52in deep. We would need a propane heater, what size would you recommend? Also is there a preferred pump to move the water threw your heater? Thank you!
Reply
Hi, Chuck. For an 18' round above ground pool, a 100K BTU or higher heater would heat it effectively. A 1 hp or higher pump will also provide sufficient water flow
Reply
We have a 266,000 BTU heater which suddenly won't start after working fine yesterday. Is it worth trouble shooting and replacing parts or is it best to simply replace the unit?
What model do we need for LP gas connection?
The pics do not show any type of vent. Is it included or extra?
Reply
I live in Contra costa county in Ca. Do I have to buy a low nox heater??
Reply
Hi, Holley. As of now, your county does not require low nox heaters. I will not hurt to install one, model # P-R267AL-EN-C is the low nox model.
Reply
do you secure the heater to cement base with angle irons to stop it from shacking?
Reply
In Florida is it FLORIDA BUILDING CODE 2001 WIND SPEED = 150 MPH, 3 SECOND GUST EXPOSURE = C to anchor the unit down. If the unit is shaking the pad may not be leveled so anchoring that unit down would be helpful.
Reply
Some mice have set up house in my raypak pool heater and made a mess. How can I remove the burner assembly for cleaning?
Reply
Hi. Instructions are available on page 42 of the Raypak Owners/Instructions Manual.
Reply
Unit has electric but does not go on
Reply
Hi. To diagnose the issue, you can use the Troubleshooting Guide on pages 43-46 of the Raypak Owners/Instructions Manual.
Reply
Heater not working. It says sensor failure, is there a reser or do I need a new sensor?
Reply
Hi. You will need to either replace the Temperature Sensor - 009577F or the Circuit Board - 013464F. To determine which one is the problem, inspect the sensor, wires, and connector at Terminal P1 Check resistance value of the sensor. Reference to chart on page 46 of the Raypak Owners/Instructions Manual. Replace Sensor if not within 10% of values shown below. If okay, replace Circuit Board.
Reply
I am going to get the Raypak 266,000 btu heater. My natural gas line is
1 inch diameter and runs for 100 feet. Will that be enough pressure?
Reply
Hi, Frank. A 1" Gas line will provide sufficient gas pressure for this 266K BTU heater.
Reply
My heater, model # P-R266A-EN-X says it is a 240,000 BTU and I'm needing a heat exchanger
Reply
My heater model # P-R266A-EN-X says 240,000 BTU on tag. Is this the correct btu ? I need to order a new heat exchanger and would like something more durable.
Reply
Hi, William. This is the correct unit but it has a copper heat exchanger, not a cupro-nickel which is Part # 014939. Here is the link and Part # to the replacement Cupro Nickel Tube Bundle - 010365F. The cupro-nickel model has the more durable heat exchanger.
Reply
Is this unit alright to use with a saltwater pool
Reply
Hi, Aaron. Yes, it is. You will have to pay extra attention to your water chemistry. The P-R266A-EN-X model is design to operate better with salt water pools than this model.
Reply
I am comfortable installing a new raypak 266000 natural gas heater, except for the "check valve" part that I've read about. 1. Do I need it? 2.
Does it come with the heater if I purchase? 3. Any information on where to install it, and how to?
Also on a side note, is the cupro-nickel heat exchanger a must with a salt pool? Thank you.
Reply
Hi, Craig. A check valve is required sine you have a chlorine generator. It does not come with the heater, it's sold separately. The check valve is installed between the cell and the heater. This model is the copper heat exchanger, you will need model # PR266AENX.
Reply
I have an indoor pool, 18' x 36' but 20,000 gal. I am looking to switch over to a Propane from oil furnace.
1. what size do I need to heat quickly?
2. would like a remote control.
3. Do you have a closed loop gas chamber system that exhaust out doors with PVC?
The heater is against a outside wall.
Reply
Hi, Tony. A 406K BTU heater will provide you with the quickest heating time. To get remote access to the heater an external controller like Pool Automation will have to be installed. If the unit is installed outdoor a vent kit is not required, see page 12-14 of the Raypak Owners/Instructions Manual for outdoor installation.
Reply
Does this heater come with Left Side water and gas connections?
If not which one does for a 250000btu application?
Reply
Hi, Paul. These units come with the water connection on the right and the gas connection on the left. The water connection can be switched, instructions are available in the Raypak Owners/Instructions Manual.
Reply
I just ordered this Raypak 266K BTU Natural Gas heater but am now reading the reviews about a check valve. Do I need this? If so, which one do I need?
Reply
These are highly recommended to be used and the types will vary depending on the plumbing application on site. There are 1.5-inch models and 2 inch. Please click here to view the list of check valves that we carry that you may be able to use. The Flo check valves are very commonly used.
Reply
Need to replace existing heater with the 266 BTU heater. Which model to order.. WHat are the different options?
Natural Gas Heater
Water Connections on the Left
It is installed outside but in a small structure along with the pump and the filter and the valves etc. that is open on two sides, but has a roof and the current heater is vented out thru the roof.
I am in Rockville Maryland
Thanks
Reply
Hi, Rober. This unit will be the correct replacement. The water connections can be rotated to the left side. You will also need the Indoor Stack Kit - 009839. Please review the Raypak Owners/Instructions Manual for installation instructions.
Reply
I’m looking to replace our natural gas, digital P-R265A-EN unit w a new one. Which model replacement would you recommend?
Reply
Hi, Donny. This unit can be used as a replacement. I will also need to know if a low nox unit is required and your elevation.
Reply
in the market for a heater to keep our pool heated for use this winter. I have a 14 x 36 in ground rectangle shape pool. think it holds roughly 23,000 gallons of water. would this be the heater I need to purchase? also, is it electric or gas? thank you
Reply
Hi, Teresa. This unit will be sufficient to heat your pool. This unit will require both a natural gas and electric supply.
Reply
MY old 2100 had a lid/cover over the exhaust on top of the heater. I notice in the pics of this one there is no cover. Is this just an omission or do I need to order one separately?
Thx
Reply
Hi, Bruce. A cover is included with all these unit, it's just not pictured.
Reply
I have a 15 year old RP 2100 millivolt heater. I notice this is the replacement heater but with electronic ignition. Can you please explain the difference?
Thx
Reply
Hi, Bruce. The millivolt units are powered using a standing pilot light and the electronic units are powered using 115 or 230 volts. You can read more using our Differences in Swimming Pool Heaters Blog.
Reply
My RP2100 Model185-R405 was installed in 1995 and has to be replaced after years of great performance using propane. I would like to replace it with a compatible unit. The tag with the BTU is gone so I don't know what my old unit is. My pool has about 23,000 gallons. Which would you suggest and if I wanted to go up one larger, which one would that be.
Reply
Hi, Charles. You will need to provide us with the exact model number of your unit in order to locate a direct replacement.
Reply
Hi, I have a RP 2100 from 1999. It has finally given out. my pool is 18x32 inground and hold 15,000 gallons. Would this be a good replacement for me as I really liked the first one I had, or do you recommend something else.
Reply
Sandy, yes this Raypak RP2100 Heater 266,000 BTU NG ELE would be a good selection for your pool. As long as you know have natural gas and not propane this heater will work as a good replacement. I love RayPak heaters, I think they are a superior product.
Reply
I’m looking to swap out a Rheem model P-M266A-EN-X, which Raypak would replace it and could you tell me what the X stands for on the Rheem model? It is not a salt water pool. Is this a job a homeowner could handle or does it affect the warranty. Thanks
Reply
Hi, Denny. The P-R266A-EN-X will be the direct sea level replacement. The "X" indicates that the unit has a cupro-nickel heat exchanger and "C" a copper heat exchanger. The installation can be done by a homeowner, it will affect the warranty if the unit is not installed properly.
Reply

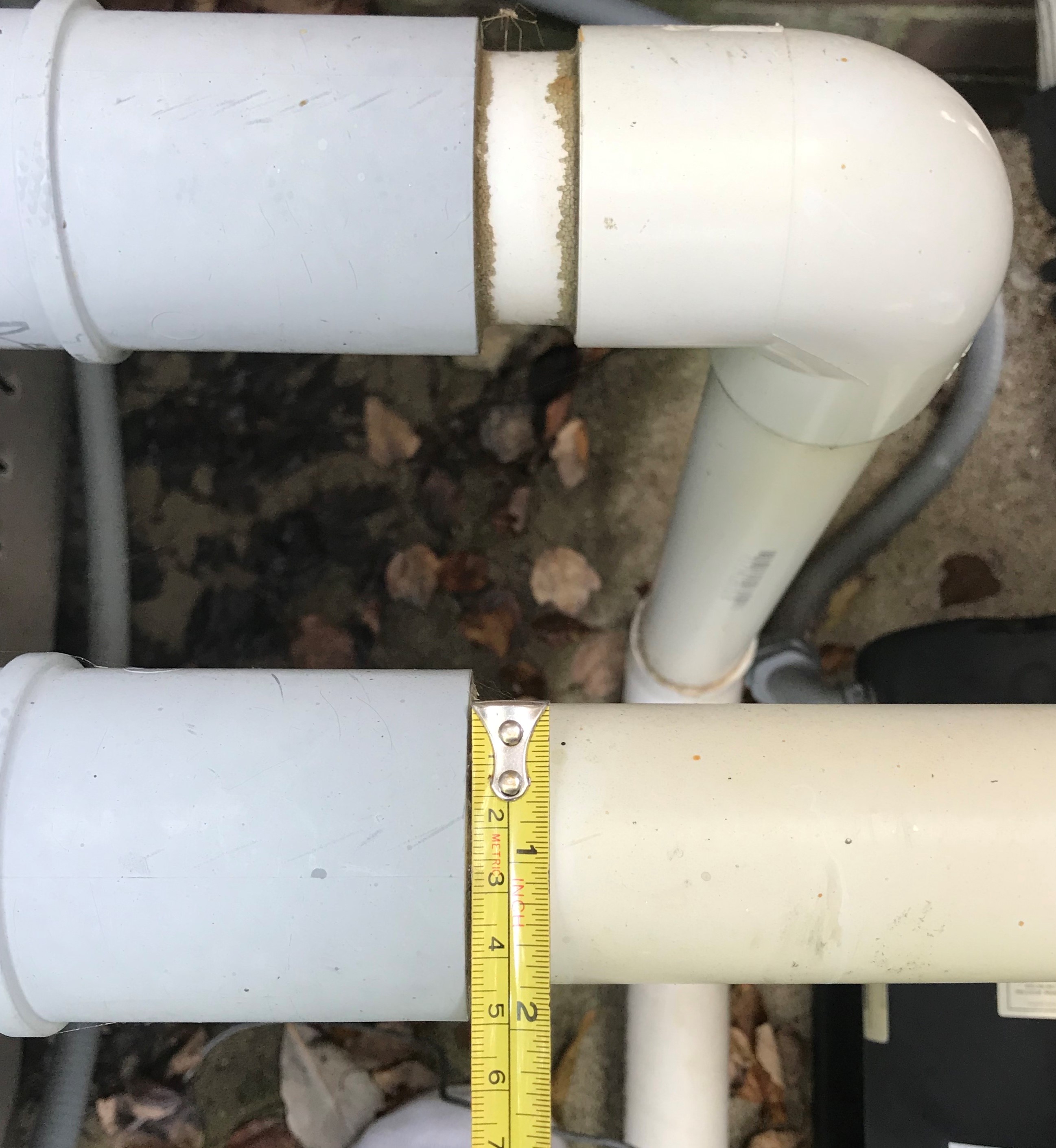

Are the 2" unions on my heater standard? I need to replace some PVC piping and will need to replace a portion of the union and the 1.5" reducing bushing.
Reply
Good day, the unions for the unit would only match the model of heater they are paired with. The 2" slip side will fit any standard schedule 40 pvc.
Reply
I need the water pipes on the left side of the unit for an indoor placement. Are they on the left side of the unit? thanks!
Reply
Good afternoon, these units are shipped with the water inlet and discharge on the right. They do explain in the manual how the installer can rotate the unit.
Reply
My panel on my Raypac pr266aenc has the front panel lit up but is not showing anything on the display & not firing up. Suggestions?
Reply
Hello, We recommend contacting the manufacturer with that question. You can reach them at 805-278-5300
Reply
hello I have a p-r266a-en-c install in my pool room already but I show the water electrical, and gas on the opposing side of the unit then the one on the picture shown. also can this unit withstand 30g pool and separate spa?
Reply
Hi. The water and electrical connections can be switch to either side, however, not the gas valve. This heater can be used to heat a pool and a seperate spa. I will need you to reconfirm the pool and spa surface area.
Reply
We had this raypac unit installed in May this year. It just recently started making a harmonics sound while running. What to do?
Reply
I'm not clear on what a harmonic sound is, but the heater may need to be cleaned. I suggest contacting Raypak for a troubleshoot, they can be reached at (805) 278-5300.
Reply
I received the heater from you (Raypak Heater 266,000 BTU NG – P-R266A-EN-C). No shipping problems.
It is the same model I had before, and everything looks identical to my old heater except for the wires. The previous model had 6 wires (not 4). So I have two extra wires going into the heater, which have no connections in the heater. Can you tell me why? Is it something that was added previously by the installer? For what purpose?
Reply
Hi, Eyal. 1. The heater still has an optional fireman switch. Found it on the diagram.2. The two extra incoming wires I had (from the pump electrical box) were wired for the fireman switch...
Reply
I had an old model of Raypak Heater 266,000 BTU NG – P-R266A-EN-C.
Got from you a new one. No problems.
However, according to the OLD manual of the model, there was an option for adding a "fireman switch". It is shown in the wiring diagram of the same heater I bought 12 years ago.
I am looking at the NEW manual and don't seem to find anything about wiring a "fireman switch". I just want to verify that this is the case (no firing switch option).
Reply
no need for fireman's switch with new heaters www.raypak.com to down load your new owners manual
Reply
Need to replace a Model P-R265A-EN. Is this the direct replacement and can the water connections be configured to the left side of the control panel?
Reply
Hi, Mike. This is a direct replacement and the water connections can be switched.
Reply
replacing raypac r406 with r266 .
can i just slide this unit in place and use existing plumbing and electrical
hookups ? ( i know i will need longer 3/4" pipe nipple for gas supply)
Reply
Hi, Clarence. Yes, the water connections and electrical hookup will be the same.
Reply
what Raypack heater model number would replace model number p-r265a-en
Reply
Hi, Keith. Yes, this P-R266A-EN-C unit can be used as a replacement.
Reply
I have model C-265B-EN. Will this RP2100 plumbing and electrical hookups be the same? Also, can I reuse old piping manifold? Thank you
Reply
Unfortunately, we do not have a dimensions sheet on the 265B, but this is the spec sheet on the PR266AENC RP Series Technical Data. That pdf lists all the cabinet dimensions you wish to compare to your current unit.You should also be aware, this unit is rated for residential only use, whereas your C265B is a commercial unit. If this heater is for commercial use, you will need the Raypak Heater 266BTU NG ELE ASME.
Reply
hello,
i was told i need 120K BTU for my pool
does it make sense for me to purchase your 266K BTU ?
will that be overkill?
thanks very much
sol
Reply
Hello, The general rule of thumb when it comes to sizing a pool heater is a pool over 15k gallons would require 140k BTUs. It would depend on how big your pool is to determine if the 266k is overkill.
Reply
I have an old RP 2100 model P-R405AL-EN that has finally died after years. I would like to replace with like model. I live in Calif. which one should I be looking at? I have a 28,000 gal pool. Hopefully the new ones have the same location of connections?
Thank you for your help.
Reply
Hi, Paul. The RayPak LoNox Heater 407,000 BTU NG Elec Ign - PR407AENC is the correct replacement for your existing heater. The water connection is reversible.
Reply
Thank you for the info, do you price match? I see the heater for sale for $2159.00
Reply
Paul, Review our Why Shop With Us Policy.
Reply
Just wondering how difficult these are to install. We currently have a coppertherm which is identical to the 266btu raypak electronic NG. There connections all look the same.
Thanks
Reply
Hi, Ekucz. These units are not difficult to install. The connections will be the same if your unit was manufactured after 10-22-04.
Reply
How close to a window can it be installed?
Reply
Hi. The heater must be a minimum of 4 ft below, 4 ft horizontally from, or 1 ft above any door, window or gravity inlet into any building. The top surface of the heater shall be at least 3 ft above any forced air inlet, or intake ducts located within 10 ft horizontally.
Reply
Looking or a Heater for my In ground Liner Pool Its approx 30,000 gallons. My husband like the pool at 82 degrees the pool is free form measures 18 x 30.
Reply
Hi, Joanne. This 266,000 BTU unit will provide you with 1-1/4 degrees increase an hour which is about the minimum size, if you want a faster temperature increase you can go with the R366A or R406A model.
Reply
I have this heater on the almost exact size pool you do, but it’s gunite and I get almost a 2° increase per hour and keep mine at 89°. It’s very efficient.
My heater makes a loud banging sound every so often after the pool pump has shut down. It sounds as though its trying to fire up. Our pump runs an 8 hour cycle. Its 3 years old and works perfectly otherwise. How can I correct this?
Reply
Hi, Gary. To resolve this issue, the tube bundle will have to cool down prior to the pump shutting down. Installing a Fireman Heater Switch - 156T4042A if you have mechanical timer will help and allow your tube bundle to last longer.
Reply
My pool heater won't heat, it goes thru cycle and when it's get to SPK on screen it stays there and never heats up the heater?? Any suggestions?
Reply
Mike, When you are seeing SPK, check to see if the pilot is lighting. If the pilot is lit, it should begin a sequence that would signal the PC board to open the main gas valve and fire the burners. Said signal is a DC signal and could be interrupted by a loose or disconnected ground wire, chewed or bare wire leading from the gas valve up to the PC board, or a loose connection at the PC board. Also, inspect the condition of the pilot itself. Excessive corrosion on the pilot could also interfere with the proving signal. If the pilot is not lit by the spark, then turn off the gas and clean the pilot and pilot tube.Also, check for any loose wires/crimps in the wire harness. Also, check the wired going into the connector that plugs into the PC Board. Sounds as if it could be momentarily losing contact.
Reply
Hi, it isn't intuitively obvious to me, which could be my shortcoming. Is the RP2100 installed outdoors or indoors?
Reply
Hi Frank, This heater can be installed indoors or outdoors. If installed indoors then you will need to purchase an indoor vent kit. The majority of homeowners have the heater installed outdoors.
Reply
I'm replacing my 16 year old Hayward H Series H250 heater. Is this RayPak heater compatible? Will the water lines, gas line and electrical hook up connect without needing to make adjustments? PVC water lines are 2 inch and the gas line looks to be 1 inch. Pictures attached. Thank you in advance.
There will be replumbing necessary, and you may have to adjust your gas line. Your pictures did not come through, so I am unable to see your set up, but you can see all the particular dimensions of this heater model on this pdf: RP Series Technical Data
Reply
I HAVE A 2100 FROM THE 90'S . IS THIS THE SAME UNIT? MY POOL 16 16,000 GALLONS. CAN YOU STILL DO A LEFT SIDE WATER CONNECTION CONVERSION?
IN THE MEANTIME, MY POOL TECH SAID I NEEDED A TRANSFORMER FOR MY OLD HEATER THAT STOPPED WORKING . DO YOU STILL CARRY THAT PART?
Reply
Hi Rick, This would be the replacement for your heater if the BTU's were similar (i.e. your BTU's are between 250K & 275K). The headers on this heater can be reversed to come in the left. Here is a Video on How to Reverse the Water Connections on a Raypak Pool Heater showing how this is done. In regards to the transformer I'm not aware of a transformer needed on this heater you may want to get more details from your pool guy on this.
Reply
I have a 18 x 36 inground pool. What size heater do I need
Reply
Here is a link to great article about sizing your pool heater for your pool...https://www.inyopools.com/blog/sizing-your-pool-heater/
Reply
I have a Raypak heater that needs to be replaced. It is Model: P-M406A-EN-C; Item: 009965, S/N 0909062227. I am wondering if this unit (RP2100) will work as a replacement.
Reply
We would recommend this RP2100 Digital Heater - R406A - Copper - Natural Gas - P-R406A-EN-C #50 rather than the R266A heater, as the heat output of the R266A is not nearly as much as the R406A.
Reply
How do we get the heater on spa mode?
Reply
Hi Kathy - you can either "tell" the heater to go to Spa mode at the control panel or wire up a remote per page 36 of the manual. The remote can be as simple as a flow switch if you have separate, dedicated pressure lines to your spa and pool. Be sure to activate the remote input (also on page 36) if you choose that route.
Reply
Does Raypak make the 266k btu heater with the water supply/discharge on the left side vs. the right? Left side discharge will make it easier to swap out.
Reply
Hi John, the supply/discharge ports for this Raypak heater are easily changed from one side to the other by removing the side panels and switching the headers from one side to the other. See page 25 of the manual for instructions on how to do it.
Reply
