Hayward Micro Clear D.E. DE-2400, DE-3600, DE-4800, DE-6000 Parts

Replacement Parts for Hayward Micro Clear DE Filter Models DE-2400, DE-3600, DE-4800, DE-6000. VERTICAL GRID DE FILTER (DURALON™ AND PERMGLASS XL™)
Also sold as Leslie's Crystal Clear II

Hayward Micro Clear D.E. DE-2400, DE-3600, DE-4800, DE-6000 Diagram

Click to zoom in

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial) for DE2400
*	Complete Grid Assembly for 36 Sq Ft Hayward DE Filters, Replaces DEX3600DC

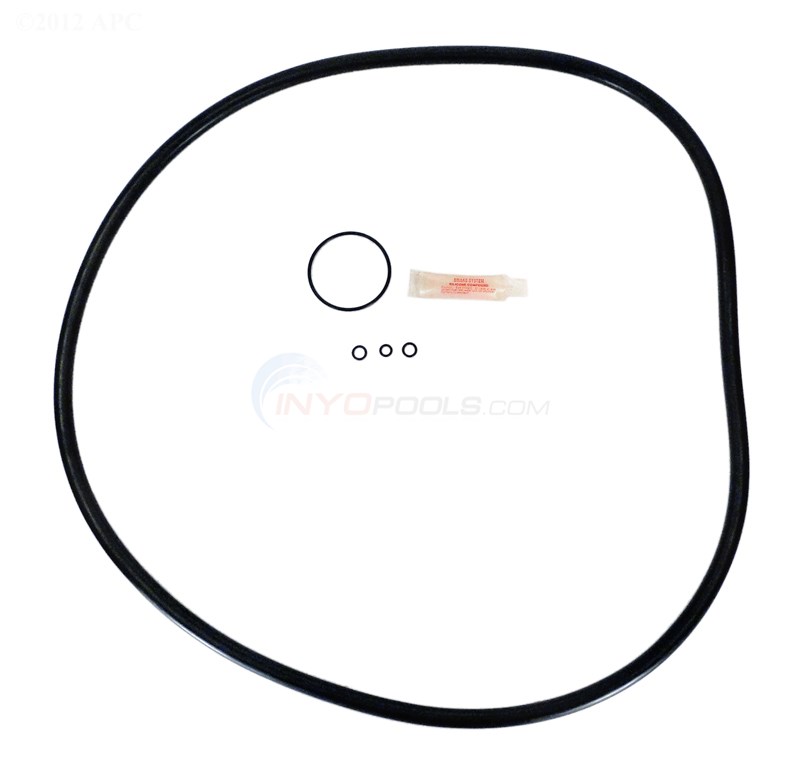

***	Hayward DE Series O-ring Kit
1	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D) for Use With OEM DEX2400S Air Relief
1	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK (102D-204D) (For Use With Generic Air Relief 25357-240-000 for DEX2400S)
2	ADAPTER ASSY. RELIEF VALVE
3	O-RING, ID 5/8", OD 13/16"
4*	FILTER HEAD TAUPE MODEL DEX2400
5	NUT, 5/16"
6	WASHER SS 5/16"ID X 3/4"OD
7	RETAINER ROD 2400, 16” LONG
8	OBSOLETE CAP, PROTECTOR
9	NLA NUT, BRASS SLEEVE REP W/4810-366
10	OBSOLETE CLAMP ASSY W/SPRING ASSY
11	O-RING, TANK
12A	TOP COLLECTOR MANIFOLD WITH AIR RELIEF (OEM)
12B	Air Relief Assembly
13	O-RING
14**	OBSOLETE ELBOW, OUTLET - 24 SQ FT
15	Pureline Replacement DE Grid, Single 24 Sq. Ft. Full Grid 12 (7 Required)
16	24 Sq. Ft. Partial Grid 12" (1 Required)
17	ELEMENT LOCATOR, FILTER
18**	INLET ELBOW ASSEMBLY, INLET BUTTRESS
19	O-RING, (1995 + PRIOR)
20	OBSOLETE FITTING, BULKHEAD
21	OBSOLETE FILTER BODY

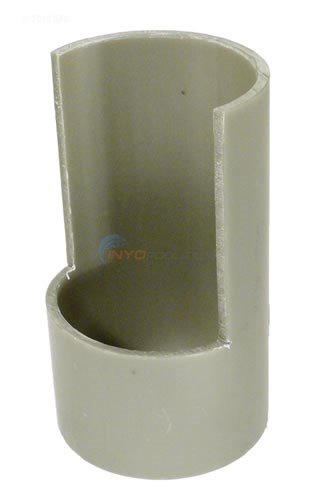

22	SPACER, ELEMENT(DE-2400 ONLY)
23	PLUG With O-RING 1 1/2IN
24	O-RING
25A	Valve Ass'y,vari-flo 1.5"npt Wg
26	OBSOLETE SPRING ASSY
*	COMPLETE GRID CLUSTER, 24 SQ FT
