Waterway Champion 56-Frame Pump Parts

CHAMP E = ENERGY EFFICIENT - FULL RATED
CHAMP S = STANDARD EFFICIENCY - UP RATED
Also sold as the Proline by Namco.

Waterway Champion 56-Frame Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Motor 3/4 HP EE Full Rate
1	Motor 3/4 HP Up Rate
1	Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982
1	Pureline 0.75 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2952
2	Bolt 16-3/8 x 7/8"
3	Neoprene Motor Support Strip
4	Motor Support Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Flat Washer 3/8" Type B
7	Handle
8	Face Plate
8	Waterway Pump Seal Plate - 311-1450GI Gray Color
9	Gasket, Face Plate
10	Pump Shaft Seal 5/8" - PS-1000
11	Impeller Washer
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assy
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Plug (SD Wet End)
18	Drain Plug O-Ring
20	Basket Assy
21	Lid, Nut & O-ring - 6" Trap
21a	O-ring - 6" Trap Lid
26	Impeller, 3/4 HP
27	Pump Housing - 2" x 2" NPT
28	Washer, Split Lock 3/8"
30	Bolt, 3/8"-16 x 2" Lg Hex Head
1	Self Aligning Union Nut 2"

View Parts List

Diagram #	Part Title
1	Motor 3/4 HP EE Full Rate
1	Motor 3/4 HP Up Rate
1	Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982
1	Pureline 0.75 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2952
2	Bolt 16-3/8 x 7/8"
3	Neoprene Motor Support Strip
4	Motor Support Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Flat Washer 3/8" Type B
7	Handle
8	Face Plate
8	Waterway Pump Seal Plate - 311-1450GI Gray Color
9	Gasket, Face Plate
10	Pump Shaft Seal 5/8" - PS-1000
11	Impeller Washer
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assy
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Plug (SD Wet End)
18	Drain Plug O-Ring
20	Basket Assy
21	Lid, Nut & O-ring - 6" Trap
21a	O-ring - 6" Trap Lid
26	Impeller, 3/4 HP
27	Pump Housing - 2" x 2" NPT
28	Washer, Split Lock 3/8"
30	Bolt, 3/8"-16 x 2" Lg Hex Head
1	Self Aligning Union Nut 2"

Available Parts:

Motor 3/4 HP EE Full Rate

Part # B661 Mfg # B2661

Motor 3/4 HP EE Full Rate

$292.60 IN STOCK

Service Factor 1.67 Voltage 115/208 - 230 Max Amps 11.2/6.0 - 5.6 Frame 56Y

Service Factor 1.67 Voltage 115/208 - 230 Max Amps 11.2/6.0 - 5.6 Frame 56Y

Qty:

Motor 1.0 HP EE Full Rate

Part # B841 Mfg # B2841V1

Motor 1.0 HP EE Full Rate

$308.28 IN STOCK

Service Factor 1.65 Voltage 115/208 - 230 Max Amps 14.8/7.8 - 7.4 Frame 56Y

Service Factor 1.65 Voltage 115/208 - 230 Max Amps 14.8/7.8 - 7.4 Frame 56Y

Qty:

Motor 1.5 HP EE Full Rate

Part # B842 Mfg # B2842

Motor 1.5 HP EE Full Rate

$401.28 IN STOCK

Service Factor 1.47 Voltage 208 - 230 Max Amps 9.6 - 8.8 Frame 56Y

Service Factor 1.47 Voltage 208 - 230 Max Amps 9.6 - 8.8 Frame 56Y

Qty:

Motor 2.0 HP EE Full Rate

Part # B843 Mfg # B2843

Motor 2.0 HP EE Full Rate

$500.56 IN STOCK

Service Factor 1.3 Voltage 208 - 230 Max Amps 11.0 - 10.2 Frame 56Y

Service Factor 1.3 Voltage 208 - 230 Max Amps 11.0 - 10.2 Frame 56Y

Qty:

Motor 3.0 HP EE Full Rate

Part # B844 Mfg # B2844

Motor 3.0 HP EE Full Rate

$553.71 IN STOCK

Service Factor 1.15 Voltage 208 - 230 Max Amps 15.0 - 13.6 Frame 56Y

Service Factor 1.15 Voltage 208 - 230 Max Amps 15.0 - 13.6 Frame 56Y

Qty:

Motor 3/4 HP Up Rate

Part # B852 Mfg # B2852

Motor 3/4 HP Up Rate

$238.26 IN STOCK

Service Factor 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56Y

Service Factor 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56Y

Qty:

Motor 1.0 HP Up Rate

Part # B853 Mfg # B2853

Motor 1.0 HP Up Rate

$283.20 IN STOCK

Service Factor 1.25 Voltage 115/230 Max Amps 13.2/6.6 Frame 56Y

Service Factor 1.25 Voltage 115/230 Max Amps 13.2/6.6 Frame 56Y

Qty:

Motor 1.5 HP Up Rate

Part # B854 Mfg # B2854

Motor 1.5 HP Up Rate

$284.24 IN STOCK

Service Factor 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56Y

Service Factor 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56Y

Qty:

Motor 2.0 HP Up Rate

Part # B855 Mfg # B2855

Motor 2.0 HP Up Rate

$398.15 IN STOCK

Service Factor 1.10 Voltage 230 Max Amps 10.0 Frame 56Y

Service Factor 1.10 Voltage 230 Max Amps 10.0 Frame 56Y

Qty:

1

Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N <a class="productlink" href="http://www.inyopools.com/Products/00200017039442.htm">B2982 </a>

Part # B980 Mfg # B2980

Motor 3/4 HP Full Rate Dual Speed - Substitute With P/N B2982

NOT AVAILABLE

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Motor 1.0 HP Full Rate Dual Speed

Part # B982 Mfg # B2982

Motor 1.0 HP Full Rate Dual Speed

$403.26 IN STOCK

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Qty:

Motor 1.5 HP Full Rate Dual Speed

Part # B983 Mfg # B2983

Motor 1.5 HP Full Rate Dual Speed

$466.27 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Qty:

Motor 2.0 HP Full Rate Dual Speed

Part # B984 Mfg # B2984

Motor 2.0 HP Full Rate Dual Speed

$621.78 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11/1.8 Frame 56Y

Service Factor 1.3 Voltage 230 Max Amps 11/1.8 Frame 56Y

Qty:

Pureline 0.75 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2952

Part # PL2952

Pureline 0.75 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2952

$221.53 IN STOCK

Service 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56

Service 1.25 Voltage 115/230 Max Amps 10.8/5.4 Frame 56

Qty:

Pureline 1.0 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2953

Part # PL2953

Pureline 1.0 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2953

$252.36 IN STOCK

Service 1.25 Voltage 115/230 Max Amps 13.2/6.5 Frame 56

Service 1.25 Voltage 115/230 Max Amps 13.2/6.5 Frame 56

Qty:

Pureline 1.5 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2954, B2854V1, B2854,

Part # PL2954

Pureline 1.5 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2954, B2854V1, B2854,

$251.28 IN STOCK

Service 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56

Service 1.10 Voltage 115/230 Max Amps 16.0/8.0 Frame 56

Qty:

Pureline 2.0 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2959, B2859

Part # PL2959

Pureline 2.0 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model PL2959, B2859

$312.70 IN STOCK

Service 1.10 Voltage 115/230 Max Amps 21.0/10.5 Frame 56

Service 1.10 Voltage 115/230 Max Amps 21.0/10.5 Frame 56

Qty:

Bolt 16-3/8 x 7/8"

Part # 35-270-2144 Mfg # 819-0035B

Bolt 16-3/8 x 7/8"

$13.84

Neoprene Motor Support Strip

Part # 5032-45 Mfg # 672-1310

Neoprene Motor Support Strip

$28.77 IN STOCK

Qty:

Motor Support Base

Part # 5033-008 Mfg # 319-1500B

Motor Support Base

$83.15

Screw Slot Hex Washer 1/4" x 1-1/4"

Part # 5033-009 Mfg # 819-0013B

Screw Slot Hex Washer 1/4" x 1-1/4"

$11.71 IN STOCK

Qty:

Flat Washer 3/8" Type B

Part # 5033-012 Mfg # 820-0017

Flat Washer 3/8" Type B

$10.90 IN STOCK

Qty:

7

Handle

Part # 319-1700B Mfg # 319-1700B

Handle

NOT AVAILABLE

Face Plate

Part # 5033-006 Mfg # 311-1450

Face Plate

$120.00

Waterway Pump Seal Plate - 311-1450GI Gray Color

Part # 311-1450GI

Waterway Pump Seal Plate - 311-1450GI Gray Color

$113.11 IN STOCK

Qty:

Gasket, Face Plate

Part # 5033-007 Mfg # 806-1400

Gasket, Face Plate

$23.38 IN STOCK

Qty:

Pump Shaft Seal 5/8" - PS-1000

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal 5/8" - PS-1000

$8.39 IN STOCK

Qty:

Impeller Washer

Part # 5033-011 Mfg # 711-4300B

Impeller Washer

$16.89 IN STOCK

Qty:

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

Part # 5032-61 Mfg # 819-4360

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

$16.78 IN STOCK

Qty:

Diffuser Assy

Part # 5033-004 Mfg # 310-7470

Diffuser Assy

$106.50 IN STOCK

Qty:

Screw #4-40 x 1-1/4"

Part # 5032-52 Mfg # 819-0018B

Screw #4-40 x 1-1/4"

$13.03 IN STOCK

Qty:

Diffuser O-ring

Part # 5032-51 Mfg # 805-0238

Diffuser O-ring

$10.63 IN STOCK

Qty:

Diffuser Plate

Part # 5033-003 Mfg # 319-1420

Diffuser Plate

$68.23 IN STOCK

Qty:

Quarter Slot 3/8" Plug (SD Wet End)

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Plug (SD Wet End)

$17.15 IN STOCK

Qty:

Drain Plug O-Ring

Part # 805-0014 Mfg # 805-0014

Drain Plug O-Ring

$9.03 IN STOCK

Qty:

Basket Assy

Part # 5033-014 Mfg # 319-1430B

Basket Assy

$33.58 IN STOCK

Qty:

Lid, Nut & O-ring - 6" Trap

Part # 5019-22 Mfg # 319-4100B

Lid, Nut & O-ring - 6" Trap

$35.00 IN STOCK

Qty:

O-ring - 6" Trap Lid

Part # 35-270-1312 Mfg # 805-0436B

O-ring - 6" Trap Lid

$14.35 IN STOCK

Qty:

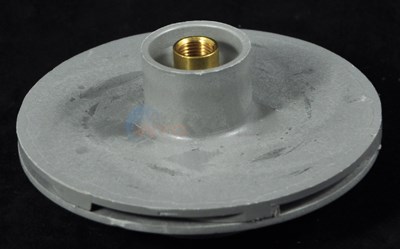

Impeller, 3/4 HP

Part # 5033-84 Mfg # 310-7400

Impeller, 3/4 HP

$105.53

Model CHAMPS-107

Model CHAMPS-107

Impeller, 1.0 HP

Part # 5033-79 Mfg # 310-7410

Impeller, 1.0 HP

$82.61 IN STOCK

Model CHAMPE-107/CHAMPS-110 /CHAMPS-210

Model CHAMPE-107/CHAMPS-110 /CHAMPS-210

Qty:

Impeller, 1.5 HP

Part # 5033-80 Mfg # 310-7420

Impeller, 1.5 HP

$91.19 IN STOCK

Model CHAMPE-110/CHAMPS-115/CHAMPS-210

Model CHAMPE-110/CHAMPS-115/CHAMPS-210

Qty:

Impeller, 1.5 HP (High Head)

Part # 5033-81 Mfg # 310-7430

Impeller, 1.5 HP (High Head)

$66.17 IN STOCK

Model CHAMPE-115/CHAMPS-120/ CHAMPS-220

Model CHAMPE-115/CHAMPS-120/ CHAMPS-220

Qty:

Impeller, 2.0 HP

Part # 5033-82 Mfg # 310-7440

Impeller, 2.0 HP

$83.67 IN STOCK

Model CHAMPE-120/CHAMPS-125 /CHAMPS-225

Model CHAMPE-120/CHAMPS-125 /CHAMPS-225

Qty:

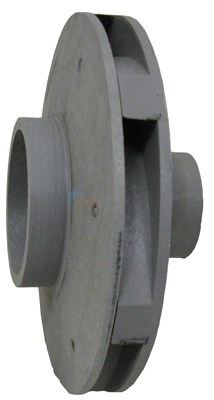

Impeller, 3.0 HP

Part # 5033-83 Mfg # 310-7450

Impeller, 3.0 HP

$105.53

Model CHAMPE-130

Model CHAMPE-130

Pump Housing - 2" x 2" NPT

Part # 5033-001 Mfg # 315-1400B

Pump Housing - 2" x 2" NPT

$220.69 IN STOCK

Qty:

28

Washer, Split Lock 3/8"

Part # 820-0017-1B Mfg # 820-0017-1B

Washer, Split Lock 3/8"

NOT AVAILABLE

Bolt, 3/8"-16 x 2" Lg Hex Head

Part # 4742-35 Mfg # 819-0016

Bolt, 3/8"-16 x 2" Lg Hex Head

$12.78 IN STOCK

Qty:

1

Self Aligning Union Nut 2"

Part # 415-4061B Mfg # 415-4061B

Self Aligning Union Nut 2"

NOT AVAILABLE

Tailpiece, Self-Aligning Union 2" - Black

Part # 417-2111B

Tailpiece, Self-Aligning Union 2" - Black

$45.21

Union O-ring (O-83)

Part # 5055-13 Mfg # 333

Union O-ring (O-83)

$6.86 IN STOCK

Qty:

4

Tailpiece 2" MPT, Self-Aligning Union

Part # 417-2121-CPVCB Mfg # 417-2121-CPVCB

Tailpiece 2" MPT, Self-Aligning Union

NOT AVAILABLE

* NOT SHOWN
