Hayward Super Pump 1 1/2 HP Single Speed - SP2610X15



Part # W3SP2610X15

By Hayward Pool Products

  4.83 Average



Part # W3SP2610X15

Warranty 10 Year Warranty On Strainer Housing, 1 Year Warranty on Motor

Manufacturer Code SP2610X15

Alternate Part #'s SP2610X15

Product Description

The Hayward Super Pump is one of our best-selling pumps.  This is a basic, reliable pump for a single body of water.  It can be used for an in-ground pool or spa, or as a dedicated pump for a waterfall.

Commonly Replaced Parts (Click on Link to view/purchase):



  • Horse Power = 1.5
  • Voltage = 115/230
  • Pipe Size = 1.5"

Hayward Super Pump Application:

  • In-ground pools of all types and sizes
  • In-ground spas

Add On Options:

Hayward Super Pump Features:

  • Self-priming (suction lift up to 10' above water level)
  • Swing-aside hand knobs for easy strainer cover removal
  • Clear Lexan strainer cover makes it easy to see when basket needs cleaning
  • Large capacity 110 cubic inch basket
  • Basket has load-extender ribbing to ensure free flow of water
  • All components molded of durable, corrosion-proof PermaGlass XL
  • Heavy-duty, high performance motor for quieter, cooler operation
  • Easy access to all internal parts for servicing

Performance Data


Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head)

Model No. Max Rated

20 ft

30 ft

40 ft

50 ft

60 ft

70 ft









































Product Specifications

1 1/2 HP
115/230 V
Port Size:
1.5 in.
Service Factor:

?     Asked on 7/25/2019 by Samantha

We currently have a hayward super pump 1.5 hp that the motor went on. We previously had the same hayward super pump with 1hp. I'm trying to figure out if we need to be at a 1hp or 1.5 to replace ours. Our pool is roughly 20,000 gallons. I will attach photos of my pump. Any advice would be greatly appreciated.


A  Answered on 7/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Samantha. Unfortunately, we're unable to tell using pictures. You can use our How Do I Calculate Feet of Head for My Pool? or our How to Size a Pool Pump guide to assist you with properly sizing a pool pump.

?     Asked on 6/30/2019 by Yves

Hello I've just purchase a Hayward Super pompe. I want to install the wires on the pump... on which screw do i put the black and white wire? What happens if i put the wrong color wire on the wrong screw? Nore, there's only two screws.

A  Answered on 7/1/2019 by Industry Professional

On the top of the pump you will see a decal that has a wiring diagram. You can use this picture to see how to wire the pump depending on if you are using 110 or 220

  • Commented on 7/1/2019 by Product Owner

    Thanks for the answer, however not quite clear on the diagram on which screw the black wire goes on. My model is C48L2N134B3, Serial 02217CH. Volt 115/230, HP 1 1/2, RPM 3450. As you can see in the picture it's set to 230 volts and i've placed the black wire on top and the white wire at the bottom... Is this the correct wiring configuration for 230 volts ?


    • Commented on 7/2/2019 by InyoPools Product Specialist Patrick P.

      If it's 230v, it doesn't make a difference since both lines are 115v hot. As long as you have 1 wire to line 1 and the other to line 2 and green to ground, it will be fine.

?     Asked on 6/24/2019 by Tim

What is the replacement motor for this pump?

A  Answered on 6/25/2019 by InyoPools Product Specialist Matt S.

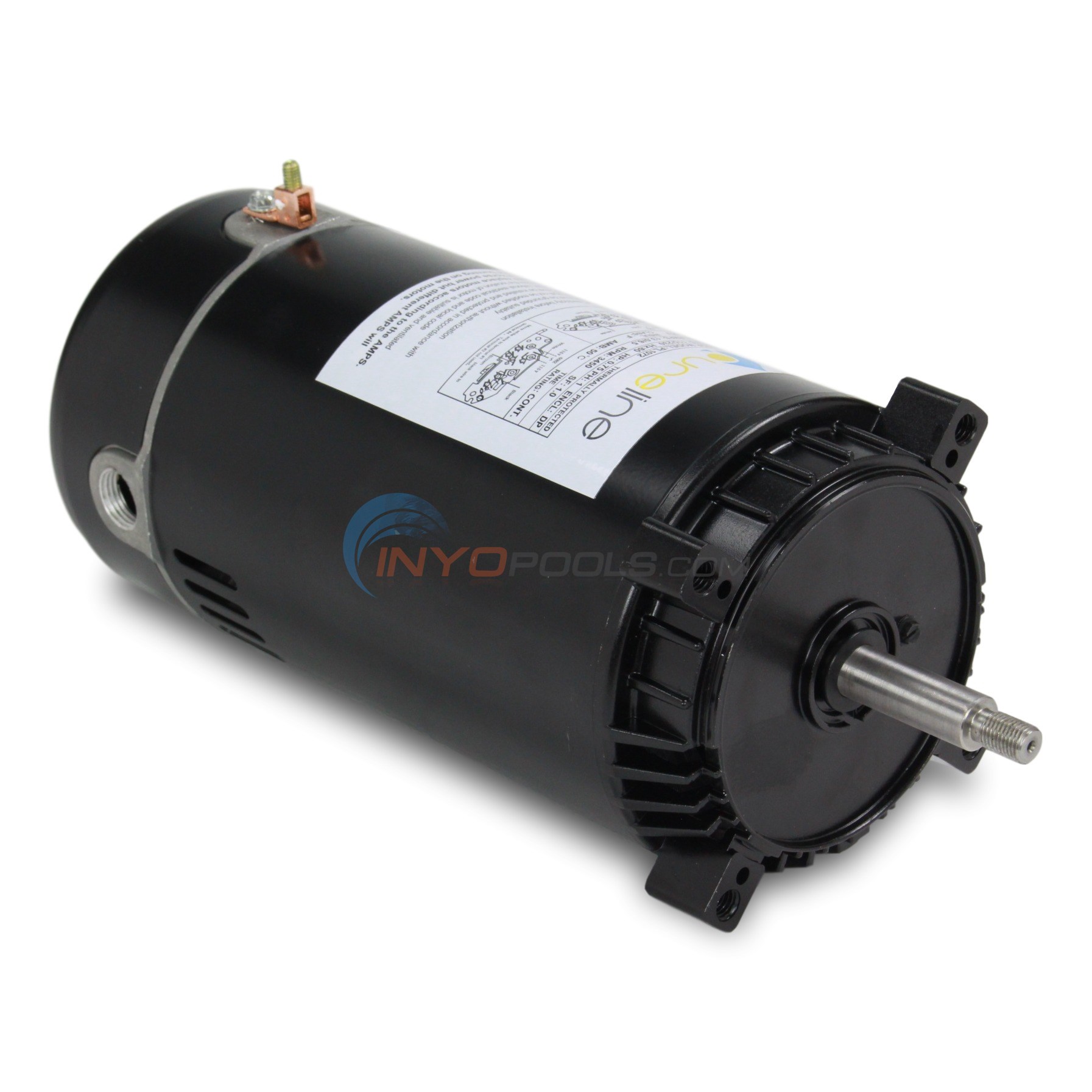

The Hayward Super Pump SP2610X15 replacement motor is the 1.5 HP Round Flange 56J Up Rate Motor - UST1152

?     Asked on 6/18/2019 by Rob

I currently have a C48L2N134B1 1.5 HP Super pump which I need to replace. I've decided to replace the whole pump because replacing just the motor seemed to complicated for me. The SP2610X15 looks identical and I'm hoping not to have to configure my current set up. Is this the right replacement for me? Thanks

A  Answered on 6/19/2019 by InyoPools Product Specialist Hector F.

Yes, this is the direct replacement or you can use model PL2602 which is near identical at part of the cost.

?     Asked on 6/3/2019 by

how to clean & change sand in Hayward S-240 filter

A  Answered on 6/8/2019 by InyoPools Product Specialist Michelle B.

Here is a great article on how to do so.http://www.inyopools.com/HowToPage/how_to_change_sand_in_a_sand_filter.aspx

?     Asked on 5/20/2019 by Ed

OK!! My motor finally went on my inground pool. And yes the Hayward motor/pump is now going on 22 years!! Looks like the shaft is corroded, hard to get to so prob best now if I replace it. Pump is also on 22 years plus. Model number is C48L2N134B1 - 1 1/2 HP, 3450 RPM. I am going to replace the whole motor/pump at this point since I do not want issue later on and now need just a pump. What model do you recommend?

A  Answered on 5/20/2019 by InyoPools Product Specialist Patrick P.

Hi Ed, I would suggest the PureLine Prime PL2602 1.5 HP which is a drop in replacement for the Hayward Super Pump, the only difference is the Prime has 2" ports where the Hayward Super Pump has 1.5" ports.

?     Asked on 4/5/2019 by

What is the full load amps for the sp2610x15?

A  Answered on 4/5/2019 by InyoPools Product Specialist Lennox H.

Hi. The max load amps at 230 volts are 9.3 and 18.6 at 115 volts.

?     Asked on 7/31/2018 by GILLIAN MILLER

I need to replace my Start compaitor but i'm not sure which one I should buy. I have model SP2610X15, •115/230-Volt at 60 Hz. which one do I need?

A  Answered on 7/31/2018 by InyoPools Product Specialist Lennox H.

Hi, Gillian. The BC-161 will be the replacement start capacitor for the motor used on the SP2610X15 pump.

?     Asked on 7/25/2018 by Paul

I have the gold 1.5 HP, Hayward Super Pump, SP 1610 21 M , C48L2N134B1, 115/230, SF 1.0, FR 56J, 1.10 KW, cont. duty, code H, PH 1, 60 hz, 3450 rpm, I need to replace with a high efficiency pump. Can I use the SP3015EEAZ or the SP2602VSP? Thanks.

A  Answered on 7/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Paul. The Super Pump VSP - SP2603VSP will be the most efficient replacement option.

?     Asked on 6/24/2018 by Kenny

I have a Hayward super pump exactly as pictured in your model SP2610X15 with the gold colored pump. Mine is model # C48L2N134B1 ( 1 1/2hp) and says SP-1610-Z1-M. made by A.O.SMITH. I need a replacement motor and seal kit but from what i see the replacement motor you recommend is a Century (C48L2N134), MODEL UST1152. Can you tell me why can't you buy the exact same replacement motor as the original (gold) or does that only come with the complete pump. I'd like to stick with hayward equipment.

A  Answered on 6/27/2018 by InyoPools Product Specialist Kevin G.

Hello, the original motor on your pump is currently a Hayward branded Century Motor. The only difference between the UST1152 and your current motor is the gold colouring. If you wish to have another gold Hayward branded century motor, you will need to purchase a whole new pump.

?     Asked on 6/23/2018 by Rawle

I have a small leak at the base of the pump.i tightened the 4 bolts and it didn't help. Is there a gasket that can fix the problem?

A  Answered on 6/25/2018 by InyoPools Product Specialist Joe S.

We would recommend Tune Up Kit Hayward Super Pump - GOKIT3

?     Asked on 5/26/2018 by Nick

I have a Hayward 1 HP super pump. If I go to a 1.5 HP would I have to change any of the plumbing?

A  Answered on 5/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Nick. You can use your existing plumbing connections. The ports are in the same location. You will have to make sure that your circulation and filtration system is sufficient for a 1.5 Hp pump. Use our How to Size a Pool Pump and How To Size a Pool Filter to determine sizing.

?     Asked on 5/11/2018 by Nick

I am replacing an old Sta-Rite. What is the inlet height of this pump? Thanks.

A  Answered on 5/11/2018 by InyoPools Product Specialist Hector F.

If you view the manual here, on page 5 all the pump dimensions are shown in a diagram.

?     Asked on 7/31/2017 by Joe Deshazo

My existing pump has a barring going bad. The pump has a model number of C48L2N134B1 SER#18210CH. Further down on the manufacturer's tag is a number I am seeing on your list of pumps. That number is SP160Z1M. What I see on your list is SP2610X15. Is the SP2610X15 the correct replacement for the pump I have?

A  Answered on 7/31/2017 by InyoPools Product Specialist Alex V.

Joe, The information provided is for the motor. We will need to know the model number on the pump housing.

?     Asked on 7/29/2017 by

What is the right size pump for a Hayward 244T sand filter? The design pressure or flow in 66GPM. My current pump @ 1.5 HP is greater than that.

A  Answered on 8/14/2017 by InyoPools Product Specialist Lennox H.

Hi. In order to confirm if this pump will be a good match for your filter you will need to follow the steps in our How To Size a Pool Pump Guide.

?     Asked on 6/20/2017 by susan

can I hook up a nature 2 above ground vessel to this pump?

A  Answered on 6/20/2017 by InyoPools Product Specialist Hector F.

Yes, you can use a nature 2 in conjunction with this pump.

?     Asked on 6/5/2017 by

what HP is my Hayward SP1616 XE 221 pump

A  Answered on 6/5/2017 by InyoPools Product Specialist Patrick P.

The SP1616 XE 221 is a 1.5 HP pump and we show this is an international 50 HZ model.

?     Asked on 5/29/2017 by

looking for 220 vot

A  Answered on 5/29/2017 by InyoPools Product Specialist Alex V.

Hello, The Hayward Super Pump SP2610X15 is preset to 230v.

?     Asked on 5/25/2017 by WILLIAM BLACK

is there any advantage to running a pump at 220volts? will I save on my electric bill?

A  Answered on 5/25/2017 by InyoPools Product Specialist Scott W.

110V usually runs twice as many amps as 220V so yes, the electric bills will be higher at 110V.

?     Asked on 5/19/2017 by WILLIAM BLACK

changing to 110 volt hookup. can you show a schematic?

A  Answered on 5/20/2017 by InyoPools Product Specialist Hector F.

Here is our how to wire a pool pump guide. Also please be advised that on the motor label itself there is a small wiring diagram.

?     Asked on 4/12/2017 by Seth

I have a Centurion b129 (01-64304-24) motor on a hayward super pump (sp2610x15). I am fairly certain the bearings are going due to high pitch whine from the motor, and I think I have a bad seal due to a leak at the area where the motor connects. Can you suggest a. the proper replacement seal kit b. replacement motor c. what dual speed motor would work with my setup THANKS

A  Answered on 4/12/2017 by InyoPools Product Specialist Lennox H.

Hi, Seth. The Century Motor B129 and Tune Up Kit GOKIT3 or GOKIT3SALT are the parts needed. You can use the B2977T as a dual speed option.

?     Asked on 3/29/2017 by

I'm so sorry, I'm taking over this pool and I am trying to learn everything about it. The motor has gone out, and my neighbor has a similar pool so he is trying to help me to get it up and running again. The pump model number is SP2610X15. Thank you!

A  Answered on 3/29/2017 by InyoPools Product Specialist Scott W.

The replacement motor is part number UST1152 and the seal kit you will want for the motor install is part number GOKIT3. If you need help with anything else please do not hesitate to shoot an email back.

?     Asked on 12/8/2016 by

what is the rated throughput (cubic meter per second or gallon per second of model # SP2610X1551?

A  Answered on 12/8/2016 by InyoPools Product Specialist Alan M.

The gallons per minute (GPM) for this pump is based on the Total Resistance to Flow (Feet of Head). Here is a link to How Do I Calculate Feet of Head for My Pool? if you need assistance determining that number. The product page for the Hayward Super Pump 1.5 HP 50 Cycle 220V - SP2610X1551 has a chart to help determine the GPM of this pump.

?     Asked on 12/7/2016 by Richard Nelson

My in ground pool of 30,000 gallons currently uses a Hayward C48L2N134B3 Series SE02 pump. Can I replace it with the Super pump SP2610X15 you offer with the strainer housing? If so what is improved over my old pump and what size is the pvc from the pool to the pump as well as from the strainer basket to the filter? What other options are available and what are the advantages of each over what I have now?

A  Answered on 12/7/2016 by InyoPools Product Specialist Scott W.

The Super Pump would be a great replacement pump as far as the pump you have now and the SP2610X15 both being 1.5HP. As far as telling you the differences between the two, I would need to know which model of Hayward pump you have, not the motor.

?     Asked on 8/26/2016 by Bill

Hayward Super pump. The motor on pump is getting hot, I don't think it will last long. I don't need the basket, just the motor?, the gold part? Where can I find that? thank,

A  Answered on 8/26/2016 by InyoPools Product Specialist Alan M.

Hello Bill, Here is a link to the Hayward Super Pump Parts page. This page lists all the parts, including motors available for the Super Pump.

?     Asked on 8/15/2016 by

my strainer housing has a leak model number hayward 2610X15. can I just buy the strainer housing

A  Answered on 8/17/2016 by InyoPools Product Specialist Alan M.

Depending on the size of the plumbing, you can purchase just the pump Housing, 1 1/2" Strainer Super Pump (spx1600aa) or the Housing, 2" Strainer, Super Pump (spx1620aa). Please not that the housing is just the housing and does not include any additional parts like o-rings or locking knobs.

?     Asked on 6/2/2016 by John Ryan

I need a Hayward 1.5 HP single speed super pump with 2 inch ports. Do you have this unit ?

A  Answered on 6/8/2016 by InyoPools Product Specialist Alan M.

Hello John,  We do not retail a 1.5HP Super Pump with 2" connections. You can purchase a Housing with a  2" ports, Super Pump is PART# 5110-07B. Please click here to view all parts available for the Hayward Super Pump.

?     Asked on 6/2/2016 by Robert Walker

My Hayward Super Pump 1 1/2 HP is now extremely LOUD and seems like air is in the lines. What is the potential problem. Is the noise the bearings ?

A  Answered on 6/7/2016 by InyoPools Product Specialist Lennox H.

Hi Robert, The noise could be the bearing or could be because you have a suction leak cause the pump to draw air into the lines. You will have to first resolve the air leak issue, we have a How To: Identify and Correct Air Leaks guide.

?     Asked on 6/1/2016 by Anthonius

Hi , I life in Curacao. here we have the powernet with 50Hz, can you provide a Hayward Super Pomp 1,5 HP in 50Hz version? thank you in advance. Regards Anthonius.

A  Answered on 6/8/2016 by InyoPools Product Specialist Lennox H.

Hi Anthonius, The "SP2610X1551" is the 50Hz 220 volt model.

?     Asked on 3/17/2016 by Morris

Can you buy the Haward Super Pump housing without the motor? I need the pump without the motor.

A  Answered on 3/17/2016 by InyoPools Product Specialist Megan C.

The Hayward Super Pump has many parts available. If you are in reference to the Housing Strainer there is a 1.5" and a 2" option. The 1 1/2" Housing, Strainer Super Pump is PART# 5110-07A and the Housing, 2" Strainer, Super Pump is PART# 5110-07B. Please click here to view all parts available for the Hayward Super Pump.

?     Asked on 11/6/2015 by Dan Sullivan

I am using a superpump as a jet pupil for a 700 gallon in ground hour tub. It is feeding six jets and is approximately 75 feet from body of water. I only have descent flow from two of the jets a and very little from the other four. What is the possibility that this pump is not powerful enough to provide pressure to all six jets?

A  Answered on 11/9/2015 by InyoPools Product Specialist Lennox H.

Hi Dan, Giving the distance the pump is from the body of water this pump would not provide the water flow needed to properly operate the jets on your hot tub. You will need a high performance pump like the Hayward Super II Pump or Tri-Star Pump.

?     Asked on 11/3/2015 by

How long is a 1.5 HP motor's warranty period?

A  Answered on 11/3/2015 by InyoPools Product Specialist Lennox H.

Hi, The Hayward 1 1/2 HP Single Speed Super Pump motor comes with a 1 Year manufacture warranty.

?     Asked on 7/27/2015 by Neal Schultz

My present model is SP2610X15 with a I I/2 HP motor. The PVC is I I/2 ". Can I use a 1 HP motor and if so what is the model number ? Can the complete unit come with salt water seals?

A  Answered on 7/27/2015 by InyoPools Product Specialist Andy O.

Neal, You can go down in horsepower to the UST1102 A.O. Smith 1 HP Round Flange Up Rate Motor, but you would also need to replace your impleller with a sp2607-c (spx2607c) part number 5110-10ca.The pump itself will not come with a saltwater seal, so if you decide to reaplce the motor I would suggest getting the salt water tune-up kit GOKIT3SALTSaltwater Tune Up Kit Hayward Super Pump.

?     Asked on 5/7/2015 by Jack

Can I use a 1 1/2 HP motor effectively with a Hayward ec-65 or ec-75 DE filter

A  Answered on 5/7/2015 by InyoPools Product Specialist Lennox H.

Jack, With the Hayward 1 1/2 HP Single Speed Super Pump the Hayward EC75A D.E. Filter will be your best option.

?     Asked on 4/29/2015 by Tom K

The water pressure seems to be week as it exits into the pool. Does the motor lose efficiency over time or maybe the empeler needs to be replaced.

A  Answered on 4/30/2015 by InyoPools Product Specialist Brian M.

Motors will run full speed until the day they freeze up and stop. The most likely culprit is the filter. Trying this : if you have a sand or DE filter - put the multiport on re-circulate. If you have a cartridge, remove the element from the tank. Then turn the system on. If this returns the system to its usual power , you know you have to clean, or get new filter media. If that does not help, there could also be debris wrapped around the impeller. You can try to reach it by removing the basket and putting your hand in, or you have to separate the motor from the housing to really get at it.

?     Asked on 9/17/2014 by Guest

Hi, can this pump be used with a salt water chlorinator [generator] made in South Africa by Justchlor which requires a salt level of 6000ppm by weight, yes I know most USA systems call for 3500ppm. After 27 months my pump motor bearing is whining badly and I presume the shaft seal has gone, I see Hayward has a kit with a salt shaft seal, do you stock this pump "salt ready" if this is what I need?

A  Answered on 9/17/2014 by InyoPools Product Specialist Patrick P.

The SP2610X15 is a 1.5HP 230/115v single speed pump that can be used with salt water pools. The main issue with a higher salt ppm level is that the salt will corrode the rubber seals and any metals that it comes in contact with at a quicker rate. Unfortunately the pump does not come "salt ready". You would have to purchase a salt water tune up kit separately. I recommend changing the shaft seal every season with a salt water pool to prevent shaft seal failure.

?     Asked on 10/8/2013 by Guest

How many hours per day should I run my pump?

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

There are many factors to consider; bather load, gallons of water, pump horsepower, type and size of filter just to name a few. A good guideline is 8-10 hours a day. On the cooler days and early and late season, you can cut the run time down to 4-6 hours because there is usually less swimmers and cooler water requires less chemicals. In peak season, when it is the hottest, raising the run time to 10-12 hours per day will help to keep the pool clean and circulating during it’s time of heaviest use.

?     Asked on 10/10/2010 by Guest

Is this pump available with 2" plumbing ports?

A  Answered on 10/10/2010 by InyoPools Product Specialist Patrick P.

The Hayward Super Pump does not come with 2" plumbing ports, however the Hayward Super II Pump here does have 2" plumbing ports >http://www.inyopools.com/Products/02201157001155.htm


Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers

3     2

Pump motor rusted out

Written on 6/30/2017 by Guest

Removed old pump and motor assembly. Removed wire connection. Installed wire connection on new motor reinstalled assembly connected plumbing lines. Filled pump with water turned on all worked.
