Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1

$232.55

IN STOCK
FREE SHIPPING

Part # B847

By Century Motors

  4.82 Average

Details

Top

Part # B847

Warranty 1 Year

Manufacturer Code B2847V1

Dimensions 12.5" L x 6.5" W x 6.5" D

Alternate Part #'s 0-177474-01, 1-168919-06, 10-168919-06, 10-177079-04, 1103655401, 1103655402, 135105, 15815, 164652, 164961, 165190, 165903, 168452, 168919, 177079, 177215, 177474, 190021, 193267, 193985, 35-5339, 35-5399, 355339, 5KC38SN6085AX, 5KC38SN6085X, 5U124, 5U159, 6-177079-40, 7-168452-04, 7-168452-84, 7-177079-04, 7-177474-01, 7-177474-61, 7-177474-81, 7-193985-04, 7-196335-24, 75233, 8-165903-20, 8-165903-21, 8-168452-04, 8-168452-20, 8-177079-04, 8-177079-40, 8-177474-01, 8-177474-10, A0104900, A100DH, A100DHL, B623, B847, C1305, C48K2EB102A2, EB847, ESQ1072, P712, S88-380, SP3207Z1BE, SQ107, SQ1072, SQD75FL1, V15815, 35-126-1202, AOSB2847V1, B2847

Product Description

Century Centurion replacement motor for Pentair WhisperFlo and Challenger full rated pumps. Specifications: HP = 3/4, RPM = 3450, Voltage = 115/230, Amps = 14.2/7.1, Service Factor = 1.65, Frame = 56Y, Shaft = Threaded. *Please Note: This is the correct replacement motor for the Challenger 3/4 HP full-rated pump.

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Options:

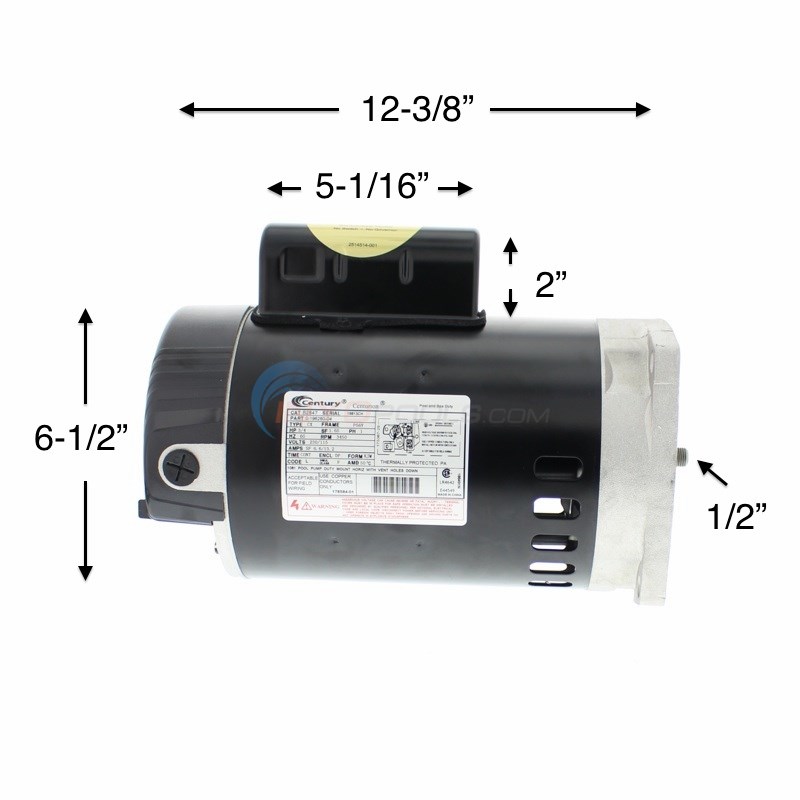

Motor Dimensions Motor Dimensions
Motor Image Motor Image

Product Specifications

Motor Name:
0.75 HP B847 & B2847 Replacement Pool Motor
HP:
0.75 HP
Speed:
Single
RPM:
3450 RPM
Volts:
230/115 V
Amps:
6.6/13.2 amp
Service Factor:
1.65
Total HP:
1.24 HP
Frame:
56Y
Stock #:
B847 or B2847
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
12.4 in.
Commonly Used On:
Pentair WhisperFlo and Challenger
Top

?     Asked on 6/30/2022by J H

Would this pump motor be compatible with my pump as shown in the attached picture?

 Reply

A  Answered on 6/30/2022 by InyoPools Product Specialist Craig C.

Hello JH.  The Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 is a compatible motor replacement for the motor 0-177474-01.
 Reply


?     Asked on 5/26/2022by Brad B

Would this pump motor be compatible with my pump as shown in the attached picture?

 Reply

A  Answered on 5/26/2022 by InyoPools Product Specialist Craig C.

Hello Brad.  The Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 is a compatible replacement for the motor model SP3205Z1M but with a 0.31 HP increase in total horsepower.  The Motor, 3/4hp Maxrate Tristar 115/230v (spx3205z1mr) is the direct motor replacement.
 Reply


?     Asked on 4/29/2022by Larry

Correct replacement motor for WF-3 pump (011579)? Existing is #196238, .75HP SF1.65, 208/230V, 3450rpm.

 Reply

A  Answered on 4/29/2022 by InyoPools Product Specialist Craig C.

Hello Larry.  The Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 is the direct replacement for the Pentair 196238 motor installed on the Pentair Whisperflo WF-3 Pool Pump.  It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor.  The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the parts necessary to complete this project.
 Reply


?     Asked on 2/1/2022by Inyo Visitor

Is this motor a match for the motor I have? Does Pentair make their own motors? Does a 3/4 hp motor come in a variable speed? If so do I need to make adjustments (electrical and otherwise) to accommodate the variable speed? The motor specs for my Pentair Superflo pump are as follows: Pentair 3/4 hp SF HP .94 Motor # 196237 Model # SF-N 1-3/4A/340037 3450 RPM SF 1.27 Thanks!
 Reply

A  Answered on 2/1/2022 by InyoPools Product Specialist Craig C.

Hello.  The Century Motors 3/4 HP Full Rate Motor B2847V1 is a compatible replacement for motor #196237.  In most cases, Pentair-labeled motors are manufactured by A. O. Smith/Century Motors.  Currently, there are no 3/4 HP variable speed motors available by any manufacturer (residential pool pump application). The Century Motors V-Green 1.65 HP Motor model ECM16SQU is a compatible variable speed motor.  ECM16SQU   It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor.  The GOKIT78 contains the necessary parts to complete this project.    GOKIT78
 Reply


?     Asked on 8/23/2021by Ralph Sliwicki

I need a replacement motor for my pool pump, the current pump motor is a 7-196335-24 AO< Smith. Will this motor work
 Reply

A  Answered on 8/23/2021 by InyoPools Product Specialist Craig C.

Hello Ralph.  The Century Motors 3/4 HP Full Rate Motor model B2847V1 is the compatible replacement for the motor model 7-196335-24.
 Reply


?     Asked on 8/17/2021by B2847 Century Motor Replacement or New Pump?

Other than the seal kit what is needed when the motor is replaced? I just added a new sand filter about three months ago now no suction and using a lot of amperage.

 Reply

A  Answered on 8/17/2021 by InyoPools Product Specialist Craig C.

Hello.  Typically a motor replacement would only require a seal kit to complete the project.  Your information indicates a high amperage draw on the motor.  Does the amperage reading exceed the motor label specifications per the voltage connected?  If the amperage is higher than the maximum limit check the voltage at the motor power terminals.  If the voltage is low, the amperage draw will be increased to compensate for the low voltage.  Check for obstructions in the motor such as a worm impeller rubbing against the diffuser or debris wedged in between the impeller and the diffuser.
 Reply


?     Asked on 8/15/2021by Dave Hall

I have a Pentair WFE-3, part No. 011512, motor # 196232. Which replacement would I require? Also, is it possible to only get the front housing, since everything else seems fine. Thank You!
 Reply

A  Answered on 8/17/2021 by InyoPools Product Specialist Craig C.

Hello Dave.  The Century Motors 3/4 HP Full Rate motor is the compatible replacement motor for the Pentair Whisperflo model WFE-3.  The Pump Volute (Wet End or Front End Housing) is available as a replacement part, #350015.  Volute, WFE (almond)  Is is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time.  These parts are contained in the GOKIT32.  Tune Up Kit Pentair/Purex    Attached please find an exploded parts diagram for the Pentair Whisperflo Pump Series for further reference.  Pentair / Purex Whisperflo WF, WFE, and WFDS Series
 Reply


?     Asked on 7/7/2021by Paula Pettit

Hi I am looking for Part Pentair Part 0-177449-03 Volts 208-230/115 Amps 6.0-6/11.2 Class B Thank you
 Reply

A  Answered on 7/7/2021 by InyoPools Product Specialist Craig C.

Hello Paula.  The Century Motors 3/4 HP Full Rate EE Motor model B2661 is the compatible replacement for the Pentair part 0-177449-03.  Century 3/4 HP Square Flange 56Y Full Rate EE Motor - B2661
 Reply


?     Asked on 6/24/2021by Eric

My pool motor needs replacing and I'm not sure which motor I need. I'm looking for the cheapest replacement. Here are the details. Please help. Century Centurion Part - 7 177474-01 Type - CX Serial - CA06-03 Code J 230/115 RPM - 3450 Amps - 7 1/14.2 FR - P56y 1081 Form - KJM 22/T
 Reply

A  Answered on 6/24/2021 by InyoPools Product Specialist Craig C.

Hello Eric.  The Century Motors 3/4 HP Full Rate Motor model B2847V1 is a compatible replacement to your current Century motor.  The Century Motors 1.0 HP Up Rate Motor model B2853 is also a compatible replacement to your current Century motor with a slight reduction in cost.  Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853   Century 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1
 Reply


?     Asked on 5/20/2021by Jackie

Is this the replacement motor for a Pentair SuperFlo 340037 pump?
 Reply

A  Answered on 5/21/2021 by InyoPools Product Specialist Patrick P.

Yes, this is not the correct replacement motor for your pool pump. You will need this B2852 3/4 HP Up Rate Replacement Motor. You will also need a Pentair SuperFlo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 5/19/2021by timothy joseph schinsky

My current (corroded) motor seems seized when turning on power and it appears its shaft seems bent, will this motor fit my original mounting?

 Reply

A  Answered on 5/19/2021 by InyoPools Product Specialist Patrick P.

Hi, this is not the correct replacement motor for the motor included in your photo. You will need this B2852 3/4 HP Up Rate Motor instead.You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 11/7/2020by Will

I have screaming bearing(s) in my pump motor, which is a Pentair PART 0-177449-03. Will this motor fit as a replacement? If not, do you have one that will? Thank you.

 Reply

A  Answered on 11/9/2020 by InyoPools Product Specialist Hector F.

Hi Will, yes, this is a correct replacement motor for motor part number 177449. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 11/7/2020by mike m

Hello would you please advise on the appropriate 3/4hp motor replacement for the attached picture. It is currently attached to a Jandy +HP+ pump housing. I would also like to know what the corresponding seal kit would be as well. Thanks! Mike

 Reply

A  Answered on 11/9/2020 by InyoPools Product Specialist Hector F.

Hi Mike, yes this is a compatible single speed replacement motor for your motor part number 193985. There is no seal kit per se for your Jandy Plus HP series pool pump however the most commonly replaced seals and gaskets would be part numbers 35-423-1080(shaft seal), 5020-062(body gasket), and 5020-065(diffuser gasket).
 Reply


?     Asked on 7/15/2020by Lance Schulz

Is this the correct replacement for Hayward Tristar .75 hp SP3207EE, Motor Part 7-196335-24 FR Y56Y SF 1.85?
 Reply

A  Answered on 11/17/2020 by InyoPools Product Specialist Hector F.

Hi Lance, the correct single speed replacement motor for your motor part number 196335 is the 5112-252.  You will also need a Hayward Tristar seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 7/8/2020by J

I'm looking to replace two motors (both arre attached), both at reasonable prices. Would this motor work for Hayward Industries motor attached in the photo? Also, could the same type of motor work for both?

 Reply

A  Answered on 1/12/2021 by InyoPools Product Specialist Megan C.

The Motor, 3/4hp Full Tristar 115/208-230v - SPX3207Z1BER is the suggested replacement with voltage options ranging from 115/208-230V with a total HP of 1.40HP, the Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 with a voltage of 230/115V could be used, based on voltage requirements you may require the SPX3207Z1BER. The label with C48D62A04 is suggested to use the SPX2707Z1M voltage options ranging from 115/208-230V, The SQ1072 with voltage options of 115/230V is the alternate option to the SPX2707Z1M. Again, depending on the voltage requirements you may require the SPX2707Z1M
 Reply


?     Asked on 5/25/2020by raymundo

My pool motor of my Polaris, I guess is bad. the capacitor burned out. May be, I need a new motor but I want to be sure the replacement will fit. thanks

 Reply

A  Answered on 5/26/2020 by InyoPools Product Specialist Patrick P.

Hi, You will actually require this B668 Booster Pump Replacement Motor and this Letro Booster Pump Shaft Seal.
 Reply


?     Asked on 5/23/2020by Mike

Will this B847 replace my pump, part number 7-177474-01?
 Reply

A  Answered on 5/23/2020 by InyoPools Product Specialist Patrick P.

Yes this B847 is the correct replacement motor for your 7-177474-01. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? Let us know if you live in California as you will require a different motor. To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
 Reply


?     Asked on 3/23/2020by Ying C

Look for replacement motor a.o.smith #177474

 Reply

A  Answered on 3/23/2020 by InyoPools Product Specialist Patrick P.

Hi Ying the proper replacement for your motor would be this B2853 Pool Motor or if you want to go with an ultra energy efficient motor which will cost about 70% less to operate than you could go with this Variable Speed Replacement Motor
 Reply

  • Commented on 3/23/2020 by Product Owner

    The existing one to be replaced is 3/4 HP, and the one you recommend B2853 is 1 HP, will it be compatible?
     Reply

    • Commented on 3/24/2020 by InyoPools Product Specialist Patrick P.

      Hi Ying, Yes they are the same True HP as your 3/4 HP is a full rate motor which is equivalent to a 1 HP up rate motor since the full rate motor has a higher service factor. This is easiest explained through showing the math... below is the comparison of a 1 HP Up Rate Motor Vs. a 3/4 HP Full Rate Motor.1 HP Up Rate Motor - 1 HP x 1.25 Service Factor (SF) = 1.25 True HP (THP) 3/4 HP Full Rate Motor - 3/4 HP x 1.65 Service Factor (SF) = 1.24 True HP (THP)
       Reply


?     Asked on 11/4/2019by GEORGE RATERINK

If I need a seal please include this and any added cost for it
 Reply

A  Answered on 11/4/2019 by InyoPools Product Specialist Lennox H.

Hi, George. I will need to know the make and model of the pump housing in order to locate the seals.
 Reply


?     Asked on 10/1/2019by Inyo Visitor

I have a Pentair WFE-3, part No. 011512, motor # 177449. Which replacement would I require? Thank You!
 Reply

A  Answered on 10/2/2019 by InyoPools Product Specialist Jessica C.

Hi, The correct motor replacement you will need is the A.O. Smith 3/4 HP Square Flange 56Y Full Rate EE Motor - B2661. When replacing the motor we recommend replacing the shaft seal as well. The replacement seal you will need for the Pentair WFE-3 is the Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 or the Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT for saltwater pools.
 Reply


?     Asked on 9/18/2019by Inyo Visitor

is this compatible to part 7-196335-24
 Reply

A  Answered on 9/18/2019 by InyoPools Product Specialist Hector F.

Yes, this would be a compatible single speed replacement motor for your model.
 Reply


?     Asked on 9/14/2019by John E Cables

Part # listed on the side of the motor is 7-177449-03. 56Y frame, 3450RPM, Pentair Whisperflow pump. Catalog that came with motor also lists the motor #071313. Thanks.
 Reply

A  Answered on 9/14/2019 by InyoPools Product Specialist Lennox H.

Hi, John. The B2661 is the correct replacement which is an energy-efficient option, however, this B2847 can be used as a replacement.
 Reply


?     Asked on 8/20/2019by Inyo Visitor

What is replacement motor for a B847 3/4 horse
 Reply

A  Answered on 8/21/2019 by InyoPools Product Specialist Michelle B.

Hello, Are you able to send a picture of the motor label?
 Reply


?     Asked on 8/3/2019by Todd Sellmer

Replacement motor for A.O Smith 7-177475-20
 Reply

A  Answered on 8/5/2019 by InyoPools Product Specialist Matt S.

Hello - the direct rep[lacement for the 7-177475-20 is the 1 HP Square Flange 56Y Full Rate Motor - B2848
 Reply


?     Asked on 7/18/2019by Jim D

Looking for direct replacement for Century Centurion (A.O. Smith) 7-177474-01 pump

 Reply

A  Answered on 7/18/2019 by InyoPools Product Specialist Hector F.

The replacement motor model is B853
 Reply


?     Asked on 7/10/2019by Gregg

Is this a direct replacement for the Pentair SF-N1-3/4A/340037 Motor # 196237?
 Reply

A  Answered on 7/10/2019 by InyoPools Product Specialist Matt S.

The motor replacement for your Pentair SuperFlo 3/4 HP is the B852 - Square Flange 56Y Up Rate.
 Reply


?     Asked on 7/7/2019by Brian Mueller

I'm looking for the correct replacement motor for a centurion 7-177079-04. What else will I need with the replacement? Gaskets, O-rings, etc.? Thank you.

 Reply

A  Answered on 7/8/2019 by InyoPools Product Specialist Lennox H.

Hi Brian, yes the A.O. Smith 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 would be the correct motor as a replacement. For the seals this blog will help you. Finding the Tune Up Kit for Your Pool Pump.
 Reply

  • Commented on 7/10/2019 by Product Owner

    Can you please point me specifically to the gaskets, O-rings, etc. that I will need when I order and replace this motor? I appreciate your help.
     Reply

    • Commented on 7/12/2019 by InyoPools Product Specialist Lennox H.

      Brian, You will need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
       Reply

      • Commented on 7/15/2019 by Product Owner

        Thank you.
         Reply


?     Asked on 6/22/2019by Chris

We need a replacement motor for Pentair 3/4 motor # 196237 Super Flo 208/230/115V in almond?
 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Matt S.

Hello - The replacement for your 196237 Pentair SuperFlo motor is the 3/4 HP Square Flange 56Y Up Rate Motor - B2852
 Reply


?     Asked on 5/1/2019by Greg

I just replaced the run capacitor on my Pentair whisperflo pump (model 177474) - Motor part 011579 (WF-3) (purchased from inyo) but unfortunately the pump still hums but doesn't draw any water through. Am I now looking at having to replace the motor or would you make any other suggestions first. If the motor needs replacing, is this model the correct replacement for my pump. Photo of motor specifications attached. Thanks, Greg.

 Reply

A  Answered on 5/3/2019 by InyoPools Product Specialist Joe S.

Good afternoon, Yes based on that information provided the A.O. Smith 3/4 HP Square Flange 56Y Full Rate Motor - B2847V1 would be the correct motor. We also would recommend replacing the seals and gaskets which would be a GOKIT32.
 Reply


?     Asked on 4/26/2019by Jennie

Do we need to get o-rings with this pump or do they come with it ?

 Reply

A  Answered on 4/26/2019 by InyoPools Product Specialist Lennox H.

Hi, Jennie The pump shaft seal and o-rings are not included with the motor. They are sold separately based on the pump housing model or name.
 Reply


?     Asked on 4/20/2019by Jim

I am looking for a replacement for my motor pictured. Have I found it in this one?

 Reply

A  Answered on 4/20/2019 by InyoPools Product Specialist Lennox H.

Hi, Jim. This B2847 can be used as a replacement. We also have the SQ1072 which is the direct replacement.
 Reply


?     Asked on 4/8/2019by David

Is the B8467 a good replacement for the 168451 motor?
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Michelle B.

Hello, This will be the correct motor replacement you will need for your pump.http://www.inyopools.com/Products/00200017003517.htm
 Reply


?     Asked on 3/8/2019by Nick

I have ao smith part # 177474 which replacement motor do I buy? B853 or b847?
 Reply

A  Answered on 3/8/2019 by InyoPools Product Specialist Lennox H.

Hi, Nick. This B2847 motor is the correct replacement for Part # 177474.
 Reply


?     Asked on 2/3/2019by Phil

Is this motor a suitable replacement for a Sta Rite Max-E-Pro set up?

 Reply

A  Answered on 2/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Phil. The QC1072 will be the direct replacement based on the motor in the picture and pump model. You can also use this B2847 or the B2661. You will also need the Sta-Rite Max-E-Pro Tune Up Kit - GOKIT79
 Reply

  • Commented on 2/10/2019 by Product Owner

    I ordered the motor that you suggested as a direct replacement for my Sta Rite Max E Pro set up and then got a reply from you that the motor you suggested does not meet the California energy efficiency regulations and that you canceled the order. Is there another replacement motor that you could suggest?
     Reply

    • Commented on 2/11/2019 by InyoPools Product Specialist Lennox H.

      Hi, Phil. Your options are the B2980T or the ECM16SQU
       Reply


?     Asked on 8/11/2018by Inyo Visitor

Do you ship to the UK? Any idea of the shipping cost on a pump motor? I have a pentair P-SFL-071 0.55KW from a Pentair Superflow pump. CAn you tell me the correct replacement part ? Thanks
 Reply

A  Answered on 8/19/2018 by InyoPools Product Specialist Lennox H.

Hi. We can ship to the UK, however, we do not carry the replacement motor for those pumps.
 Reply


?     Asked on 5/22/2018by Thomas R Hannon

I have an old B847 motor and received a new B2847 motor. The gasket wont slide down on the shaft like the B847. There appears to be some sort of metal piece over the shaft at base where it goes into motor.
 Reply

A  Answered on 5/22/2018 by InyoPools Product Specialist Hector F.

The shaft seals have the tendency to come apart leaving the metal collar on the shaft of the impeller which will need to be removed. If you click here you can view one of our guides on removing that.
 Reply


?     Asked on 5/10/2018by Brandon Earwood

7-177474-01 is the part number of my old pump and its a 1 HP. i typed the same part number in under the search engine and a 3/4 HP popped up. is there much difference? Or do you guys have a 1 HP under the part number?
 Reply

A  Answered on 5/10/2018 by InyoPools Product Specialist Hector F.

Yes, the model motor B853 has the same total horsepower as the B847.
 Reply


?     Asked on 4/24/2018by Jesse

I have a Pentair CHII-N1-3/4A/346203 pump and motor number 168451, i need to replace the motor, which is the correct motor replacement? Thanks.
 Reply

A  Answered on 4/24/2018 by InyoPools Product Specialist Hector F.

The correct motor replacement for your model pump would be the model B852
 Reply


?     Asked on 4/9/2018by Hui

Hi, how do I follow up with the previous question? Anyways, my impeller is 35-5043; my diffuser is 35-5029; my seal plate is 35-5612. Is that all the information you need? Thank you.
 Reply

A  Answered on 4/9/2018 by InyoPools Product Specialist Lennox H.

Hi, Hui. You will need the following parts for your Challenger CF Pump, Pump Shaft Seal - OEM - 354545S, Generic - PSR 200,   Diffuser Gasket - 355030, Housing O-ring - 355329.
 Reply


?     Asked on 4/7/2018by Hui

Hi, my old motor B-168452-04 (FR: P56Y; TYPE: CX; FORM KJM; RPM: 3450; HZ: 60; PH: 1; CODE: L; VOLTS: 230/115; AMPS: SF 7.1/14.2; TIME: CONT; AMB 40; INSUL CLASS: B; SERIAL: BU3-035) is rusted all over the body, due to a leaking from the house. I seek to replace this motor, and also replace the old parts that might cause the leak or be infected by the leak. What do I need?
 Reply

A  Answered on 4/9/2018 by InyoPools Product Specialist Lennox H.

Hi, Hui. This B847 is the correct replacement motor. I will need the model of the pump housing model or name in order to locate the replacement seals.
 Reply


?     Asked on 4/4/2018by Tim

Hello, need your help. I am looking for my pentair pinnacle replacement motor. It's P/N 342853. Serial No.0309311060009W. 3/4 HP. FR P56Y, type CX, Serial CB07-28. RPM 3450. Thank you.
 Reply

A  Answered on 4/4/2018 by InyoPools Product Specialist Lennox H.

Hi, Tim. The replacement motor for your model pump is the B2852 motor. You will also need to the Pinnacle Tune Up Kit - GOKIT24
 Reply


?     Asked on 3/27/2018by Inyo Visitor

i need a replacement pump motor. my current one is an a.o. smith century centurion with the following specifications: 3/4 hp, 1.67 SF, 3450 rpm, TYPE CX, FR R56Y, 208-230/115 serial CA06-06, AMPS 6.0-5.6/11.2. can you give me an identifying name and number to obtain an exact replacement? thank you.
 Reply

A  Answered on 3/28/2018 by InyoPools Product Specialist Lennox H.

Hi. The Century B661 Motor is the exact replacement motor to the motor you have.
 Reply


?     Asked on 1/15/2018by Cheryl

I have a Pentair Superflo High Performance Pump (Model # 196237). Will this motor fit?
 Reply

A  Answered on 1/15/2018 by InyoPools Product Specialist Lennox H.

Hi, Cheryl. The Century B852 motor is the correct replacement for Part # 196237. This B847 will fit, however, it's not the correct replacement. You'll also to get the Superflo Tune Up Kit - GOKIT78
 Reply


?     Asked on 10/2/2017by Bill C.

I have to replace a Hayward/A.O. Smith Model number C48K2N143B4. 0.75 HP. 115V. 3450 RPM Booster Pump Model 5060. It's an outdoor pump for my Polaris vacuum Which motor(s) are the correct replacement?
 Reply

A  Answered on 10/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Bill C. The Century ST1072 Motor is the correct replacement motor for the Hayward 5060 pump. You'll also need the Pump Seal - SPX1250XZ2C and or the Ribbon Gasket - AX5060J
 Reply


?     Asked on 9/17/2017by ABB

Will the motor work to replace a 3/4 hp Pentair CHII-N1-3/4F/345203 3/4 hp 1.25 sf hp motor #168452
 Reply

A  Answered on 9/20/2017 by InyoPools Product Specialist Lennox H.

Hi, ABB. This Century B847 motor is the correct replacement. You will also need the Challenger CH Series Tune Up Kit - GOKIT5
 Reply


?     Asked on 9/16/2017by Inyo Visitor

I have to replace 3/4 hp motor for a pentair CHII-N1-3/4F/345203, motor #168452, SF 1.25
 Reply

A  Answered on 9/20/2017 by InyoPools Product Specialist Lennox H.

Hi. This Century B847 motor is the correct replacement for the Challenger Pump CHII-N1-3/4F/345203. You will also need the Challenger CH Series Tune Up Kit - GOKIT5
 Reply


?     Asked on 8/5/2017by roh

i have a 3 quarter horse model 196327 by pentair superflow will this fit thankyou
 Reply

A  Answered on 8/5/2017 by InyoPools Product Specialist Alex V.

Roh, There are two 3/4HP motors that will fit. The determining factor will be which motor had a matching service factor (S.F.# listed on your motor label).
 Reply


?     Asked on 6/27/2017by Inyo Visitor

I have a pentair pool pump model #SF-N1-1A/340038 and I need a replacement motor for it. The motor number is 3550205 Do you have that part?
 Reply

A  Answered on 6/28/2017 by InyoPools Product Specialist Lennox H.

Hi. The Century B853 is the direct replacement motor. However, you can use this standard B847 or the energy efficient B661 motor as a replacement. You'll also need the Pentair SuperFlo Tune Up Kit - GOKIT78 when replacing the motor.
 Reply


?     Asked on 6/5/2017by Inyo Visitor

I have a B846 motor on a 3/4hp pac-fab challenger pump. Can I use a B847 motor since I need a bit more suction for my pool since it needs to be around 60 gmp for my triton tr60 sand filter. It is an old system.
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

You could upgrade to 3/4 HP but you will need this 3/4 HP Impeller and this 3/4 HP Diffuser.
 Reply


?     Asked on 6/4/2017by Dianna

I have a contract on my home and they need me to replace my pool pump motor/impellar/strainer. The pump motor is a Century Centuron B857 34 hp Type CX FN: P56Y. I found the AO Smith B87 34 hp motor that I think will work but I also need the impellar and strainer to go with it. Can you advise what i should order? The label is no longer legible on the impellar or strainer.
 Reply

A  Answered on 6/9/2017 by InyoPools Product Specialist Lennox H.

Hi, Dianna. I will need the model of the pump housing in order to locate the impeller. If you do not have the model you can upload pictures of the pump housing to upload@inyopools.com.
 Reply


?     Asked on 5/20/2017by Ozzy

i have a A.O.Smith pump.....SP3207Z1BE Part 7-196335-24 Serial 257093M...What replacement motor will work with this...Thank You
 Reply

A  Answered on 5/20/2017 by InyoPools Product Specialist Patrick P.

Hi Ozzy, You would require the HSQ1072 Replacement Motor as a replacement to your SP3207Z1BE motor. You will also need this Hayward Tristar Shaft Seal.
 Reply


?     Asked on 4/10/2017by Inyo Visitor

I just replaced the bearings on my Whisperflo pump because it was making a loud noise. Still same noise. I guess I should replace the motor. Motor part# 0-177449-03. Could you tell me which motor I should get or what else could be the problem? Thank you, Mariska
 Reply

A  Answered on 4/11/2017 by InyoPools Product Specialist Scott W.

You can either go with the B847, which is the standard 3/4HP full rate motor, or the B661, which is the energy efficient 3/4HP full rate motor. You will want the GOKIT32 as well.
 Reply


?     Asked on 3/27/2017by Scott

I have an Emerson EB625 that needs to be replaced. It powers my pool cleaner. Model numberk63cxerd-4771. 3/4 hp sf 1.50. Rpm 3450 volt 230/115. Ha 60 sf amps 6.3/12.6. Ph1 duty cont. mfg MJ04C. Frame 56CZ class B. Therm protected auto. Code L. AMB C. 50. Also booster pumps aren't variable speed are they?
 Reply

A  Answered on 3/28/2017 by InyoPools Product Specialist Scott W.

The correct replacement motor is part number 3262-18 and the shaft seal is part number 5250-106.
 Reply


?     Asked on 1/20/2017by rachel

I need to replace my pool pump motor...I have a B2847....I see you have them...which shaft seal would I need with it? Thanks
 Reply

A  Answered on 1/24/2017 by InyoPools Product Specialist Alan M.

The motor does not define the shaft seal as this motor is a replacement part on many different pumps. I will need the make and model of your pump to provide the correct shaft seal replacement.
 Reply


?     Asked on 9/22/2016by Inyo Visitor

Hi I have a pentair pumps-n1-3/4a/340037 and motor# 196237, the motor is not working which one should I get? thank you
 Reply

A  Answered on 9/23/2016 by InyoPools Product Specialist Megan C.

Hello, According to the model #340037 you have a Pentair Superflo 3/4 HP pump. For your reference, here is a link to the Pentair Superflo Parts list. I would recommend you replace your motor with the 3/4 H.P Pool Motor Square Flange 56Y Up Rate (B852, B2852) and replace the shaft seal with the Pump Seal 200 (psr 200) 5/8" or the Tune Up Kit Pentair SuperFlo - GOKIT78 if you need the Shaft Seal plus O-Rings.
 Reply


?     Asked on 9/9/2016by Mike

Is this motor the correct replacement for my motor part # O-177079-04
 Reply

A  Answered on 9/12/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, Yes, the B847 motor is the correct replacement for p/n 0-177079-04.
 Reply


?     Asked on 9/8/2016by mike

this the right replacement motor for my part O-177079-04
 Reply

A  Answered on 9/9/2016 by InyoPools Product Specialist Scott W.

Yes, that would be the correct replacement motor.
 Reply


?     Asked on 8/22/2016by sherry

i have a motor for my pool that is part # 8-168452-03 FR P56Y type CX rpm 3450 volts 230/115 amps 7.1/14.2 please help i need to replace it
 Reply

A  Answered on 8/24/2016 by InyoPools Product Specialist Scott W.

Do you have a model# for that motor or do you know what model your pump is, because the part# you provided is not pulling anything up for me?
 Reply


?     Asked on 7/23/2016by Inyo Visitor

I need replacement boOster pool pump. Now I have magnetek century centurion B121 part 8 164298 23 H/P 3/4 type cx volts 230/115 amps sf 6.0/12.0 hz 60 Thanks
 Reply

A  Answered on 7/24/2016 by InyoPools Product Specialist Alex V.

Hello, You can view the B121 motor here: http://www.inyopools.com/Products/07501352022272.htm?Keywords=B121
 Reply


?     Asked on 7/14/2016by Tom

Hello! I need a pump motor. My pump model is 38448322, serial number PF-1-26-F02 The motor is A.O. Smith part 7 -177474-01, type cx, FR P56Y, ph1, hz60, rpm3450, 230/115 volts, amps 7.1/14.2, time cont, encl DP, form KJM, code J, insul class B, amb 40 c. Can you also recommend the proper seal kit please? Thank you,
 Reply

A  Answered on 7/15/2016 by InyoPools Product Specialist Matt S.

Can you provide us the HP and Service Factor (SF) on the motor label, those are one of those most important things we need to double check it is the correct motor. Also, the pump model number PF-1-26-F02 does not cross reference to any pump housing. Can you verify this is the correct number from the pump sticker?
 Reply


?     Asked on 6/23/2016by Theodore Patton

what is the replacement options for a HSQ 1072 part #7-196355-24
 Reply

A  Answered on 6/23/2016 by InyoPools Product Specialist Scott W.

If a Hayward Tristar is what you have then the B847 will fit it. The direct replacement is the HSQ1072 but the B847 will work as well.
 Reply


?     Asked on 6/21/2016by jayne e vennitti

i have a magnatek century centurion pool and spa heavy duty motor that needs replaced. which is correct motor?
 Reply

A  Answered on 6/23/2016 by InyoPools Product Specialist Alan M.

We will need model and specification information located on the motor label to answer your question. It would also be helpful of you have information on the make and model of you pump.
 Reply


?     Asked on 6/16/2016by Charles

I have a 3/4 hp A O Smith part #168451.Which pump is replacement?
 Reply

A  Answered on 6/16/2016 by InyoPools Product Specialist Scott W.

That is the correct replacement for that part number.
 Reply


?     Asked on 6/12/2016by Inyo Visitor

just wanted to know if this is the right replacement motor for a WisperFlo WFE3 before I order it thanks
 Reply

A  Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

You would actually need the B2661 3/4 HP Energy Efficient Replacement motor we also suggest a Pentair Whisperflo Tune Up kit when replacing your motor. We do have a Video on How to Replace Pool Pump Motor which you may find helpful.
 Reply


?     Asked on 5/23/2016by Mike

Does this motor replace the 0-177894-04
 Reply

A  Answered on 5/23/2016 by InyoPools Product Specialist Patrick P.

The BN25 Motor is the replacement motor for your 0-177894-04 motor
 Reply


?     Asked on 5/16/2016by Peter

I have a century pool and spa motor 1081 part #7-196335-24 is this the same motor?
 Reply

A  Answered on 5/16/2016 by InyoPools Product Specialist Hector F.

This is not the correct motor. The replacement model is a 5223X.
 Reply


?     Asked on 5/1/2016by Ray

I have a Pentair pump model SF-N1-3/4A/346237, what is the replacement pump?
 Reply

A  Answered on 5/2/2016 by InyoPools Product Specialist Andy O.

Ray- The b847 3/4 HP Standard Motor - Full Rate (B847, B2847) is the incorrect motor. The Correct replacement would be a B852 A.O. Smith 3/4 HP, 56Y Frame, Up-Rate Motor (B852, B2852).
 Reply


?     Asked on 3/5/2016by Scott

I have a MagneTek Century Centurion 7-177474-81. Not sure of my HP. INYO POOLS recommends a 3/4 HP Standard Motor - Full Rate B847,B2847. On my label it says my amps are 7.1 14.2. On the recommended moter from INYOPOOLS is 6.6 13.2. Is this a concern? I just want to make sure I get the same HP and the correct motor. The motor I have lasted 16 years.
 Reply

A  Answered on 3/8/2016 by InyoPools Product Specialist Lennox H.

Hi Scott, The B847 will be the correct replacement motor. The amps is not a big concern other than it will cost you less to operate this motor. We recommend changing the shaft seal and o-rings  when replacing the motor. If you can provide the manufacture and model of your pump housing, we can locate the correct parts for you.
 Reply


?     Asked on 1/27/2016by Les

I have a Purex Triton WhisperFlo H.P. Pump that the motor is going out on. I cannot read the Motor HP on the nameplate, but the Part No. is 7-168452-04; Frame:56Y; Form: KJM; Volts: 230/115; Type: OX. Can you tell what replacement motor I need?
 Reply

A  Answered on 1/27/2016 by InyoPools Product Specialist Megan C.

Hello, Les. You can replace the Pentair / Purex Whisperflo Pump-Motor with A.O. Smith 1 HP, 56Y Frame, Up-Rate PART# B853. Do not forget to   the Tune Up Kit Pentair/Purex Whisperflo PART# GOKIT32 to prevent water leakage. Click here to view the motor, click here to view the GOKIT32, or click here to view the complete parts breakdown of the Pentair / Purex Whisperflo.
 Reply


?     Asked on 1/9/2016by John

Pretty sure this is the correct replacement motor - my current motor shows a part #: 7-177079-04. Other than this motor are there any energy efficient motors that would also work as a replacement?
 Reply

A  Answered on 1/11/2016 by InyoPools Product Specialist Lennox H.

Hi John, The A.O. Smith 3/4 HP EE Full Rate Motor (B661) will be slight more energy efficient than it's standard replacement.
 Reply


?     Asked on 10/24/2015by ROB

I have a Pentair Whisper flow WF-24, what is the proper replacement motor and shaft seal kit for it?
 Reply

A  Answered on 10/26/2015 by InyoPools Product Specialist Lennox H.

Hi Rob, The A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) and Pentair/Purex Whisperflo Tune Up Kit (GOKIT32) would be the correct motor and seal kit for the Pentair Whisperflo WF-24 Pump.
 Reply


?     Asked on 9/6/2015by Rich

I have a Pentair clean and the motor doesn't work. On the tag or decal of the motor it has model "LA0IN"; the motor details are 3/4HP, 3450 rpm, 230/115 volt, S56CX frame, type CX, Service Factor 1.5 continuous duty, ENCL D.P. Which motor is the correct replacement? Thank you!!!!
 Reply

A  Answered on 9/10/2015 by InyoPools Product Specialist Lennox H.

Hi Rich, The correct replacement motor would be the 3/4 HP Thrd Motor (B668) for the Pentair Booster Pump model LA01N. You would also need to replace the PSR1000 Shaft Seal and the Volute O-ring.
 Reply


?     Asked on 8/24/2015by Shannon

I have a pent air challenger with a p/n of 7-168452-04. Sticker on motor says it is a 1hp motor. The equivalent I see here shows a 3/4 hp motor?? What other seals etc will I need to swap out motor?
 Reply

A  Answered on 8/25/2015 by InyoPools Product Specialist Andy O.

Shannon- The motor model you provided will be replaced by either 3/4 HP Standard Motor - Full Rate (B847, B2847)  or A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) would have the same total hp. You can either go with the GOKIT5 which has the o-rings and the shaft seal or you can just get the the shaft seal which is part # 354545s.
 Reply


?     Asked on 8/6/2015by erin

does this have a capacitor. my motor is mating a hissing sound the bearings are turning so its not locking up...
 Reply

A  Answered on 8/7/2015 by InyoPools Product Specialist Matt S.

Hello Erin, this motor does have a capacitor; that "hump" on the back is where it is housed.
 Reply


?     Asked on 7/15/2015by Nathan

Does this motor replace 7-177474-01?
 Reply

A  Answered on 7/15/2015 by InyoPools Product Specialist Hector F.

Yes the B847 is the correct replacement motor.
 Reply


?     Asked on 6/19/2015by Kurt

I have a Pentair Whisperflo WFE-3 3/4 horsepower. Which motor is a correct replacement, B2847 or B2661? Thank you.
 Reply

A  Answered on 6/19/2015 by InyoPools Product Specialist Dennis R.

Hi Kurt,  B2847 is the standard Full rated 3/4 HP motor: B2661 is the Energy Efficient [EE] Full rated 3/4 HP motor - uses 20% less amperage which equates to 20% less in operational costs.
 Reply


?     Asked on 6/17/2015by Inyo Visitor

I have an Pentair Intelliflo VF so what parts would I have to swap out(Impeller, diffuser,kit,) to do a motor replacement with this one please? Also, what is the impeller screw I need for this and is it the same size as the Intelliflo impeller screw? Thx.
 Reply

A  Answered on 6/19/2015 by InyoPools Product Specialist Lennox H.

You would need to replace the Diffuser Assy. 3/4 - 2 1/2 Hp (072927)Impeller 3/4 Hp Full 1 Hp Up (073127), you can reuse the same Set Screw (071652)  and get a Pentair/Purex Whisperflo Tune Up Kit (GOKIT32) to use with the 3/4 HP Standard-Full Rate Motor.
 Reply


?     Asked on 6/11/2015by Inyo Visitor

does this replace the 7-177449-03 3/4 hp type cx
 Reply

A  Answered on 6/11/2015 by InyoPools Product Specialist Patrick P.

For the 7-177449-03 you would actually need the B661 (B2661) Replacement Motor.
 Reply


?     Asked on 2/16/2012by Guest

I just finished replacing the shaft seal on my booster pump. As soon as I turned the pump on water was leaking from the shaft seal. Is it defective or am I doing something wrong?
 Reply

A  Answered on 2/16/2012 by InyoPools Product Specialist Patrick P.

Depending on the model, the installation of a booster pump shaft seal can be slightly different than a pool pump shaft seal. Some booster pump and pool pump shaft seals require that a silicone sealant be used on the outer areas of the metal seat of the shaft seal. The seal will need to be lightly hammered into the body of the pump. You can use a 1 inch PVC coupling or a piece of 1 1/4 inch PVC pipe and a rubber mallet. This procedure will apply to any pool pump or booster pump using a >PS-1000 style shaft seal.
 Reply


?     Asked on 1/19/2012by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Socket Set, Wrench Set

The Texas Freeze took out my pool pump!

Written on 6/7/2021 by Guest

It was easy to cross reference my old pump and find the perfect replacement match. INYO sent it out right away and I installed it easily. I like to watch their videos on replacing the pump and shaft seal first, as a refresher course, before I get started. Changing the pump and shaft seal is easy with their tutelage. Thank you INYO!

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

1     0

Old pump died

Written on 7/2/2020 by Guest

Shut off power. Disconnected power from motor and removed existing motor with seal plate from pump housing. Removed diffuser and then removed impeller. Removed motor from seal plate. Replaced shaft seals on impeller and seal plate. Reattached seal plate followed by impeller and diffuser. Reattached new motor with seal plate to pump housing and connected electrical. Super easy job and even easier following inyo how-to-videos.

Were these instructions helpful?


Top

Review Summary

 (Average 4.82  out of 5 stars)
16 Rating
5 star:

(13)
4 star:

(3)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
