Jandy Stealth SHPF & SHPM Series Pump (2008-Current)

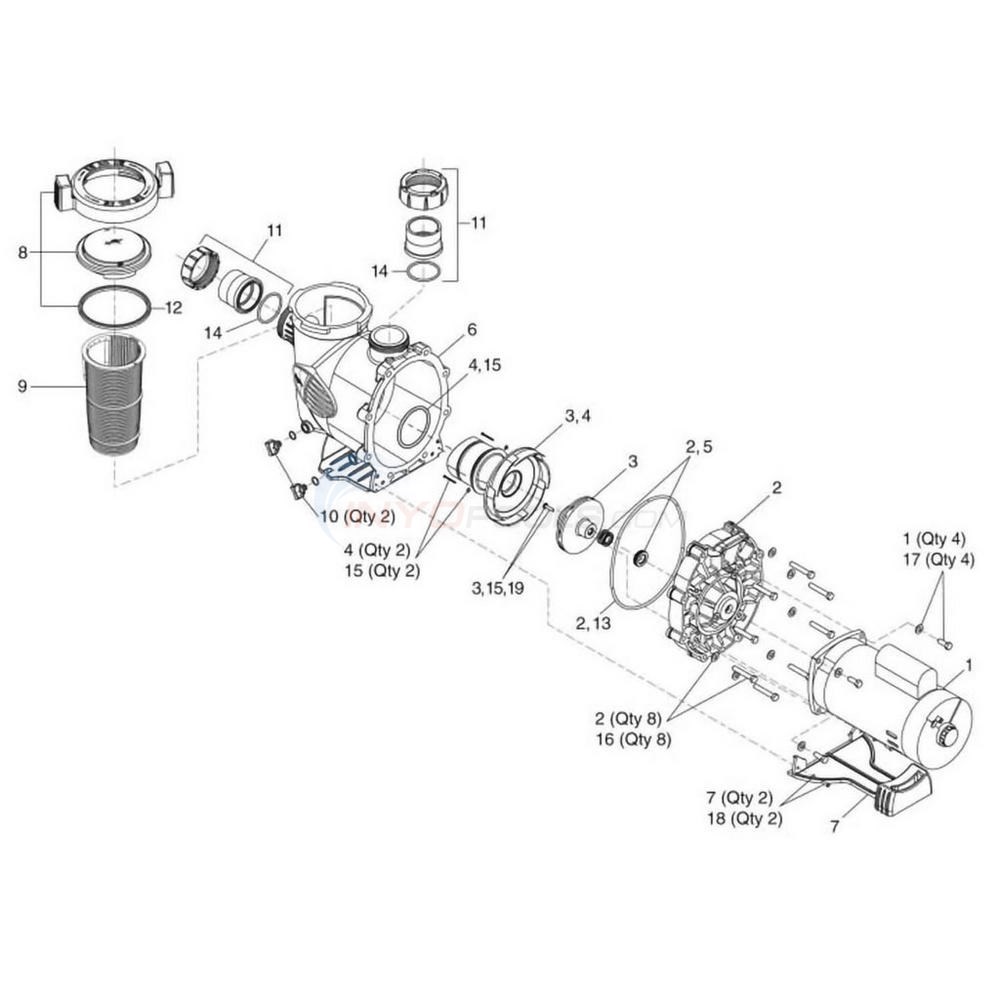

Jandy Stealth SHPF & SHPM Series Pump (2008-Current) Diagram
SHPF FULL RATED; SHPM UP RATED
SHPF.50, SHPF.75, SHPF1.0, SHPF1.5, SHPF2.0, SHPF3.0, SHPM.75, SHPM1.0, SHPM1.5, SHPM2.0, SHPM2.5

CLICK HERE FOR Jandy Stealth Original (2002-2008)
Key Model # Item Total HP Price
* MKITSHPVS16 Jandy Stealth SHP VS Motor Upgrade Kit - 1.65HP 1.65 $614.69 Description
* MKITSHPVS22 Jandy Stealth SHP VS Motor Upgrade Kit - 2.2HP 2.25 $663.67 Description

Key Part # Item Service Factor Voltage Max Amps Frame Price
1 R0445101 A.O. Smith 3/4 HP, 56Y Frame Motor 1.67 115/208-230 11.2/6.0-5.6 56Y $415.99 Description

Key Part # Mfg Code Item Service Factor Voltage Max Amps Frame Price
1 B852 B2852 A.O. Smith 3/4 HP, 56Y Frame, Up-Rate Motor 1.25 115/230 10.8/5.4 56Y $218.95 Description
1 B853 B2853 Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 1.25 115/230 11.4/5.7 56Y $239.62 Description
1 B854 B2854 Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 1.1 115/230 13.0/6.5 56Y $263.95 Description
1 B855 B2855 Century 2.0 HP Square Flange 56Y Up Rate Motor - B855 1.1 230 10.2 56Y $354.99 Description
1 B840 B2840 A.O. Smith 2.5 HP, 56Y Frame, Up-Rate Motor 1.0 230 11.2 56Y $397.57 Description
1 B847 B2847V1 A.O. Smith 3/4 HP Standard Motor - Full Rate 1.65 115/230 14.2/7.1 56Y $247.55 Description
1 B848 B2848 A.O. Smith 1 HP Standard Motor - Full Rate 1.65 115/230 16.0/8.0 56Y $273.52 Description
1 B849 B849 A.O. Smith 1.5 HP Standard Motor - Full Rate 1.5 230 10.0 56Y $351.22 Description
1 B748 B2748 A.O. Smith 2 HP Standard Motor - Full Rate 1.3 230 11.5 56Y $399.79 Description
1 B983 B2983 A.O. Smith 1.5 HP Dual Spd. Motor - Full Rate 1.47 230 10.0/3.5 56Y $445.00 Description
1 B984 B2984 A.O. Smith 2 HP Dual Spd. Motor - Full Rate 1.3 230 11.0/4.0 56Y $541.67 Description

Key Part # Mfg Code Item Price
* 3050-38 R221016 Protective Pool Motor Cover $42.48 Description

Key Part # Mfg Code Item Price
2 5020-140 R0445200 BACKPLATE KIT $211.86 Description

Key Part # Item PUMP MODEL Price
3 R0807203 IMPELLER 3/4 HP FULL RATE 1 HP UP RATE SHPM1.0 & SHPF.75 $96.89 Description
3 R0807202 IMPELLER 1 HP FULL RATE 1.5 HP UP RATE
Normally $75.99!
SHPM1.5 & SHPF1.0 $61.79 Description
3 R0807201 IMPELLER 1.5 HP FULL RATE 2 HP UP RATE SHPM2.0 & SHPF1.5 $57.67 Description
3 R0807200 IMPELLER 2 HP FULL RATE 2.5 HP UP RATE SHPM2.5 & SHPF2.0 $60.76 Description
3 R0807205 IMPELLER 3 HP FULL RATE SHPF3.0 $75.47 Description

Key Part # Mfg Code Item Price
4 5020-106 R0445400 DIFFUSER KIT $77.57 Description

Key Part # Mfg Code Item Serial Number Price
5 5020-086 R0445500 JANDY SHAFT SEAL (OLD STYLE) Before P08FF0001 $17.66 Description
5 5020-087 R0479400 JANDY SHAFT SEAL (NEW STYLE) P08FF0001 & Later $24.05 Description

Key Part # Mfg Code Item Serial Number Price
5 5250-235 PS-3868 Pump Seal 201, Extra Heavy Duty PS3868 (Saltwater Pools) Before P08FF0001 $19.37 Description
5 5250-250 PS-4280 Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools) P08FF0001 & Later $22.10 Description

Key Part # Mfg Code Item Price
6 5020-130 R0445601 PUMP BODY $321.12 Description

Key Part # Mfg Code Item Price
7 5020-108 R0445700 MOTOR MOUNTING FOOT ASSY $97.99 Description

Key Part # Mfg Code Item Price
8 5020-040 R0445800 Lock Ring, Lid, & O-ring $97.84 Description

Key Part # Mfg Code Item Price
9 5020-132 R0445900 PUMP BASKET $34.00 Description

Key Part # Mfg Code Item Price
10 5020-111 R0446000 DRAIN PLUG (SET OF 2) $13.38 Description

Key Part # Mfg Code Item Price
11 5020-133 R0446101 PUMP UNION, 2"" SLIP x 2-1/2"" SPG (SET OF 2) $56.64 Description
11 5020-134 R0446102 PUMP UNION, 2-1/2"" SLIP x 3"" SPG (SET OF 2) $77.51 Description

Key Part # Mfg Code Item Price
12 5020-135 R0446200 LID SEAL & LID O-RING $30.89 Description

Key Part # Mfg Code Item Price
13 5020-136 R0446300 BACKPLATE O-RING $18.53 Description

Key Part # Mfg Code Item Price
14 5020-137 R0446400 TAILPIECE O-RING $22.22 Description

Key Part # Mfg Code Item Price
15 R0622000 R0622000 DIFFUSER O-RING $10.99 Description
15 5020-116 R0446500 DIFFUSER/IMPELLER HARDWARE $36.80 Description

Key Part # Mfg Code Item Price
16 5020-117 R0446600 BACKPLATE HARDWARE $95.99 Description

Key Part # Mfg Code Item Price
17 5020-118 R0446700 MOTOR HARDWARE $56.09 Description

Key Part # Mfg Code Item Price
18 5020-119 R0446800 SCREWS, MOTOR MOUNTING FOOT $23.99 Description

This is the current version of the stealth pump. This version was released in 2008.
Most parts are not interchangeable with the old version.
*NOT SHOWN
