Jandy FloPro FHPM Series Pump (2008-Present) Parts

Replacement Parts for Jandy Flo Pro Pump Models FHPM1.0, FHPM1.5, FHPM2.0

Jandy FloPro FHPM Series Pump (2008-Present) Diagram

Click to zoom in

Diagram #	Part Title
*	Jandy FloPro FHPM Series Heavy Duty Pump Seal Kit - Model GOKITFHPM
1	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
1	A.O. Smith 3/4 HP Square Flange 56Y Up Rate Motor - B2852
1	A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981
1	V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU
1	V-Green Automation Adapter Kit - 2517501-001 (Required With ECM27SQU for System Controlled Via Automation)
*	Protective Pool Motor Cover
2	BACKPLATE WITH O-RING AND SHAFT SEAL
3	IMPELLER With SCREW & BACKUP PLATE O-RING, 3/4 HP
*	Jandy Impeller Screw w/ O-ring, Select Models, Reverse Thread - R0515400
4	DIFFUSER WITH O-RING & HARDWARE, 3/4 & 1 HP
5	Pump Seal, Extra Heavy Duty
6	PUMP BODY WITH BACKPLATE O-RING
7	MOUNTING FOOT
8	LOCK RING, LID, AND LID O-RING
9	PUMP BASKET
10	DRAIN PLUG (SET OF 2)
11	Pump Union Assy (2" x 2") (Set of 2)
12	LID O-RING
13	BACKPLATE O-RING
14	DIFFUSER & IMPELLER HARDWARE
15	BACKPLATE HARDWARE
16	MOTOR HARDWARE
17	COUPLING O-RING SET
18	PUMP BASKET

View Parts List

Diagram #	Part Title
*	Jandy FloPro FHPM Series Heavy Duty Pump Seal Kit - Model GOKITFHPM
1	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
1	A.O. Smith 3/4 HP Square Flange 56Y Up Rate Motor - B2852
1	A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981
1	V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU
1	V-Green Automation Adapter Kit - 2517501-001 (Required With ECM27SQU for System Controlled Via Automation)
*	Protective Pool Motor Cover
2	BACKPLATE WITH O-RING AND SHAFT SEAL
3	IMPELLER With SCREW & BACKUP PLATE O-RING, 3/4 HP
*	Jandy Impeller Screw w/ O-ring, Select Models, Reverse Thread - R0515400
4	DIFFUSER WITH O-RING & HARDWARE, 3/4 & 1 HP
5	Pump Seal, Extra Heavy Duty
6	PUMP BODY WITH BACKPLATE O-RING
7	MOUNTING FOOT
8	LOCK RING, LID, AND LID O-RING
9	PUMP BASKET
10	DRAIN PLUG (SET OF 2)
11	Pump Union Assy (2" x 2") (Set of 2)
12	LID O-RING
13	BACKPLATE O-RING
14	DIFFUSER & IMPELLER HARDWARE
15	BACKPLATE HARDWARE
16	MOTOR HARDWARE
17	COUPLING O-RING SET
18	PUMP BASKET

Available Parts:

Jandy FloPro FHPM Series Heavy Duty Pump Seal Kit - Model GOKITFHPM

Part # GOKITFHPM

Jandy FloPro FHPM Series Heavy Duty Pump Seal Kit - Model GOKITFHPM

$69.99 IN STOCK

Qty:

V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130

Part # EVQ130 Mfg # EVQ130

V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130

$526.68 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

V-Green EVO 1.65 HP Square Flange 48Y Variable Speed Motor - EVQ165

Part # EVQ165 Mfg # EVQ165

V-Green EVO 1.65 HP Square Flange 48Y Variable Speed Motor - EVQ165

$568.92 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

V-Green EVO 2.25 HP Square Flange 48Y Variable Speed Motor - EVQ225

Part # EVQ225 Mfg # EVQ225

V-Green EVO 2.25 HP Square Flange 48Y Variable Speed Motor - EVQ225

$594.78 IN STOCK

Service Factor 1.00 Voltage 115/230 Frame 48Y

Service Factor 1.00 Voltage 115/230 Frame 48Y

Qty:

A.O. Smith 3/4 HP Square Flange 56Y Up Rate Motor - B2852

Part # B852 Mfg # B2852

A.O. Smith 3/4 HP Square Flange 56Y Up Rate Motor - B2852

$226.34 IN STOCK

Service Factor 1.25 Voltage 230/115 Max Amps 5.4/10.8 Model FHPM.75

Service Factor 1.25 Voltage 230/115 Max Amps 5.4/10.8 Model FHPM.75

Qty:

A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853

Part # B853 Mfg # B2853

A.O. Smith 1 HP Square Flange 56Y Up Rate Motor - B2853

$273.20 IN STOCK

Service Factor 1.25 Voltage 230/115 Max Amps 6.6/13.2 Model FHPM1.0

Service Factor 1.25 Voltage 230/115 Max Amps 6.6/13.2 Model FHPM1.0

Qty:

Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854

Part # B854 Mfg # B2854

Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854

$270.03 IN STOCK

Service Factor 1.10 Voltage 230/115 Max Amps 8.0/16.00 Model FHPM1.5

Service Factor 1.10 Voltage 230/115 Max Amps 8.0/16.00 Model FHPM1.5

Qty:

A.O. Smith 2 HP Square Flange 56Y Up Rate Motor - B855

Part # B855 Mfg # B2855

A.O. Smith 2 HP Square Flange 56Y Up Rate Motor - B855

$378.24 IN STOCK

Service Factor 1.10 Voltage 230 Max Amps 10.0 Model FHPM2.0

Service Factor 1.10 Voltage 230 Max Amps 10.0 Model FHPM2.0

Qty:

A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981

Part # B981 Mfg # B2981

A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981

$390.00 IN STOCK

Service Factor 1.67 Voltage 115 Max Amps 12.0/2.0 Frame R56Y

Service Factor 1.67 Voltage 115 Max Amps 12.0/2.0 Frame R56Y

Qty:

1 HP Energy Efficient Dual Spd. Motor - Full Rate

Part # B2982 Mfg # B2982

1 HP Energy Efficient Dual Spd. Motor - Full Rate

$396.06 IN STOCK

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame Y56Y

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame Y56Y

Qty:

WhisperFlo 1.5 HP Dual Spd. Motor - Full Rate

Part # B983 Mfg # B2983

WhisperFlo 1.5 HP Dual Spd. Motor - Full Rate

$466.27 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame Y56Y

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame Y56Y

Qty:

A.O. Smith 2 HP Square Flange 56Y Dual Speed Full Rate Motor - B2984

Part # B984 Mfg # B2984

A.O. Smith 2 HP Square Flange 56Y Dual Speed Full Rate Motor - B2984

$621.78 IN STOCK

Service Factor 1.30 Voltage 230 Max Amps 11.0/1.8 Frame Y56Y

Service Factor 1.30 Voltage 230 Max Amps 11.0/1.8 Frame Y56Y

Qty:

V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU

Part # ECM16SQU Mfg # ECM16SQU

V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU

$603.00

Service Factor 1.00 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

Service Factor 1.00 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

V-Green Automation Adapter Kit - 2517501-001 (Required With ECM27SQU for System Controlled Via Automation)

Part # 2517501-001 Mfg # 2517501-001

V-Green Automation Adapter Kit - 2517501-001 (Required With ECM27SQU for System Controlled Via Automation)

$290.36

Century Motor VLink

Part # VL100

Century Motor VLink

$384.62

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

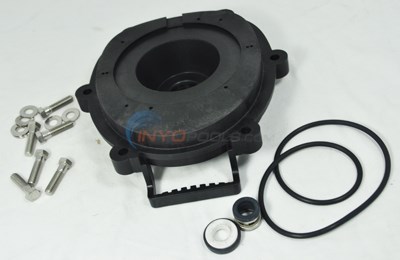

BACKPLATE WITH O-RING AND SHAFT SEAL

Part # 5020-089 Mfg # R0479500

BACKPLATE WITH O-RING AND SHAFT SEAL

$124.78 IN STOCK

Qty:

IMPELLER With SCREW & BACKUP PLATE O-RING, 3/4 HP

Part # 5020-090 Mfg # R0479601

IMPELLER With SCREW & BACKUP PLATE O-RING, 3/4 HP

$75.78 IN STOCK

Model FHPM.75 HP .75

Model FHPM.75 HP .75

Qty:

IMPELLER With SCREW & BACKUP PLATE O-RING, 1 HP

Part # 5020-091 Mfg # R0479602

IMPELLER With SCREW & BACKUP PLATE O-RING, 1 HP

$74.27 IN STOCK

Model FHPM1.0 HP 1.0

Model FHPM1.0 HP 1.0

Qty:

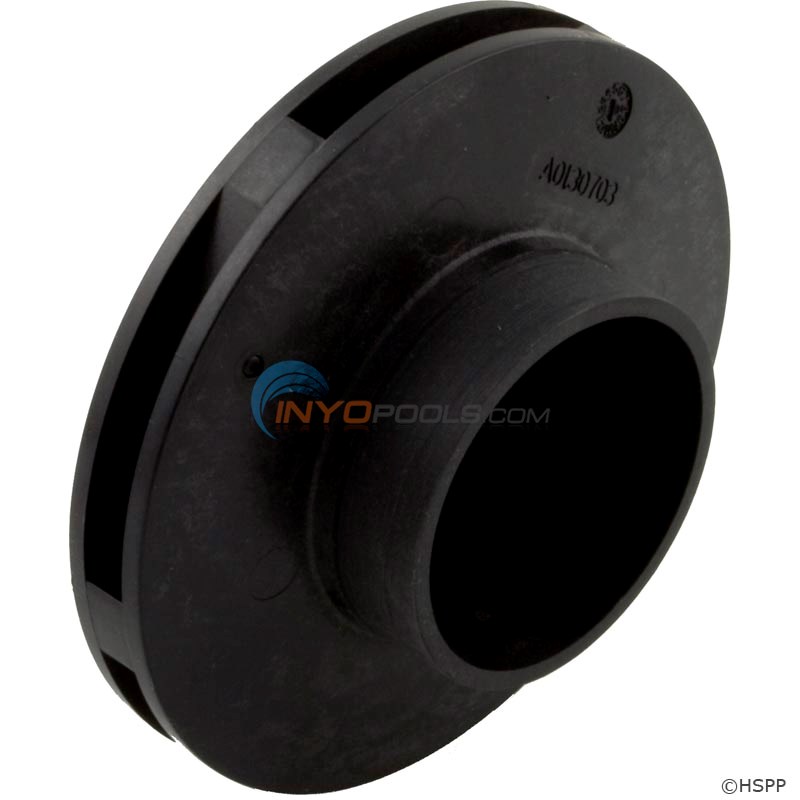

IMPELLER With SCREW & BACKUP PLATE O-RING, 1-1/2 HP

Part # 5020-092 Mfg # R0479603

IMPELLER With SCREW & BACKUP PLATE O-RING, 1-1/2 HP

$83.37 IN STOCK

Model FHPM1.5 HP 1.5

Model FHPM1.5 HP 1.5

Qty:

IMPELLER With SCREW & BACKUP PLATE O-RING, 2 HP

Part # 5020-093 Mfg # R0479604

IMPELLER With SCREW & BACKUP PLATE O-RING, 2 HP

$85.28 IN STOCK

Model FHPM2.0 HP 2.0

Model FHPM2.0 HP 2.0

Qty:

IMPELLER With SCREW & BACKUP PLATE O-RING, 2-1/2 HP

Part # 5020-094 Mfg # R0479605

IMPELLER With SCREW & BACKUP PLATE O-RING, 2-1/2 HP

$71.42 IN STOCK

Model FHPM2.5 HP 2.5

Model FHPM2.5 HP 2.5

Qty:

Jandy Impeller Screw w/ O-ring, Select Models, Reverse Thread - R0515400

Part # R0515400 Mfg # R0515400

Jandy Impeller Screw w/ O-ring, Select Models, Reverse Thread - R0515400

$15.11 IN STOCK

Qty:

DIFFUSER WITH O-RING & HARDWARE, 3/4 & 1 HP

Part # 5020-095 Mfg # R0479702

DIFFUSER WITH O-RING & HARDWARE, 3/4 & 1 HP

$87.68 IN STOCK

Qty:

DIFFUSER WITH O-RING & HARDWARE, 1-1/2, 2, 2-1/2 HP

Part # 5020-096 Mfg # R0479701

DIFFUSER WITH O-RING & HARDWARE, 1-1/2, 2, 2-1/2 HP

$79.95 IN STOCK

Qty:

Pump Seal, Extra Heavy Duty

Part # 5250-250 Mfg # PS-4280

Pump Seal, Extra Heavy Duty

$27.80 IN STOCK

Qty:

Jandy Pump Shaft Seal 5/8" - R0479400

Part # 5020-087 Mfg # R0479400

Jandy Pump Shaft Seal 5/8" - R0479400

$32.04 IN STOCK

Qty:

PUMP BODY WITH BACKPLATE O-RING

Part # 5020-097 Mfg # R0479800

PUMP BODY WITH BACKPLATE O-RING

$238.35 IN STOCK

Qty:

MOUNTING FOOT

Part # 5020-098 Mfg # R0479900

MOUNTING FOOT

$51.15 IN STOCK

Qty:

LOCK RING, LID, AND LID O-RING

Part # 5020-099 Mfg # R0480000

LOCK RING, LID, AND LID O-RING

$93.78 IN STOCK

Qty:

PUMP BASKET

Part # 5020-076 Mfg # R0480100

PUMP BASKET

$32.45 IN STOCK

Qty:

DRAIN PLUG (SET OF 2)

Part # 5020-111 Mfg # R0446000

DRAIN PLUG (SET OF 2)

$20.90 IN STOCK

Qty:

Pump Union Assy (2" x 2") (Set of 2)

Part # 35-295-1209 Mfg # R0327301

Pump Union Assy (2" x 2") (Set of 2)

$50.02 IN STOCK

Qty:

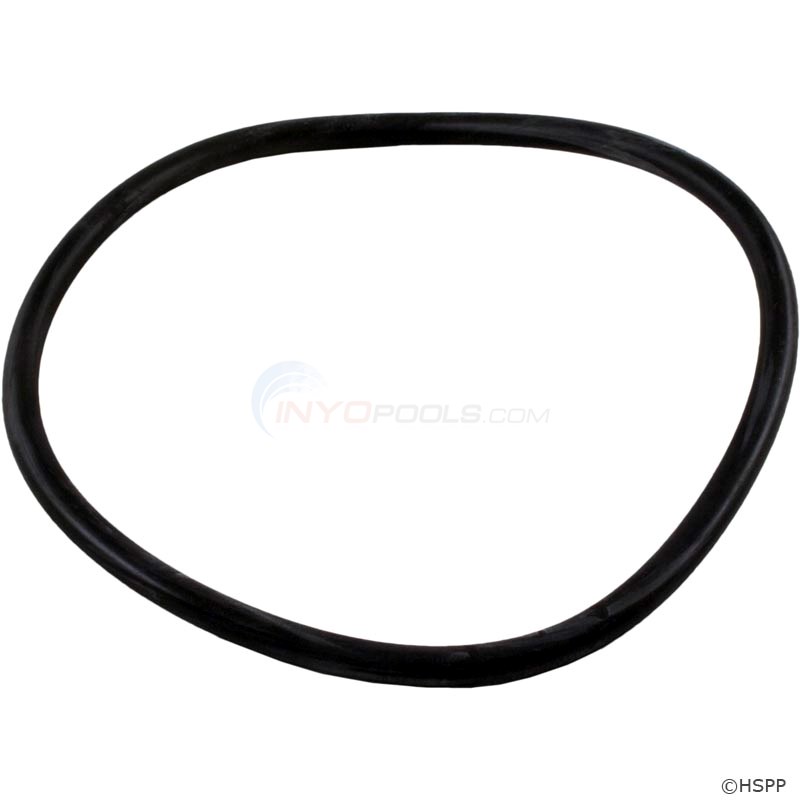

LID O-RING

Part # 5020-078 Mfg # R0480200

LID O-RING

$22.53 IN STOCK

Qty:

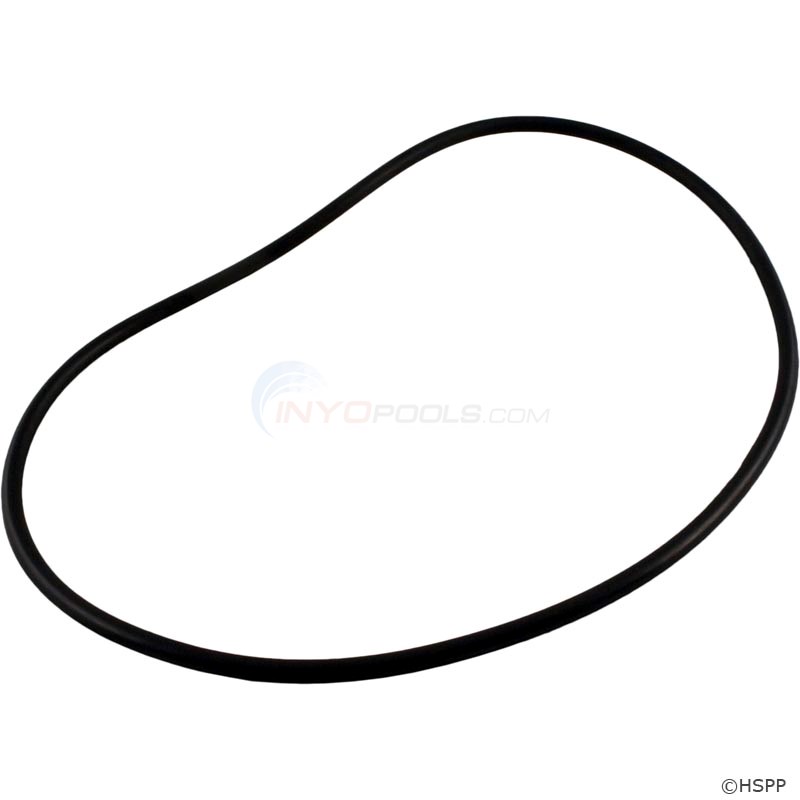

BACKPLATE O-RING

Part # 5020-079 Mfg # R0480300

BACKPLATE O-RING

$22.33 IN STOCK

Qty:

DIFFUSER & IMPELLER HARDWARE

Part # 5020-041 Mfg # R0480400

DIFFUSER & IMPELLER HARDWARE

$49.98 IN STOCK

Qty:

BACKPLATE HARDWARE

Part # 5020-042 Mfg # R0480500

BACKPLATE HARDWARE

$78.89

MOTOR HARDWARE

Part # 5020-118 Mfg # R0446700

MOTOR HARDWARE

$61.93 IN STOCK

Qty:

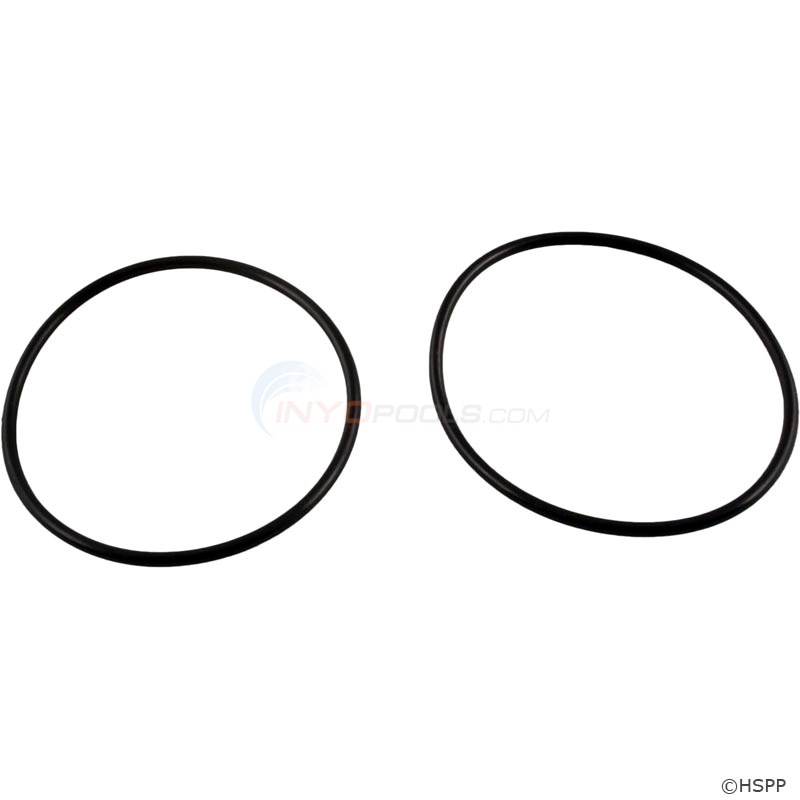

COUPLING O-RING SET

Part # 6205-056 Mfg # R0337600

COUPLING O-RING SET

$26.78 IN STOCK

Qty:

PUMP BASKET

Part # 5020-044 Mfg # R0486700

PUMP BASKET

$54.36

Special Note - The Flo Pro Pump uses uprated motors.
These 2 Speed are labeled as full rated motors.
For the correct horsepower 2-speed motor,
match the pump with the uprated listed.
