What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.
Reply
What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
My pool pump motor makes a humming noise when I try to start it. Will replacing the motor fix my problem?
Reply
Will the AO Smith UCT1102 cost less to run than the UST1102?
Reply
Yes, the UCT1102 will cost less to operate compared to the standard UST1102. Depending on how the motor is cared for, it should last several years. When replacing the motor, I would recommend buying a tune up kit based on your pump model and age.
Reply
I need to replace the motor on a Hayward Super Pump 3/4 hp. Can I go up to a 1 hp and what difference does that make? If so, does anything else need to be changed out? This is for an inground 16' x 32' pool.
Reply
You could go up to a 1 HP motor which would give you a higher gallon per minute rating (GPM). On a typical pool a 3/4 HP Super pump will have an output of 50 GPM's where a 1 HP will have an output of 65 GPM's. You would want to make sure that your filter could handle this increased flow rating from the 1 HP motor your filter should have a label on it which says max flow rating, this would let you know how many GPM's the filter can handle. If you increased your motor to 1 HP you would need to also replace your impeller to a 1 HP impeller, we would also suggest a Super Pump tune kit.
Reply

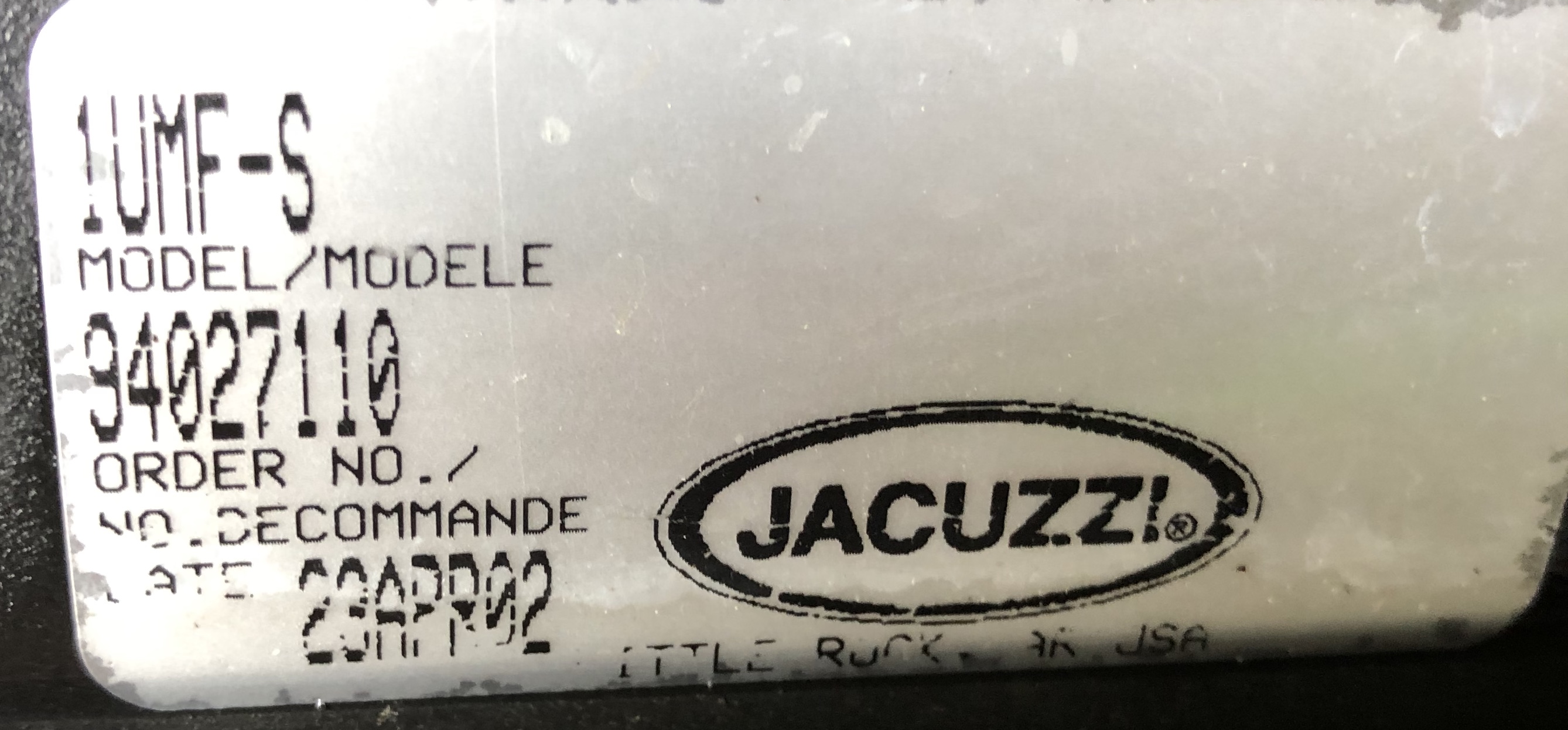

I have a old Jacuzzi 94027110 and I want to know if this motor will replace the one I have? If so is there any special wiring or anything else that will need to be done or can I just take the old motor off and put this one into the housing and wire it? I would rather not buy a whole new pump unless it is absolutely necessary.
Reply
Yes the UST1102 would be the replacement motor for your 1 HP Jacuzzi Magnum pump and there would be no different wiring required, we would suggest a Jacuzzi Magnum tune up kit when replacing your motor which includes a shaft seal, o-rings, gaskets and lubricant. Typically if you use your old shaft seal it will not mate up properly which will cause leaking.
Reply
I need to replace my Hayward 2 A.O. Smith pump motor. The model number is K48L2N104. This is a 1hp motor. Which replacement motor do you recommend? Are there a few I can choose from?
Reply
Hi Shane - Here is the Direct Replacement Motor for the K48L2N104 you would also have the option to upgraded to a Dual Speed Motor which typically saves you 50% on our operational costs over your current single speed motor. Here is the Dual Speed version of the K48L2N104.
Reply
I have a Hayward max-flo pump self priming M # C48K2N143B3 1hp looking to replace this motor is the UST1102 the motor for replacement. Ed.
Reply
Hello Eddie - That is the correct replacement motor. Make sure to get a new shaft seal as we. That is part number 5110-11 for the Hayward Max-flo. If you have a salt system, it would be seal number 5250-235.
Reply
Hello, I have a Hayward self priming pump model C48K2N143B1. Will the UST1102 motor serve as a replacement?
Reply
Hello Nicole - The UST1102 would serve as the correct replacement for your C48K2N143B1.
Reply
I need to replace my Hayward Super pump motor and the model number is C48K2N143B1. Is the UST1102 the correct replacement? I have a salt water pool system. Will I need anything else while replacing the motor?
Reply
Hello TuWanda - Model UST1102 is the correct replacement motor. We would recommend the saltwater tune up kit. The part number is GOKIT3SALT.
Reply
I have a Hayward Max Flo 1HP pump. Is the UST1102 the correct replacement motor for this model? And which tune up kit do I need for this? Thanks!
Reply
Yes, the UST1102 is the correct replacement for a 1HP Hayward Max Flo Pump. The proper tune-up kit is GOKIT1 for the Max Flo.
Reply

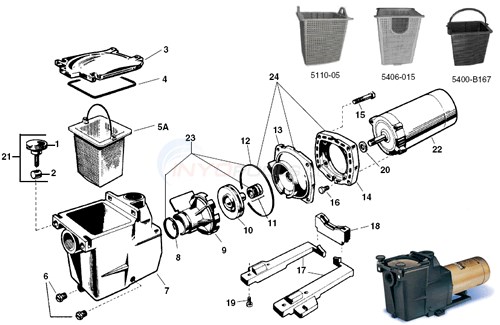

I'm replacing my Hayward Max Flo motor with your UST1102 and GOKIT1. Everything seems good, but in the on-line tutorial, it shows an impeller ring. I don't find an impeller ring. And I can't find a replacement on your site for my pump. Can I assume I don't need one??? Thanks!
Reply
Jeff, The Hayward MaxFlo pump does not have an impeller ring. You will simply need the motor and the tune up kit.
Reply

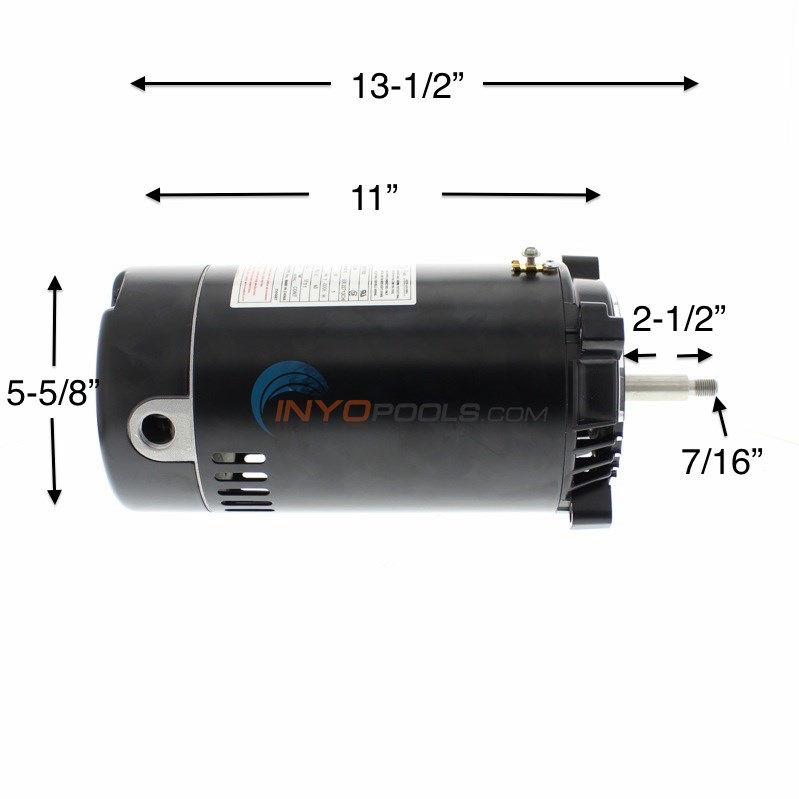

What are the dimensions of the UST1102?
Reply
Hello Mike - You can view all of the dimensions on our product dimensions image.
Reply
I have a Haywood pool pump (SP2807X10) that seems to be overheating and is causing it to turn off automatically. Is the UST1102 motor the correct replacement motor? Thanks, SJ
Reply
The UST1102 is the correct replacement motor for the Hayward Max-Flo SP2807X10.
Reply
How to remove impeller from motor?
Reply
Our "How to Replace a Pool Pump Impeller" guide will explain how to remove the impeller.
Reply
Will UST 1102 replace an st1102?
Reply
Both motors will mount up to your existing pump but are technically two different strength motors which may not be compatible with your filter and or other pump parts.
Reply
i have a haward super pump motor c48l2n134b1 hp 1 1/2, what would be an exact replacement, and seal kit? Also what would a more energy effic match be as well.
ty
Reply

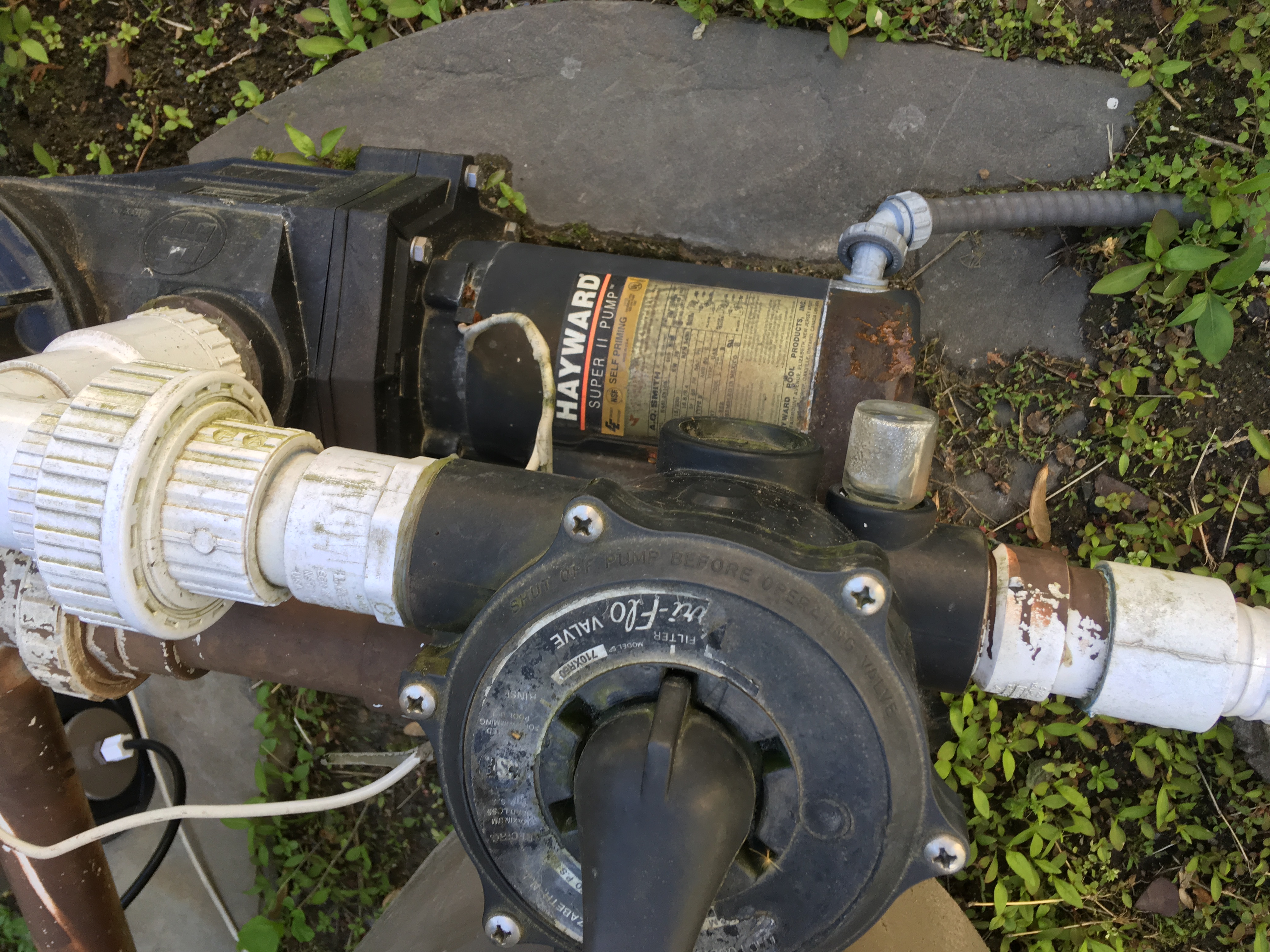

Is this the correct replacement motor for Hayward Super II model k48L2N105? If not, which one? Let me know if you need more specs. Thanks.
Reply
I need to replace an A.O. Smith self prime super pump 1/2 HP motor Model s48h2n122b1 in Central America. The motor is overheating and turning off. I am hoping to buy a new motor to bring down. My filter looks like it is rated for 40 GPM, do you have a 1/2 HP motor so I do not have to replace the filter right now?
Reply
Hi John, You would be able to go down to a smaller horserpower which would save you on operational costs. When reducing your motor size you will need to replace the impeller on your Hayward Super Pump. So if you wanted to go down to 1/2 HP you would require the Hayward 1/2 HP Motor and the Hayward 1/2 HP Impeller. We also always suggest the Hayward Super Pump Tune Up kit when replacing a motor.
Reply
Our Hayward Pool Motor is burned out. i'm looking to replace it.
Hayward Super Pump SP2607X10 (self Priming) A. O. Smith
Model: C48K2N143B1 SER: OH06 HP: 1
VOLTS: 115/230 RPM: 3450
QUESTION: If you can provide me the price and the same motor? and pls include what i need to replace on the pump? i.e. gasket, seal, motor mounting plate...
thank you in advance.
Reply
Lito, The replacement motor is UST1102 and you'll need a GoKit. Depending on how old the pump is, the other parts can be reused. If you have the pump apart you can send me photos of the parts and i can tell if you should replace them.
Reply
I have a Hayward Max-Flo Pump Self Priming Model # SP2807X10 with an AO Smith Motor Model # C48K2N143B3. I need to replace the motor. Could you please let me know which Motor is the correct replacement for it. I would like to replace it with another AO Smith motor. It is a 1 HP motor.
Reply
Hi Jeff, Yes the correct replacement A.O Smith motor is (ust1102) as well as the replacement shaft seal (spx1600z2)
Reply

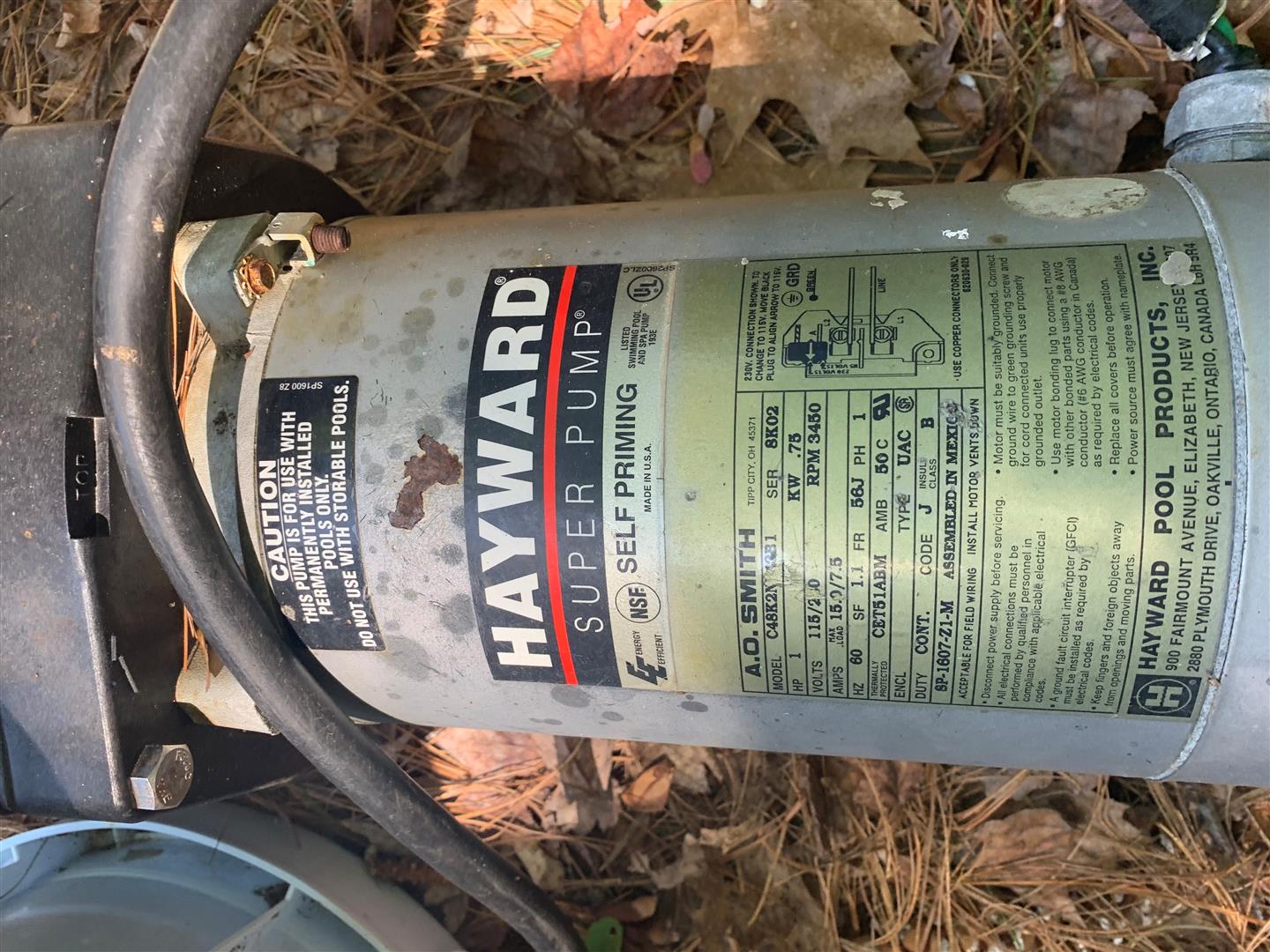

I have a Hayward super pump SP2607X10 with 1 hp motor that needs to be replaced. Please let me know all things I need. Thanks.
Reply
Danny, You'll need a GoKit for a Hayward Super Pump and if your impeller and diffuser are ok then you can reuse those parts.
Reply
im looking to only replace the motor on my pump model # c48k2n143b1 hp1 115/230 volts is this the right part?
Reply
KB, The UST1102 is the correct for for you motor with p/n C48K2N143B1. You'll also need to replace the shaft seal which is specific to your pump housing manufacturer and model.
Reply
Hi,

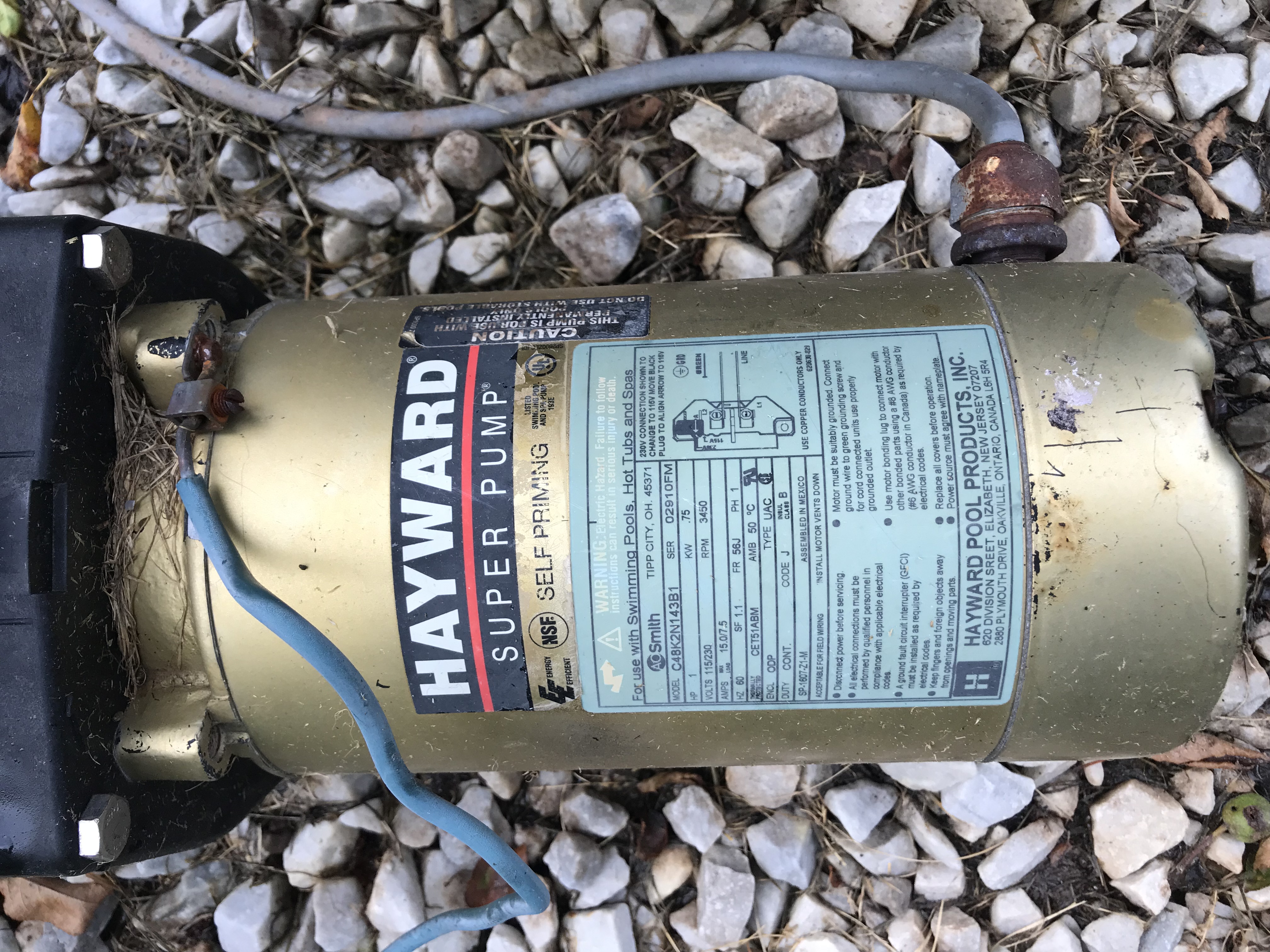

My pool pump/motor (C48K2N143B1 SER OLO4 - Hayward Super Pump Self-Priming) just "hums" when it is turned on through the pool control panel ... it was working fine when the pool was closed at the end of last season. Does this mean the the electric motor is shorted OR could this be an issue with the pump assembly?
I have a picture of the label on the pump if required.
Thank you.
Brian
Reply
Hello I would test the capaitor we do sell them as well if you need one please fill free to contact up
Reply
My old motor is a ST1102, model # C48L2N131A1, frame 56J, 1 HP, manuf. A O Smith. Is yourST1102 the correct replacement motor. Thanks
Reply
Hi Wade, the AO Smith ST1102 Motor would be the correct replacement. Please note the motor on this page is the UST1102 and would not be the correct replacement.
Reply
I am looking for a replacement motor for a.o. Smith cat b625 part 7-173840-23 type cs, for: n56cz, hp: 3/4, rpm: 3450, hz: 60 motor. Do you sell one?
Reply
Michelle, Based on the information you provided you need a replacement motor for a Polaris Booster Pump.
Reply

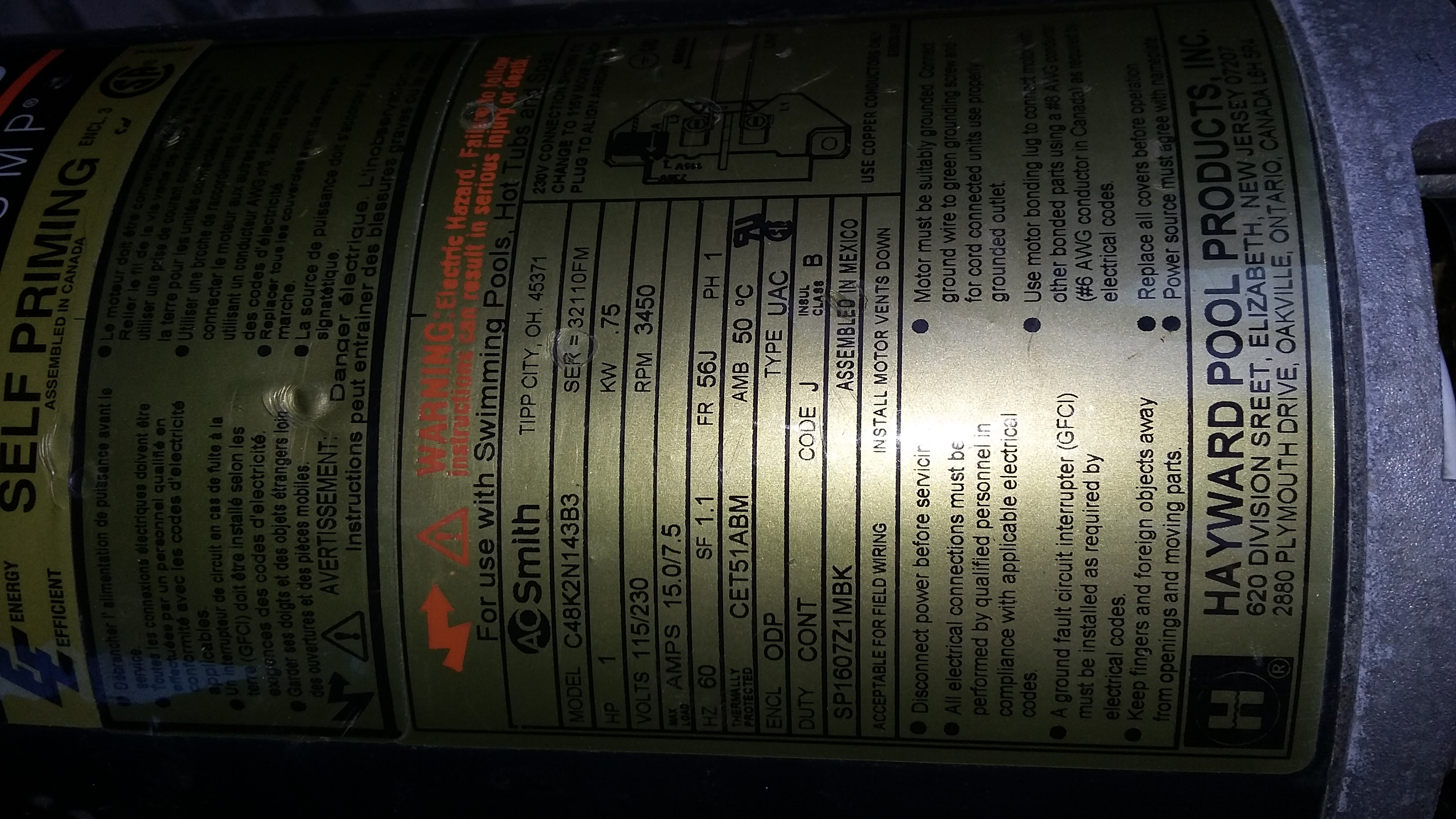

I have a Hayward max-flo pump self priming M # C48K2N143B3 1hp looking to replace the strainer cover gasket, do you have it?
Reply
Hi Carlos here is the Strainer Cover Gasket for The Hayward Max-Flo and here is the Exploded Parts Diagram for The Hayward Max-Flo.
Reply
I'm looking for a replacement motor for my Hayward super pump 2 self priming 1hp for inground pool. Is this the right one?
Reply
Hi Courtney, If you could double check the service factor (S.F.) on your motor label if it reads 1.1 then this is the correct motor for you. If the S.F. reads 1.5 then you would require The 1 HP Full Rate ST1102 Super II Replacement Motor. When replacing either motor I would suggest a Hayward Super II Tune Up Kit.
Reply
I have a Hayward Pump Model SP2805X7, with a 3/4 HP motor model C48J2N131B3 that burned out. My filter is a Hayward C-500. Can I replace the motor with the UST1102? If so, what other parts should I replace?
Reply
Tim, Base on the flow rate of your Hayward C500 Filter, increasing the HP of your pump from 3/4hp to 1hp will not be a good for that filter.
Reply

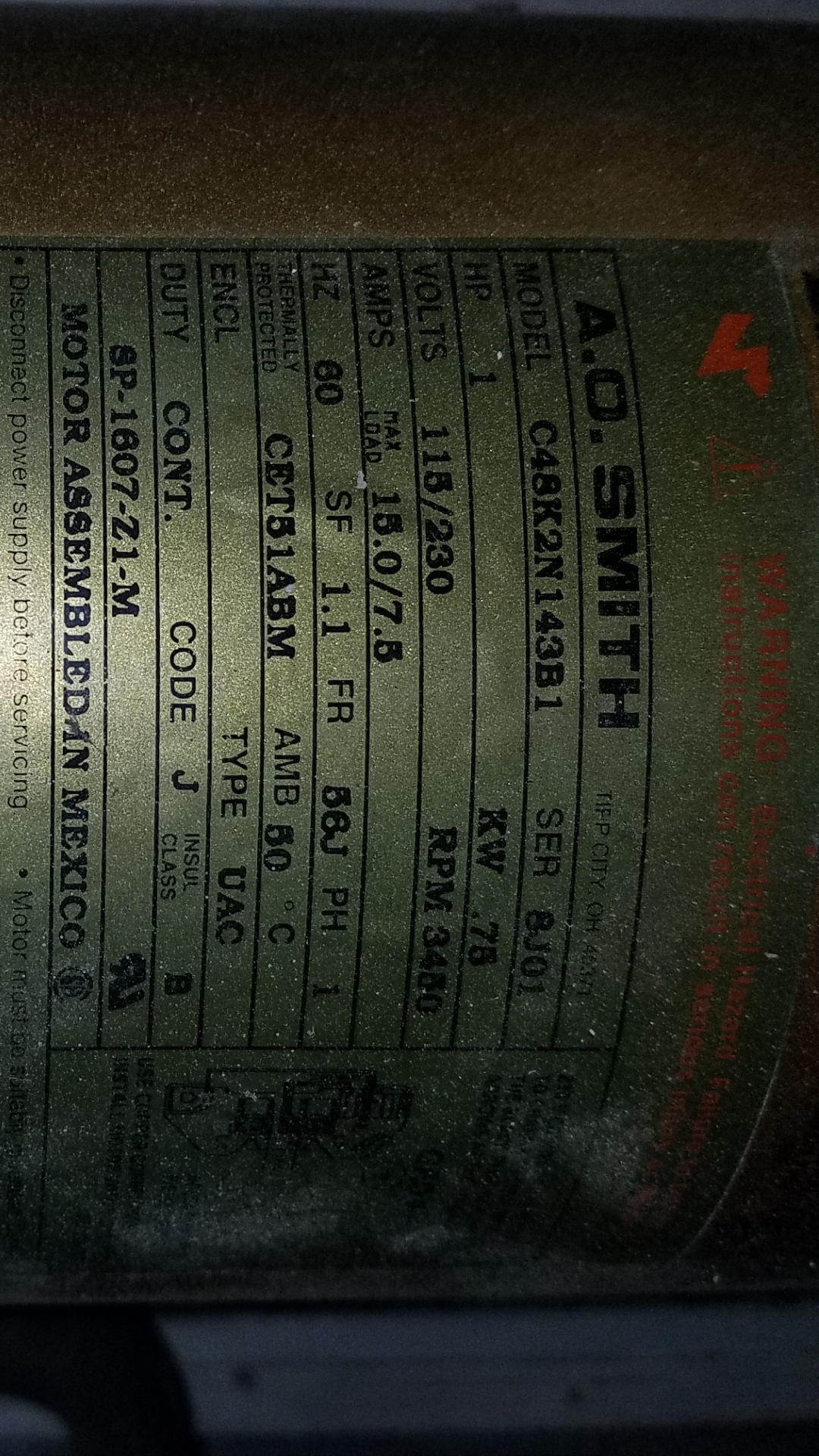

I need to replace a hayward SP-1607-Z1-M model #C4K2N143 self priming super pump. Is this the correct one?
Reply
Hi Lou, Yes this would be the correct replacement motor for your hayward SP-1607-Z1-M model #C4K2N143.
Reply
my old Hayward pump needs replacement. Pump Tag shows Hayward SP3107X10BH, the motor label shows AOSmith C48K2N143B3
Ser 8C00 1 HP 115/230 VRPM 3450 Fr 56J
looks like your company has all I need so, please let me know what is the replacement model for my motor and also all Hayward parts ( diffuser, impeller, seals, gaskets etc) needed to make exact nd complete pump to fit the existing housing. Thank you
janusz
Reply
This would be the correct replacement motor for your Hayward SP3107X10BH pump. This would be the Hayward Tune Up Kit you will need when replacing your motor, the motor and tune up kit should be all you need.
Reply
Is this the correct replacement pump for A.O.Smith, Model C48K2N143B1, SER 8G04, HP 1, KW .75, Volts 115/230, RPM 3450, AMPS 15.0/7.5, HZ 60, SF 1.1, FR 56J, PH 1, Thermally CET51ABM, AMB 50 C, Type UAC, Duty Cont, Code J, Insul Class B. I have an inground, Salt Water pool.
Reply
Hi Kimberly, Yes this would be the correct replacement motor for your C48K2N143B1 motor.
Reply
need replacement motor for hayward maxflo pump. current model is a o smith 1 hp b228se 56 j frame
Reply
The correct replacement motor you'll need is 1 Hp 56J Up Rated (B228SE), which is a direct replacement to the one you have.
Reply
I need a replacement motor for Hayward super pump. SP1607Z1M, 1HP model c48k2n143b1. Also what is the salt water tune up kit? I have a salt pool and only got 2 seasons out of the bearings in the original.
Reply
Hi Randy, This is the correct replacement motor for your SP1607Z1M, 1HP model c48k2n143b1. You would also need the Hayward Super Pump Salt Tune Up Kit.
Reply
I have a Hayward Max Flo HP 3/4 round flange can I replace it with a 1HP? and what seal and gasket will I need so I can purchase all at the same time.
Reply
Hi Rosa you could replace your 3/4 HP with a 1 HP motor, but you also need to upgrade your impeller to a 1 HP Maxflo Impeller. You will also need a Hayward Max Flo Tune Up Kit.
Reply
I have a 22.5 gal inground that has always had a 1 hp motor, i need to replace the motor on my hayward super pump. there is no model number other than the really long one,C48K2N143B1, and i want to get the correct motor. should I up the hp to 1 1/2? if so what else would I have to replace as Im replacing the motor? also, should i replace the gasket? and is that hard to do?
Reply
Marianne, Based on the model number, the UST1102 would be the correct replacement motor. I would also recommend a tune up kit.
Reply
I have a 1hp gold super pump on a in ground pool sounds like the bearings are going out making a loud noise. what is the replacement motor
Reply
Hello Jerry, for a standard Hayward Super Pump 1 Horsepower the motor replacement is the UST1102. Also remember, the shaft seal should be replaced along with the new motor. The shaft seal can be purchased in the GOKIT3 for the Super Pump; which includes the Shaft Seal, lid o-ring, diffuser o-ring and housing o-ring.
Reply
What is the diameter of the motor casing? I have a SP2607X10 pump and two different stores have tried to sell me a motor that is larger than the one I'm replacing insisting that it is the correct replacement. The problem is I can't get the faces to meet without modifying the pump.
Reply
Hello, The motor is approx. 5 5/8" in diameter.
Reply
On my old (century) motor the frame is a m565 cat-b654 serial #bs3-167 type cx will this motor fit?
Reply
We would suggest going with the exact same motor you currently have which is the B654 Replacement Motor.
Reply

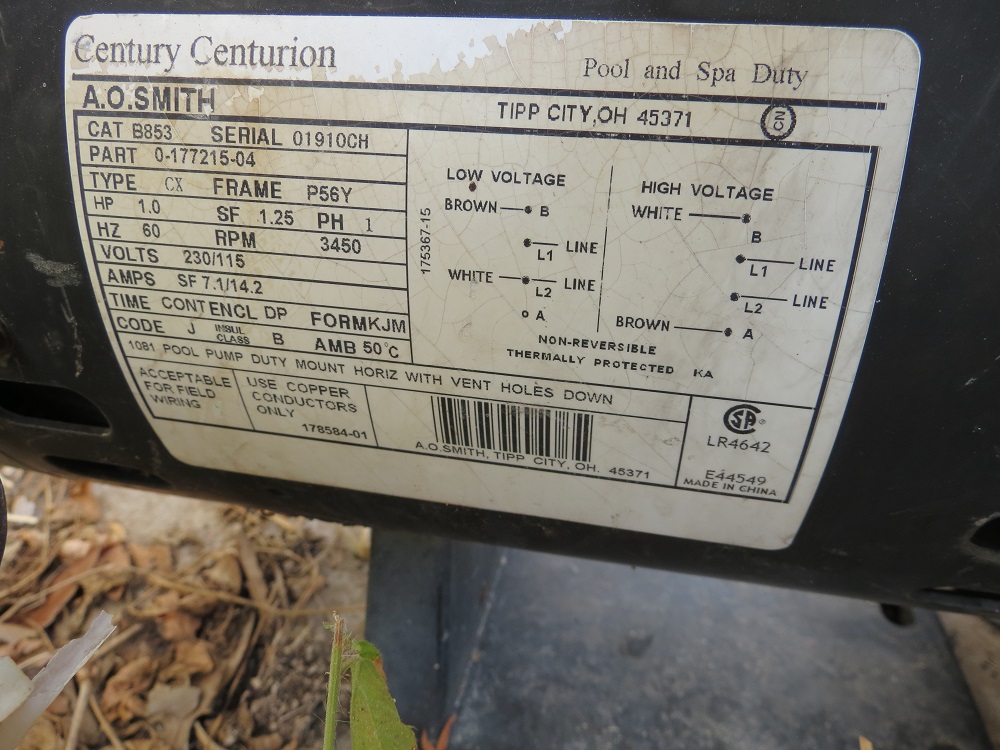

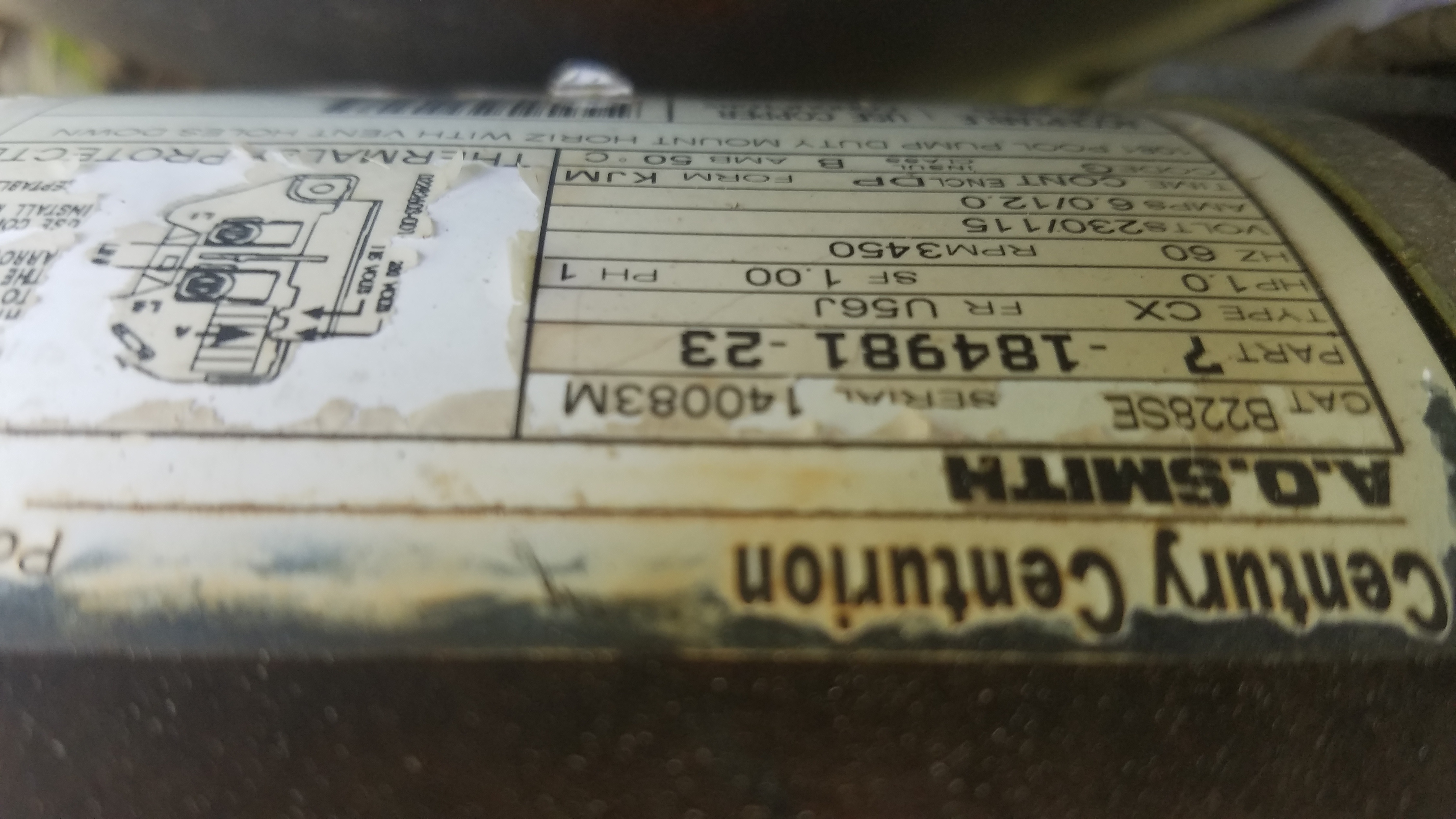

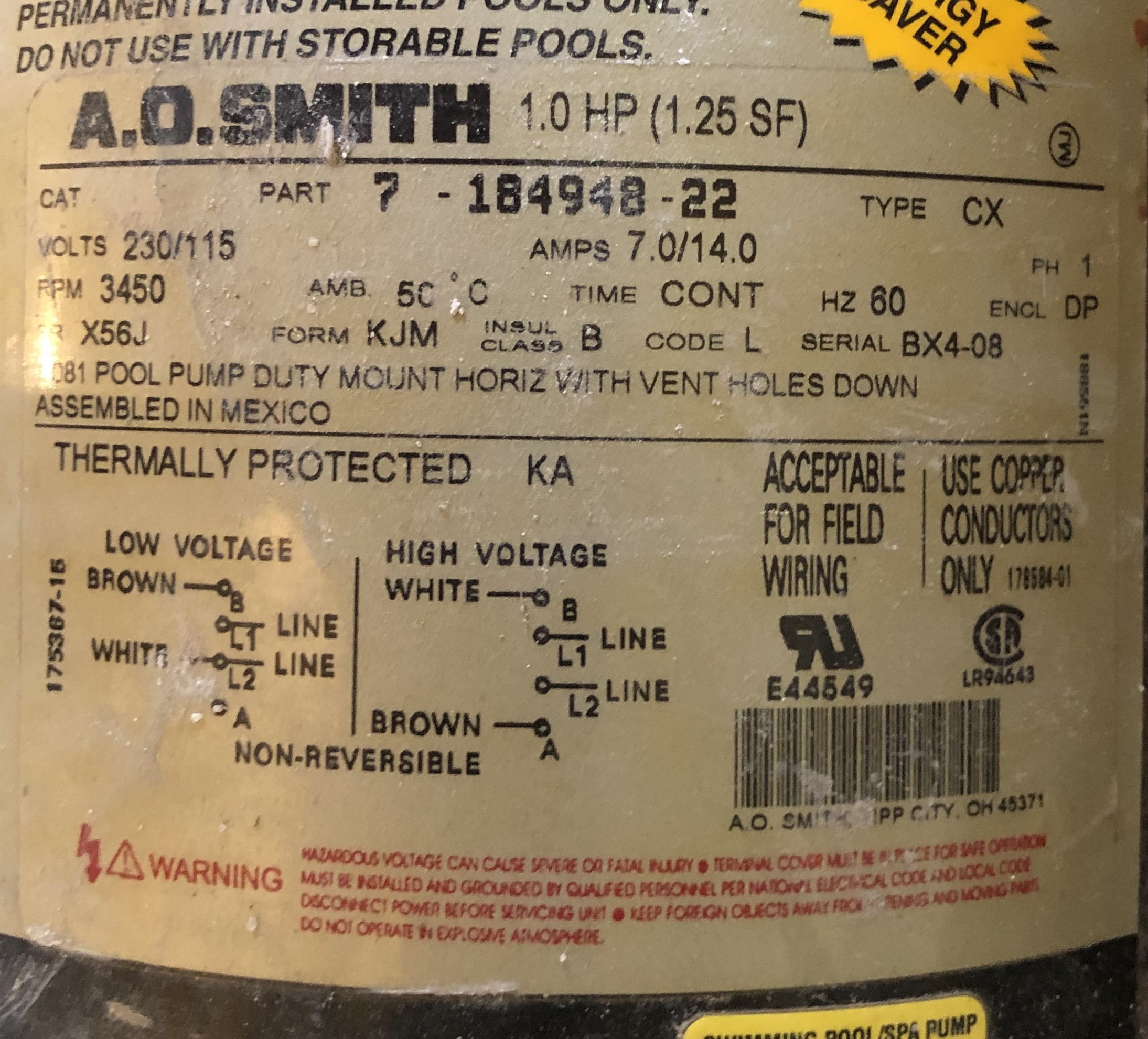

We currently have a B228SE SERIAL 2211 OCH FRAME U 56 J TYPE CX H.P. = 1.0 WITH A 1.0 S.F. , RPM 3450 VOLTS 230 / 115 AMPS 6.0 / 12.0 CODE - G
A/O SMITH CENTURION 1081 POOL PUMP DUTY ......My pump fit on housing of motor is 4.50 inch diameter ( rabbit fit ) Is the UST 1102 a direct replace ? the photo appears to be same ; but want to be sure
Reply
Hi Mike, The UST1102 and the B228SE are very similar motors and you would probably be fine with the UST1102, however we do carry the B228SE Replacement Motor and I would suggest this motor as it is the exact same motor as what your currently have.
Reply
I have a 20'x40' inground pool with a 11/2 h.p.hayward super pump, Can I replace this with a 1 h.p. super pump?? Thank's Rick
Reply
Hello Rick, With the sizing of your pool you would not want to go any smaller than 1 1/2 hp. If anything your pool would be more efficient with a 2 hp pump.
Reply

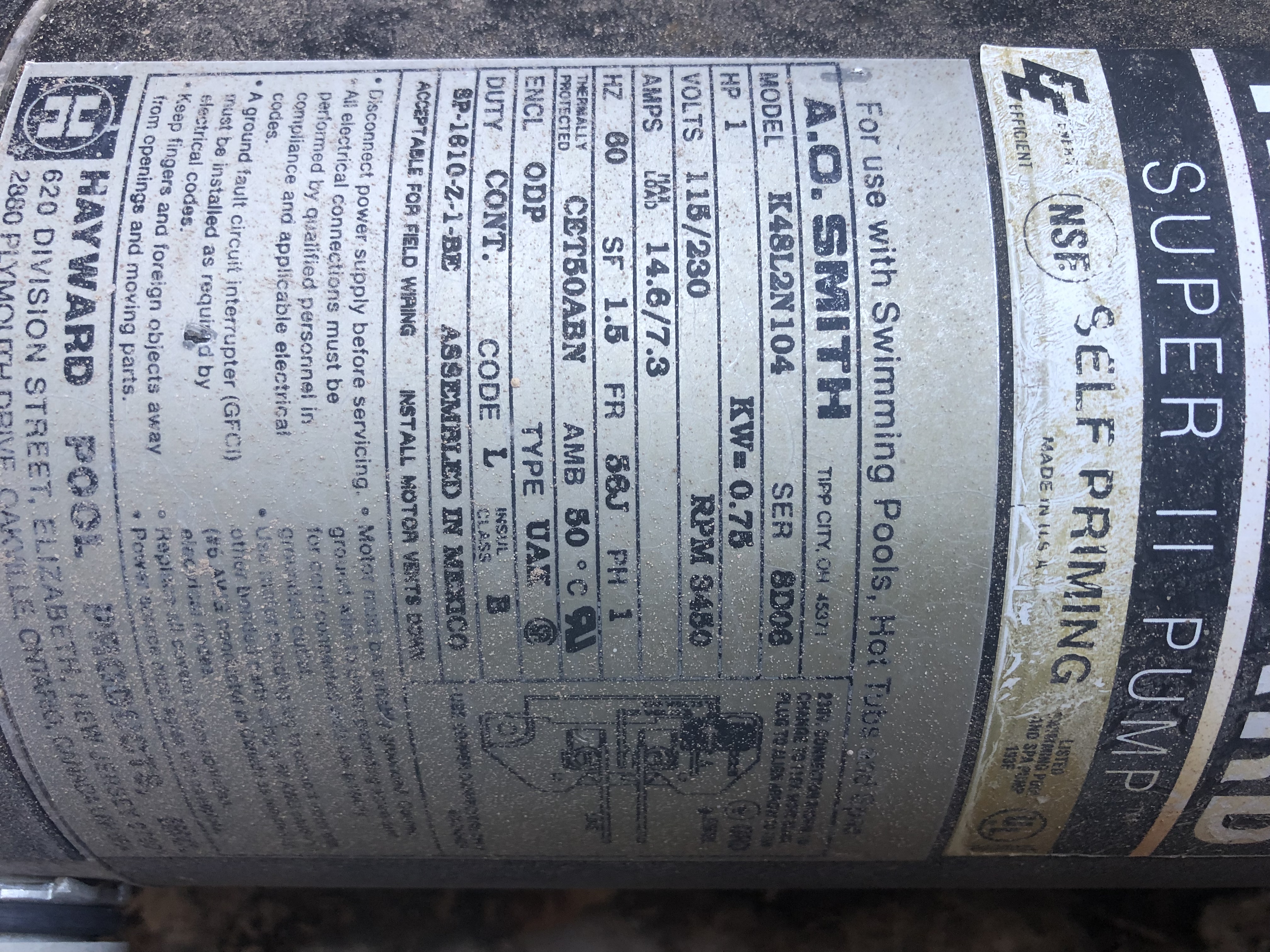

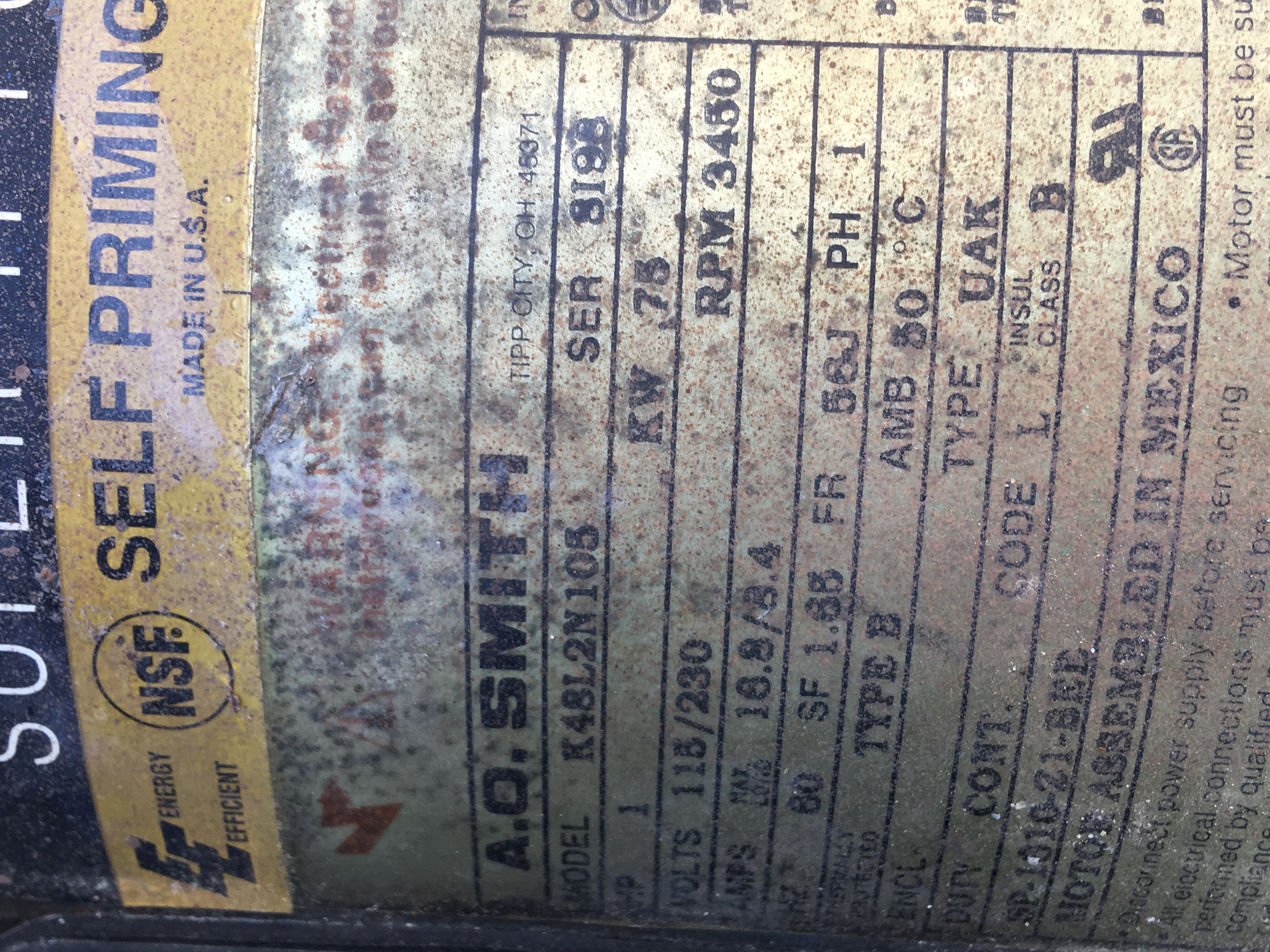

I have a series 6002, 1 hp a.0. Smith motor- model # k48L2n104. Will this motor work on my HAYWOOD SUPER PUMP.
Reply
Hi Kathy, Yes the UST1102 would be the correct replacement motor for the 1HP Hayward Super Pump.
Reply

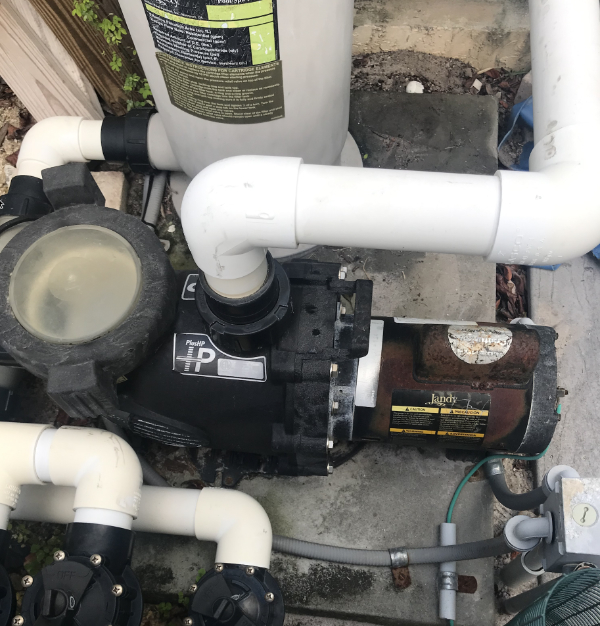

Need a replacement motor for a Jandy jhp1.0 pump, the motor is a 1hp, with a 56j frame. Is there additional info needed, or does 1hp and 56j define the motor?
Reply
Tom, The replacement motor for your Jandy JHP1.0 Pump would be the 1hp 56J Thrd Full Rated Motor (B128). I would also recommend getting the Jandy JHP + JHPU Pump Series Tune Up Kit (GOKIT77).
Reply
I have to replace a Pump motor for a Hayward SP1607Z1M. Looks like this motor will work, but should i upsize to a 1 1/2 HP motor and would it work with the Hayward Super Pump? My pool is about 28,000 gallons. Thanks.
Reply
Hi Steve. With your size pool I would definitely recommend going to a 1 1/2 HP uprated motor - UST1152. You would also have to replace your pump's impeller to the next size up: Hayward Impeller, Sp 2610-c. Also check to make sure your current filter is compatible with the new pump for water flow.Should be able to handle ~60 to 80 GPM
Reply
I have a Hayward pool pump with an A.O. Smith 1 hp motor Century Centurion motor serial # 168083M cat sn1102. What would be the replace motor for that unit? Thanks
Reply
The replacement motor is the sn1102.
Reply

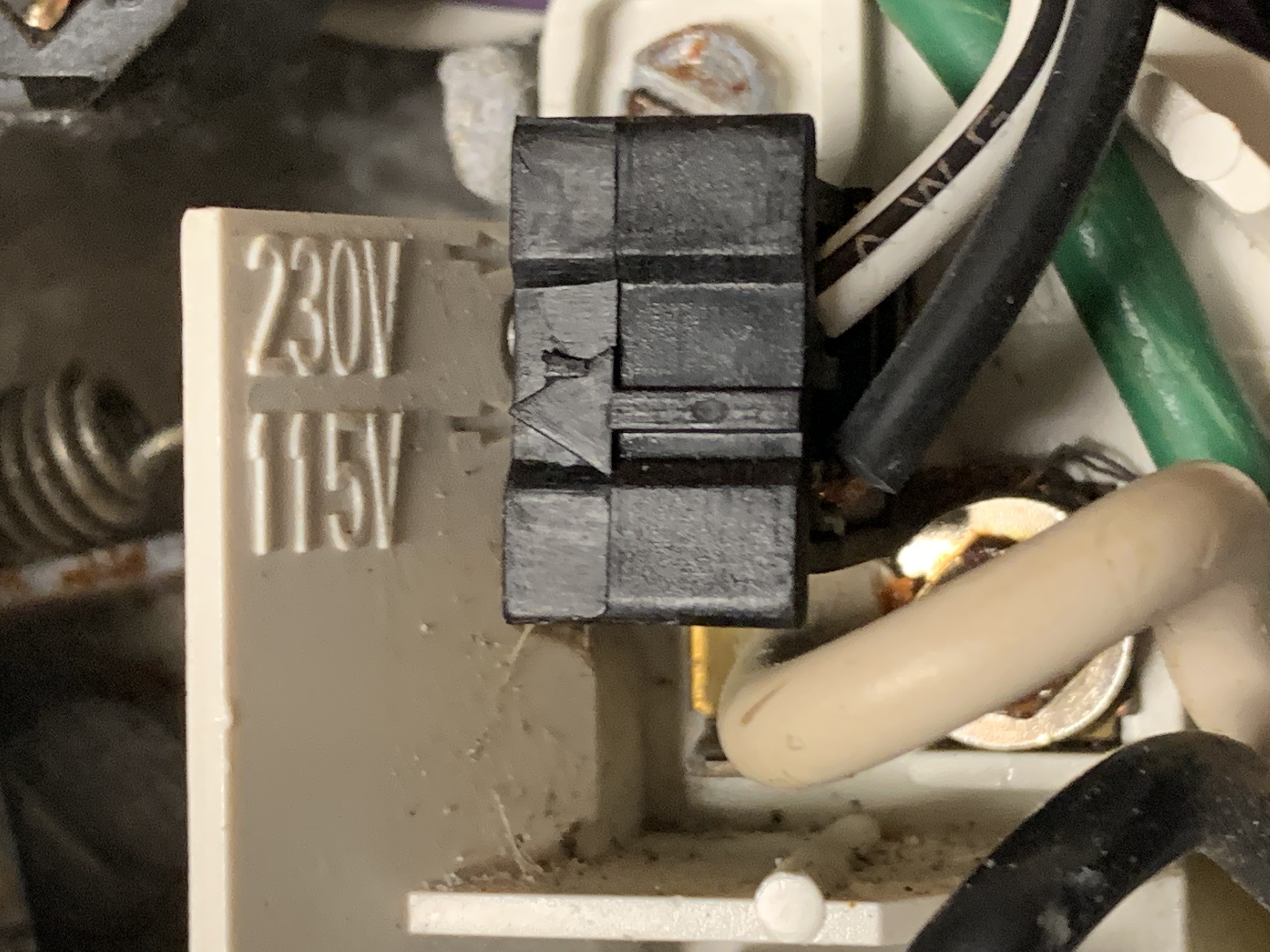

I just purchased this pump and installed it...my voltage is 120 but when I put the selector switch on the 115 option the motor doesn't do anything except hum...when I put it on the 230 option it runs seemly fine..should I return the pump or is it safe to run in the 230 v mode
Reply
Please double check the voltage running to the motor and adjust the setting accordingly. Also make sure all wiring to the motor is corrrect. I'd advise having a licensed electrician or pool contractor confirm this. If all looks correct at this point then I would look into a return or warranty.
Reply

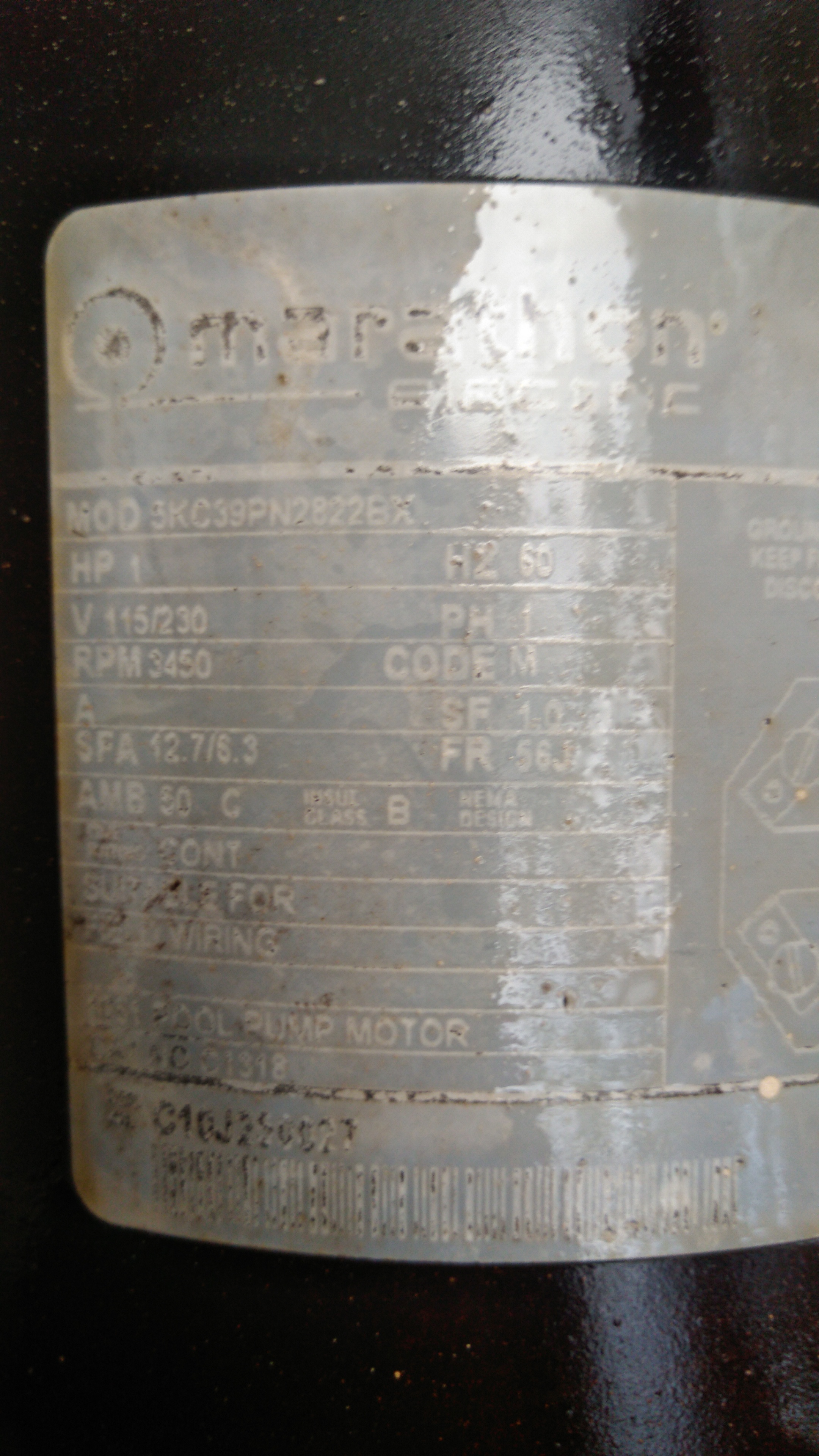

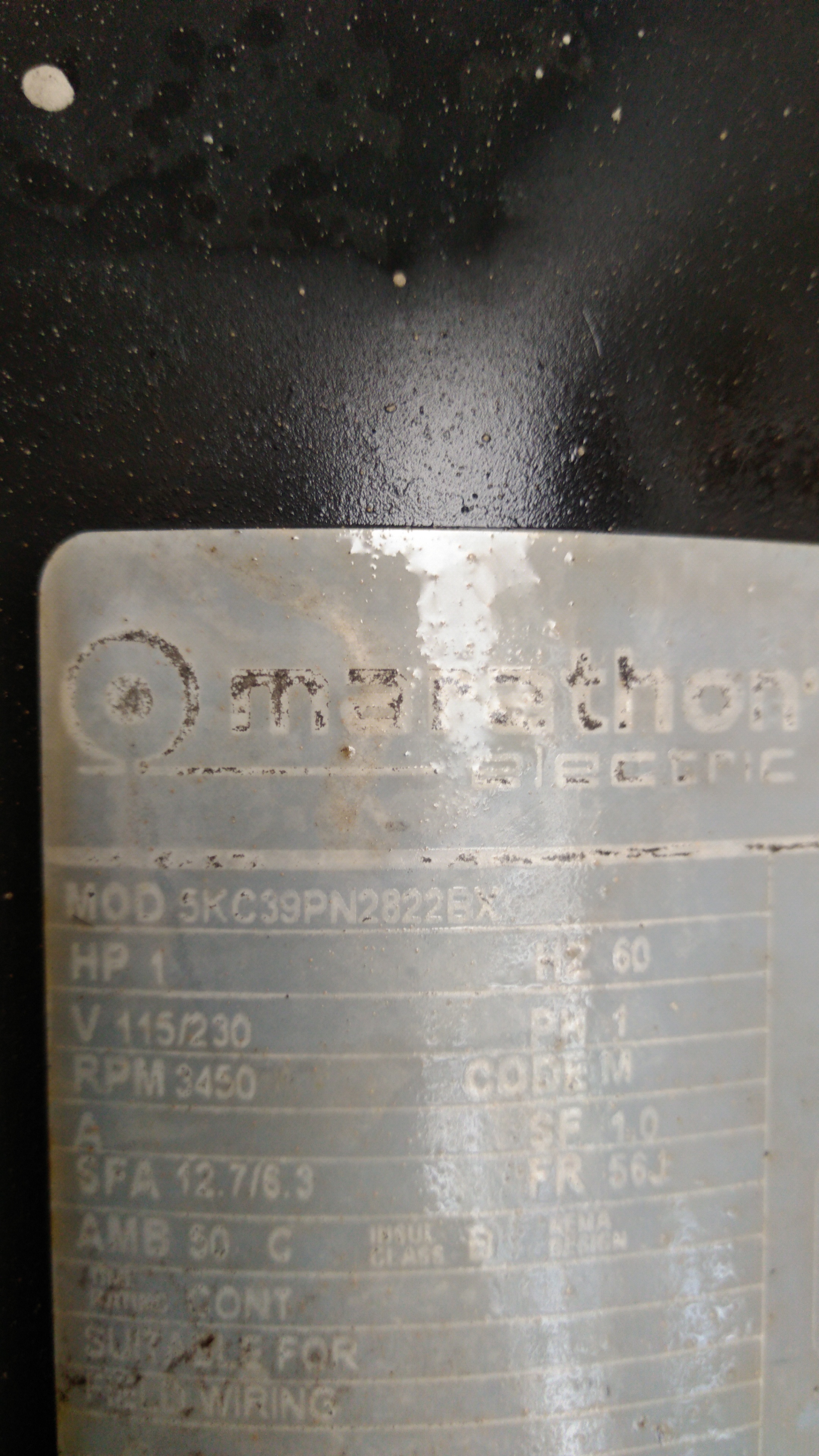

I saw you said this was the replacement for a marathon c1318. Would the capacitor from this ust1102 fit the c1318 or can you tell me where I might find the capacitor for the c1318?
Reply
Hi Chad, The Capacitor for the UST1102 is the 161-193 MFD 110-125 VAC Start Capaciotor (BC-161), I'm not 100% sure if they uses the same capacitor. You can compare the numbers to be sure.
Reply
We just purchased a property with pool, the pump motor is C48L2N1-34C2. The pool has not been used in 3 years. Power is applied to the pump but it doesn't run - no hum, etc. What should I check?
Reply
Hi Bill, just a note first: If your motor is labeled C48L2N1-34C2, that is a full rated ST1102 motor instead of an uprated UST1102 about 1/2 HP difference. Now on your dead motor. Using a meter, check that you actualyl have power to the terminal of the motor and that it is the same voltage as how the motor is configured, 115V or 230V. Also check that the connection are tight. Then take the basket out and see if the impeller moves freely. If no, the bearing on the motor are probably shot. If impeller movers freely, check the start capacitor at the electrical end of the motor. See our guides under "pool pumps" for detailed instructions on any of these procedures.
Reply
What is the flow rate for the A.O. Smith 1hp motor? I am trying to figure out how long to run the pump to filter the pool. The pool size is 18x36; deep end is 8.5ft. And the filter is a Hayward C4030.
Thanks
Reply
Hi David, The flow rate will be determine on the Feet of Head of your pool. You can calculate your Feet of Head by following Step 7 of How to Size a Pool Pump for Your In-Ground Pool.
Reply
I have a sta-rite pump for sand system. Motor died but rest of pump is fine. Will this motor replace the sta-rite JWPA5EL-2A2 pump motor?
Reply
Hi Randy, for the sta-rite JWPA5EL-2A2 pump you would need the BN25 Motor and the Sta Rite JWPA Shaft Seal.
Reply
i have a hayward sp3007eeaz , is the motor replacement the ust 1102 it also has c48kn143c1c on it, the sticker on it says ust 1102
Reply
Hi Pete, The UST1102 is the Up-Rated replacement motor to the original 3/4 HP Full Rated motor that originally came with the Hayward SP3007EEAZ model. So the UST1102 will work, would also recommend getting a Hayward Super II Pump Tune Up Kit (GOKIT2).
Reply
I have a Max Flo 1HP motor # SP1607Z1M Its starting to hum, i'm going to replace it but I would like to up grade to a 1-1/2 motor for more water flo, is it possible. Also, your products are Great... I just replaced a motor and other parts for a freind that I purchesed through your company, and it works great.
Reply
Brian, The 1.5 HP replacement would be the UST1152. You will also need the 1.5HP MaxFlo impeller and tune up kit.
Reply
I have a 30,000 gallon pool and I currently have a Hayward Super Pump (Model: C48K2N143B1). Just seems to be making a whining noise and does not seem to have the power required to run the pool anymore. Should I replace with the UST1102? Or a different model. I have read that my pool may be a bit large for this pump and it may not run efficiently. If not the UST1102 which pump do you recommend?
Reply
I have a c48K2N143B1 1 hp motor wired to run with 240v. The cap is no good and I am going to replace it but the existing one is rated for 125v. 161-193MFD. Should I be using the same type or use a 240v rated one.
Reply
I have a ao smith ast1102 motor and it says on line to replace the seal. Can you tell which seal I need?
Reply
In order to locate the correct seals and gaskets we would need the model of the front plastic pump housing that the motor is mounted to for cross referencing.
Reply
have a c48k2n143b1 motor that hums and no water flow. good voltage going in. what is a replacement motor and what seals will I need for when i replace the motor. if I could get stock numbers for both so I am positive I have the right things.
Reply
The UST1102 is the correct motor replacement for you. We would need the model of the front pump housing that the motor is mounted to in order to cross reference the correct seal kit for you.
Reply

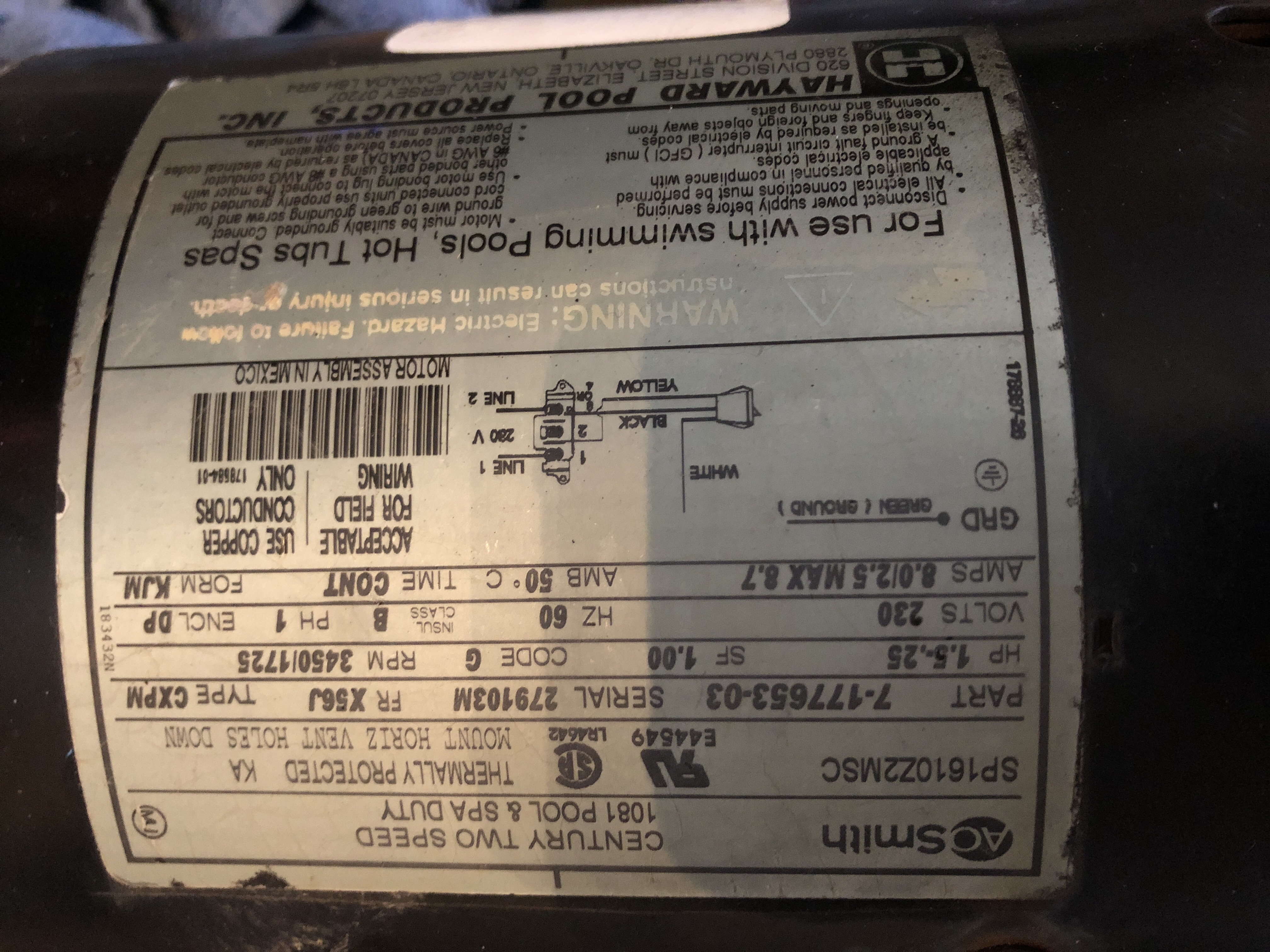

I have Hayward pump SP2607X10, CURRENTLY had an Emerson motor 1081 1.5hp on it with the square, what do I need to purchase
thanks
Reply
Wanda, The SP2607X10 uses a round flange motor. You will need to remove the square motor mounting bracket from the old motor to install it on the new motor. You will need the UST1102 motor. I would also recommend the GOKIT3 Hayward Super Pump tune up kit.
Reply
I have a AO Smith 1 HP UST1102 and need to change the motor bearings. I think the shaft end requires a 304 bearing but I think the other end has a different size bearing (203 ??). Is that correct? Is there a pump seal that would need to be replaced if I just want to replace the motor bearings? My pump is Jacuzzi Magnum Force.
Reply
Hi Joe, The A.O. Smith 1 HP Round Flange Up Rate Motor (UST1102) requires (2) 203 Bearings (62032RS). We also have How To Replace the Bearings in a Pool Pump Motor - Part I & How To Replace the Bearings in a Pool Pump Motor - Part II to assist you with replacing the bearings in your motor.
Reply
Will this motor fit my SP3010EEAZ pump. The current motor is a K48L2N104.
Reply
Tony, While the motor will fit, you will need to change the impeller since the total HP does not match what you have now. The motor also runs at higher amps which means that it will cost more to run this motor.
Reply
I have a C48K2n143B1 motor that is blown and need a replacement motor. I also need the gaskets for the pump housing, which is model SP2607X10. Can you let me know what the part numbers are for the motor and the gaskets. Is there anything else that needs to be replaced when I replace the motor.
Reply
The UST1102 is the correct replacement motor and the 2 option seal kits that you can use are GOKIT3 and GOKIT3SALT if you have a salt water swimming pool.
Reply
Can I replace a 1.5 HP motor on Hayward Super II with this 1 HP?
Reply
Hi Linda, You could replace your motor with a 1 HP motor but you will need to change your impeller to a 1 HP Hayward Super II Impeller. If you stayed with your current 1.5 HP impeller then it would overwork the 1 HP motor and cause the motor fail prematurely.
Reply
What is the cost of the replacement "green version" of the Smith 1 HP Round?
Reply
Hi Kurt, there are 3 versions of this motor which are more energy-efficient than the UST1102 motor. In order of energy efficiency they would be the UCT1102 Single Speed Energy Efficient Motor, The 2-Green Dual Speed Motor and the most efficient is the VGreen Variable Speed Replacement Motor. Here is an article on helping you to decide if a Variable Speed or Dual Speed Motor is Right for You, this article should be helpful in determing which is best for your needs.
Reply
this model motor was already a replacement on Hayward pump sp3007x10a2bh for salt system. was this the correct replacement the first time and should i get it again? It would be the 3rd motor in about 10 year span.
Reply
Hi Chuck, The A.O. Smith 1 HP Round Flange Up Rate Motor (UST1102) would be the correct replacement motor. I would also recommend getting the Hayward Super II Pump Saltwater Tune Up Kit.
Reply
I have a Hayward Max Flo pump SP2807x10 on a salt pool. Original Hayward motor lasted 5 years but was replaced last year with AO Smith UST-1102. All seals were replaced. No leaks, no problems until it simply quit working. Hums but never starts. Start capacitor is good, impeller moves freely. I'm ready to replace the motor but am concerned that the last UST-1102 lasted only 1 year. Pumps only run 4 hours/day, so why only 1 yr? What seal kit do I need if I replace with another UST-1102 motor?
Reply
Hi Linda, You will need the Hayward MaxFlo Saltwater Tune Up Kit with the UST1102 motor.
Reply

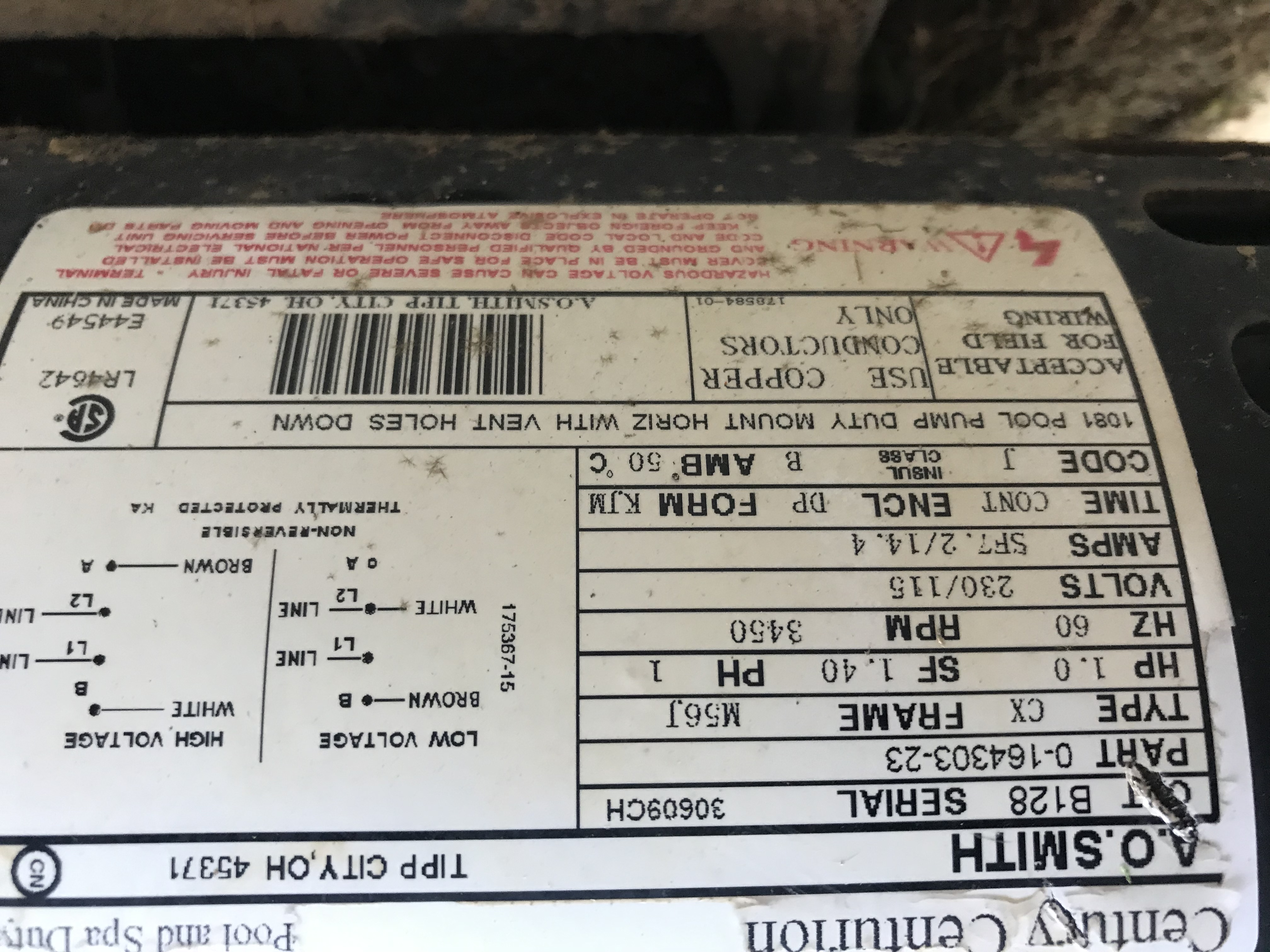

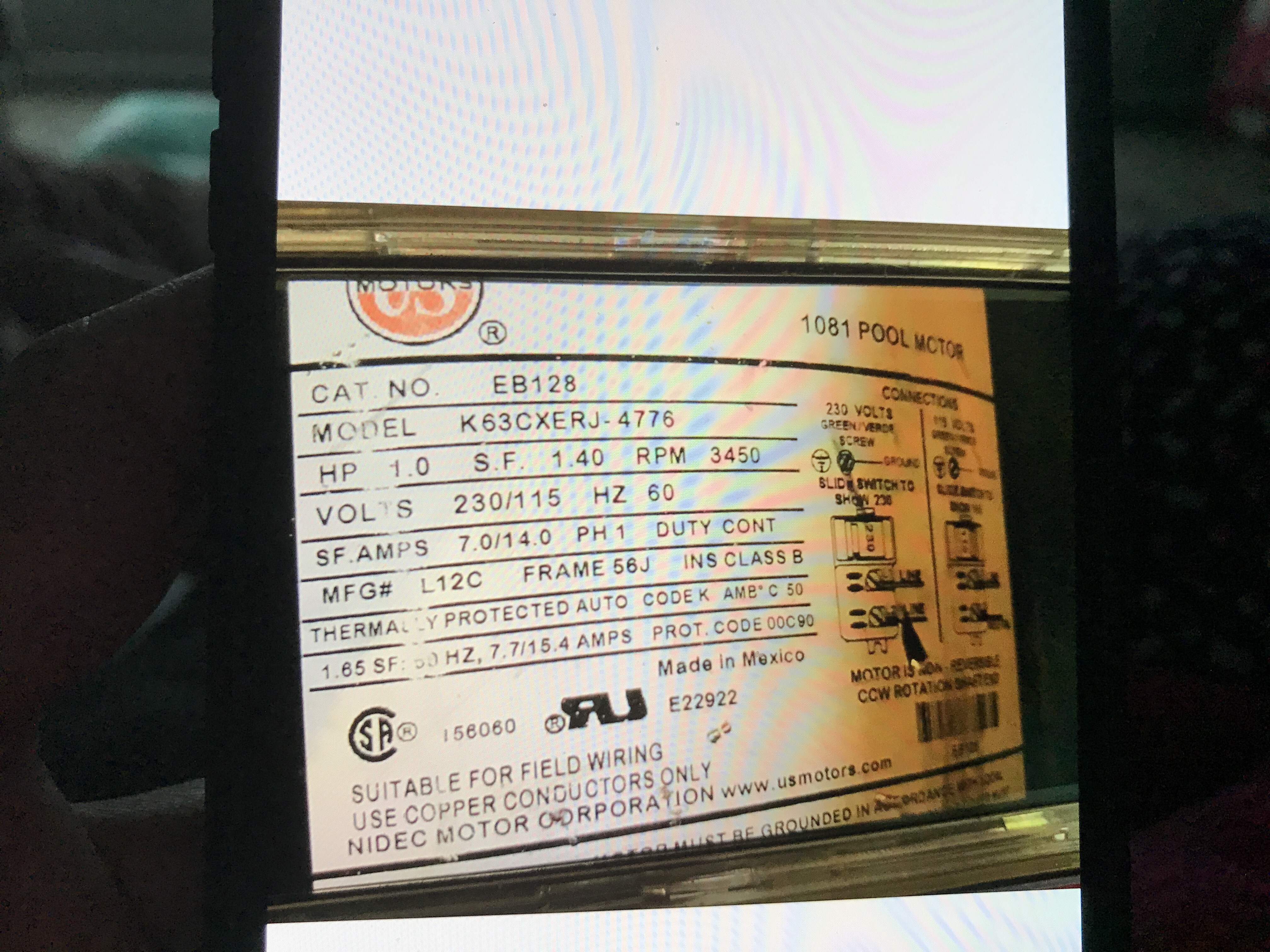

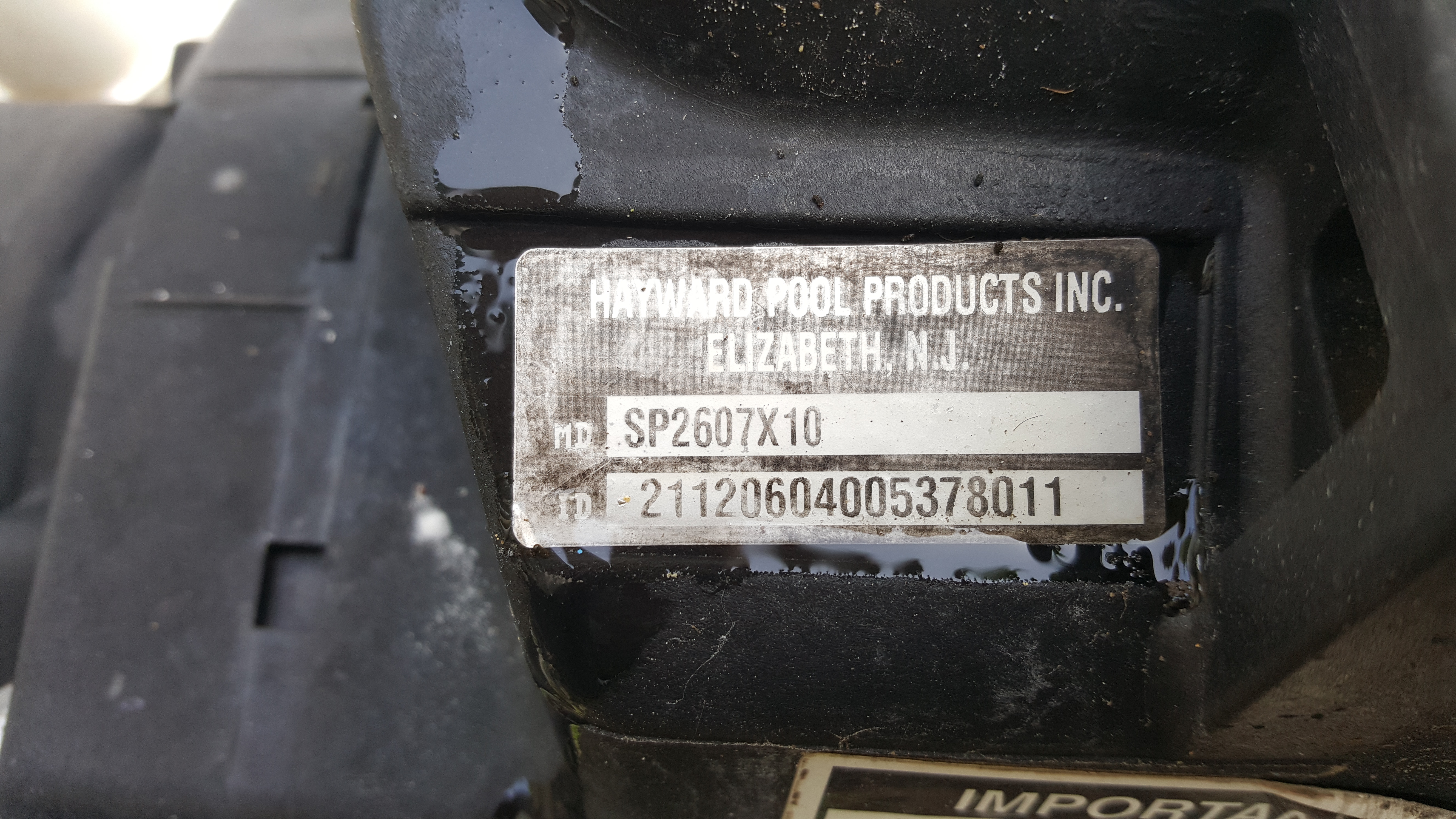

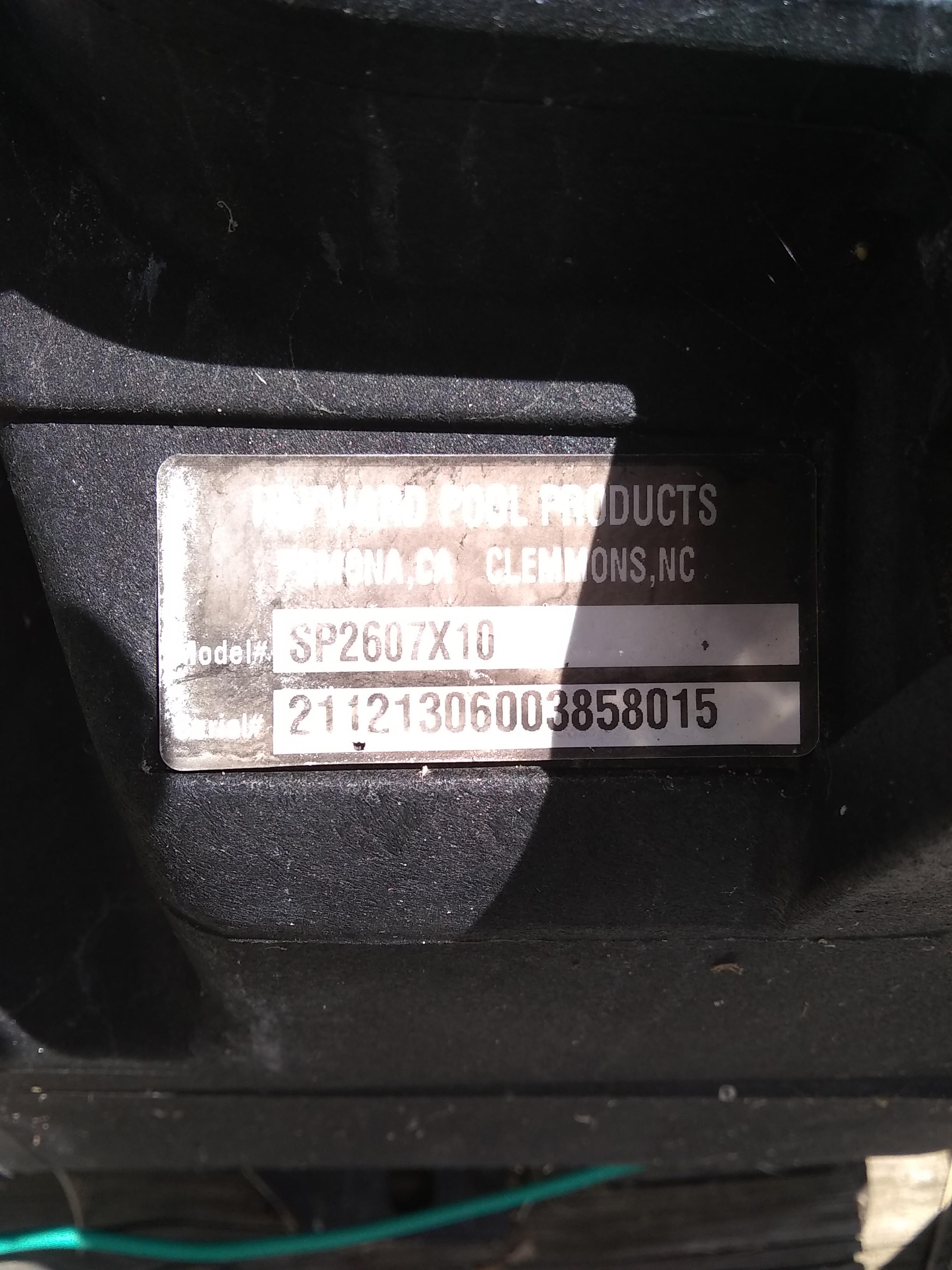

I have a Hayward super pump model sp2607x10 with a.o smith b128 motor. It is making a loud whining noise. If I replace it would this be the correct model and is this a new or refurbished motor?
Reply
Yes the UST1102 would be the correct motor replacement as long as the motor that you are replacing is the original gold Hayward motor. The impeller and diffuser need to be the originals as well. The B128 was not the original model for this pump. These motors are brand new.
Reply
I would like to order a replacement pump motor and gasket/seal kit for my 1HP superpump model SP-1607-Z1-M (An A.O Smith sounds like it is the best one to get?)
Can you please tell me what exactly I need to order and if you have them in stock, so when could I anticipate receiving if I ordered today
Thanks
Reply
This UST1102 is the correct replacement motor and the seal kit for the Super Pump is gokit3 or gokit3salt for salt pools. The general lead time for motor orders is 1-7 business days in the continental U.S.
Reply
Does the sp 2607X10 require a impeller wear ring?
Reply
Andy- The SP2607x10 Hayward Super Pump 1 HP Single Speed does not need a wear ring for the impeller.
Reply
I am replacing a Hayward Super Pump 1hp motor C48K2N143. I was told that the UST1102 would work. Do I need anything else when I change the motor when
purchasing it?
Reply
The only other item that would be highly recommended to replace would be the shaft seal ( 5110-11 ) As to the other o-rings in the system, it is up to the age of the whole pump. If it is a couple of years old, I would not worry about it. If it is older than 5, there is a kit that contains all the o-rings and the shaft seal - it is a GOKIT3. Other than those, just inspect the impeller and difusser for any wear and tear.
Reply

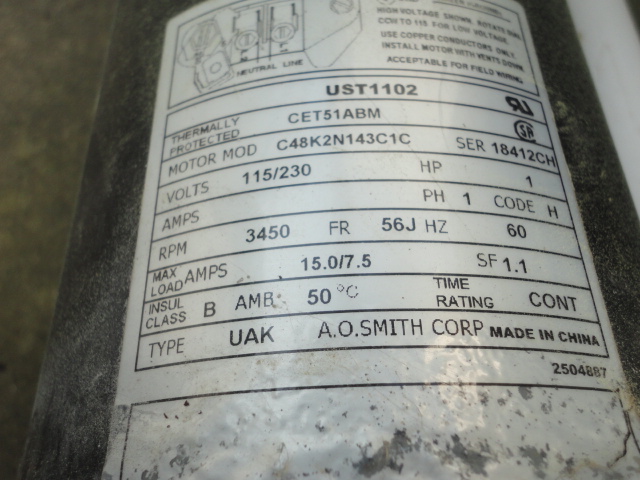

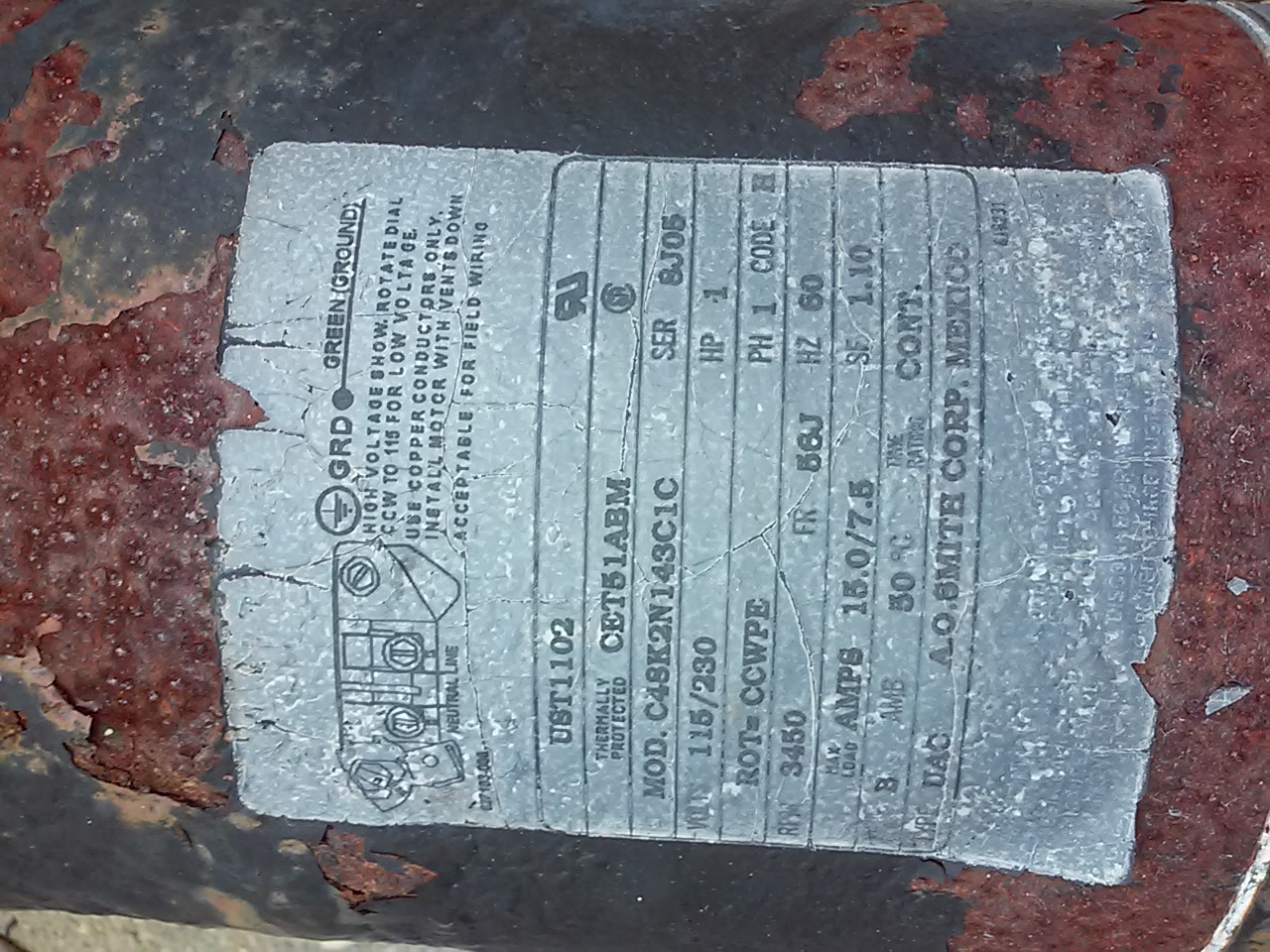

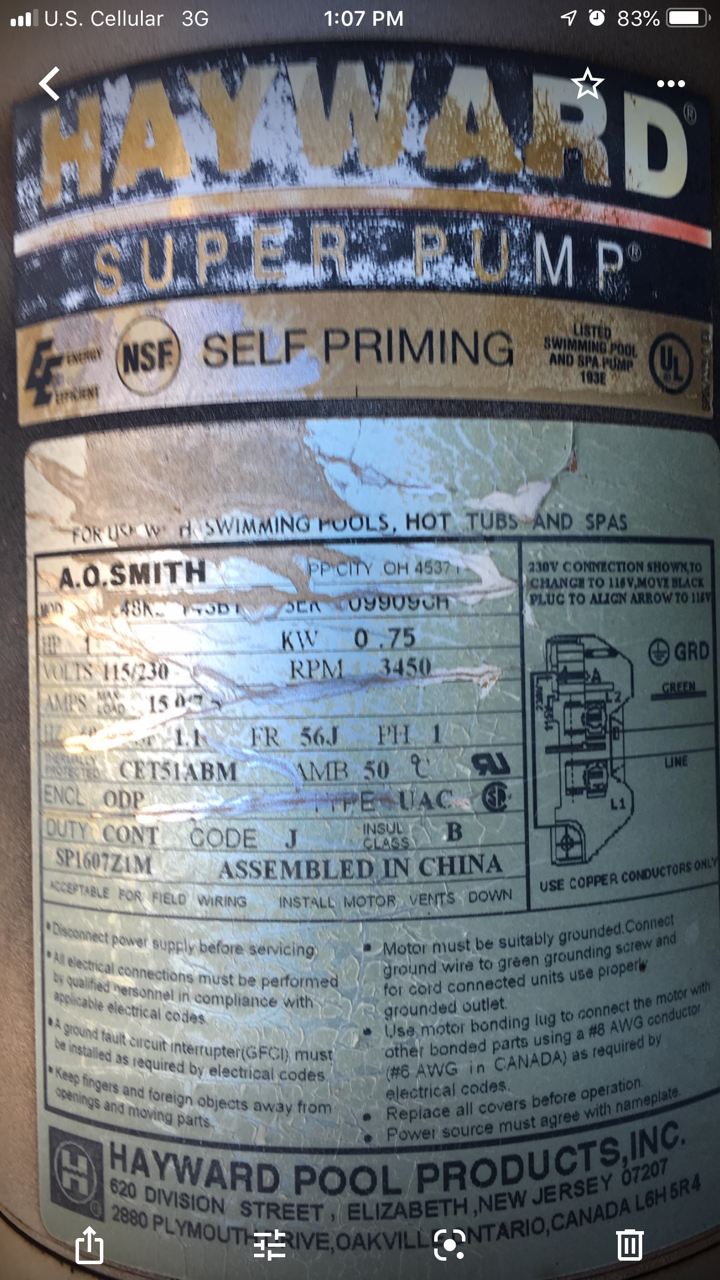

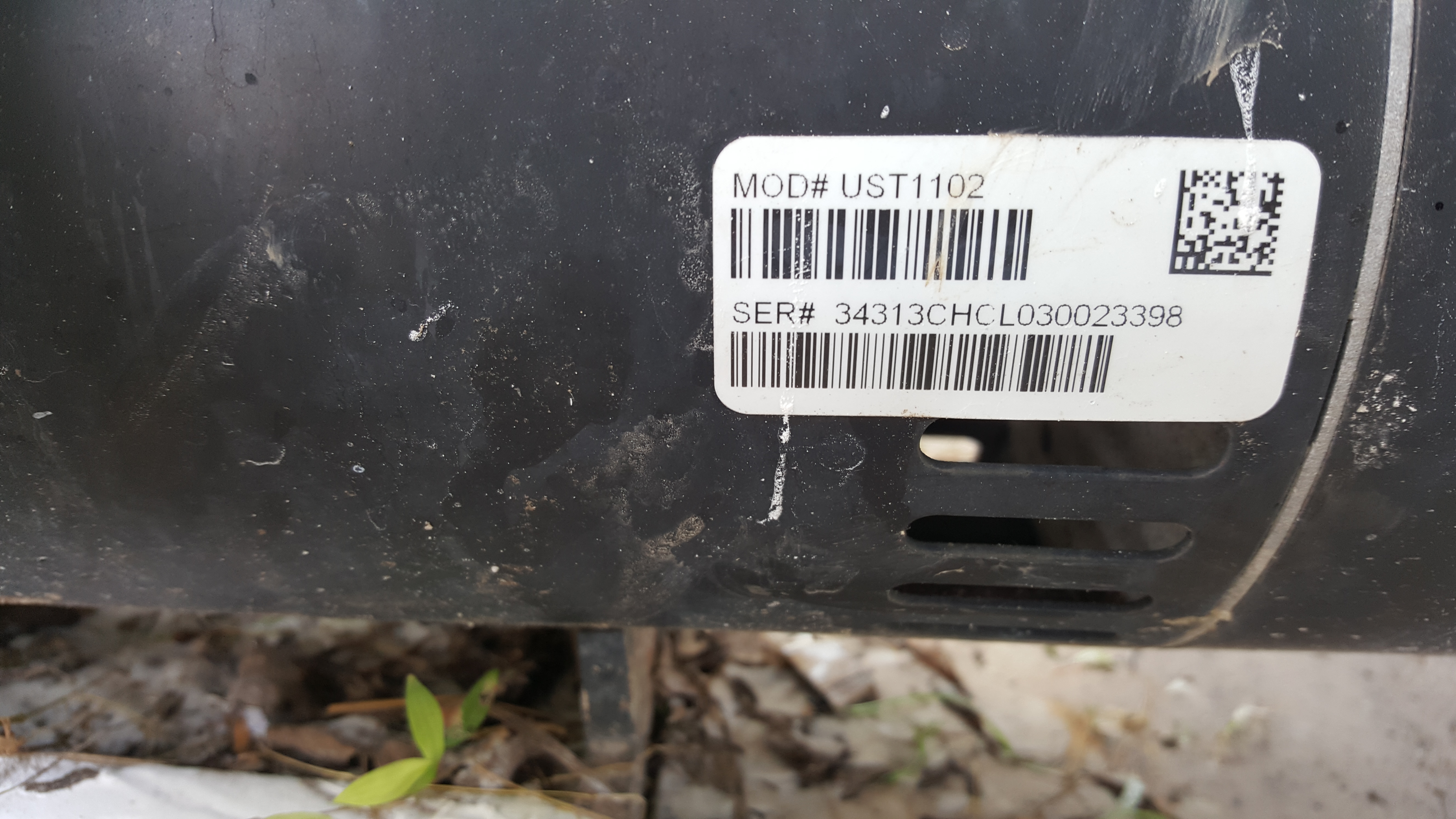

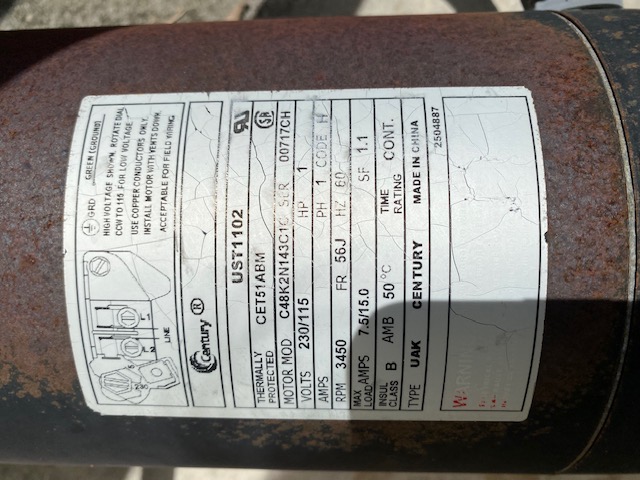

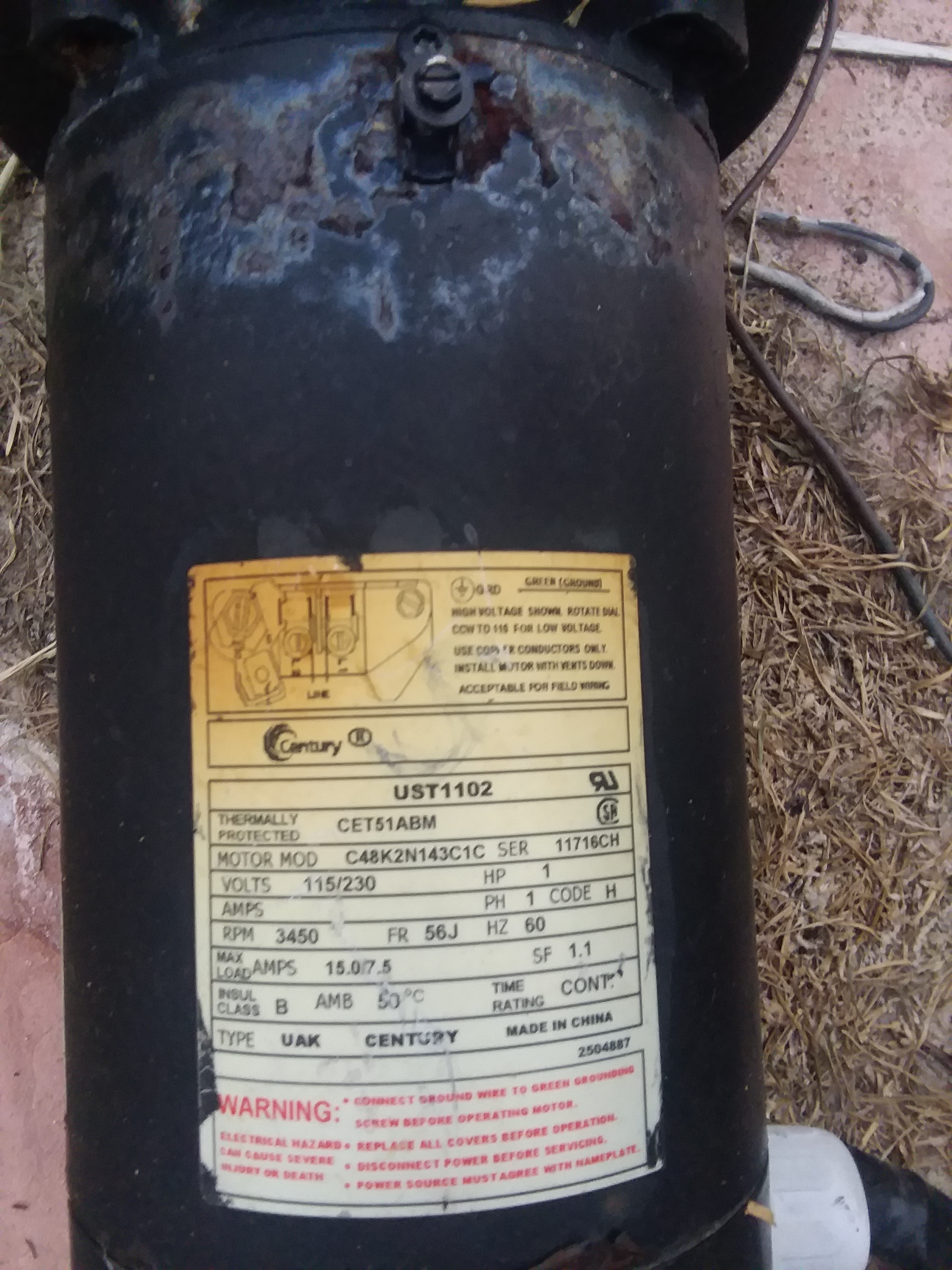

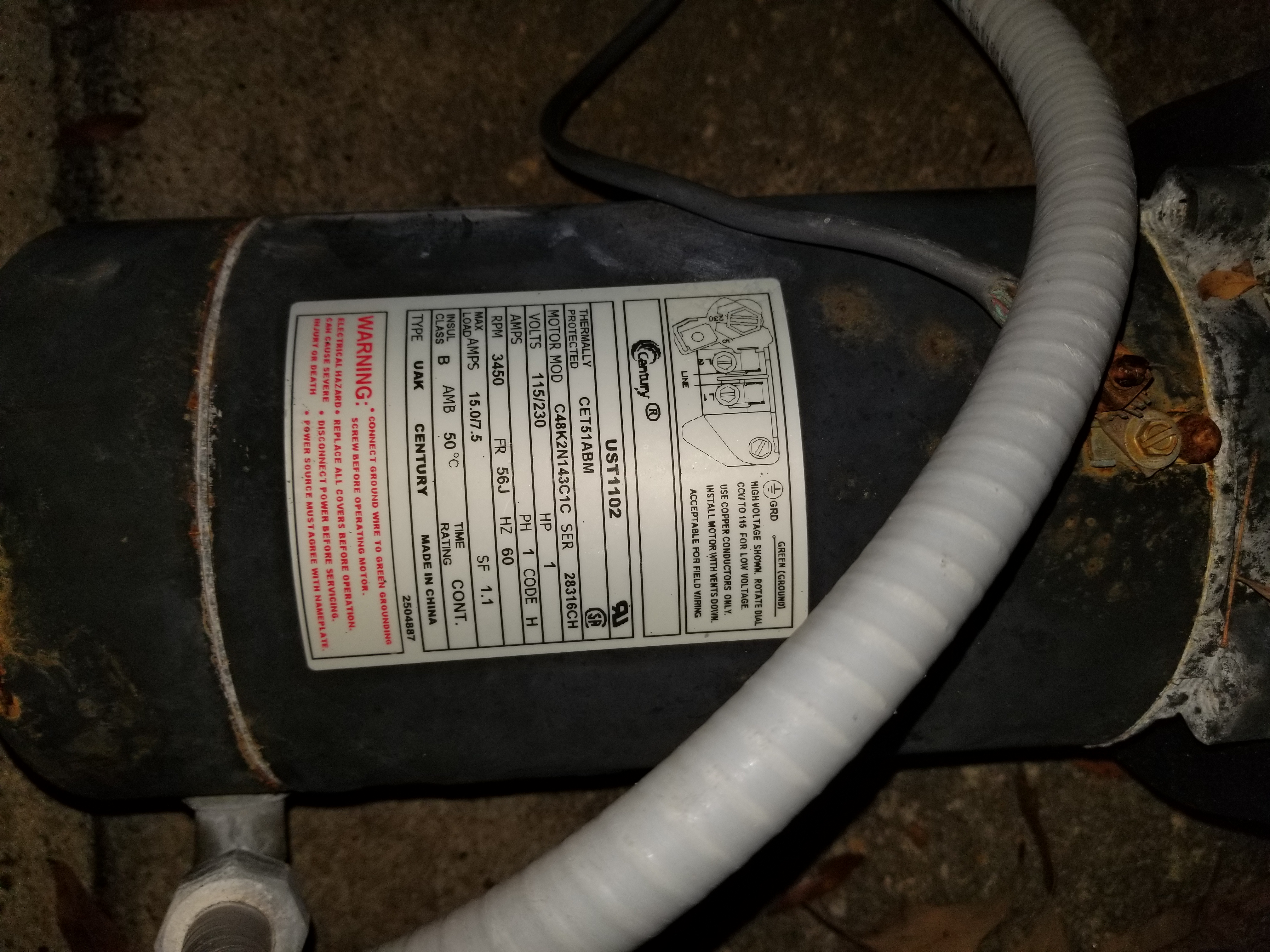

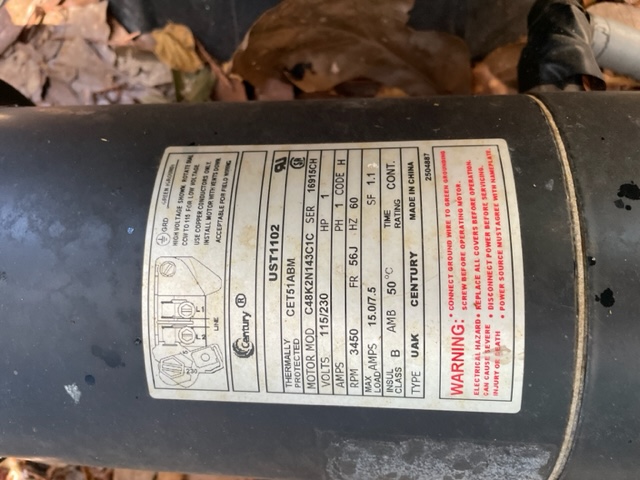

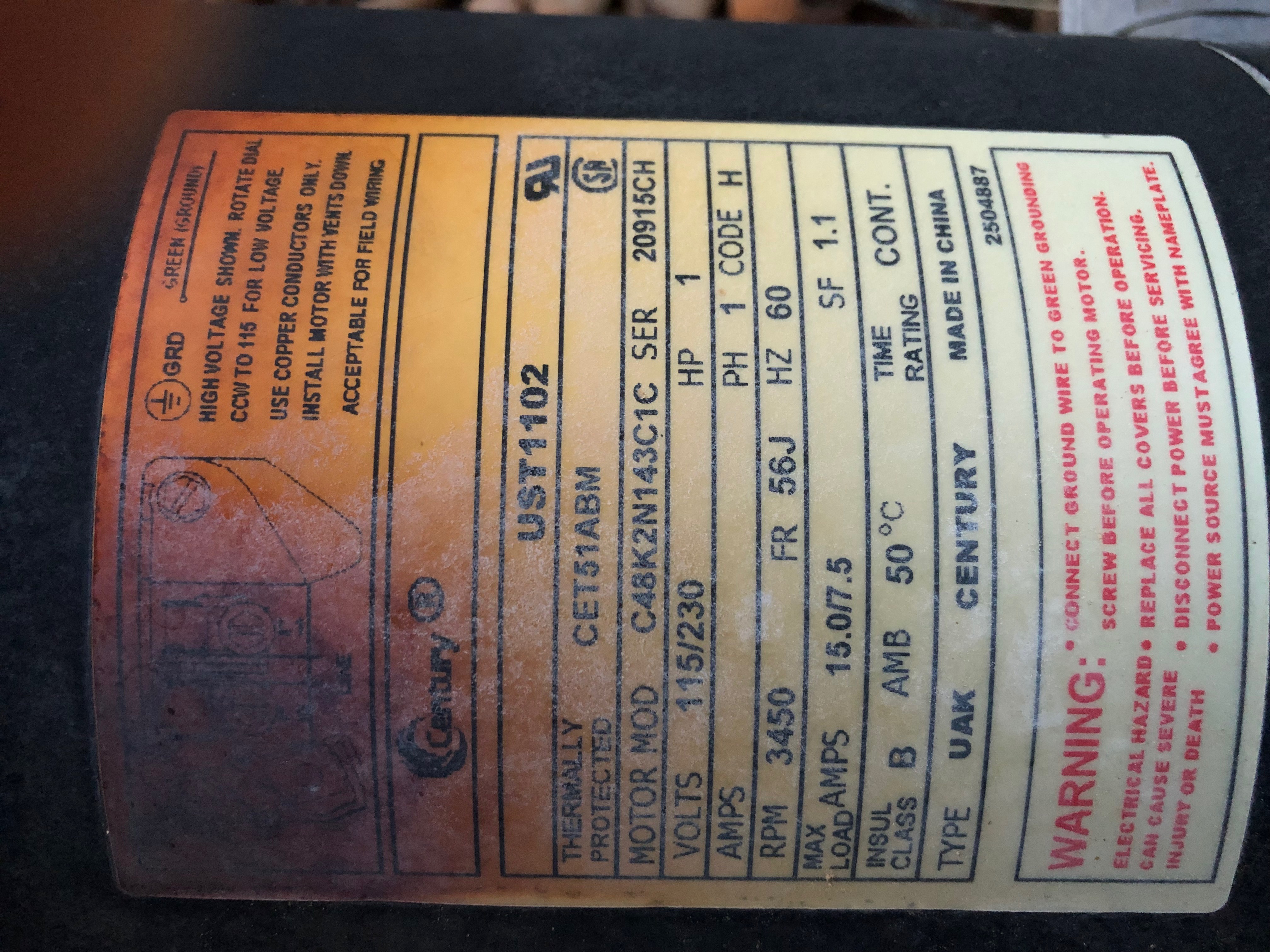

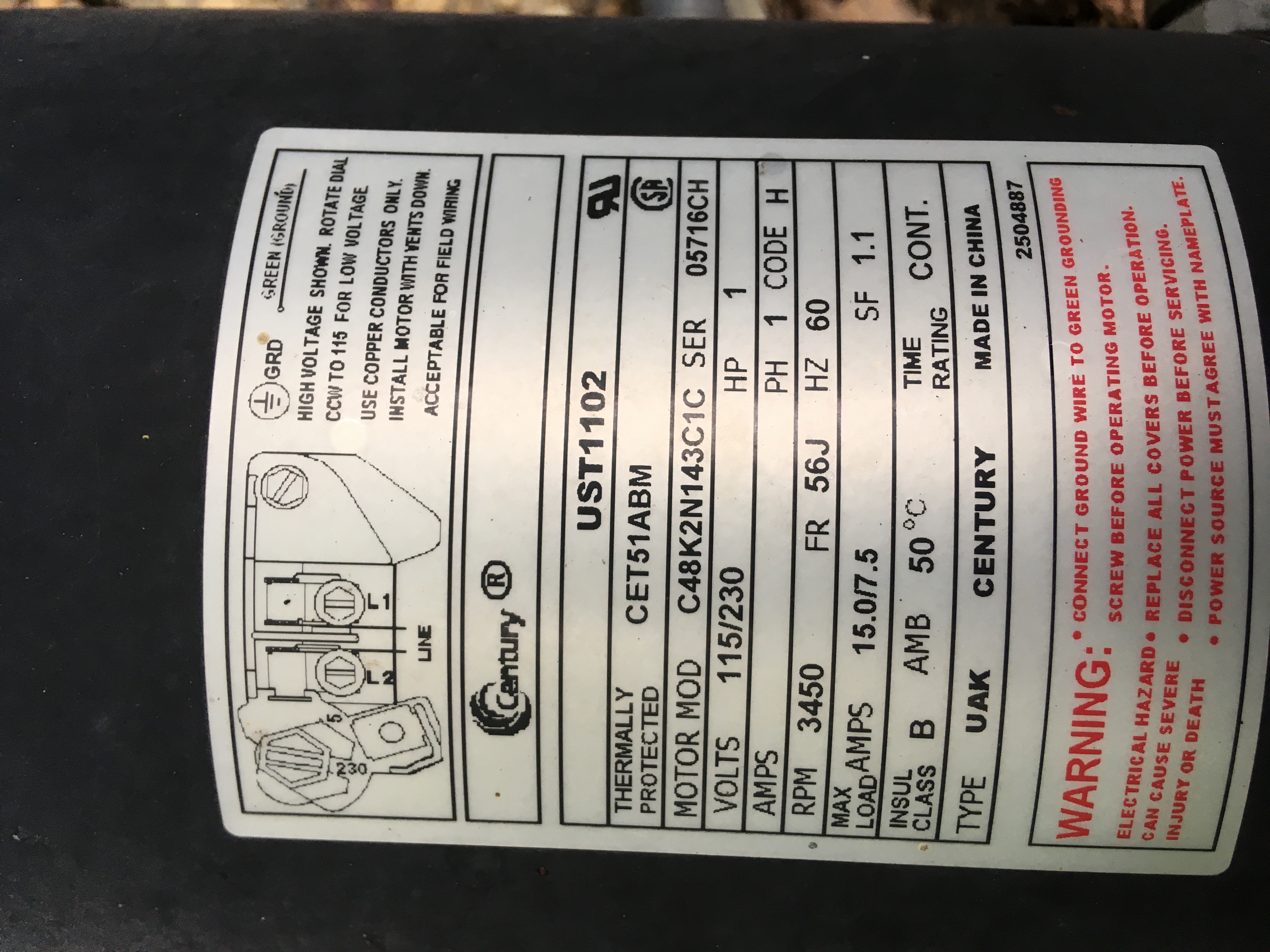

I have a UST1102 CET51ABM Model # C48K2N143C1C motor of unknown age, on a Hayward Super II pump without a model/serial number (the label on the wet side of the pump is blank). I have a broken impeller, marked Hayward SP3007-C, and broken diffuser, marked Hayward SP3000-BN. The intact seal plate is marked SP3020-E. Should I replace the impeller with the 3/4 HP SP3007-C, or am I better off getting the SPX3010-C? Is there any way to guess the model/ serial number of my Hayward Super II pump?
Reply
Hi J, Based on the HP of the motor you will need to stay with Impeller (SPX3007-C). The model of your pump would be SP3007X10AZ.
Reply
I have Century Centurion 1 HP pump, CAT B228SE SERIAL 07611CH and PART 0-184981-23 TYPE CX FRAME U56J HZ 60 RPM 3450 VOLTS 230/115 AMPS 6.0/12.0. Is the (UST1102) the right replacement pump?
Reply
Hi Joe, The A.O. Smith HP Up Rated Thrd 56J Motor (B228SE) would be the correct replacement motor.
Reply
My Model is A O Smith Model C48A95A06.
Did not see this Model# in your list.
Is this Model ST1102 a replacement for A O Smith Model C48A95A06.
Thanks
Reply
Hi Bill, The UST1102 will not replace the T1102/C48A95A06 motor. We do not sell a replacement for the T1102 motor, you will have to reach out to another retailer.
Reply
I am in need of the motor but I also need the pump. Do you sell them both so they are already connected and put together?
Thanks,
Chuck
Reply
Yes we do. We seal the motor and "wet end" that make up whole pumps. Please click on this link , Swimming Pool Pumps , and you will see the wide variety of pumps we sell. If you have any questions about which is right for your situation, please give us a call at 877-372-6038, and we here can help you out more efficiently .
Reply
what is your return policy on a pool pump motor.
Reply
Hi Ted. Unused products can be returned for full credit (minus shipping charges) within 30 days. It must be in the original packaging with no markings on the product or packaging and the customer is responsible for return shipping charges.
Reply
Need to replace a motor on a Hayward RS750CA pump. It had an Emerson SP1607Z1 .99THP .75 FRHP 1.32SF motor. The motor also lists 115/230 volts 6.5/13.0 Amps and has a 56J Frame and is thermally protected.
Would a replacement be the 1 HP UST1102 ? And since this pump is almost 10 yrs old are there any other parts I should consider replacing? Really nice web page you have. Lots of information and great videos!
Reply
What does "Up Rated" mean?
Reply
Hi Scott, The term "Up Rate" are used when motors have a low service factor. Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency.
Reply
i have the hayward super pump sp2607x10, it looks like this part will work, but i don't see the model in the guide. can you help answer this for me?
Reply
HI James, The A.O. Smith 1 HP Round Flange Up Rate Motor (UST1102) will be the correct replacement motor for the SP2607X10 Pump. I would also recommend getting the Hayward Super Pump Tune Up Kit (GOKIT3).
Reply
whats the correct replacment for c48k2n14383 serial number 23312fm ?
Reply
Hello- The part number you provided is off by one digit, it should be c48k2n143B3 which would be replaced by this UST1102 A.O. Smith 1 HP Round Flange Up Rate Motor.
Reply
Century pump, C48K2N143C1C will not start or hum. Power is good.
Capacitor issue? If so what is the part number? Thanks
Reply
Hello, here is a How To Troubleshoot a Pool Pump Motor. The capacitor needed Capacitor, MFD 161-193 (BC-161) 110-125VAC PART#5270-14
Reply
My motor just quit working. Is there a way to isolate the cause?
Reply
Hi Louie, You can review our "Pool Motor Troubleshooting" blog for tips on what can cause your motor to fail and what you can do to troubleshoot it.
Reply
Does the UST1102 is a replacement for C48L2DB11A8?
Thanks
Reply
Gus- The UST1102 A.O. Smith 1 HP Round Flange Up Rate Motor will not work for you. The motor you need is a T1102. The T1102 has a higher S.F. and total HP. This is a motor that we do not have.
Reply
I have a Hayward SuperPump ll, model number SP3010EEAZ, with motor model number K48L2N104. According to your cross chart, a UST1102 is a straight across substitute. Is this correct?
Reply
Hi James, The A.O. Smith 1 HP Full Rate EE Round Flange Motor (CT1102) would be the correct replacement motor for the Hayward Super II Pump (SP3010EEAZ). I would also recommend getting the Hayward Super II Tune Up Kit (GOKIT2).
Reply
hi, need a replacement motor for a Jacuzzi Magnum pool and spa pump, i have a old (1993) Magnetek Centurion SE Switchless Motor part 8-177948-20
FR x56j , 1.0 HP , VOLTS 230/115, AMPS 7.0/14.0 wat can i use for a replacement?
Reply
Hello Tania, Based off the part number of the motor you provided there are two options. The Energy Efficient option would be 5221AX Motor 56j Thrd Full Ee .75hp (b638) or the standard replacement is 5211x Motor 56j Thrd Up 1 HP (b228se).
Reply
I need a pump motor. Above ground Hayward pool pump. SP1607-Z-1-MXBK. What is the correct pump motor. My motor does not have a threaded shaft. Thx
Reply
Hi Don, Base off of the SP # provided the UST1102 motor will be the correct motor. If you can provide the model of the Hayward pump that you we can look into which motor is needed.
Reply
I am looking to replace my c48k2n143B3 with dual-speed B975T. Will I need to replace the impeller and diffuser? Should I stick with UST1102 or maybe the energy efficient UCT1102?
Reply
I have a 10 year old Hayward SP 1607 Z1-M, 1HP Superpump that is leaking a lot. Is it even worth trying to find the leak and getting replacement parts or should I just get a new pump? Are there more efficient models made now? My pool is abou 25,000 gal and the filter can handle 125 gpm. Thanks.
Reply
HI Mike, You can replace the entire pump with the Hayward Super Pump VS Variable Speed Pump.
Reply
yesterday, I purchased a replAcement motor for the C48k2n143b1 at my local Hayward dealer... However, the motor was bigger around than the original... The heights of the saddle that cradles the back of the motor will not let the back of the motor lower enough for the pump face to match the pump housing... The dealer says this is the replacement motor???? What to do?
Reply
Hi Dave, You will have to remove the motor saddle from the motor stand in order to allow the motor to sit properly in the base.
Reply
does this motor come with the pump seal instelled
Reply
All motors unfortunately do not come with the seals installed because the seals vary based on the front pump housing models. In order to cross reference that seal needed you will need that housing model or name.
Reply
Is the Seal 201, Extra Heavy Duty PS3868 the correct seal for the ust1102 motor and do you do price match
Reply
The shaft seals are dependant on the front pump housing model that the motors bolt to and not the motors themselves.
Reply
will a ust1102 replace a c48k2fc15
Reply
Hi Al, I was not able to cross reference C48K2FC15 to the UST1102 motor. Can you send us photos of the motor label and of the pump housing to upload@inyopools.com we can try to locate the correct for you.
Reply
Looking to replace a C48K2N143B1 1HP motor on a SP2607X10 Hayward pump, but concerned about the round flange description in this replacement. What replacement motor do you suggest?
Reply
This is the correct replacement motor. The motor is a round flange.
Reply
What is the GPM (Gallons per minute) for this pump?
Reply
Hi Nona, We will need model of the pump that this motor is attached too and the feet of head of your pool in order to calculate the flow rate. You can read our How Do I Calculate Feet of Head for My Pool? Blog for info.
Reply
i have model c48k2n143b1 can i upgrade to a more efficient model and what would be the cost?
Reply
Hello. Have Magnum B 186086-20 pump (Ring mount) needs replacement.
What is replacement part and is there energy efficient option. Thanks
Reply
Hi John, The Pump Mounting Nut (42288605R000) is the replacement ring for the Jacuzzi Magnum Pump, the UCT1102 will be an energy efficient option.
Reply
what would cause the water level in the strainer basket to go down just below the pipe coming into the strainer?
Reply
You most likely have a bad pump lid gasket or bad a bad o-ring gasket. what is happening is the bad seal is allowing air to enter the pump cavity and not allowing the pump to fully prime. This can be harmful to your motor. I would recommend identifying your pump manufacturer and model in order to match the correct lid gasket. If this does not resolve your issue, I would identify the same information for the diverter valve.
Reply
Can I replace an ST1102 with a UST1102. The only difference I see is the service factor rating. I am not sure that I require a service factor 1.5
Reply

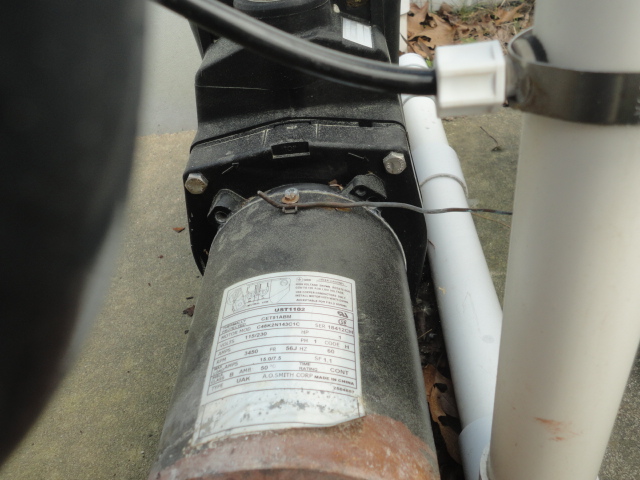

I wish to replace a UST1102 model C48K2N143C1C motor on a Hayward super pump. Do I need to buy any gasket kits in addition to this motor to do the job. Is removal and installation as simple as working the 4 holding screws on the round flange?
Reply
Hi Ben, This motor is the correct motor, you will also need the Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT. You can watch our video on How To Replace the Motor on Your Pool Pump.
Reply
i have a replacement pump already. model number is ust1102.
I see you have what looks like the same one. the only thing i noticed is some of the info on the sticker differs from the description on yours. for example next to thermally protected mine say's cet53cy.
Reply
Hi Angelo, As long as your motor says UST1102 then this motor will be the direct replacement even if there some slight variations on the label.
Reply
What is the Gallons Per Minute? Replacing an older model AO Smith motor for pool. Thank you for your time. dm
Reply
Hi Daniel, The GPM is base off of the pump, not just the motor. If you can provide the model number of the pump you have and the "Feet of Head" of your pool we can tell you the GPM.
Reply
I have an 1102 Motor a little over a year old, the motor hums when power applies but does not work? Could the shaft be stuck?
Reply
The shaft, and more likely the bearings, have probably seized due to a seal failure.
Reply
I have a Super ll C48K2N143BS. Do you have the match for my pump.
Thanks
Reply
Yes, this will be the correct motor for you unit. Also remember to change out the seals and gaskets. That will be GOKIT2.
Reply
I have a AO Smith pump Model: C48K2N143B3 1HP and a Hayward Model SP3907X10AV. Does this pump work and what tune up kit goes with this unit?
Reply
The C48K2N143B3 cross-references to this UST1102 as being the correct pump motor replacement. But that pump model number does not jive with the other Hayward model numbers we have on the books. Are you sure that is correct?
Reply
I have model C48K2N143B3 bearings shot, bolts broke off. What a mess. So I need a new motor and seals. Can you let me know what I need to get pool going shortly. My filter is SP2807X10.
Thank you
Reply
Greg, The UST1102 is the correct replacement. You can find all of the seals for that pump on this page: http://www.inyopools.com/pool_parts_hayward_max_flo.aspx
Reply
I have an older Hayward pump and it looks like the motor got fried (sparks and flames) when I turned on the pump yesterday to start work on opening our inground pool. The Hayward model # is C48K2N143., 1 HO, 3450 RPM, 15.0/7.5 amps, SF of 1.1. Is the A.O. Smith motor in my cart a match as a replacement? Thanks!
Reply
Hi Greg, Yes this motor would be a direct replacement for your C48K2N143 motor.
Reply
I have a Hayward S 200 filter running a Magnetek part # 8-177019-20, 1 hp 230/115 v. The customer p/n is 1607-2-1-m. I am wondering if the USQ1102 is a proper replacement for this application.
Patrick: let me check
? Thanks, Allen
Patrick: you would need this motor here http://www.inyopools.com/Products7/00200017001331.htm
?OK. Great, Thanks.
6/1/16 today I tried to order this motor but can't find it in the product list. can you help? Thanks
Reply
Will this motor replace sp3207z1m
Reply
Hello, First, I would need to correctly identify your pump. From the information you provided, you should have a Hayward TriStar Pump. If this is correct, then I would recommend clicking on the link to the parts page provided. On that parts page, when scrolling below, you will see the list of compatible replacement motors. (Please note that the motor you referenced is NOT a replacement for the TriStar Pump). Last would be to identify what horsepower (HP) your motor is and match it with the correct HP replacement motor.
Reply
Would this be a replacement for a C48K2N143B1 Hayward super pump? And what is the warranty?
Reply
Hi Kyle, Yes this would be the correct replacement motor for the C48K2N143B1 motor and we would also suggest the Hayward Super Pump Tune-Up Kit. This motor comes with a 1 year warranty.
Reply
My pump # is C48L2N134C2, what pump motor do I need to replace it?
Reply
The 1 HP ST1102 Full Rate Motor is the correct replacement for the C48L2N134C2 motor.
Reply
I am looing forr model c48k2n143b1. will this work with this model
Reply
Hello Justine, The correct replacement motor for model #C48K2N143B1 is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102. We would also recommend that you replace your shaft seal whenever you replace your motor. You will need to identify the make and model of your pump in order to match the correct parts to your pump.
Reply
Will this motor replace a c55ckmb-5012 ?
Reply
Hi Mike, I was unable to cross reference p/n C55CKMB-5012 to the UST1102 motor. If yo can provide additional info we can confirm which motor you will need.
Reply

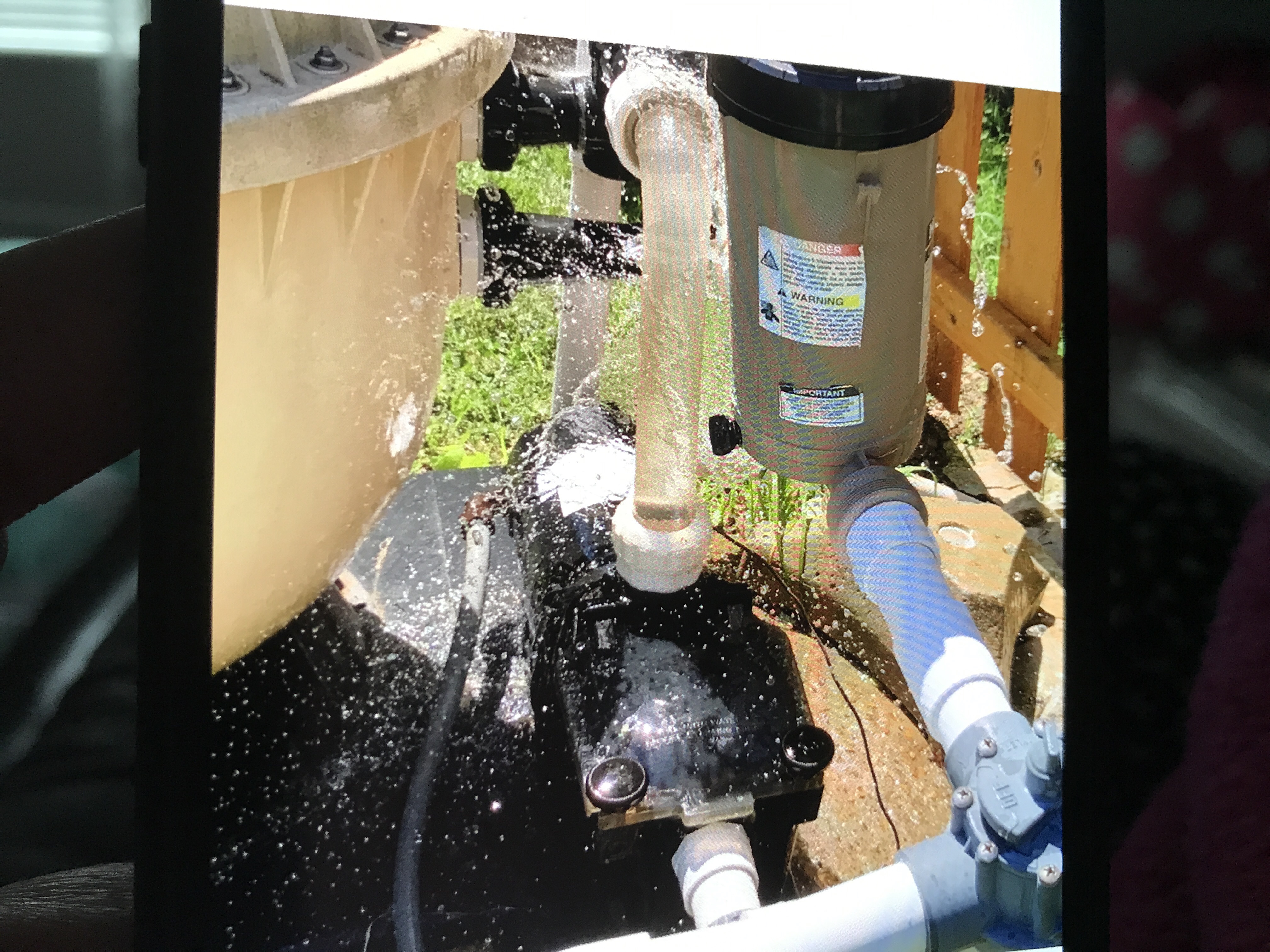

Hi! I am now going on replacing the 2nd UST1102 in the last year. This will make 4 motors replaced since the original Super Pump was installed. The last two have failed due to excessive motor (bearing) noise. How can this be avoided in the future?
Reply
Hi, You can be proactive when you see water leaking from the pump, use a Pool Motor Cover and keep area surrounding the pump clean.
Reply
i pulled up pool motor and the one I chose showed free shipping but when I go to my cart its says there is a charge for shipping What goes??????
Reply
The motor you have listed here does have free ground shipping. If you requested to have Next day air, 2-day, or 3-day shipping then there will be a charge for that service. You can always call us at 877-372-6038 M-F 9am-8pm or Sat 10am-2pm EST if you need assistance placing your order.
Reply
I need a new motor for my I ground pool pump my present motor is a
UST 1102. Model number C48K2N143C1C. I'm confused because you lost a round or square flange. Not sure what I have ,hoping my model number answers that . Can you please verify if I need a round or square flange. And how fast I can get from you . Thanks, John
Reply
Im having to replace my dual speed pump and ive been told that I should just use a single speed pump instead. Ive been told the energy savings arent enough to pay the extra cost.
Reply
A single speed motor has the most energy consumption. If you are looking to save money on your electric bill, I would recommend a dual speed or a variable speed motor.
Reply
My pool pump leaks between the motor and strainer assembly so I need a seal kit. My problem is the only model number (c48k2n143) is on the motor case...which says it's a Hayward super pump but the model number doesn't show up when I search under Hayward super pump parts. After searching forever I found the model number is for A.O. smith who made motors for Hayward I assume...bottom line what seal kit Do I need!!! Help please!
Reply
Hi Scott, for the Hayward Super Pump you will need this Hayward Super Pump Seal Kit
Reply
I have a AO Smith pump Model: 8-193632-24 1HP. It's originally from the Jandy PHP Order part no. R0556102. What Motor do you have that is compatible. Thanks.
Reply
That motor would be compatible for that pump.
Reply
What is your return policy in case the motor not working or any kind of problem?
Reply
Syed, You can view our return policy here: http://www.inyopools.com/return.aspx
Reply
Would this be the correct motor to replace my Hayward Super Pump model # C48K2N143B1 . another number on the old pump is SP1607Z1M.
Reply
Hi Mark, Yes this is the correct replacement motor for the two part #'s you referenced. We would also suggest a Hayward Super Pump Tune Up Kit when replacing your motor.
Reply
I have a C48AA35A01 1HP motor on my pool. It is very hot to the touch. Is this normal? Is this showing signs of needing replacement?
Reply
Hi Aaron, Yes once your motor begins to get very hot to the touch this is a sign the motor is starting to go bad and may need replacement soon. The UST1102 is the correct replacement motor for your C48AA35A01 motor.
Reply
I am looking to replace motor pump model C48L2N134B4 but can't find this model number, which model will replace it and what else do I need to do the job?
Thanks
Reply
Hello, The correct replacement motor for model number C48L2N134B4 is the A.O. Smith 1 HP Full Rate Round Flange Motor ST1102. The model number you provided is listed in the alternative part #'s section.
Reply
other then a loss of power is it safe to change a heyward super pump for a 1.5 hp to a 1 hp just the motor ....
Reply
Hi Bob, It will be safe tp make the change as long as you also replace the 1.5 HP Impeller with the 1 HP Impeller (SPX2607C).
Reply
I currently have A.O. Smith Century Centurion 1HP Pool Motor CatB228SE that needs replced. What would be the proper motor replacement.
Reply
Hi Joe, you would require this B228SE Replacement Motor which will be a direct replacement for your motor.
Reply
i have a haywood max flow dual speed power saver motor .these are the only numbers i can read .C48L2. the problem is it does not stay on it starts and stops. what pump would replace it if i need to?
Reply
Jimmy, Please attach a picture of the motor label. There are some specs we will need to match up.
Reply

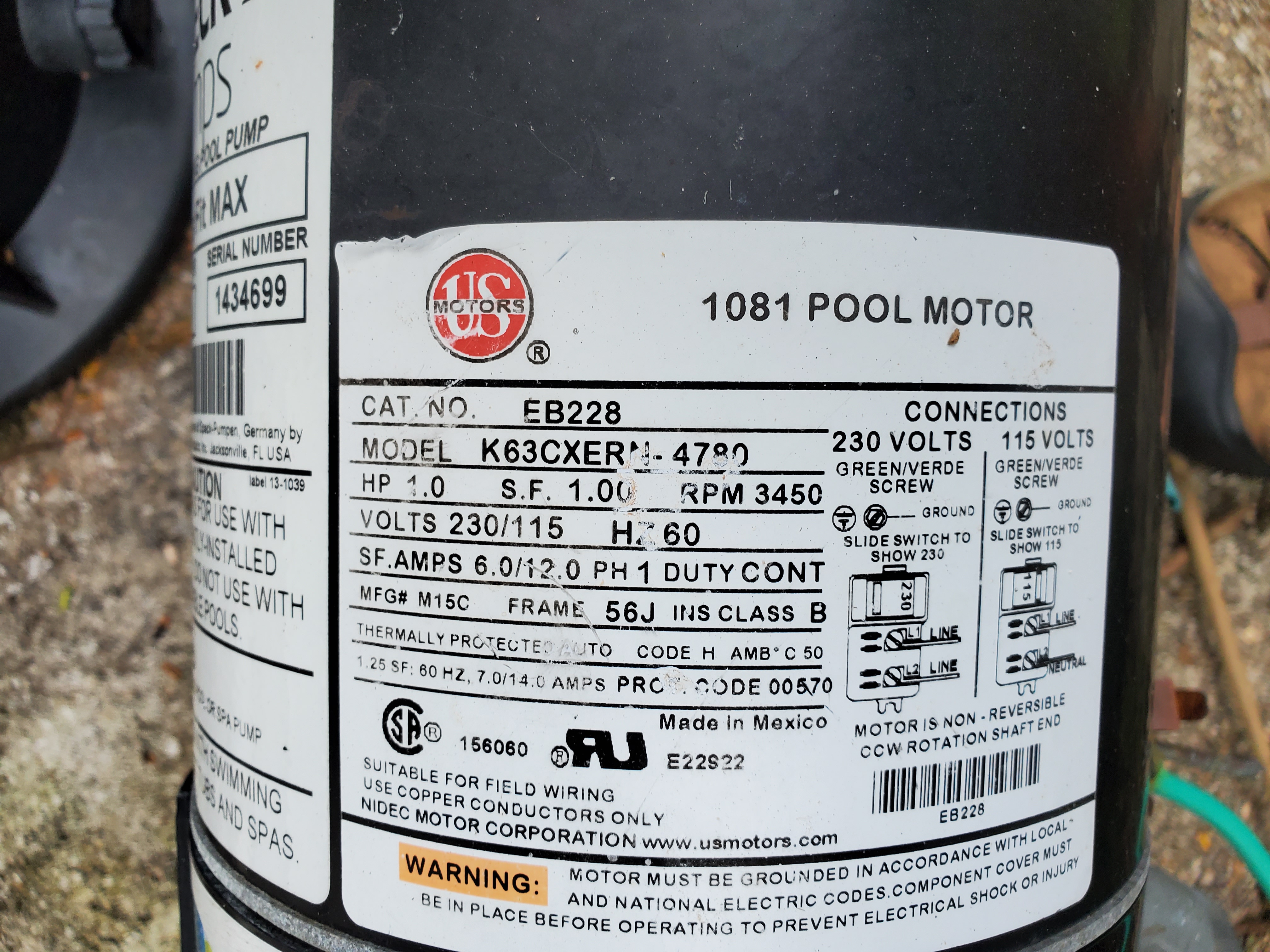

I have a Jacuzzi Magnum Force 1MF-S Pump, and need to replace a US Motors K63CXERJ-4776 with 56J frame; is this a direct replacement motor, and what seal kit or other conversions would I need to make this work?
Reply

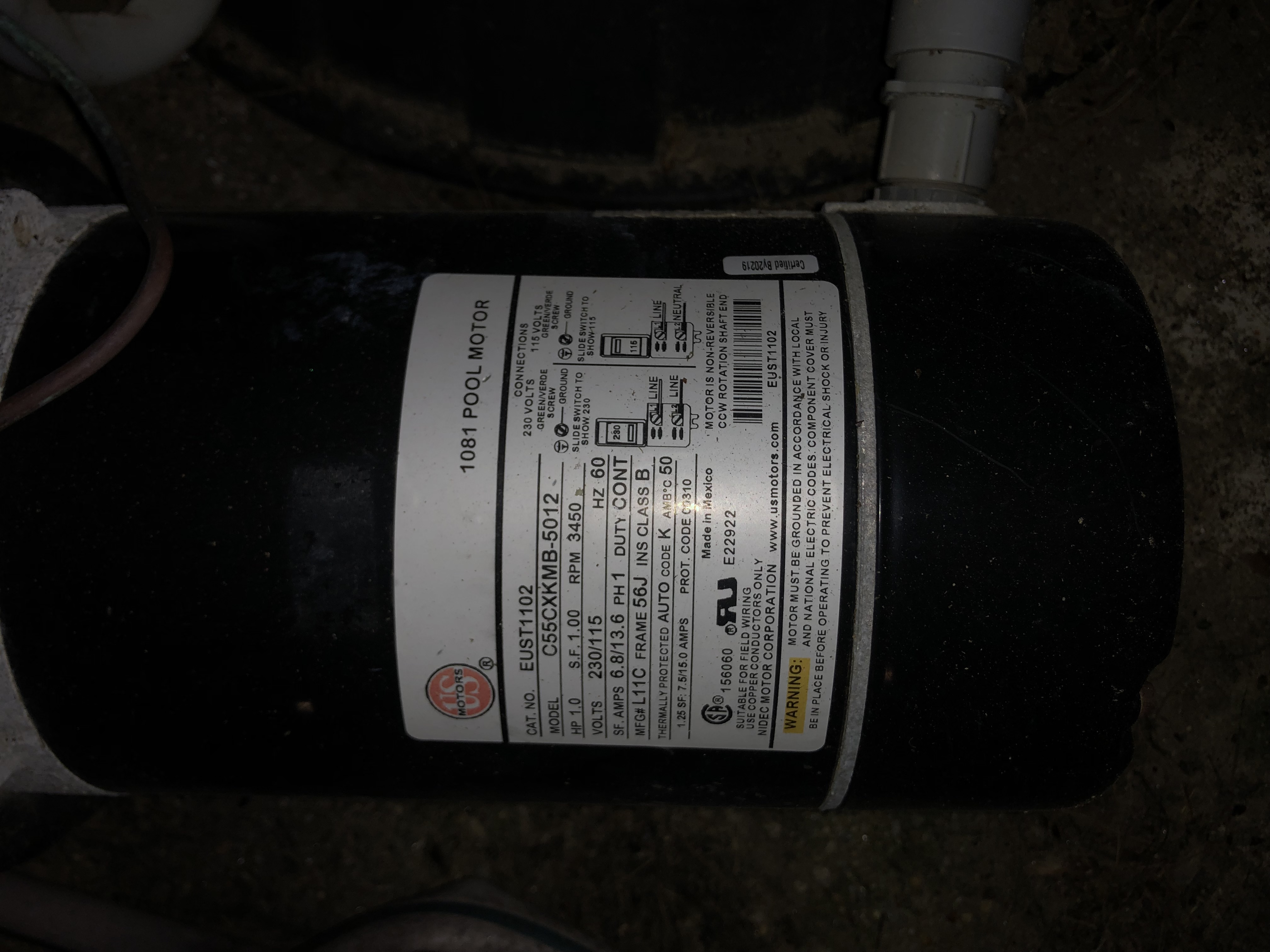

I am replacing a a.l. smith 1081 unground pool motor, C55ckmb-5012. what is the correct replacement model? Thank you
Reply
I was unable to cross reference p/n C55CKMB-5012 to the UST1102 motor. If you can provide additional information of you motor and pump, we can confirm which motor you will need.
Reply
how does the housing and impeller come off of the motor to remount onto the new motor.
Reply
Hi, This motor can be used on several different pumps, you can view our How To: Replace the Motor on Your Pool Pump guide for general instructions.
Reply
HI,
I am looking to replace motor pump model # 5KC39PN2822BX , 1HP , 1081 P00L PUMP MOTOR , CAT# C1318. which model will replace it and what else do I need to do the job?
Thanks
Reply
Daniel, The UST1102 will replace the C1318. Aside from the motor, you will need to replace the seals for the pump. THe seals are dependent on the pump housing that your motor is connected to.
Reply
Hi,
I have a Hayward Northstar pump from around 2003 and need to make sure that this will fit into the pump housing. It's a Magnetek N56J frame,
Thanks.
Reply
I need a replacement motor for a Hayward I think it is a hayward northstar. B128.
Reply
I have a Emerson modle numberK63CXESD-4791
Will this pump that i am looking at work?
Reply
The correct replacement MOTOR for your pump would be the 1 HP Motor EE - Full Rate (B2841, B2841V1). You can also use the A.O. Smith 1 H.P Square Flange Up Rate Motor USQ1102 if you no longer desire an Energy Efficient motor. (the motor UST1102 will not be a correct replacement)
Reply
I have a Hayward 2 Speed 1 HP Super Pump Inground
Code: SP2607X102S, which one is the replacement motor?
Thanks
Reply
Do I understand correctly that this motor is watertight in operational underwater? Also what is the size of the shaft?
Reply
This motor is NOT watertight and will not operate submerged in or under water. The shaft diameter is 0.625" and the height is 2.82".
Reply
I have a 1/2 h p a o smith motor attached to a Hayward super pump s p-1600. I would like to increase the motor h p . What motors will bolt up to the Hayward s p -1600
Reply
Here is a link to the Hayward Super Pump Parts page. It will list the higher HP motors available for this pump style. Keep in mind that when changing out a motor for a higher HP, you will need to change the impeller to match. We also recommend that you change the seals with the GO KIT 3 whenever you change out a motor.
Reply
I have an inground pool with a Hayward pump will this replace that ok?
Reply
We would need to know the model of your motor, or the make and model of your pump to determine if this motor is the correct replacement for your Hayward pump. With the pump information, we could also recommend the correct replacement seals for your pump.
Reply
are all pump motors counter clockwise rotation from shaft end?
Reply
If you're facing the back of the motor where the end cap is, it will be going counter clockwise. If you're looking at the motor where the impeller attaches, it will be going clockwise.
Reply

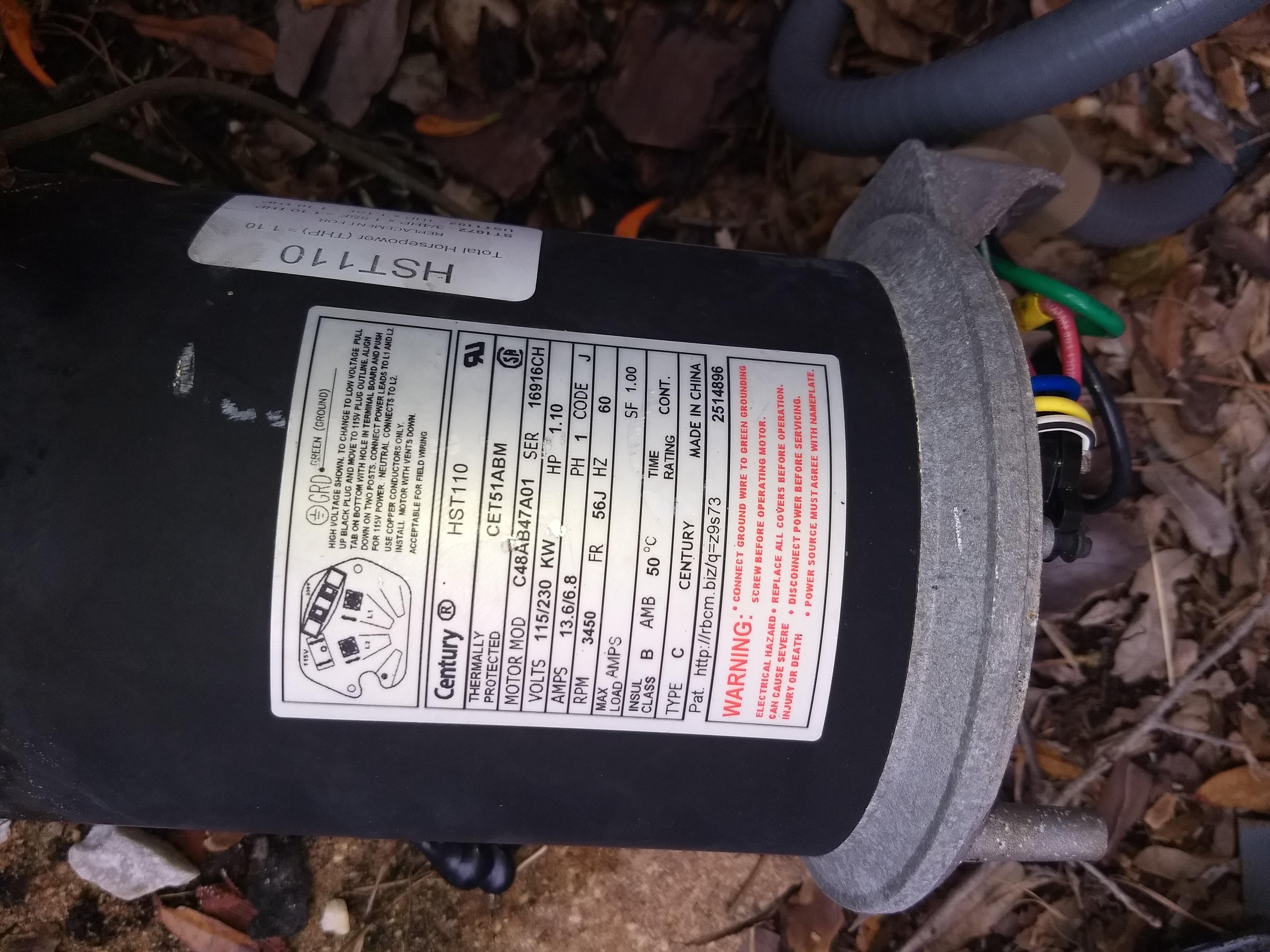

I currently have an AO Smith HST110 pump on my pool that has failed, I'm looking for a replacement and cant seem to find that exact pump. I was trying to find the flow rate for the HST110 so I could make sure my replacement was comparable equipment and found that the HST110 is listed as a replacement for UST1102, but still cannot find the GPM flow rate for this pump. Can you tell me the flow rate of the UST1102 or HST110 or suggest a cost effective replacement.
Reply
The flow rate doesn't only depend on the horsepower of the motor but also the impeller for that pump and every pump has a different impeller. But it doesn't stop there, it also depends on resistance or the distance between the pump and main drain. All of these factors come into play with the flow rate.
Reply
i have an a. o. smith motor on my pool. best i can tell, the no. is C48L2N1S or 6 and the rest of the no. is missing. frame no. looks to be 56C. will the ST1100 be a replacement? Thanks, Jim
Reply
I installed this in May with the tune up kit following the instructions on your website. When I turned it on today all it did was hum. Why?
Reply
Hi Pat, If the motor just hums it could be a bad capacitor. The motor is still under warranty I've emailed you warranty instructions.
Reply
I understand this motor replaces the Hayward C48K2N143B3?? WHEN relacing motor is it necessary to replace seals and rubbers everytime??
Reply
Hi Edward, We will need the know the model of the pump in order to locate the seals needed when replacing the motor.
Reply

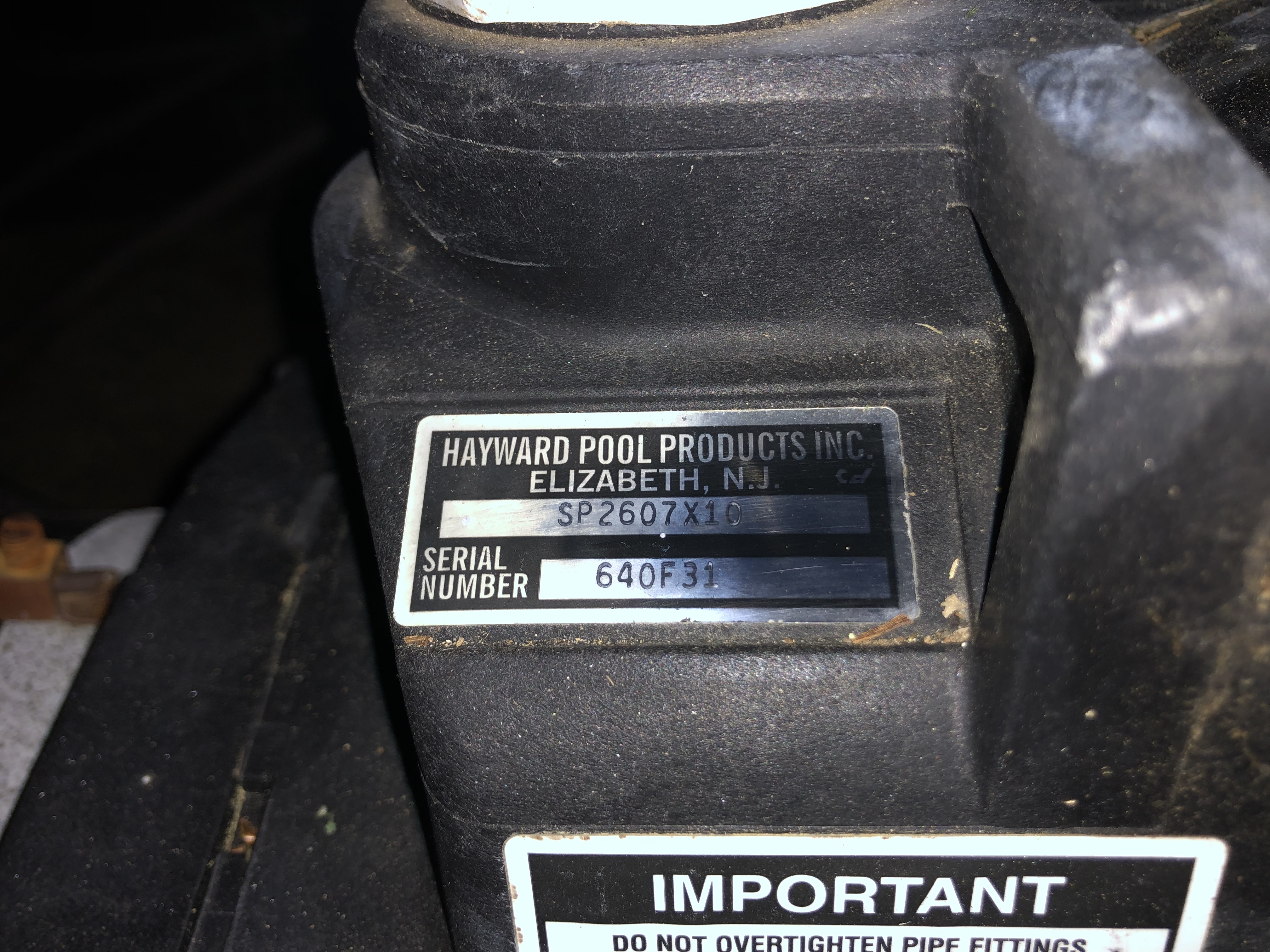

I have a Hayward model 2607X10 and want to know if this is the replacement motor. The Hayward parts page has a different model number for the motor.
Reply
Hi Jeff, This UST1102 motor is the correct replacement for the Hayward SP2607X10 pump. I will also recommend that you get the Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT.
Reply
What other parts do I need when replacing the motor? Impeller? What else? Thanks.
Reply
When replacing a motor, we would recommend replacing the shaft seal and o-rings on your pump. You will need to identify which pump you have to locate a parts list and the corresponding replacement parts. We would also recommend inspecting your pump to determine if you may need to replace other parts due to damage or deterioration.
Reply
I have a Haywardi pump sp3007x10AZ it is 13 years old the motor went bad should i buy a new pump or just the motor The lables are off the motor I do beleave it is a 1 HP. if i replace the motor only what motor would you recommend.
Thanks
Dave
Reply
Hi David, With the pump being 13 years old you do have the option of replacing the entire pump. I would recommend the UCT1102 energy efficient motor along with the Hayward Super II Pump Tune Up Kit GOKIT2 or GOKIT2 SALT.
Reply
Have a hayward super pump with a 1hp motor . I believe the hayward p/n is spx1610z1m threaded shaft (single phase 60cy 115/230 Bearings going out. Is this motor an acceptable replacement? Thank you.
Reply
We installed this motor about a year ago. Everything worked great until this weekend. Suddenly breaker in basement is tripping. Pump is able to run for several hours before tripping. GCFI between pump and house is not being tripped, only the breaker in the house. What could be the issue? Motor is new, hoping it's not gone bad already. Thank you for any help you can provide
Reply
Hi Joe, Once the motor starts tripping the breaker it's time to replace the motor. You can try using some of the tip provided in our Pool Motor Troubleshooting blog to try to see if it can be resolved.
Reply
Where is this motor manufactured. If in a foreign country, are there any pool motors that are US made, and if so, by whom? how long should a pool motor last?
Reply
This motor is made in China. The motors have a 1 year warranty. There is no set time frame for a motor to last.
Reply
Can I use this pump to replace a CT1102 on a Hayward RS1000? If so, what is the running cost difference?
Thanks
Reply
Hi Steeve, The UST1102 will not replace the CT1102 motor, but you can use the UST1152 motor as a replacement. The CT1102 will use less energy than the UST1152. The Hayward Super II Pump Tune Up Kit GOKIT2 or GOKIT2SALT is compatible with the RS1000 pump.
Reply
I have a Hayward self priming super pump 1hp Model 48K2N143B1 Can't read the first digit of the number. Will this motor work? What else is needed for replacement
Reply
Wanetta, Yes, This will replace your existing 1HP Hayward Super Pump motor. We also recommend a tune up kit.
Reply
will this motor replace my motor on a StaRite Pool System 3; Mod S7D75 Flow Rate 75GPM ?
from a sunbleached / weathered label on the motor i see the mod # C48K2PA1C4A3
Reply
It's most likely going to be the USQ1102, but to be for sure I'll need to know the model of your Sta Rite pump, not the system 3 filter. If you're not sure you can attach some pictures of the entire pump and I can identify it for you.
Reply
I need to replace my Hayward Super Pump Motor (1 hp). Hayward Model # is C48K2N143B1. What motor would I need to purchase as a replacement and do I need to buy anything else? Does this motor come with replacement instructions? My current motor will not turn but the impeller does turn freely. Does the impeller come off because the picture does not show an impeller with the motor. Thanks
Reply
I'm not sure what brand pool motor I have. The Motor Mod #C48K2N143C1C, serial #31012CH, 1 hsp, UST1102, type UAK RegalBeloit EPC. It looks like, from what I have found online that it is an A.O. Smith, is this correct? What is the best replacement motor for a 16X32 ing. pool?
Thank you.
Reply
The correct replacement motor for model #C48K2N143C1C is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102.
Reply
Will this work for replacing a hayward power flo matrix motor? It is longer.. and my old one is only 1/2 hp
Reply
If you do move to a 1HP you will have to upgrade to a 1HP impeller. Also, you will want to know the flow rate of your filter. You don't want the increased horsepower to blow your filter.
Reply
IS THE A O SMITH POOL MOTOR # UST1102 THE REPLACEMENT FOR
THE USQ1102. I WANT TO MAKE SURE IT WILL FIT THE OTHER EXISTING PARTS.
Reply
Hello John, You really want to stay with USQ1102 because your UST1102 is a cface rather than a square flange. Your frames would not match up. Stay with the one you currently have USQ1102.
Reply
my motor is a US motors EST 1102. will this UST 1102 motor replace?
Reply
Hello, George. The EST1102 is still available to order. The comparable replacement is the A.O. Smith 1 HP Full Rate Round Flange Motor - ST1102. Don't forget to replace the Shaft Seal Assembly or Tune-Up Kit when replacing the motor. If you need assistance identifying the Shaft Seal or Tune-Up kit you may contact us at 1-877-372-6038 or email photos of the pump housing to upload@inyopools.com
Reply
I have a jandy pro series flopro pump and my motor is Century Centurion
part # 0-193985-04 Type cx frame p56y MZ 60 prp 3450 volts 230/115 . What motor should I get to replace it?
Reply
Good day ~ need to replace A.O.Smith motor C48J2N131B1. The pump housing is Hayward model # SP2605x7 would you know the shaft seal part # for this? Thanks in advance....
Reply
If Governor is stuck in open position, how do I open capacitor tofix it?
Reply
Will this replace a Hayward SP1607Z1M and if so will i need anything else? Thanks
Reply
Hello Don, Yes that is the replacement motor, I would recommend for which pump you have to get a GOKIT which has your pump seal, oring, and gaskets needed for when you take apart your motor to replace it.
Reply
I have a Hayward Star Clear Plus Filter with a A.O. Smith Corp motor model # C48AA35A01. Would this be the right motor to get to replace it and also please give me part number for the shaft seal?
Reply
Hello Risa, to replace C48AA35A01 motor it would be UST1102. To get your seal kit we would just need to know if you have Jacuzzi R series, HHP series, Jandy plus HP, Pentair Purex, or Hayward RS series.
Reply
my Hayward north star pump has an ao smith motor model #usn1102 1 hp. can I replace the motor with a model #ust1102 1 hr?
Reply
Hello John, you need to make sure you are going with a motor that has the same output that you are getting from your current motor. If you go with a UST1102 your amps are running at 15.0/7.5 SF is 1.1 and HP at 1.1, you are actually going down from the motor your USN1102 motor. Your SF, HP, and AMPs would go down if you went with the UST1102.
Reply
C48J2N131B1 is 3/4 HP and was told A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102 would be the replacement. Difference in HP won't make a difference?????
Reply
My pool motor finally blew- I have a Hayward Super II pump, MODEL# K48L2N104 , 1 HP, Frame 56J- about to completely disassemble to ensure flange is round- I also have 6 bolts that hold the impeller- is this the correct model to replace my motor with or will I have to also replace the impeller as well- I JUST rebuilt the entire impeller last summer- can't afford to do all over-of course it's an emergency- daughter decided she to have her college grad party Sept 24th!!!! I am in panic mode.......
Reply
Hello Melissa, from the number K48L2N104 it brought up ct1102 for your motor, but either motor would work for you. I would replace the pump seal, 5110-11 for the Super II pump.
Reply
I have a 1HP HAYWARD super pump motor mod# (C48K2N143B1) I need to replace, could you please give me the correct replacement part number i need to order. Thank you!!
Reply
will this replace a century model # C48L2DB11 ?
Reply
Hello, from what your number C48L2DB11 came up with yes that is the match for your motor, I would replace the pump seal if you are replacing the motor.
Reply
Can I replace my US Motors model# K63CXEPY-4766 1HP motor with this motor?
Reply
The replacement motor for the K63CXEPY-4766 is the Motor 56j Thrd Full Ee 1hp (b654). The total HP on your current motor is 1.40 and the UST1102 is 1.10. The weight of the impeller, installed on motors will differ depending on the total horsepower. By decreasing the horsepower, the impeller will be to heavy, potentially causing the motor to fail. It is best recommended to replace your motor with the B654, doing so, this will allow you to use your existing impeller. Don't forget to replace the Pool Pump Shaft Seal.
Reply
I have a 1HP UST1102 motor and i'm look to down size to a 3/4 HP that will fit the same pump housing. What motors do you have that I can select from?
Reply
This pump differs from mine in that yours does not indicate Rotation - mine says CCWPE. Also the Amperage is slightly higher. Yet they are both C48K2N143C1C. Why the differences?
Reply
Good Morning Pete, This motor is compatible with the C48K2N143C1C, But they are not identical. This motor is up-rated. That is why the amperage is higher. For the rotation you will have to view with back of the motor off to see which way the shaft is spinning. If there is anything else I can help you with. let me know.
Reply
I have to replace my C48J2N131B1 3/4 HP and was looking to up the HP as I of my 3 returns barely has any water output. The pump is coupled with a pccf-125 filter. Would this pump work with my current filter/chassis or am I stuck with the UST1072? What impeller/seal kit would I need?
Reply
Hi, JL. You provide you with the correct answer to your questions we will need the model of the pump, the Feet of Head of your pool and any other water features you have. The info you provided is for the motor and the filter. If you do not have the pump model number please provide photos of the pump housing.
Reply
I plan on replacing my Hayward pump motor model #C48K2N143C1C with the A.O. Smith UST1102. Is there any other parts I need? Shaft seal, gasket O rings, etc..? The model number of my pump housing is SP2807X10. Thank you
Reply
Is this motor interchangeable with a model C48L2N134C2?
Reply
Hello Ben- The UST1102 A.O. Smith 1 HP Round Flange Up Rate Motor is not the correct replacement for your C48L2N134C2. The correct motor is the A.O. Smith 1 HP Full Rate Round Flange Motor - ST1102.
Reply
What would the appropriate replacement part be for the Hayward Super II PUMP MOTOR K48L2N105?
Reply
Good morning, You actually have a couple different options for replacement. You have an Energy efficient option. You can go Up rated or Full Rated. Based on Price I would recommend the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102. You will also need to replace the shaft seal and some o-rings that you can get in Tune Up Kit Hayward Super II - GOKIT2
Reply
I have a pool motor installed from A.O. Smith Part # 164904-03 Serial # BZ07-20 it is a 3 phase motor and I need to replace with a 208v single phase motor. Can you give me a replacement part number for this?
Reply
Are you able to attach a picture of your complete pump and the motor label so I can better help you? The part number that you provided is not pulling anything up for me.
Reply
I have a Hayward pool pump, model #C48K2N143B3, that needs a new motor. Please advise which motor I should buy as a replacement. Thank you.
Reply
The correct replacement motor for model #C48K2N143B3 is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102.
Reply
I need two replacement motors for model K48L2N104 and I am unclear if this is the correct one. Can you tell me if I need the ST or the CT 1102? The one you offer has slightly different specs than what I am replacing. For example, the SF rating is 1.5 on the old motors as opposed to the one you offer which is 1.1. Also the max amp load is slightly lower on the old ones than the one you offer (14.6/7.3 vs..15.0/7.5). I also don't see K48L2N104 in the alternate parts list Please advise...
Thanks
Reply
You can use either the CT1102 or the ST1102. The CT is the energy efficient model that pulls less amps. Both have an S.F. of 1.5.
Reply
I have a AO Smith motor needs replaced Model # C48L2N131 At 1 1/5 Hp what can I replace this with?/
Reply
Based on the motor model number C48L2N131, the correct replacement motor would be the Motor 56c Keyed Full 1 Hp - B122 or the Motor, Two Compartment C-Face Keyed 1.0HP Sgl Spd 115/230V (B122, SK1102). You can click on the links to view the product pages and current pricing.
Reply
I'm trying to find out what year is a C48A95A06 is?
Reply
Hi, You can use the Century Motor (Formerly A.O. Smith) Warranty Guide to decode the serial number of your motor.
Reply
Hi - I need to replace my A O Smith C48K2N143B1 motor. My motor is gold but this replacement is black. Are these the same motors? what is/are the difference(s), other than case color?
Thanks!
Reply
The correct replacement motor for model #C48K2N143B1 is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102. The only difference between the two is the gold is the original manufacturer version and the black is the replacement version.
Reply
I have a Century Centurion/A.O. Smith B228SE pump motor that is 1 HP, 1 SF, 1 PH. Will the "A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102" be a correct replacement motor as it has 1 HP, 1.1 SF.
Reply
Does this motor come with a seal kit, and if not what is the stock number?
Reply
Hi, Joe. Motors do not come with seal kits, we will need the model number of the pump housing in order to locate the correct seal kit.
Reply
I want to make sure I get the correct seal kit for A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102 could you please give me the part number
Reply
Hi, Joe. We will need to know the model number of the housing that the motor is mounted too in order to get you the correct seal kit.
Reply
I have model number C48AB45A01. What is the replacement pump for this model?
Thank you.
Reply
I have a Hayward pool pump model SP2607X10 and need to replace the pump motor, what motors will work? Please indicate all the A.O. Smith replacement models to include the energy efficient models . Can you indicate typical pay back on the energy efficient models and if wiring hook up is the same as the base replacement model.
I also need to a seal kit and i think the one i require for salt is a Go Kit 3 is that correct?
Thanks
Reply
Yes, the UST1102 is going to be the replacement. UCT1102 is the energy efficient replacement that uses 2 amps less while keeping the same horsepower so saving money on your energy bill. STS1102 is the dual speed replacement that will allow you to run it at high, 1HP, and low, 1/4HP, which has the potential to save you even more money. The real energy saver is going to be the ECM16CU which is the variable speed replacement. With the variable speed you will be able to adjust the RPM's to where it is going to be the most efficient for your system. The seal kit you want is the GOKIT3SALT.
Reply
Can it be used for a saltwater pool
Reply
Hi John, Yes this motor can be used on a saltwater pool. When you replace your motor we suggest replacing your pumps shaft seal and for salt pools we suggest using the saltwater shaft seal.
Reply
Is there a variable speed replacement motor for the SP3010EEAZ?
Reply
I have a 33,000 gal salt pool and need to replace my pump and the basket and basket housing attached to the pump. the pool was constructed in 2004 and the model # on the Hayward pump is, UST1102. Can you give me your replacement thoughts and estimated cost. thanx larry
Reply
Hi, Larry. If you can provided us with the housing model number we can better assist you in locating a complete pump. We have several different pumps the uses the UST1102 motor but knowing the housing model would allow us to eliminate some options.
Reply
I have a hayward motor MODEL: c48k2n14301c ..... SERIAL: 15010fm
Will this motor be a direct replacement ?
Reply
Hi, Based on the MODEL # provided this 1 HP Round Flange Up Rate Motor is the direct replacement.
Reply
I need to replace my AO Smith motor for a Hayward pump. The model # is C48K2N143B1, frame = 56j, SF = 1.1. Based on your Q/A section, it appears the replacement motor for this is UST1102. However, the description states it an "up rate" motor. I'm not sure what this means. Second, my current motor is a "round" flange, correct? This link from your website appears to be the correct motor, please confirm.
Thank you,
TJ
Reply
Hi, TJ. This is the correct replacement based on the info provided.
Reply
I have the c48k2n143c1c FR 56j. Is this the pump needed and will i need anything else?
Reply
Hi, Tim. Yes, the UST1102 is the correct replacement motor for the c48k2n143c1c. A tune up kit is also recommended but we will need to know the model of the pump.
Reply
I am replacing my A On Smith motor and pump the catalog #isB234 the serial # is 22209 3m type: cxpm, 230 volts 10.0/3.5 amps the pump is a left hand discharge 9:00 position the unions appear to be 3" dia. 2&1/4" I.D would appreciate a reply to find out the h.p. and would like to order the correct set up thank you.
David Henderson
Reply
I will need the pump model, the B234 motor is a 3HP 2 speed, if you do not know the pump model please attach a picture so I can identify it for you.
Reply
can i use this motor to replace a hayward 1hp 115/230 model k48L2n104 or what other motor would be a good replacement for this?
thank you for your time, god bless, thank you
frank
Reply
We have a hayward super pump self priming... the motor is A.O. Smith 1 HP Round Flange Up Rate Motor... It's making an extremely loud running sound. Think its due to being old? This motor should be retentively quiet correct?
Reply
Yes, you need to replace the motor, UST1102, and the shaft seal, part number SPX1600Z2.
Reply
Is model c48k2pa105 adequate replacement for c48aa35a01
Reply
Model number C48K2PA105 is a square flange motor, part number USQ1102, and model number C48AA35A01 is a round flange motor, part number UST1102.
Reply
im looking for a ST1102 Pool pump 115/230 Volts - 345 RPM - 18.6/9.3 AMPS - 1 HP - PH 1 - Code L - FR 56J - HZ 60 - TIme rating CONT INSUL CLASS B - AMB 50 C TYPE UAC
Do you have this pump or one the will work in its place
Reply
I'm replacing a motor on a Pentair Challenger pool pump. Original is a 3/4 hp 1.67 SF. Will a replacement with a 3/4 hp 1.65 SF be adequate? Seems like the .02 less on the SF is insignificant. Am I correct in my assumption and okay with purchasing motor at 1.65 SF? The pump is used solely to pump water to a water feature that is at a level above the pump, so adequate power is essential. Thank you!
Reply
Yes, so the B847 would be the correct motor replacement and the shaft seal is part number 5250-104.
Reply
I am ordering a replacement motor UST1102 for a salt water pool. What seals do I need? The parts are # SP2605-C and SP2600-E. Thank you kindly, Ted
Reply
Hi Ted, You have the Hayward Super Pump so you would require this Hayward Super Pump Salt Seal Kit
Reply
what is the gokit number for a.o.smith sp1607z1mbk 1hp round flange motor. THANK YOU.
Reply
That is the part number for the motor, what is your pump model? If you do not know please attach a picture of your complete pump so I can identify it.
Reply

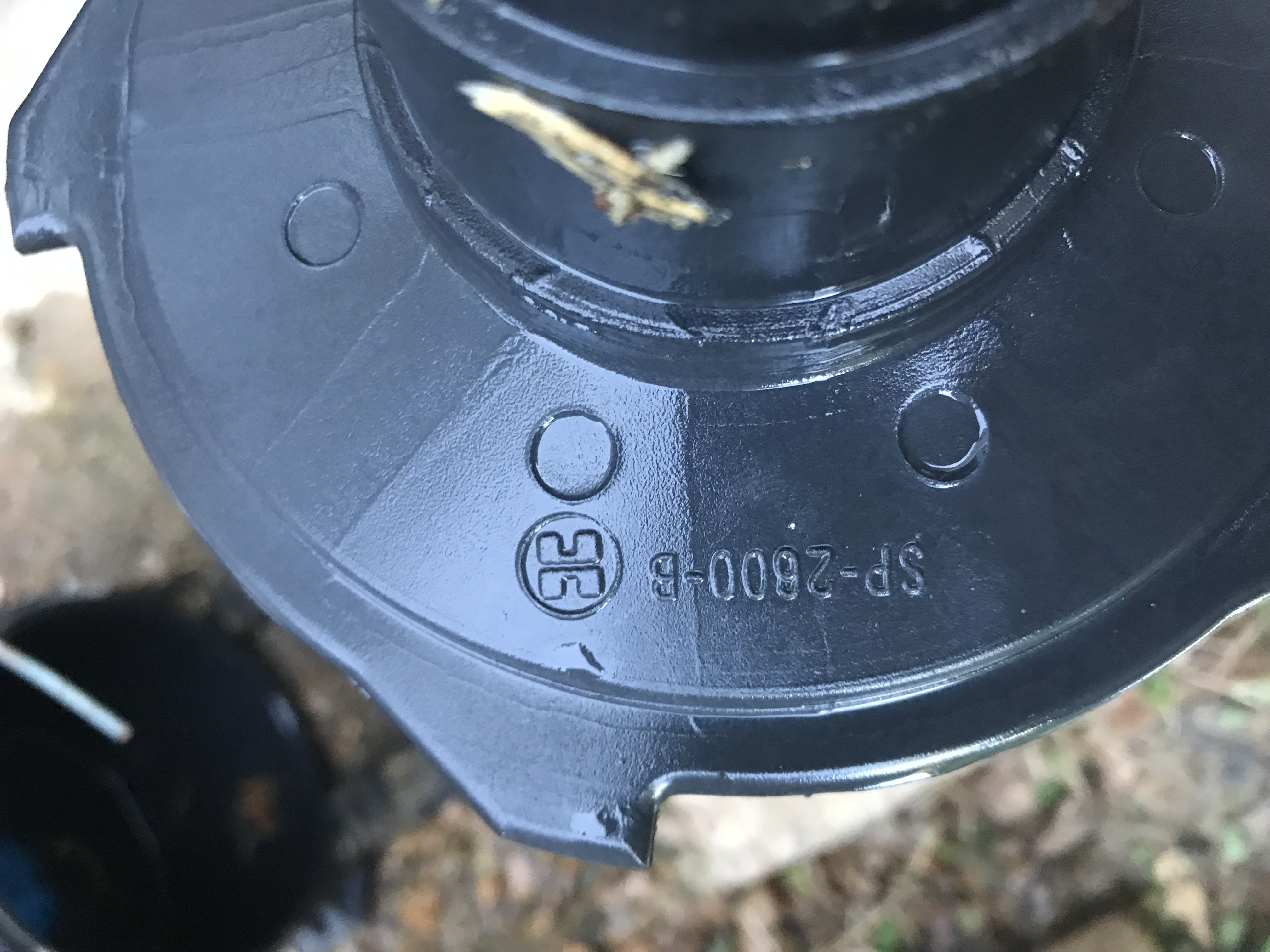

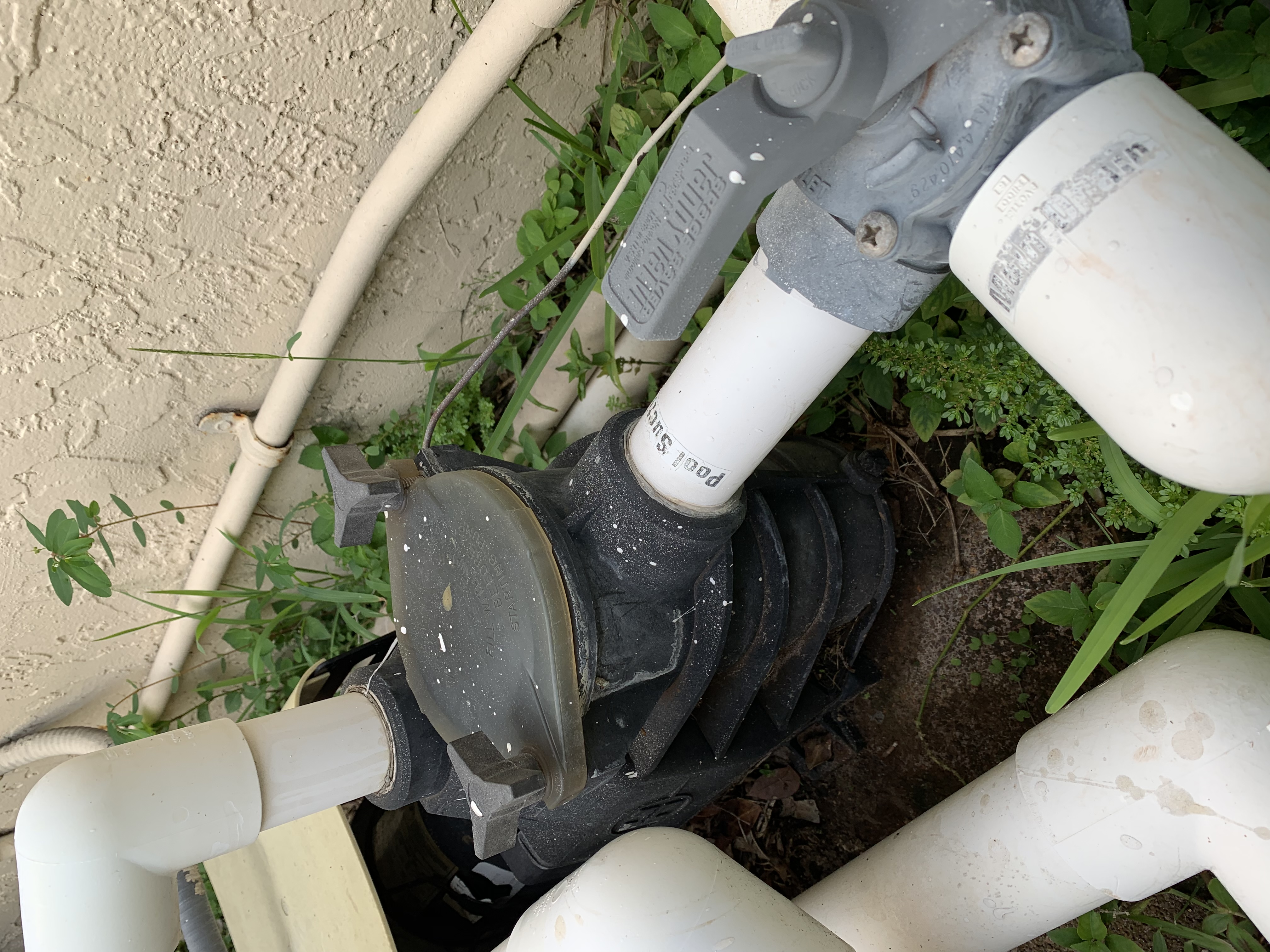

How do I know if I need go kit 2 or 3. I don't see a name for my hayward pump
Reply
If you can attach a picture of your pump housing I can tell you if you have the Super Pump or Super 2 and be able to tell you which seal kit you need.
Reply
i have a centurion pump motor that I need to replace Part # 0-184981-23 //// CAT# B228SE . It is attached to a Hayward pump. What do I need to replace the motor.
Reply
Hi, i have motor model c48L2n131 is used on my well to supply water to my house. motor was installed vertically over the well hole, connected to my well casing and also acted as a well cap. The pump started to continuously run and started to leak at pump housing or somewhere near it on seal itself. Do you carry a seal kit or rebuild kit?Could just replace the seal and still use this pump? If not what type of pump would you recommend as a replacement. Thank you for your time
Reply
We do not carry parts for well/irrigation pumps but if you locate that pump housing model and call us we can double check for you.
Reply
about how many gallons per hour can the Hayward ust1102 pool pump circulate water . Thanks!
Reply
You would also need to know the specific front pump housing model and total feet of head to view a pump curve showing gallons per minute ratings. You may want to call in with that information.
Reply
Have Hayward super pump with Century UST1102 -C48K2N143C1C. Replacing motor. Which do you recommend. PureLine PL1102 or A O Smith UST1102 ?
Reply
Hi Richard, I would recommend the PureLine PL1102 it would work fine as a replacement.
Reply
I recently ordered bearings and a salt water gasket tune up kit (APCK1024). I started opening up my motor to replace the bearings and it is a mess in there, melted parts, locked up, corroded, etc. Broke bolts off taking it apart, anyway, I am just going to order a replacement motor and be done with it. Can I send the bearings back, do I need to keep the gasket kit, and is this the correct motor for my Hayward Super Pump SP1607Z1M?
Reply
what is the difference between UST and EST? Also, are the threaded shafts universal? We need to replace 1 HP Hayward C48K2N143B1 Ser 8K04. It is 115/230 Volts, SF 1.1 I think is says Frame 58J
Reply
I am replacing my A.O. Smith C48K2N143B1 with this 1 HP UST1102 Replacement Pool Motor. Is there anything else I would need, like a gasket kit or something like that?
Reply
Hi, Eddie. The Century UST1102 motor is the replacement for the C48K2N143B1 motor. In order to locate the tune up kit or o-ring I will need to know the pump housing model.
Reply
HI,
please let me know the WATER FLOW for UST1102 MOD. C48K2N143C1C
Thank you,
Dobrin
Reply
I have a Hayward MODEL C48K2N143B1
SP1607Z1M
SER - 16611CH
HP 1
and I want to replace the motor. What motor do you sell that is similar and will fit in the current strainer housing, etc. ?
Reply
Hi Emilio, This UST1102 1 HP Replacement motor is the correct replacement motor for your MODEL C48K2N143B1SP1607Z1M
Reply
Is this pump a direct replacement for Hayward Super Pump? Will all the other accessories that are part of the existing Hayward Pump fit without any retrofit.
Reply
Yes, this is a direct motor replacement for the original Hayward Super Pump model SP2607X10 and the original parts are compatible with this motor.
Reply
is there another motor to replace this one that is quieter. thanks
Reply
The two more quiet model motors would be either a dual speed or variable. Those motors in low speeds are far quieter. The dual speed model is the B973T and the variable speed model is the ECM16CU. You just want to get the model name or number of the front pump housing that the motor bolts to making sure that the motor control boxes fit ok.
Reply
Is this a replacement for a Hayward SPX1610Z1BEE? Mine has a bulging housing like your energy efficient model.
Reply
Hi, Mike. The Century CT1102 motor is the correct replacement motor for the SPX1610Z1BEE motor.
Reply
I need to replace my UST1102 Model C48K2N143_IC. I cannot read the digit before the IC because it is scratched. This is used for my inground pool. Can you please tell me what you have to replace it? I need it ASAP. What is cost & how quickly can it ship to NJ?
Thank you.
Reply
Hi, Mary. The UST1102 Motor is the correct replacement. You can expect in 1-3 business day after it ships depending on the shipping option selected.
Reply
I have a model# C48L2N134B4. Will this motor fit?
Reply
The UST1102 is not the proper replacement for the C48L2N134B4, this ST1102 1 HP Replacement Motor would be the correct replacement for your pump.
Reply
can this one replace a a.o. smith
CAT B128
PART O-164303-23
TYPE CX FRAME M56J
Reply
Hi Bernie, The UST1102 is not a replacement for the B128 motor. You will require this B128 1 HP Full Rate Replacement Motor.
Reply
How about for a Hayward SP2807X10 Max Flo pump, Model C48K2N143B3? The one I bought from you is making a very loud, grinding sound. Thinking I just need to replace the motor and not the entire pump unit. It is a slat water chlorination system. Is that (the salt water) the problem?
Reply
Salt water making its way past the man shaft seal to the motor face can indeed cause the bearings to fail which is known to create the loud noise. If you purchased the motor within a year ago then it may be under warranty. We would just need a few images of the motor in order to run a warranty claim for you. Please call in or email us at upload@inyopools.com if you need assistance in beginning the warranty claim process.
Reply
I have a AO Smith C48K2N143 motor, SF 1.1, Frame 56J, 115/230V. What replacement motor is right? is there a more energy efficient motor I can use that will also fit? Also, what information do I need for a gasket kit.
Reply
Hi Paul, This UST1102 Motor is the direct replacement for your C48K2N143 motor. If you would like to go Energy Efficient then you can go with the UCT1102 1 HP Energy Efficient Replacement Motor which will save you roughly 20% on your operational costs. The most popular pump that this motor mounts to is the Hayward Super Pump and if you have that pump then you will need the Hayward Super Pump Seal Kit If this is not your pump then please send us a photo showing your complete pump including where the plumbing goes in and out of the pump. To send this photos simply reply to this email or send them to upload@inyopools.com
Reply
Need to replace a C48K2N143B1 (thermal shutdown) in a Hayward SP2507x10 housing. Is this the correct replacement, and what tune-up kit is needed, since I think it would be a good idea to overhaul all possible while disassembled.
Reply
Hi Larry, If you have the Hayward Max Flo XL SP2507X10 Housing then you will need the SPX2707Z1M 1 HP Replacement Motor and the Max Flo XL Shaft Seal. I would double check that you don't have the SP2607X10 Super Pump, if you do have the SP2607X10 then you will require this UST1102 1 HP Motor along with the Hayward Super Pump Shaft Seal.
Reply
Need to replace a C48K2N143B1 (thermal shutdown) in a Hayward SP2507x10 housing. Is this the correct replacement, and what tune-up kit is needed, since I think it would be a good idea to overhaul all possible while disassembled.
Reply
The replacement motor model is a UST1102 and I believe that you meant to provide pump model SP2607X10 Hayward Super Pump. If so then the standard seal kit is the GOKIT3 and the salt water seal kit is the GOKIT3SALT.
Reply
I need to replace a motor on a Hayward Super Pump. Model number on the motor is SP1607Z1M, can not make out any additional information. Is this the correct replacement motor? Also would like to replace the seals, serial number on the pump housing is 2607X10. Can you recommend what I should purchase? Thanks
Reply
Yes, that is the correct replacement motor and based on the model number you have provided the standard seal kit is the GOKIT3 and the seal kit for a salt water swimming pool would be the GOKIT3SALT.
Reply
Will this motor directly replace a Hayward sp2607x10 and what is the return policy and warranty
Thank You
Duce
Reply
Hi, Duce. This Century UST1102 Motor is the replacement for the SP2607X10 Pump. This motor can be return if it's in new or unused condition within 30 days and comes with a 1 year manufacturer warranty. I would also recommend getting the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a century pump motor part # B228se, can I replace it with the century UST 1102,or can you tell me what the difference is between the 2 motors. Thanks Ken
Reply
Hi, Kenneth. You can use the UST1102 motor as a replacement for the B228SE. The difference between the two motors is the design and efficiency. The B228SE uses less energy than the UST1102 motor.
Reply
Just installed a 1HP Century motor on my pool pump. The pump appears to be running hot I shut the pump off when my infrared gun said it was at 170. Installed new seals, check power it was 241v, installed new filter. How hot will this get and not damage the motor. Any ideas.
Reply
Hello Randy - One of the long time rules is to keep the bearing temperatures under 200°. There is a thermal overload protector which will shut the motor down at 256°. This would be the temperature of the winding, at the hottest point.
Reply
Have century c4kzn143b1.ser#17814j2. What is direct replacement pump and seal kit. Pool is salt water
Reply
This model number does not cross reference on our site, google or A.O. Smith/Century's page. Please send us some images of the front pump housing model label and of the motor label to upload@inyopools.com.
Reply
Just replaced my magnum pump, came with ao smith 1 hp. Keeps shutting down after 3 minutes. where can I get schematics on this. Any thought.
Reply
Hi, Ron. It sounds like the motor may be overheating shutting off and then turning back on once it cools down. This can be caused if the motor was replaced with a less than equal THP, a bad impeller and or a faulty thermal overload.
Reply
94027110 is this motor designed to turn on and off for energy savings, automatically.
Reply
Hi, Ron. This motor will run continuously once power is supplied and turn off once power is cut off if controlled by an external controller.
Reply

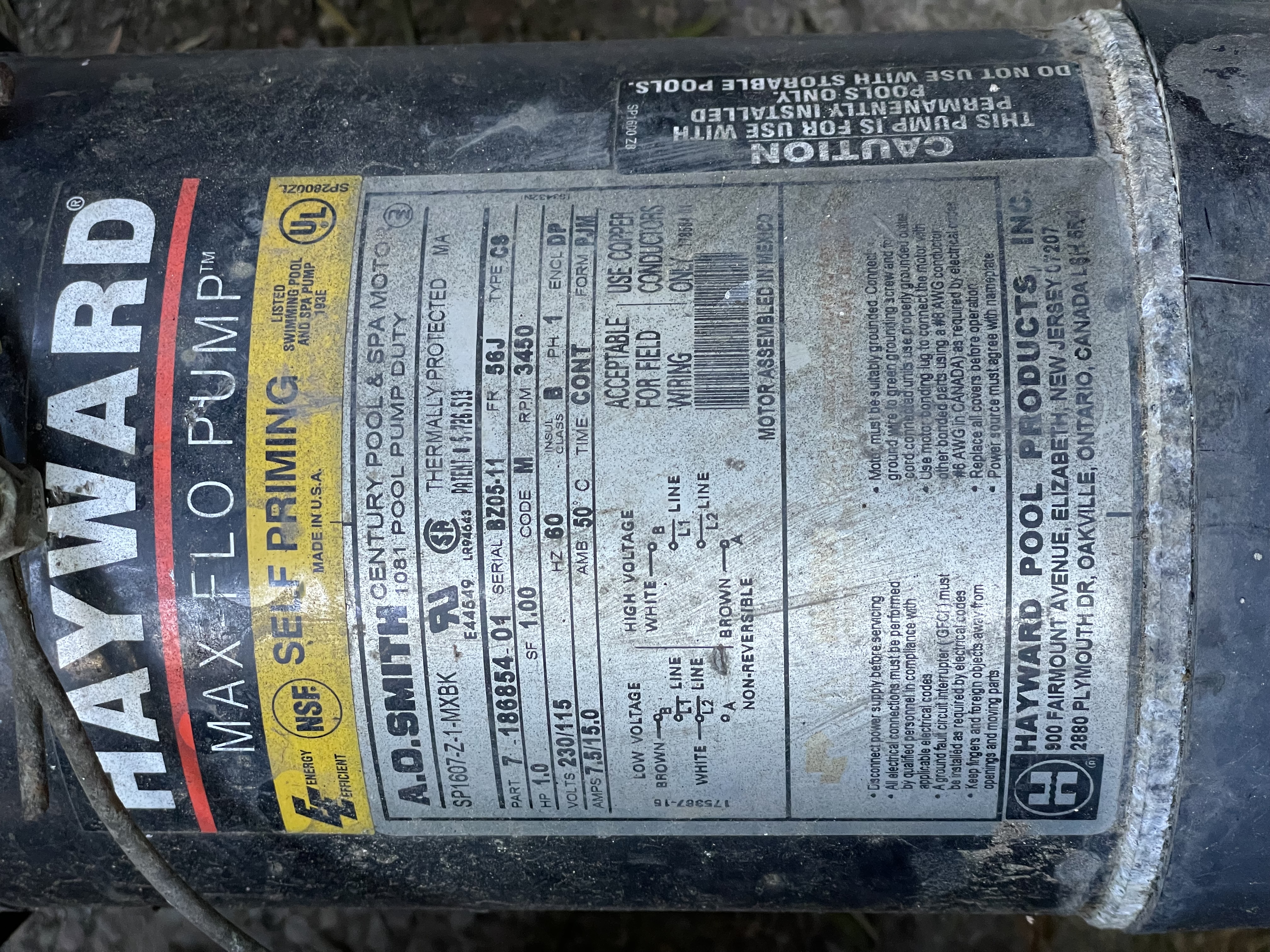

I have an A.O. Smith SP1607-Z-1-MXBK (1 HP) motor that operates a water fall near the pool. The pump appears to be leaking near the bottom of the motor, probably a shaft seal. I see the UST1102 is a replacement for this. I am wondering if there is a more energy efficient replacement available.
Reply
Hello Bob, There is an Energy Efficient for the SP1607-Z-1-MXBK is the A.O. Smith 1 H.P Pool Motor Energy Efficient Round Flange - UCT1102.
Reply
Can this be used in place of the Hayward super pump #SP-2607x10?
Reply
Hi, Bridget Thompson. Yes, this UST1102 motor can be used with the SP2601X10 pump. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply

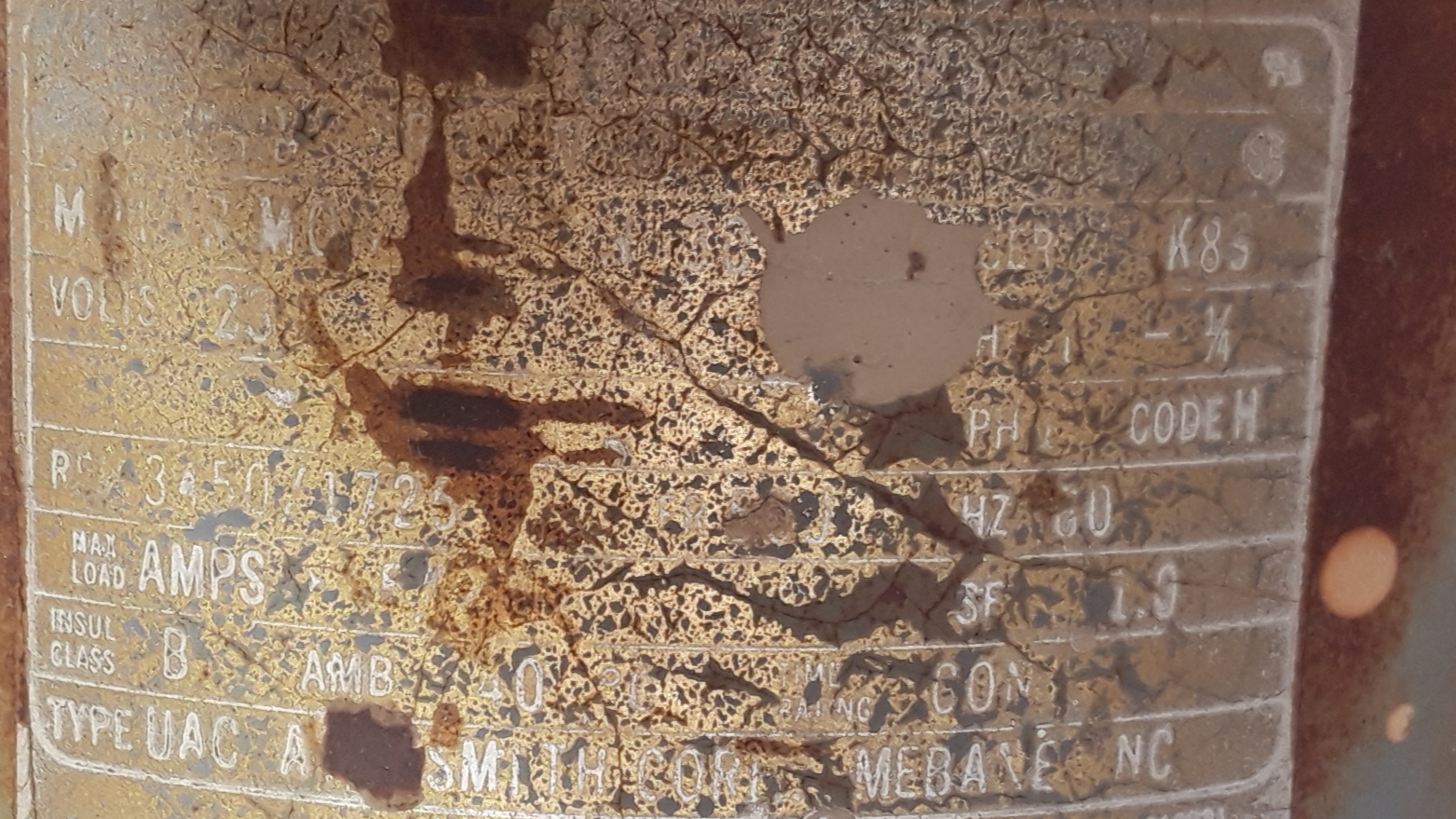

Will this pump work to replace an A.O.Smith 1 hp pump that I currently have. Some of the info on the pump is distorted but the Model # looks like C48K2N143111 ? The only distorted part of the number were the last 3 digits: 111
Other data: RPM 3430; type UAC, Ser # 8J01 and also the designation CET51ABM.
Thanks so much
Reply
will this motor fit Hayward 1hp superpump sp2607x10
Reply
Hi, Jim. Yes, this UST1102 motor will fit the Hayward Super Pump SP2607X10. I will also recommend that you get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Don't I need a seal kit for this motor?(Salt system)
Reply
Hi, William Dozier. Yes, a tune up kit or pump seal is recommended when replacing the motor. However, the model of the pump housing is required to determine which kit or seal is needed.
Reply
I have a A.O. Smith Model # C48A95A06 1 HP Ser. # 8C06 do you have this motor?
Reply
Can this motor replace SPX1610Z1BE as it has the round flange and and same mounting capacities. I purchased this unit new and original motor no good. I dont care about the energy stuff at this point I just need a motor.
Reply
i have a st1102 pump motor and is the ust1102 the same and will it work for the same pump housing??
Reply
Can I use this motor to replace my exisitng U.S. Motors Emerson EUST1072 Single Speed 3/4HP?
Reply
Hi, Anna. Yes, you can use this UST1102 motor to replace the EUST1072 motor. It will cost more to operate since it's a higher hp.
Reply
I just watched youtube video for installing new pump motor. Can I use WD 40 instead of silicone lubricant on gasket?
Thank you in advance!
Reply
Hi, Anna. You cannot use WD-40 in place of the recommended silicone lubricant for your pump gaskets.
Reply
Hi. I am looking for a replacement motor for my Hayward super II pump (Model: K48L2N104). Will this motor work fine? What are other available options?
Reply
Greetings,
My pool pump motor has gone bad (in ground). The Motor Mod is C48AB45A01 and is a 1.25 HP. when I put in the search with my model # I get a result on your site that is only 1 HP. Can I go down in HP and still be ok with a proper match?
Reply
Do I need a new shaft seal of is it included
Reply
Hi, Ivan. You will need a new shaft seal which is not included with the motor. We will need the model of the pump body in order to locate the correct pump shaft seal.
Reply
Will this motor replace part 0-184982-23 (Century Centurion AO Smith) ? Thanks in advance...
Reply
Is this pump submersible? Or water proof?
Reply
The motor is not submersible, but it can withstand average rainfall. However, for best results, you should keep the motor as shielded from the elements as possible.
Reply
Will this work on a Hayward Max Flo Pump, 1hp, model number C48K2N143B1 by a.o. smith? If not, what are my other options? And what gasket/install kit will I need with it?
Reply
Hello, you will need the UST1102 and the GOKIT1 if you have a chlorine pool, and a GOKIT1SALT if you have a saltwater pool.
Reply
Will any motor that is compatible with the UST1102 work with a Hayward MaxFlo model number C48K2N143B1?
Reply
Hello, you will need the UST1102 and the GOKIT1 if you have a chlorine pool, and a GOKIT1SALT if you have a saltwater pool.
Reply
I am replacing the motor on Hayward SP2607X10 Super pump on a Salt Water Pool. I noticed in the forum you recommended this A.O Smith but while shopping in pool parts it recommends the Pureline PL2228. Will either of these work for my replacement. I like the fact that the Pureline has a 2 year Warranty. Which would give me better service in your opinion?.
Reply
If you are replacing the original motor that came with the complete pump then yes, either motor will work. The Pureline is just another option being our line and should work just the same. It carries the same warranty as the A.O. Smith as well.
Reply
I have an a.o.smith model #ST1102 and the max amp on it is 18.6/9.3 and the new one is less. will that make a difference
in the performance?
Reply
As long as you are matching the exact model, part or catalog number on the new motor with the one you currently have then a difference in amps will not make a difference.
Reply
What replaces the A.O.Smith st1102 pool pump motor?
Reply
That is the correct replacement motor for the ST1102. It is the ST1102. If you need a complete pump then you would need to locate the model number on the front plastic pump housing that the motor bolts to.
Reply
I am replacing a Hayward super ii 2 hp. It is a dedicated pump for the waterfall. The previous owners installed a ball valve to limit the flow since 2 hp was too much. Will this work as a replacement as that motor no longer works?
Reply
buying this as a replacement for a sp1607z1m. is this the correct replacement? it says this model in the alternate part #s so i'm guessing it is. also which replacement shaft seal works with this motor? it is going on a sp2607x10 pump. thank you.
Reply
Hi, Shane. This UST1102 or the PL2228 motor can be used as a replacement. I will also recommend that you get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I am replacing a Haywood Super pump A.O.Smith motor. The model number on the motor is C48K2N143B1. 1Hp.Serial Number 31508CH. Is this the correct replacement or do you have any other options. Thank You
Reply
Hello, the UST1102 would be the correct motor for you. Along with this, you will need either the GOKIT3 or the GOKIT3SALT if you have a saltwater system.
Reply
I have an A.O. Smith T1102 model C48L2DB111 56J frame motor is this the correct replacement for it?
Reply
Will this bolt up to my Hayward sp2607x10
Reply
Hi. Yes, this motor will bolt to the Hayward SP2607X10. You can also use the PL2228. I'll also recommend that you get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Will this fit a Hayward SP2605X7 using salt water system?
Reply
My pump was new last year. I just opened the pool and it seems to be working fine, but it's a lot louder than last year Is there some way to deal with this? Maybe it can be lubricated.
Reply
Unfortunately, no. This is a sign that the bearing(s) are beginning to go bad.
Reply
What are my best options for a direct (easy) replacement for a Century UST1102 / C48K2N143C1C HP 1, SF 1.1 FR 56J on a Hayward Super Pump running on 115volts in a salt water pool? Would a more efficient option be available to me and what kind of energy savings would be expected? Also, a local store said they have just switched to only using the original Gold Hayward motors (more expensive) for replacement due to longevity issues with others. Current motor lasted 3 yrs. Any thoughts?
Thanks
Reply
Hi, CLH. You can use the UCT1102 as an energy efficient replacement option. You can save approximately 33%. The OEM Hayward motors and these aftermarket options are manufactured by the same company. There is not a major difference in the quality of the OEM and Aftermarket options.
Reply
Thanks for the quick response. Follow up question: you suggest the UTC1102 as a replacement for my UST1102 mated to a Haward Super Pump. Is the GOKIT3SALT the correct seal kit for this combo on a salt water pool.
Reply
Yes, that is the correct seal kit for a saltwater pool on a Hayward Super Pump.
Reply
I have a Century model C48AB47A01 and don't know which pump to get
Reply
I bought the A.O. Smith 1 HP Round Flange Up Rate Motor and replaced my old 1hp motor that had burned out. While the system is running, the water pressure is lower than before. The heat pump is not able to operate due to low pressure and the return pressure is definitely lower than it used to be. The filter is at 9 PSI though which is in the normal range. It used to be at 10-11 before. Before reinstalling I did clean the impeller. What could be some reasons for the low pressure?
Reply
Keith, If you just replaced the motor, you may have air in the lines. If you have an air relief valve on your filter, you can purge the air manually. Once the air has been purged, you will see an increase in pressure.
Reply
What are the correct flat electrical connectors to purchase that you can use to connect the wires to back of the pump without having to use the screws? I see the paddle connectors next to the screw and I figure that could be easier to use
Reply
Hi. Those are called Spade Wire Connector, you can get them at your local hardware store.
Reply
I am looking to replace the motor for my 1hp jacuzzi inground pump. Century Centurion A.O Smith, (part 7 - 186085 - 20),
serial BX9-03. Will this part replace that motor?
Reply
My pool pump is making a serious noise ......last motor was from us motors and the model is c55cxkmb-5012 replacement for a Hayward Superpump
Reply
Yes, this is the correct replacement motor for that model.
Reply
would this motor be a replacement for a OA Smith USQ-1102 ? and if it's bad will it stop completely ? power is on but motor is doing nothing.
Reply
My motor is a 10-184948-22 One HP 115/230v 7Amp
Housing is Jacuzzi Magnum Force 1UMF-S
Bearing is screaming. What do you have? and which seal?
Reply
The proper replacement for this motor is a ST1102 Century 1 HP Full Rate Replacement Motor and you will require this Jacuzzi Magnum Tune Up Kit Also we have a Video on How to Replace a Pool Motor which you may find helpful.
Reply
When we went to open our pool this spring, the motor was sealed (Hawyard Super Pump - 1hp). A service man took it off and got the motor spinning again, but we are thinking that the bearings are starting to get a bit loud and I'm curious if there is any way of estimating how long the motor may continue, or should we be ordering a replacement motor now to have on hand.
Reply
It is tough to predict how long the motor will last. Loud bearings are a sign of the motor going out so I would not recommend to replace it unless it becomes to loud. If the motor is in good enough condition you may want to consider just replacing the bearings.
Reply
Our existing AO Smith motor keeps tripping the breaker, it is part # 7-184981-23, B228SE
Is this the correct replacement motor? Thank You
Reply
how long does it take to get this
Reply
Hi. You can receive this motor three business days after it ships. It will ship either the same day or the next business day after the order is placed. See our Shipping Policy.
Reply
Is this a correct replacement for a Hayward 1HP, KW .75, model# C48k2N143B1
Reply
Will this motor replace Model# C48L2N134C2 for Hayward Pump
Also looking for a replacement motor for Waterway Model 3722021-0T7GDY
Part # PF-50-2N22M for Hottub. What would you recommend?
Reply
You would actually need the ST1102 1 HP Full Rate Replacement Motor for your C48L2N134C2
Reply
In 2011 I replaced my Pentair WhisperFlo (used for waterfalls) with QC1102-SQ FL FR 1HP EE 115/230V. The bearings are now going out again and need to find a replacement motor. Which motor should I use? Thanks.
Reply
Can I use the UST1102 as a single speed replacement in a Hayward SP2607X102S? Current motor is AO Smith 7-177102-05. I usually run on high setting only anyway. What seal kit should I get? Thanks.
Reply
Hi. Yes, you can use the UST1102 or PL1102 motor as a single speed replacement option. You will need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
i have this a o smith pump on my inground pool............i'd like to change it with a new one along with the filtration unit , is that possible to purchase or should i put the old filter on the new pump?
will i need any new gaskets?
thx
k
thx
k
Reply
Hi, Ken. You can replace just the motor and the seals reusing your existing housing and parts. You can also replace the entire pump which will come with a new housing. I will need your model number or name in order to determine which seals you need or to locate a suitable pump replacement.
Reply
I have a Hayward super pump sp 2607 with a ust 1072 motor. can I upgrade to the ust 1172 motor? I notice everything is the same, except the sf is 1.1 as opposed to 1.0
Reply
Gary, If you have the SP2607X10, the original motor should have been a 1HP (equivalent to the UST1102). I would recommend checking the part number on the impeller to see if it was change along with the lower HP motor. If it was, you will have to purchase the matching impeller and seals if you want to go to a higher horse power motor.
Reply
I have A.O. Smith model C48K2N143C10 is your motor a replacement for that ? please let me know thanks
Reply
There is no actual model listed under C48K2N143C10 but when the last digit is removed then this UST1102 is the replacement.
Reply
I have an A. O. Smith /Century Centurion poll pump motor part 0-177215-04.
1.0 HP motor 3450 RPM 230/115 volts SF 7.1/14.2 AMPS
What would be a replacement for this?
Reply
I have a Hayward SP3007x10az with a Century Centurion P# O-164303-23 CAT: B128
Would this motor work for replacement?
Reply
I have a hayward pump system. Need a motor. ST1102. C48L2N134C2. Volt115/230 rpm3450 ph1HP1. CodeL. Fr56jHZ60. will this pump work??????
Reply
I have a Hayward Super Pump - SP2610X15. Will this motor work on it? The current motor is a US Motors K63CXDGJ-5170, which is 1.5 HP. Service man replaced original motor and it seems like I may not need a 1.5 HP. Can't remember what HP that original motor was.
Reply
I need a replacement motor for model # c48k2n143b1, can you tell me what I need? Also the correct seal kit to replace it?
Reply
Hi, Mike. This UST1102 motor is the correct replacement for MOD # C48K2N143B1. To locate the correct seal kit, I will need to know the model number or name of your pump housing. Check out these following links; How to find the Correct Pump Tune up Kit, and How To Find The Correct Pool Pump Shaft Seal For Your Pool.
Reply
Will this replace MagneTek part number 10-184981-21? The CAT is B2288E. The frame is 8(maybe B)56J. All of this information came off the old motor label.
Reply
I have a 1 HP Hayward super pump model #c48k2n143b1 what replacement motor would I need?
Reply
Hi. This UST1102 or PL1102 can be used as replacements for your model. We'll also recommend that you get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hi
I probably know the answer to this question already, how long is the warranty good for this motor?
Thanks
Reply
I just replaced my old Hayward 1hp with a new one from you, the same model# #c48k2n143b1. Since installing it the motor has been running very hot. enough to burn. I've turned it off. What do you think the cause is?
Reply
Hi, Bill. To troubleshoot the motor, use the A.O. Smith Troubleshooting Guide as a reference.
Reply
Current pump motor I have is- K63CXEAU-5225, Cat# EB228 that started making a terrible squealing noise - I believe bearings are going. Is the 1HP round Flange UST1102 motor the correct replacement motor and should this be the only thing I need to replace? My current motor has a THP rating of 1.25 and is 3 years old, the UST1102 1 HP motor has a 1.1 THP (SF1.1). Pool has 1.5" PVC piping, contains 38,000 gallons with a S200 heyward sand filter.
Reply
Yes, this would be a correct motor replacement and we recommend to replace the seals and gaskets that the motor bolts to as well. You would just need to confirm the model name or number of that pump housing and advise so we can get you that seal kit. If you cannot locate that model then you can always send us pictures of it to upload@inyopools.com so we can try and confirm that for you.
Reply
DOSE THIS MOTOR COME WITH SEAL
Reply
These motors do not come with the seals. The seals depend on the model name or number of the front pump housing that the motor actually bolts to. If you do not see that model information then you can email images of that to upload@inyopools.com so we can confirm that model for you.
Reply
I have a Hayward pool pump SP2607X18 can I replace this motor with UST1102
Reply
Hi, I bought this motor and watched the instructions on how to install. I'm towards the end where connect the wire to the electrical connector but the instructions show the wires have plugs. What do I do when my conduit wires are don't have the plugs?
Reply
Hi, Jacob. You will use the terminal screws to secure the wires to the motor.
Reply
Will this replace the motor in my Hayward super pump SP1607Z1M (century motor)?
Reply
Hi, Brian. Yes, this UST1102 motor will replace Part # SP1607Z1M. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
my pump motor hums before starting up and somtimes don't start
Reply
Hi, Mike. The issue could be caused by a failing or bad capacitor. Use these guides to troubleshoot your motor, How to Test a Pool Pump Capacitor and How To Test a Pool Pump Motor - Winding Resistance.
Reply
Will this replace a hayward super pump motor c48k2n143b1
Reply
Hi, Rich. Yes, it will. You will also need to get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
WIll this replace model K48l2n104? And should i replace the motor or the bearings it is loud and sounds like bearings are shot.
Reply
I am trying to replace a AO Smith C48J2N131B3 Super II pump 3/4hp running at 115 v for a SP3005X7AZ Haywood pump. Will this 1 hp motor work and is there any benefit to the hp increase? Also what seal kit do you recommend.
Reply
Hi, J Carter. You can use this UST1102 motor as a replacement. There is no benefit to using a larger motor with a smaller impeller. You will need the Hayward Super II Pump Tune Up Kit GOKIT2 or GOKIT2SALT for that model pump.
Reply
Pump squeals a high pitch after running for a bit, reading your guide it sounds like a bearing issues. My pump is Hayward MD: SP26607X0 with a C48K2N143C1C Motor.
Is this the product I need? Do I need any additional parts?
Reply
Hi. This UST1102 along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT are the parts you will need to get your pump running again.
Reply
Will this motor replace SP1607Z2MSC. I don't ever use the 2 speed option...is there a better motor I could use? On my second motor!
Reply
Our pump motor has gone out and the model on the motor is... K48L2N104. The pump shows SP3010EEAZ. What model should we order from you guys? Motor states 1HP, 14.6/7.3, SP-1610-Z-1-BE. What impeller do we order?
Reply
Hi, Brian B. The CT1102 will be the correct replacement motor. The replacement impeller will be Part # SPX3010C and the Tune Up Kit GOKIT2 or GOKIT2SALT.
Reply
My old motor is a AO SMITH T1102, MODEL C48L2DB11, 1 HP. I need a replacement motor. It will be installed on my water well. And could you clear up the confusion if a pool motor can be installed on a water well.
Thank you for your time.
Reply
I have an old Hayward C48K2N143B1 Self Priming Super Pump. I like to change the motor, impeller and new gaskets. What ever elsey believe i will need for the new motor to ensure I get a smooth replacement that aill last a long time. What parts & motor do I need
Reply
I need replacement Motor for Hayward RS1000. Motor Nameplate Data is Emerson 1HP;1.5 SF. Frame 56J.Model T55CXCHM-1325,Type MJ07C.
Is your Motor UST1102 A.O Smith replacement with no problems matching up with RS1000 Wetend ?
Thanks
Reply
I currently have a 2 speed motor- SPX1610Z2MS. I would like to replace it with a 1 speed. Would this be the replacement?
Thanks in advance!!!!
Good Afternoon- Yes, the A.O. Smith 1 HP Round Flange Up Rate Motor would work as a single speed replacement for the 2 SPEED MOTOR 1 1/2-1/4 HP - SPX1610Z2MS.
Reply
Can the ust1102 be used to replace the st1102?
Hi, Pool Guy. The ST1102 motor will be the correct replacement, this UST1102 will not work.
Reply
I don't see a listing for the ST1102. Where can I find info and price?
Reply
Hi Lenn, Here is the link to the ST1102 1 HP Full Rate Pool Motor
Reply
Will this motor work on this model.
hayward sp3007x10az
Reply
Hi, Jim. Yes, this motor will work with the Hayward SP3007X10AZ pump. You will also need to get the Super II Pump Tune Up Kit GOKIT2 or GOKIT2SALT.
Reply
Hello,
I am new to owning a pool and would like to replace "Marathon 5kc39pn2822bx" motor due to excessive noise. I found exact part/motor but its unavailable: http://www.inyopools.com/Products/05300017000422.htm#related.
Can you please confirm this is the correct replacement part/motor? Please see attached picture of the motor I am trying to replace. Thank you for your assistance.
Yes, this would a be a correct single speed replacement motor for your model.
Reply
Hello, I have received the recommended motor and kit. I noticed I would also need to replace the impeller due to cracks on the threads. The current mode is (Hayward) SP 2605-C. What do you recommend for its replacement? Thank you!
Reply
What is the difference between the ST1102 motor and the UST1102 motor. I have a Hayward SP2607x10 pump and the motor currently on it is an ST1102 (which is a replacement put on many years ago). When I look up the motor for the SP2607x10 it shows the UST1102 as a replacement. Should I replace the existing ST1102 motor with another ST1102 or can I use the UST1102 as a replacement?
Reply
Hello, The st1102 is a full-rated motor, while the UST1102 is uprated.When calculating the THP (total horse power) on each of these motors the ST1102 thp is 1.5 while the ust1102 thp is 1.1. We recommend staying with the st1102 that is on your current pump. Please click the link below on a great article that explains the differences http://www.inyopools.com/HowToPage/how-to-understand-true-pump-horsepower-up-rated-vs-full-rated.aspx
Reply
Does this motor work on a 1 HP Hayward Pump?
Reply
Hello, in order to determine if this is the correct motor for your pool, could you please send me a photo of your motor label and plastic housing?
Reply
need a replacement start capacitor, 162 - 193 mfd. can a 110-125 vac capacitor work on a 115/230 volt motor powered by 230v current?
Reply
Hello, Can you please send a picture of the motor label? We would need this information to find the correct capacitor you need.
Reply
Hello, I have a Jandy PlusHP 1.0 HP. The motor hums like it is trying to start up, but doesn't. When I turn the shaft by hand the motor starts up. It needs the extra turn on the shaft to start. Do I need to replace the pump or is there a repair kit to help it get started? My understanding is that UST1102 is the replacement pump.
Reply
Hi, Frank. I would recommend testing the motor's capacitor based on your symptoms. In order to confirm the the replacement motor, I will need the motor's Part, MOD or CAT number.
Reply
Hello, I have a Jandy PlusHP 1.0 HP. The motor hums like it is trying to start up, but doesn't. When I turn the shaft by hand the motor starts up. It needs the extra turn on the shaft to start. Do I need to replace the pump or is there a repair kit to help it get started? My understanding is that UST1102 is the replacement pump.
Reply
Hi, Frank. I would recommend testing the motor's capacitor based on your symptoms. In order to confirm the the replacement motor, I will need the motor's Part, MOD or CAT number.
Reply
Hello, I have a Jandy PlusHP 1.0 HP. The motor hums like it is trying to start up, but doesn't. When I turn the shaft by hand the motor starts up. It needs the extra turn on the shaft now to start. Do I need to replace the pump or is there a repair kit to help it get started? My understanding is that UST1102 is the replacement pump.
Hi, Frank. You can try testing the motor capacitor, that could be the issue. Base on the pictures of your pump, the UST1102 is not the correct motor. You will need the PL2853 or B2848 motor. Check out these following guides (1) How to Test a Pool Pump Capacitor.
Reply
Hello, I have a Jandy PlusHP 1.0 HP. The motor hums like it is trying to start up, but doesn't. When I turn the shaft by hand the motor starts up. It needs the extra turn on the shaft to start. Do I need to replace the pump or is there a repair kit to help it get started? My understanding is that UST1102 is the replacement pump.
Hi, Frank. You can try testing the motor capacitor, that could be the issue. Base on the pictures of your pump, the UST1102 is not the correct motor. You will need the PL2853 or B2848 motor. Check out these following guides (1) How to Test a Pool Pump Capacitor.
Reply
Hello Lennox, I tested the capacitor and nothing comes up on the meter. I found a new one here: RUN CAPACITOR, 30 MFD (5VR0303), and will place my order. Thank you for your help! Cheers.
Reply
I have a UST 1102 pool motor that draws 11 plus Amps at 230 volts. What is the normal amp draw for this motor? It runs pretty warm. Any tips if the amp draw is too high?
Reply
I have a 1 HP Round Flange Up Rate Motor UST1102. I have replaced it three times in less than five years. Is there a heavier duty motor I can replace this with?
Reply
Unfortunately, there is no heavy duty unit available for this motor.
Reply
I have a Hayward sp 1607 zm 1 the pump hums and I did replace new capacitor still humming
Do I need a new motor? what's the replacement motor
thanks
Hello, This will be the capacitor you will need for your motor.http://www.inyopools.com/Products/07501352014027.htm
Reply
Does this motor fit a Hayward model# SP2607X10 and also do you sell the tune up kits with the appropriate gaskets.
Reply
Hi, Paul. Yes, this UST1102 or the PL1102 motors can be used with the SP2607X10 model pump. The tune up kit is p/n GOKIT3 or GOKIT3SALT.
Reply
Does this motor fit a Hayward model# SP2607X10 and also do you sell the tune up kits with the appropriate gaskets.
Reply
Hi, Paul. Yes, this UST1102 or the PL1102 motors can be used with the SP2607X10 model pump. The tune up kit is p/n GOKIT3 or GOKIT3SALT.
Reply
I have a Marathon Electric pool pump that I need to replace
Model 5kc39pn2822bx
cat no c1318
What is my compatible pump and what else should I order with it? gaskets, seals, etc..
Reply
Hi, Zane. This UST1102 motor is the correct replacement motor. In order to identify the seals that you will need, you will need to provide us with the pump housing model number or name. The pump model is different from the motor model.
Reply
Is there a compelling reason to get a full rated pump over this uprated one? I've only just now become aware of the difference. This one burned up because my water level was too low without me knowing it, in spite of all our rain lately!
does this motor have a warranty? I replaced my old motor for the 2nd time less than a year ago. The bearings are going out as last year. Does this motor have a history of this problem or am I just this unlucky.
Reply
Hi, Byron. These motors have a one (1) year warranty. Bearing failure is commonly caused by water damage. These motors do have a low failure rate.
Reply
I just ordered a new one today. The current motor has not gone under water. It is less than 1 year old what do I need to do about the warranty?
Reply
Mr. Wild. I will email the info required to submit an Inyo Pool's Pump Motor Warranty.
Reply
The correct Go Kit and replacement pump for Model Number C48K2N143B1 Serial 8K03
Reply
So the seal kits are actually based on the model name or number of the front pump housing that the motor is actually bolted to. You can advise us of that information or if it is not legible then you can email us images of that housing to upload@inyoppools.com so we can assist in confirming that for you.
Reply
my motor 1HP part # C48A95A06 goulds pump its broke and need a new one. can you please tell me which motor I need to buy and if its possible to install 1 1/2 HP
Reply
I have this GE 1 HP motor that I need to replace. Is this UST1102 motor the one to get?
What is the difference between a type UAC and UAK motor?
Reply
Hi, Don. The Type references the code for the electrical design of the motor. The UAK motors usually have a Start and Run Capacitor and a UAC just a Start Capacitor.
Reply
I am looking for a replacement motor for a Haywood Vari-Flo pump. I’m attaching a photo of the current motor. Can you confirm if this would be a correct replacement? Thanks.
I have a hayward sp2607x10 pump with a AO Smith motor model c48k2n143b1. I need to replace the motor...will the UST1102 work? Also, what else is recommended to buy? I see many people replace their gaskets....which is the correct kit to get if so.
Thanks!
Reply
Yes, this is the correct single speed replacement motor and you can use the GOKIT3 seal kit for a chlorine pool and the GOKIT3SALT for a saltwater swimming pool.
Reply
1) Does this motor replace a Hayward Super Pump AO Smith Self Priming 1 Hp, Model # C48K2N143B1?
2) Will I be able to replace parts #'s 15-22 (see your photo attached) from my old motor onto the drive shaft of your new motor?
Hi, Robert. Yes, this UST1102 motor is the correct replacement. You will also need the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT. All the other parts you can reuse.
Reply
I have a Hayward Super II (SP3010X15AZ) that has a Century 1.5HP pump. I recently replaced an old DE filter with a Hayward S244T 24in sand filter, and I believe the motor is too strong for my setup (I think I'm seeing sand/material/dust always pushing through the filter material and accumulating on the bottom of the pool). Anyhow, is it possible to install a 1HP motor in the same pump?
Reply
Hello, Yes, these would be the parts you will need to convert it to a 1hp. http://www.inyopools.com/Products/07501352019899.htmhttp://www.inyopools.com/Products/00200017001331.htmhttp://www.inyopools.com/Products/00500022000634.htm
Reply
My pool pump recently failed and I cant identify the pump assembly model #. The P/N on the cover is SP-1600-D. The motor P/N Is 0-164303-23 Cenury Centurion. I think it’s a Hayward model 1600. Can you suggest a replacement pump part # I have also included a picture of the pump and diffuser
Just to confirm, this will fit a B228SE? Is there anything else I'll need?
Reply
Hello, This will be the correct motor you will need for your pump.http://www.inyopools.com/Products/07501352022109.htm?Keywords=B228SEWe highly recommend to change the seals to go with your new motor.
Reply
Hi--would this model replace my defunct Super Pump II (photos attached)? Are there other parts I would need to complete installation? Thanks!
Hi Kim, This UST1102 is NOT the correct motor for your Super II in the photos. You will actually need this ST1102 1 HP Full Rate Pool Motor You will also need a Hayward Super II Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I mistakenly went up to a 1.5 HP Hayward Superpump. It is a SP 1610Z1M. It is shot now and I want to replace just the motor and go back down to a 1 HP. Will this do as a replacement? Do I need to purchase the proper impeller?
Reply
Hi Bryan, Yes this is the correct replacement motor to bring your Super Pump down to a 1 HP. You will also need a Hayward Super Pump Seal Kit and this 1 HP Hayward Super Pump Impeller when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Would this be the right replacement for this part number 184984. Including picture
The UST1102 can replace the B228SE, but it will be more expensive to operate. The B228SE is the Super Efficient 1 HP uprated model, and only uses 12 amps; whereas the standard UST1102 uses 15 amps. That difference in amps will make up the difference in cost between the motor pretty quickly, depending on how you run it.
Reply
Is this a direct replacement for the Hayward SP1607Z1M?? And will it fit my pump? SP2607X10?
Hi, sgtawb72. Yes, this UST1102 motor along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT are the parts you will need for your model pump.
Reply
I have a Hayward pump Model C48K2N143C1C is this a direct replacement for this pump? Can I upgrade to a 1 1/2 HP? If so would there be any benefit to doing this?
What gasket package would I need?
Thank you for your time
Hi Kevin, Yes this UST1102 motor is a direct replacement for the C48K2N143C1C. To answer the rest of your questions could you give us the pump model information, common pump names would be Hayward Super Pump, Hayward Super II, or Hayward Max Flo. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
I have motor model no. C48K2N143B3, serial no. 32110FM. Would this motor be the correct replacement,
Thanks....please advise.
Hi Mark, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Based upon what I'm seeing, this motor should work in replacement of my super pump. Is this correct? The model number is: CK48K2N?43B1 Ser 8K02. You'll not there is a mark where a number/letter should be, but I assume its a 1.
Hi, Matt. This UST1102 is the correct replacement motor. You will also need the along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Thanks for the speedy response and delivery!!! It appears my old motor is configured for 115v. Would you concur?
Lennox, thank you for the prompt reply. I just received my order from you all, speedy too! Old motor is set up at 115v, would you concur?
Matt, Yes, the new motor will have to be wired for 115 volts also.
Reply
Will this replace my Hayward Super Pump motor model C48L2N134B1
Reply
Hi John, This is NOT the correct replacement motor for the C48L2N134B1. You will require this UST1152 Up Rate Replacement Motor When replacing a motor we suggest you get a Super Pump Seal Kit. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
1081 pool motor est1102 and the model number is c55cxklz-5010...would this be the correct replacement for what we have?
Reply
Hi Wendy, This is NOT the correct replacement motor for the EST1102. You will require this ST1102 1 HP Full Rate Replacement Motor When replacing your motor we suggest a seal kit. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
does this motor replace my existing super II pump motor 1 HP model K48L2N104
Reply
Howard, no, the A.O. Smith 1 HP Round Flange 56J Full Rate EE Motor - CT1102, would be a direct replacement for your existing K48L2N104 motor on your Super Pump II. Your motor is an energy efficient model, the Century Motors A.O. Smith 1 HP Round Flange 56J Up Rate Motor - UST1102 is a standard motor.
Reply
Will this replace my Hayward NorthStar Pump AO Smith Century Pump. Model Number SP1610Z1BNSC, Serial Number 029073M?
Andrew, no, the Century Motors A.O. Smith 1 HP Round Flange 56J Up Rate Motor - UST1102 is not the direct replacement for your SP1610Z1BNSC motor. The direct replacement for your SP1610Z1BNSC motor would be the A.O. Smith 1 HP Full Rate NorthStar Replacement Motor - SN1102.
Reply
a.o. smith motor cat.B228SE Part#184981 what motor can I use as a replacement motor
Reply
Hello, This will be the replacement motor you will need.http://www.inyopools.com/Products/07501352022109.htm?Keywords=b228se
Reply
I have a motor I need to replace the 1 on there is a 7-184981-23 with a 56J frame 1hp is this the motor or is there an energy saver one. I need one quick please respond
Reply
Hello!
My Century pump motor is overheating to the point it smells like plastic burning, It gets too hot to touch, so we need to order another. It has the number UST1102 at the top, the model number is C48K2N143C1C and the Serial # is 11716CH. When I put these numbers in your search, it says the A.O. Smith 1 HP Round Flange 56J Up Rate Motor - UST1102 is what I need. It looks like the same thing, but I wanted to make sure first. Can you look at the image of the label and let me know? Thanks.
Hello, That would be the correct motor. You would need to change the seals with the new motor to reseal it. Can you please provide a picture of the side view of the entire pump ?
Reply
Which would be the correct motor for my Super Pump. Data plate is worn.
Hi Jerry, This is NOT the correct replacement motor for the motor included in your photo. You will require this STS1102 1 HP Dual Speed Replacement Motor You will also need this Hayward Super Pump Seal Kit
Reply
I currently have a Hayward housing that has a replacement motor (UST1102 , 115/230v ; HP 1 ; RPM 3450) and it's dead. 11k Gallon Pool has a spa waterfall spill into the pool & Hayward Navigator suction robot, Jandy TruClear SWG, & Steener tank & muriatic acid pump. Could just replace the current SS w/ VS 1-for-1 or would I need the VS motor, automation, and other things to make it all work together?
Hi Harry, You could replace your UST1102 motor with this PL1116 1.5 HP Variable Speed Motor this motor comes with the controller mounted to the top of the motor, so nothing else is needed to control the motor. You would also need this Hayward Super II Seal Kit when you replace your motor.
Reply
Is this motor a direct replacement for the motor on a SP2607X10?
Reply
Hi John, Yes this is the correct replacement motor the SP2607X10. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello, I have a gold hayward super pump model #C45K2N143B1. I just want to confirm that this is the correct replacement for mine?
Thank you
E
Hi, Eric. Yes, this UST1102 motor along with the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT are the parts you will need.
Reply
I have a UST1102 motor mod =C48AA35A01; ser 32910CH. the thermal protection code is CET53CY. The one I saw on your site was a CET51. is this the same pump?
Reply
Hi,
I have a Century HST110 (CET51ABM)/ Motor Mod - C46AB47A01. Which replacement motor should i go for ?
Do I need any seal kits to go with it ? Is there any video or step by step instructions that tells me how to go about it.
Thanks
Reply
Hi TG, Yes this is the proper replacement motor for your HST110 To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Hayward Super Pump, Hayward Super II and Hayward Max Flo Please reply back or post photos with your pump information. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Here are some photos. It is Hayward. But it was hard to catch the model number on the pump. Hopefully photos can help identify it.
Hi TG, Thanks for the photos those are quite helpful! You have a Hayward Max Flo Pump and you will require this Hayward Max Flo Seal Kit when you do your motor swap out. We do have this Guide on How Install a Seal Kit which you may find helpful.
Reply
I am replacing a Century hst110 1 hp, will this work?
Reply
Yes this is the proper replacement motor for your HST110 1 HP motor. We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Hayward Super Pump, Hayward Super II, Hayward Max Flo, Pentair Whisperflo, Pentair Challenger, Jandy Stealth, Jacuzzi Magnum, Sta-Rite Duraglas, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
Need to replace Hayward motor model K63CXERJ-4776, would this model work?
This is NOT the proper replacement motor for the motor in your photograph. You will require the B128 1 HP Replacement Motor We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
Sending additional photos
Thank You for the additional photos, you will require the Hayward Super Pump Seal Kit
Reply
I have a hayward super pump 1 hp model number c48k2ni43b1. Will your unit be the right replacement for me?
Yes, this is the correct motor replacement for your C48K2N143B1. Do you need help finding the shaft seal to complete the motor replacement?
Reply
Would this motor work as a replacement for my motor pictured? We would also like to get new shaft seal and any other seals that you would recommend while replacing the motor. Also considering getting a new impeller. Can you list the part numbers for the motor, seals, and impeller please.
Yes, the UST1102 is the correct motor replacement for your 7-184948-22. The Jacuzzi Magnum 1UMF-S uses the GOKIT14 gasket kit, and the correct impeller is dependent on which style you have. There are two impeller options: style A and Style B; measure your original impeller to determine which is needed for your pump
Reply
I have a Century b228s that has failed, will this pump work as a direct replacement
Reply
I have the century b228se, I have a salt water pool this motor only lasted 2 years and we thought it ran hot and a little noisy.Can you recommend other motors
Reply
Im not a pool guy, just making sure I have the correct product before buying, I have a C48K2N143. Would this part properly work as a replacement to the one I currently have?
Also what would you recommend as as a filter to go along with this product?
Thank you
Reply
I have a Hayward model number c48k2n141, would this motor be an acceptable replacement?
Thank you,
Joel
According to your Model #: C48K2N141, your replacement motor is the STS1102RV1 - 1 HP Round Flange 56J Dual Speed Full Rate. Your motor label matches the dual speed STS1102 instead of the single speed UST1102
Reply
Pool GFI trips as soon as pump starts. Same thing happens with different GFI on different circuit. Plug was damaged replaced no difference. If motor is removed from pump housing it runs without a problem.
Reply
Could there be an issue with your impeller. Is binding not able to spin causing an over heating issue? with your impeller binding up and not able to spin causing
Reply
Would this work as a replacement for my pump
Hi, Shana Yes, this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this replace K48N2N104. Pump only runs a waterfall and I don't think I need 2 HP.
Does this replace Hayward motorc48k2n143b1
Reply
Yes, please do not forget to replace the Pool Pump Shaft Seals http://www.inyopools.com/pool_part_cat_Pool_Pump_shaft_seals.aspx?Keywords=shaft+seal
Reply
I have a A>O>Smith pump now and it is going bad. The model is S48AA11A01 and it is a 1hp 115-volt pump. is this pump for $134.00 round pump compatible?
Reply
Have 1 HP motor model # C48K2PA105C5. Circuit breaker trips each time I turn it on. Problem seems due to a defective underground line, Can I temporarily bypass the underground line using extension cord connected to 110 volt, but different power source?
Reply
Hi. If the breaker is the issue, you can use an alternate power source if it is adequate.
Reply
Looking for an energy efficient replacement and any other parts I would need to install.
Thanks!
Hi, jbcreger. The UCT1102 is an energy efficient option to this UST1102 motor. As for other parts you will need, we will need to know the model of the pump housing. If you do not know the pump housing model, review our Replacing Parts For A Pump You Don't Have A Model Number For Blog.
Reply
I couldn’t see a data plate on the housing - hopefully the attached photos will help. Also looking to install a timer as well - do you sell and if so, what would you recommend?
The seal kit recommended to use with a chlorine pool is the GOKIT3 and for a saltwater pool is the GOKIT3SALT. As far as a timer that will depend on the voltage running to your motor however click here to view the most commonly used models.
Reply
I am replacing my 1 hp motor in the Hayward maxflo pump. Model I think on label is c39pn2822x Is this motor the right one?
my motor keeps trping my breaker
Reply
Hi, Victor. To troubleshoot the issue, review our Pool Pump Trips Breaker Blog.
Reply
I have a Jacuzzi Magnum Plus pump system attached to a Landslide filter. Over the last 6 years, I have had to replace two UST1102 motors for this system. The motors seem to run hot- I cannot touch the motor casing due to the heat buildup after being on for a short time- and so, the motors do not seem to last long and need replacement. Would the ST1102 be better motor for reducing the heat. or should I stick with the UST1102?
Reply
Based on the information we would recommend the variable speed option ECM16CU.
Reply
Hello
I have a Gould’s water pump j10SS need to replace a o smith motor md c48a95a06
S# 14309fm. Will the ust1102 work.
Hello - the 1 HP Round Flange 56J Full Rate EE - CT1102 would be the better match for your fullrated motor model.
Reply
Hi,
My UST1102 pump started making a high pitch noise and shut off, so probably time for a replacement.
Based on the pics, can you confirm this is the right replacement, and provide a recommendation for energy efficient and variable speed options? Do you have a recommendation between energy efficient and variable speed? I don't really see what makes the 'energy efficient' version energy efficient.
Thanks!
Hi, Justin. This UST1102 is the correct replacement. Your other option is either the UCT1102 which is the single speed energy efficient option. The UST1102 is uses 7.5/15 amps at 230/115 volts, the UCT1102 motor uses 5.5/11 amps at 230/115 volts. The variable speed option is the ECM16CU. Whichever option you decide to go with, you will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Are these cheap China made motors? I read in the reviews that one guy only got 2 years out of his. Is this the average lifespan on these motors?
Reply
Hello, AO smith/Century motors USA made motors and normally last between 4-8 years.
Reply
I have a. HST110. Need to replace it. Someone said the UST 1102 is not available to sell to florida. Why is this. My motir has a decal saying ut replaces ST1082 and UST1102
Reply
does this motor ust-1102 come with the capactior and switch?
Reply
Hi, Gloria. This UST1102 motor does include the Capacitor - BC-161 and Stationary Switch - 629002-001.
Reply
Will this replace a Hayward Super Pump 1 HP Single Speed - SP2607X10? I bought the Hayward Super Pump and it only lasted 2 years. It burned up over the weekend and I would like to replace just the motor. It seems much cheaper to replace the motor and not the entire unit since the rest of it is in good condition.
Reply
Hi, Kevin. Yes, this UST1102 is the correct replacement. You will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I purchased a Hayward Super Pump 1 HP two years ago from you and the motor has already burned out. Will this AO Smith motor fit the housing as an option for replacement?
Reply
Yes, the A.O. Smith series motor will be compatible ass long as it matches your current motor model, part or catalog number.
Reply
i purchased this motor but the volts read 230/115 on my old motor it reads 115/230 does ts make a difference we installed new motor but does no work. thank you,gloria
Reply
Hi, Gloria. The motor has to be wired for the specific voltage based on the breaker that is supplying power to the motor. There is a wiring diagram on the motor or you can reference our How To Wire A Pool Pump Motor guide.
Reply
I have a Magnum Force model 1UMF-S, 94027110, pump. The motor is an A.O. Smith but unfortunately I can’t read any motor specs. Can you provide the motor model number for this pump?
Reply
Hello, I'm considering purchasing this motor to replace my old A.O. Smith. I wanted to make sure this is the correct product, and if there are any other options. I have calculated GPM range of 25-45 (120 sq ft filter), and 50-60 total head. Pool is approx. 12,000 gallons with an attached hot tub/spa. Please see attached photo of old motor. Thanks for your fantastic website and feedback!
Hi, Ginny. This UST1102 motor cannot be used to replace the B853 motor in the picture provided. The B2853 motor is the direct replacement. In order to use the info provided to calculate the flow rate, I will need to know the model of the pump that the motor operates.
Reply
Will this replace my NorthStar Self Priming Pump 1.0HP Part# 7-187629-02 ?
Actually your replacement single speed motor is the SN1072.
Reply
The pictured northstar is a 1 HP, your suggested replacement is a 3/4 HP. What is the 1 HP replacement for the 1 HP Northstar as pictured. I have one exactly the same that needs replacement.
Reply
Imatex, The SN1072 Full Rate Motor or the USN1102 Up Rate motor can be used as a replacement. Use our How To Understand True Pump Horsepower - Up Rated vs Full Rated guide to understand the difference.
Reply
Thank you for the info. I would rather not run an electric motor within or close to its service factor uprated HP. Since my impeller flow rate requires a fully rated 1HP motor, I will stick with the 1 HP to stay out of the service factor range and extend the life of the motor. Looks like my run capacitor is bad, so I'll be changing it for now. But my motor is 15 years old and will eventually fail.
Reply
I have an in ground pool that was salt, the circuit board went bad.
I am replacing the UST 1102 motor, should I use the salt water seal kit.
I am planning on replacing the salt control, to put it back to salt water.
Reply
Yes, I would suggest using a saltwater seal as it may help protect the new motor better. You will just need to know the model name or number of the front pump housing that the motor attaches to in order to cross-reference the correct seal or seals. If you are not sure of that model please send us images to upload@inyopools.com so a tech can review and further advise.
Reply
I have a Hayward super pump 1hp, will this motor work? What seal kit or tune up kit will I need?
Also, is it normal for these pumps to run hot? These pictures show the same pump two years apart.
This motor will work for the Hayward Super Pump 1HP. You would need a Go Kit 3 which includes 1 housing gasket, 1 diffuser gasket, 1 gasket lid, and 1 seal.
Reply
UST1102 WILL REPLACE THE HAYWARD SUPER PUMP. SEAL KIT IS APCK1024
Reply
yes, this is the correct one. Yes motors run hot make sure to keep the vent clear of dust and debris. GOKIT3 would be the tune-up kit needed
Reply
This motor is the correct motor for replacement. You would also need a Go-KIT3. The motor may run hot depending on the environment it is in
Reply
is impeller 2607 match ust1102 ? I have old Hayward super pump and consider to replace both motor with ust 1102 and impeller 2607xc , but don't know if that is match ?
Reply
I am replacing a Hayward super pump SP1607Z1M and the impeller, SP2607-C. Will the UST1102 and the SPX2607c be an exact replacement and do they come with new seals?
Reply
Hi, Morgan. Yes, the UST1102 motor and the SP2607C impeller are correct. The seals are not included, you can purchase the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I need to replace the motor on my inground pool. Currently it is a Hayward Super II Pump Self Priming NSF-50 Model C48K2N143B3. Is this the correct motor I need?
Reply
Hi, Deborah. Yes, this UST1102 motor is the correct replacement. You will also need to get the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
Need a replacement pool pump motor. Photo is the ID plate. Will this pump work? Different serial number. Also, do I need a seal gasket kit too? Thanks
Is UST1102 a replacement motor for a Heyward SP2607X10,? Also what seal kit or what else would we need to install for an inground salt water pool?
Reply
Hi, Anna. Yes, this UST1102 motor along with the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT are the components you will need for your pump.
Reply
Need a replacement pool pump motor. Photo attach. Will this work? Also, do I need a seal gasket kit too? Thanks
richard
Need to replace the motor in a Speck Easy Fit pump. This one looks right except the S.F. is 1.1 and mine is 1.0. Does that matter? Thanks!
Hi. You can use this UST1102 or the B228SE motor as a replacement. You will also need the Speck EasyFit Tune Up Kit - EasyFit-GOKIT.
Reply
Hi. I believe my pump is a Purex Aquatron. It was installed in 1986. The motor that has been in use for about the last 10 years has died. It looks to me that the UST1102 is a good replacement. The origional motor(1986) had a larger diameter and I had inserted a metal shim ( apx. 3/8 inch) to add support. Can I purchase a rubber spacer to use with the new motor, or should I try to find a motor with the same frame that the origional was. I have no idea what that was anymore. Thanks.
I need a replacement motor for 5KC39PN2822BX. I see that the UST1102 is compatible. It says it is round flange but our motor has a square flange. What would be our replacement motor?
Reply
Is this compatible to my pump? I’m no pool expert
Hi Kerey, Thank you for the photos that was quite helpful! Yes this UST1102 pool motor is the proper replacement for your AST125 - C55CXKTR-2129 motor.
Reply
Hello, I’m looking to replace my pump motor and I wanted to make sure that I bought the right one. I’m replacing a US Motors Emerson 1081 pump fitting into a 56J frame.
Hi Trace, This UST1102 is not the direct replacement motor for the EB228 Motor in your photo. The direct replacement motor you will require is this B228SE Replacement Motor we do have the B228SE motor in stock ready to ship.
Reply
Need to replace Hayward Super Pump Motor Model C48K2N143B1. What do I need?
Reply
Hi Tom, You will require the UST1102 motor on this page as well as this Hayward Super Pump Tune Up Kit
Reply
what size pump shaft seal fits this motor?
Reply
Hi Michael, to determine the proper seal kit we will need to know your pump make and model information, common pump names would be Hayward Super Pump, Hayward Super II, Hayward Max Flo, Pentair Whisperflo, Pentair Challenger, Jandy Stealth, Jacuzzi Magnum, Sta-Rite Duraglas, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
My Marathon motor (Category C1318) is 11" long. The UST1102 replacement motor "Product Specifications" say it's 11", but the "Product Dimensions" say it's 14". Which is correct?
Hi. The body length is 11" overall length is 13.53".
Reply
Thanks for your prompt reply. By "overall" do you mean that, including the part that fits into the housing (and is not visible when the pump is fully installed), the length is 13.53"? I just read your instructions on how to install the pump. They speak of a grounding wire attached to the outside of the pump. My old unit didn't have a grounding wire. How do I add one?
Reply
Please click this link here for The Detailed Dimensions of the UST1102 Motor. We also put together this article on How to Ground a Pool Pump which you might find helpful.
Reply
What would be the replacement for Hayward Century Model C48K2N143B1
Hi Michelle, The UST1102 motor listed on this page is the proper replacement motor for your C48K2N143B1. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What's your return policy on a Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102?
Reply
Will this motor work with this or do you have one for 0.5HP?
Hi Li, the correct replacement motor for your motor model 196341 is the SQ1052. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this fit a Hayward Super pump model C48K2N143B1 ? On the pump plate it has SP1607Z1M, but all I can find has SPX1607Z1M
Reply
Hi Kelley, yes, this is the correct replacement motor for the motor model C48K2N143B1. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
My motor plate says ST1102. I'm looking at this one on your site but it says UST1102. Will this motor work for me?
Reply
Hi, the correct single speed replacement motor for your motor model ST1102 actually is the ST1102. Sometimes these model numbers can get overwhelming and confusing. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have what I believe is a Hayward Super Pump that is approximately a 2001 model. It currently has a Century 1 HP motor. Is this the correct replacement motor? Is there any reason to possibly switch to a larger motor? The pool is approximately 29,000 gallons if that matters. Thanks, Steven
Hi Steven, the correct single speed replacement motor for the motor included in your photo is the 5222X. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project. These pumps are sized initially by a certified pool contractor however if you are considering it may not be enough here is a guide that we put together called "How to Size a Pool Pump for Your In-Ground Pool" that can assist with that.
Reply
Hi
is this a replacement for aosmith ST1102 C48L2N134C2 ? I don't see this part number listed in the parts
Reply
Hi George, the correct replacement motor for your motor model C48L2N134C2 is the ST1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this the right motor to replace this?
Hi James, the correct single speed replacement motor for the motor included in your photo is the QC1102. You will also need a Sta-Rite Dura Glas/ Max E Glas seal kit when you replace your motor. You will also need to remove the copper cone insert in the seal plate when installing the shaft seal if you have one there. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have an ASB654 1hp motor, SF 1.4, model US Motors K63CXDGH-5169 on a spx 1600 pump. Need a replacement motor. Thanks.
Reply
Hi Jim, the UST1102 is not the correct replacement motor for your pump. You will require this B654 1 HP Full Rate Pool Motor when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I have a hayward super pump sp1600. The motor I need replaced is ASB654, 1hp, sf-1.4, mod# K63CXDGH-5169. Is the UST 1102 the motor neede to replace the ASB654? I need the replacement ASAP as the old one has gone into the death whin Thanks.
Reply
Hi Jim, the correct single speed replacement motor for the motor model ASB654 is the 5222AX. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a built in pool, hayward pump # C48K2N143B1 1hp pump and need a replacement, will this work?
Reply
Hi Ken, yes this is the correct replacement motor for your motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hi, I have a Hayward Max-Flo SP2807x10 pool pump with an A.O. Smith C48K2N143A3 motor (1HP, 115/230 v, 15.0/7.5 A, 56J, single phase). The motor is going bad, has been whining for over a week! I'm in CA (Title 20), therefore, cannot replace with A.O. Smith UST1102!!
1. Any CA Title 20 compliant replacement motors? Recommendations?
2. Can I use a 3/4HP A.O. Smith UST1072 - CA Title 20 compliant)? Any disadvantages?
3. I have GOKIT1, is it compatible with above motors?
TIA.
Reply
Hi William, being that you had a UST1102 I would suggest either meet that horsepower or exceed with an ECM16CU variable speed that you can always adjust accordingly. The GOKIT1 is the correct seal kit for the Hayward Max Flo pool pump.
Reply
Will this pump match on the hayward Pro Series Model#S244T?
Reply
Hi Sue, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation.
Reply
This is my current motor. Would this motors work as a replacement?
Hi James, yes this is the correct single speed replacement motor for your motor included in your photos. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest provide them using our online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this acts as a replacement for my current Motor? Pics provided. Do I need anything else? Pump is Hayward sp2607x10
Hi James, yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor work with my exsisiting parts on my 1.5hp super pump? I really only need a 1hp. I currently have the 1.5hp super pump
Reply
Hi Jeremy, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation.
Reply
Hello!
I am looking for the replacement gaskets for a Century UST1102 model pump. I'm guessing the original Hayward pump was replaced by this at some point (moved into house last summer), and now it appears this replacement has a slow leak. Just looking to confirm which "go kit" should be used with this model so that I can replace the gaskets...
Thank you in advance!
Hello, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo or quickest provide those images using our live online chat feature. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I have a jacuzzi magnum 1000 pool pump. Inground pool. I need to replace the motor. What motor and parts will I need?
Hi, Yes this UST1102 is the correct replacement motor for the motor included in your photo. You will also need a Jacuzzi Magnum Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Please confirm that the UST1102 is the replacement motor for my Hayward Pool Pump. See photo for details. Thank you.
i replaced the bearings in my motor and when i took it apart i did not a fan in it is there one supposed one as it run very hot
Reply
Is this the correct motor replacement for Hayward SP2607X10 pump?
The attached picture is the current motor. Pool is salt water.
Thanks
Yes, this would be a suitable single speed replacement motor. If you need the seals then you can use the GOKIT3 for a chlorine swimming pool that you can view by clicking here or the GOKIT3SALT for a saltwater pool that you can view by clicking here.
Reply
Hello, would this pump work for SP1607Z1M?
Reply
Hi Nicole, yes this is the correct replacement motor for your motor model SP1607Z1M. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
All my numbers on hayward pump motor are gone- a guy told me get the number off the basket which is SP3000-M can you recommend a motor ,i think it was 1 hp 120 volt and i would like to put 1 1/2 or 2 hp if possible - pool is 20 x40 with 1 suction and 2 returns , also like to replace diffuser ,impeller and gasket and seals while removing the old motor Thanks Gary , i dont think my 1st post went through =if it did sorry for double post
Hi Gary, Thanks for the photos! If you would like to go up a 1.5 HP you will require this UST1152 1.5 HP Replacement Motor and this Hayward Super II Seal Kit as well as this 1.5 HP Super II Impeller. If you would like to go up a 2 HP you will require this UST1202 2 HP Replacement Motor this Hayward Super II Seal Kit this 2 HP Impeller Ring this 2 HP Diffuser as well as this 2 HP Super II Impeller
Reply
Would this motor work as a replacement for Part # 8-152560-20 on a Hayward Housing Model # 1607X10? If not, do you carry a replacement motor that would work for this configuration?
Yes the UST1102 is the correct replacement motor for you. You will also need this Hayward Super Pump Shaft Seal
Reply
The sticker on our Hayward is gone this was the best I could get. I believe it is a 1HP, would this motor work to replace that? If we wanted to go up to a 1.5HP could we just upgrade the motor or would we need another full set up?
Hi, Thanks for the photos and yes you do have a 1 HP Super Pump and you would use this UST1102 1 HP Motor and this Hayward Super Pump Seal Kit. If you wanted to upgraded to 1.5 HP you would need this UST1152 1.5 HP Motor this 1.5 HP Hayward Super Pump Impeller and this Hayward Super Pump Seal Kit
Reply
The motor i have now is about 5 years old the numbers on it are Model # ST1102 Serial #06712CH0318990
Reply
this motor runs at 140 degrees will it damage the seals
Reply
These motor are designed to run at around 140 degrees so the only real way the seals get damaged is from a pump running with no water or maybe corrosive water.
Reply
My pool has always had a 1 Hp pump and some goon locally sold me a 2hp Hayward superpump last year. I would like to get back to a 1 hp because I am having some filtering issues. Can I direct replacement this motor into my wet side super pump housing? Is there a variable speed option worth considering? I’m 115.
Hi Bill, First off great use of the word Goon =) As far as replacement motor goes there is not a 115V option in a variable speed. If you want to go to a 1 HP then go with this motor here UST1102 1 HP Motor this Hayward Super Pump 1 HP Impeller and this Hayward Super Pump Shaft Seal
Reply
My pump motor died today. Would this motor be a good replacement for my old one?
Hi Dan thanks for the photos! You will require this UST1102 Motor. when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Here are additional photos..
Hi Dan, Thank you for the photos! You will require this Hayward Max Flo Seal Kit
Reply
Here is the pump. Salt system also.
I need to replace my Hayward 1 HP pump motor Model # C48K2N143B1. Do you have a replacement motor.
Thanks Ed
Reply
Hi Ed, yes this UST1102 Motor on this page is the correct replacement for your C48K2N143B1 and we do have it in stock. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
hi i need to replace my motor on a hayward 1 hp pump motor ser#04508ch do you have that motor.thanks
Reply
Hi David, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
What is the warranty?
Reply
Hi Harold, these single-speed Century motors carry a one-year manufacturer warranty. Please see this warranty card for further warranty details.
Reply
I have model UST1120 -- I need to replace the seal between pump and water flow basket. (pool guy called it a wet/dry seal. can you help me with this part?
Reply
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I need a motor replacement for a Hayward Superpump SP2607x10. Is this the motor? What other parts would I need. This will be my first time changing out the motor. How difficult is this?
Reply
Hi, Gary. This UST1102 is the correct replacement. You will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT. Check out our How To Replace the Motor on Your Pool Pump, for instruction.
Reply
Looks like need to replace Hayward SP-1607-Z1-M. This looks like it is an exact fit? Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102
Reply
Hi Kenneth, yes this would be the correct single speed replacement motor for your model SP-1607-Z1-M. It is also recommended to replace the seals and gaskets when replacing a motor. We would just need to know the front pump wet end housing model name or number that the motor attaches to in order to cross-reference those for you. You can also upload images of that housing in a reply here if need be.
Reply
I have a haywood super pump model number c48k2n143b1, will this motor fit?
Reply
Hello, yes, this is the correct replacement motor for the motor model c48k2n143b1. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need a replacement motor for a Hayward Max Flo SP2807x10. Is this the correct part? If so, what other parts are needed with this?
Hi Brandi, yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Max Flo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I'm replacing a 3/4 HP, model C48J2N131 with this UST1102 1.0 HP pump. Will this work out fine? I was told it would and it appears everything will work properly. I have 1.5" piping, 1 input, 1 output though a hayward sand filter.
Hi Matthew, yes this is the correct replacement motor for your motor included in the photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Our Hayward Superpump went out and our pool guy replaced it with a century pump (c48k2n143b1). Well the century pump didn’t even last a year so we are wanting to order another 1 hp Hayward super pump. Will the 1 hp Hayward super pump motor still fit into our current pump? I’m pretty sure all they replaced was the pump motor. Is there anything else I need to order with the new motor?
Yes, this is the correct replacement motor for the motor model c48k2n143b1 included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi,
Do you need to purchase the impeller when replacing the motor?
Thanks,
Chris
Reply
Hi Chris, most often pool owners replace the motor and seals. Sometimes an impeller does need to be replaced if perhaps it is badly worn, cracked, or damaged. In order to locate the correct seals, we just need to know the front pump housing wet end model name or number that the motor attaches to. You can always upload a few images of that housing in a reply here if you need.
Reply
My pump model is SP3007X10AZ and motor model is AO SMITH C48K2N143B3. Is this the right motor to replace?
Reply
Hi Van, yes this is a suitable single-speed replacement motor for your Hayward Super II model SP3007X10AZ pool pump. It is also recommended to replace the seals when replacing a motor. For your Hayward pump in a chlorine swimming pool, it is the GOKIT2 and for a saltwater pool, it is the GOKIT2SALT.
Reply
does this fit a Hayward Super Pump 1 hp model # c48k2n143b1?
Reply
Hi Jared, yes this is the correct single-speed replacement motor for your motor model c48k2n143b1. It is also recommended to replace the seals when replacing a motor. For a chlorine swimming pool and with the Hayward Super pump series, it will be the GOKIT3. For a saltwater pool, it will be the GOKIT3SALT.
Reply
I need to replace my pool pump motor #UST1102. Which seals do I need to get?
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
i have motor #UST1102 set on timer the last few days when first comming on motor makes humming noise for about 2 seconds then shuts off 5 min later comes back on and runs with no problems does this mean motor going bad
Reply
Hi Tom, often time this could be a bad start capacitor. Here is a guide that we put together called "How to Test a Pool Pump Capacitor" that may help.
Reply
Need to replace sp1607z1m
Reply
Hi, yes this is the correct replacement motor for your motor model sp1607z1m. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I need a replacement for a pool pump C48KN143C1C
The UST1102 is the correct replacement motor for the motor in your photo. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Thank you- here is a picture of our pool pump.
Hi JaJa, Thanks for the photo! You have a Hayward Max Flo Pump and you will require this Hayward Max Flo Seal Kit
Reply
Please see below 5 follow up questions. Thank you for your amazing customer service! Question # 1 Do I need the Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 or the Hayward Max Flo Pump ? Question # 2 How much will be the total co$t with Hayward Max Flo Seal Kit ? Question # 3 How do I order? Question 4 How long will it take to ship to zip code 32824? Question 5 What is the cost of shipping to zip code 32824?
Reply
Hi JaJa, I would suggest just the replacement motor UST1102 and seal kit. The total cost of UST1102 and Seal kit with Tax to 32824 is $221.98. Please order directly through the website by clicking these two links http://www.inyopools.com/Products/00200017001331.htm and http://www.inyopools.com/Products/00500022000633.htm or give us a call to order by phone 407-834-2200 Estimated delivery time to 32824 is 2-4 business days and shipping is Free!
Reply
GREAT CUSTOMER SERVICE!! We are ordering right now. We will recommend your company to everyone we know. Thank you SO MUCH!!! Hashi and JaJa Richards
Reply
What kind of seal kit will I need for UST1102?
Hi Jennifer, You will require this Hayward Super Pump Seal Kit
Reply
I have to replace my motor. Is this the proper replacement? My current motor is HST110. My pump is Hayward SP2807X10
my pool motor model or p/n is SP1610-Z-1-BNSC
part 7-193221-02
serial 317063m
what motor can i replace with
thank you
Reply
Hi Ramiro, the correct single speed replacement motor for your motor part number 193221 is the SN1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump or quickest use our online chat feature so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
When using this motor with 115v, what are the connections for L1 and L2?
Reply
The neutral will need to be placed on line 2 and the lead at line 1. Please refer to the wiring diagram on the motor label.
Reply
I need to replace Leslie Pool's "MTR THD 1 HP FULL 6.L3 EB128 SE"
WILL THIS MOTOR WORK??
THANKS.
Reply
Hi Karla, the correct single speed replacement motor for your motor catalog number EB128 is the 5222X. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
My old motor is C48k2pa105C5. Will this replace it?
Reply
No, the UST1102 is not the replacement for the C48K2PA105C5. The correct replacement is model USQ1102. Click Here to View the USQ1102 motor.
Reply
Looking for a replacement motor for my Hayward SP2607X10.
Reply
The standard motor replacement for the Hayward Super Pump SP2607X10 is the UST1102
Reply
L1&L2 are for 230v? With my black button turned to 230v and 120v is L1=hot L2=natural?
Reply
Hi Brad, yes this is the correct wiring arrangement for 230/ 120 voltage on this model motor. The knob or voltage block will need to be placed on the appropriate voltage going to your motor. Here is a guide that we put together called "How To Wire A Pool Pump" that may also further assist.
Reply
Need a motor replacement for model # c4sk2n143 hayward super pump 1hp with an sf of 1.65 purchased back in 95.
Reply
My dad's pool motor is noisy/going out. What would be the correct replacement motor? See pics. Label states its an Emerson Model # T55CXCHM-1325
1.50 THP, 1.0FRHP/1.50SF
Yes, this is a compatible single speed replacement motor for your model T55CXCHM-1325.
Reply
i am looking for replacement motor for goulds 1-hp
Reply
Do you have a cat number off the motor label, P/N or Model number? Located in the top right corner of the motor label. Here is a guide to help with how to read a motor label.
Reply
Is the UST1102 interchangeable with the CT1102 (K48L2N100A1)?
Reply
These motors are actually not interchangeable because the CT1102 is actually a stronger motor than the UST1102. I know it can be confusing just reading the label so here is a guide that we put together called How To Understand True Pump Horsepower - Up Rated vs Full Rated that can further explain that.
Reply
Does this fit this model number HST110?
Reply
Hi Phil, Yes this UST1102 is the correct replacement motor for your HST110. When replacing your motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Sorry if this is a dumb question, but I do not know a lot about pool motors, and just want to make sure we have the correct replacement motor and voltage. Our original motor was a Century Model C48K2N143B1 and we ordered the Century UST1102. The voltage on the old motor is 115/230 and voltage on the new motor is 230/115, which are the same, but in a different order. Does the order of the voltage amounts matter? Do I need to make any adjustments in the installation since they are reversed?
Reply
Hi Angela, the order of the voltage options on this motor label does not matter however the voltage does need to be set correctly per the voltage you have going to the motor. Here is a guide that we created called "How To Wire A Pool Pump" that should assist.
Reply
My Hayward pump is screeching. The model number is C48K2N143B1. Is this the correct replacement motor? Also, what seal kit should I order? Do I also need to order a bearing kit?
Hi Brian, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I HAVE HAYWARD SUPER POOL PUMP MOTOR THAT WENT OUT THE MODEL NUMBER IS C48K2N143B1 THIS PUMP FIT AND DOES IT CAME WITH THE GASKETS THANKS
Reply
Hi Richard, yes, this is the correct single speed replacement motor for your motor model C48K2N143B1. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
So Hayward (SP2607X10) has been great last 8 years but this season opener (I close pool every season Sep/May.. runs 24/7 May/Sep) just humming.. replaced capacitor .. still hums .. motor seemed frozen but with large channel locks was able to get her to break free and turn pretty easy.. she now turns back and forth (turned 50 times) but still humms ... Is this the correct replacement? Hayward is "assembled" in China $$ .. this one made in China so $ ...
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
GPM?
Reply
Hi Jorge, The GPM will be dependent on which pump housing the motor is mounted to, could you please let us know the pump housing information (i.e. Hayward, Pentair, Jacuzzi, etc..) also how far is the pump placed away from the pool?
Reply
What is a replacement motor for a HaywardSP2670007X10?
Reply
Hello Michael. The Century Motor UST1102 is a replacement motor for the Hayward SP2670007x10. This motor differs from the original motor SPX2607Z1MTG but is a replacement. When replacing the motor, a new shaft seal should also be installed. Pump Shaft Seal 3/4" PS-201
Reply
I have a Century pump that is a few years old and it run hot. I think it was rewired incorrectly by the person who put it in. The casing is scolding hot after about 5 minutes of running it. (when rain or water hit it it steams). You can see by the pic that the labels are turning colors from the heat as well as the black casing. Can this motor replace my motor? I am worried about a fire and just want to put in a whole new motor. I included pics of the label and model number. Thank you
Yes, the UST1102 motor will replace your HST110.
Reply
I have a Model VL40T32, Serial # 21121401008213004 pool pump. Is this the correct replacement motor. I have it connected to a 42lb sand filter.
Reply
Hi Sandy, This is NOT the correct replacement motor, you would require this Hayward 40 GPM Replacement Motor unfortunately we are currently out of stock on that motor.
Reply
What would you recommend if i want to replace the entire pump
Reply
Hi Sandy, I would suggest this 1/2 HP Hayward Power Flo Pump
Reply
Will my existing hose from thev old model work with this one
Reply
Hi Sandy, We are not 100% sure if the hose will fit directly onto the pump, if not then let us know and we should carry some adapters which should be able to make your current hose work, or possibly suggest a replacement hose.
Reply
I currently have a Century ST1102, would this UST1102 be a replacement? If so, what seal kit would I need?
Thanks Mark
Reply
No, the UST1102 is not the correct replacement for the ST1102. The impeller for your ST1102 would be too heavy for the UST1102 and it would cause the motor to fail prematurely. We recommend going with another ST1102 motor.
Reply
My Hayward Pool Pump is old so I can not read the tag for the model. The current motor is an old Marathon Motor.
I am looking for a Century motor to replace that Marathon Motor. It is 1HP, Frame 56 J , Code L.
The question is can I replace that Marathon Motor with Century UST1102 motor ???
Yes, the UST1102 will replace your Marathon motor model 5KC49NN2135X.
Reply
Thanks for your quick reply. I have 2 more questions 1. If I replace my Marathon Motor with Century UST1102, Beside the new shaft seal, do I need new Impeller ?? 2. What is the main different between UST1102 and ST1102 ?? Thank again
Reply
You would not a new impeller unless your existing one was damaged. The ST1102 has a higher total HP than the UST1102. The total HP of the ST1102 is 1.5 and the total HP rating of the UST1102 is 1.1.
Reply
My bearings are shot. I have a Century Model C48K2N143B1 Motor pump also has Model SP1607Z1M.
Will this motor be a good swap for replacement?
Also do you have the back and front Bearings for the old Motor C48K2N143B1/SP1607Z1M. I have replaced these bearings before, about 15 years ago on an older Motor. This current Motor is about 9 or 10 years old. For the low cost of a couple of bearings I do not mind taking the time to rebuild the old Motor to have as a back up in the future.
Reply
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We do carry the bearings for your motor and you will require 2 of these 6203 Pool Motor Bearings. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor replace the motor pictured?
Hayward Super Pump SP-1607-Z1-M...
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
what tune up kit would i use for this motor? Century 1.0 hp round flange, 56J, UST1102
Reply
The UST1102 motor is used on several pumps. The tune up kit will depend on the make and model of the pump side. If you are unsure of the pump model, send us a picture of the complete pump.
Reply
Interested in a replacement motor for my Hayward Super Pump, i would like to know if your motors are new or refurbished.
Reply
This pool pump motor comes directly from Century Motors. It is new and not refurbished.
Reply
I have a 1 UMF-S Magnum Force pump and a Century 7-184948-22 motor which is considered the same as the UST1102. Since owning an inground pool is new to me (moved here 4 years ago), I'm wondering what my options are re: replacing the motor? It's tripping the breaker, so figured it would be easier to replace than try to fix. Capacitor was replaced 2 years ago. Is it wise to go up to 1.5 or 2 hp? What considerations should I have in making determinations for the pump/motor? Thanks.
Reply
I typically recommend when you want to upgrade the HP of your motor it is best to change out the entire pump itself. You can change out the motor, but you also need to change out other internal parts like the impeller and diffuser. You also need to make sure your pool filter can handle your new increase HP motor. Here is a link to more information about increasing your HP of your pump...Can I Go With A Higher Horsepower Pump?
Reply
Thank you. That was helpful. Will check out the current motor and see why the power is tripping and go from there. Just that access to the electrical part of the motor is terrible and forces disconnecting the pipes and all. Could be the impeller or other moving parts not, well, moving.
Reply
does the ust 1102 1hp fit c48k2n143b1
Reply
Hi, yes this is the correct replacement motor for your motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Just order pump motor UST1102. Is there anything else I should order? Should I get new gaskets?
Reply
Hi, Renee, When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. Or if you know the make and model of your pump (i.e. Hayward Super Pump, Hayward Super II, Jacuzzi Magnum, etc..) then you could just supply us the name. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Please see attached photo
Hi Renee, Thank you for the photo but we need the photo of the entire pump to include the basket area of the pump and showing the pipes going in and out of the pump. Could you please supply that photo and then we will make the appropriate suggestion.
Reply
Need to replace Hayward Super Pump 1 hp motor. Is this the correct replacement? How long before it would arrive? Neighborhood baby pool is not functional and the moms are driving me crazy.
Reply
I totally understand when the neighborhood moms are out to get you!This is the correct replacement motor for your Hayward Super Pump 1 HP. If you order it today and should leave tomorrow and I am guessing you will see it by the end of the week.
Reply
Explain difference between sq 1102 and st 1102. Need 56J compatibility.
Reply
Hello Edward. The ST1102 is a 1 HP Round Flange (C-Face) 56J frame motor. The SQ1102 is a 1.0 HP Square Flange 48Y frame motor. Based on your need for 56J compatibility, the ST1102 would be the appropriate selection.
Reply
I need this motor. Do you have it?
Hello Todd. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the direct replacement for your current motor. This motor is in stock and available.
Reply
Will this pump work as replacement for Hayward Superpump C48K2N143B1?
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need a list of parts that fit onto an A. O. Smith B228SE (Flange, seal, impeller, etc.)
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I'm looking for a motor to replace my old motor, I will include a picture of the motor, the motor and pump are about 17 years old and still going strong, I'm also going to replace everything while I'm taking it apart, seals, impeller etc, everything up to the strainer housing. I was going to order impeller kit SPX2607CKIT, just wondering if that is the correct seal kit that would fit this motor? Also wondering if I need to order a slinger for the motor?
Hello Dave. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the correct replacement for your current motor model C48K2N143B1. The Drive Train UpGrade Kit 1.0 HP - 5110-52 is the correct Drive Train UpGrade for your Hayward Super Pump and motor HP. The motor shaft seal, seal plate gasket and diffuser o-ring included in the UpGrade Kit are correct for the Hayward Super Pump. (Seal Kits are specific to the pump, not the motor). The new motor will come with the slinger installed on the motor shaft. Generic Super Pump™ Style Drive Train UpGrade Kit 1 HP - 5110-52
Reply
I need a replacement motor for Hayward Super Pump Model: C48K2N14381 Please! What replacement motor do I need? This is a 1hp Hayward
Reply
The UST1102 is the correct replacement motor if you currently have a single-speed motor. If you have a 2-speed motor, you'll need part number STS1102.
Reply
Hello,
I'm trying to find out which kit is needed for the Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 in my pump setup.
I've added some photos and I believe this is the correct motor. Could you confirm my choice is correct?
I have a US Motors 1061 Pool Pump Model # C55CXJMG-2155. I am looking to replace the electric motor section of this Pump. It is a 3450 RPM THP 1.65, 190 Frame 56J INS Class B, MFG# is H19C. Which Elect. Motor do You suggest ?
Reply
Hello Davis. The Century Motors 1.5 HP Up Rate motor model UST1152 is a compatible replacement motor for the motor model C55CXJMG. Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152
Reply
My motor works great but can hear the bearings at the very end cap of the motor making annoying grinding noise. Do I have to replace the whole motor? What else do I need? Hayward Super Pump, C48K2N143B1
Any links to videos to ensure proper install?
Hello Sean. The noise generated could be the result of the motor shaft bearings failing. These bearings are replaceable. Please review the attached. The Century Motors 1.0 HP Up Rate Motor UST1102 is the direct motor replacement. When reinstalling the motor, the motor shaft seal, seal plate gasket, and diffuser o-ring should be replaced. The GOKIT3 contains these parts. Bearing, 203 (Single) - 62032RS How To Replace the Bearings in a Pool Pump Motor - Part I How To Replace the Bearings in a Pool Pump Motor - Part II Tune Up Kit Hayward Super Pump - GOKIT3
Reply
My pump is howling pretty loud. Changed to salt two years ago on this 25 year old pump. Please let me know which motor to buy for direct replacement; the correct salt pool seal kit; and then the part numbers of the two motor bearings so I can rebuild the old motor as a spare. Thank you!
Hello Jim. The Century Motors 3/4 HP Up Rate Motor model UST1072 is the direct replacement for the Hayward Motor model C48J2N131B1. Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 The GOKIT3SALT is the correct tune-up kit for the Hayward Super Pump. Saltwater Tune Up Kit Hayward Super Pump - GOKIT3SALT Century Motors, Motor Bearing 203, quantity 2 required, is the correct motor bearings for the Hayward motor model C48J2N131B1. Bearing, 203 (Single) - 62032RS
Reply
I'm looking for a replacement motor for my pool pump that is compatible with Hayward's SP2607X10 Super Pump Series. I'm needing the motor plus the replacement Seal kit. The motor I'm replacing is an AO Smith Model C48K2N143B1. Do you have both the motor and replacement seal kit in stock?
Reply
Hello Peter. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the compatible replacement motor for your Hayward Super Pump model SP2607X10 with motor model C48K2N143B1. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the parts necessary to complete this repair. Tune Up Kit Hayward Super Pump - GOKIT3 All parts are in stock and available.
Reply
Is this motor the correct replacement for the AO Smith 0-164303-23? All the specs look the same except for the Amps, which are slightly different. Also, can you please provide the right seal kit for the Hayward pump pictured?
Thank you for contacting Inyo Pools, Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 and GOKIT3 is the right replacement motor and seal kit
Reply
What is the warranty for this pump?
Reply
Hello. All Century motors are warranted against defects in material and workmanship for a period of 12 months from the date of installation or 24 months from the date of manufacture, whichever comes first. Attached please find the Century Motors Statement of Warranty Policy. Statement of Warranty Policy
Reply
I’m looking for a replacement motor and whatever other parts I need to get in order to replace the motor in a Century HSQ125. Thanks in advance!
Reply
Is this a buster pomp motor for a pool swipe?
Reply
Hello Carol. The Century Motors 3/4 HP Motor model B625 is a replacement Booster Pump Motor for the Polaris Booster Pump Model PB4-60 (2011-Current). Polaris Booster Pump 3/4 HP Motor - B625 Polaris Booster Pump PB4-60 (2011-Current) If this is not the motor you are researching please provide additional information so that the appropriate recommendation can be made.
Reply
I have a Jacuzzi Magnum Force filter, Model # 94027110 with a Magnetek 10-184948-22 pump and I need to replace the pump. Your site says an Century ST1102 is the correct replacement. It looks like I will need to replace a plastic flange (see photo) that I cannot remove because the bolts and so badly rusted. Do you have this flange?
The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 can be used as the replacement motor on Pump Model 94027110. If you need a shorter motor due to space limitations, you may use the Century 3/4 HP Round Flange 56J Full Rate EE Motor - B638 The Housing Bracket (02136802r000) & Carvin/Jacuzzi Magnum Series - GOKIT14 will be needed for your repair. If you have a salt pool add PART # 5250-235 Pump Seal 201, Extra Heavy Duty. True Pump Horsepower - Up Rated vs Full Rated
Reply
I need a recommendation on a replacement motor plus Gokit for this US Motors motor on my Hayward filter
Hello Larry. The Century Motors 1.0 HP Up Rate Motor model UST1102 is a compatible replacement for the US Motors AST125. Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 The GOKIT3 contains the necessary parts to complete this project: motor shaft seal, seal plate gasket, and diffuser o-ring. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
I need to replace my motor. Is this the correct one?
You would want this Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 to replace the C48J2N131B1 motor on your Hayward Super Pump. Be sure to get a GOKIT3 Tune-Up Kit if you have a freshwater pool or a GOKIT3SALT for saltwater pools for a leak-free installation.
Reply
Can you confirm if this is the correct motor to replace my A.O Smith C48K2N143B1.
Thank You
Hello Narciso. The Century Motors 1.0 HP Up Rate Motor model UST1102 is a compatible replacement motor for the Hayward Motor model SP-1607-Z1-M, C48K2N143B1.
Reply
Is this motor a compatible replacement for US Motors Model K63cxdgh-5169?
Reply
Hello Mike. The U S Motors model K63CXDGH-5169 cross-references to the Century Motors 1.0 HP Full Rate Motor model B654. The Century Motors 1.0 Up Rate Motor model UST1102 is not comparable.
Reply
I have CENTURY ST1102 CET40ABM 1 HP motor model C48L2N134C2 CCW ROTATION
CAN I HAVE A LIST OF PARTS FOR SEAL HOUSING, DIFFUSER, AND IMPELLER THAT FIT THIS MOTOR FOR A MAGNUM FORCE HOUSING MADE AFTER 2003
Reply
Hello John. The Century Motors model ST1102 is a 1.0 HO Full Rate Motor with a total horsepower rating of 1.5 HP. The Magnum Overhaul Kit 1.5HP is part number 24010308K contains the parts you are requesting. 1.5 HP Jacuzzi Magnum Overhaul Kit - 24010308K Attached please find an exploded parts diagram of the Magnum Force Pool Pump for reference. Jacuzzi Magnum
Reply
which housing part no.??
Reply
It is 02-1392-02-R Housing, Seal 02-1392-02 (02139202r000) ordering PART # 5064-18D https://www.inyopools.com/Products/07501352019330.htm
Reply
Hi,
Will this pump replace Century motor, Model # HST 110?
Ser# 34513CHCL030291039
Other Ser # 34513CH
If not this motor, which will work and also, what other parts would I need to do a full replacement? (o-Rings, Seals, Gasket?)
Hi Taylor, yes, the Century 1.0 HP Motor - UST1102 will be a perfect replacement for your old HST110. The seals are dependant upon the pump and not the motor - let us know the model number of the pump is so we can recommend exactly what you need.
Reply
Hi - what is normal life expectancy of this motor? We replaced our Hayward Super II motor with one (Model UCT1102) in 2014 and now it's taking longer and longer to start - just hums for 15-20 seconds but runs normaly after starting. The run time per day is 4-5 hrs on average. Thank you.
Reply
Thank you for calling Inyo Pools, Typically motors last 6-8 years. However other factors can come into play like environmental, overheating, or the pump running dry. This could be the capacitor or it could simply be the motor going bad.
Reply
Can the capacitor be replaced on an AO Smith #ST1102 motor? Or does the entire motor need to be replaced when starting the motor is labored and delayed due to a faulty capacitor?
Reply
Hi Kurt, if you are sure the capacitor needs to be replaced (use this guide to check it) then you can replace the Start Capacitor 161-193 MFD - BC-161 in your ST1102 motor. Read our guide on How To Replace a Pool Pump Capacitor to be sure you do it safely.
Reply
Will this motor be an ideal replacement? Just double checking before purchasing. Thank you.
Hello Joseph. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the exact motor replacement for the Century Motor UST1102 identified in your photo.
Reply
Will the 1.0 HP Round Flange 56J Up Rate Motor - UST1102 fit my Hayward Super Pump housing #SP1600AA? Current pump housing pictured here. Also, I replaced motor 2 years ago and it burned out. Should I be running a 1.5 or more? Or is 1HP plenty? Also, learned the hard way & bought a SQUARE Flange that didn't fit--now I'm asking first to make sure I have right HP and Flange size and shape? Also, should I replace the impeller and diffuser with an upgrade kit too while I'm at it? Thanks!
Hello Todd. The Century Motors 1.0 HP Up Rate Motor model UST1102 is compatible with the Hayward Super Pump (w/ housing SP1600AA). The pump's motor is matched to a specific Impeller. The Super Pump Impellers compatible with the UST1102 (1.0 HP Up Rate) are SPX1607-C, SPX1608-C, and SPX2607-C. If your impeller is stamped with any of these identifications, the correct replacement motor is the UST1102. Attached please find an exploded parts diagram for the Super Pump for reference. Hayward Super Pump It is not necessary to replace the impeller or diffuser unless they are showing signs of fatigue or wear. The GOKIT3 contains the necessary seals and gasket to complete this project. GOKIT3
Reply
I'm trying to locate the correct replacement motor for my pump. Motor is Hayward super II SP1607Z1MB, pump model is SP3007X10AZ, and Impeller is SP3000-C.
Reply
Hello Scott. The Century Motors 1. HP Up Rate Motor model UST1102 is a compatible motor replacement for the Hayward Super II SP3007X10AZ, motor model Sp1607Z1MB. UST1102 The GOKIT2 contains the motor shaft seal, seal plate gasket, and diffuser o-ring necessary to complete this project. GOKIT2 Attached please find the Hayward Super II exploded parts diagram for reference. Hayward Super II SP3000 Series
Reply
Will your Motor replace the one in the picture
Hello Terry. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible motor replacement for the Hayward Motor C48J2N131B1. The Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 is the direct replacement motor. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the seals and gaskets necessary to complete the motor replacement.
Reply
I have a hayward pool pump with a 1 HP motor
the motor is a Dyna-tech with a 1.5 SF.
Will this motor with a 1.1. SF be correct replacement
Reply
Hello Tim. The Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 more closely matches the motor specifications of the Dyna-tech 1.0 HP 1.5 SF (1.5 total horsepower) motor. Please note that the UST1152 is a round flange motor and is compatible with most Hayward Pool Pumps. However, Hayward does manufacture/market pool pumps with square flange motors as well. Please verify that the UST1152 is compatible with your specific Hayward pool pump.
Reply
I have a heyward super pump and need a motor replaced My model is C48K2N143B1. Would this motor fit and work for me?
Reply
Hello Tom. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible replacement for the motor model C48K2N143B1. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary seals and gaskets to complete the new motor installation.
Reply
Hi, was wondering if this could replace this particular motor?
Hello Peter. The Century 1.0 HP Round Flange 56J Full Rate EE Motor - B654 and Century 1.0 HP Round Flange 56J Full Rate Motor - ST1102 are compatible motor replacements for the US Motors EB654. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is not a comparable replacement unless an impeller change was completed.
Reply
GOOD MORNING, I HAVE A HAYWARD MODEL C48K2N143B1 PUMP; CAN I USE THIS THAT YOU OFFER? THANKS A LOT
Reply
Hello Raul. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible replacement motor for the motor model C48K2N143B1.
Reply
Replacing a Centery HST110, C48AB47A01 motor
on a Hayward SP3007X10 pump
is the Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 motor a suitable replacement?
Confused because my documentation for for the pump specifies a C-flange, the above pump is round flange
Reply
Hello Charlie. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible replacement motor for the Century motor HST110, C48AB47A01. Round Flange motors are often referred to as C-Face motors, they are one in the same. The connection bolt patterns are identical. The Tune Up Kit Hayward Super II - GOKIT2 contains the motor shaft seal, seal plate gasket, and diffuser o-ring that should be replaced concurrent with the new motor.
Reply
Good morning, is this compatible with the attached photo?
Hello Israel. The Century Motors model T1102 is a 1.0 HP, 1.4 SF, 1.4 Total Horsepower(THP), single-speed motor. Horsepower(HP) X Service Factor(SF) = THP. The Century Motors models Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 or Century 1.0 HP Round Flange 56J Full Rate Motor - ST1102 would be more compatible replacement motors. A small incremental increase in THP is preferable to a small incremental decrease in THP. The Century Motors model UST1102 has a THP of 1.1.
Reply
I need a new motor- Can you tel me if this motor is the correct replacement? Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854
Thanks
Hello Karen. The Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 is a compatible motor replacement for the A O Smith Century Centurion motor model 7-193986-24.
Reply
I need a replacement motor for the followiing pump:
MOD# 193986, single speed, FRAME Y56Y, HZ 60, RPM 3450, PH 1, Volts 230/115, AMPS Sf 8.0/18
Total motor HP is 1.65
Rated HP 1.5
SF 1.10
Reply
Hello Wasel. The Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 is a compatible replacement motor for the motor model 193986.
Reply
Would this motor be a replacement for this motor?
Hello Stan. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible replacement motor for the Century Motors C48K2N143B1.
Reply
Is this pump 1.0 or 1.1HP? I'm finding conflicting information online. Also, is this the proper replacement for a Century HST110?
Also, what would the flow rate for this be with a Hayward Perflex ES65 filter system?
Reply
Hello Brad. The Century Motors HST110, motor model C48AB47A01, is a 1.1 HP, 1.0 Service Factor (SF), 1.1 Total Horsepower (THP), C-Face (round flange) Single-Speed Up Rate Motor. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is the proper replacement motor. Flow Rate would be determined by the pump manufacturer/model on which the HST110/UST1102 is installed. Please provide pump manufacturer/model information and Performance Data can be referenced.
Reply
Is this a direct replacement for Hayward Super Pump SP1607z1M? Thank you
Reply
Hello Kevin. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a direct replacement for the motor SP1607Z1M. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the seals and gaskets necessary to complete the new motor installation. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
Does this replacement motor include the seal kit or must you purchase that separate? If separate purchase is necessary, please list which seal kit I must purchase. Thank you!
Reply
Hi Taffy, unfortunately these motors do not come with the needed seals and gaskets however here is our Finding the Tune-Up Kit for Your Pool Pump guide that should assist.
Reply
My Hayward 1 HP is model C48K2N143B1 115/240 V The 4 bolt holes project out a little from the front casting that seals against the pump body. Will the century motor bolt pattern, shaft and gasket flange match up with the Hayward bolt holes, impeller shaft and pump housing?
Reply
Hello Douglas, yes the UST1102 is the correct single speed replacement motor for the motor model C48K2N143B1. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
Morning. Would like to know if this is compatibility and whether I need any addl parts for the swap out.thanks!
Hello Matt. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is a compatible replacement motor for the Hayward/Century Motor model C48K2N143B1. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary parts to complete the new motor installation on the Hayward Super Pump. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
Is this motor compatible with 1hp Hayward super pump model housing that it bolts to is #SP2607X10. The original number is burnt off so don't have numbers off nameplate.
Thank you
Reply
Hello Rhonda. The Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 is the compatible replacement motor for the 1.0 HP Hayward Super Pump model SP2607X10, The Tune Up Kit Hayward Super Pump - GOKIT3 contains the seals and gaskets necessary to complete the new motor installation.
Reply
Can I use this motor to replace this motor
Hi Ralph, the correct direct replacement motor is the UST1072. It is also recommended to replace the seals and gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist with that.
Reply
What is the dimension of the hole where the wires go into the motor from the outside.
Reply
Hello David. Attached please find the manufacturer's Drawing - UST1102. Drawing - UST1102 The wiring port has a diameter of 3/4" and is compatible with a 1/2" conduit fitting or 1/2" Romex connector.
Reply
is this a weatherproof motor
Reply
Hello John, yes these motors are outdoor weatherproof. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
can you tell me if i can use this power end spx3210z1pe on my pump sp3220ee and do you sell threaded ends that go into the pump housing
Reply
This will not work for your SP3220EE pump; it does not have enough horsepower. A new 2HP SQ1202 and a Tune Up Kit Hayward TriStar/EcoStar will get you back up and running. All other parts for your pump are located here.
Reply
Does this pump has a warranty?
Reply
I have a ceased Century HST110 (C48AB47A01) - Does this replace that?
Hello Jon, yes this is a compatible motor replacement for your motor part number C48AB47A01. You can also use the Pureline brand model PL1103. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with locating those.
Reply
Is this the replacement motor for SP1607-Z-1-MXBK Max Flo Pump?
Hello Jeff, yes this single speed motor is compatible to replace your motor model sp1607-z-1-mxbk however, due to California Title 20 code you are required to replace these motors with an energy efficient model. In your case, I would recommend replacing this motor with the motor model ECM16CU. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Based on your motor image if this is the original motor that came with the complete pool pump then you will need the GOKIT1.
Reply
I need 2 end bell bearings for this pool pump motor, can you tell me the number for the bearings .
Hello Don. Attached please find the Century / A.O Smith UST Series UST1102 exploded parts diagram. The Pool Pump Motor Bearing, 1.5748" OD - 6203 is the correct bearing, qty 2 required.
Reply
Is this the proper replacement for this motor?
Hello,Yes, the Century (A.O. Smith) 1.0 HP Up Rate Motor, Round Flange 56J Frame Single Speed - Model UST1102 will be the correct replacement motor. However, you will also need a seal kit for the motor replacement; if you can provide the model of your pump housing, I can also recommend a seal kit as well.
Reply
Is this a replacement motor for Hayward Super II SP3010EEAZ pump?
Reply
Hello, this motor is compatible with the Super II-- you will just want to make sure that the total horsepower of the UST1102 matches up with your original motor. Also, you will want to purchase a seal kit for the motor installation, which would be the Hayward Super II Saltwater Seal Kit - Model GOKIT2SALT.
Reply
